Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| SKU: |
113585 |
| Make/Model: |

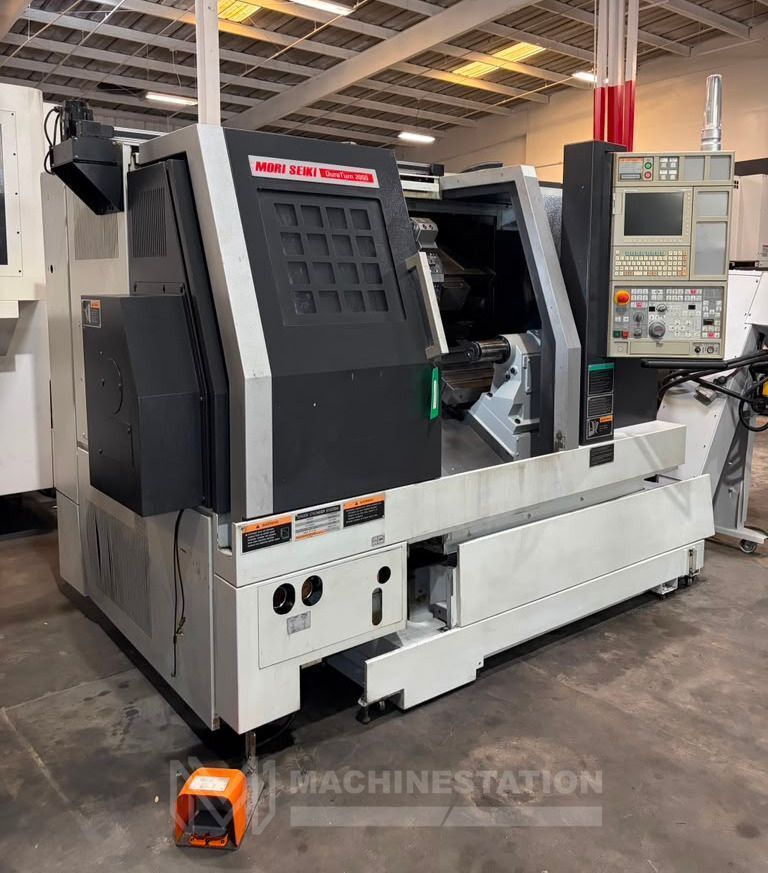

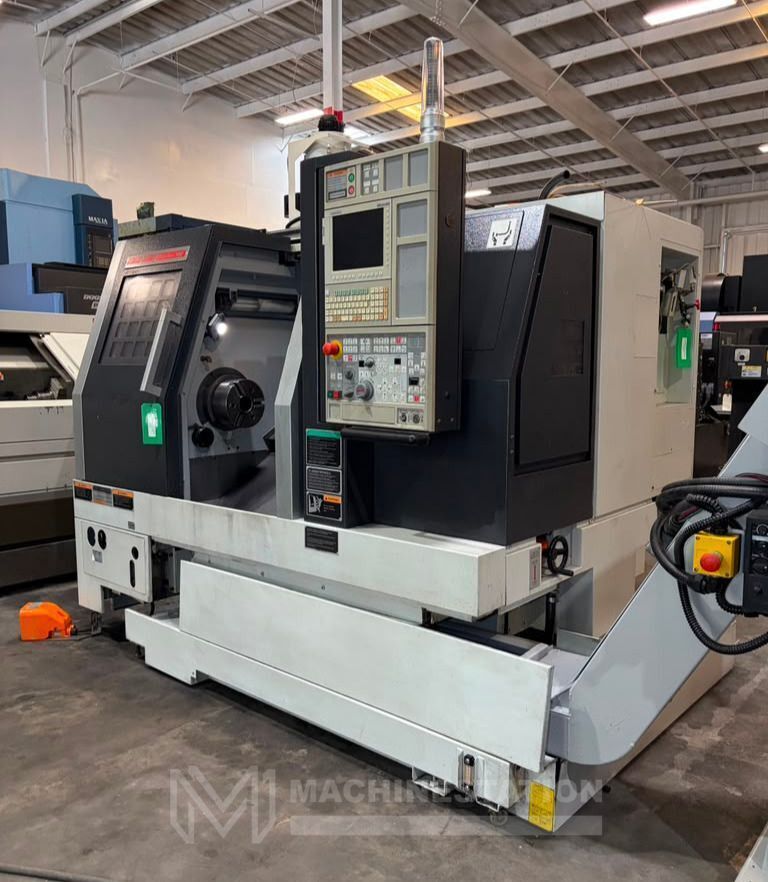

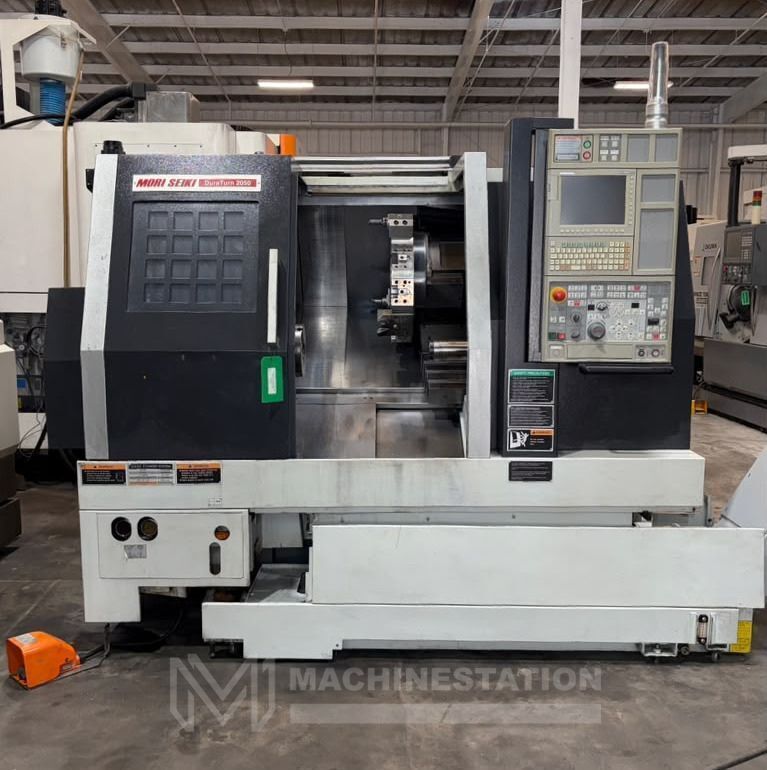

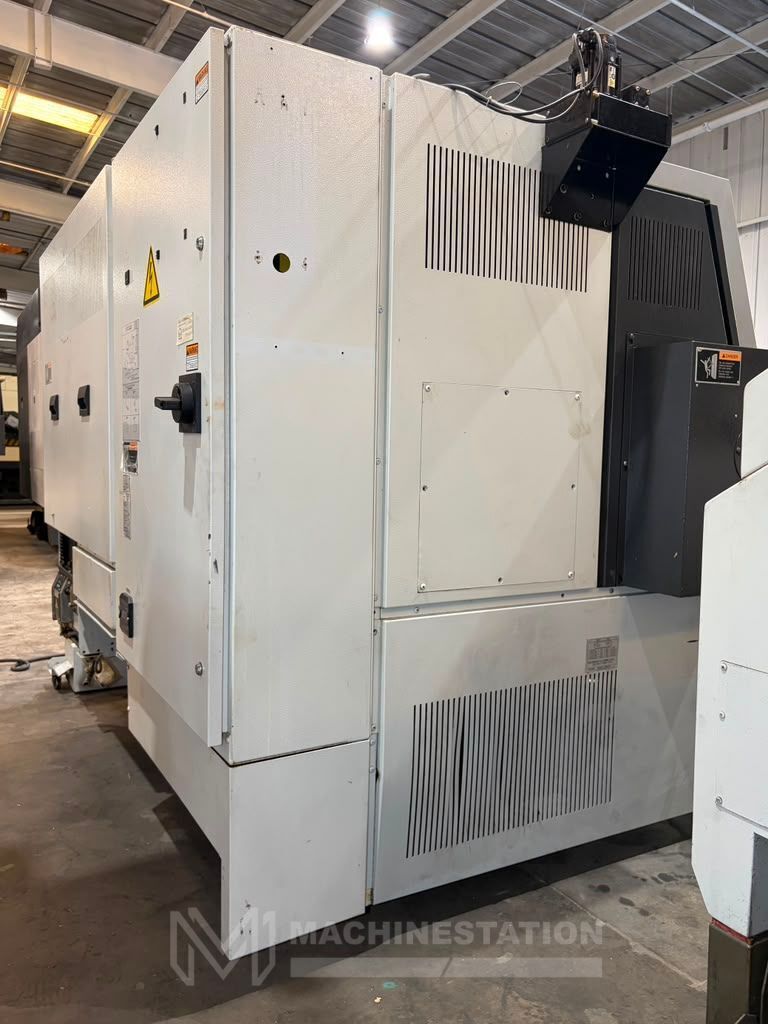

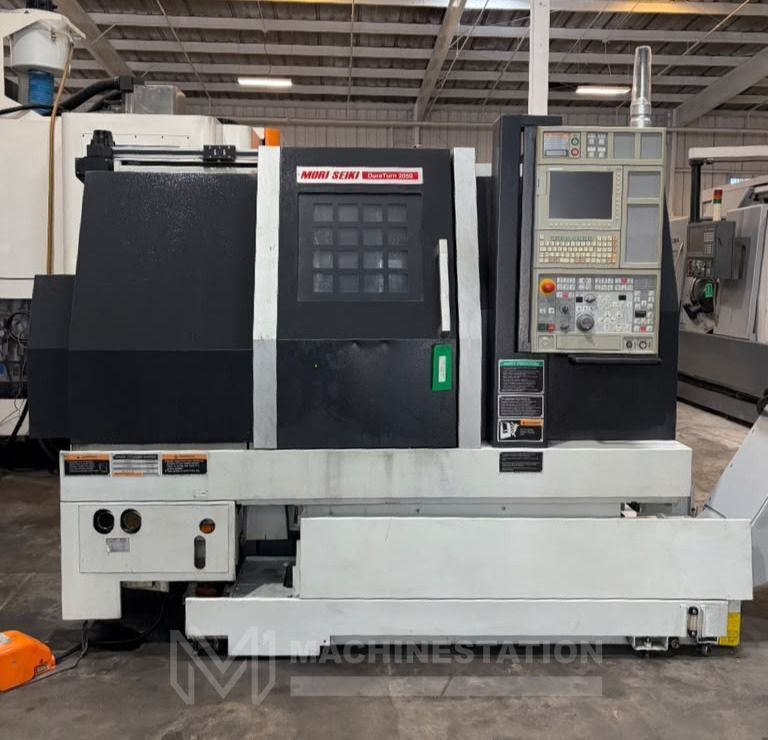

Mori Seiki DuraTurn 2050 |
| Year: |
2012 |
| Equipped With: |

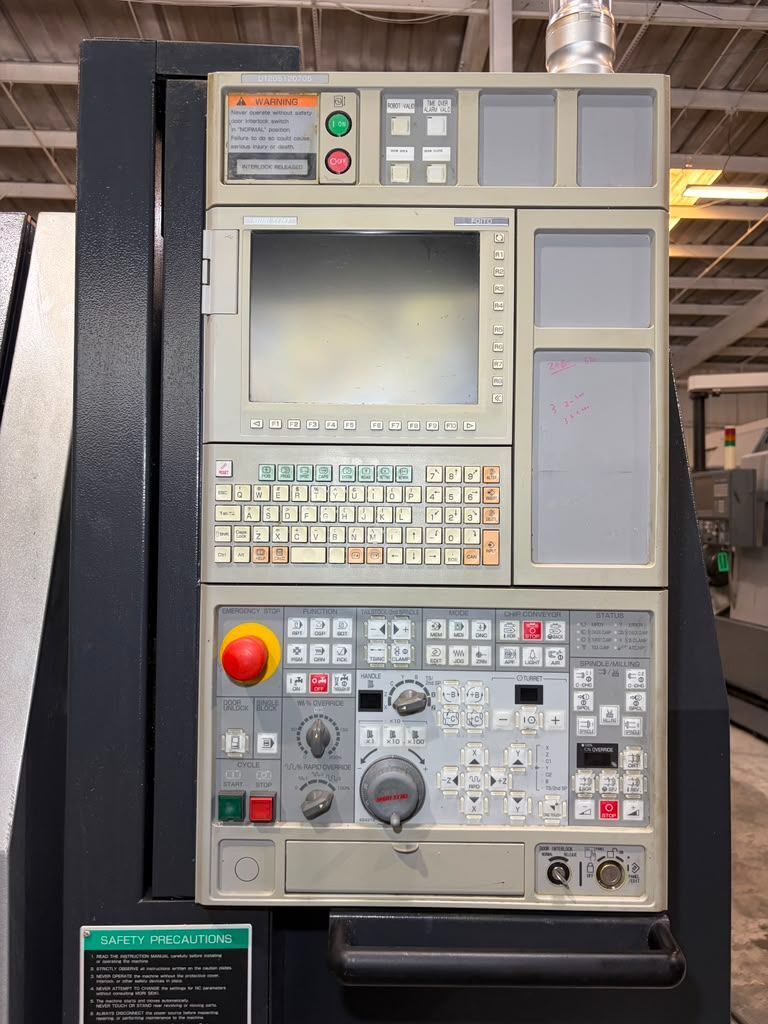

| Fanuc Oi-TD Series CNC Control |

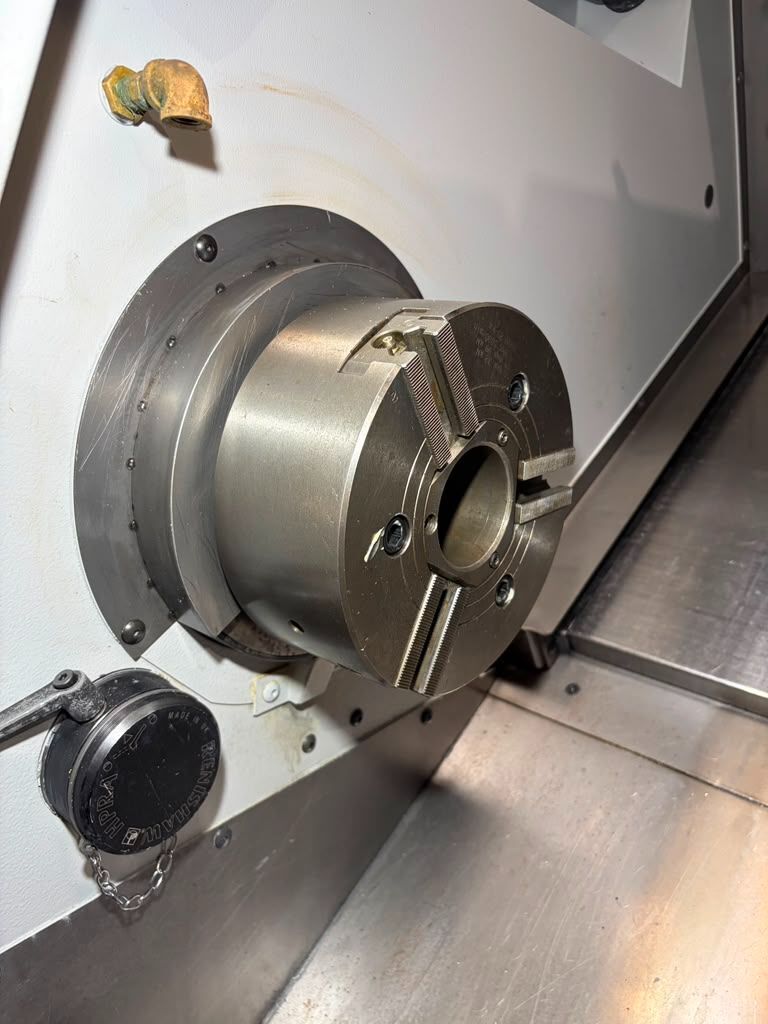

| 8″ 3-Jaw Hydraulic Chuck |

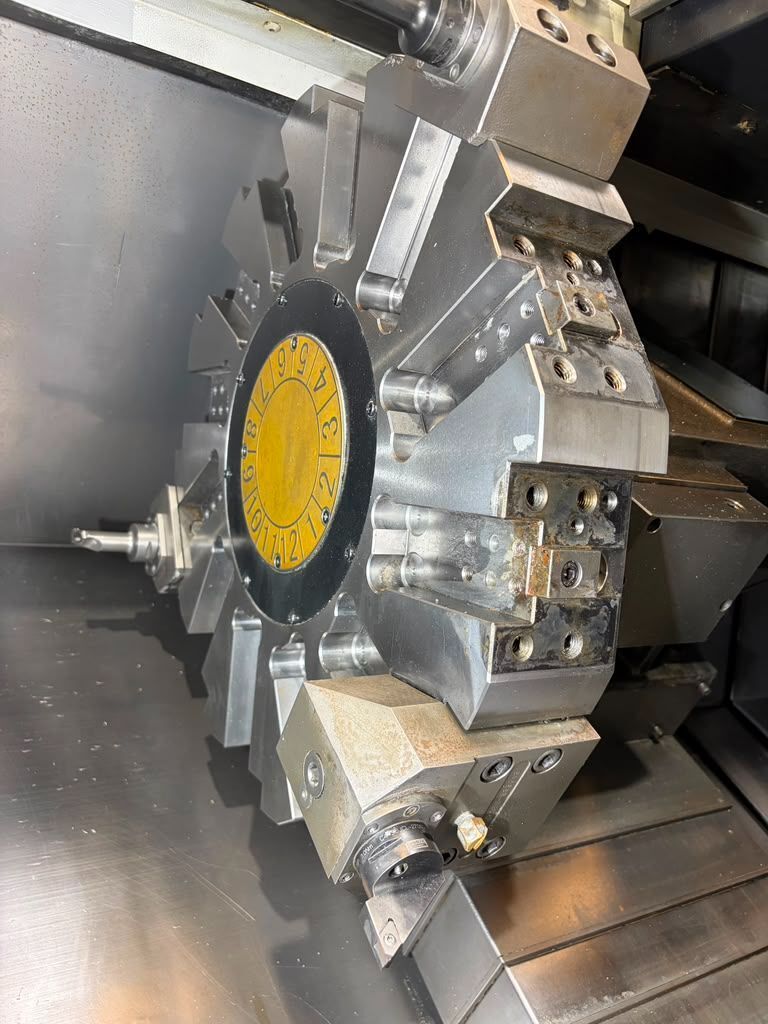

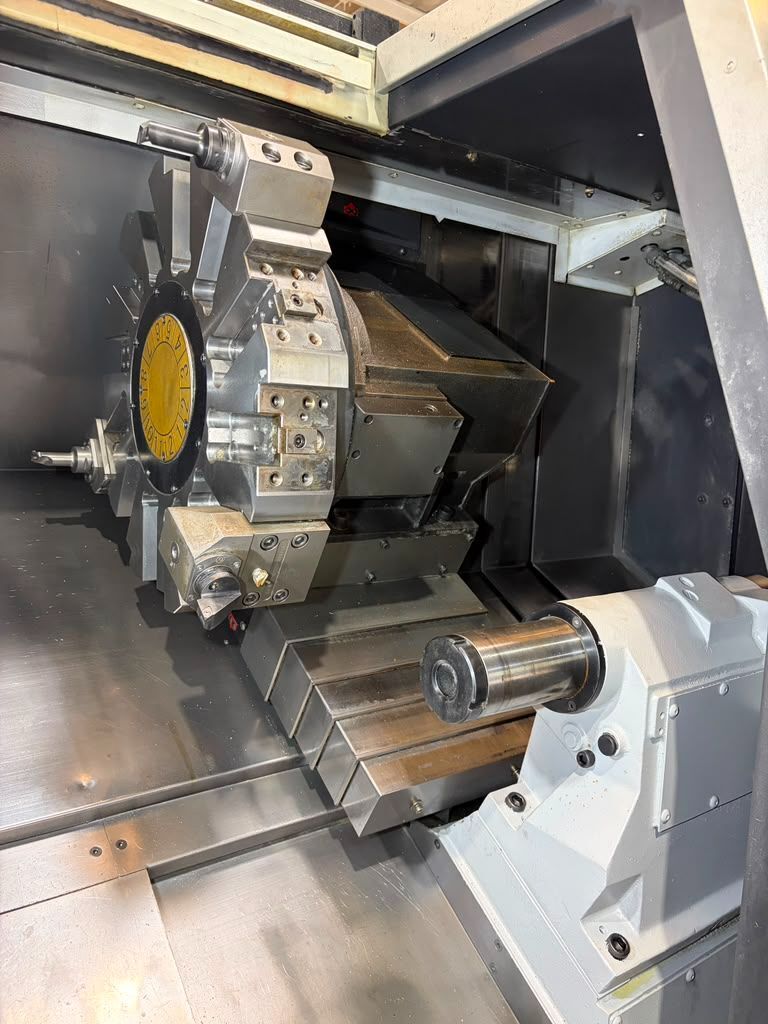

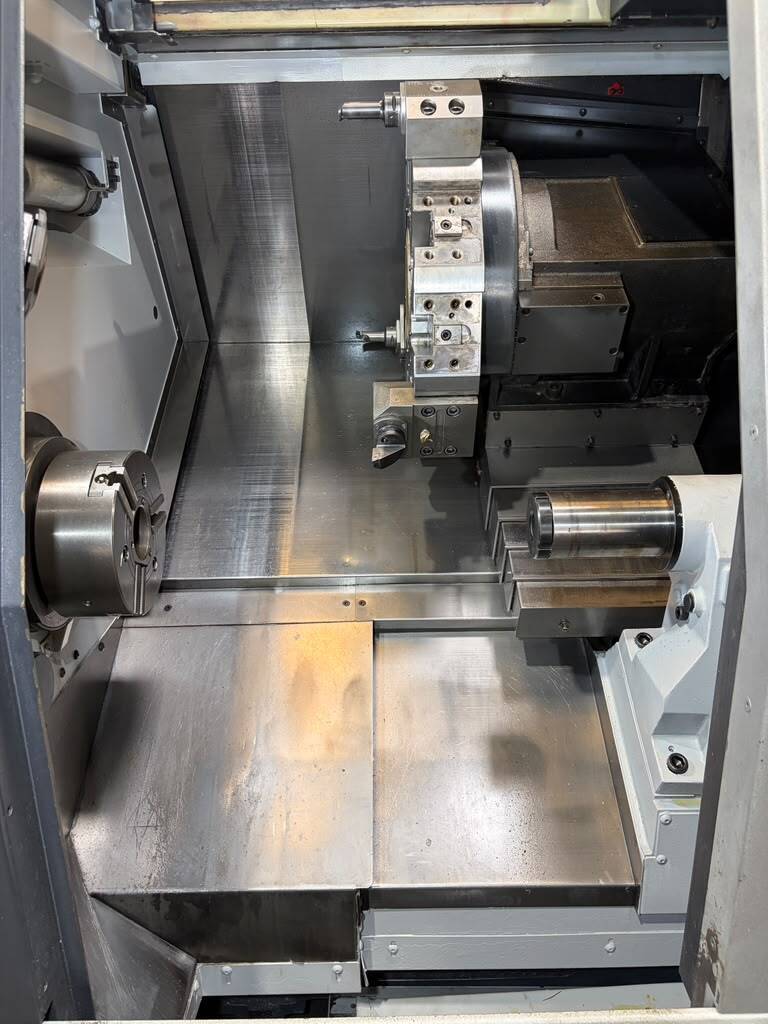

| 12 Station Automatic Turret |

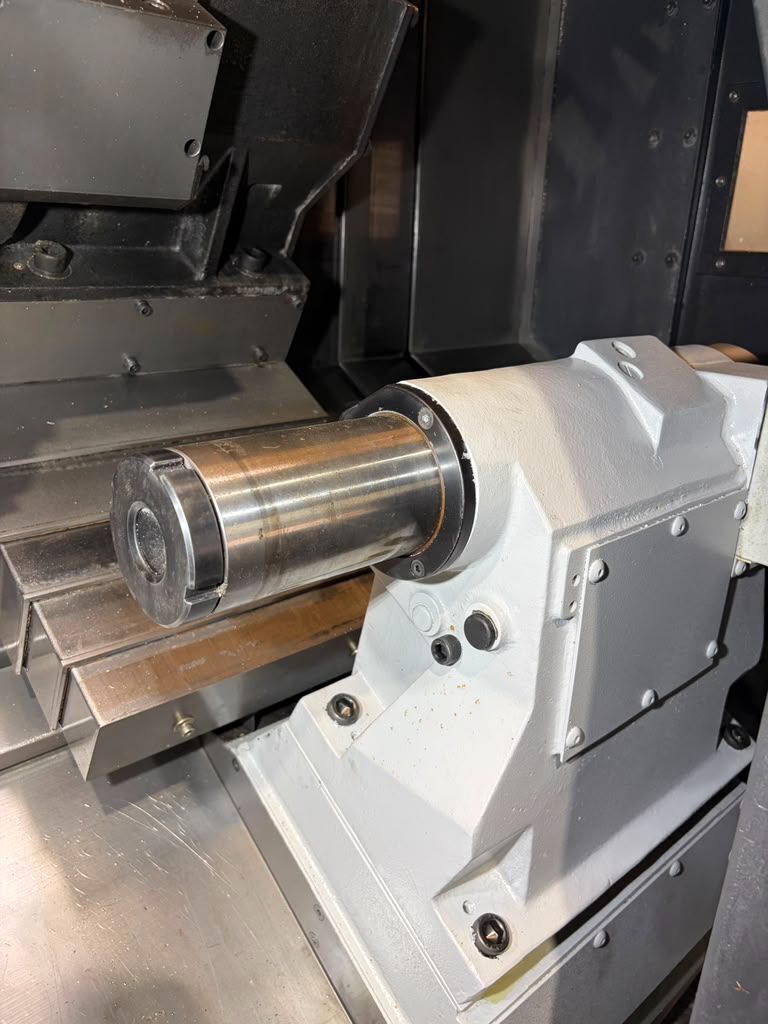

| Programmable Tailstock |

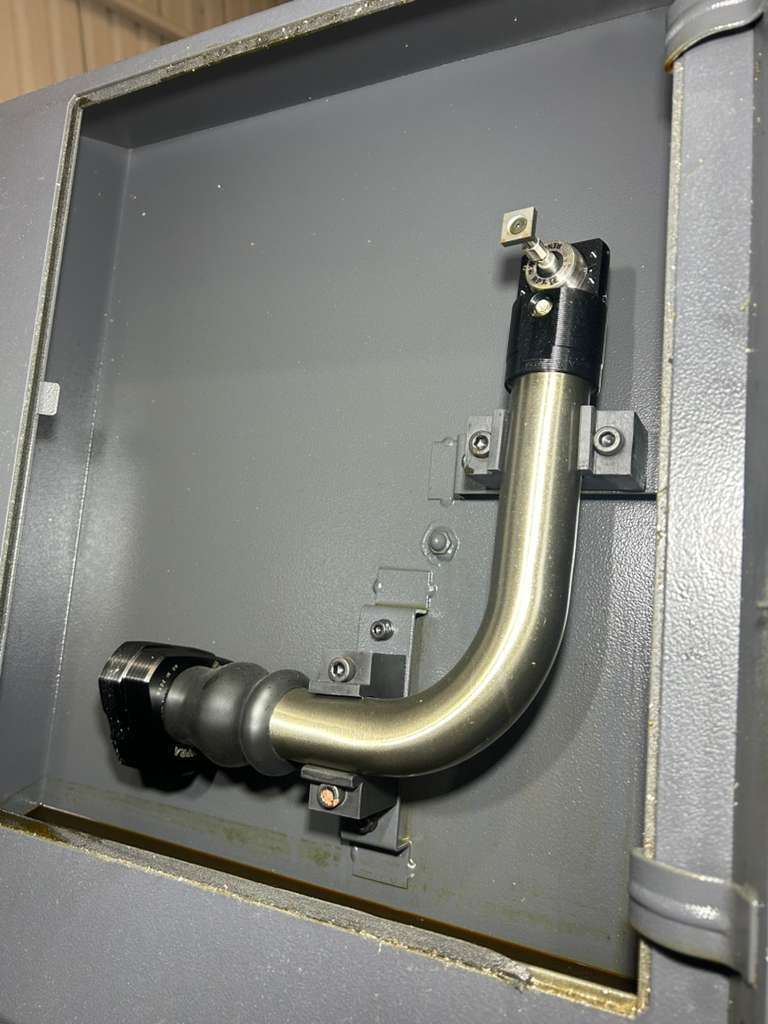

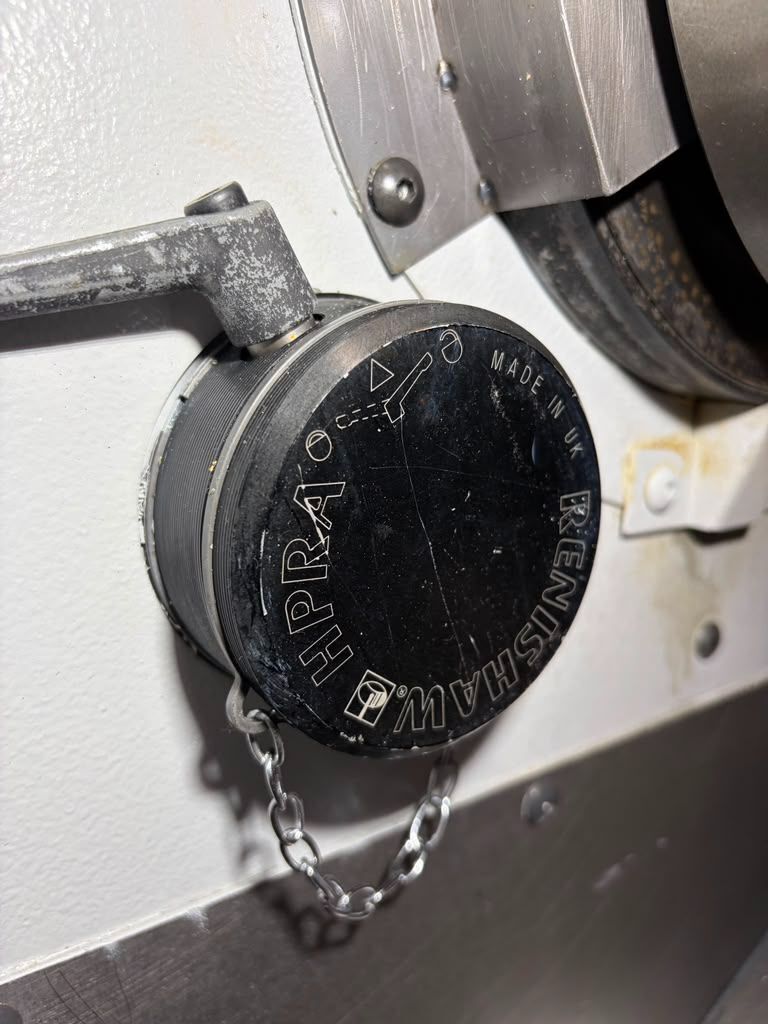

| Automatic Tool Presetter |
| PCMCIA Card Slot |
| Rigid Tapping |
| Coolant Tank Without Pump |

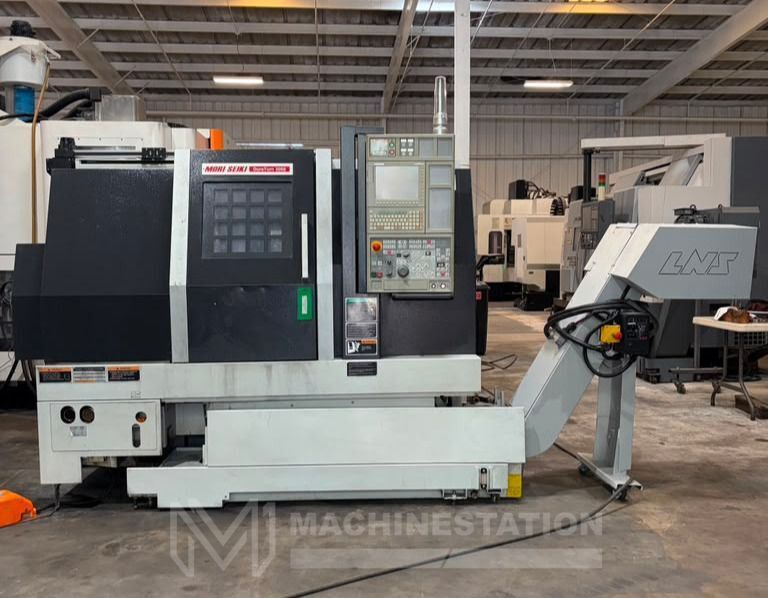

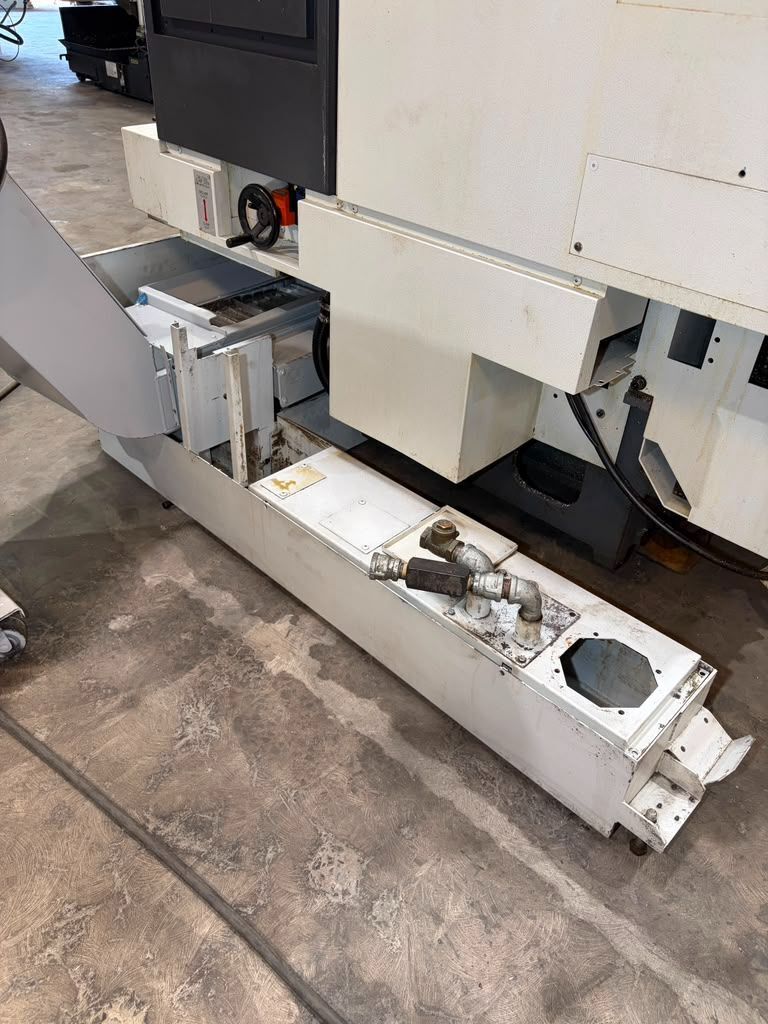

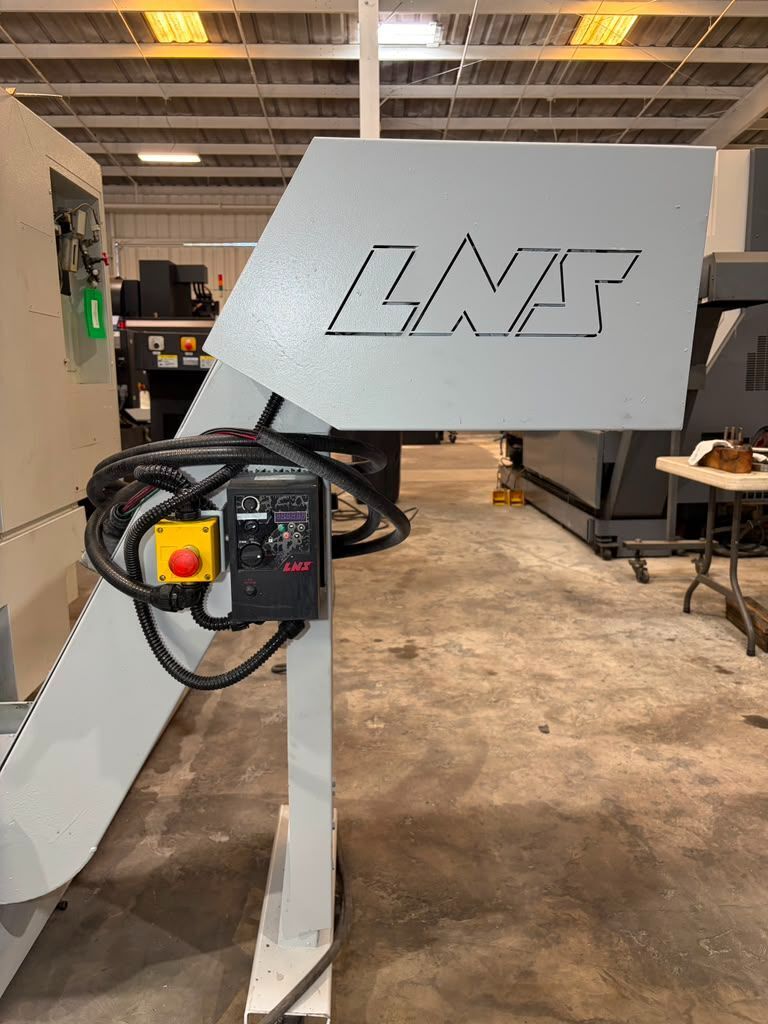

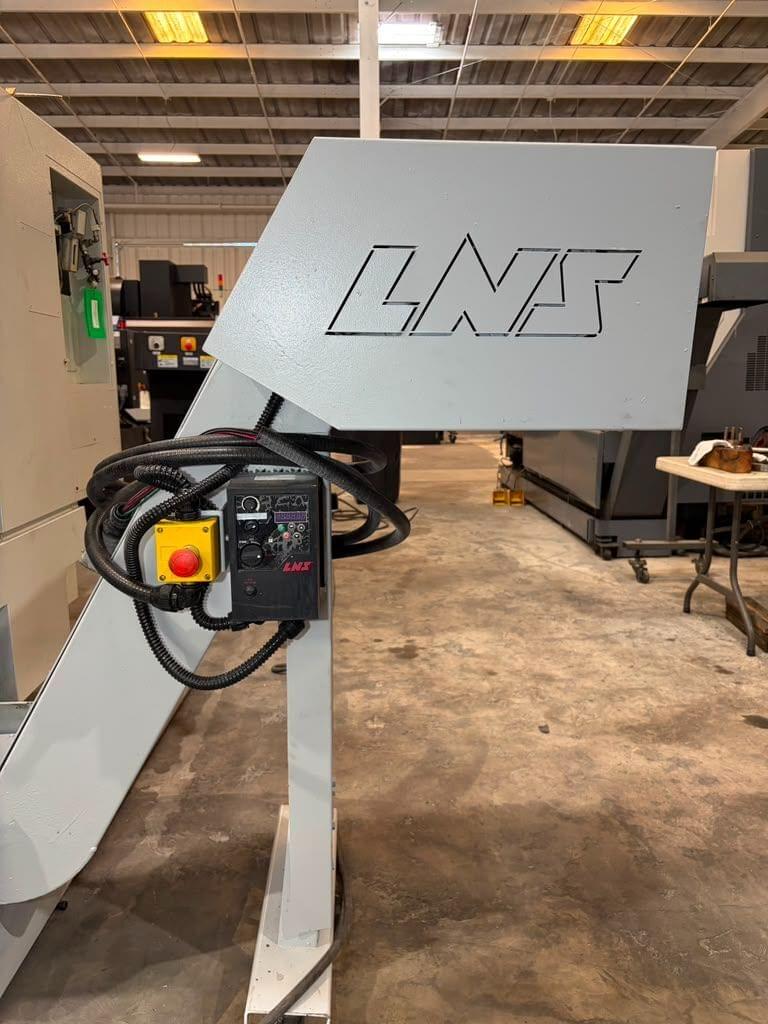

| Chip Conveyor |
| Foot Switch |
| Capacity: |
| Max Turning Diameter: 14.50″ |
| Max Turning Length: 20.80″ |
| Max Bar Capacity: 2.00″ |
| Swing Over Bed: 24″ |
| Swing Over Cross Slide: 18.90″ |
| Travels: |
| X Axis Travel: 8.3″ |
| Z Axis Travel: 22.4″ |
| Rapid Traverse X Axis: 945 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle: |
| Spindle Nose: A2-6 |
| Spindle Bore: 2.56″ |
| Spindle Speed: 4000 RPM |
| Spindle Motor: 18 HP |
| Turret: |
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.25 Second |
| Tailstock: |
| Tailstock Taper: MT-4 |
| Tailstock Quill Dia.: 3.1″ |
| Tailstock Quill Travel: 3.14″ |
| General: |

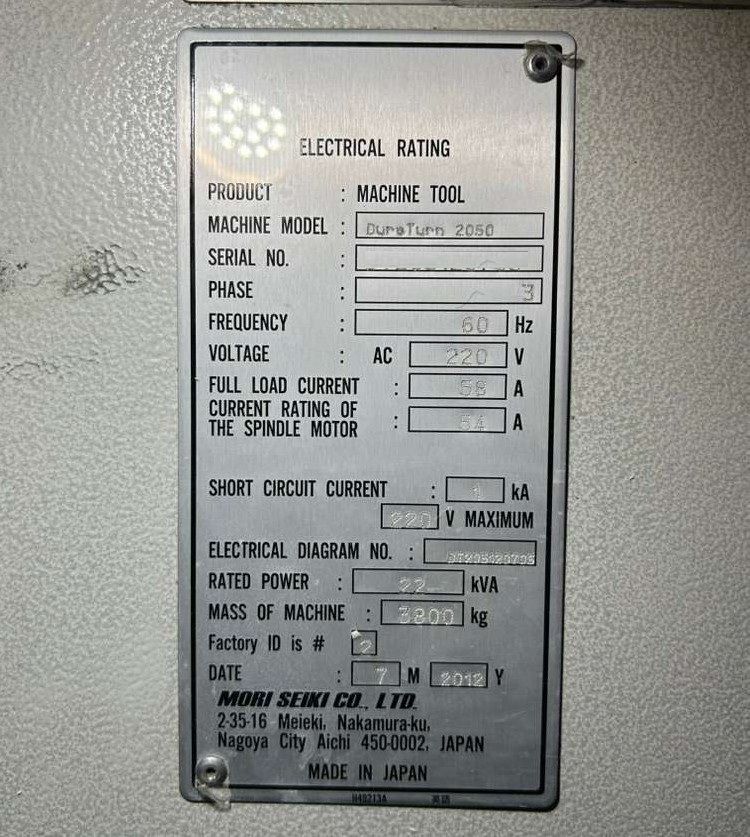

| Power Source: AC 220V / 3-Phase / 60 Hz |
| Power Requirement: 22 kVA |
| Machine Dimensions: 86″ x 72″ x 69″ High |
| Machine Weight: 8,378 lbs Approx. |
