Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

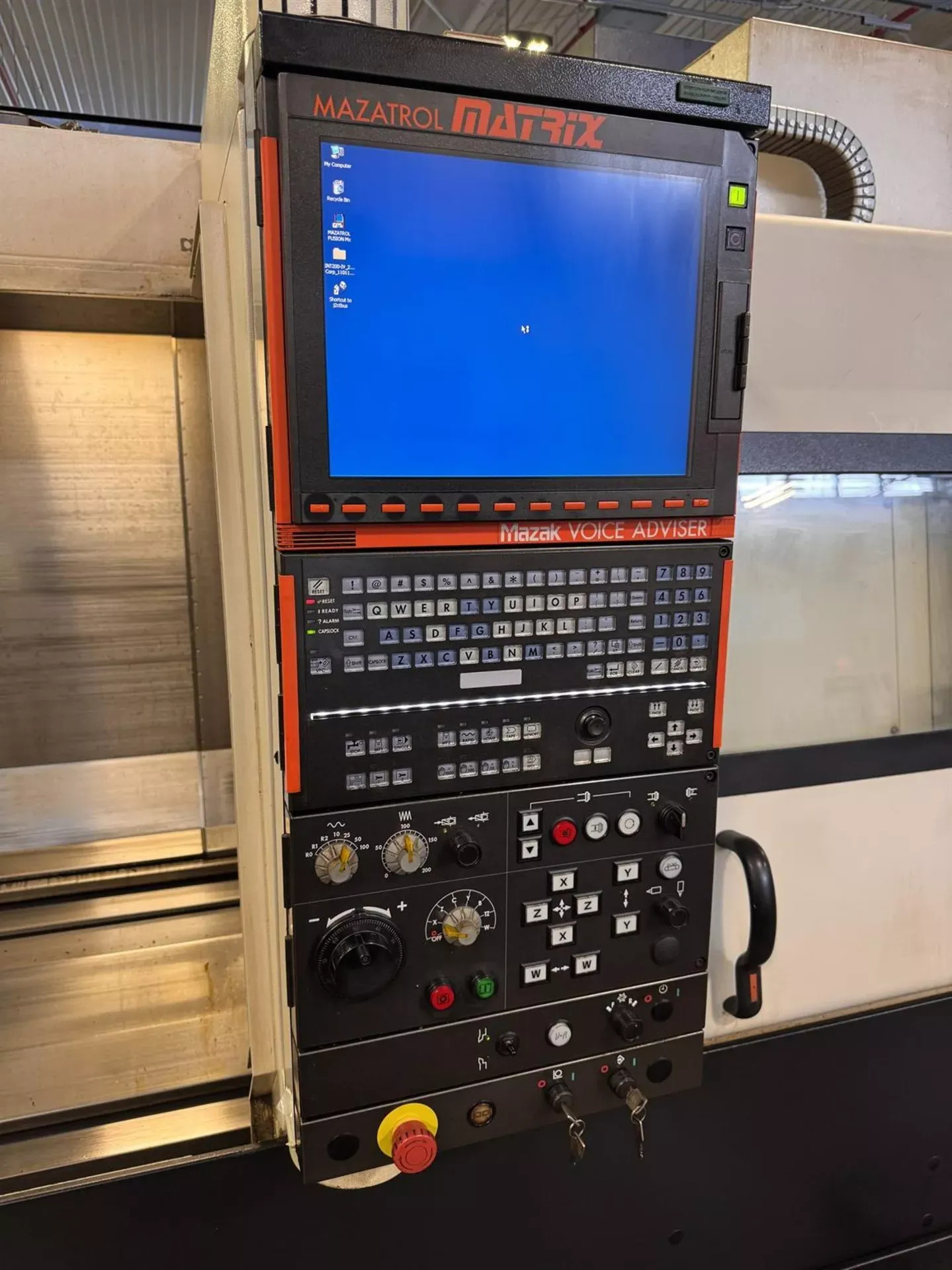

| Mazatrol Matrix CNC Control |
| Linear Ways Construction |
| 12,000 RPM Pendulum Milling Head |
| 40 Station Tool Magazine |
| 9 Station Lower Turret |
| Sub Spindle |
| Servo Controlled Full C-Axis on Both Spindles |
| Y Axis Capability |

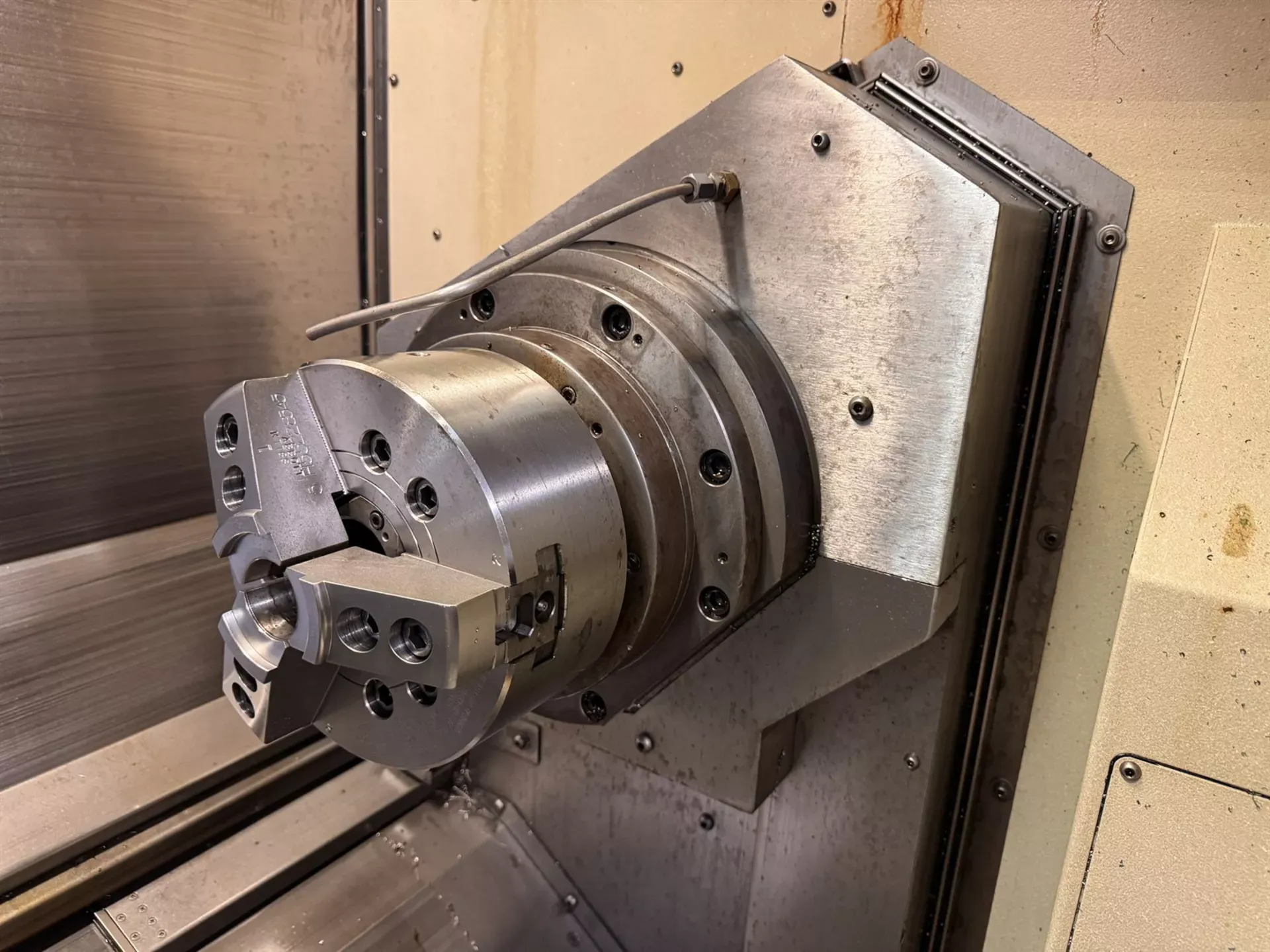

| 8″ Chuck on Main Spindle |
| 8″ Chuck on Sub Spindle |
| EIA/ISO Programming |
| 3D Coordinate Conversion |
| Rigid Tapping |
| PCMCIA Card Slot |
| High Pressure Coolant |
| Coolant Tank |
| Foot Operated Control for Chuck |
| Chiller Unit |
| Chip Conveyor |
| Capacity: |
| Max Turning Diameter: 26.0″ |
| Max Turning Length: 60.0″ |
| Max Bar Capacity: 2.55″ |
| Max Swing Over Bed: 26.0″ |
| Max Swing with Y-Axis: 19.70″ |
| Max Weight on Main & Sub Spindle: 660 lbs |
| Travel: |
| X Axis Travel: 22.83″ |
| Y Axis Travel: 6.30″ ( +/- 3.15) |
| Z Axis Travel: 60.83″ |
| W Axis Travel: 58.66″ (Sub Spindle) |
| B Axis Travel: 225 Degree |
| C Axis: 360° (0.001°) Both Spindle |
| X Rapid Traverse Rate: 1496 Inch Per Minute |
| Y Rapid Traverse Rate: 1093 Inch Per Minute |
| Z Rapid Traverse Rate: 1496 Inch Per Minute |
| Spindle: |
| Main Spindle Nose: A2-6 |
| Sub Spindle Nose: A2-6 |
| Main Spindle Bore: 2.99″ |
| Sub Spindle Bore: 2.99″ |
| Main Spindle Speed: 35 – 5000 RPM |
| Sub Spindle Speed: 35 – 5000 RPM |
| Main Spindle Motor: 30 HP |
| Sub Spindle Motor: 25 HP |
| Milling Head: |
| Single Station Pendulum Head with 40 ATC |
| Tool Type: KM-63, 40 Taper |
| Max Tool Diameter: 3.54″ |
| Max Tool Length: 11.81″ |
| Spindle Speed: 15-12,000 RPM |
| Spindle Motor: 25 HP |
| Spindle 90° Index Time: 0.5 sec |

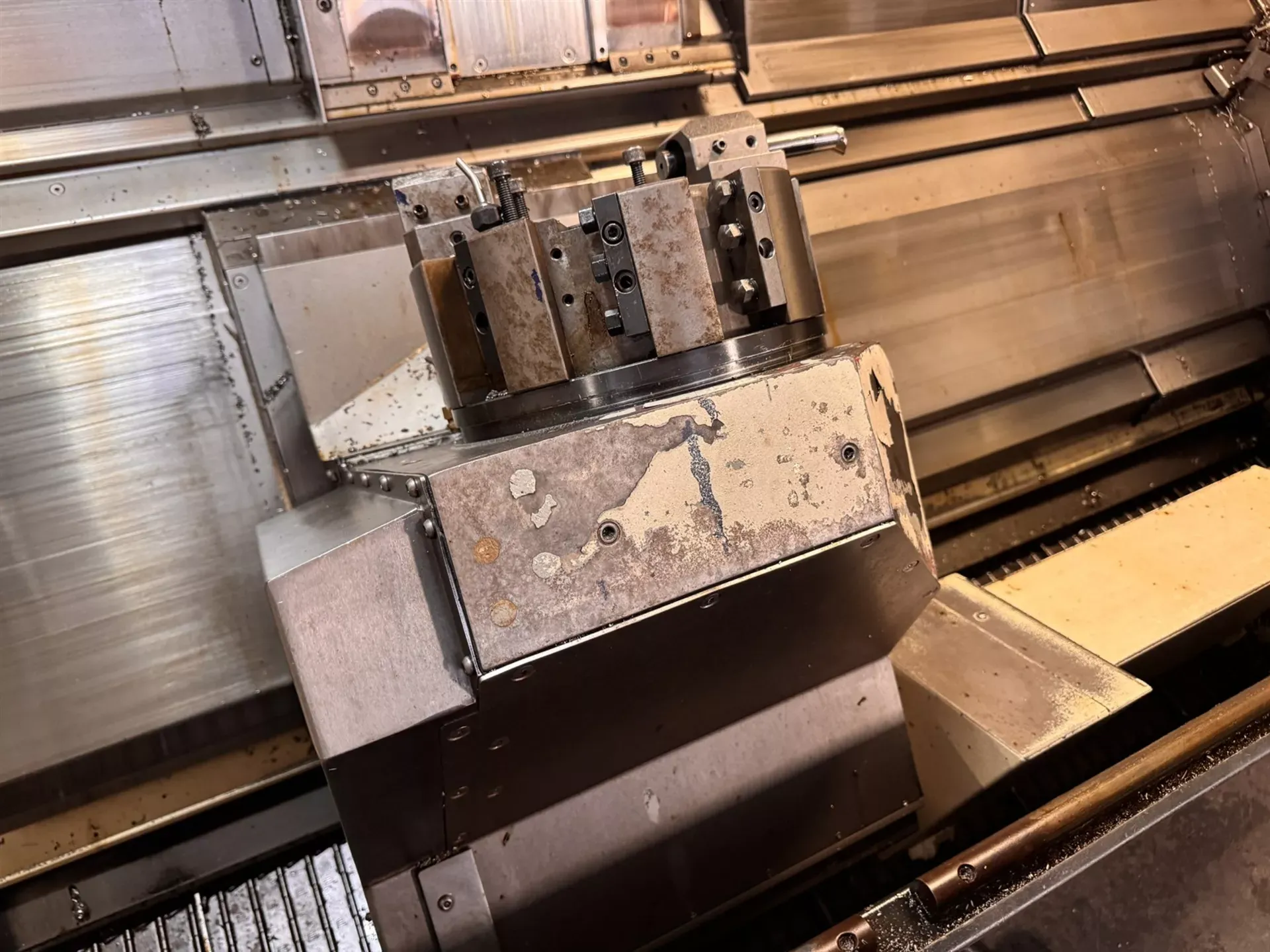

| Lower Turret: |
| Capacity: 9 Stations |
| Turret Index Time: 0.14 Second |
| OD Tool Size: 1.00″ |
| General: |

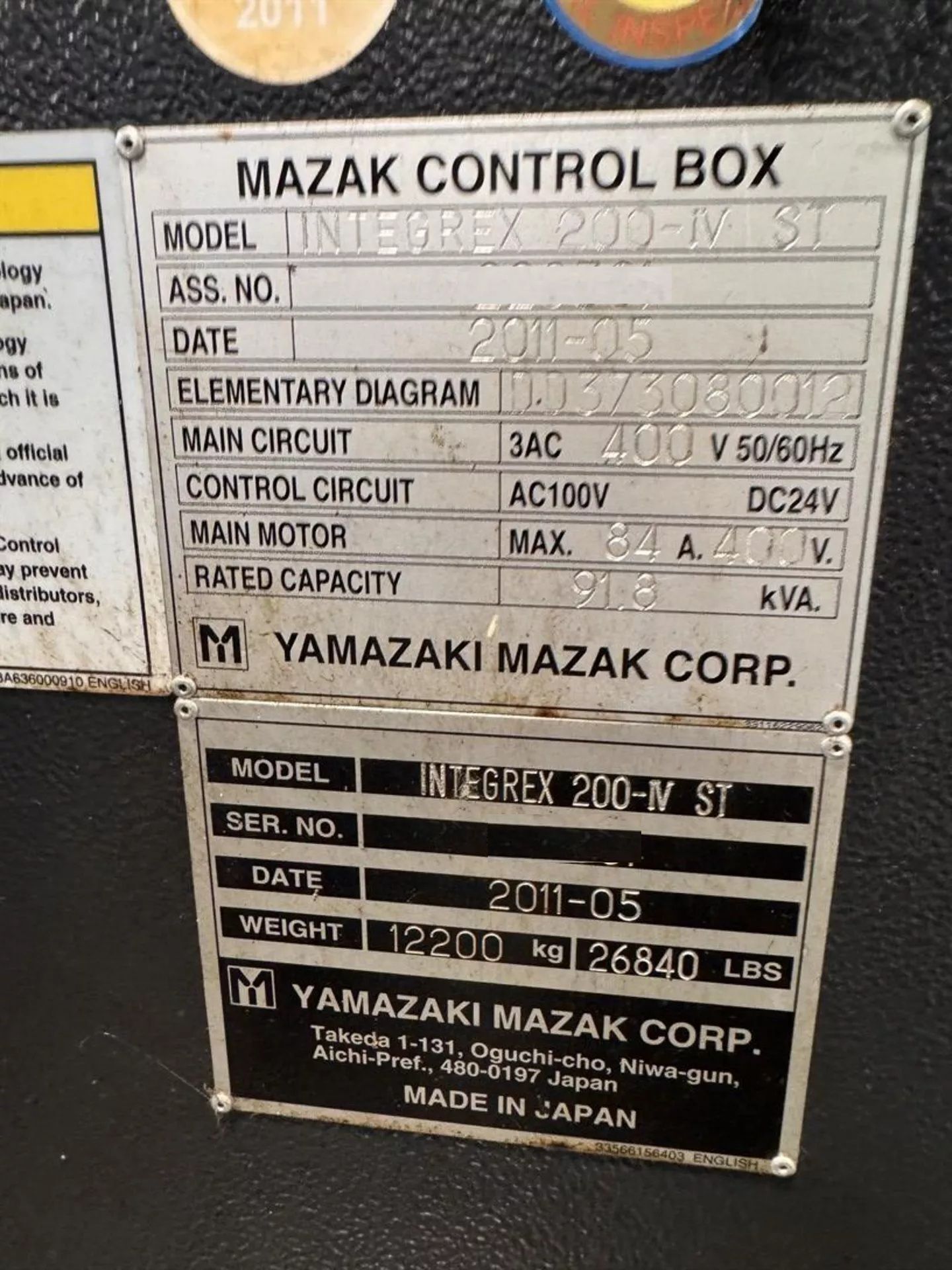

| Power Source: AC 400 V, Three Phase, 50/60 Hz |
| Power Requirement: 91.8 Kva |
| Overall Dimensions: 160″ x 93.0″ x 110.2″ High |
| Weight: 26,840 lbs Approx. |
