Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

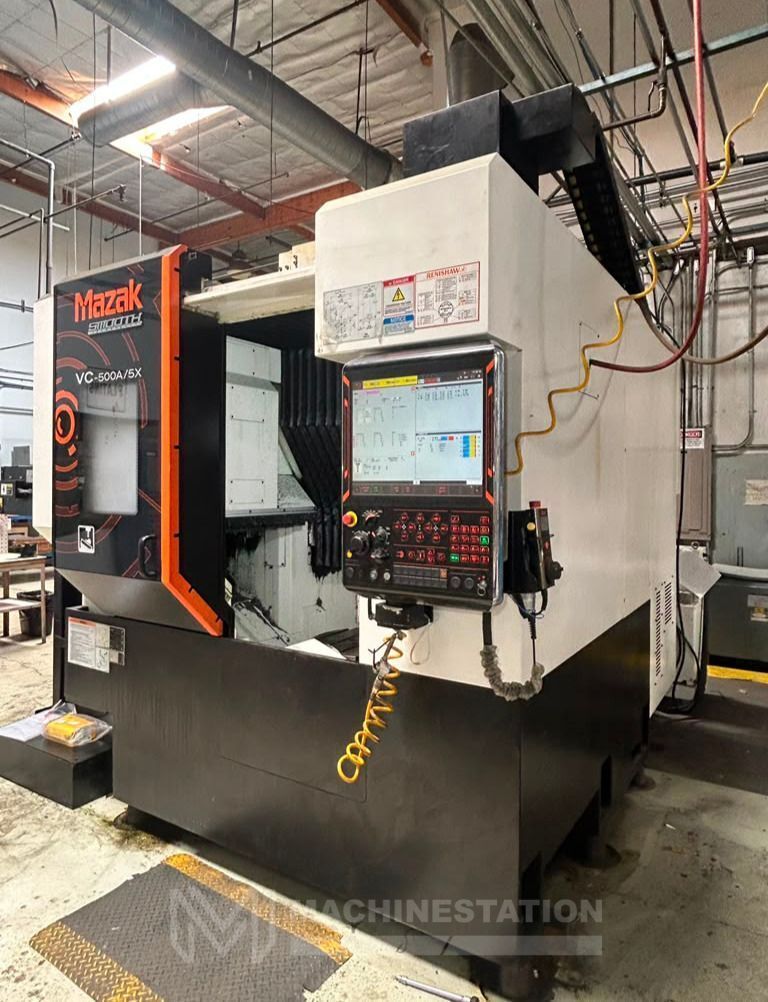

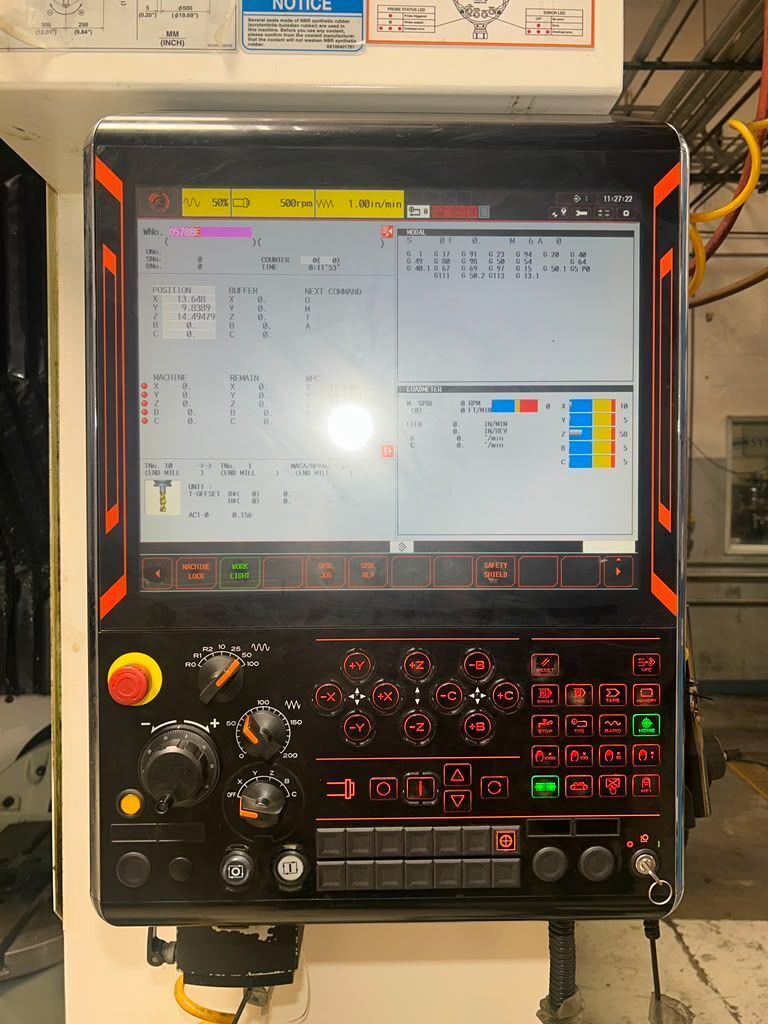

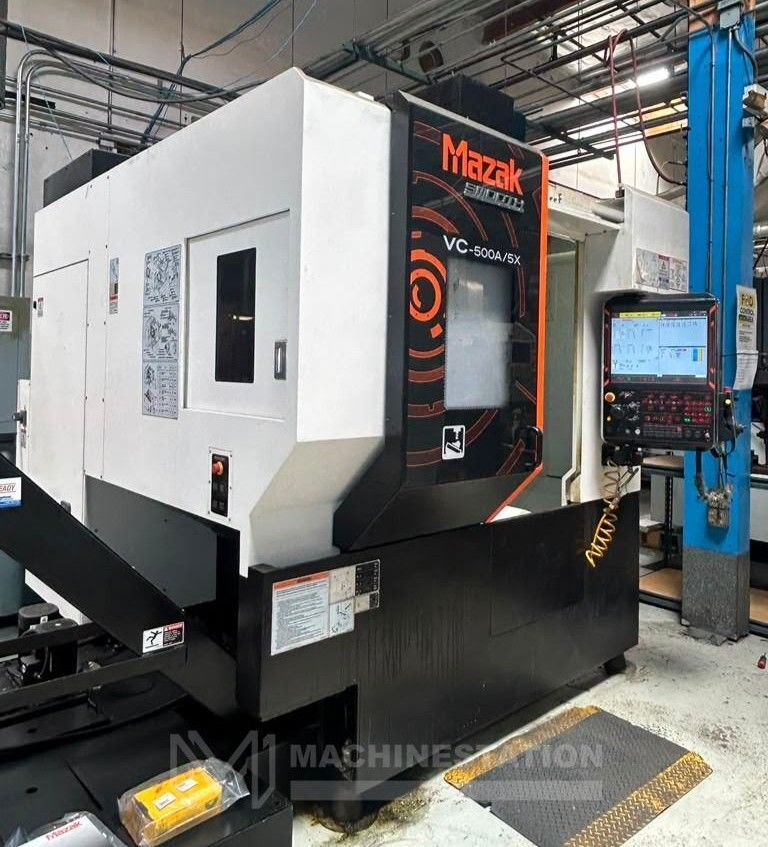

| Mazatrol SmoothX CNC Control |
| 5-Axis Simultaneous Machining |
| 12,000 RPM High-Speed Spindle |

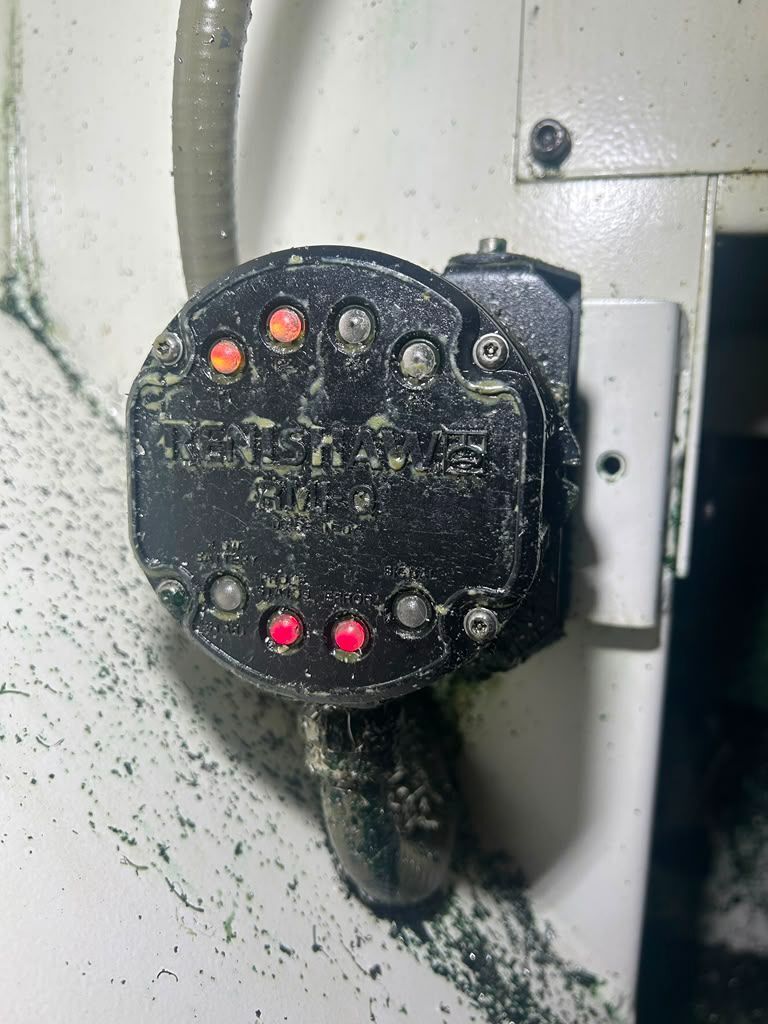

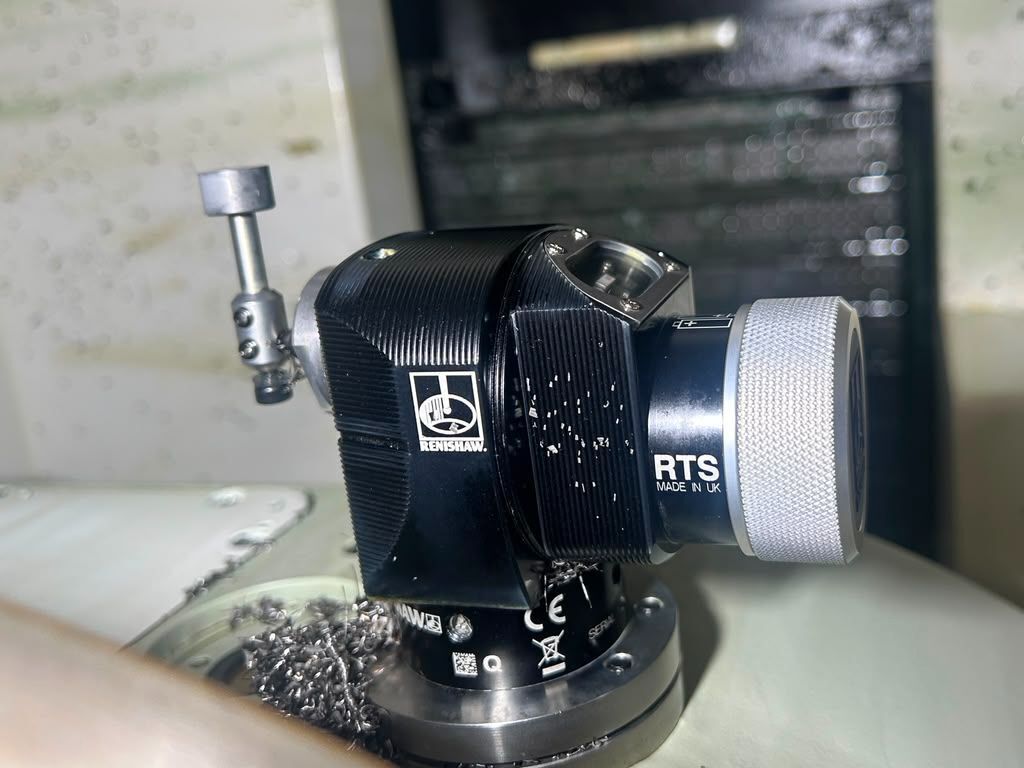

| Renishaw Receiver Installed |
| Tool Presetter |
| Tool Probe |
| Through-Spindle Coolant |
| 30-Station Automatic Tool Changer |
| 25 HP High-Torque Spindle |
| CAT-40 Taper Spindle |

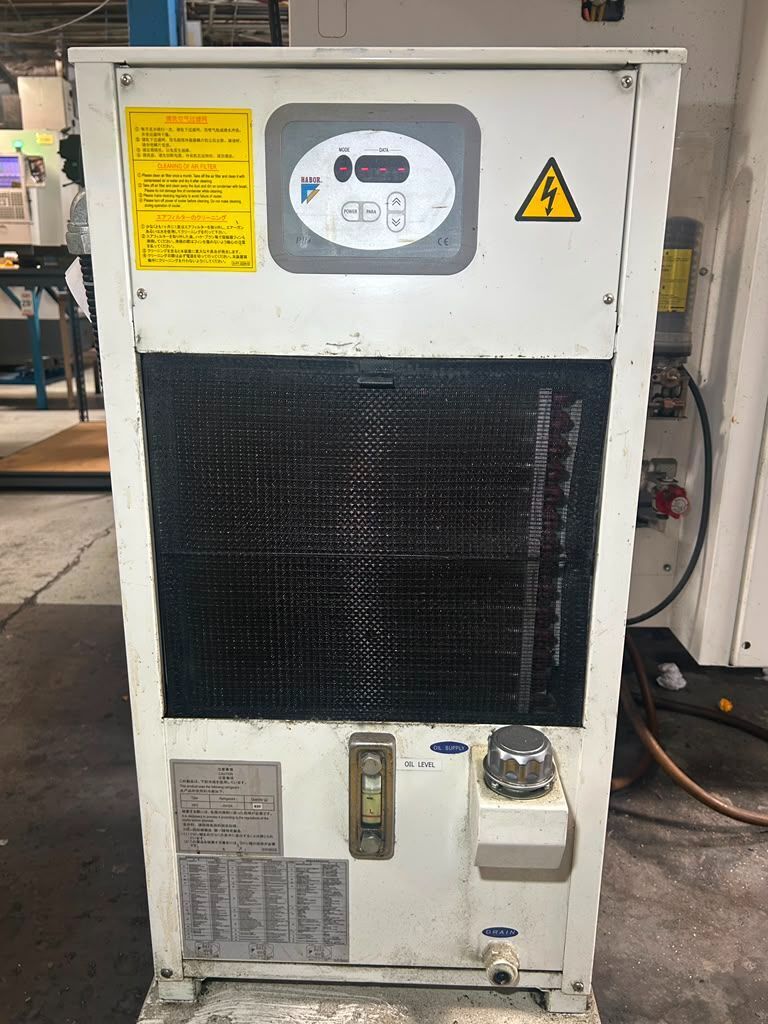

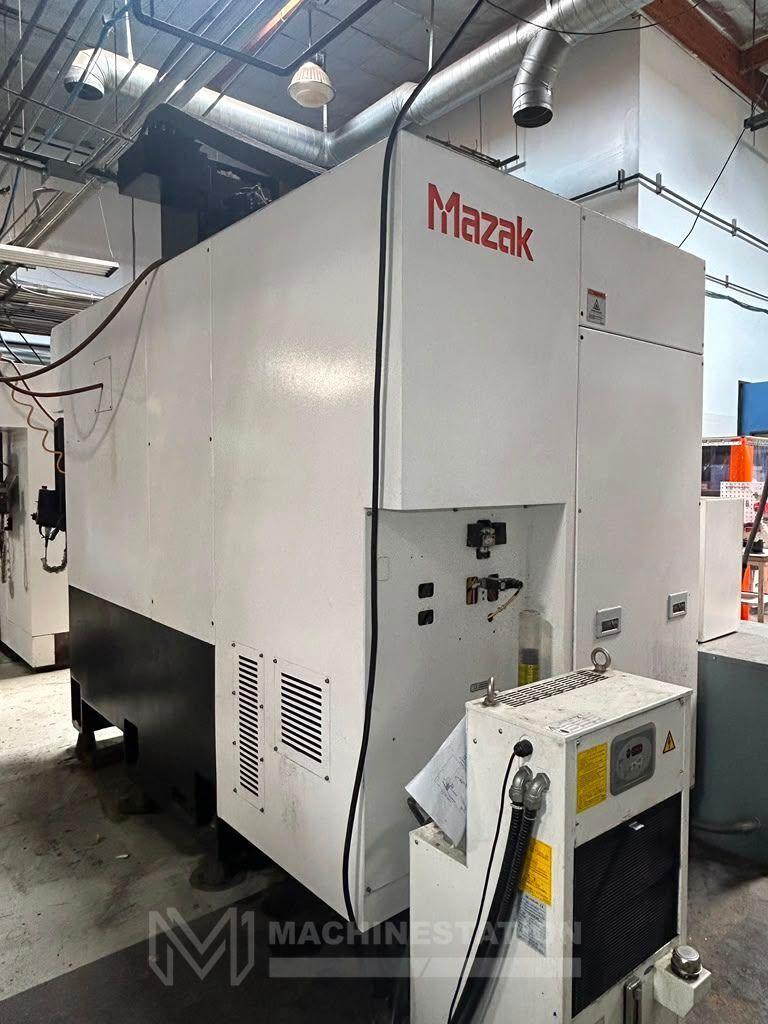

| Spindle Chiller Unit |
| MPG Handwheel Control |
| Rigid Tapping |

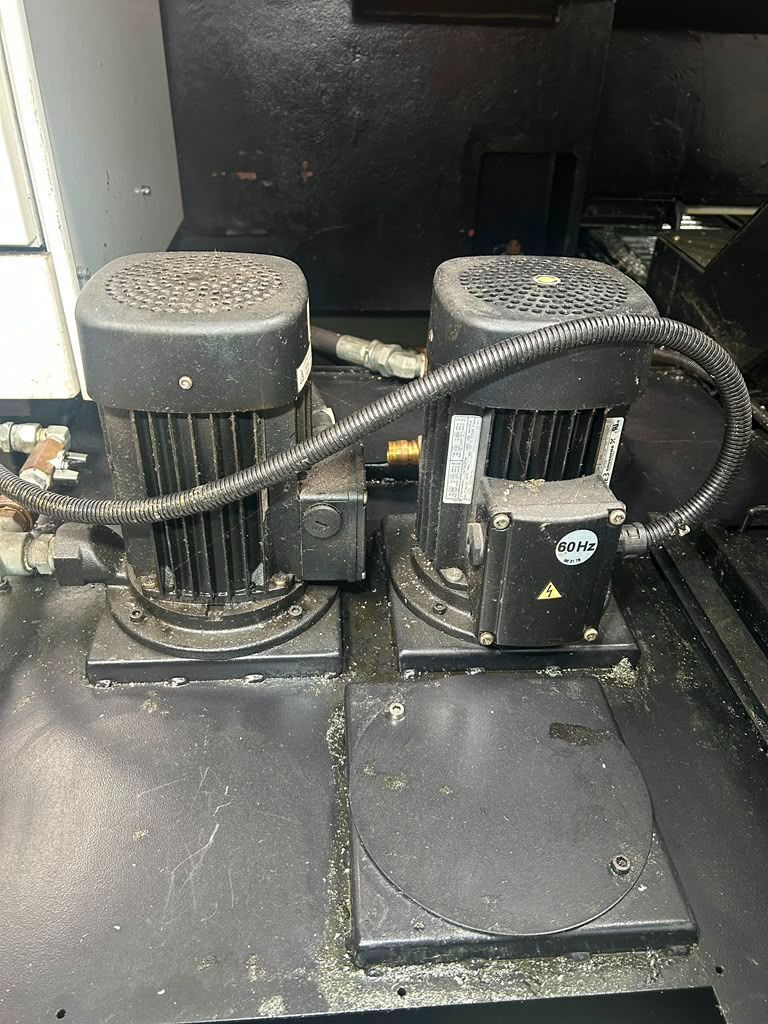

| Coolant Tank |

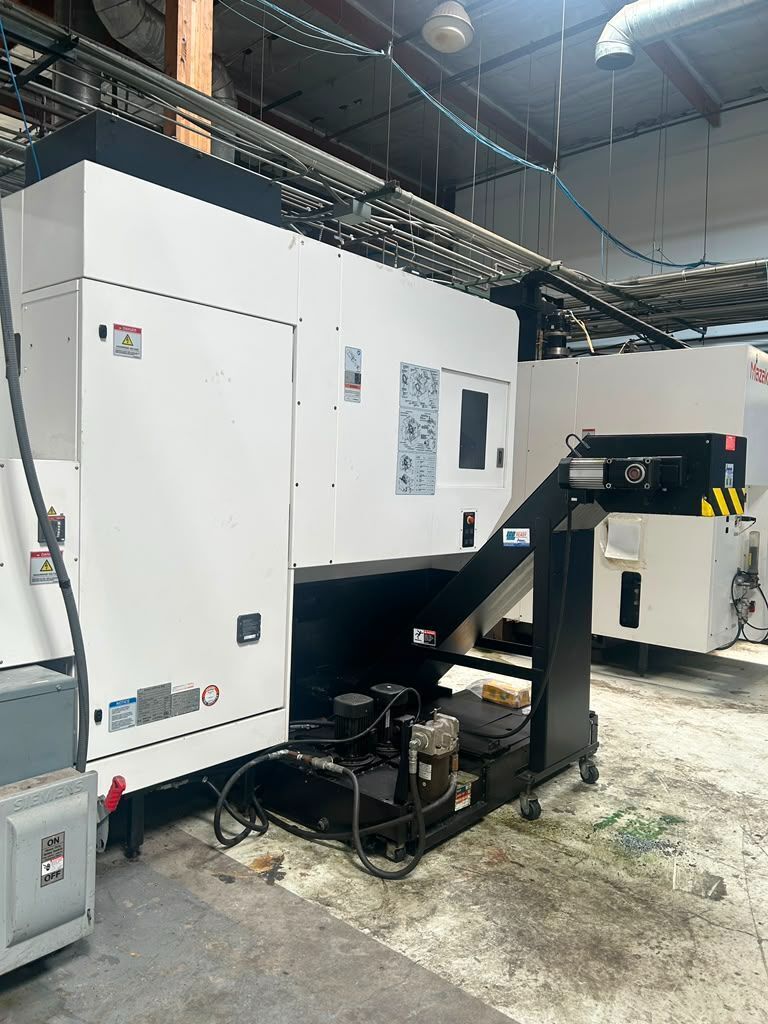

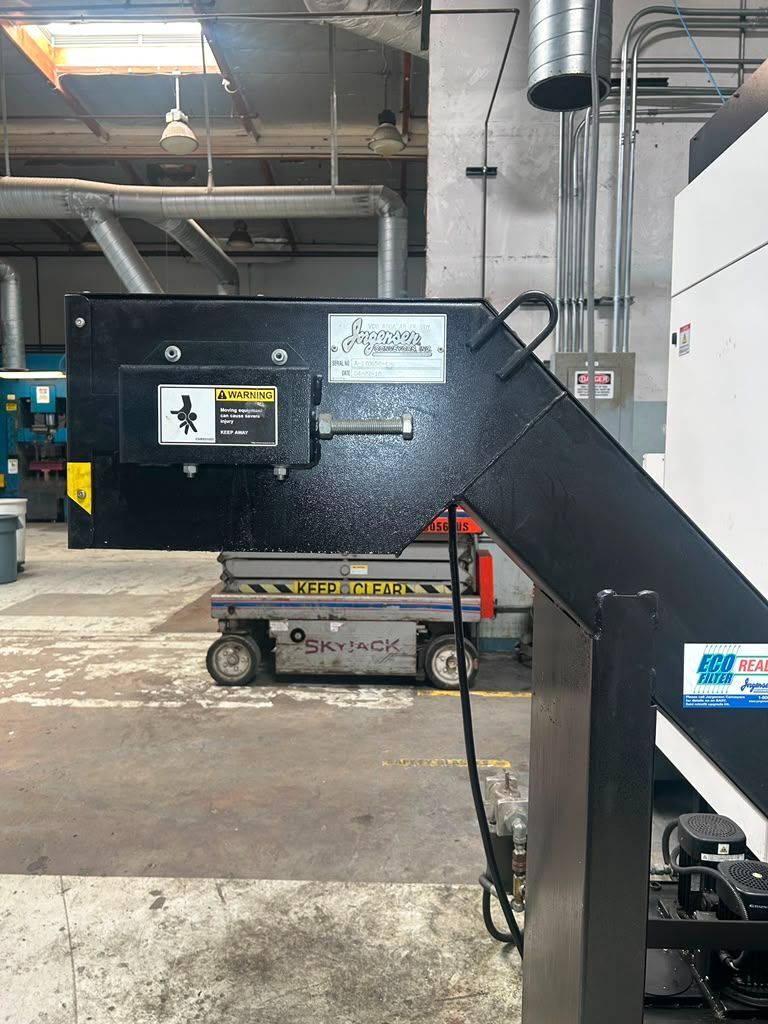

| Chip Conveyor |

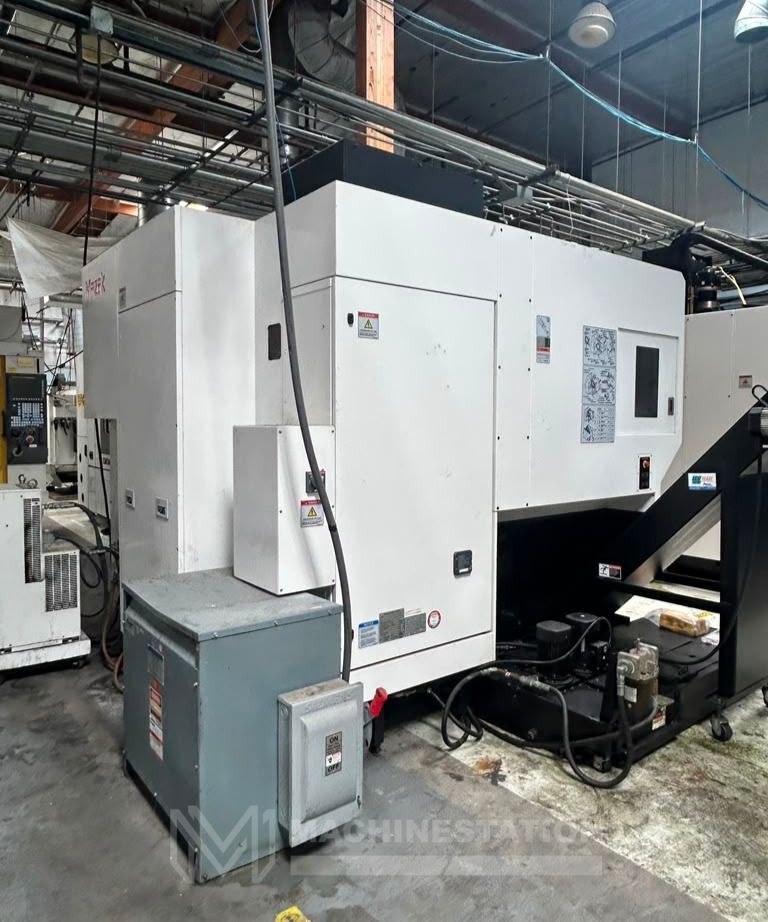

| Transformer |

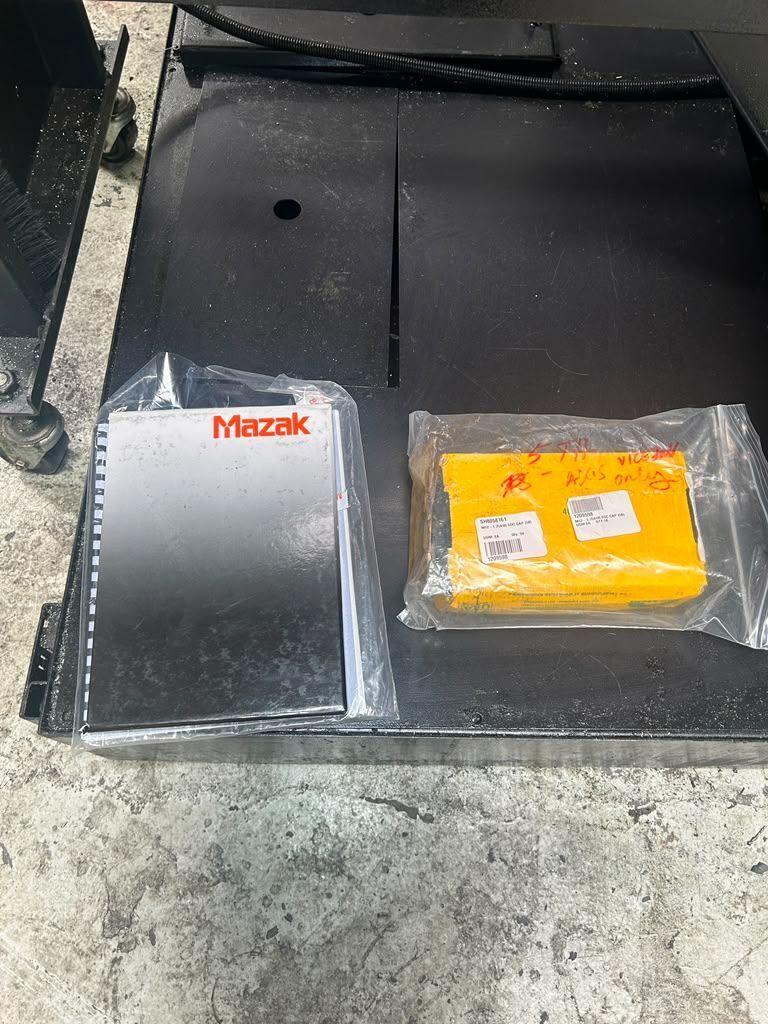

| Books & Manuals |
| Travels: |
| X-Axis Travel: 21.85″ |
| Y-Axis Travel: 19.88″ |
| Z-Axis Travel: 20.07″ |

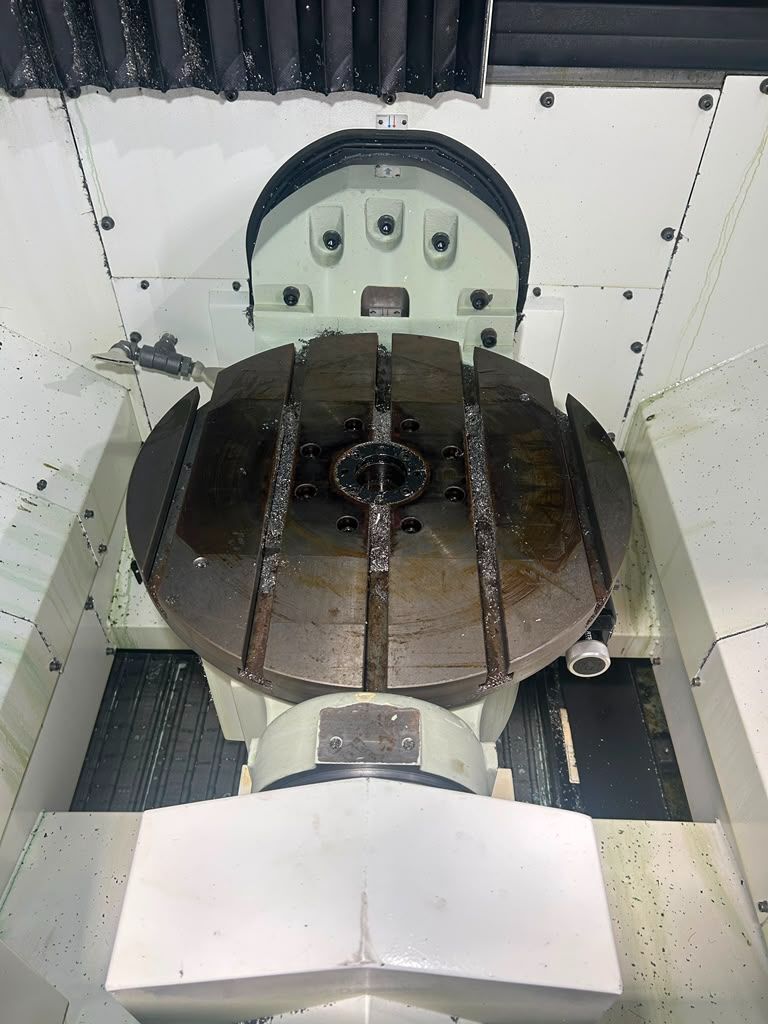

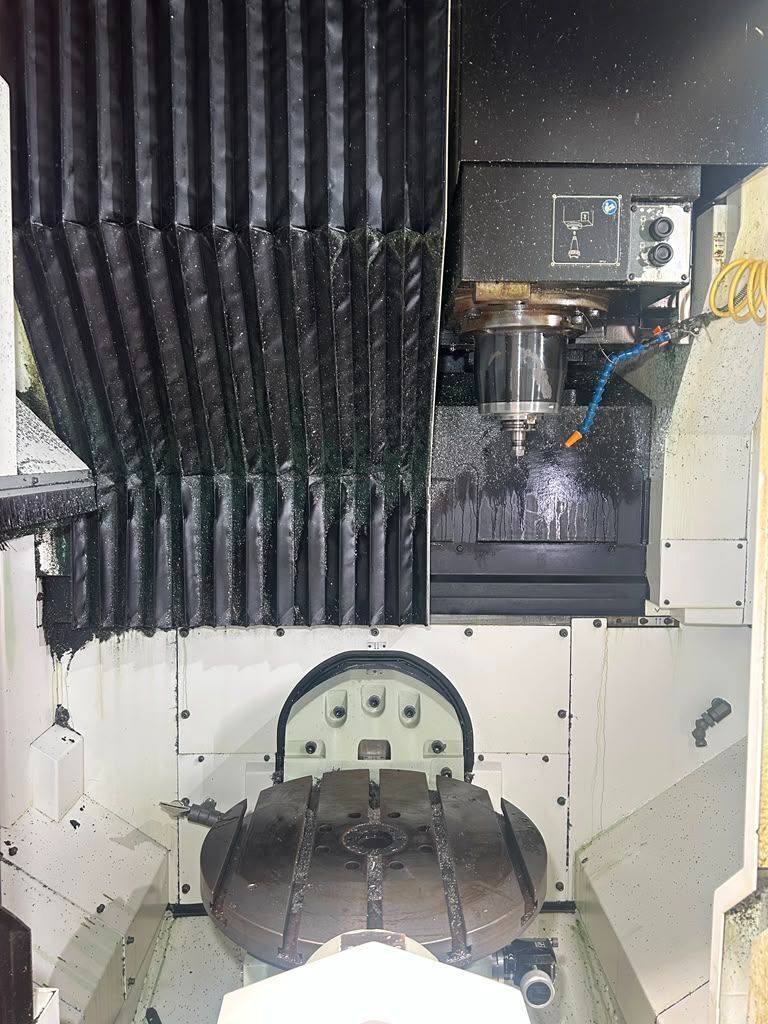

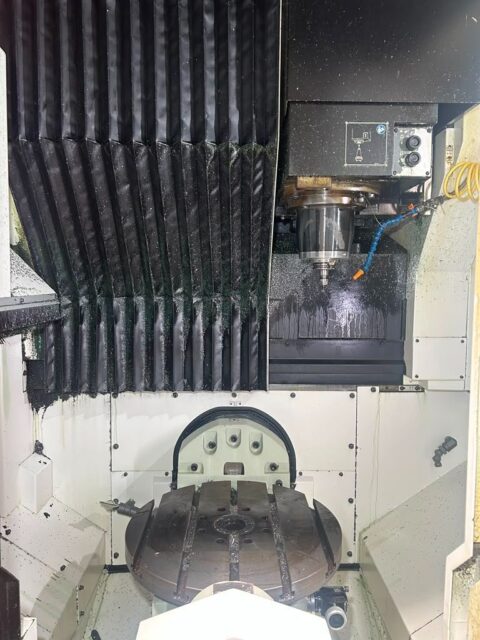

| B-Axis Table Tilt: ±110° |
| C-Axis Table Rotation: 360° |
| Rapid Traverse Rate: 1,181 IPM |
| Spindle Nose to Table (Min.-Max.): 4.53″ – 24.61″ |

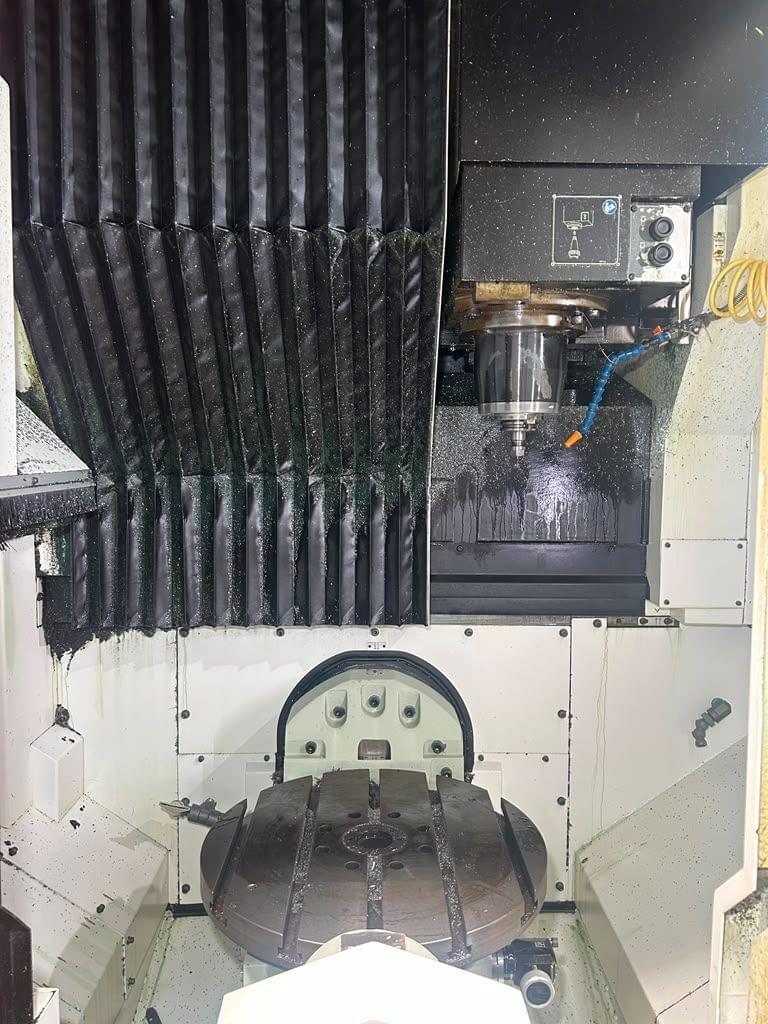

| Table: |
| Table Diameter: Ø19.69″ |
| Maximum Workpiece Size: Ø19.69″ × 12″ |
| Maximum Workpiece Weight: 441 lbs |
| Spindle: |
| Taper Size: CAT-40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 25 HP |
| Automatic Tool Changer: |
| Capacity: 30 Tools |
| Maximum Tool Diameter: 3.15″ – 4.92″ |
| Maximum Tool Length: 10.23″ |
| Maximum Tool Weight: 17.63 lbs |
| General: |
| Air Required: 80 psi, 4 scfm |
| Power Required: 208V / 3-Phase / 50/60 Hz / 30 kVA |
| Overall Dimensions: 118.45″ × 99.2″ × 118.11″ High |

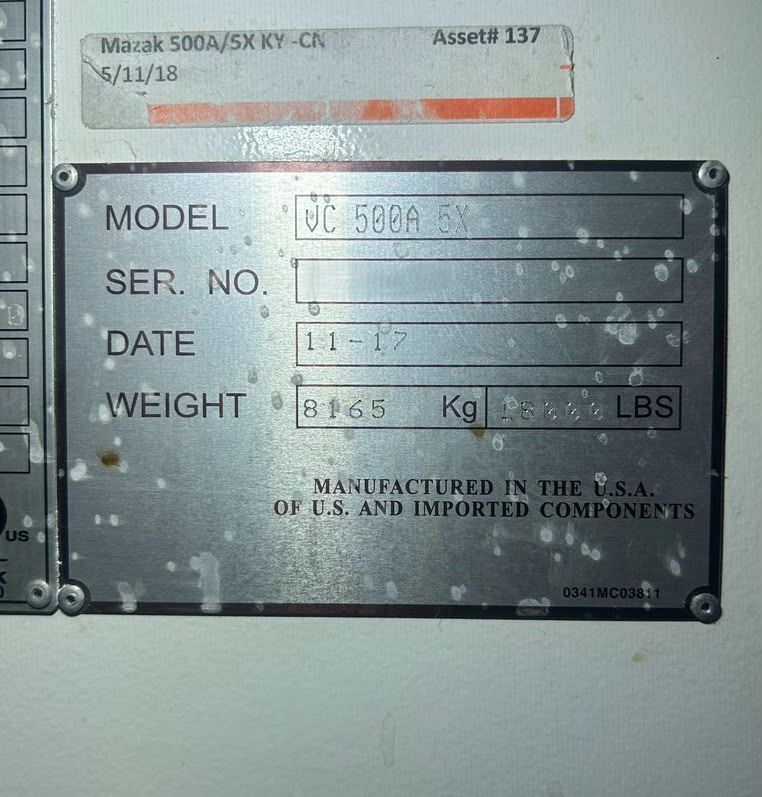

| Weight: 18,000 lbs Approx. |
