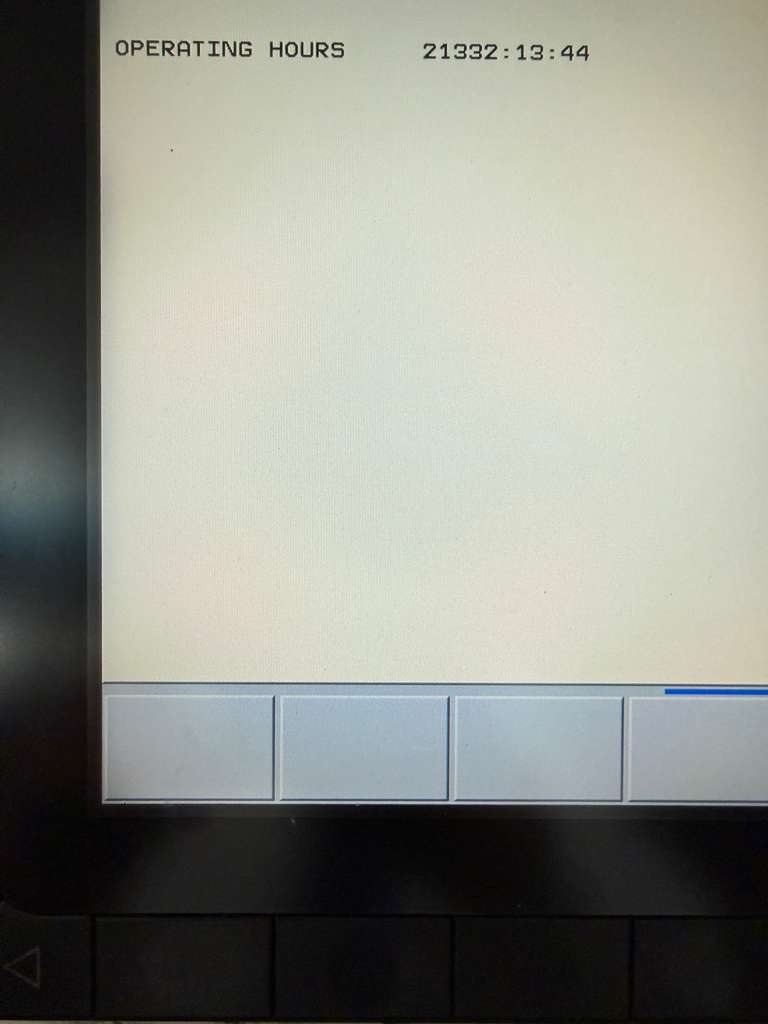

Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Features: |

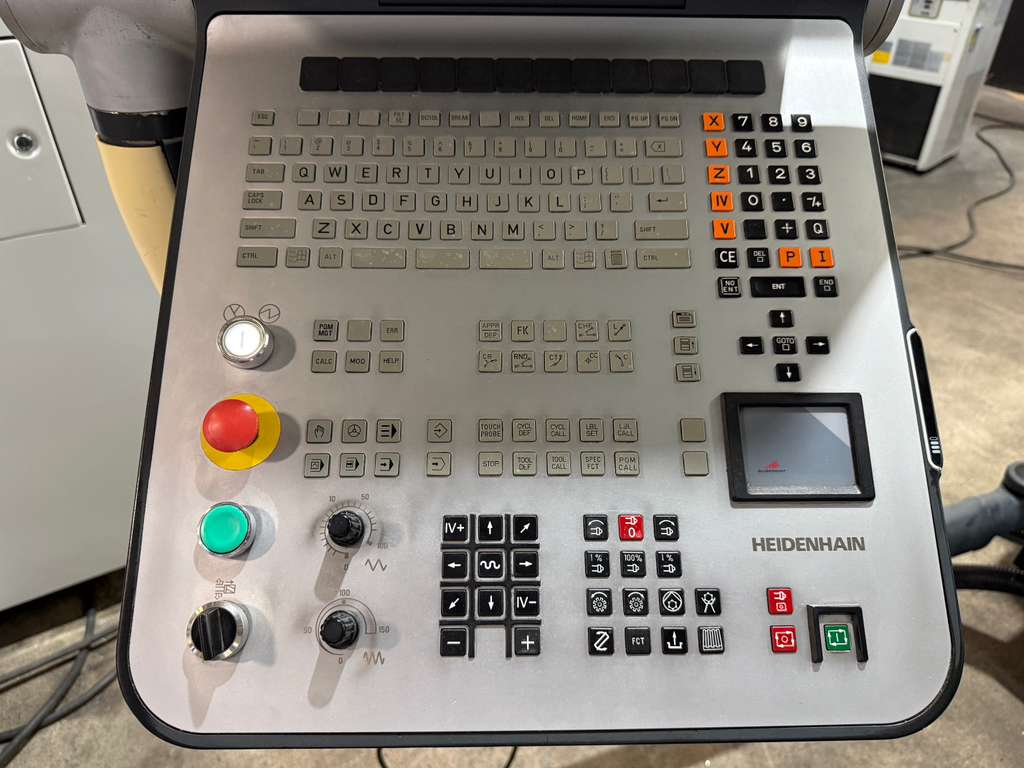

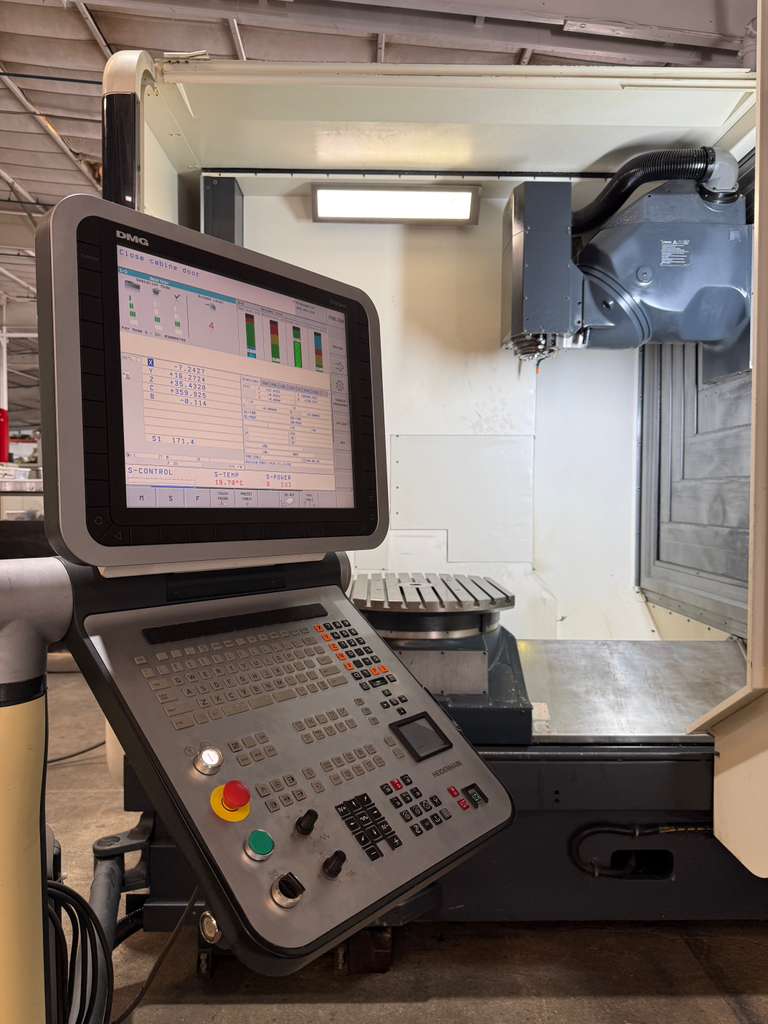

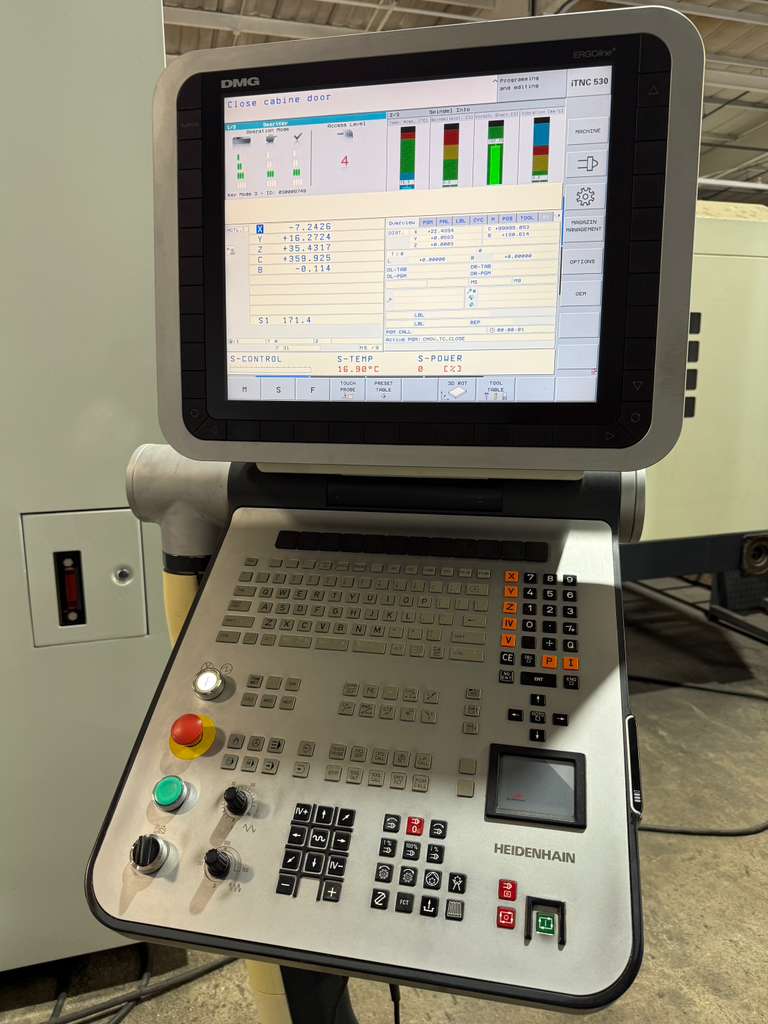

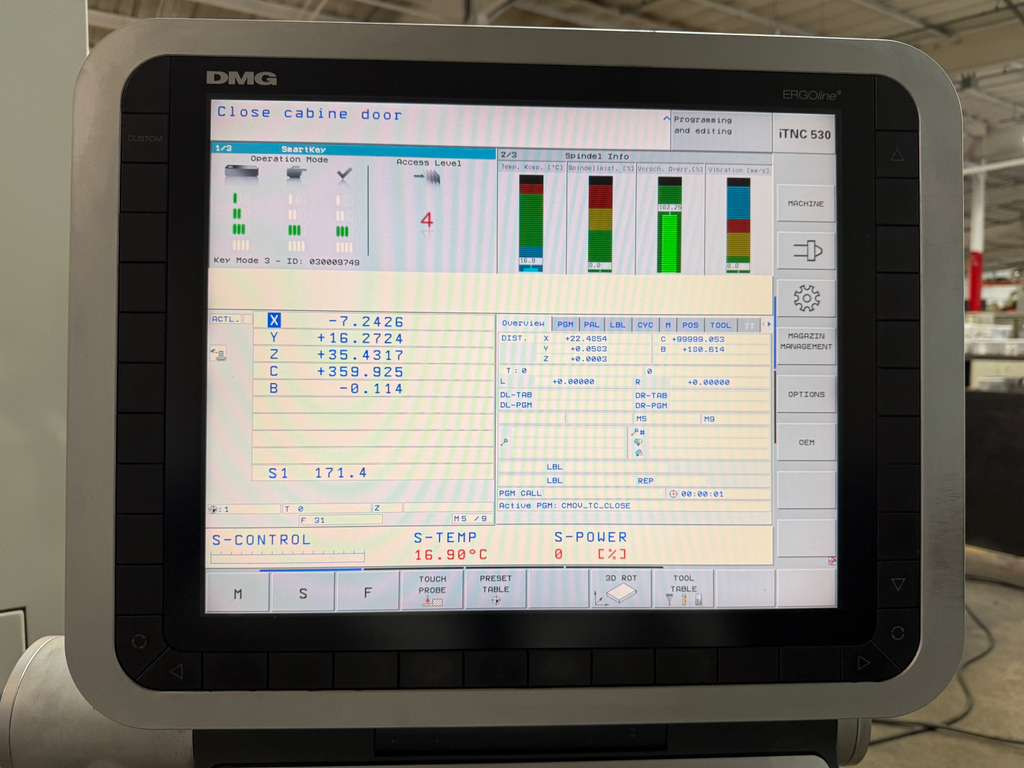

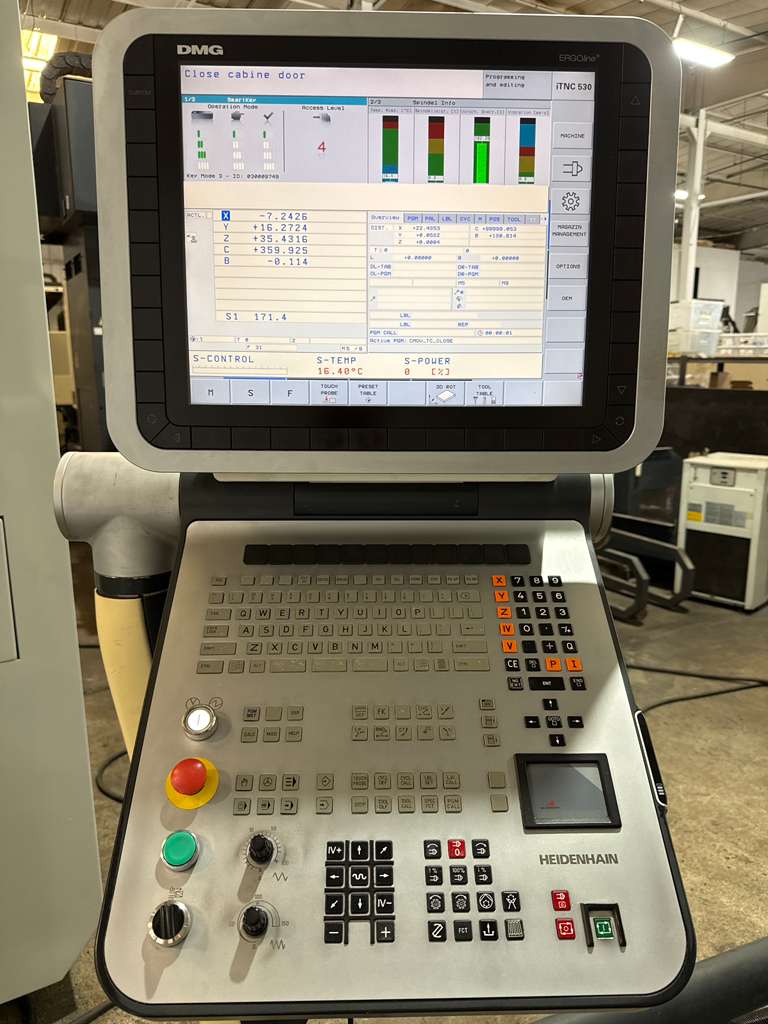

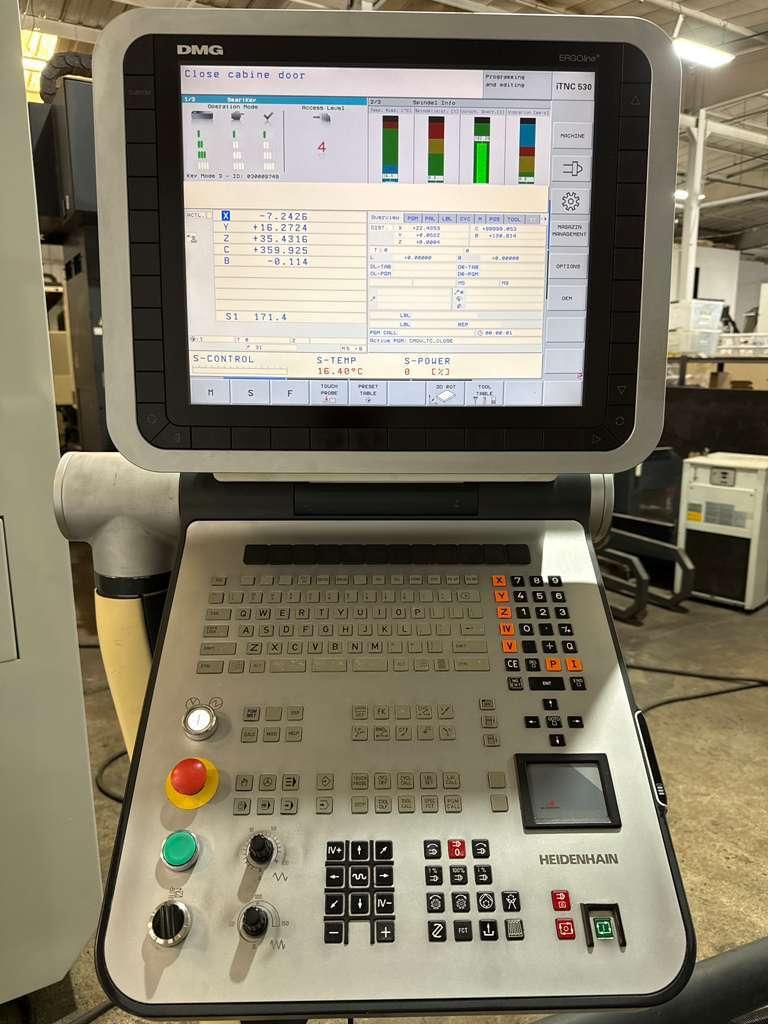

| Heidenhain ERGOline iTNC 530 |
| Linear Ways Construction |
| 5-Axis Simultaneous Machining |

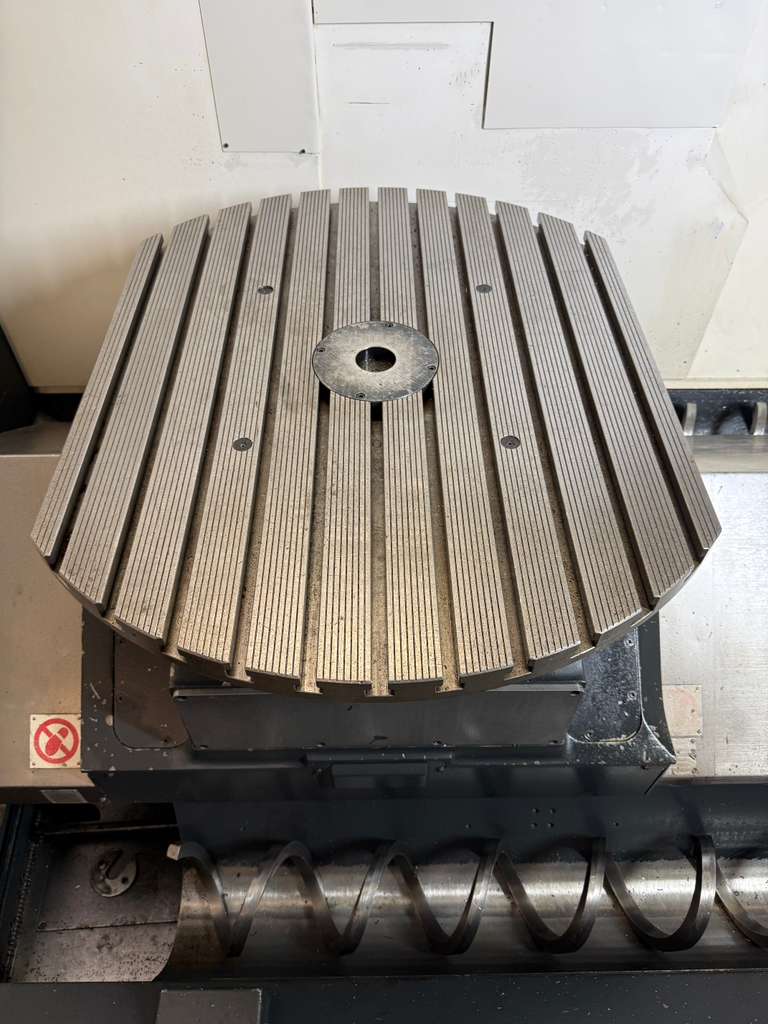

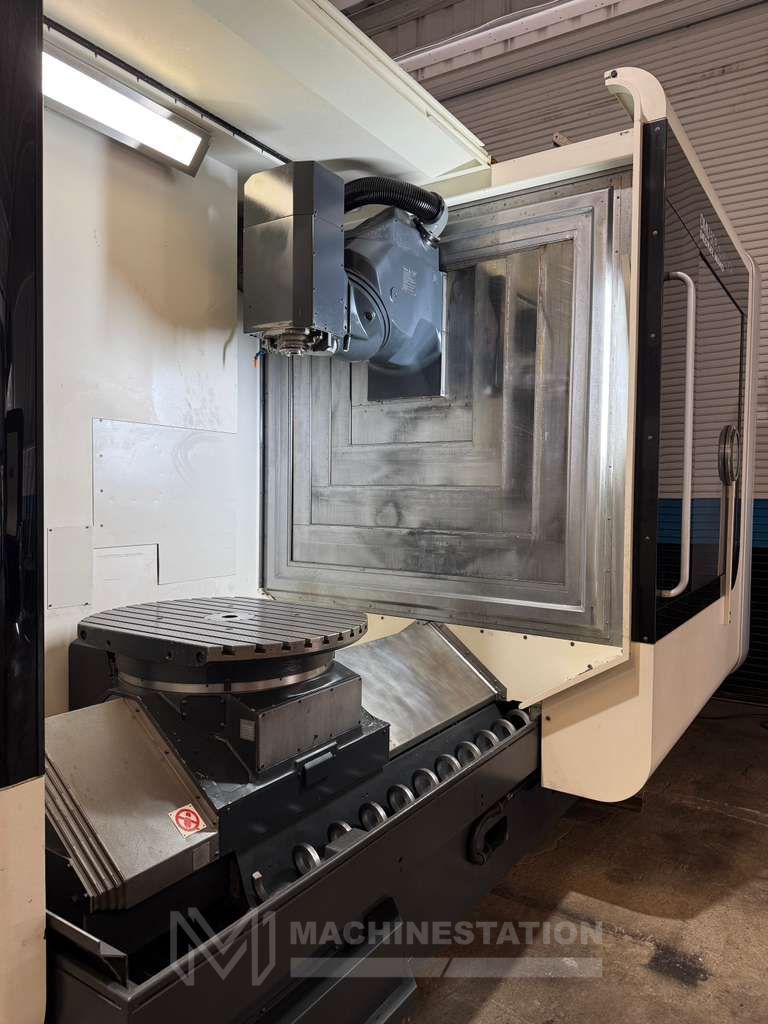

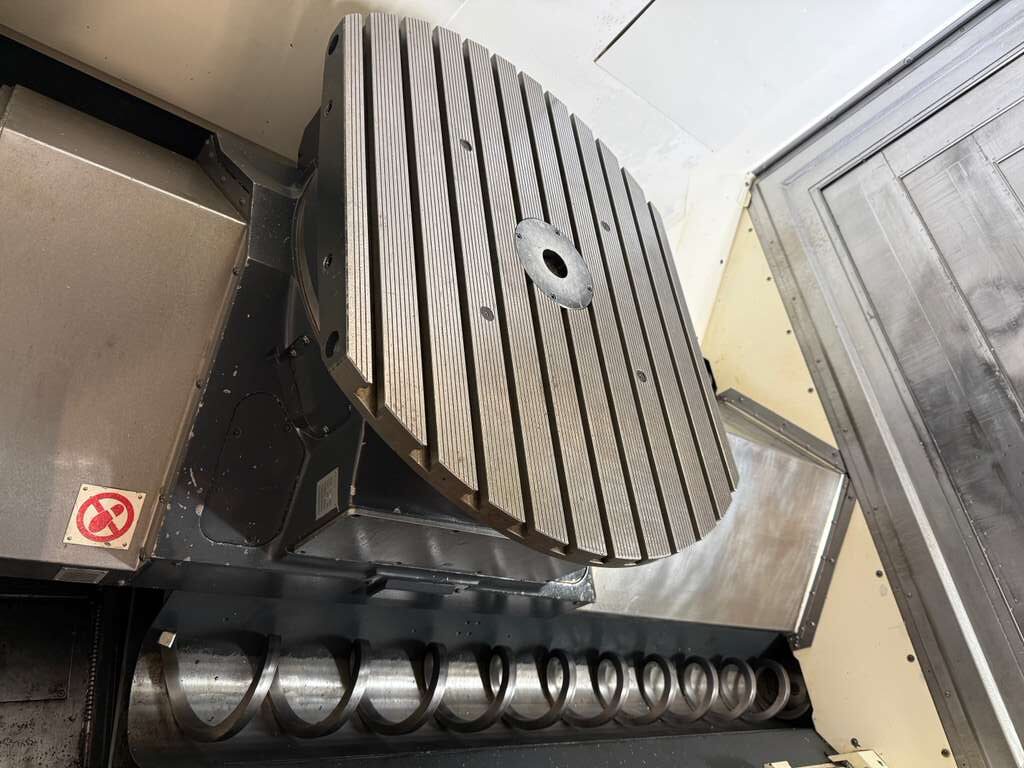

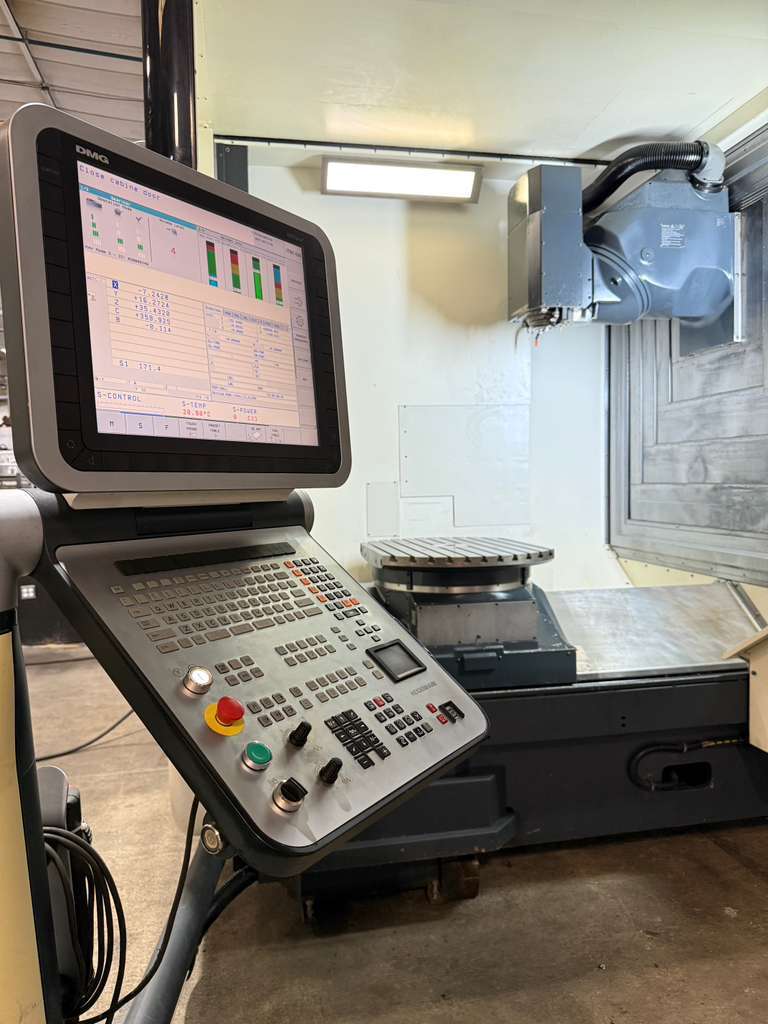

| 35.4″ x 27.5″ Rotary Table |

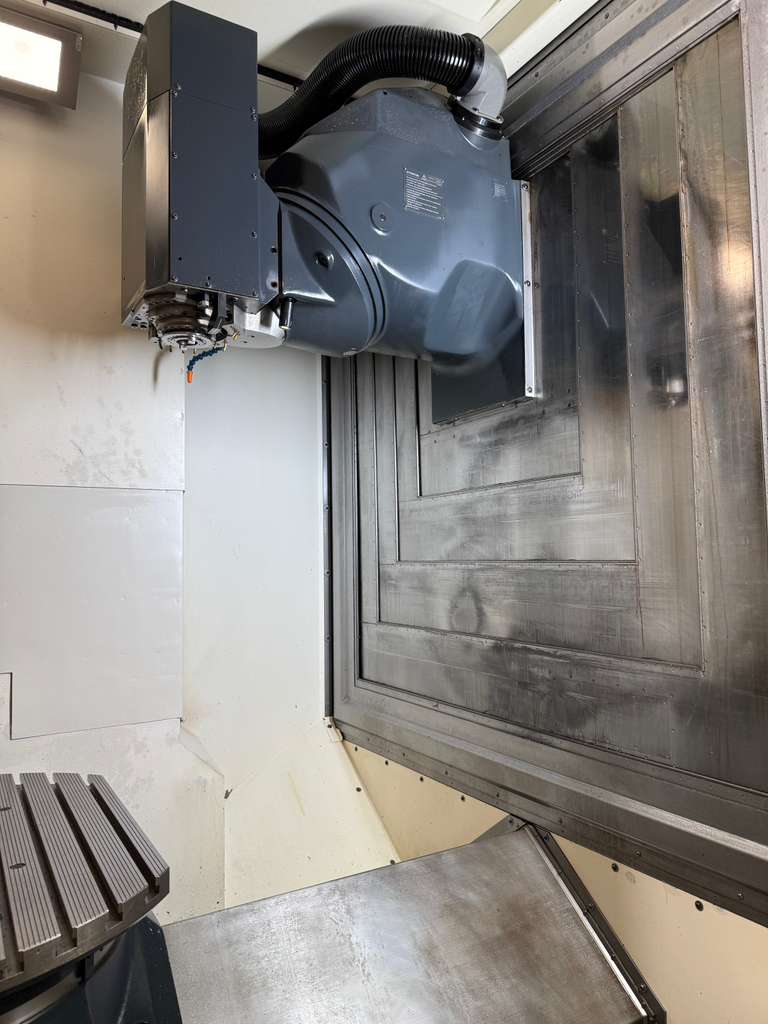

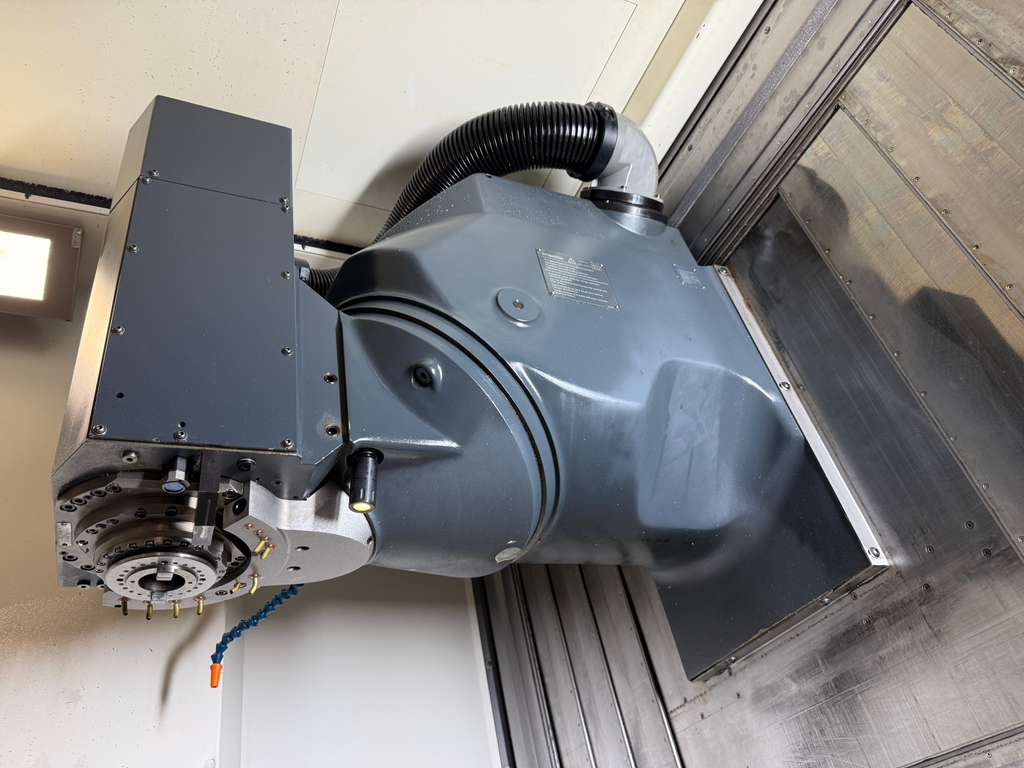

| NC-Controlled Swivel Milling Head (B-Axis) |
| 18,000 High Speed Spindle |

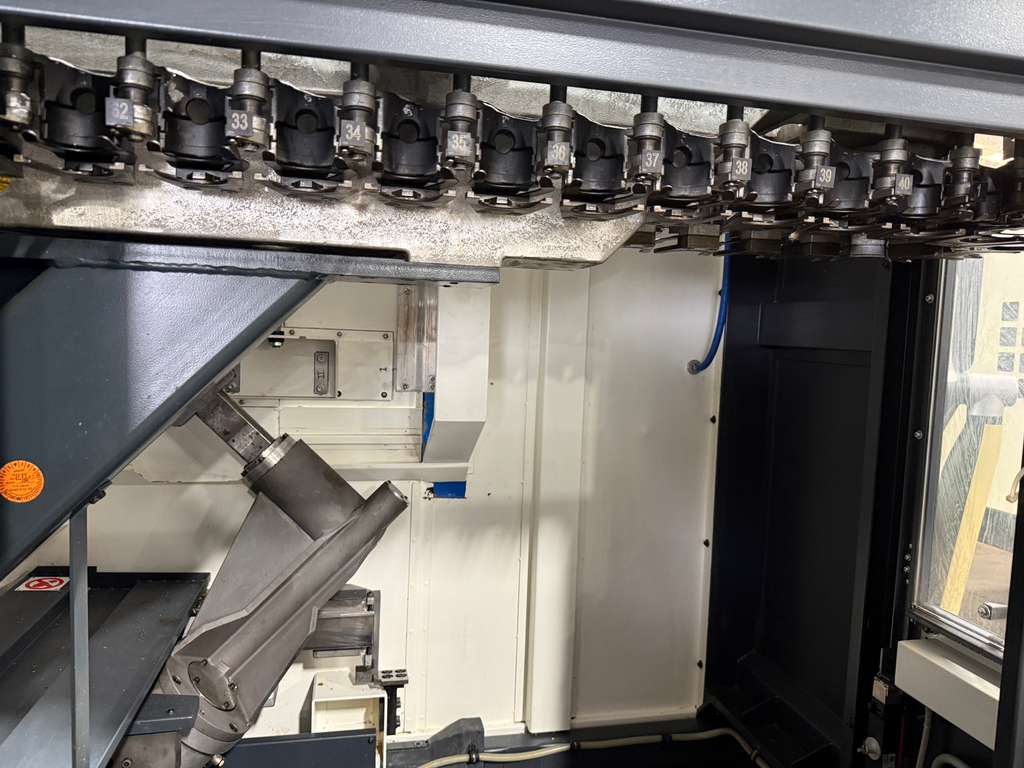

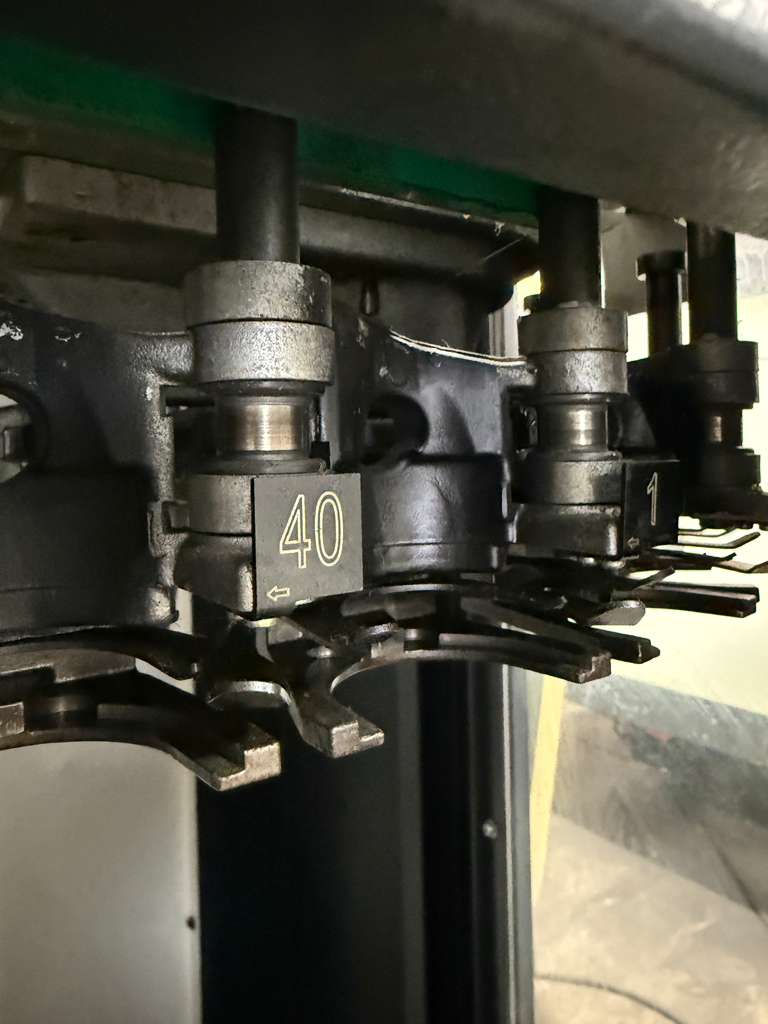

| 40 Station Automatic Tool Changer |

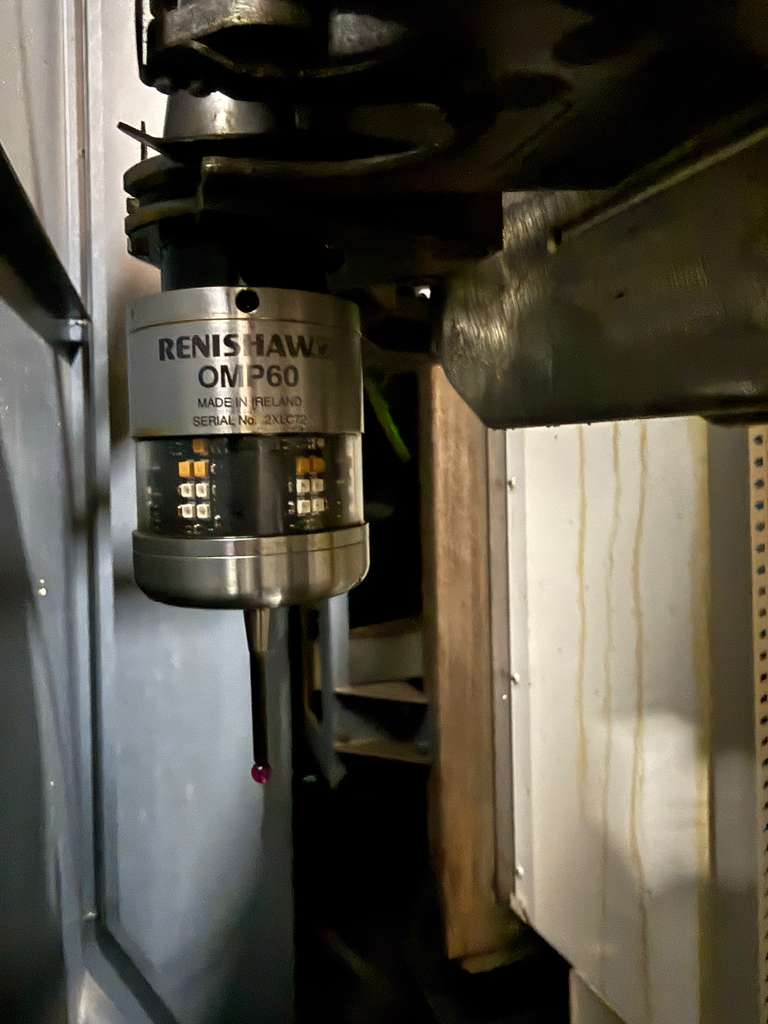

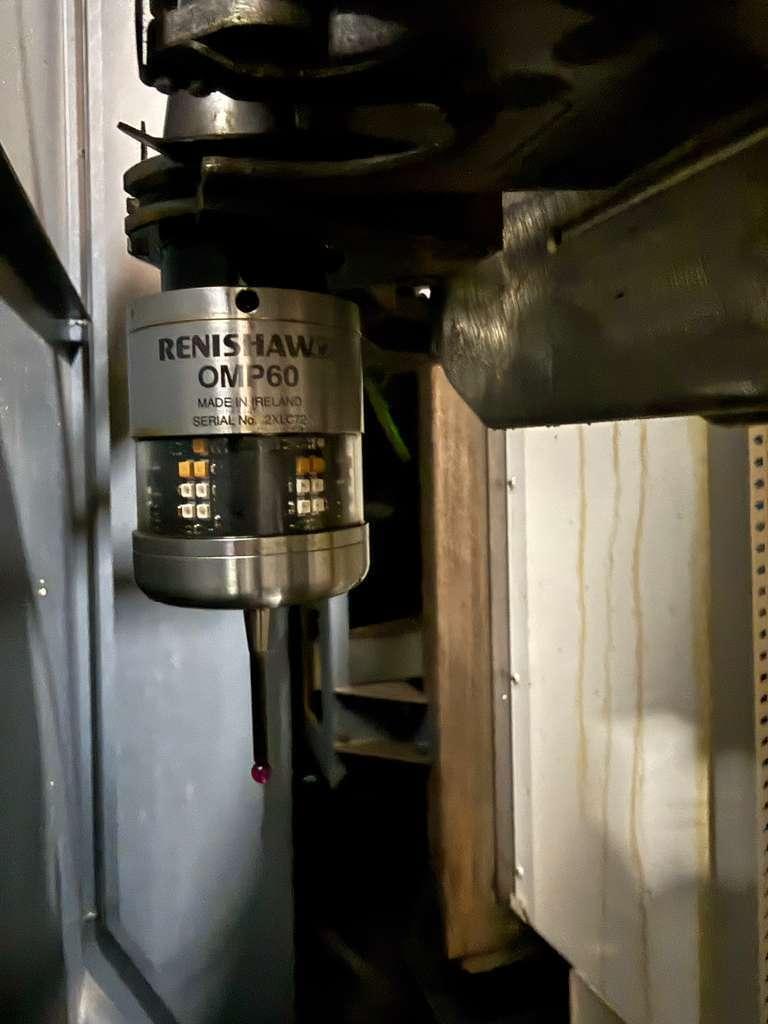

| Renishaw OMP60 Tool Probe |
| Spindle Orientation |
| Helical Interpolation |
| Rigid Tapping |
| Through Spindle Coolant |

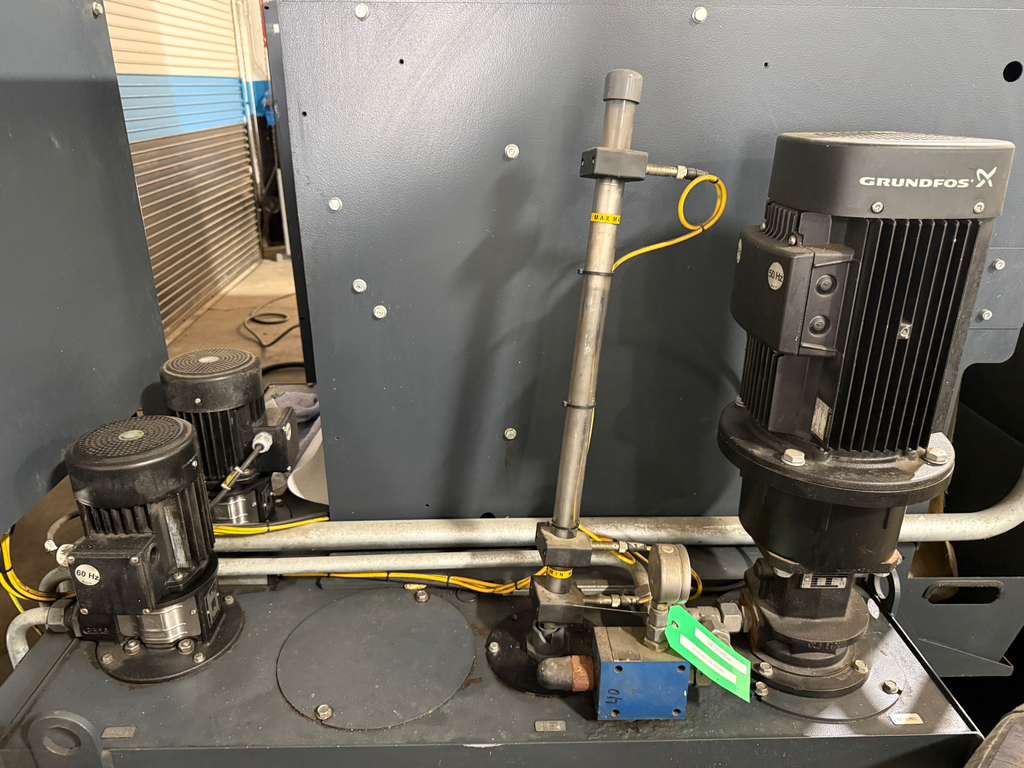

| High Pressure Coolant System |

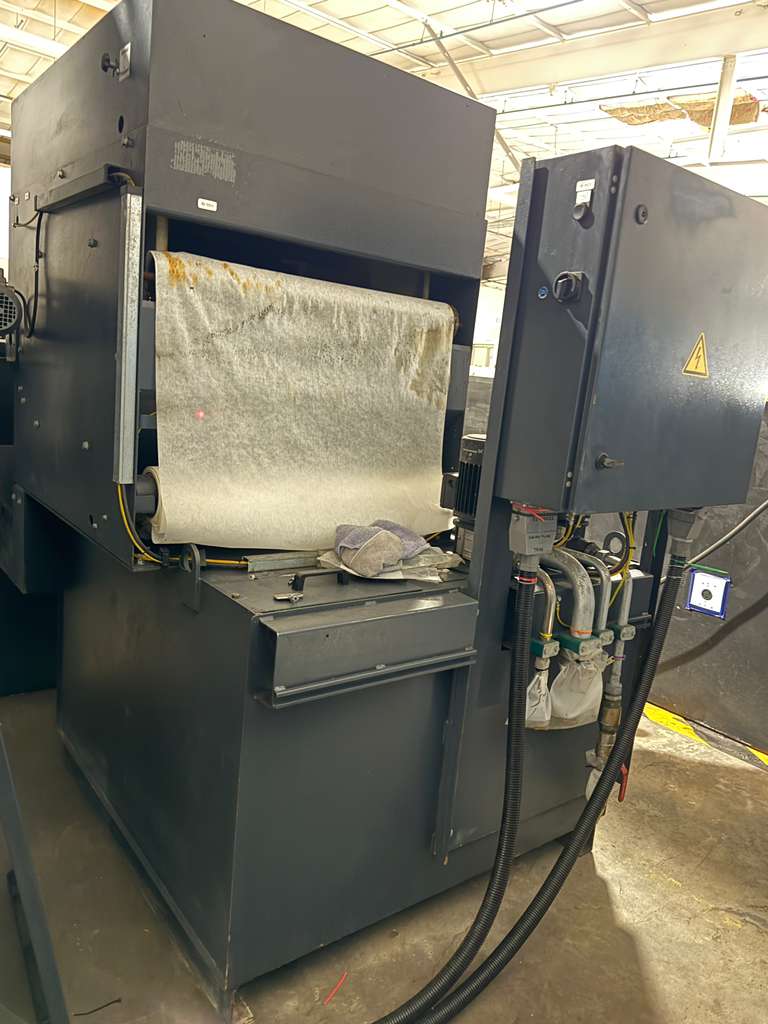

| Coolant Filtration |

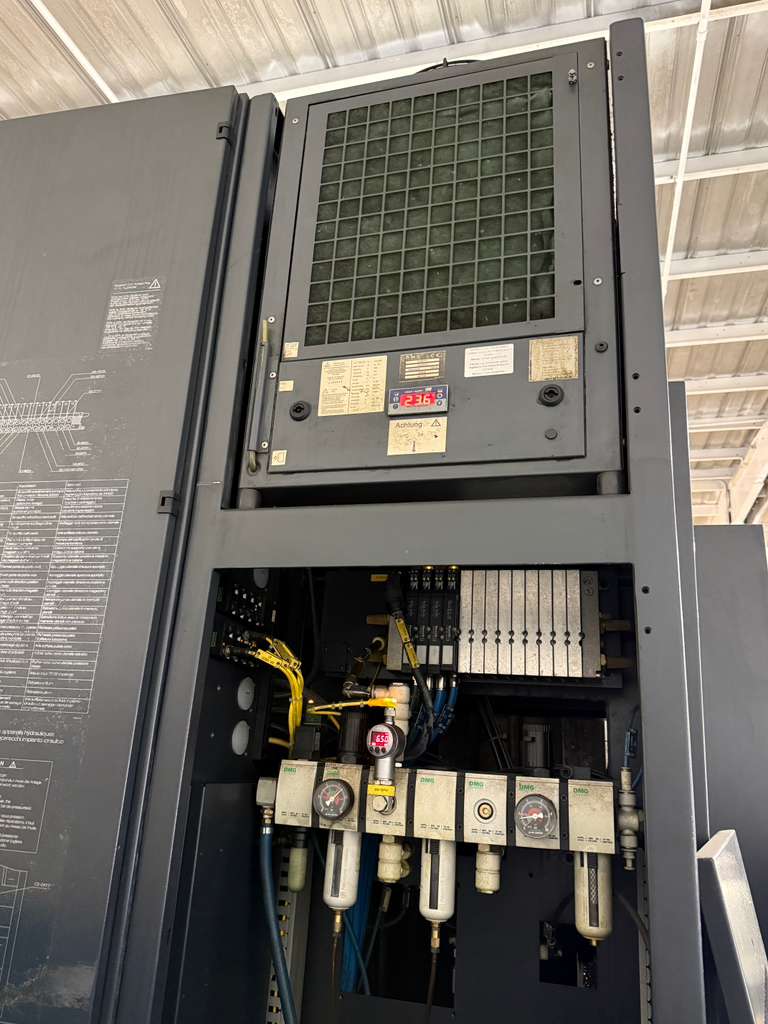

| Spindle Chiller |

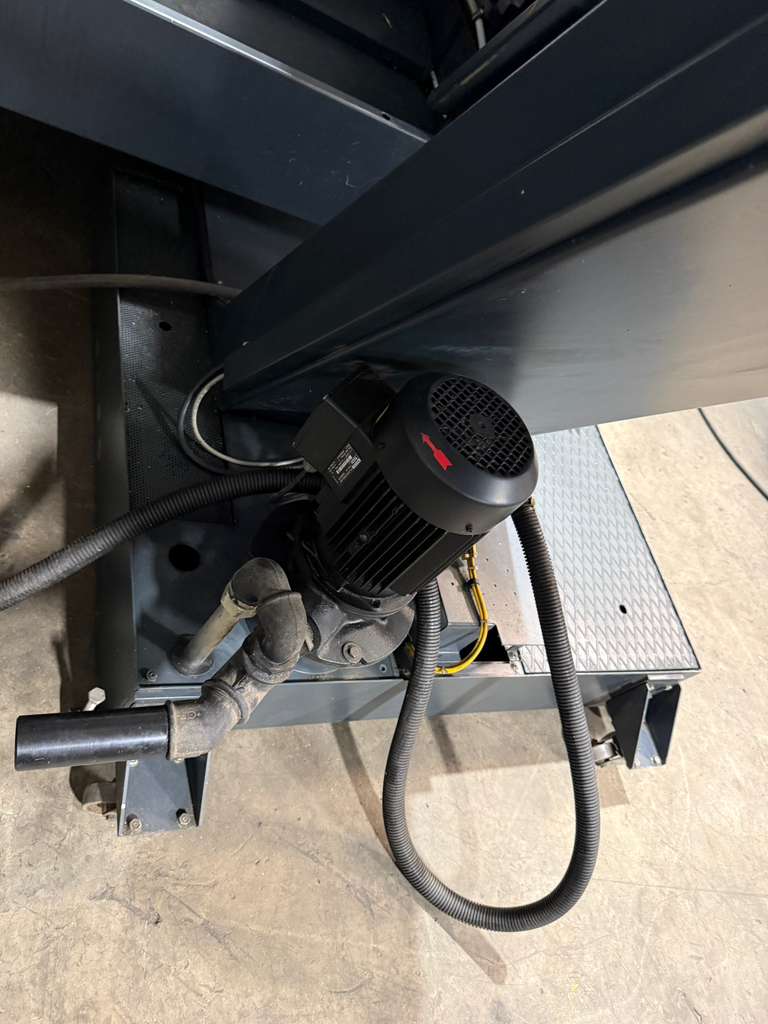

| Chip Conveyor |
| Travels: |
| X-Axis Travel: 31.5″ |
| Y-Axis Travel: 31.5″ |
| Z-Axis Travel: 31.5″ |
| B-Axis Swivel Range: 0° – 190° |
| C-Axis Rotation: 360° |
| Rapid Traverse (X/Y/Z): 2,362 Inches Per Minute |
| Feed Rate: 2,362 Inches Per Minute |
| Table: |

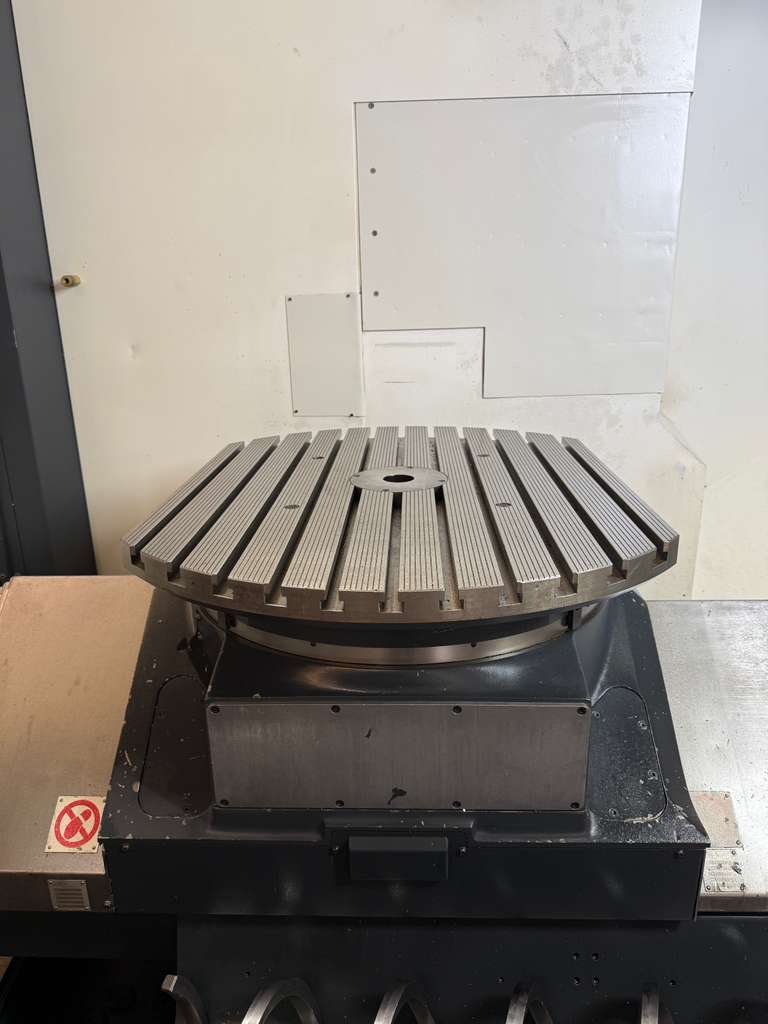

| Table Size: 35.4″ Diameter × 27.6″ Depth |
| Maximum Table Load: 3,086 lbs |
| Rotary Table Speed (C Axis): 30 RPM |
| Spindle: |
| Spindle Speed: 18,000 RPM |
| Spindle Taper: CAT-40 |
| Spindle Power: 25 HP |
| Swivel Range (B Axis): 0° – 190° |
| Swivel Time: 1.2 Sec |
| Automatic Tool Changer: |
| Tool Capacity: 40 Tools (Chain Type) |
| Chip-to-Chip Time: 5 Seconds |
| General: |

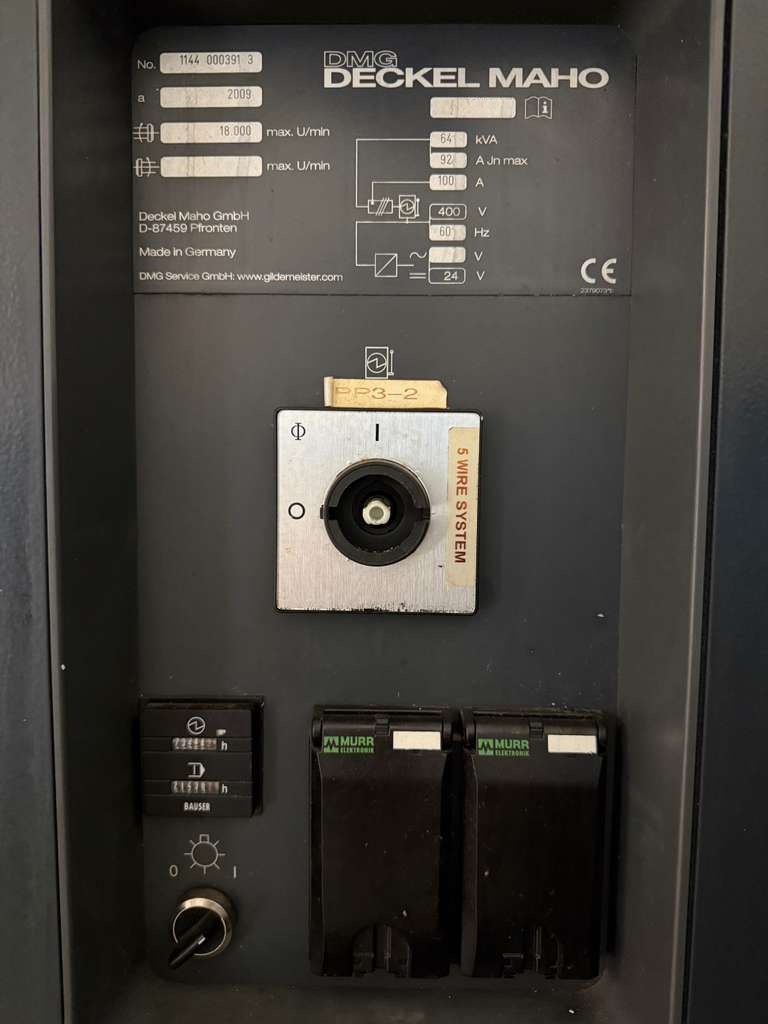

| Power Requirement: 400V / 60 Hz / 3-Phase / 64 kva |
| Machine Dimensions: 200″ x 102″ x 130″ High Approx. |
| Machine Weight: 30,865 lbs Approx. |
