Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

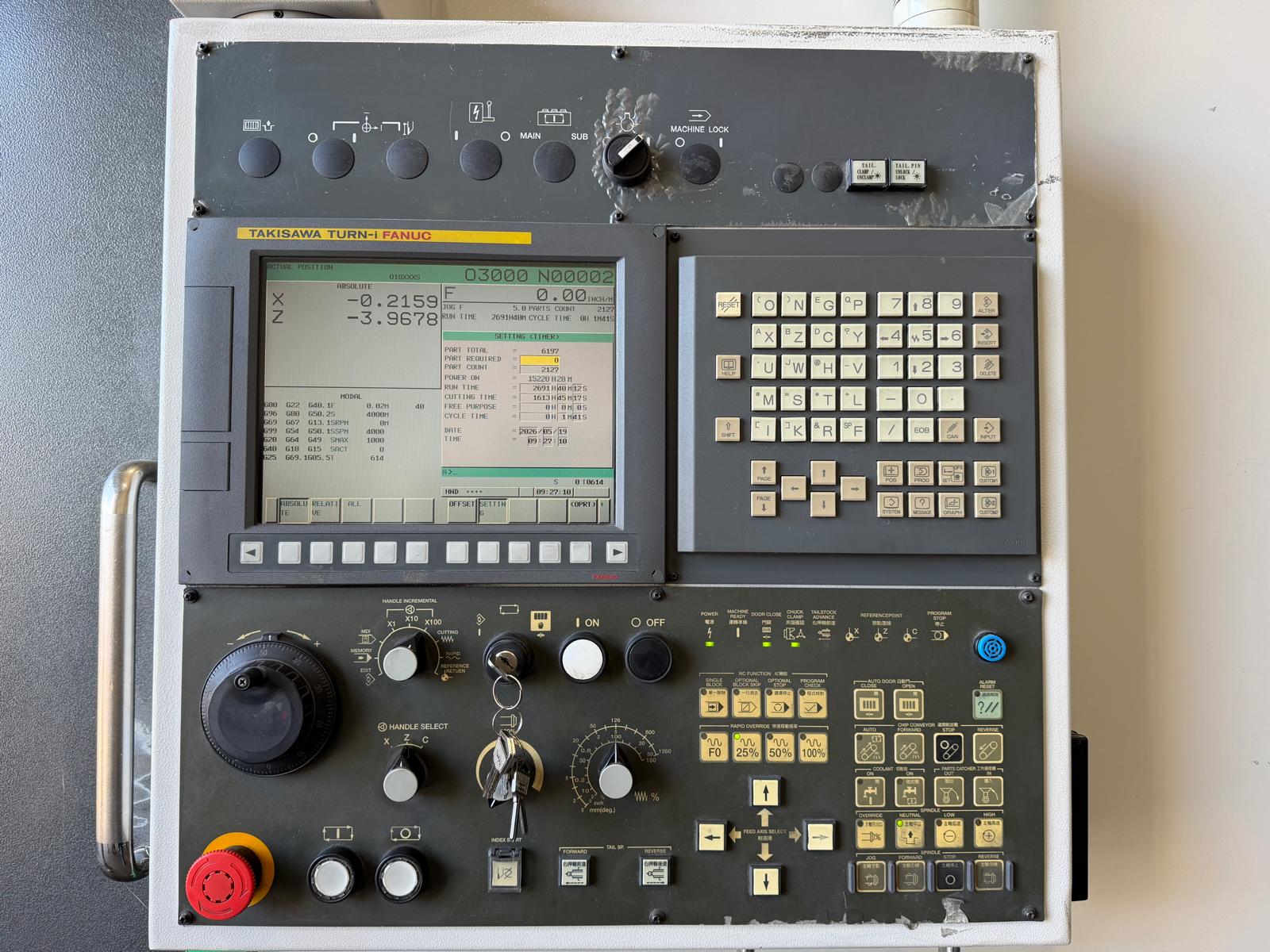

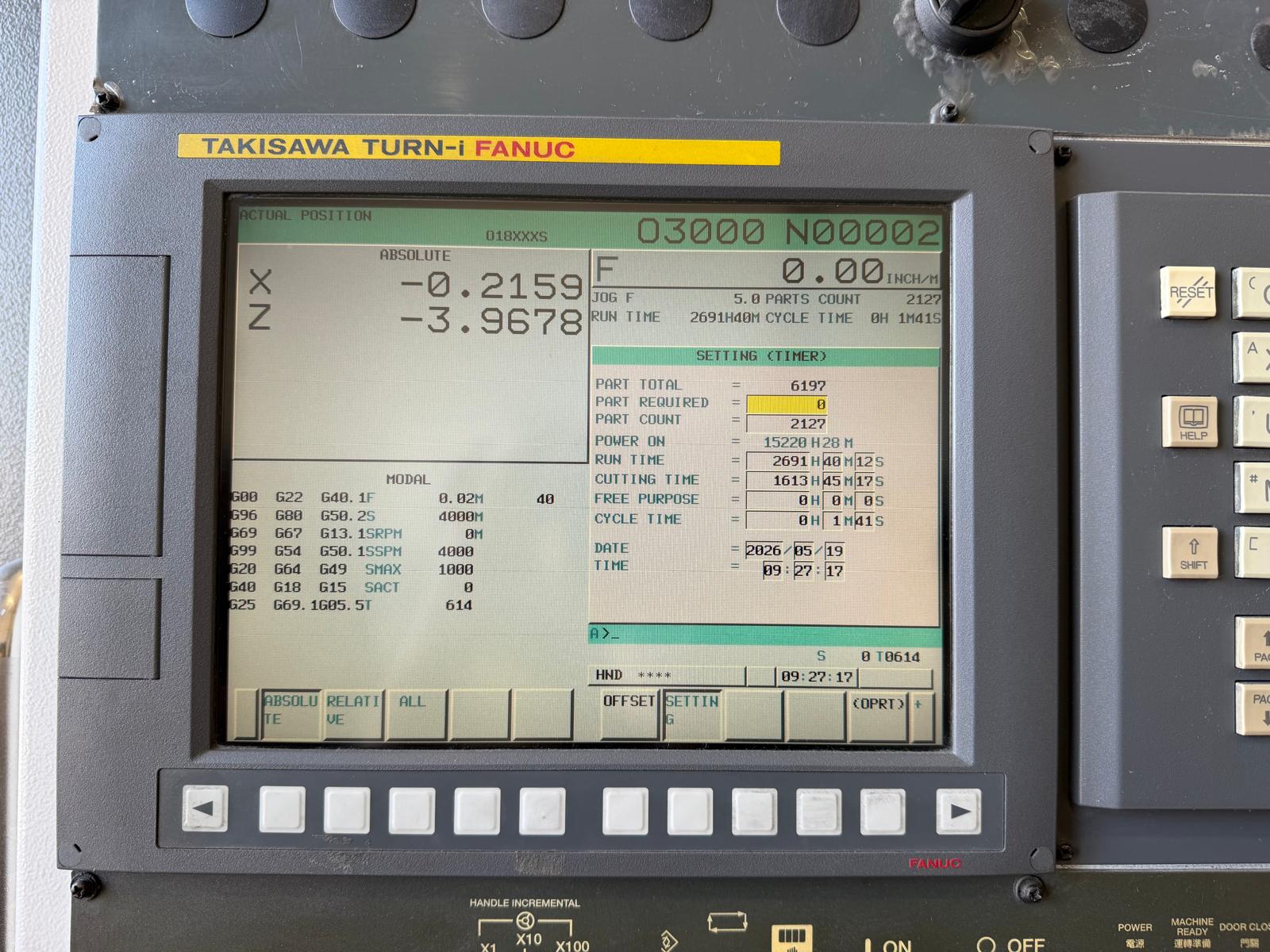

| Takisawa Turn-i Fanuc CNC Control |

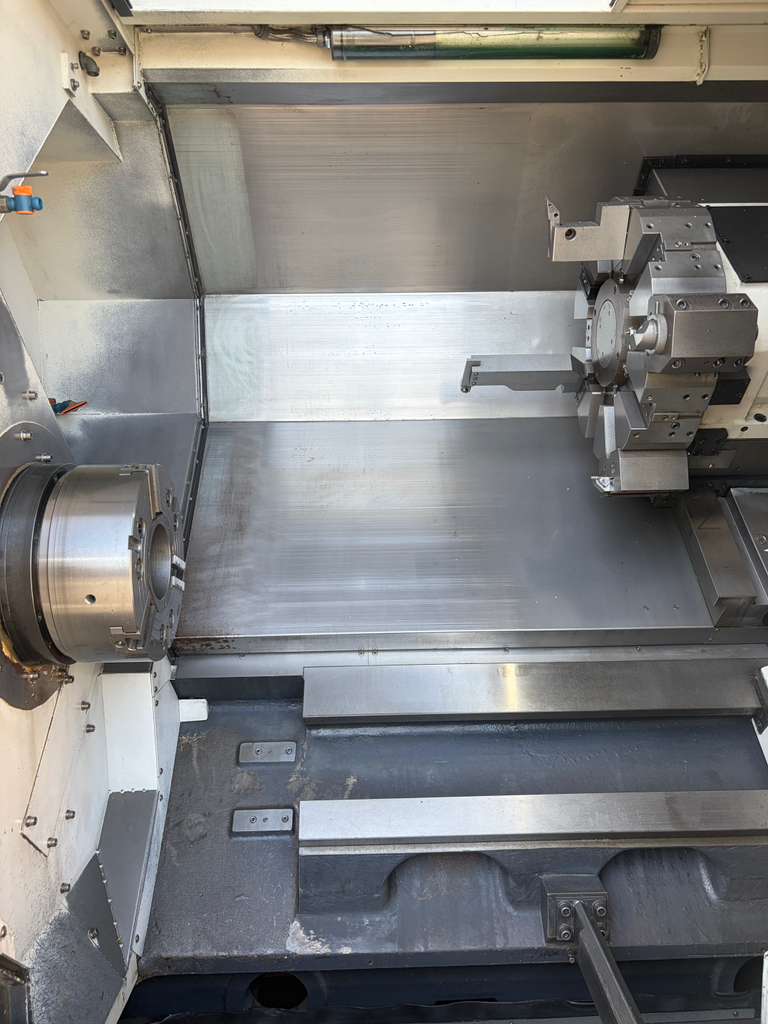

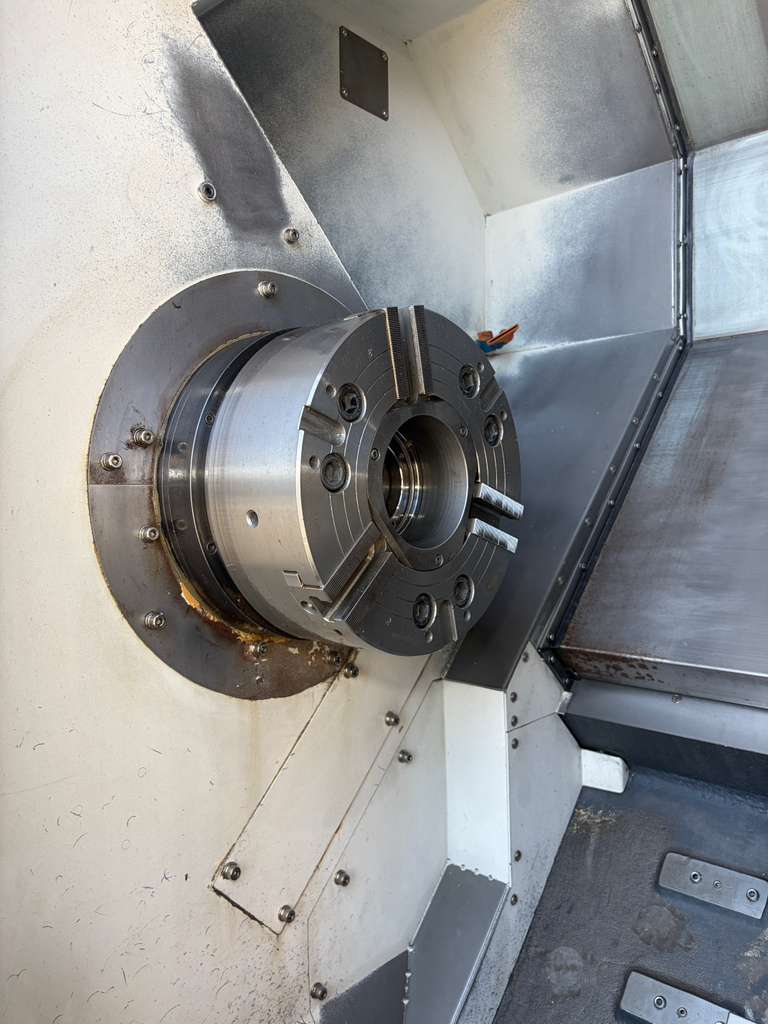

| 12″ 3-Jaw Hydraulic Chuck (Capable 15″ Chuck) |
| 5.0″ Big Bore Spindle |

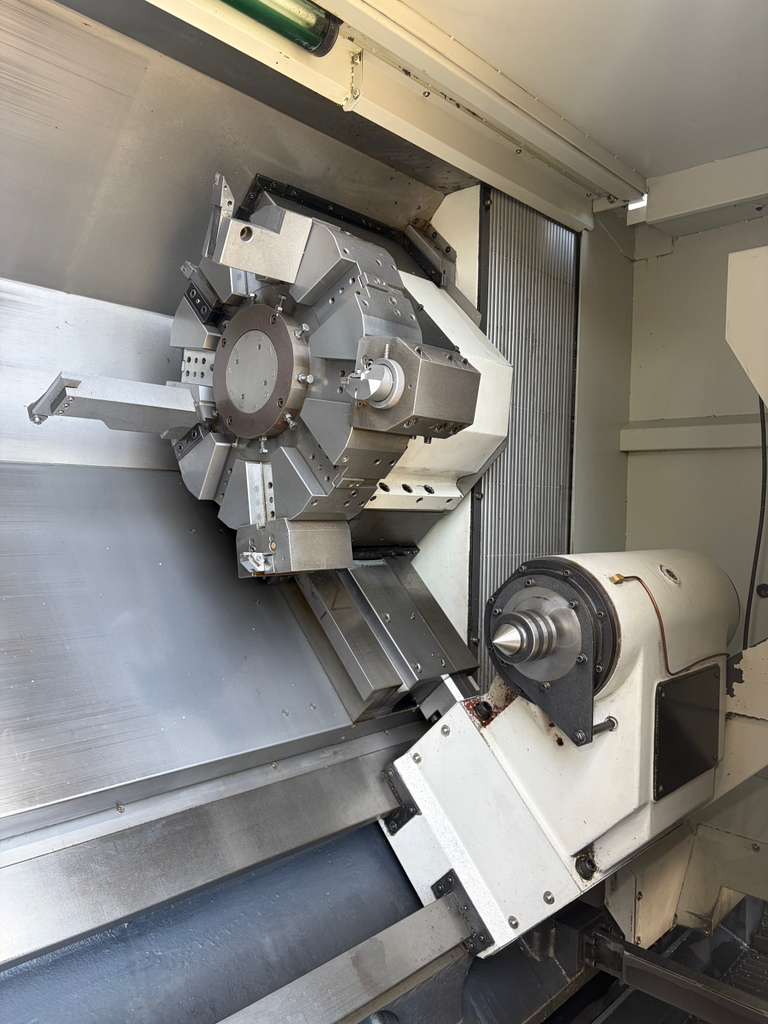

| 10 Station Automatic Turret |
| Tailstock |
| PCMCIA Card Interface |

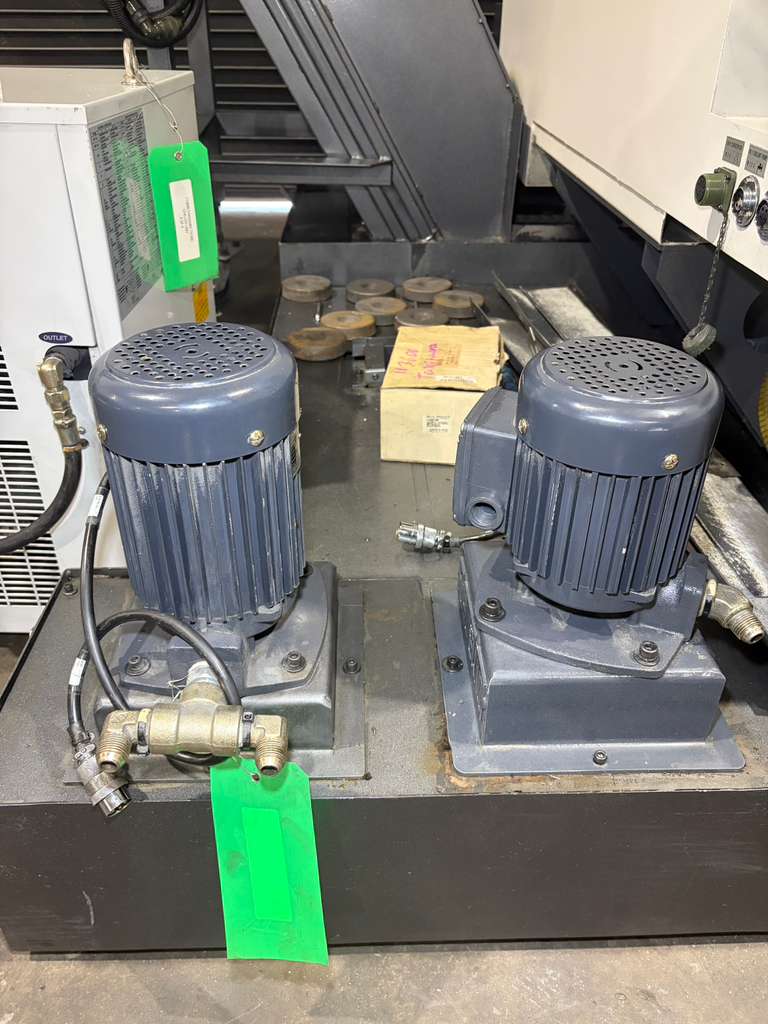

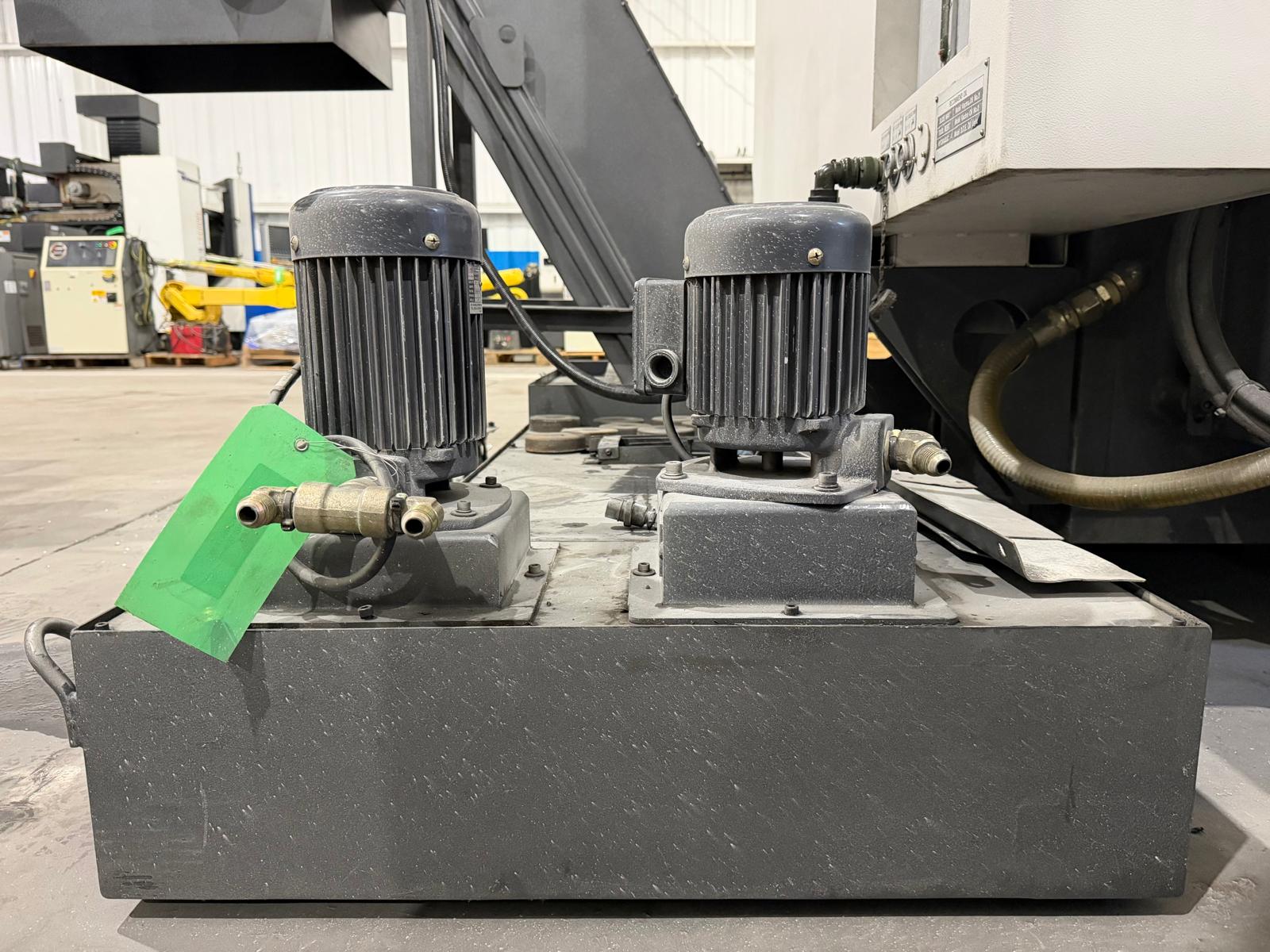

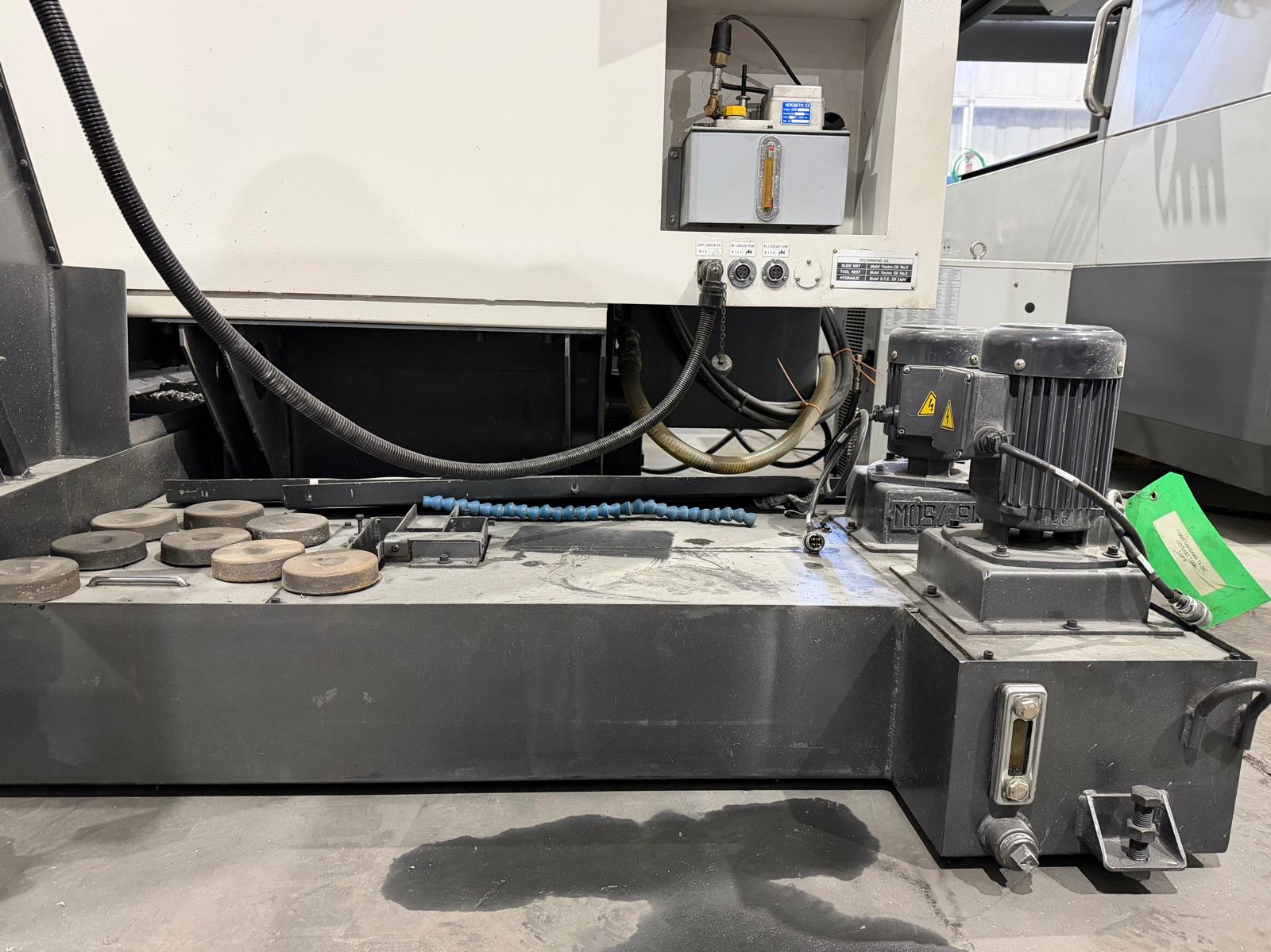

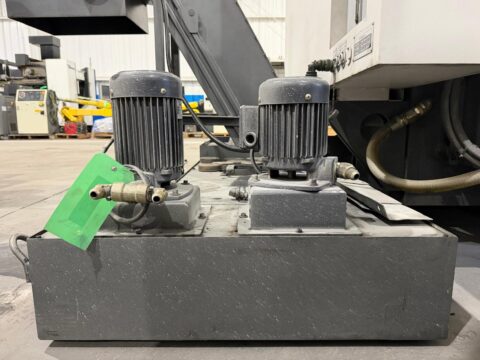

| Coolant System |

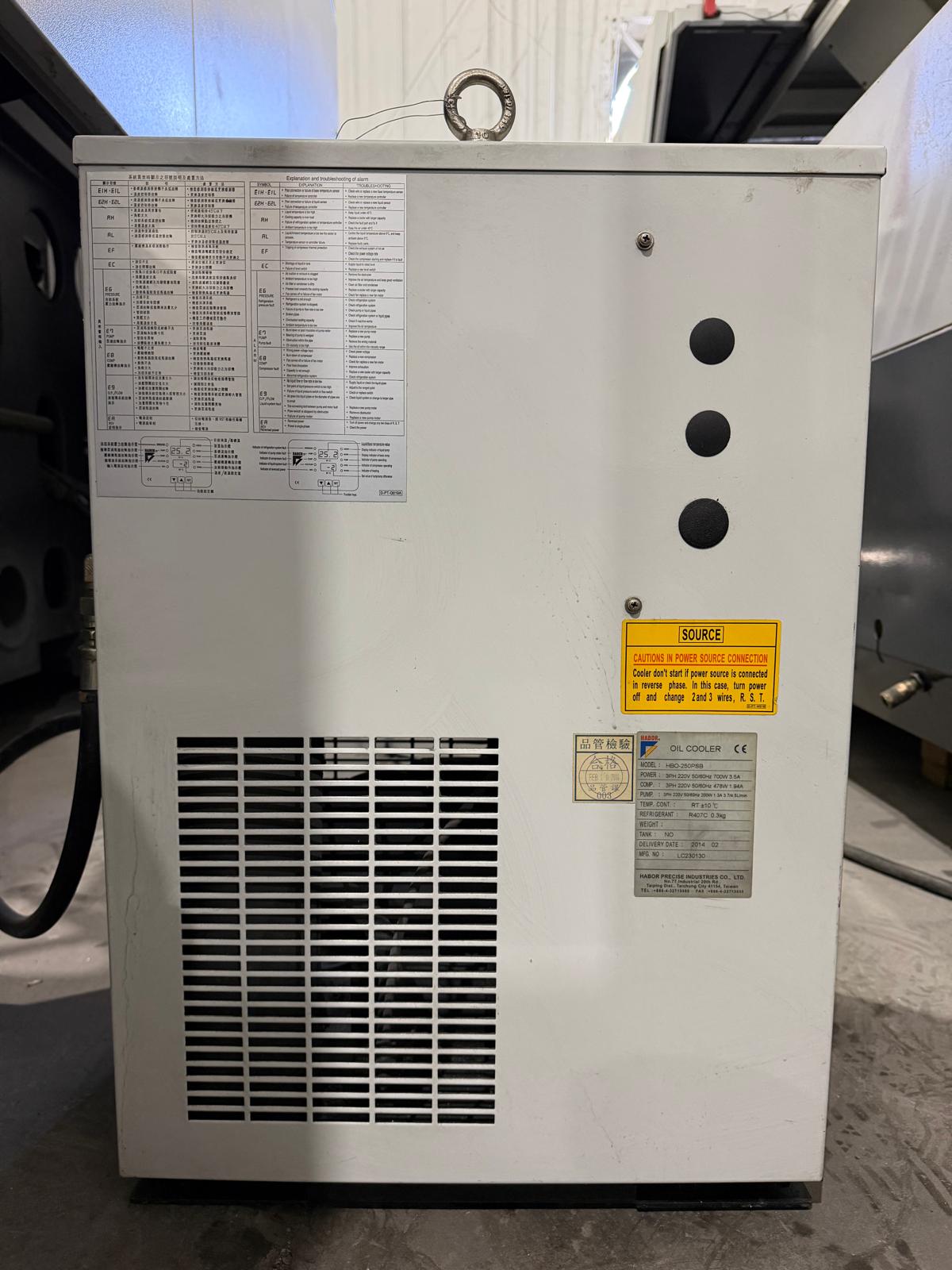

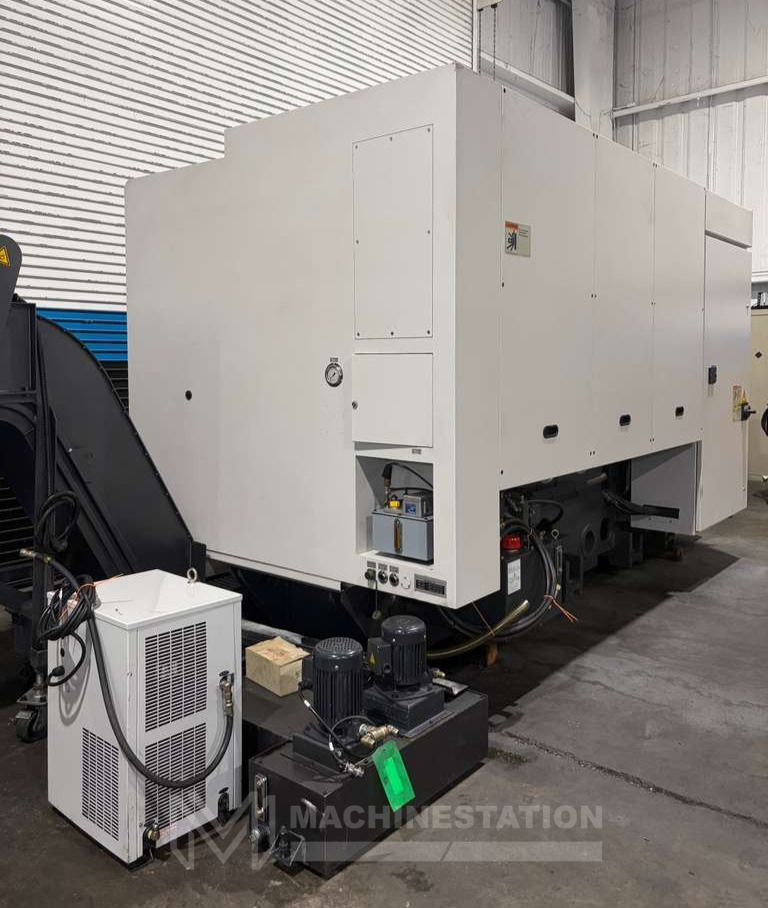

| Spindle Chiller Unit |
| Chip conveyor |
| Foot Switch |
| Leveling Pads |

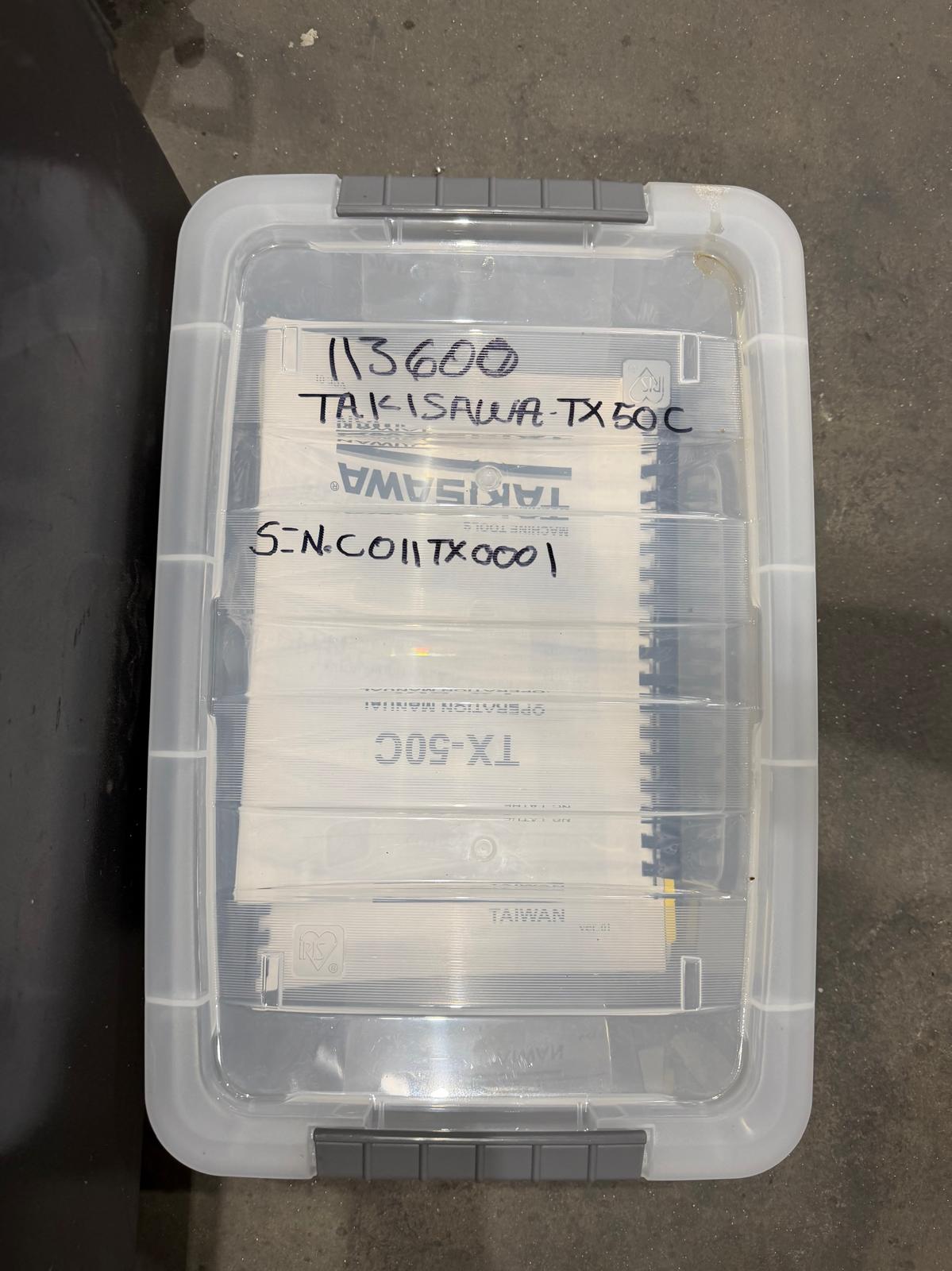

| Books & Manuals |
| Capacity: |
| Max Turning Diameter: 21.65″ |
| Max Turning Length: 29.90″ |
| Max Swing Over Bed: 30.31″ |
| Max Swing Over Saddle: 25.19″ |
| Spindle Bore: 5.0″ |
| Travels: |
| X-Axis Travel: 11.41″ |
| Z-Axis Travel: 31.49″ |
| X-Axis Rapid Traverse Rate: 630 IPM |
| Z-Axis Rapid Traverse Rate: 787 IPM |
| Spindle: |
| Spindle Nose: A2-11 |
| Spindle Bore: 5.0″ |
| Spindle Speed: 2000 RPM |
| Spindle Motor: 35 HP |
| Turret: |
| Capacity: 10 Stations |
| Turning Tool Size: 1.26″ |
| Boring Tool Diameter: 1.96″ |
| Tailstock: |
| Tailstock Travel: 31.49″ |
| Tailstock Taper: MT-5 |
| Tailstock Spindle Diameter: 7.08″ |
| Tailstock Spindle Travel: 5.90″ |
| General: |
| Power Source: 220v / 50/60 Hz / 3-Phase |
| Overall Dimensions: 157″ X 82″ X 85″ High Approx. |
| Weight: 19,840 lbs. Approx. |
