Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Features: |

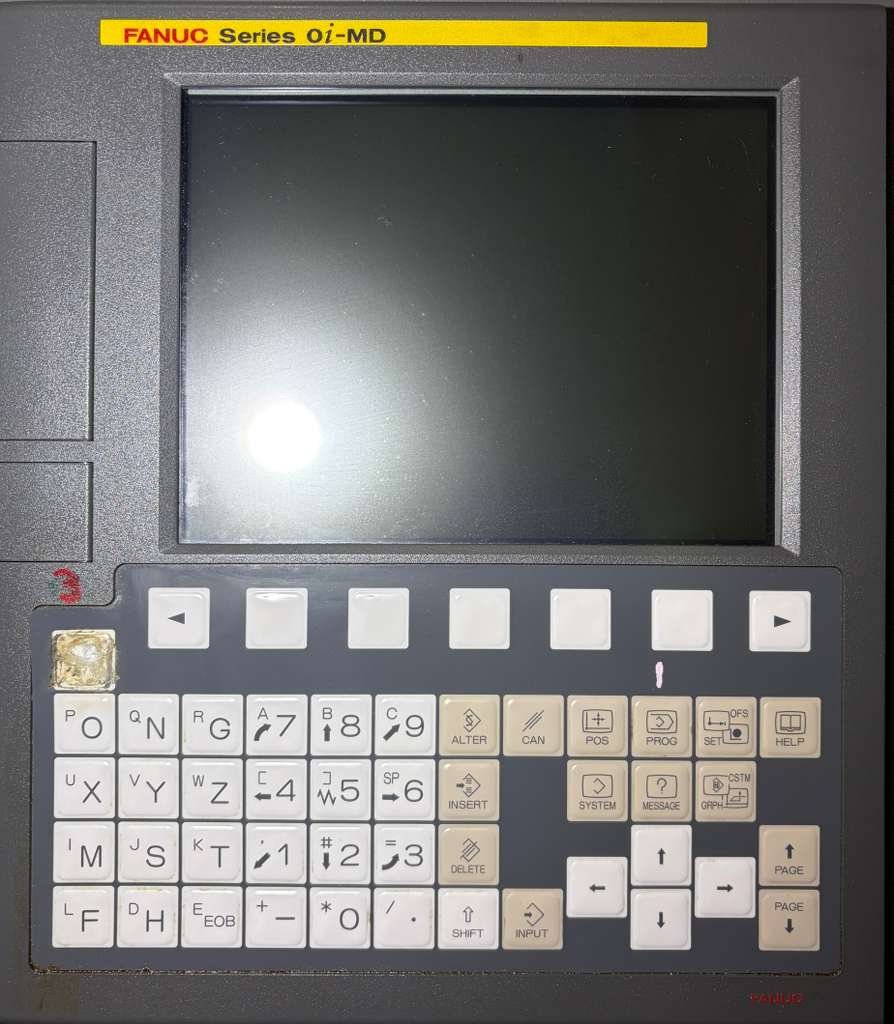

| Fanuc Oi-MD Series CNC Control |

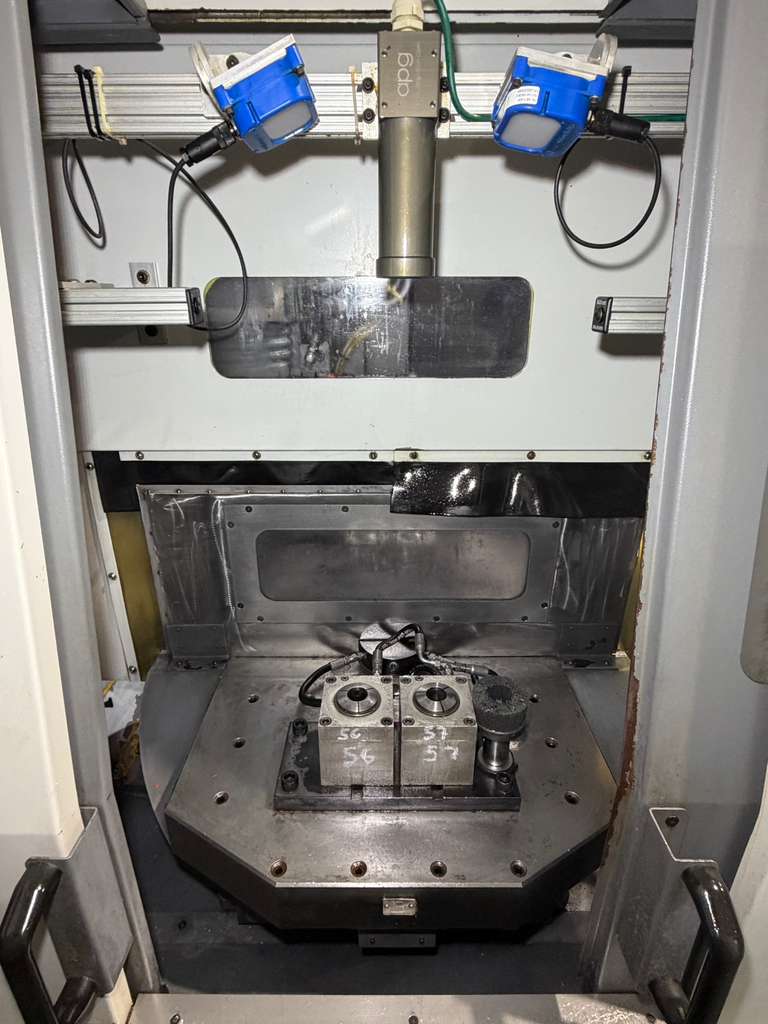

| Rotary Pallet Changer |
| 10,000 RPM High Speed Spindle |
| BT-30 Taper Spindle |
| 24 Station Automatic Tool Changer |
| Through Spindle Coolant |
| PCMCIA Card Interface |
| Spindle Chiller Unit |
| Rigid Tapping |

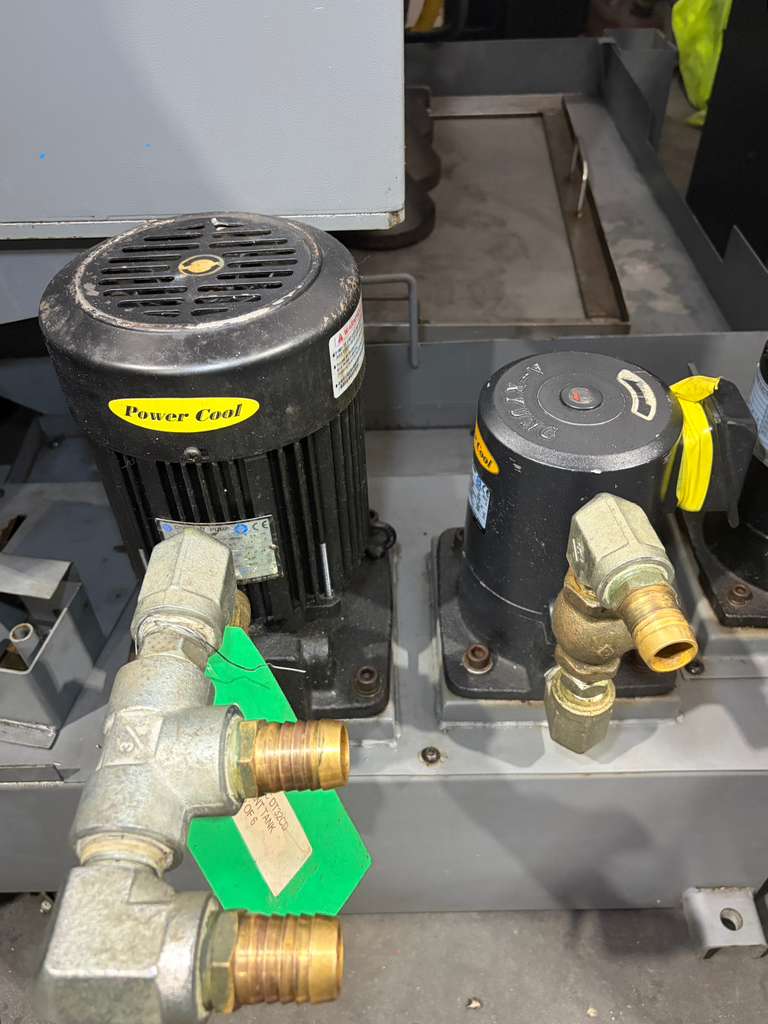

| Coolant System |
| Levelling Pads |
| Travels: |
| X-Axis: 20.47″ |
| Y-Axis: 12.59″ |
| Z-Axis: 11.81″ |
| Rapid Traverse Rates X, Y, Z Axis: 1,890 IPM |
| Spindle Nose to Table (Min. – Max.): 7.87″ – 19.69″ |
| Table: |
| Number of Pallets: 2 |
| Length: 23.62″ |
| Width: 14.76″ |
| Number of T-Slots: 4 |
| Max Weight on Table: 882 lbs |

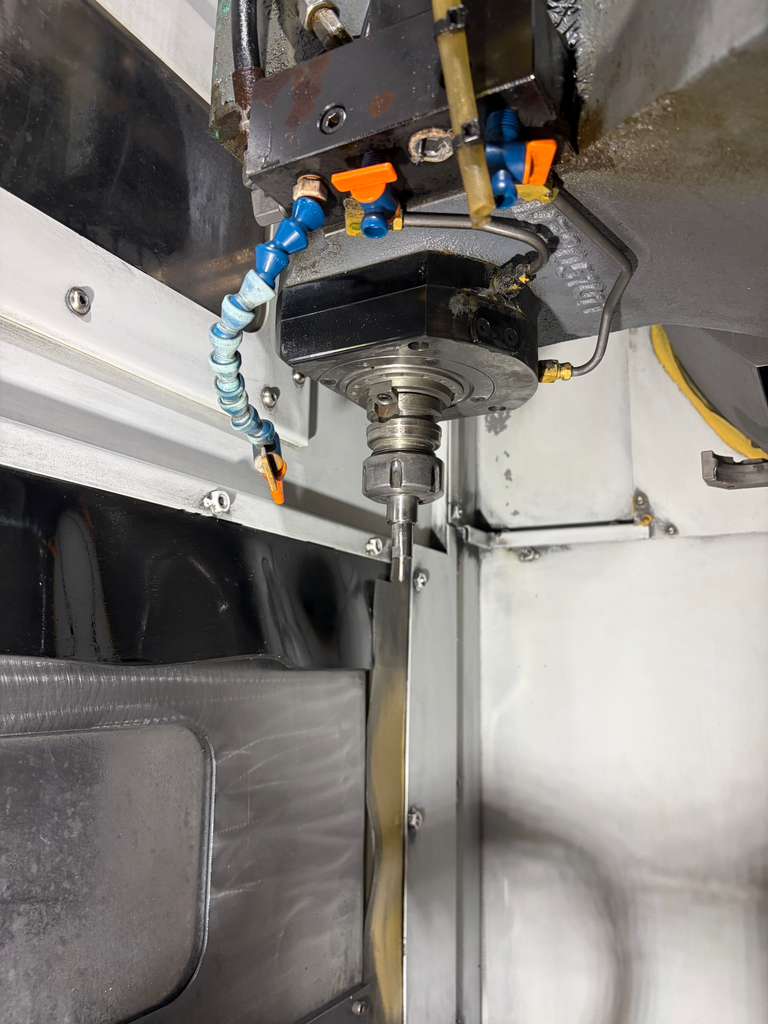

| Spindle: |
| Spindle Type: Direct Drive |
| Taper Size: BT-30 |
| Speed Range: 10,000 RPM |
| Spindle Power: 7.5 HP |

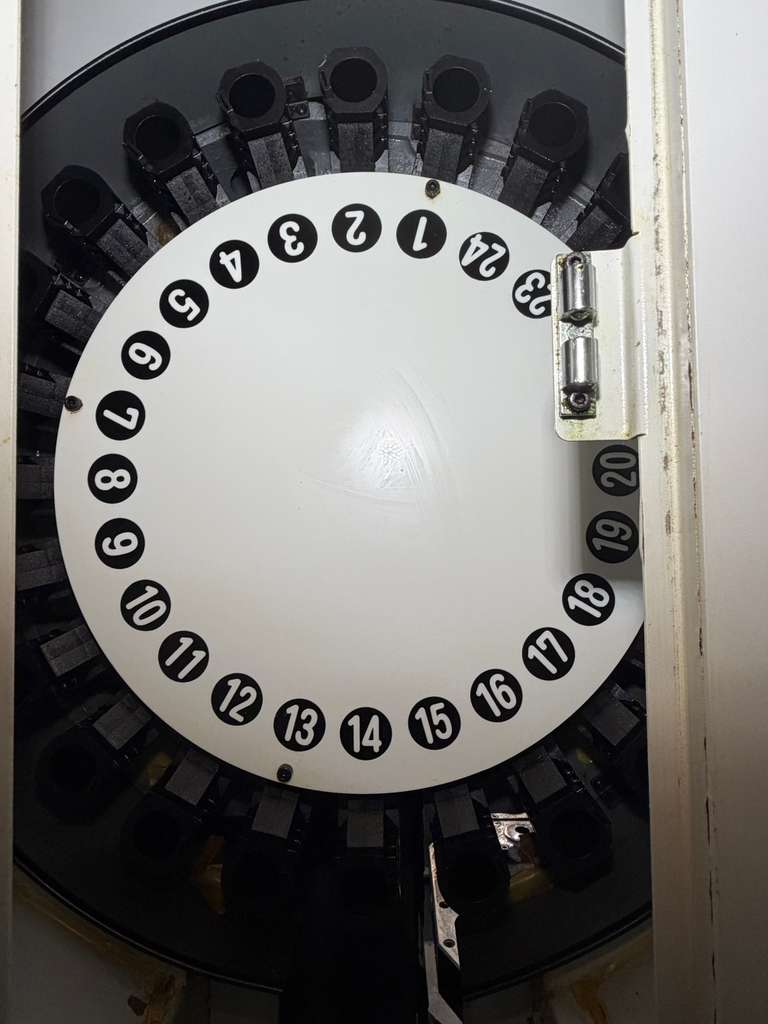

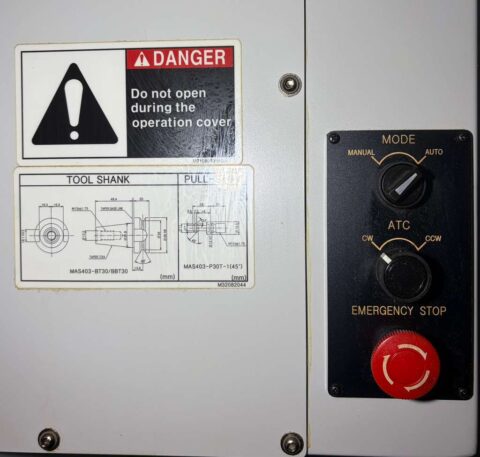

| Automatic Tool Changer: |
| Capacity: 24 Station |
| Max Tool Diameter: 2.75″ – 4.72″ |
| Max Tool Length: 7.87″ |
| Max Tool Weight: 11.02 lbs |
| Tool Changing Time (Tool-to-Tool): 0.84 Sec |
| General: |
| Power: 220v / 3-phase / 20 kva |
| Overall Dimensions: 110.23″ x 74.80″ x 96.46″ High |
| Weight: 8,157 lbs |
