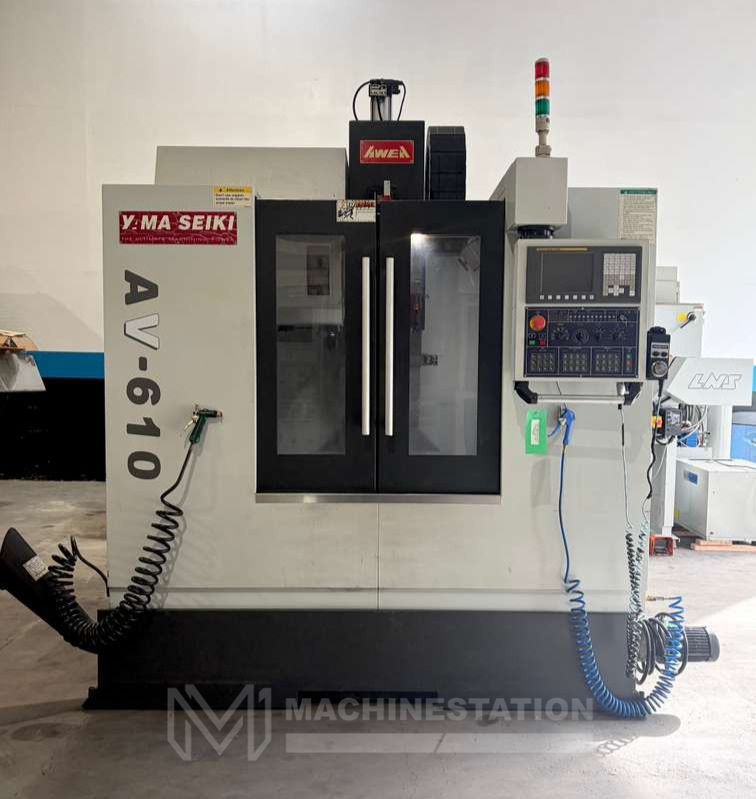

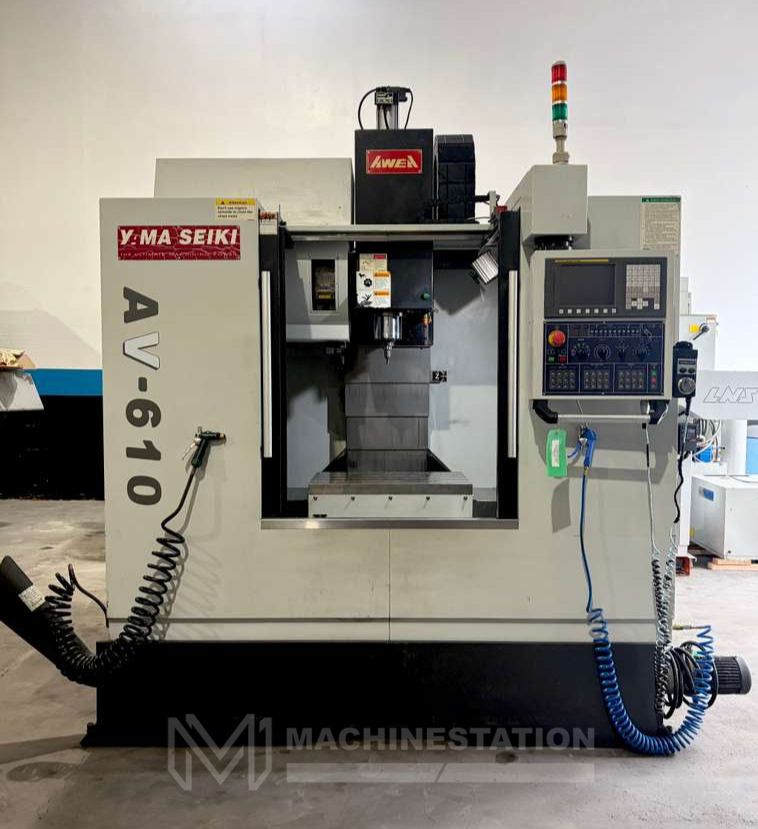

Used Yama Seiki AV-610 CNC Vertical Machining Center (2013)

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Yama Seiki
Model:	AV-610
Year:	2013 (Sold and Installed in 2014)
Condition:	Used – Good

Features:

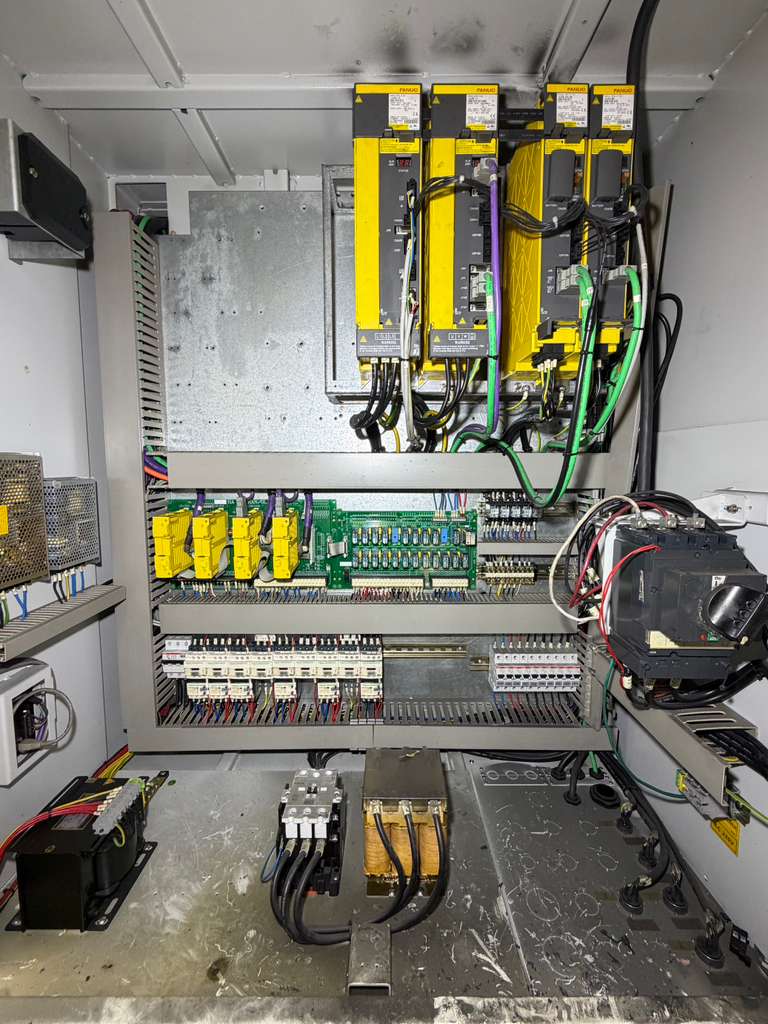

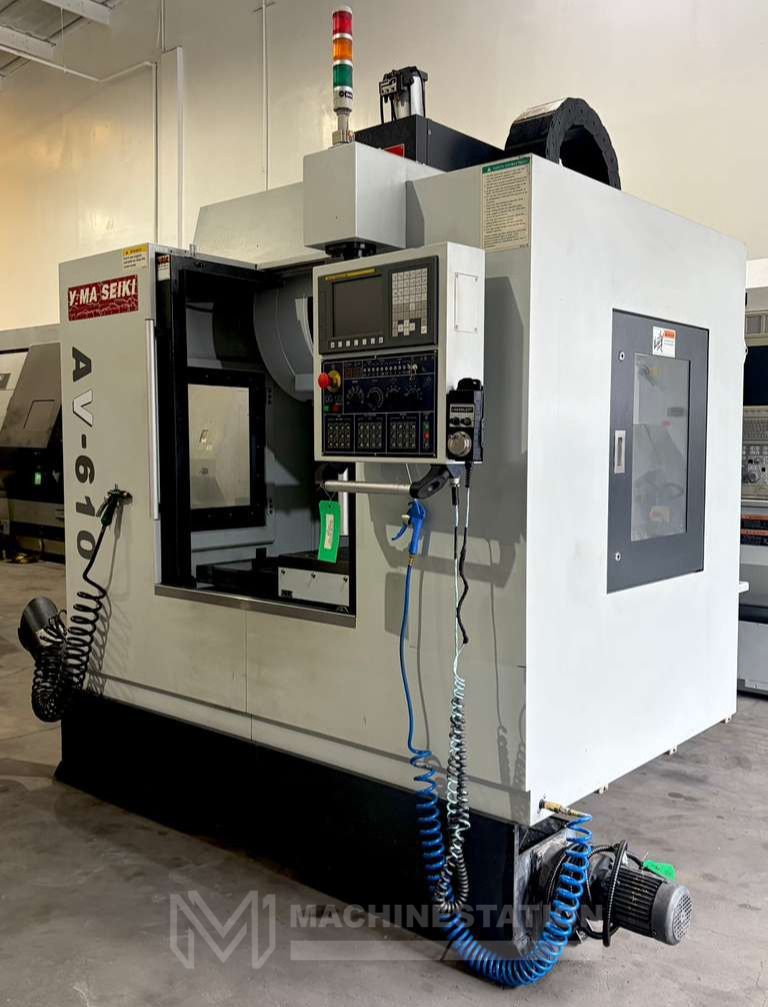

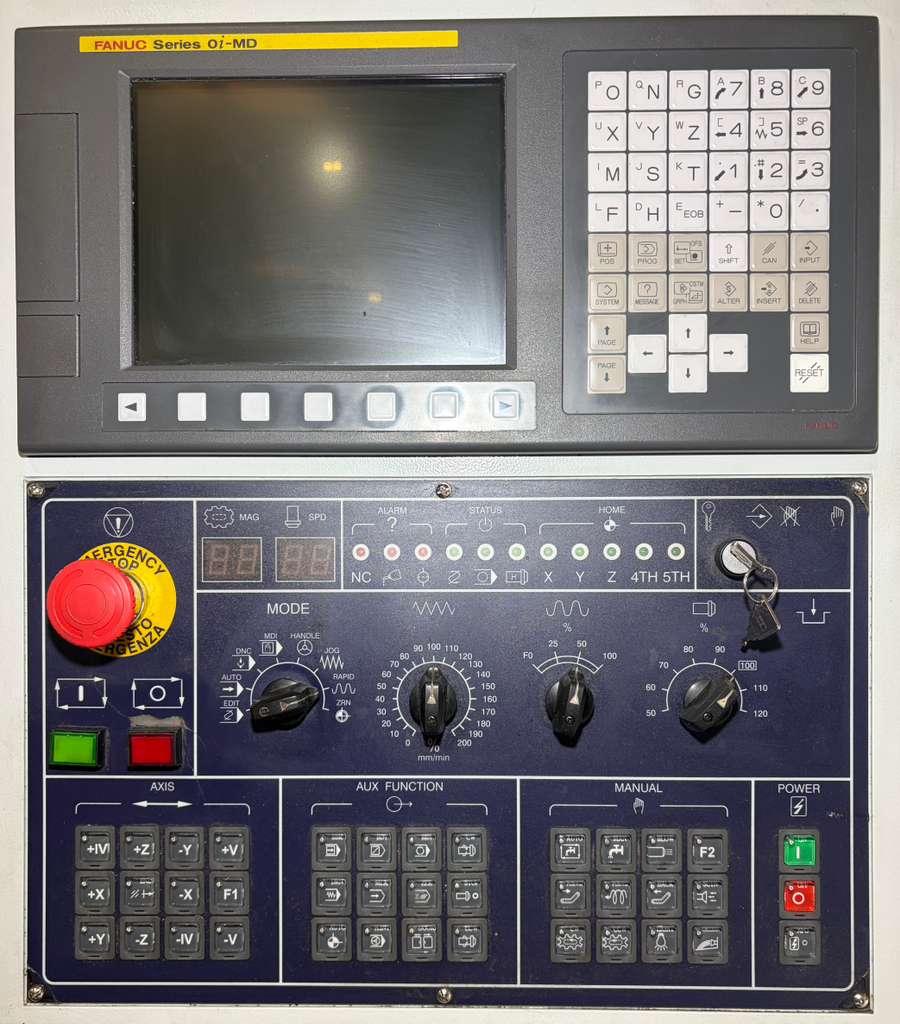

Fanuc Oi-MD CNC Control
Linear Ways Construction
10,000 RPM High Speed Spindle
24 Station Automatic Tool Changer

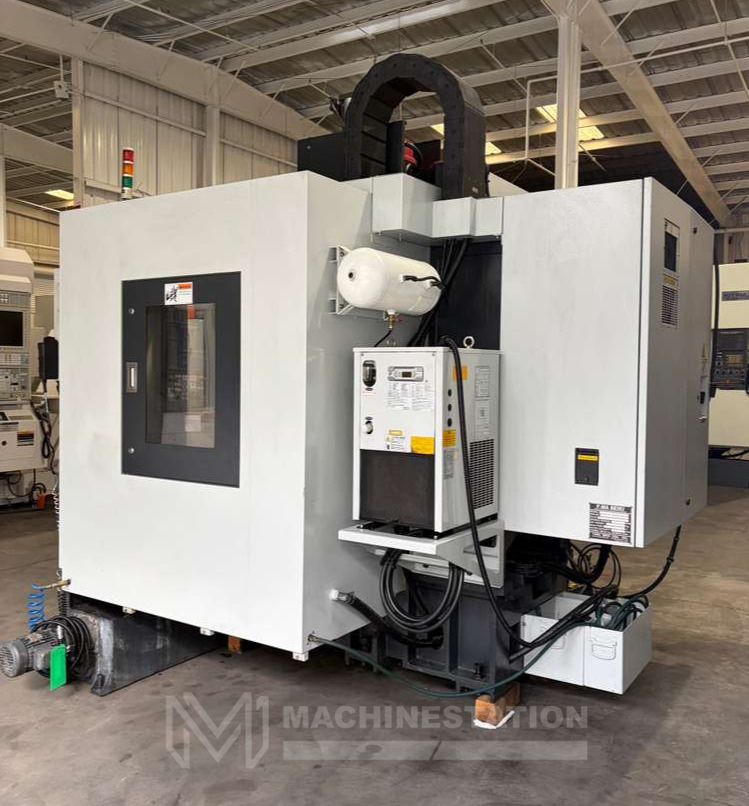

Spindle Chiller Unit
MPG Handwheel Control
USB Port & PCMCIA Card Slot
Telescopic way covers
Coolant System
Chip Auger

Travels:
X-Axis: 24.02″
Y-Axis: 17.7″
Z-Axis: 17.7″
Rapid Traverse Rates X & Y Axis: 1245 Inch Per Minute
Rapid Traverse Rates Z Axis: 960 Inch Per Minute
Cutting Feed Rates: 394 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5.91″ – 23.6″

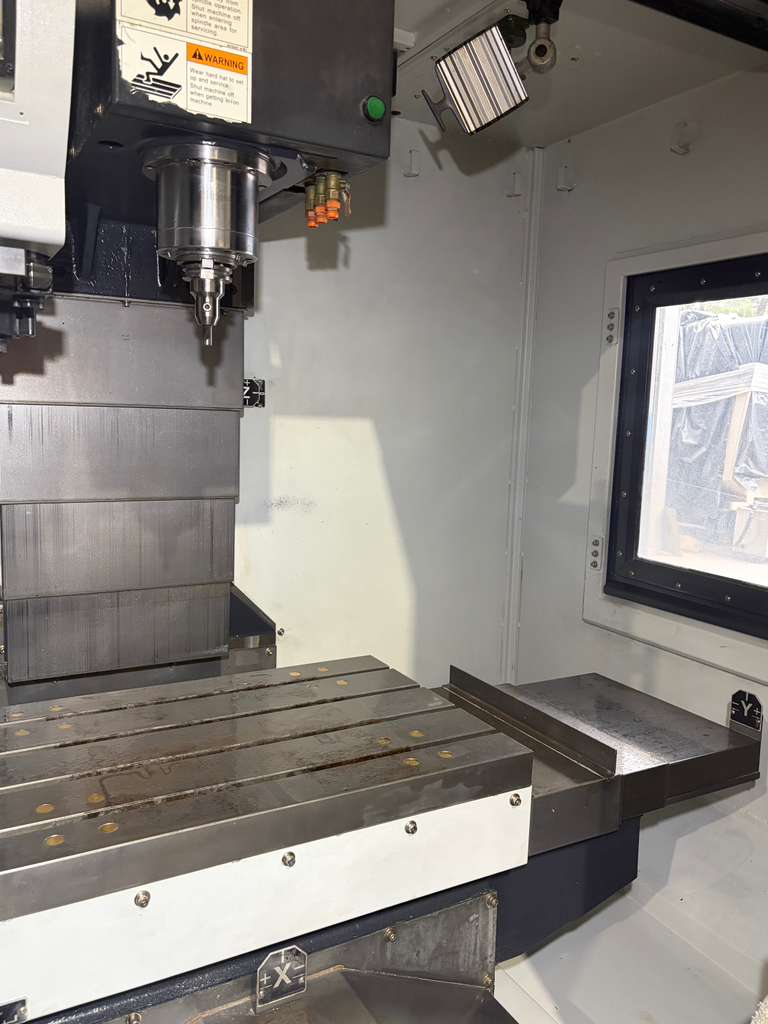

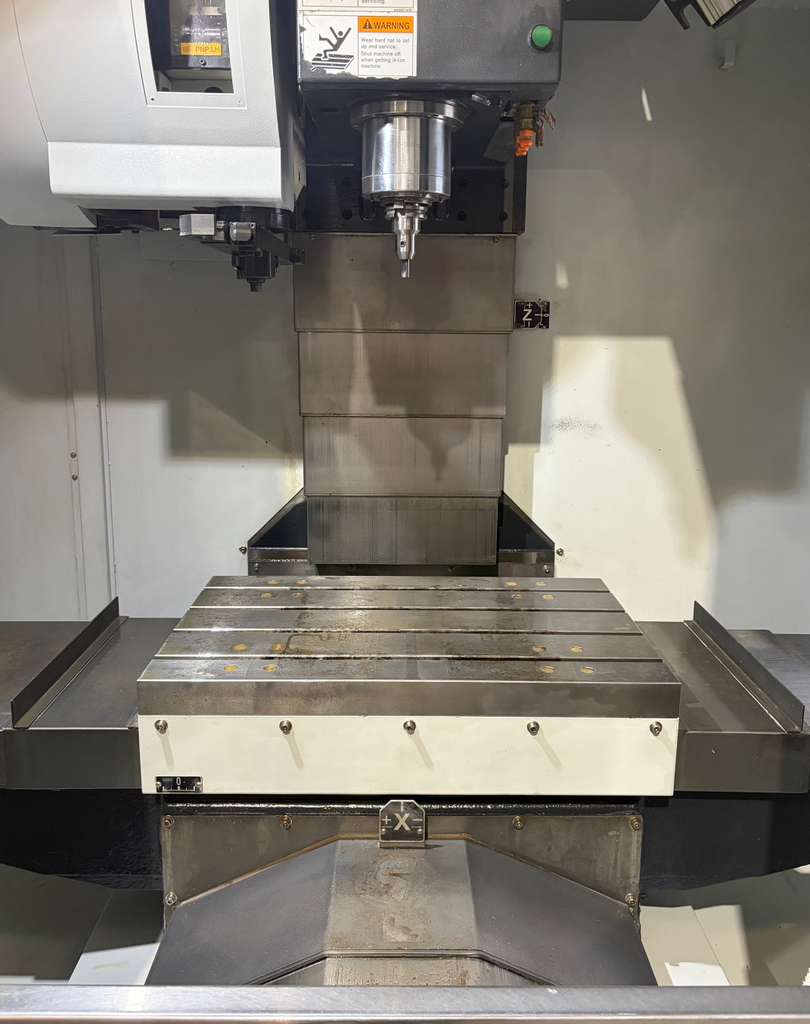

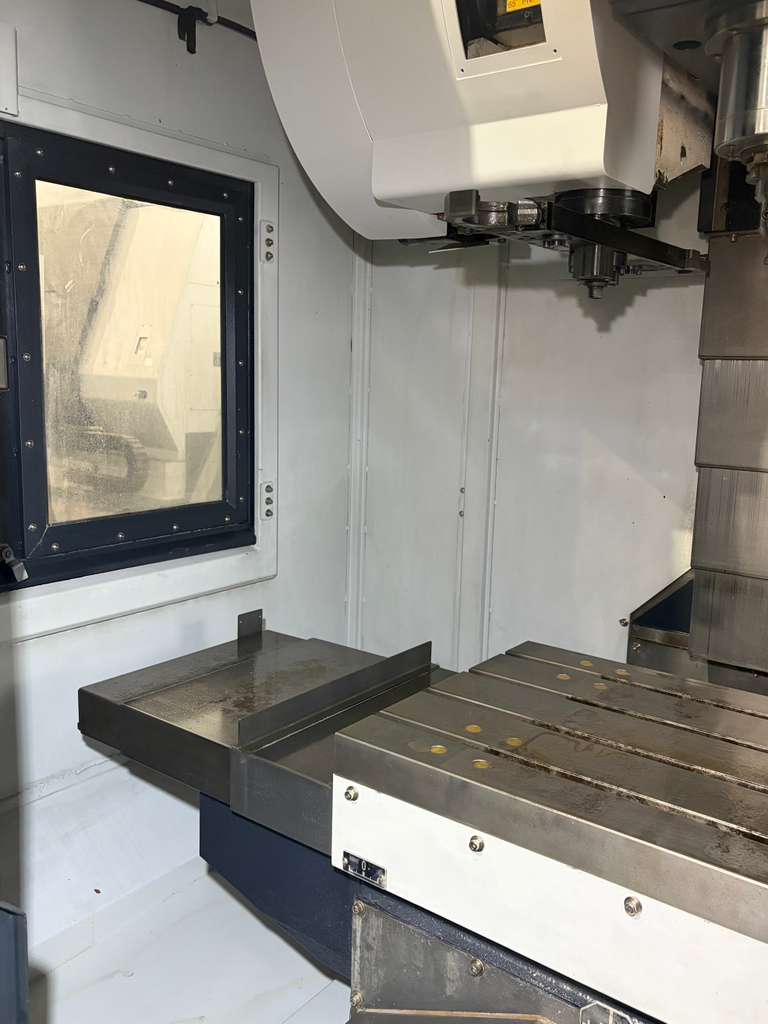

Table:
Length: 27.5″
Width: 17.71″
Number of Std T-Slots: 4
T-Slot Width: 5/8″
Max Weight on Table: 990 lbs

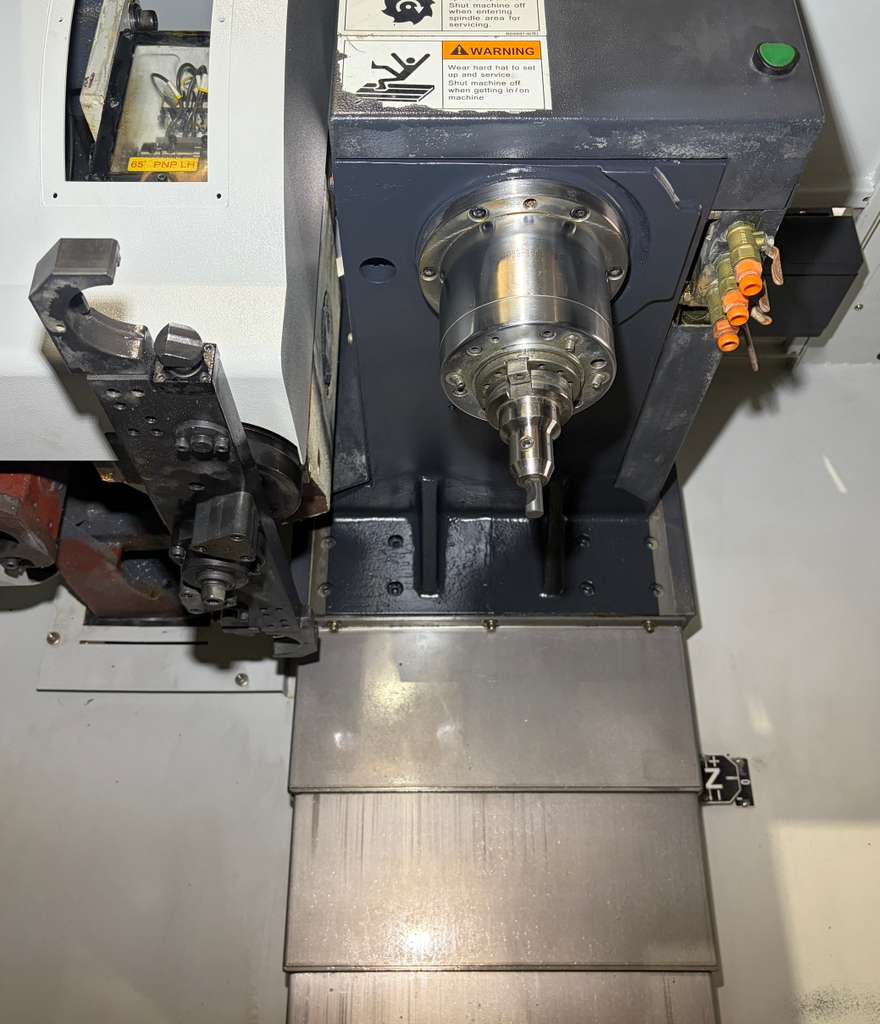

Spindle:
Taper Size: CAT-40
Speed Range: 10,000 RPM
Spindle Power: 15 HP

Automatic Tool Changer:
Capacity: 24 Tools
Max Tool Weight: 15.4 lbs
Max Tool Dia: 3.14″ – 5.91″
Max Tool Length: 11.8″

General:
Air Required: 85 psi 6 scfm
Power: 220v / 50/60 Hz / 3-Phase / 20 kva
Overall Dimensions: 82″ x 48″ x 86″ High
Weight: 7,700 lbs

Travels:
X-Axis: 610 mm
Y-Axis: 450 mm
Z-Axis: 450 mm
Rapid Traverse Rates X & Y Axis: 1245 Inch Per Minute
Rapid Traverse Rates Z Axis: 960 Inch Per Minute
Cutting Feed Rates: 394 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 150 mm - 599 mm

Table:
Length: 699 mm
Width: 450 mm
Number of Std T-Slots: 4
T-Slot Width: 5/203 mm
Max Weight on Table: 990 lbs

Spindle:
Taper Size: CAT-40
Speed Range: 10,000 RPM
Spindle Power: 15 HP

Automatic Tool Changer:
Capacity: 24 Tools
Max Tool Weight: 15.4 lbs
Max Tool Dia: 80 mm - 150 mm
Max Tool Length: 300 mm

General:
Air Required: 85 psi 6 scfm
Power: 220v / 50/60 Hz / 3-Phase / 20 kva
Overall Dimensions: 2,083 mm x 1,219 mm x 2,184 mm High
Weight: 7,700 lbs

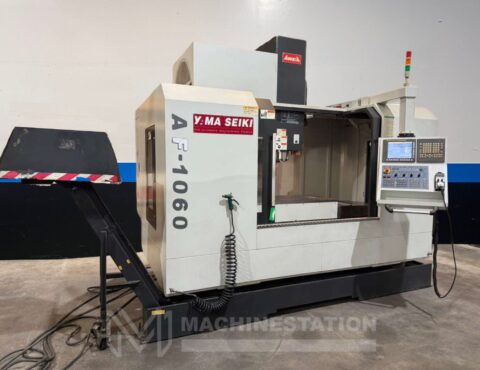

Make	YAMA Seiki
Model	AF-1060
Categories	CNC Vertical Machining Center

Fanuc Oi-MD CNC Control
Linear Ways Construction
10,000 RPM High Speed Spindle
24 Station Automatic Tool Changer
Spindle Chiller Unit
MPG Handwheel Control
USB Port & PCMCIA Card Slot
Telescopic way covers
Coolant System
Chip Auger

No video available for this listing yet — request one from our sales team.

Payment Terms

A booking advance secures this machine, with the balance due prior to loading. We accept bank transfer, Stripe, and Letter of Credit for qualifying export orders.

Shipping & Logistics

We coordinate domestic transport and export logistics — containerization, loading, and documentation — through our freight partners.

Inspection

Video calls, running demonstrations, or an on-site visit can be arranged before you commit to a purchase.

Documentation

Export documentation and pre-shipment inspection reports can be arranged for international orders.

Location:	Lake Elsinore, CA
SKU:	113573
Make/Model:	Yama Seiki AV-610
Year:	2013 (Sold & Installed in 2014)
Condition:	Used – Good
Video:	No Video
