*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112196 |

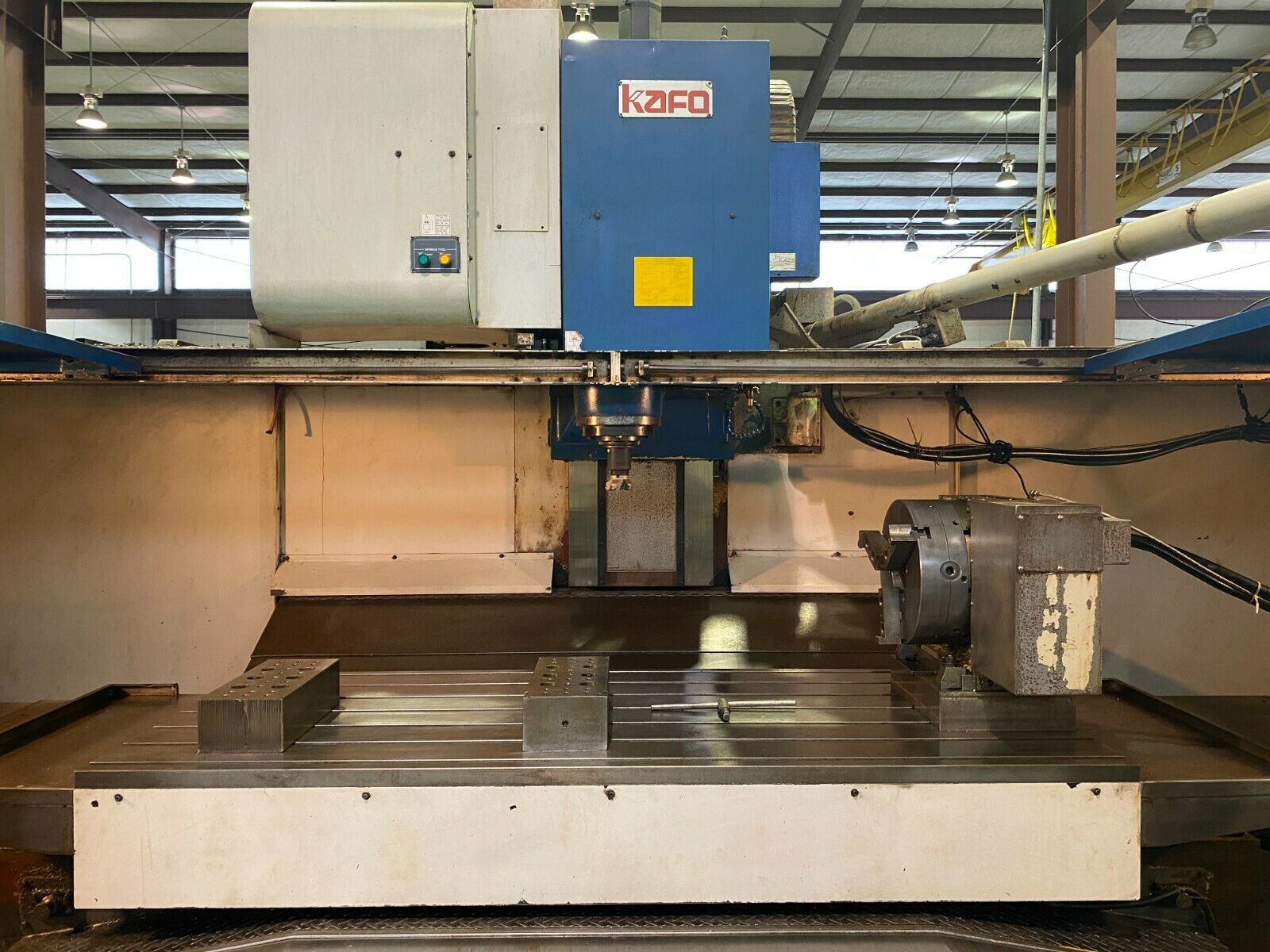

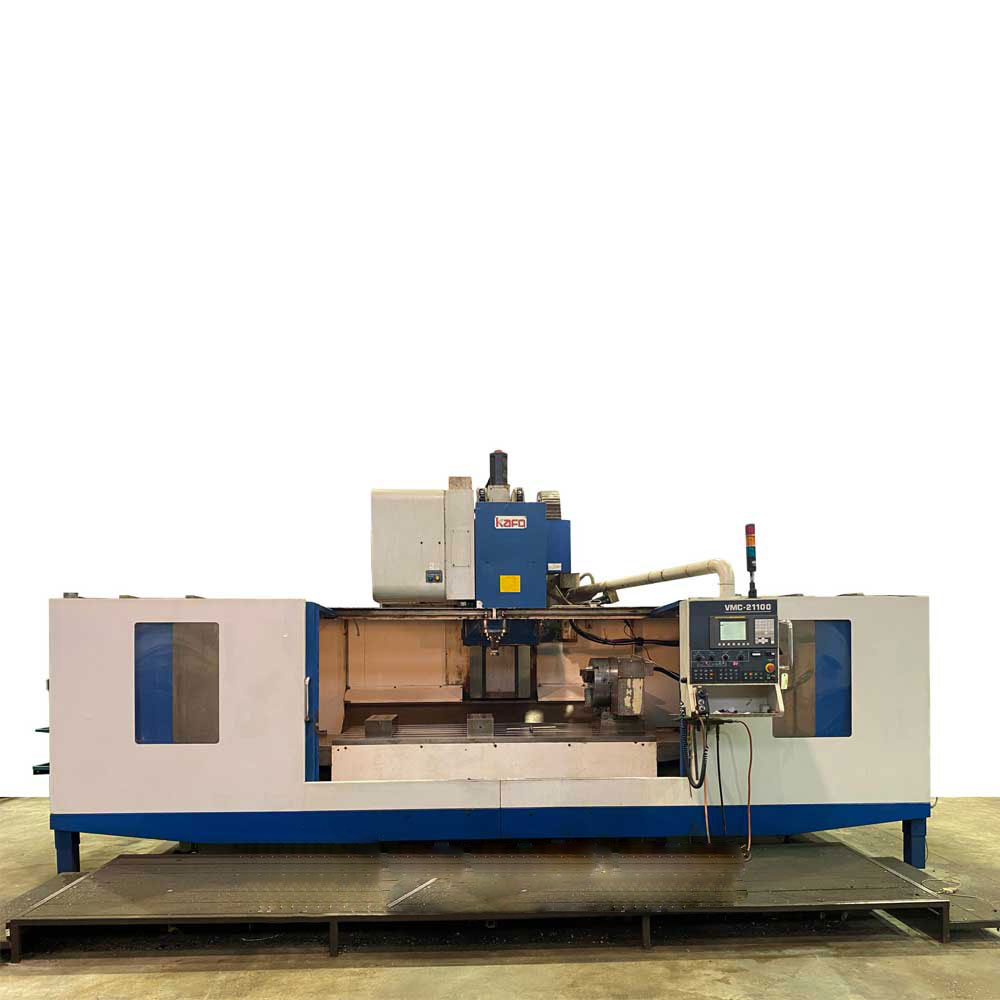

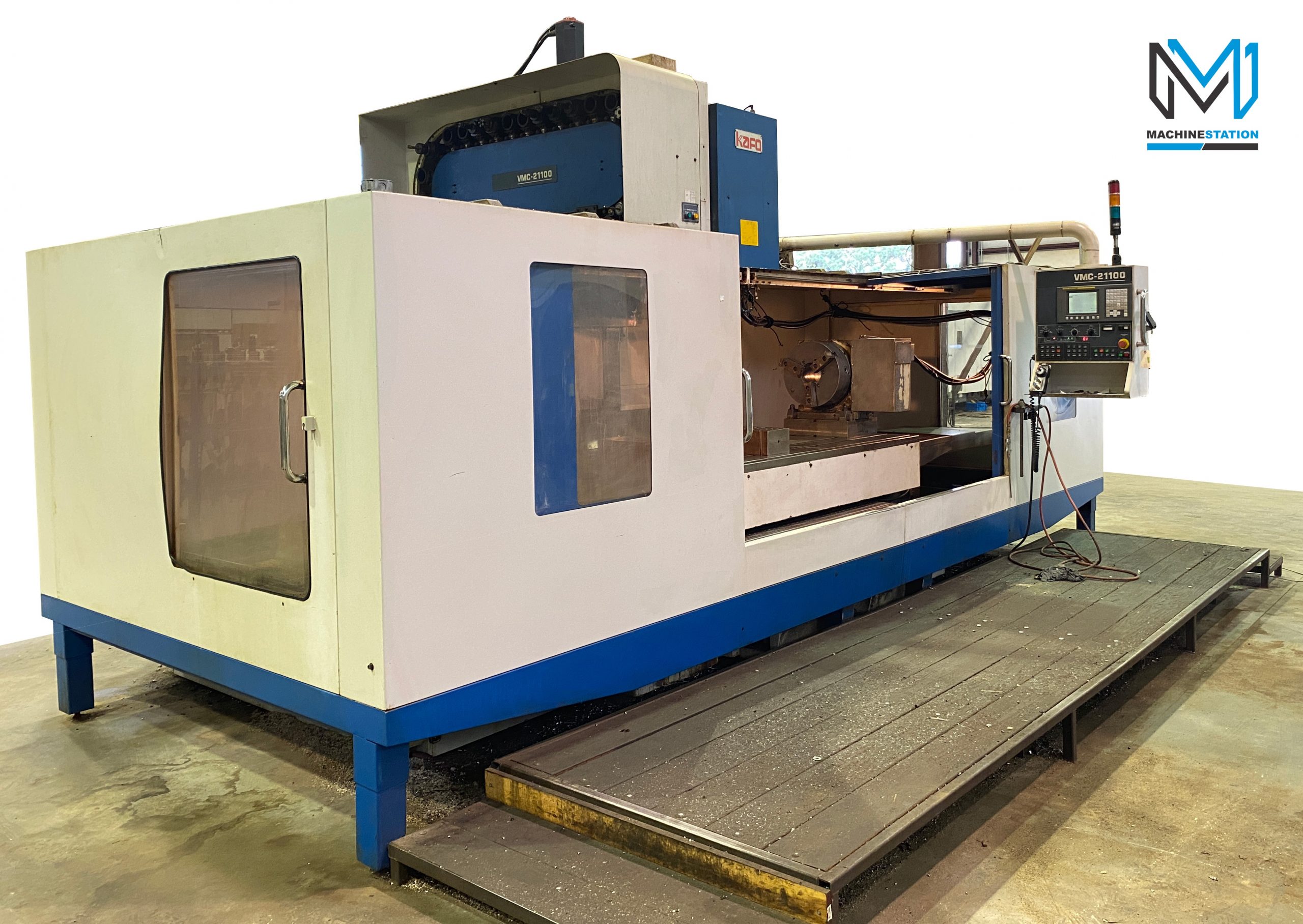

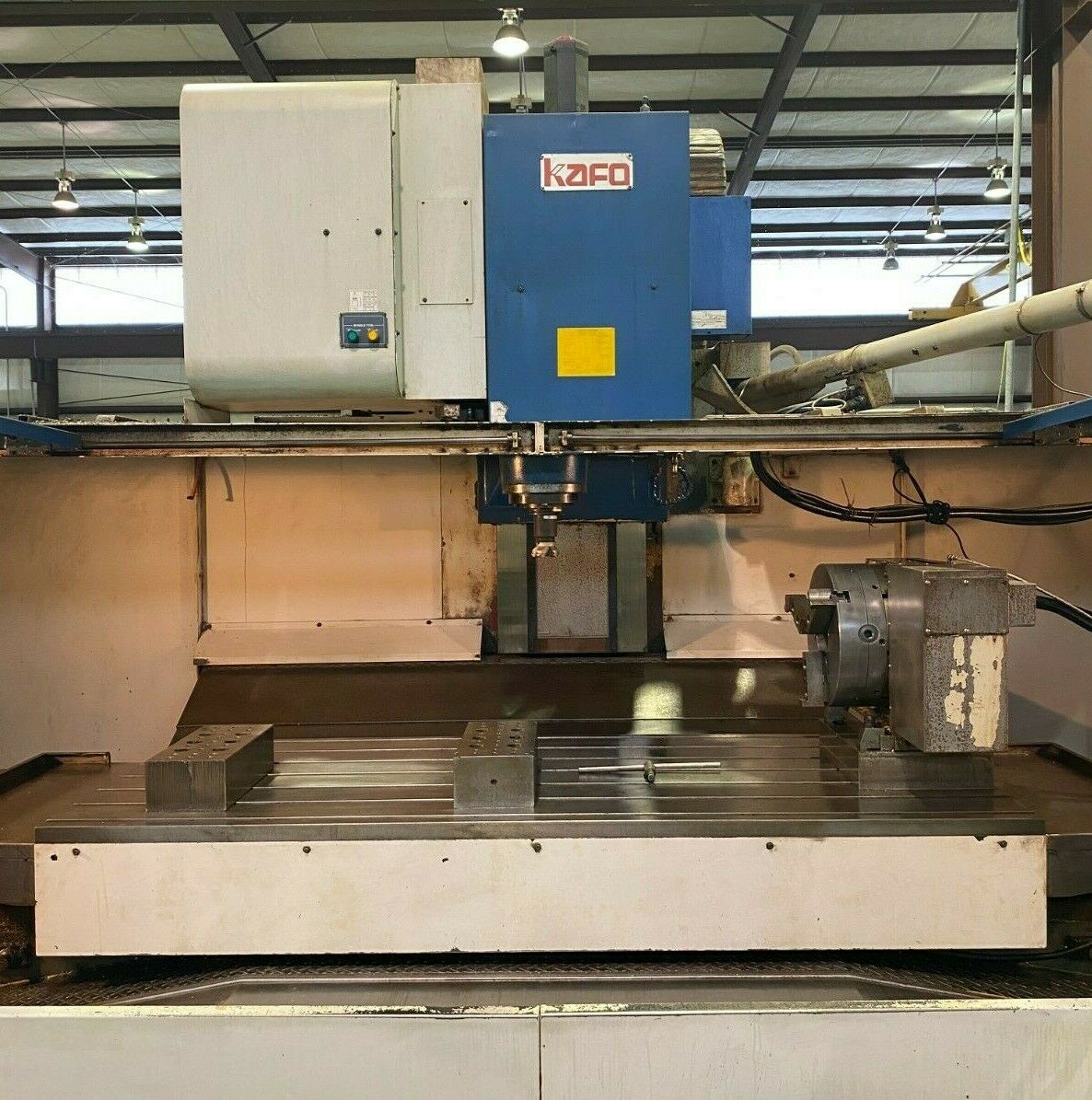

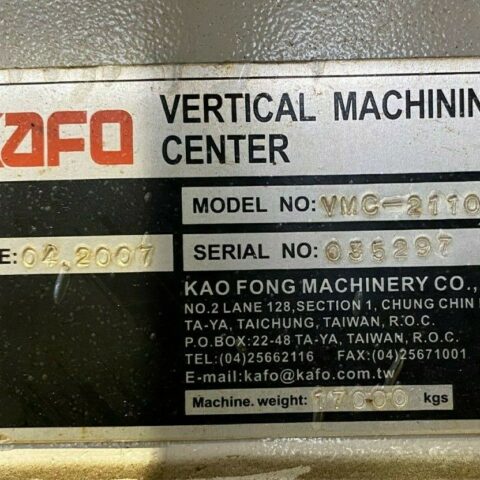

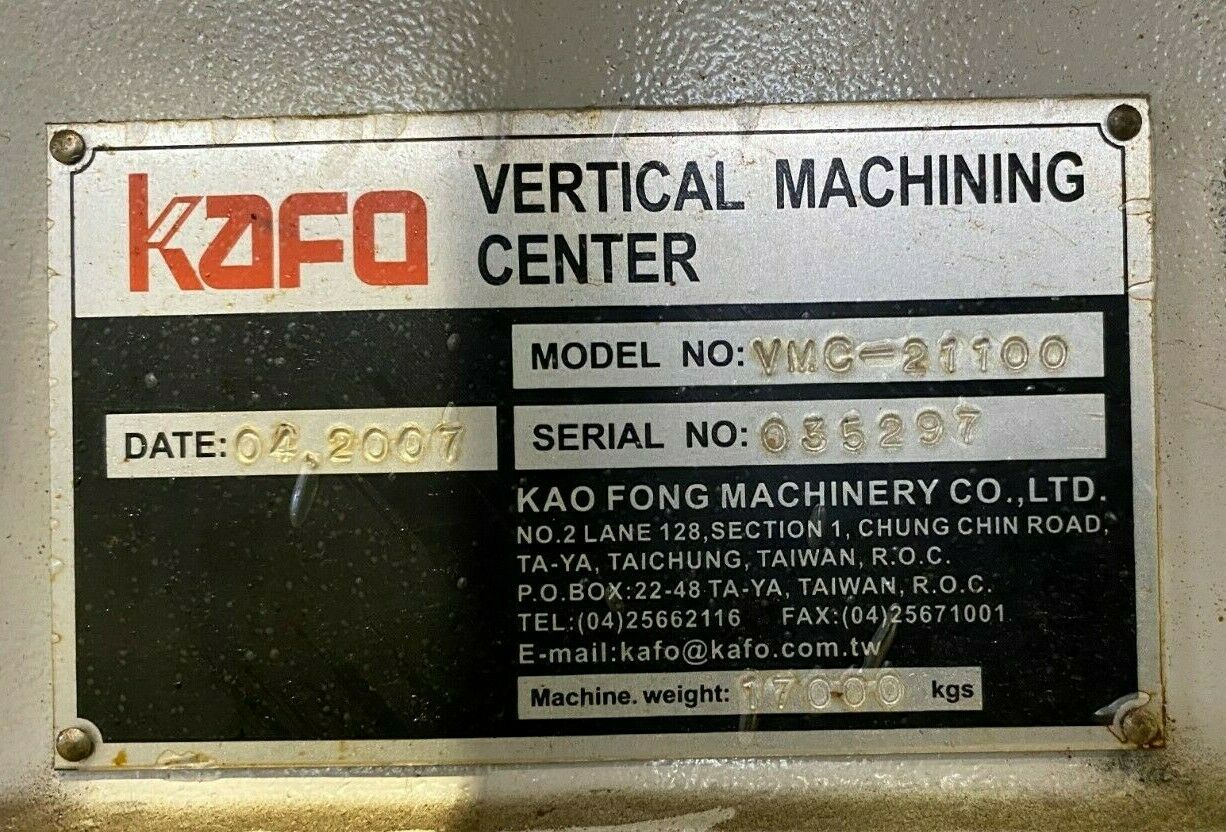

| Make: | Kafo |
| Model: | VMC-21100 |
| Cutting Hours: | 7396 |
| Features: |
|---|

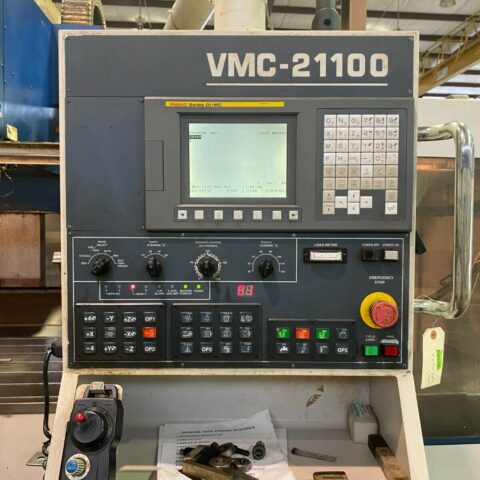

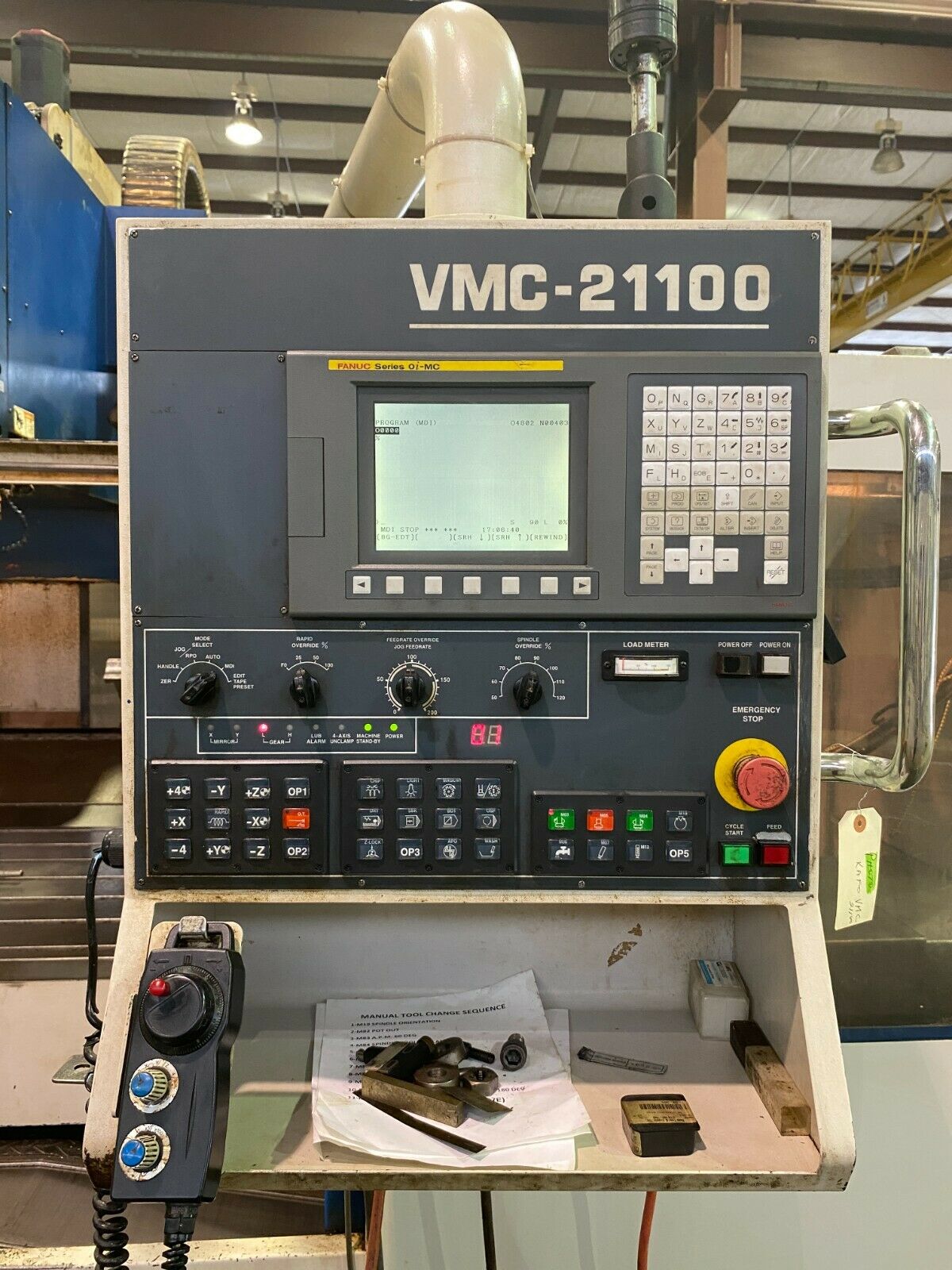

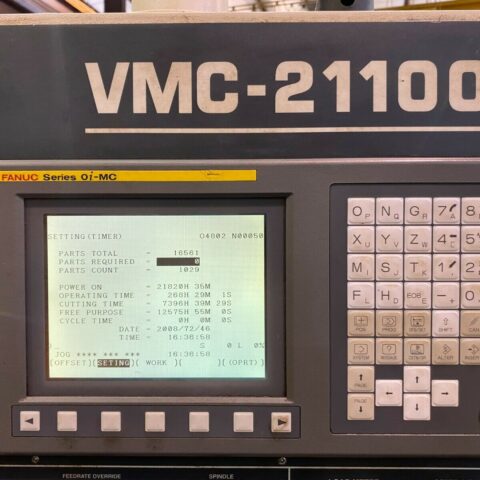

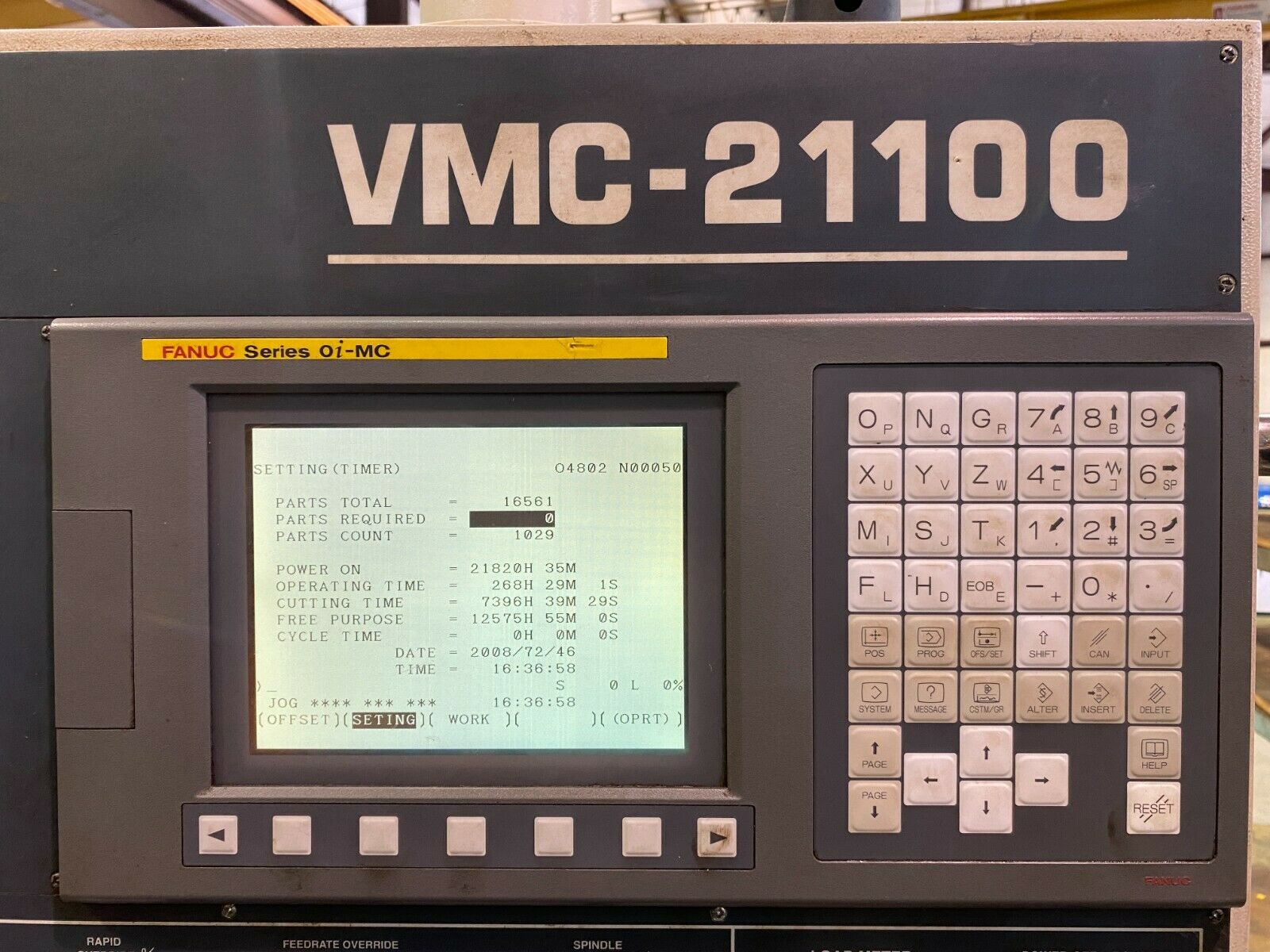

| Fanuc Oi-MC CNC Control |
| Thru Spindle Coolant |

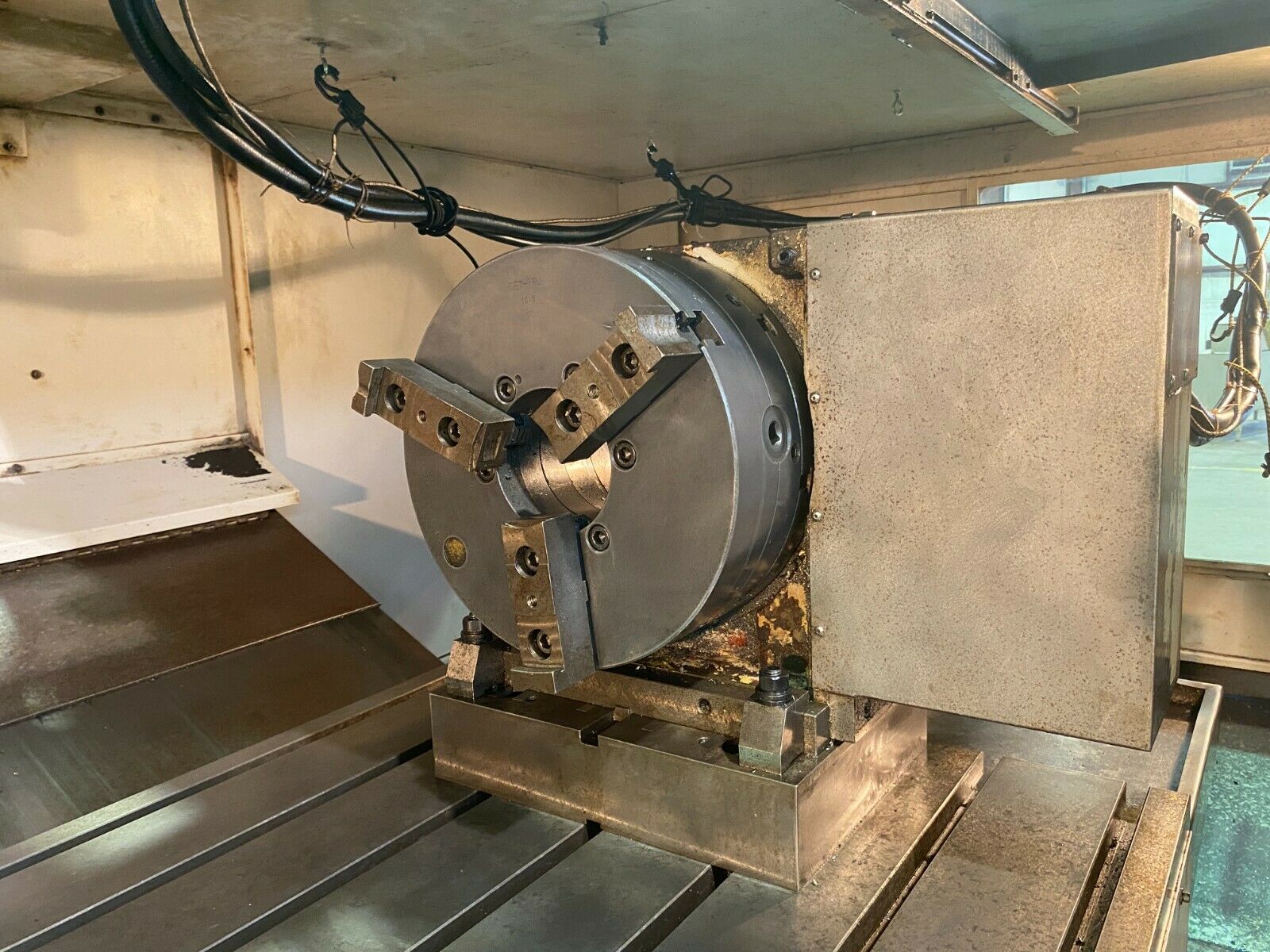

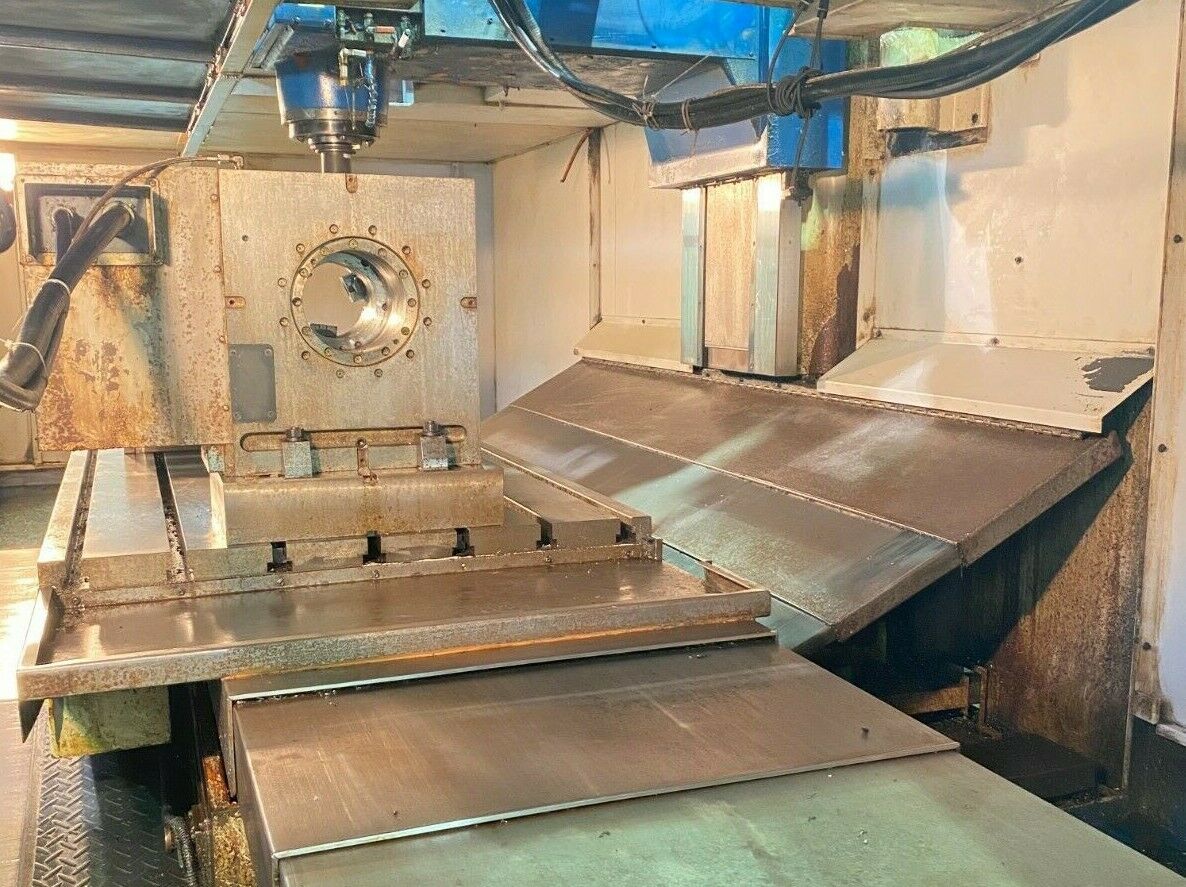

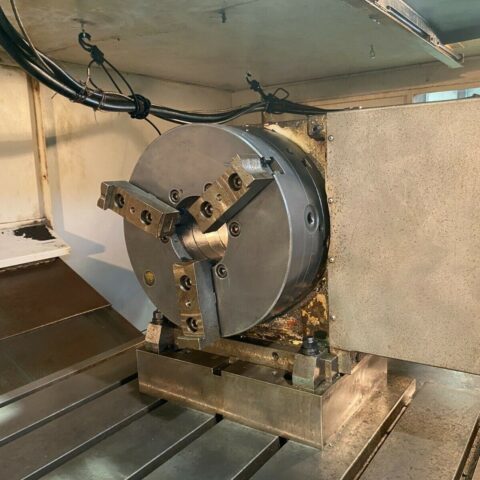

| Yuasa 16″ 4th Axis Table |
| Gear Head 7000 RPM Spindle |
| Box Way Design for Heavy Cutting |
| PCMCIA Card Slot |
| MPG Control |

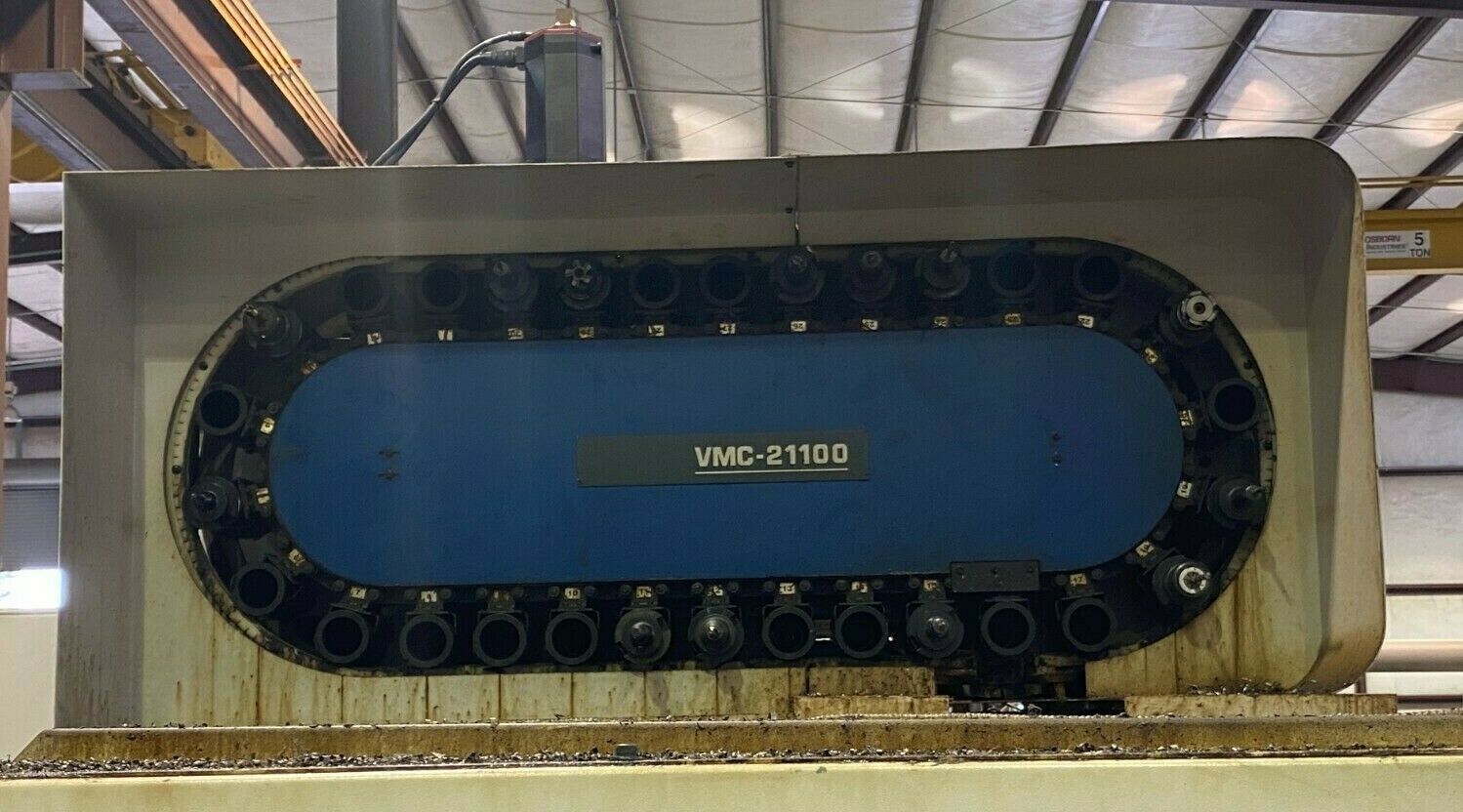

| 30Automatic tool changer |
| Rigid Tapping |
| Spindle Orientation |
| Spindle Chiller |
| Dual Chip Conveyor |
| Coolant Filteration |
| Books, Manuals |
| Travels: |
|---|
| X-Axis: 84.6″ |
| Y-Axis: 40.4″ |
| Z-Axis: 31.4″ |
| Rapid Traverse Rates: 810 Inch Per Minute |
| Cutting Feed Rates: 630 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 5.9″ – 30.9″ |

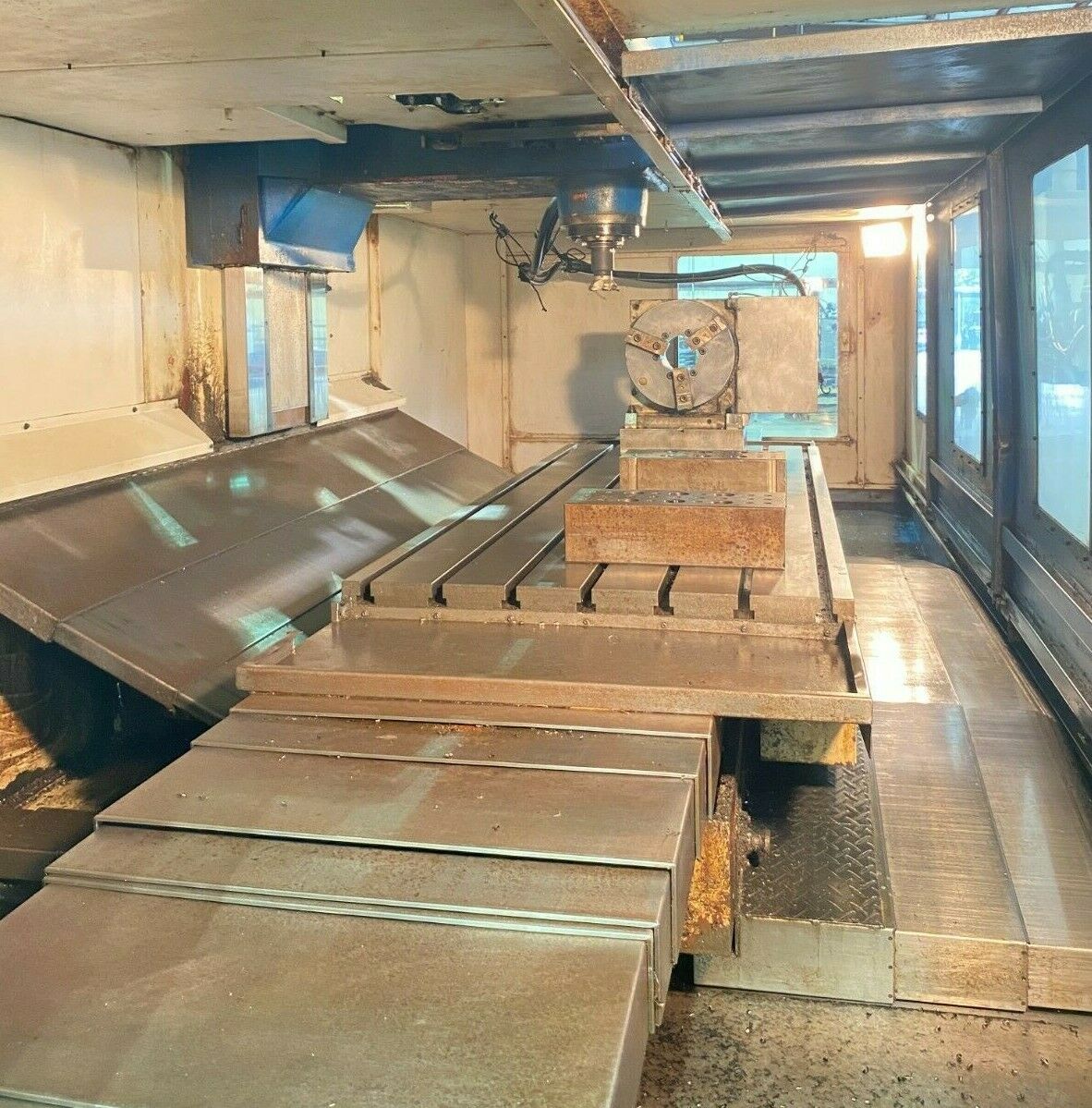

| Table: |
|---|
| Length: 95.2″ |
| Width: 40.7″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 3084.4 kg |
| Spindle: |
|---|
| Taper Size: 50 |
| Speed Range: 7000 RPM |
| Spindle Power: 22.4 kW |

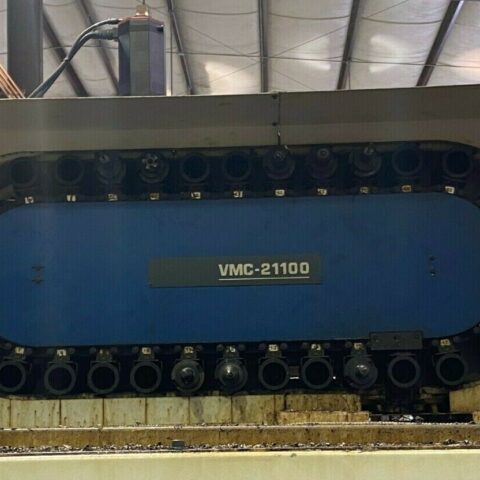

| Automatic Tool Changer: |
|---|
| Capacity: 30 |
| Max Tool Weight: 8.2 kg |
| Max Tool Dia: 5.9″ |
| Max Tool Length: 11.8″ Tool Changing Time: 1.5 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: 220v / 25 kva / 3-Ph`ase |
| Overall Dimensions: 234″ x 144″ x 113″ High |
| Weight: 16999.7 kg |
