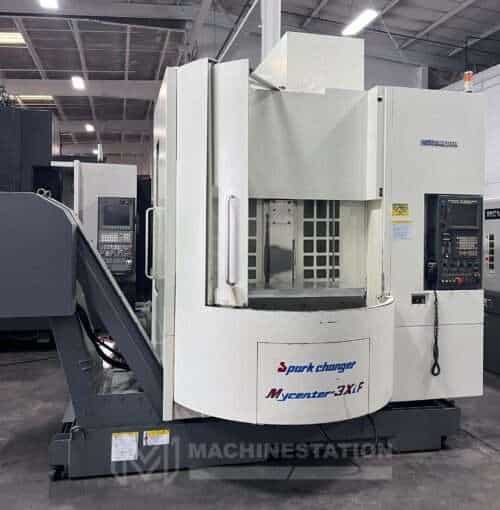

Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Features: |

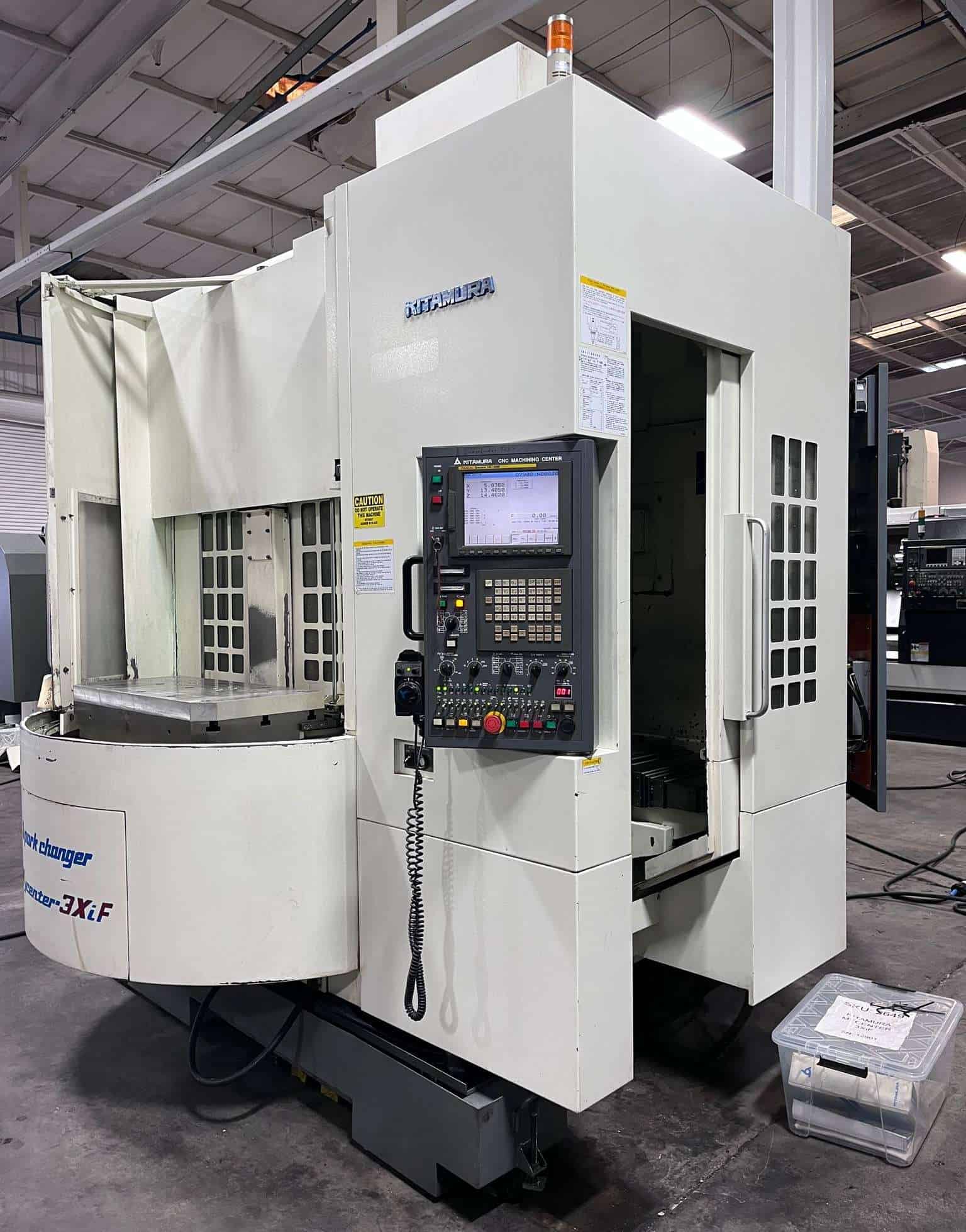

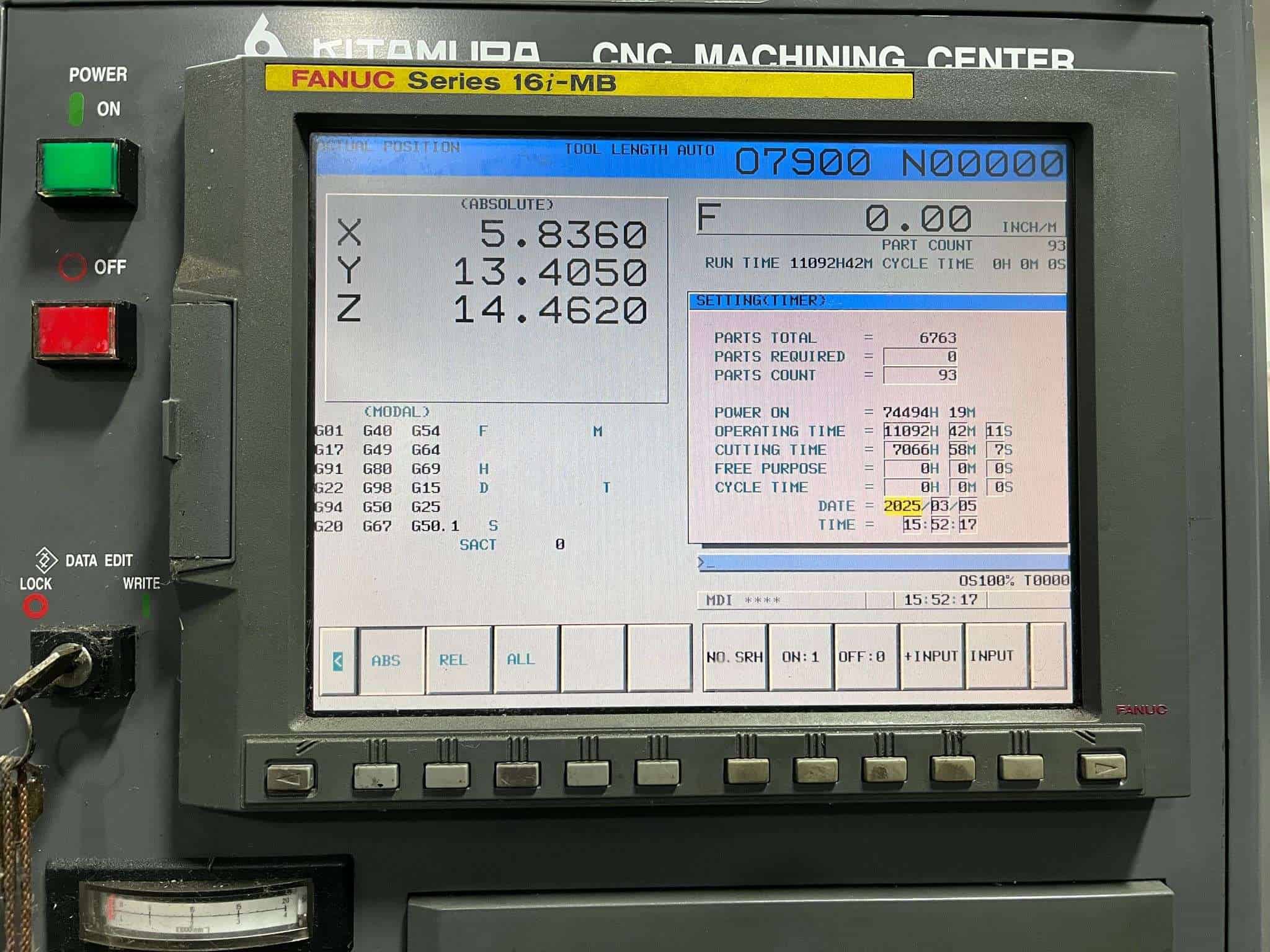

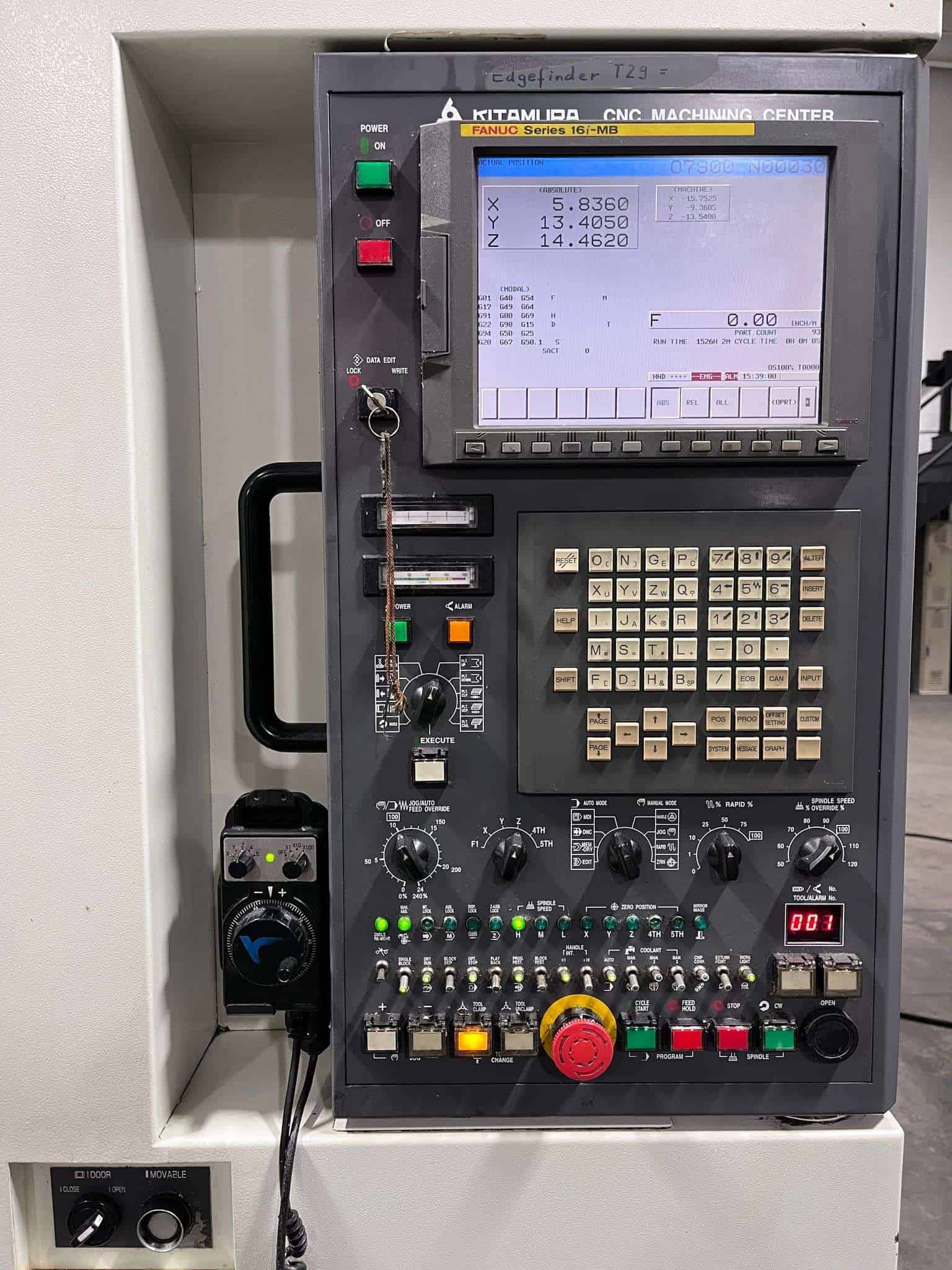

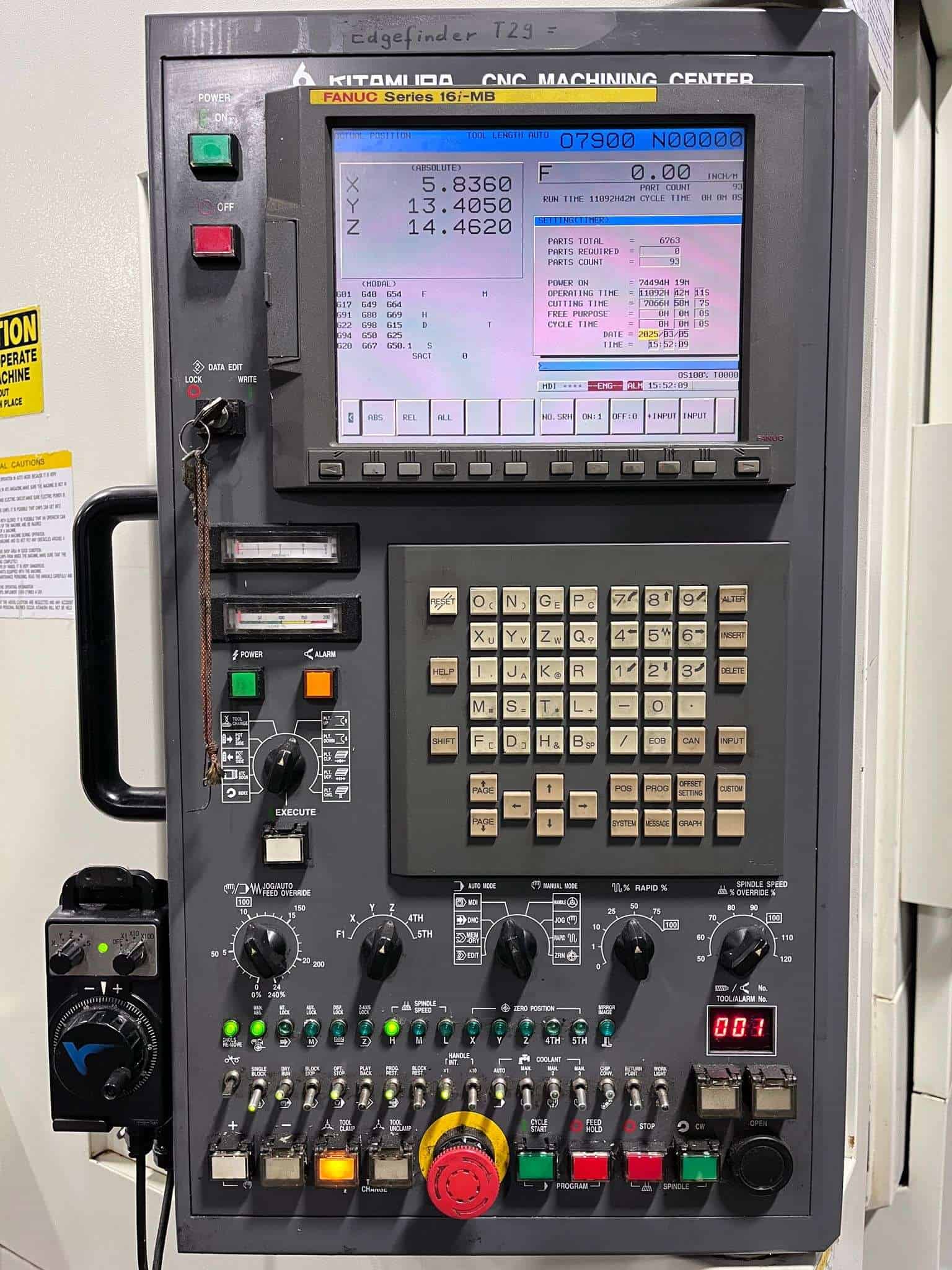

| Fanuc 16iM CNC Control |

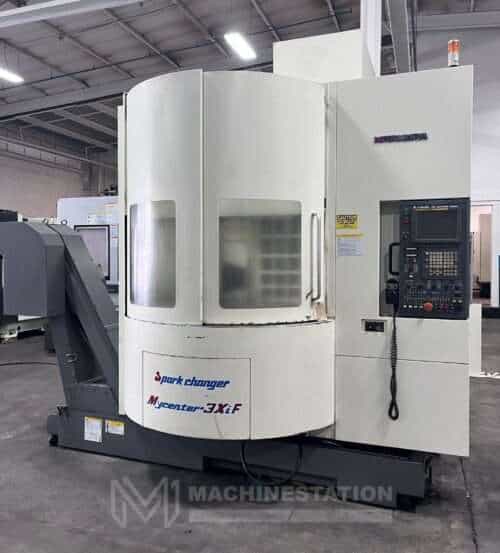

| 180° Rotary Type Pallet Changer |
| 20,000 RPM High-Speed Spindle |
| 30 Tools Side Mount High Speed Tool Changer |
| Coolant through Spindle |
| 20 HP High Torque Spindle |
| Fast Rapid Traverse |
| MPG Handwheel Control |

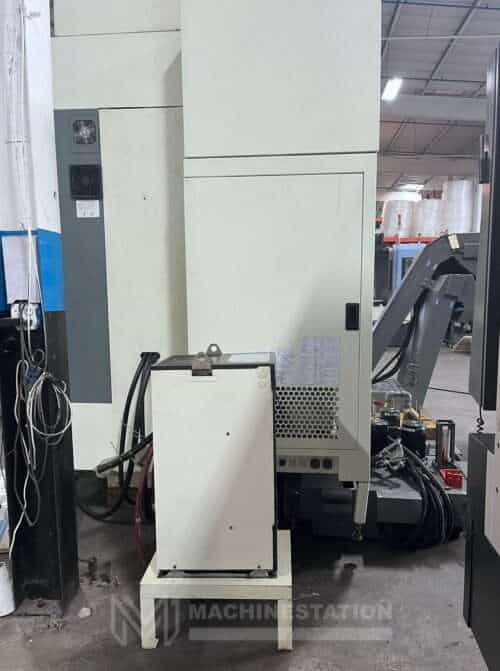

| Spindle Chiller |
| Rigid Tapping |
| Spindle Orientation |
| Flood coolant with large separate coolant tank |
| Chip Conveyor |
| Books and Manuals |

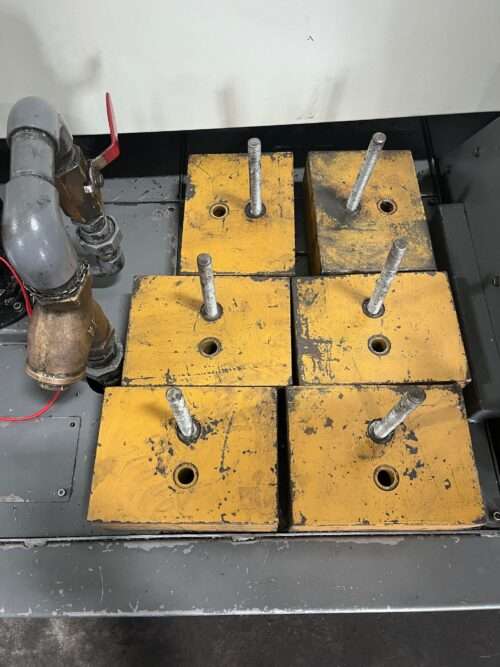

| Levelling Pads |
| Travel: |
| X-Axis: 30.19″ |
| Y-Axis: 17.97″ |
| Z-Axis: 18.19″ |
| Rapid Traverse Rates: 1181 Inch Per Minute |
| Cutting Feed Rates: 945 Inch Per Minute |

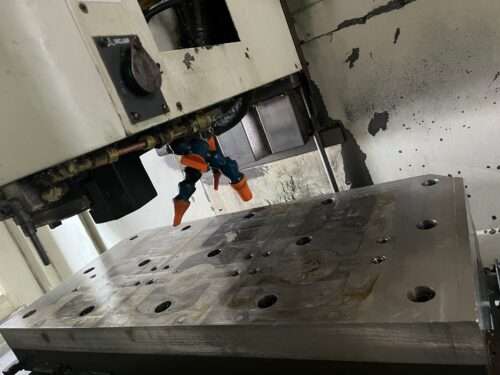

| Table: |
| Length: 34.00″ |
| Width: 16.0″ |
| Max Weight on Table: 440 lbs |
| Spindle: |
| Taper Size: CAT-40 |
| Speed Range: 20,000 RPM |
| Spindle Power: 20 HP |

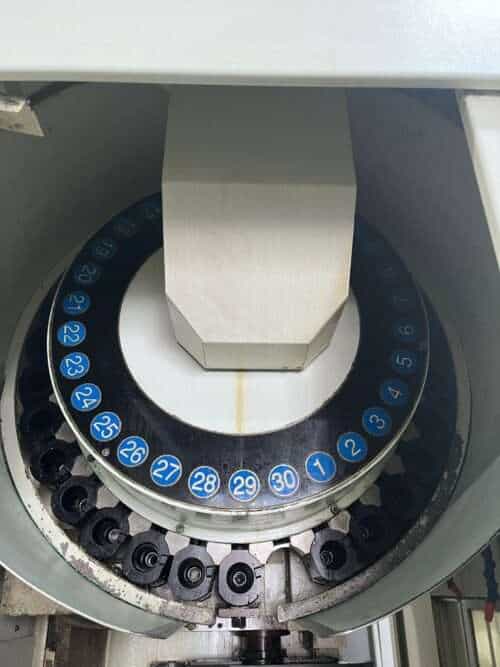

| Automatic Tool Changer: |
| Capacity: 30 Tools |
| Max Tool Weight: 17.63 lbs |
| Max Tool Dia: 3.14″ |
| Tool Changing Time: 1.7 Seconds |

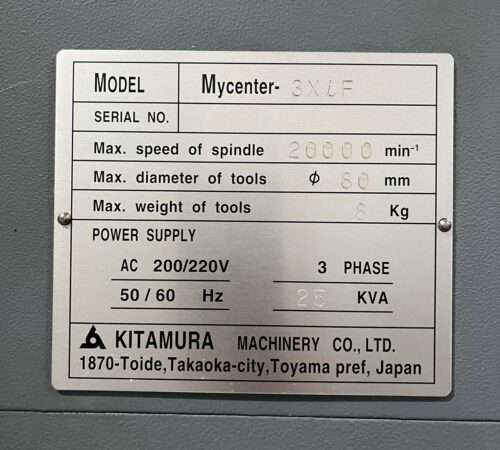

| General: |
| Air Required: 80 psi 4 scfm |
| Power: 25kva / 205-220v / 66FLA / 3-Phase |
| Overall Dimensions: 120″ x 97″ x 110″ High |
| Weight: 17,500 lbs. Approx. |
| Categories | CNC Vertical Machining Centers - VMC |
|---|
| Series | Kitamura MyCenter Series |
|---|
| Categories | CNC Vertical Machining Centers - VMC |
|---|
