*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Matsuura |
| Model: | MAM72-63V PC6 |
| Year: | 2007 |
| Condition: | Used – Good |
| Features: |
|---|

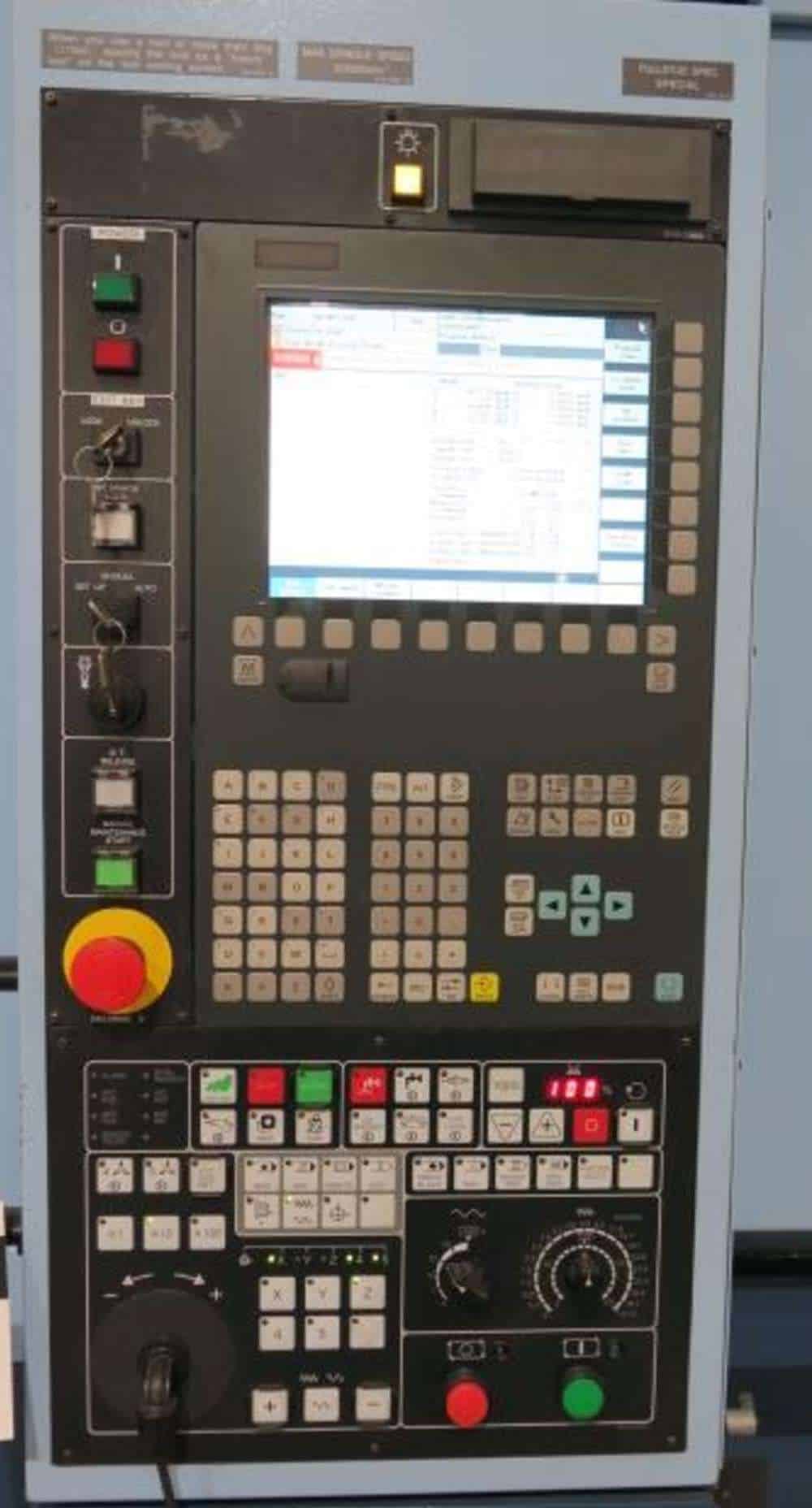

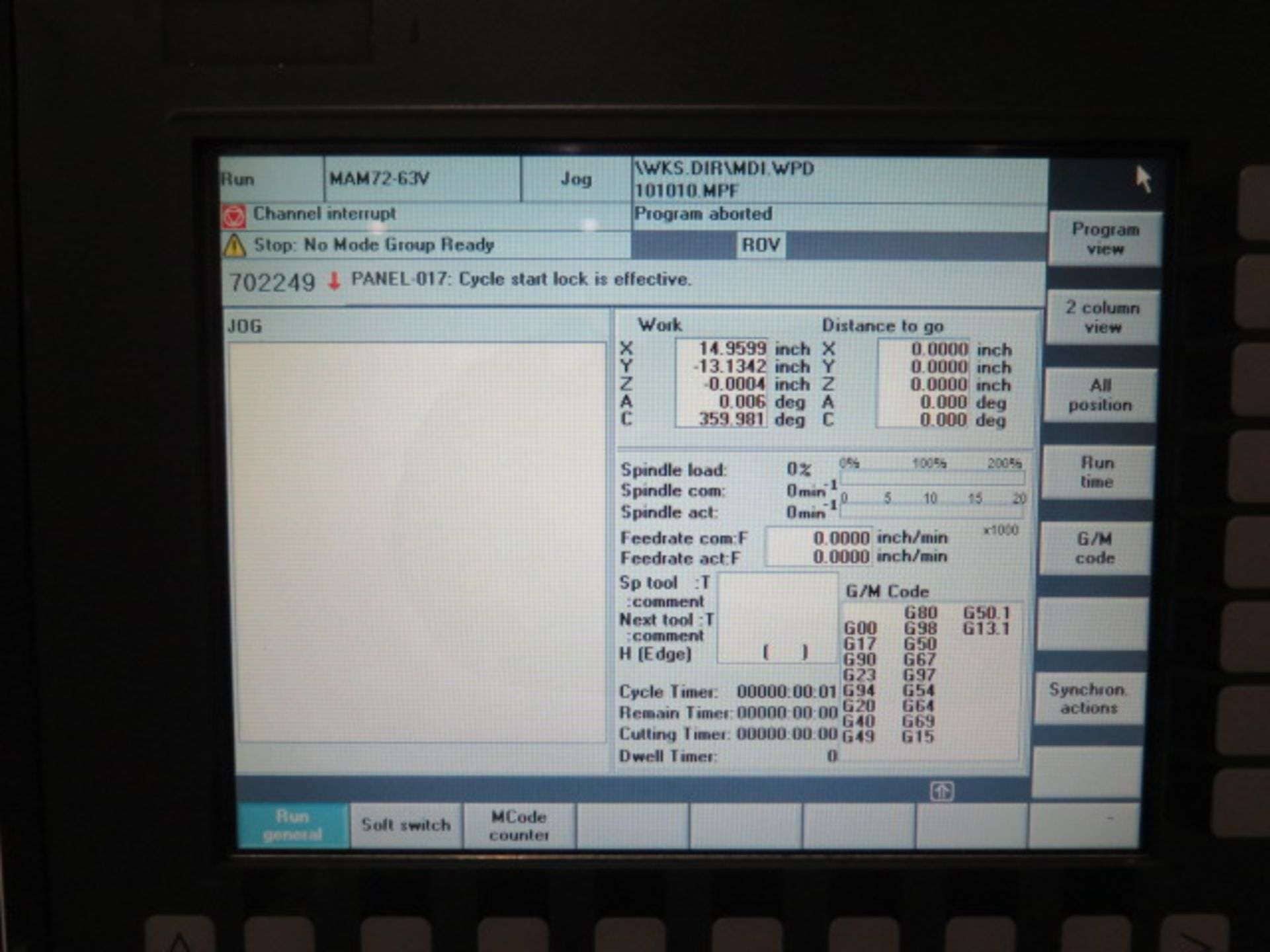

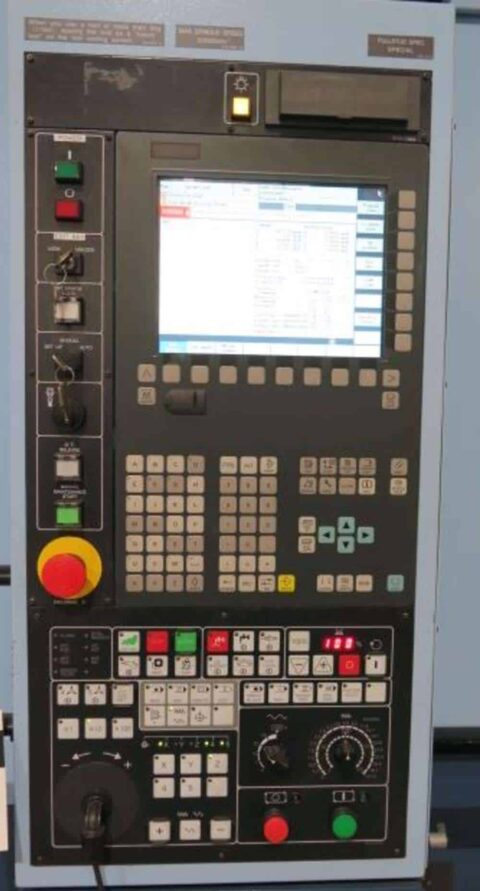

| Siemens CNC Control |

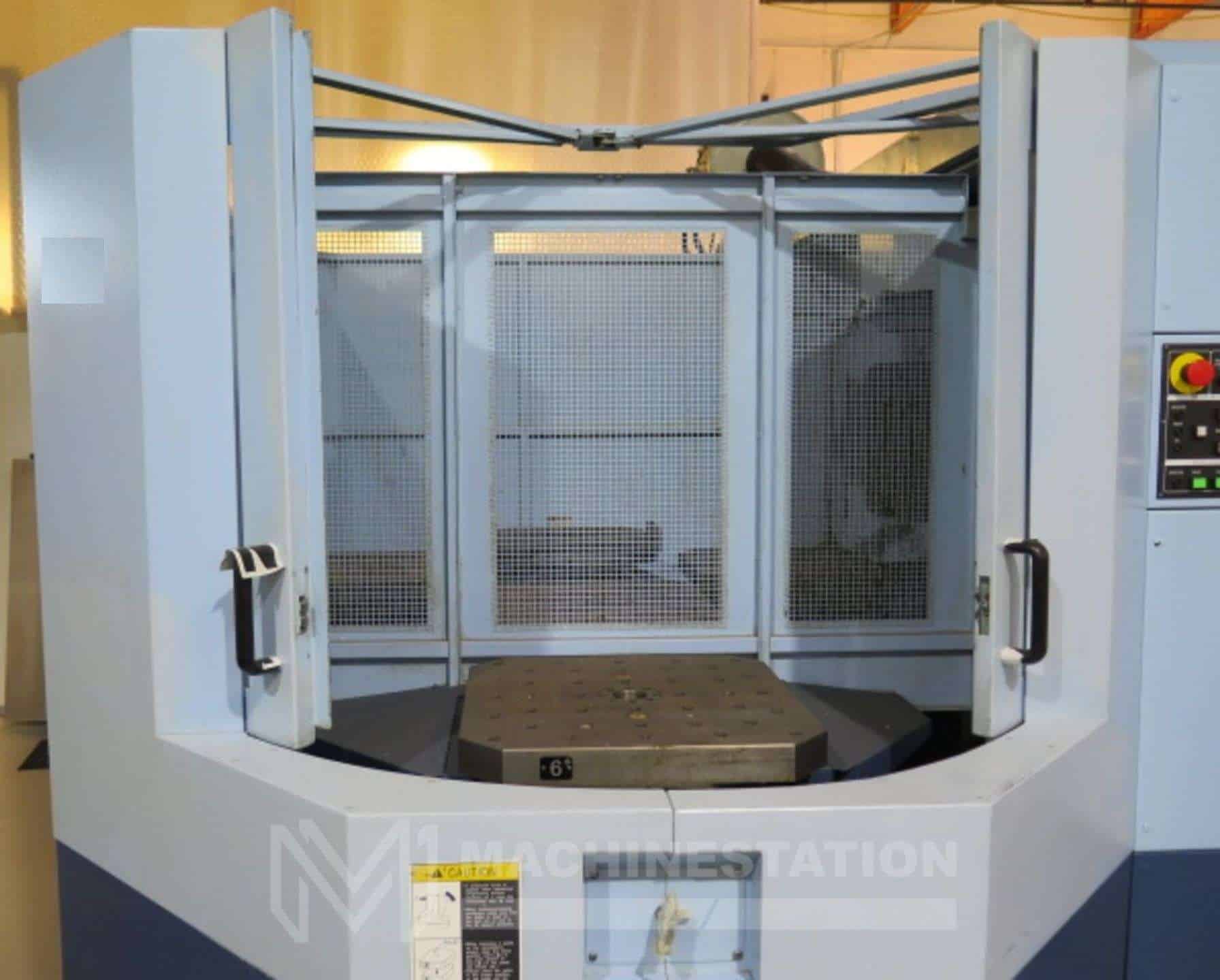

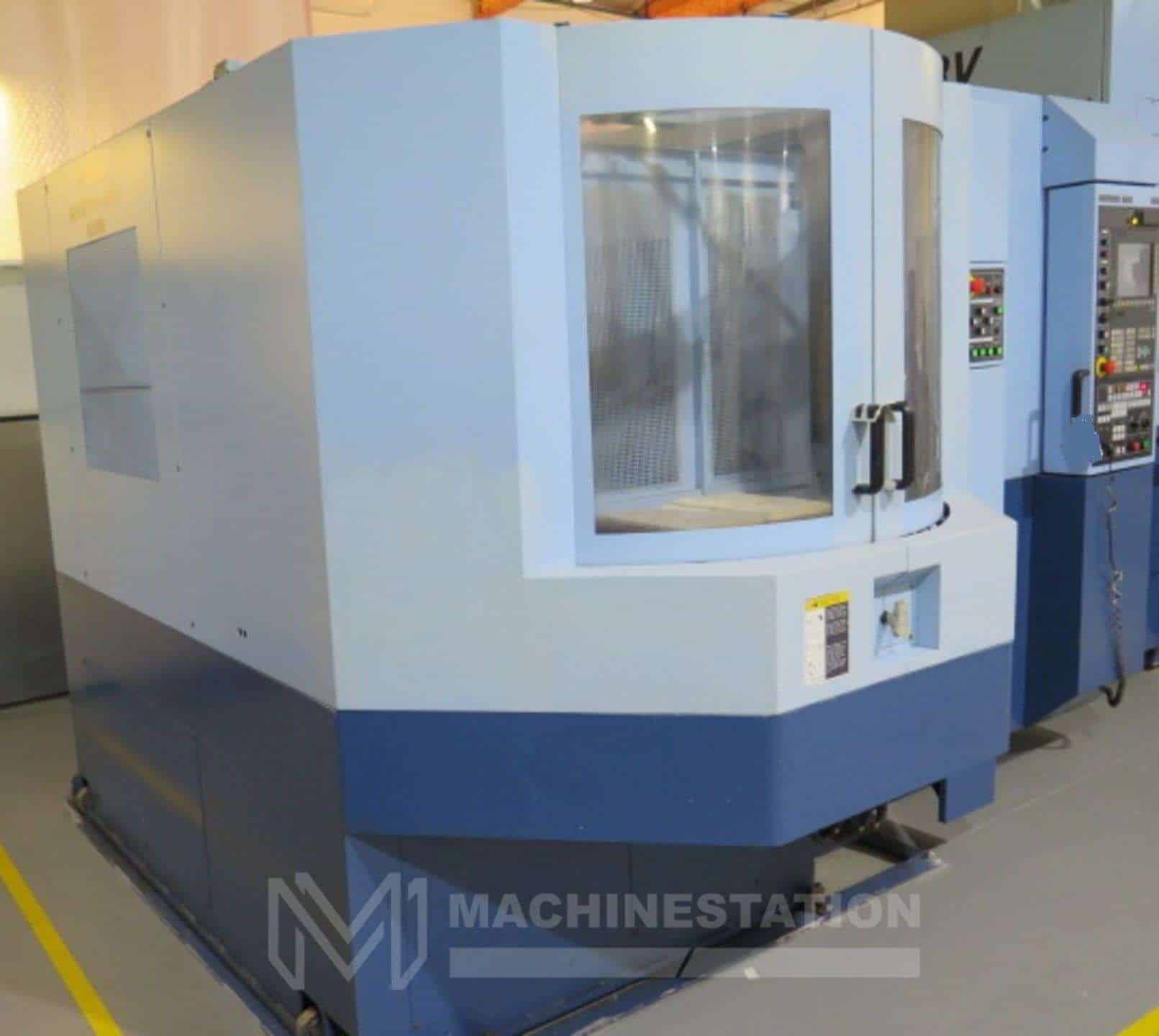

| 6 Pallets Cell System |

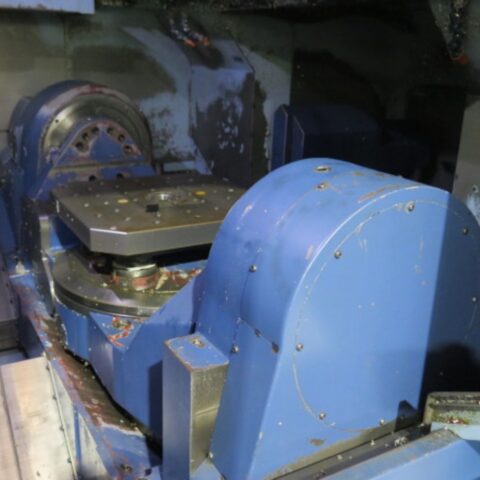

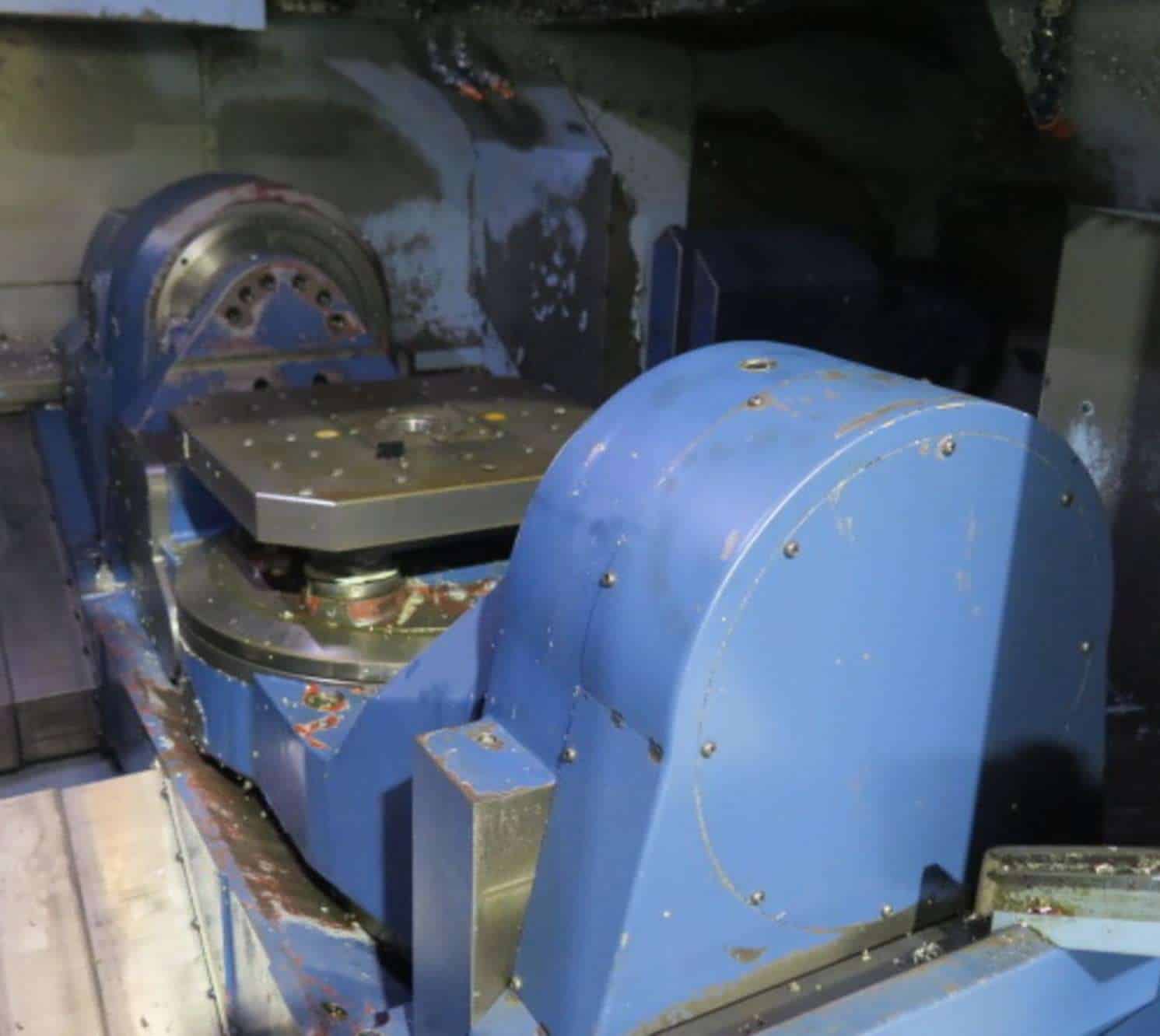

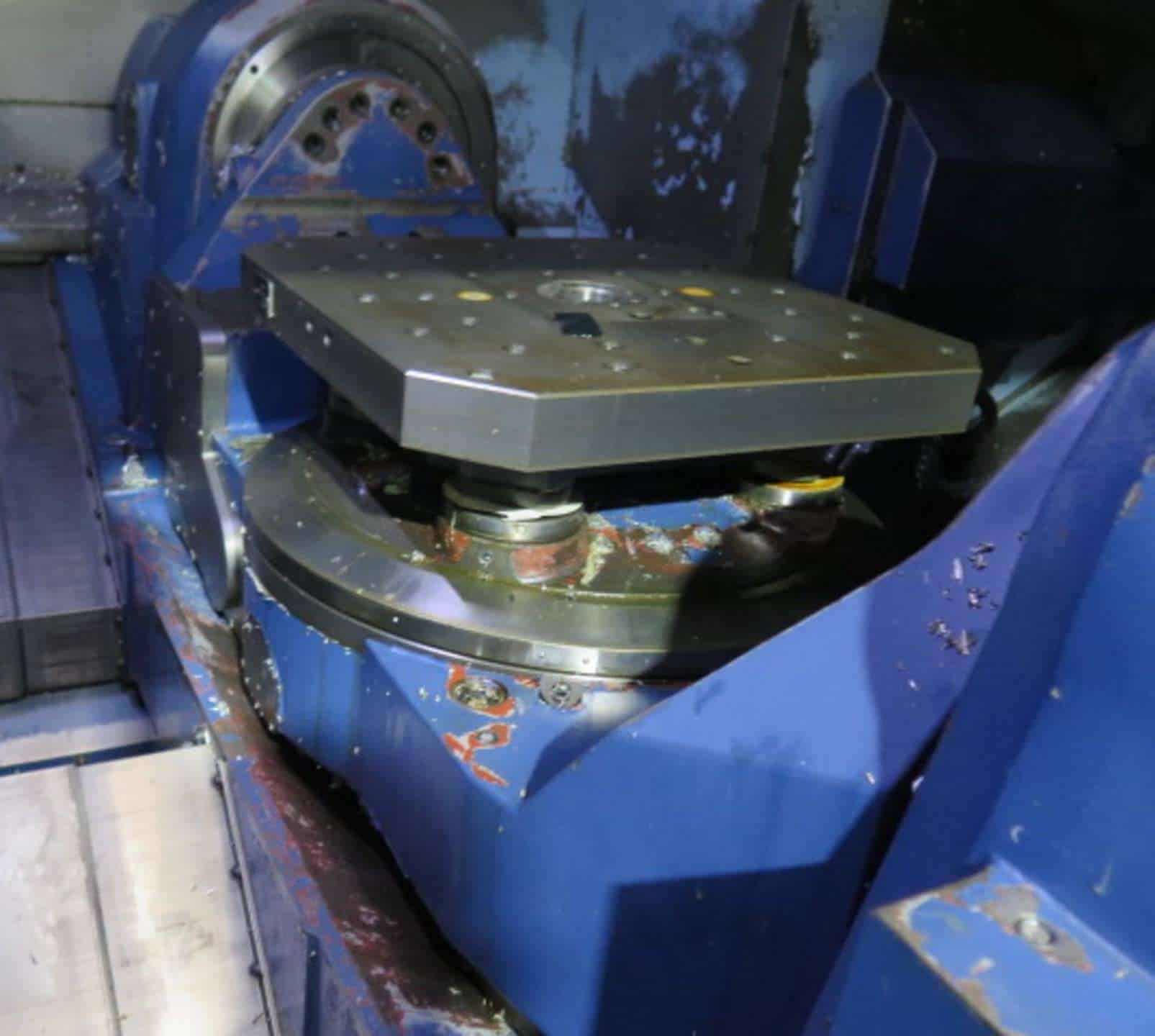

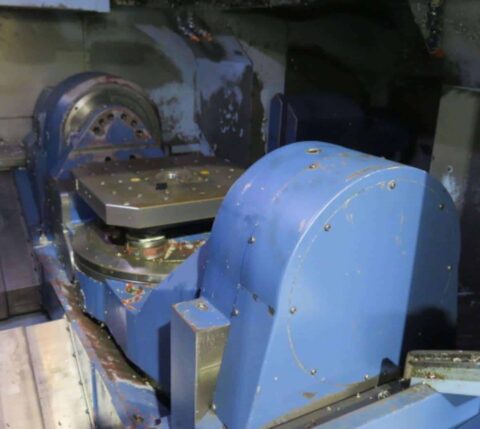

| 19.8” x 19.8” NC Programmable Swiveling Trunnion Table |
| 5 Axis Simultaneous Machining |
| Full 4th Axis Thru Pallets |
| 20,000 RPM High Speed Spindle |
| Through Spindle Coolant |

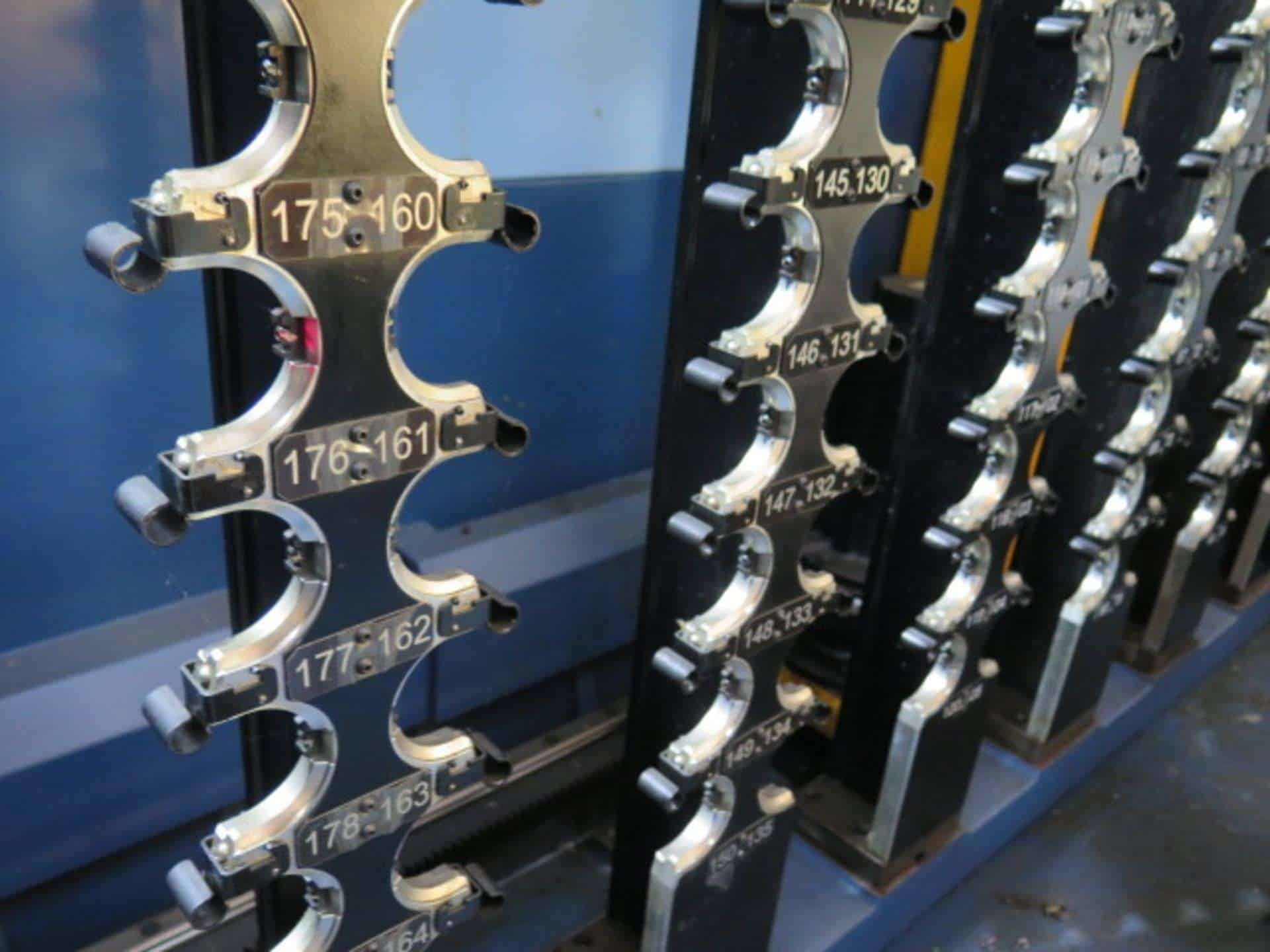

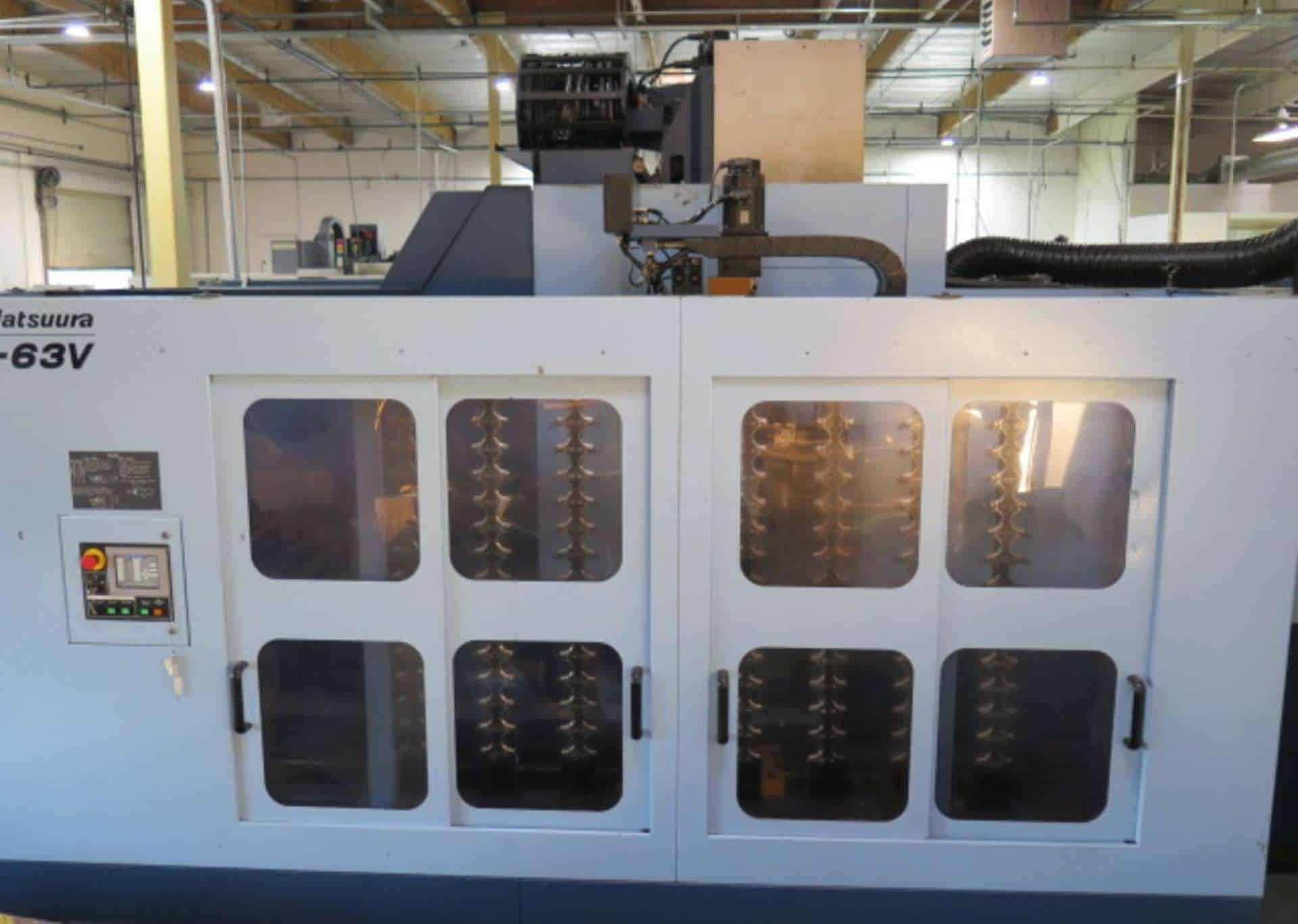

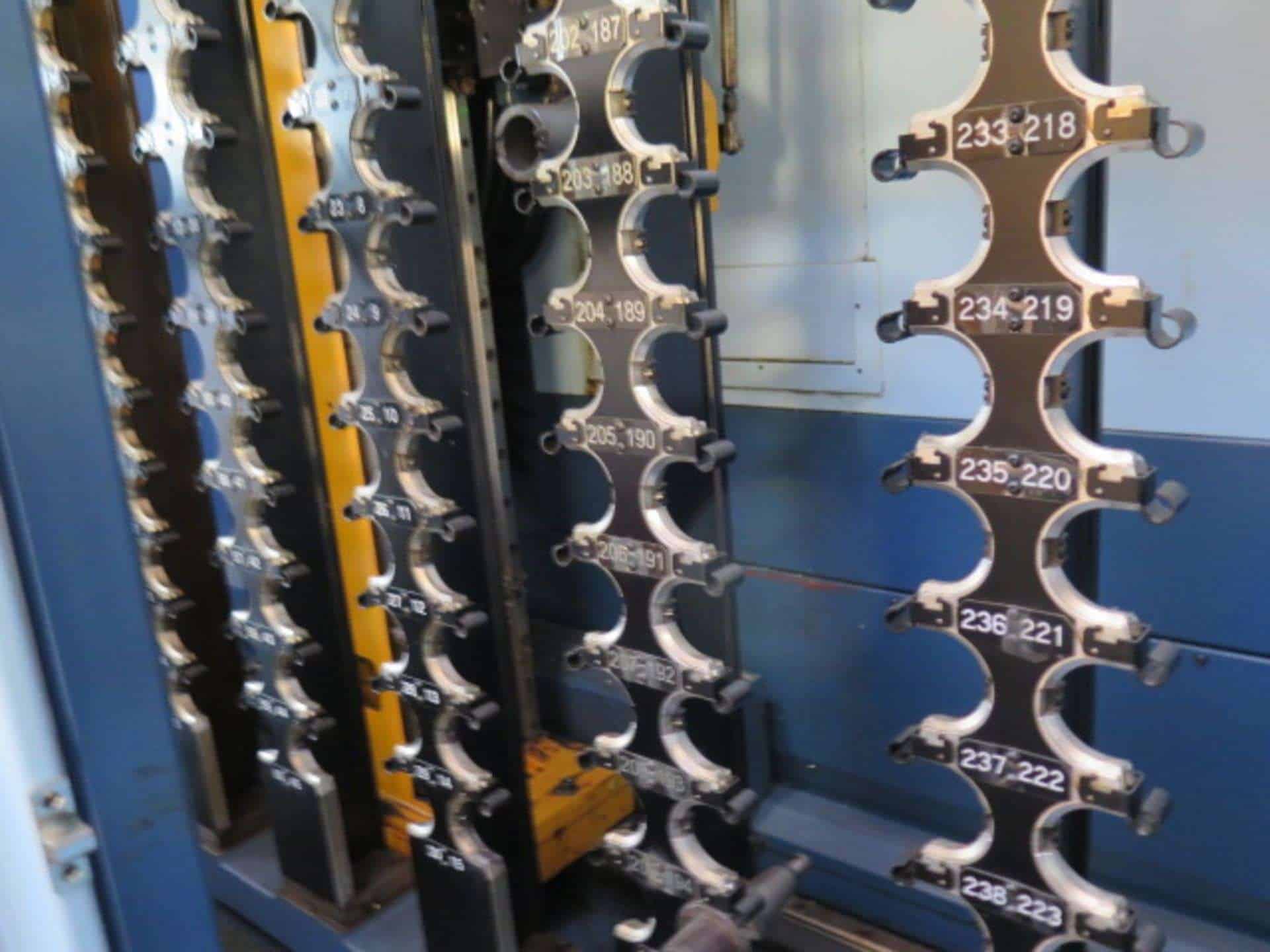

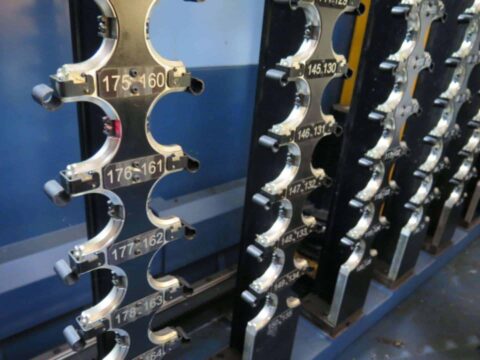

| 240 Station Automatic Tool Changer |
| BT-40 Spindle Taper |
| Rigid Tapping |

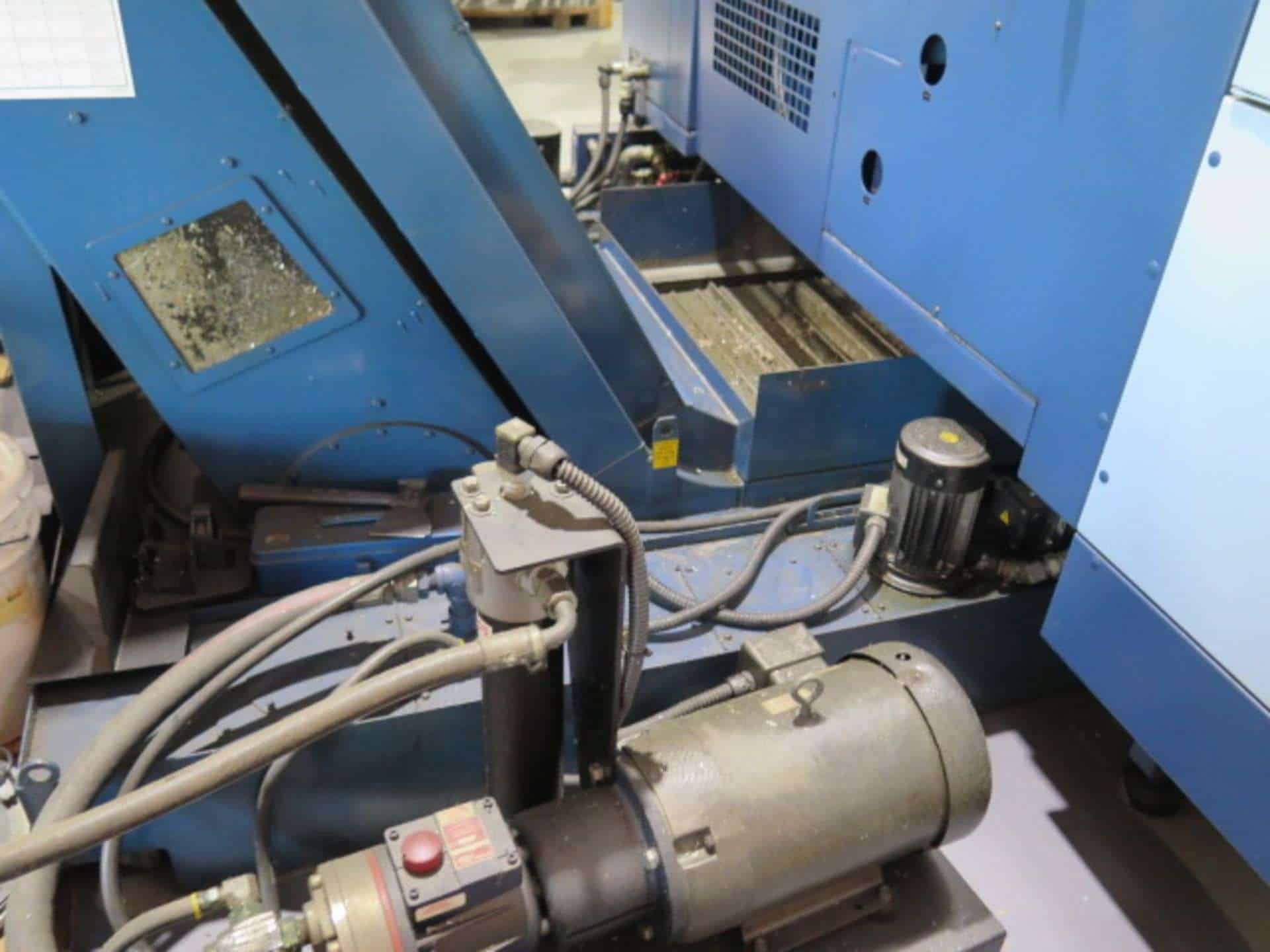

| Coolant System |

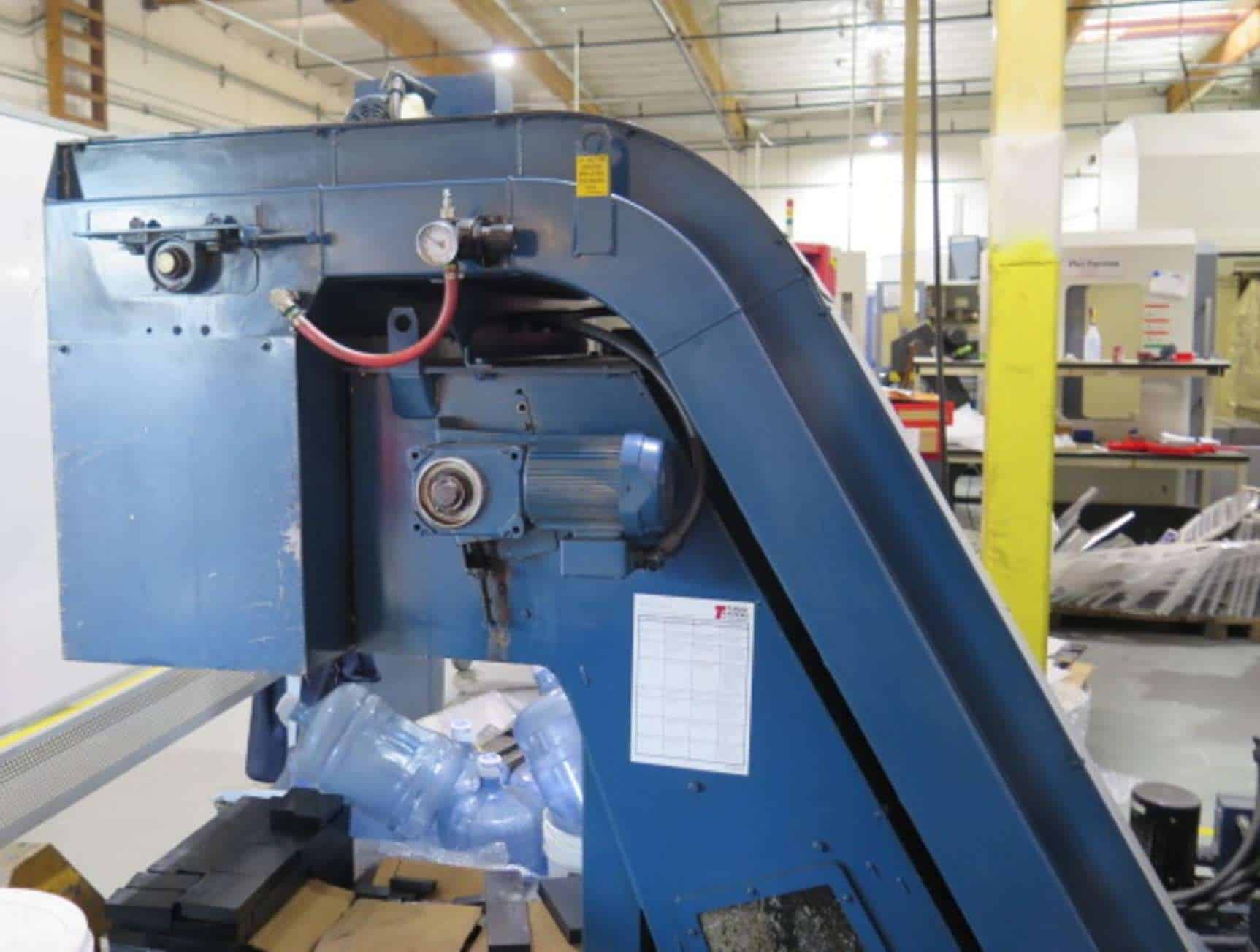

| Chip Conveyor |
| Travels: |
|---|
| X Axis: 29.92″ |
| Y Axis: 33.26″ |
| Z Axis: 25.98″ |
| A Axis: 220° (+110°/– 110°) ( Table Tilt ) |
| C Axis: 360° ( Table Rotate ) |
| Rapid Traverse Rates X, Y, Z Axis: 1968 Inch Per Minute |

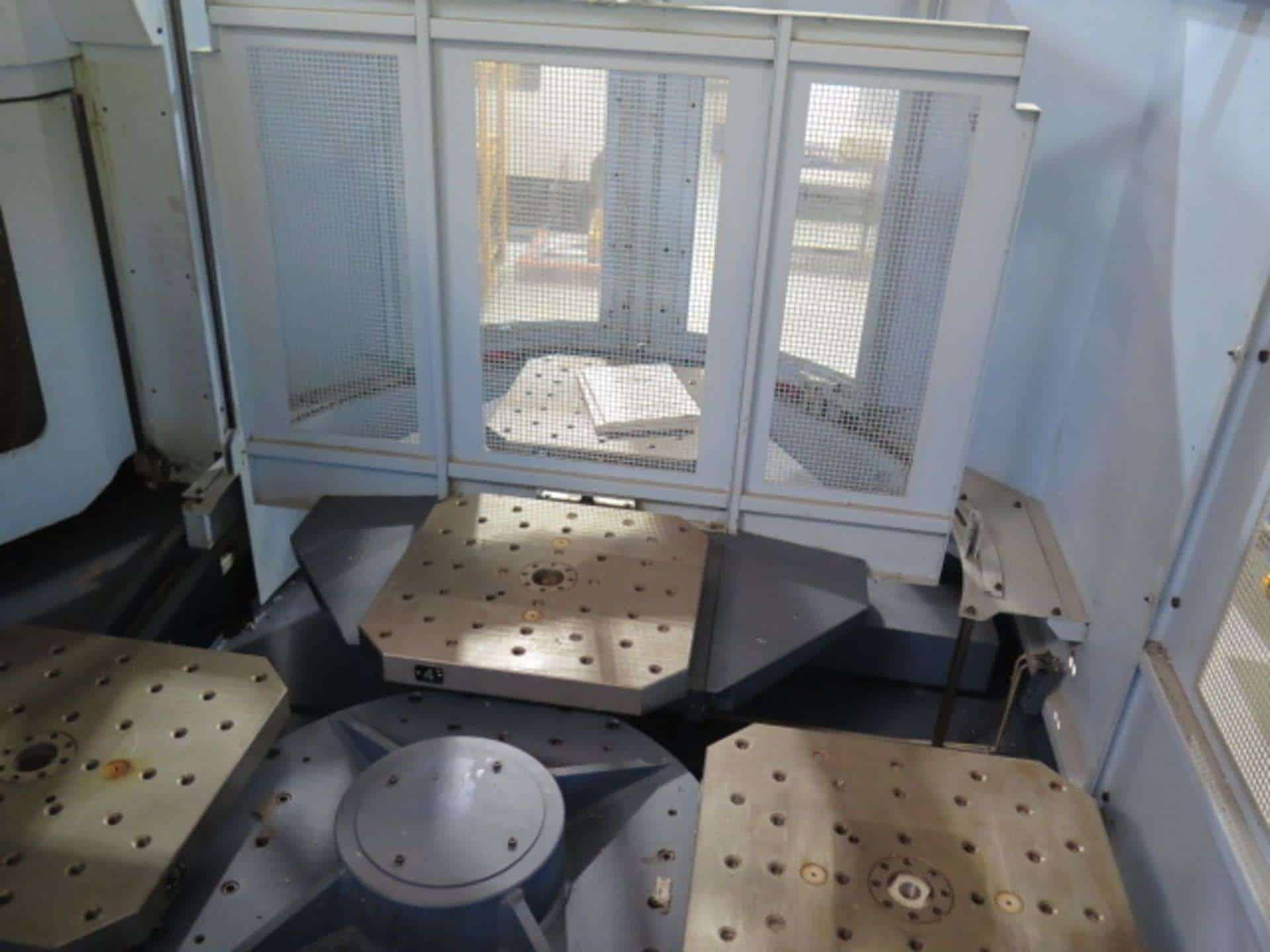

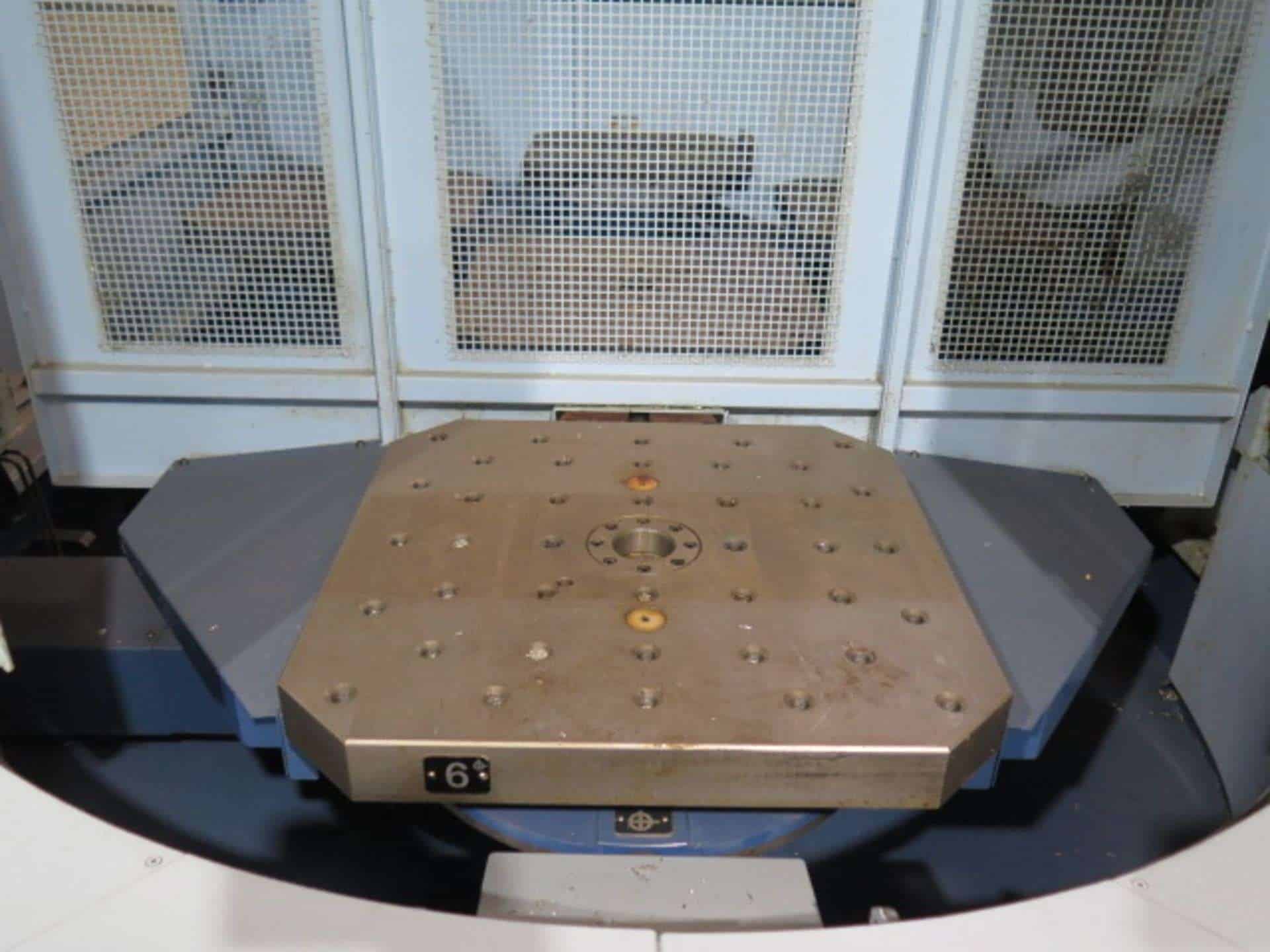

| Pallet: |
|---|
| Number of Pallets: 6 Station |
| Pallet Surface: 19.68″ x 19.68″ |
| Max Workpiece Diameter: 28.34″ |
| Max Workpiece Height: 17.71″ |
| Max Weight on Table: 770 lbs |
| Spindle: |
|---|
| Taper Size: BT-40 |
| Speed Range: 20,000 RPM |
| Spindle Power: 30 HP |

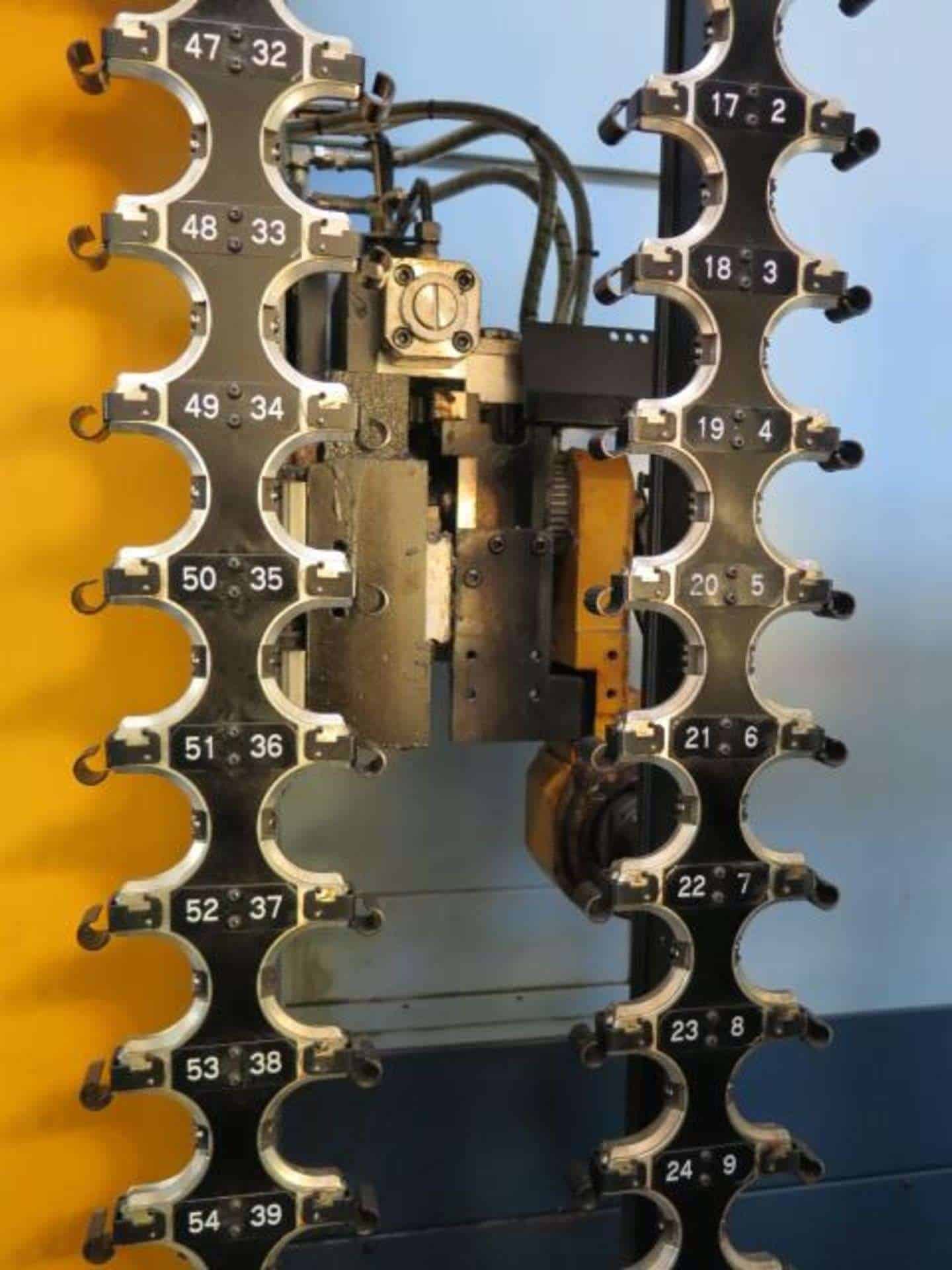

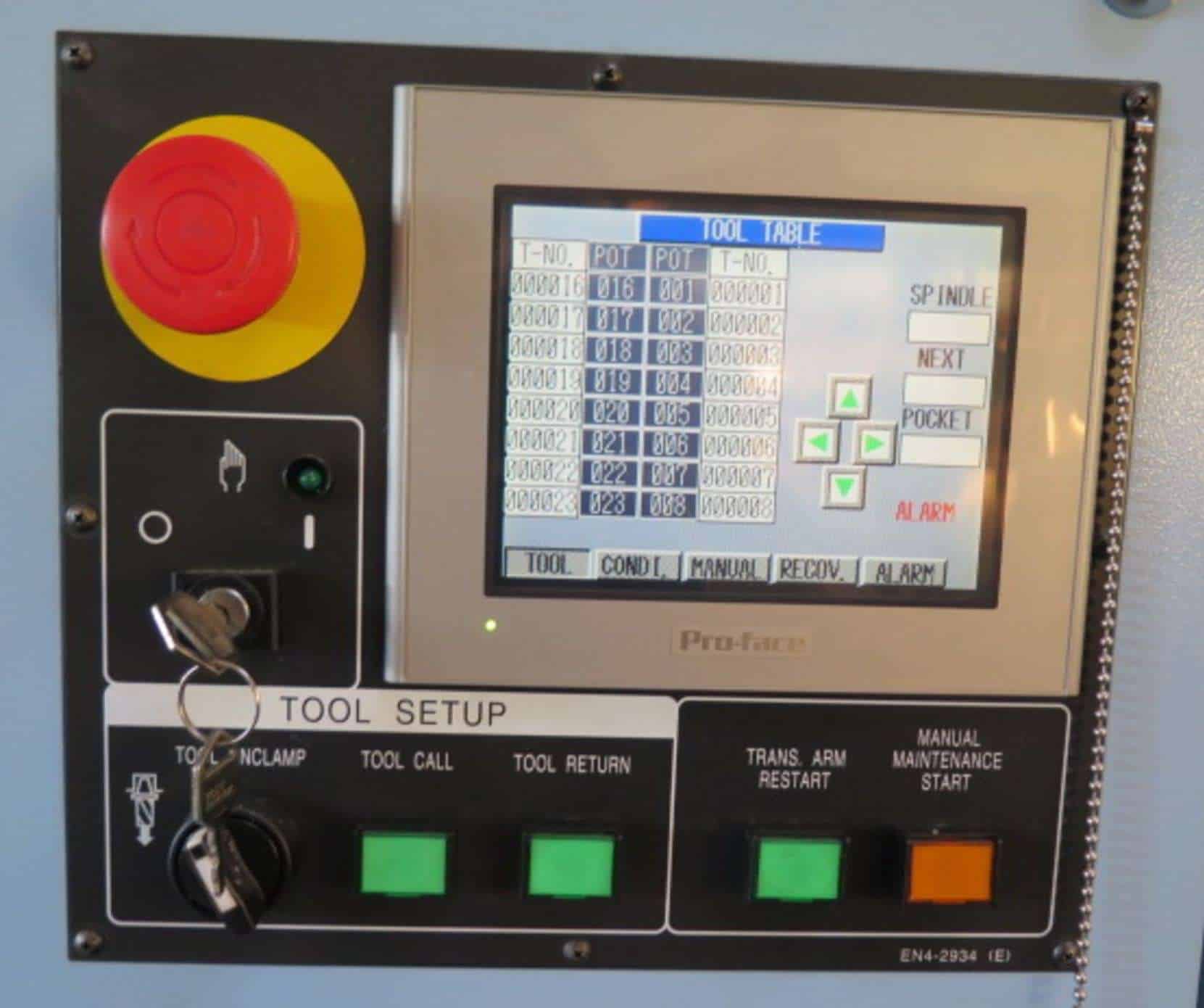

| Automatic Tool Changer: |
|---|
| Capacity: 240 Tools |
| Taper: BT-40 |
| Max Tool Diameter: 3.77″ |
| Max Tool Length: 13.77″ |
| Max Tool Weight: 22 lbs. |
| General: |
|---|
| Air Required: 80 psi 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 249″ X 153″ X 126″ High (Only Machine without Pallet Cell System) |
| Weight: 31,967 lbs Approx. |

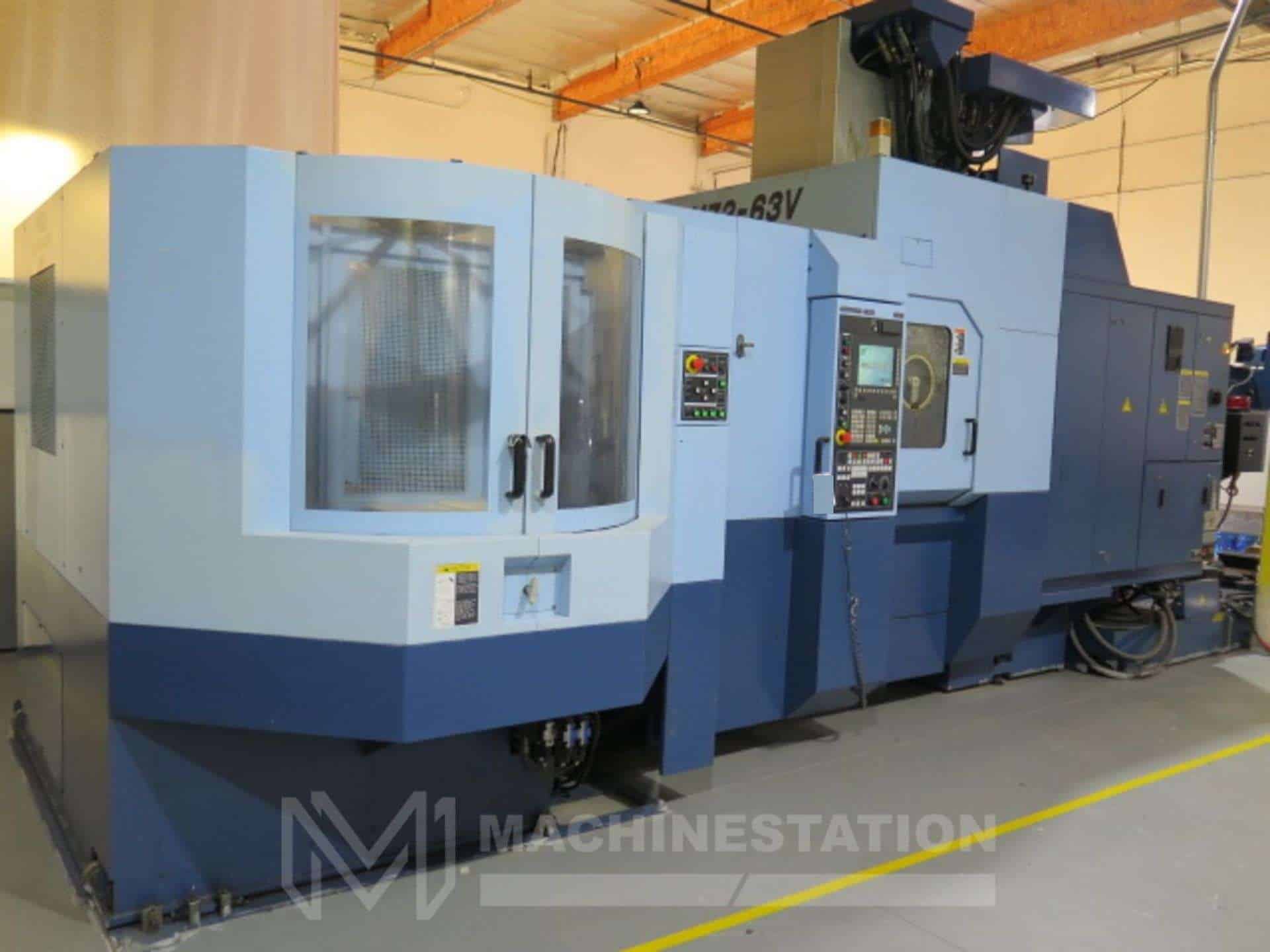

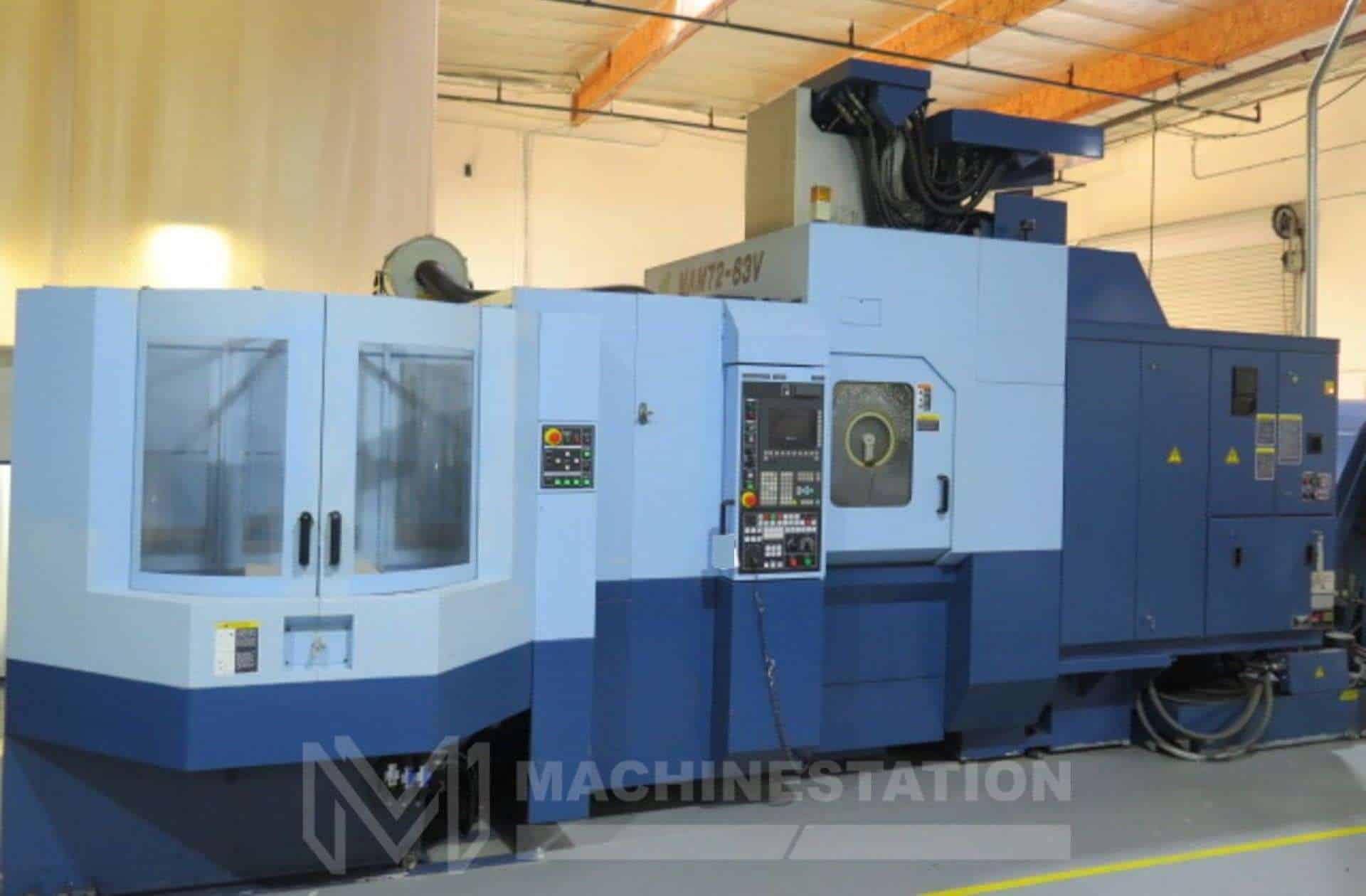

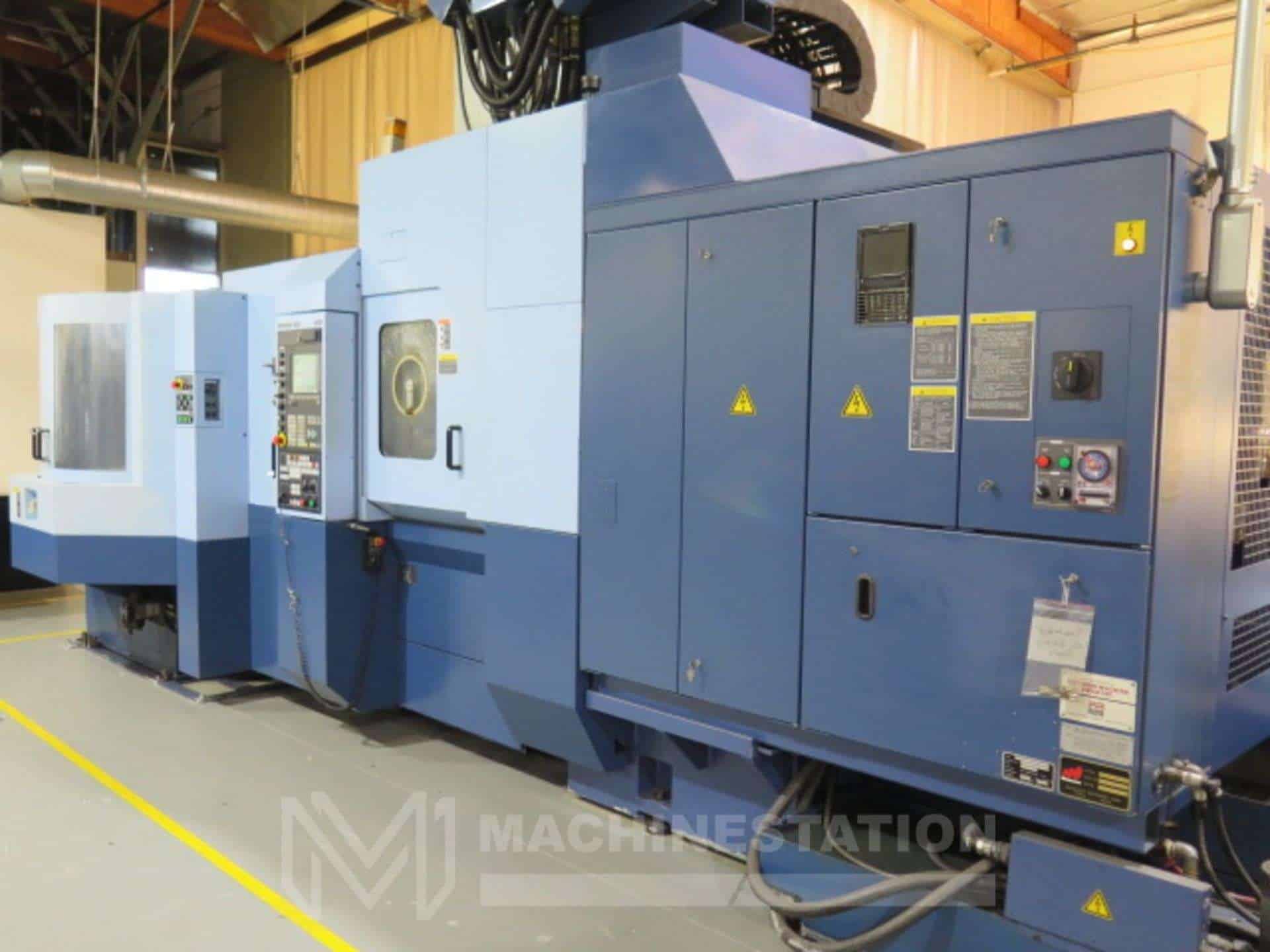

Matsuura MAM72 is a 5 axis CNC vertical machining center that is designed for precise and accurate manufacturing of complex and heavy design products. The Xaxis of the machine is 760mm, the Yaxis has a size of 850mm and the Zaxis is 610mm. Every pallet has a loading capacity of 350kgs. The standard speed of the spindle is 12000 RPM with options of getting high speed spindles, the speed of which ranges are 15000 RPM or 20000 RPM. The machine comes with a control system of Matsuura G-Tech 31i, with a touch screen interface. The Matsuura MAM72 offers you different automation features like a 6 pallet changer system which helps in unmanned machining and also more efficient production cycles. Also the rapid traverse rate and the high speed spindle of the Matsuura MAM72 machine ensures rapid work delivery while bringing the overall lead time down. There are several tool magazine options also available with the machine helping in different machining tasks.
