Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

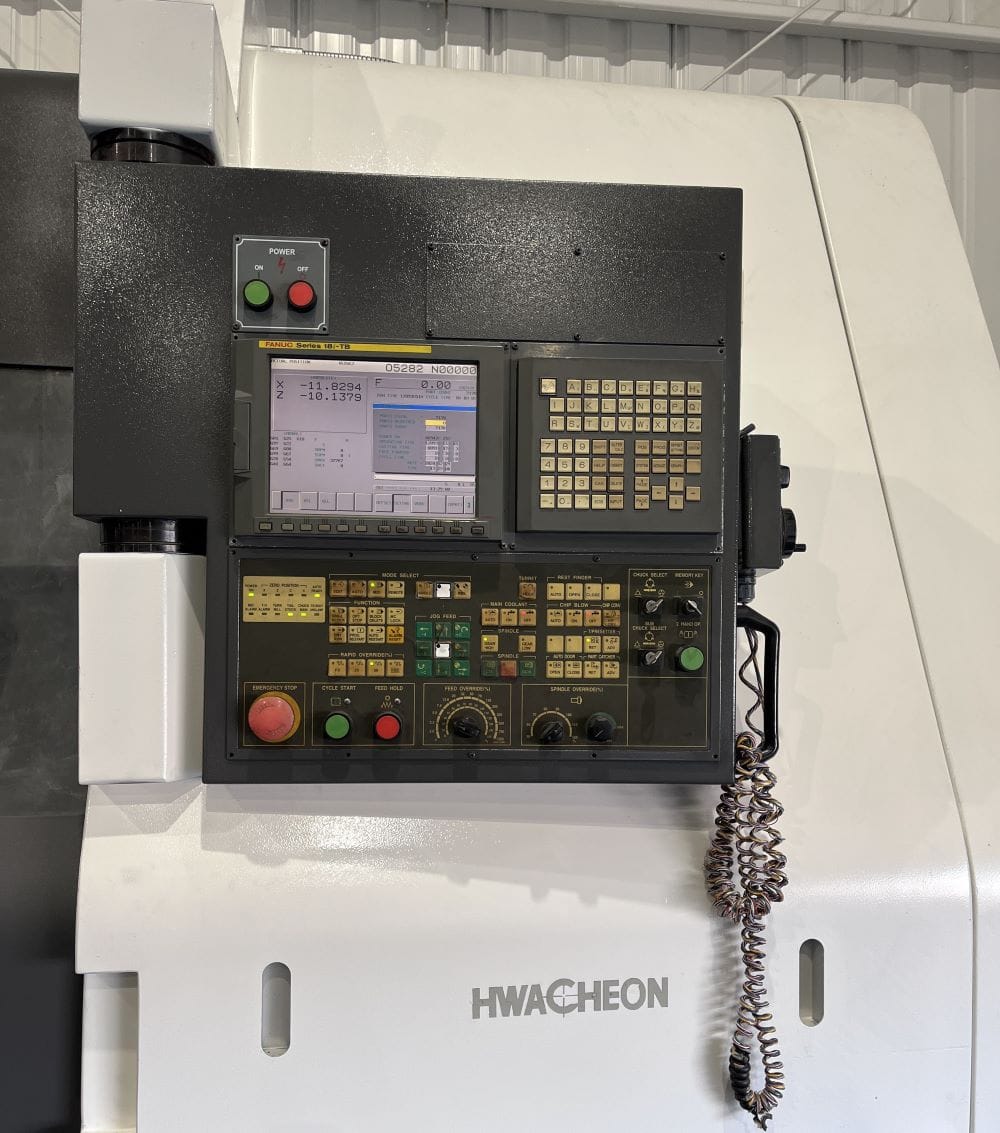

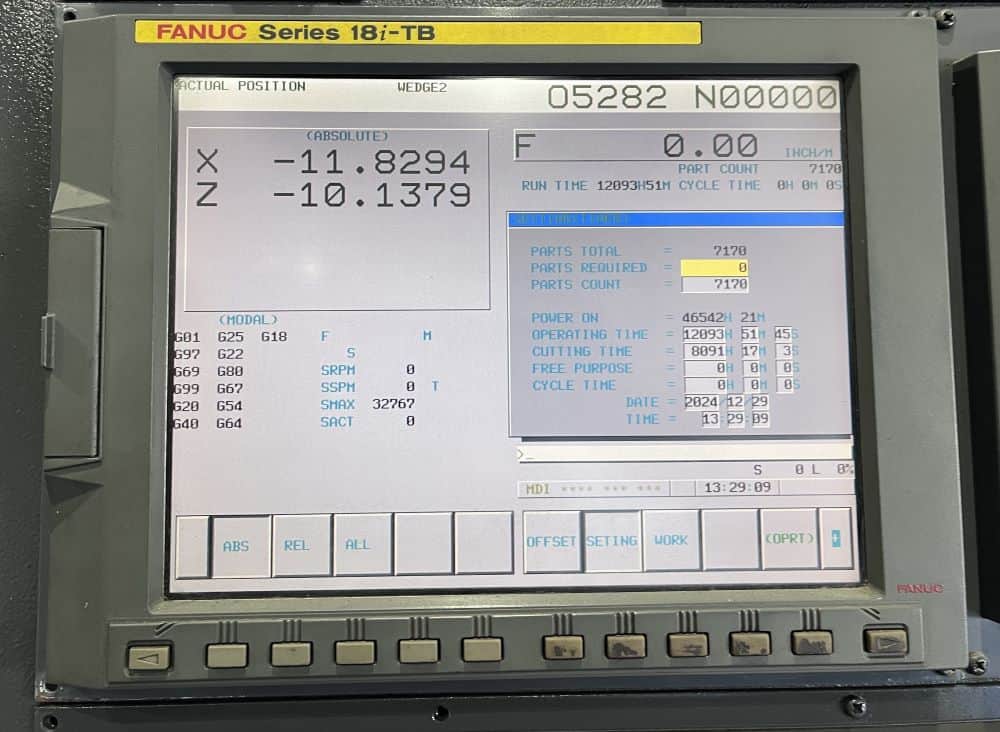

| Fanuc 18i-TB CNC Control |
| Long Bed Box Way Machine |

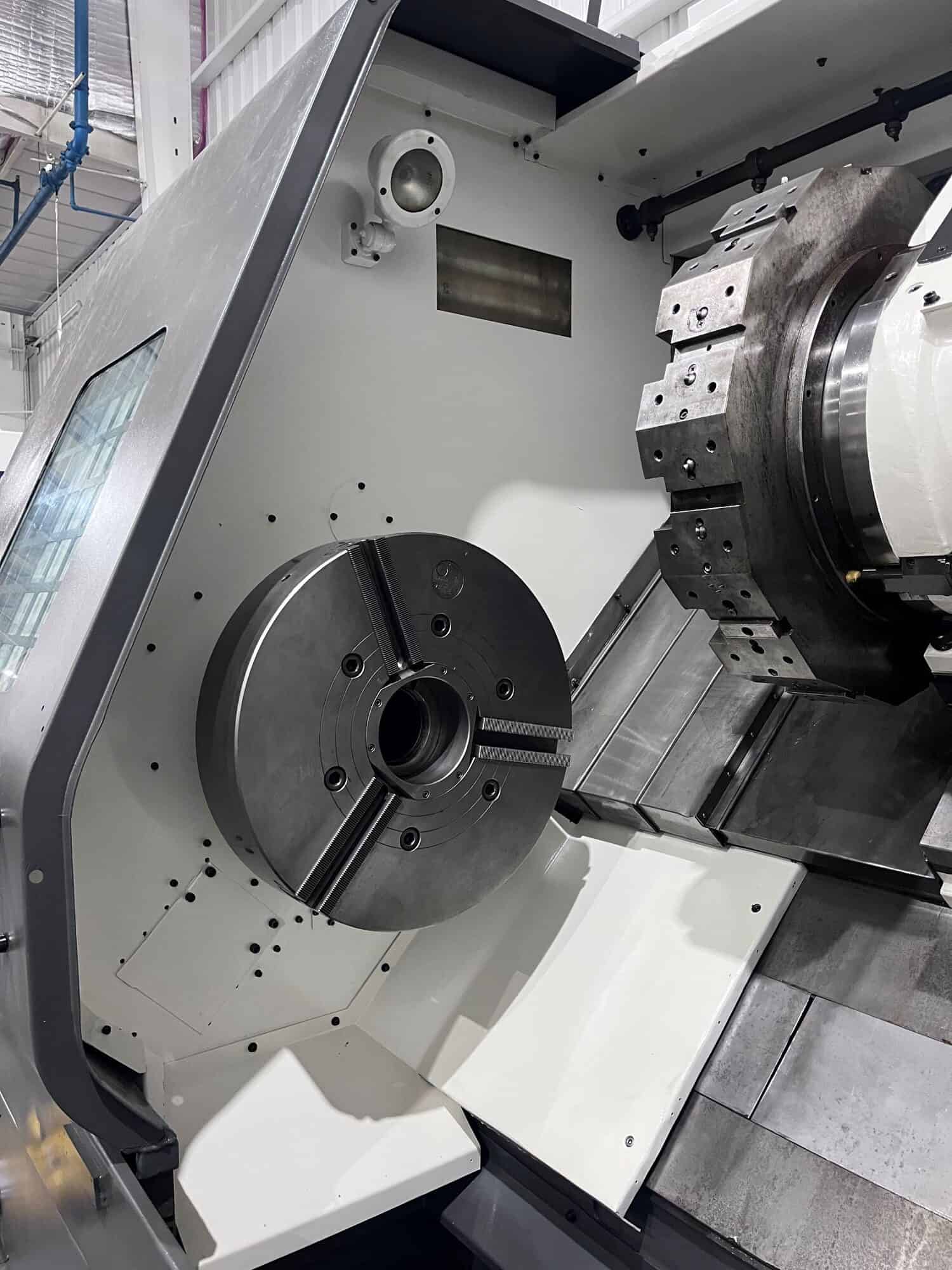

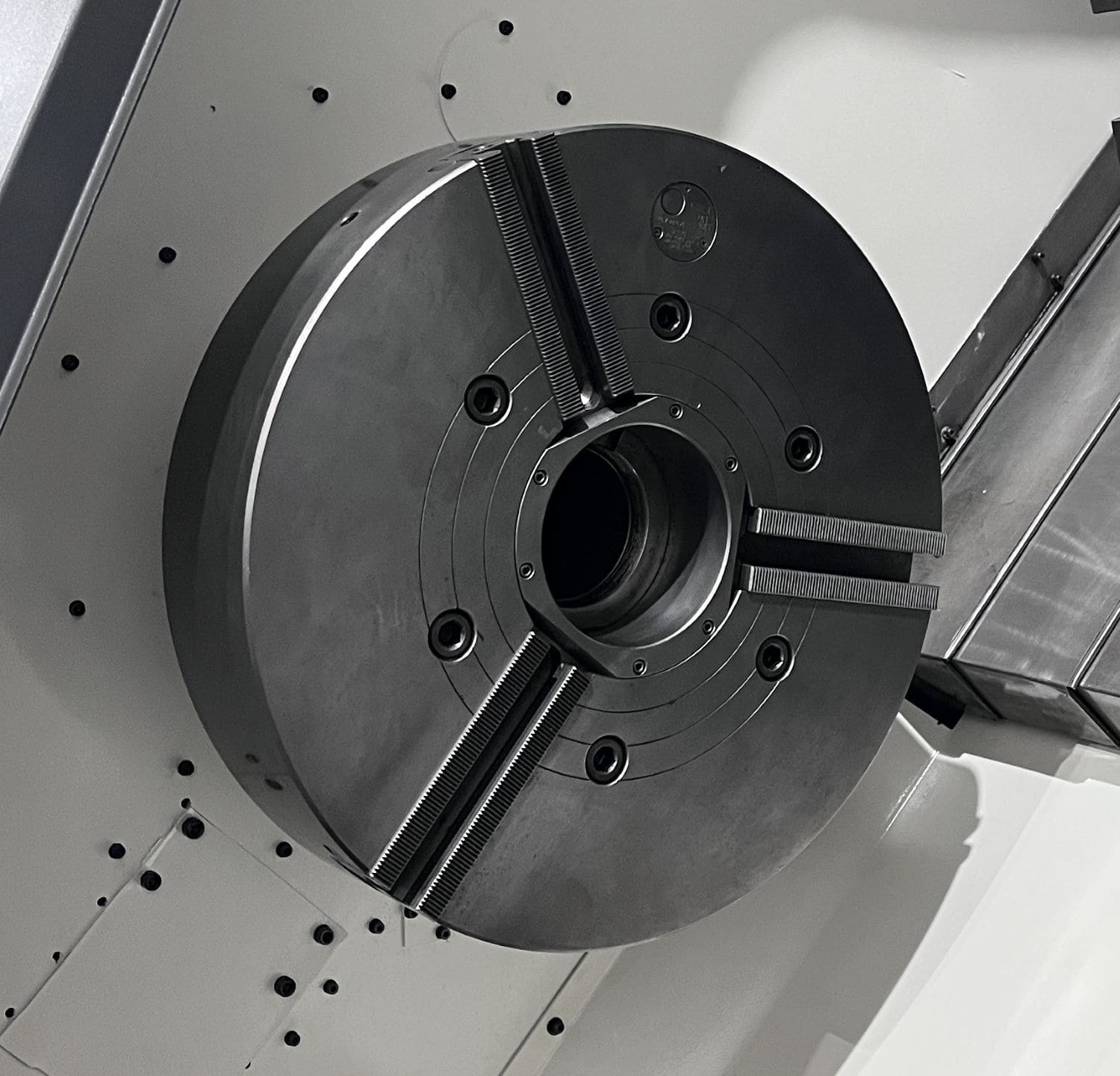

| 24″ 3-Jaw Hydraulic Chuck |
| 5.20″ Big Bore, A2-11 Spindle |

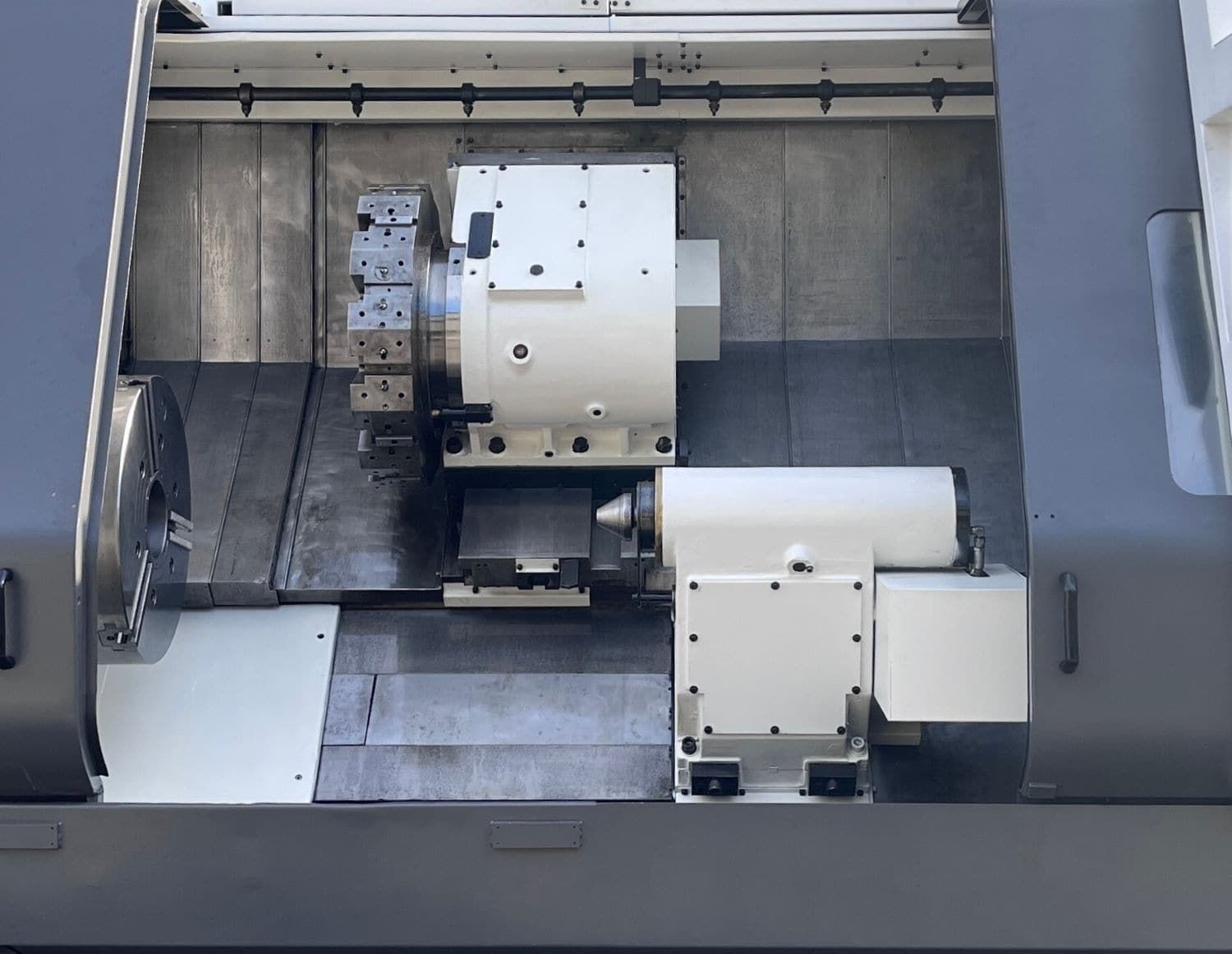

| 12 Station Automatic Turret |
| 50 HP High Torque Spindle |
| High Precision Geared Head Spindle for powerful Torque |
| Hydraulic Tailstock and Power Quill |
| PCMCIA Card Interface |
| Coolant System |
| Chip conveyor |
| Foot Switches |
| Capacity: |
| Max Turning Diameter: 27.56″ |
| Max Turning Length: 78.74″ |
| Max Bar Capacity: 4.90″ |
| Max Swing Over Bed: 35.43″ |
| Distance Between Centers: 80.00″ |
| Travel: |
| X Axis Travel: 15.16″ |
| Z Axis Travel: 81.5″ |
| Rapid Traverse X Axis: 708 IPM |
| Rapid Traverse Z Axis: 708 IPM |
| Spindle: |
| Spindle Nose: A2-11 |
| Spindle Bore: 5.20″ |
| Spindle Speed: 0 – 1800 RPM |
| Spindle Motor: 50 HP |
| Turret: |
| Capacity: 12 Stations |
| Turret Index Time: 0.4 Second |
| Tailstock: |
| Tailstock Taper: MT-5 |
| Tailstock Quill Dia.: 5.90″ |
| Tailstock Quill Travel: 5.90″ |
| General: |
| Power: 220v / 75 kva / 3-Phase |
| Overall Dimensions: 200″ x 90″ x 100″ High Approx. |
| Weight: 33070 lbs. Approx. |
