Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Features: |

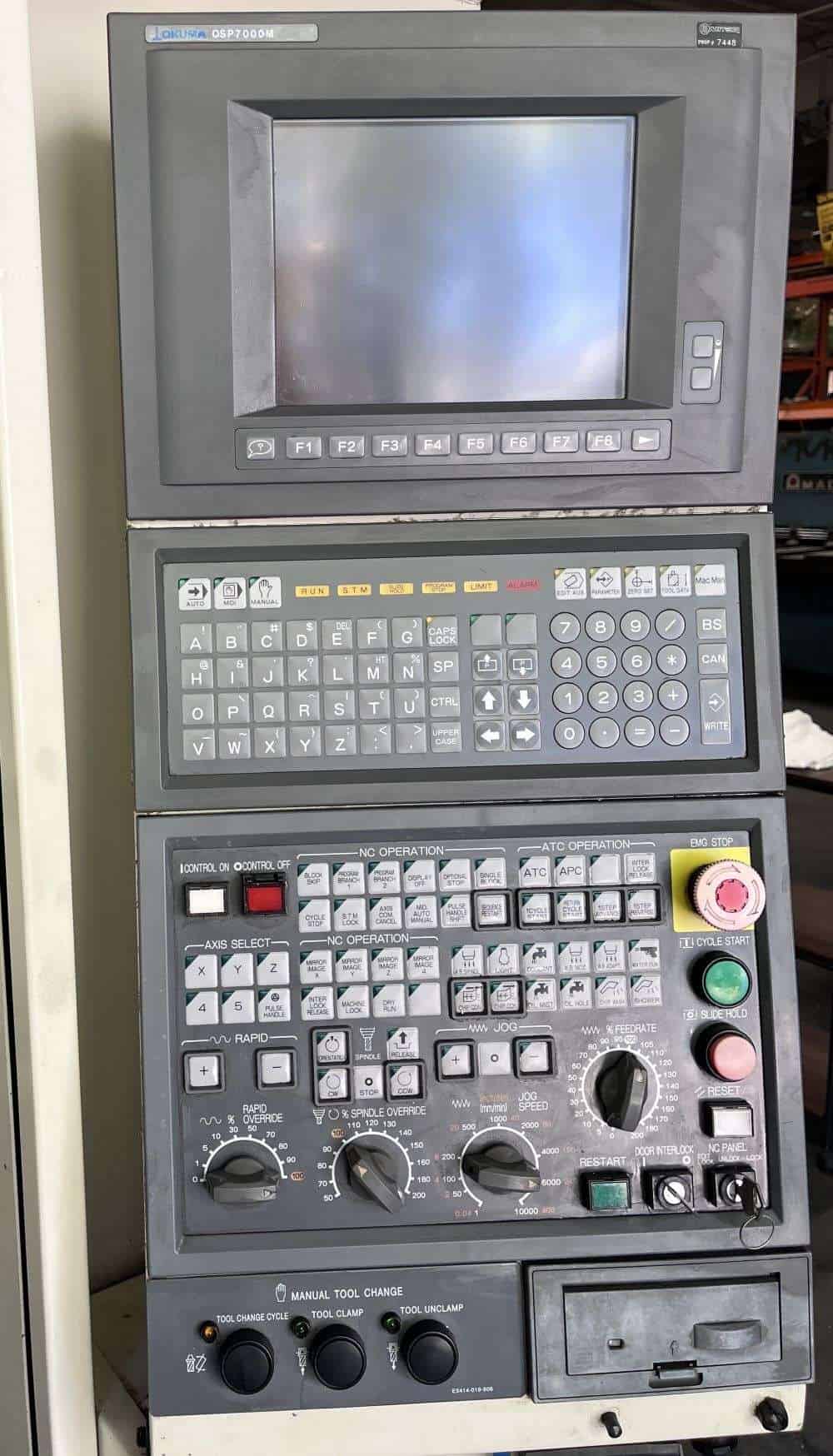

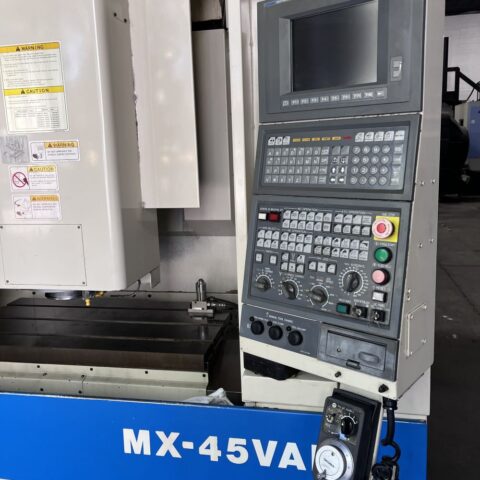

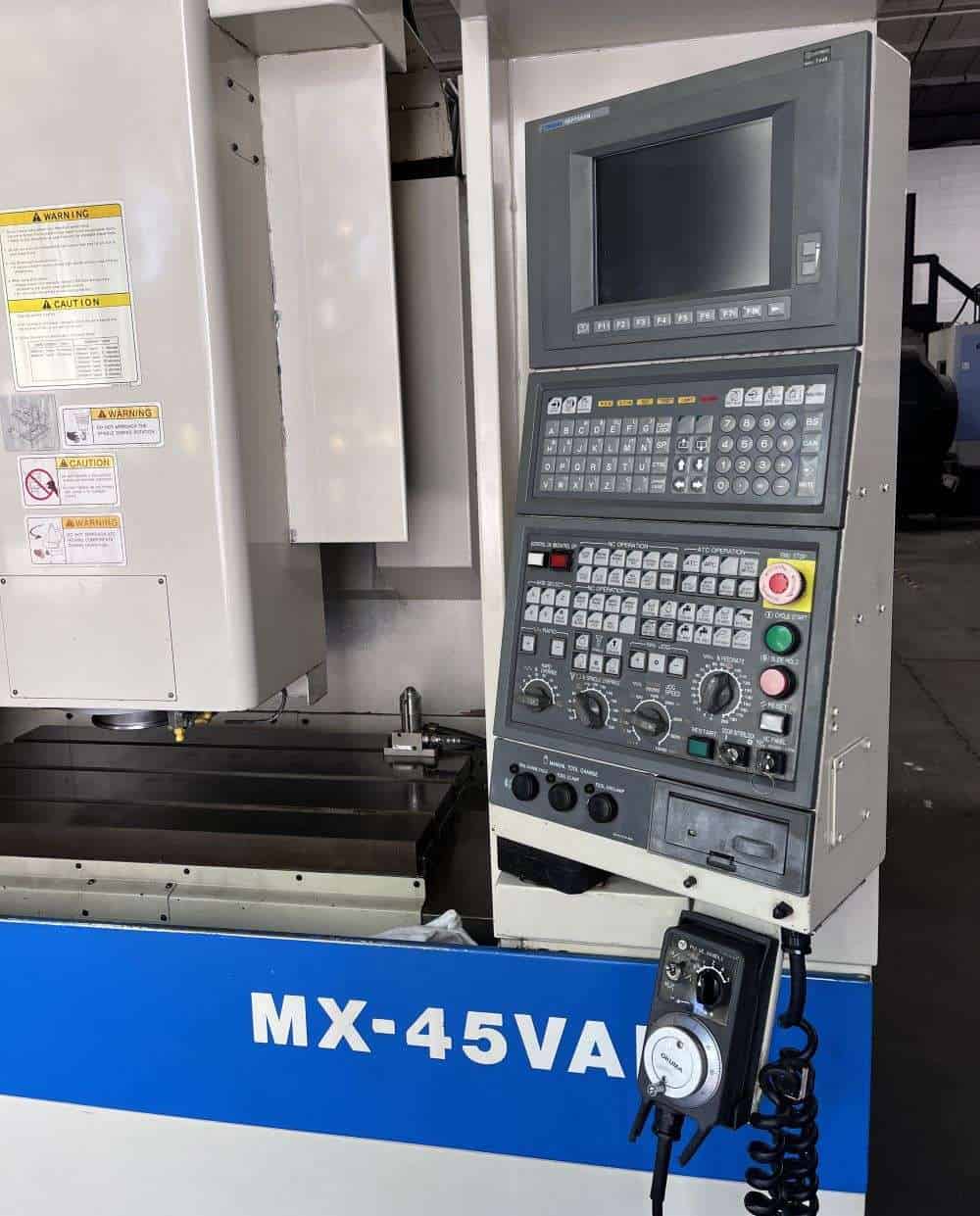

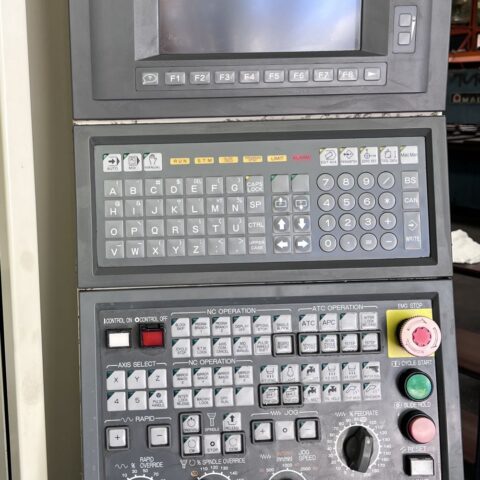

| Okuma OSP7000M Series CNC Control |
| Y Axis Travelling Column |

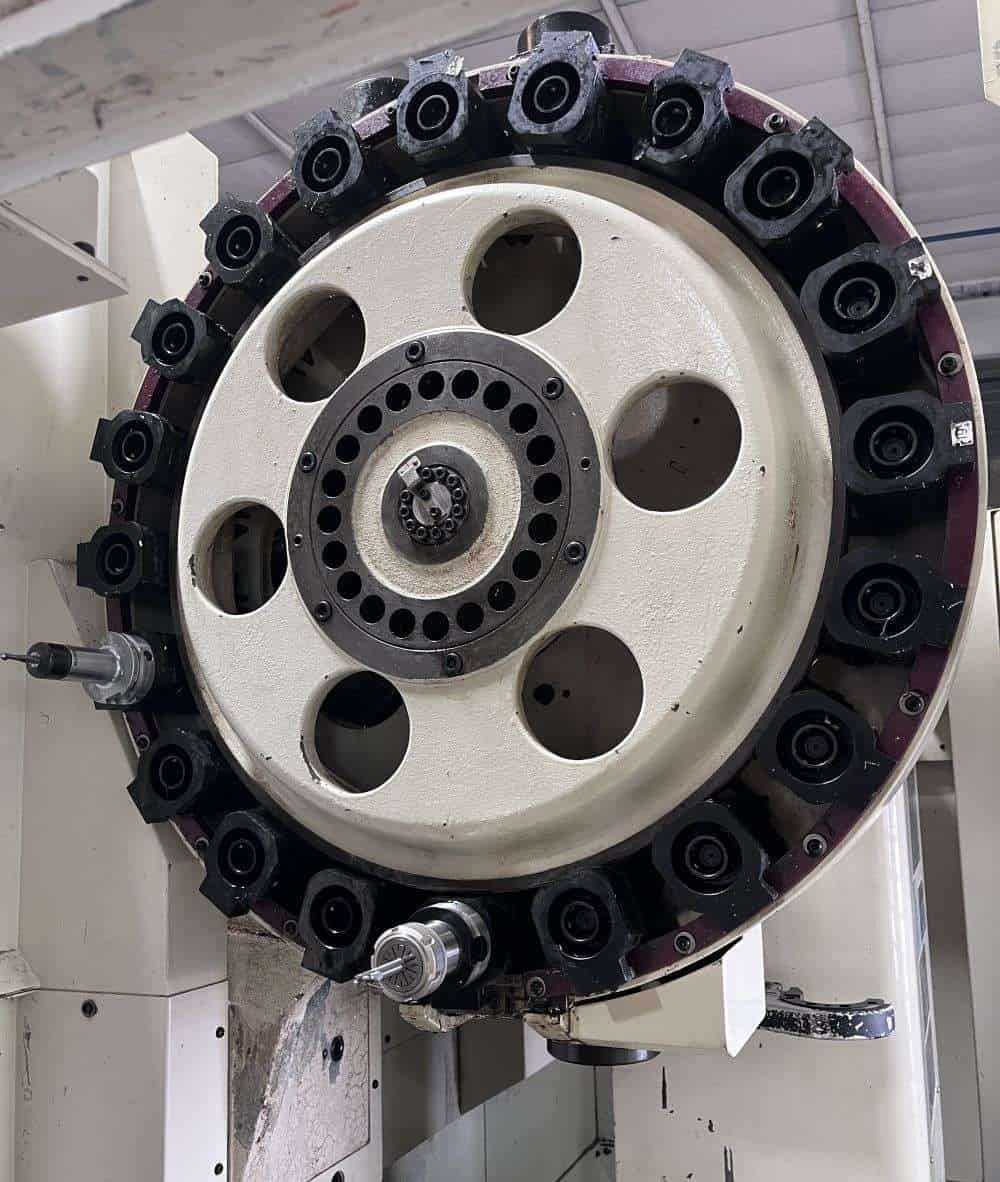

| 20 Station Automatic tool changer |
| 7,000 RPM Spindle |
| HSK-40 Taper Spindle |

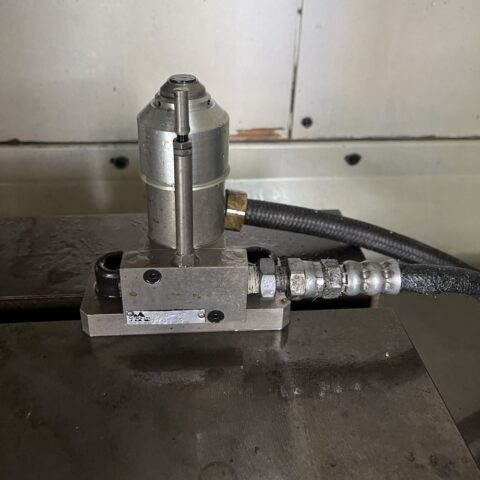

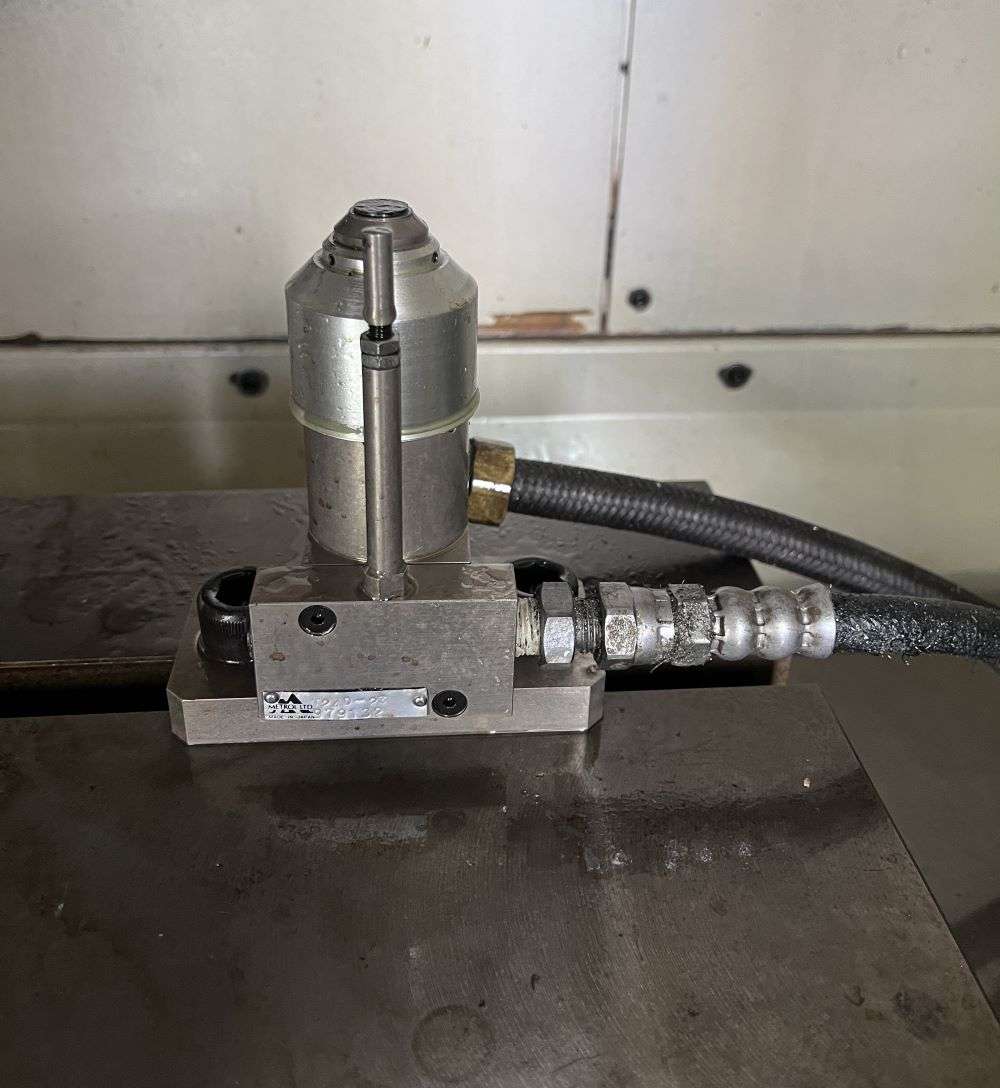

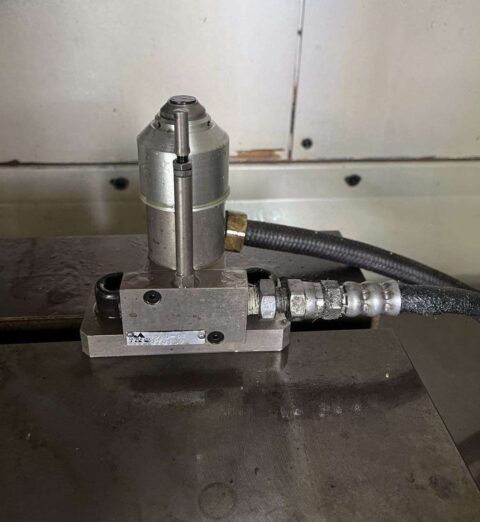

| Touch Probe |
| RS-232 Port |
| MPG Handwheel Control |
| Rigid Tapping |

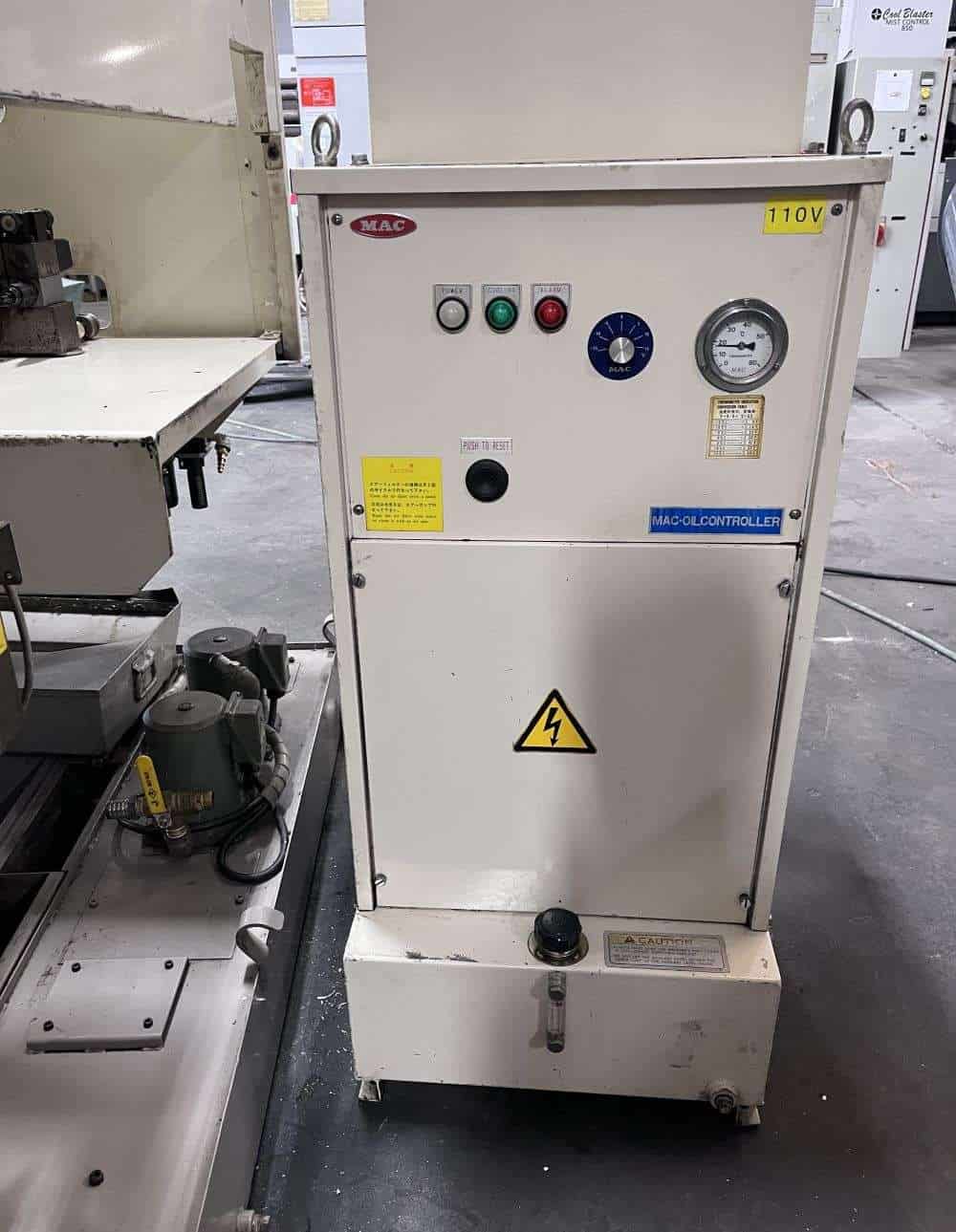

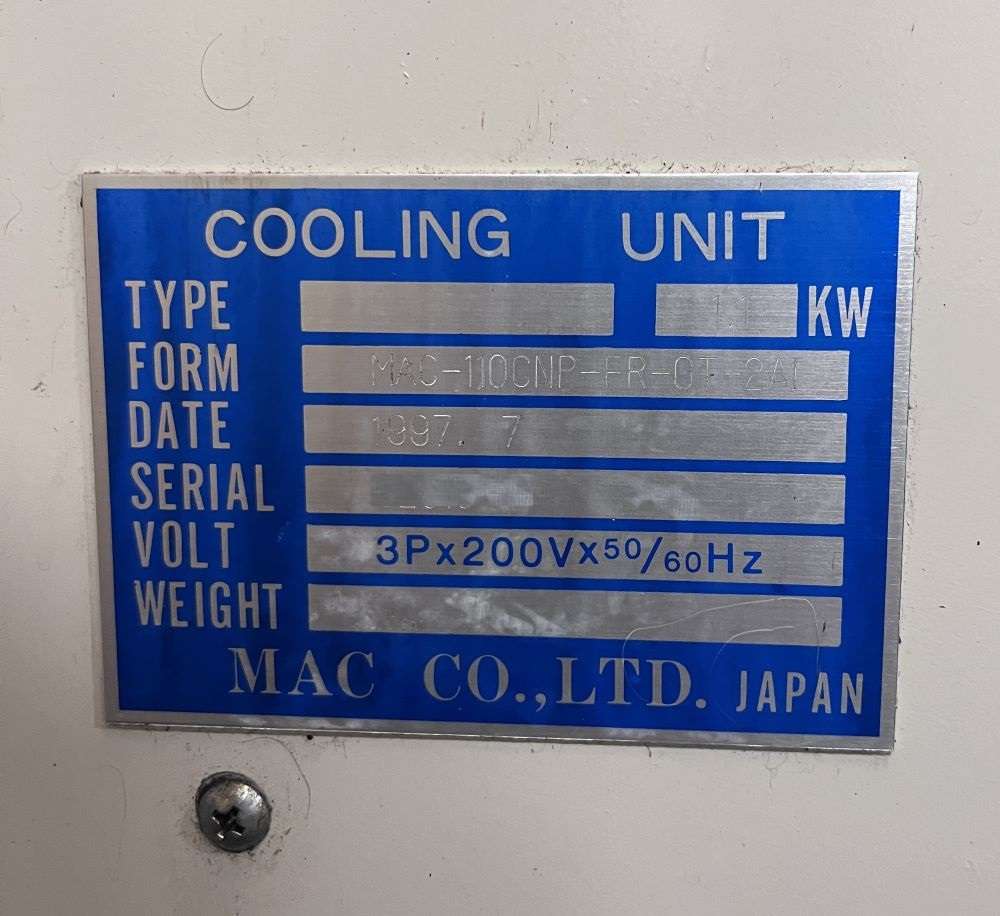

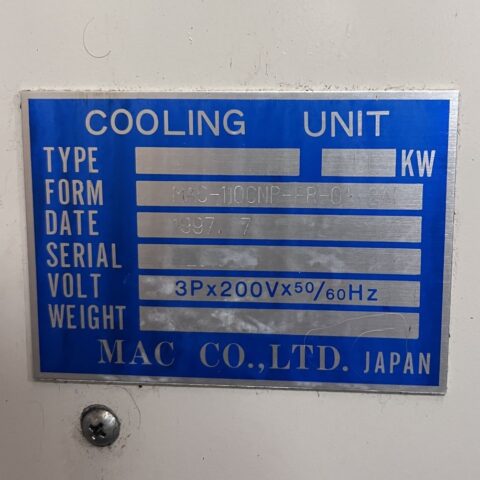

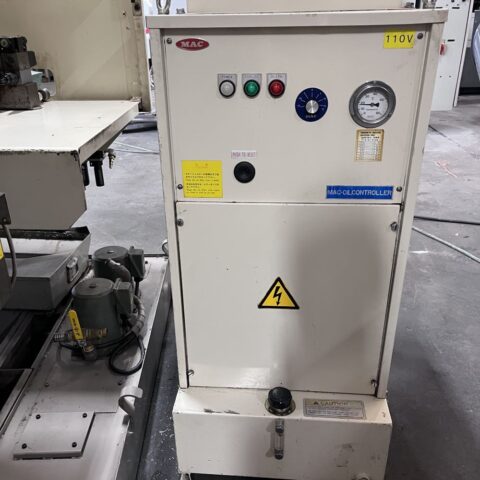

| Spindle Chiller Unit |
| Coolant Tank |

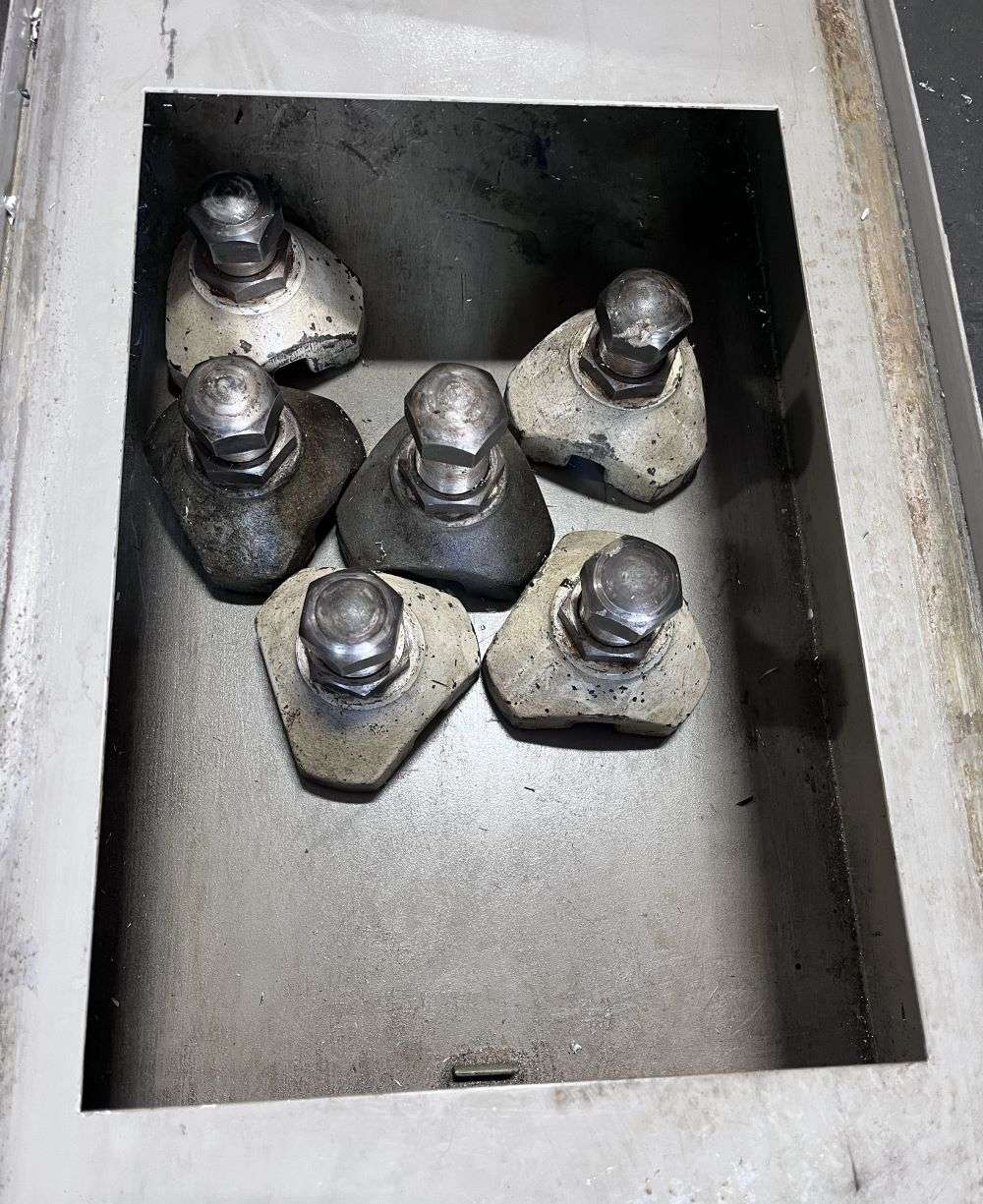

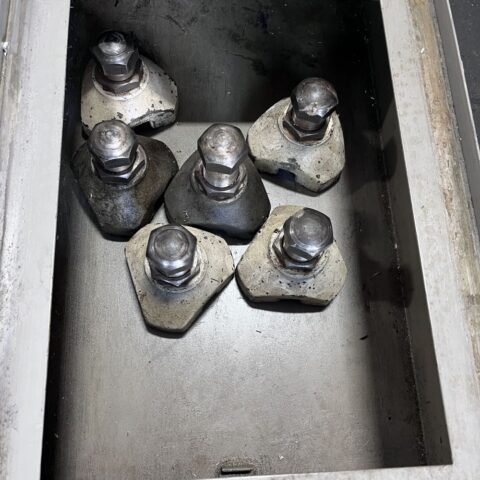

| Levelling Pads |

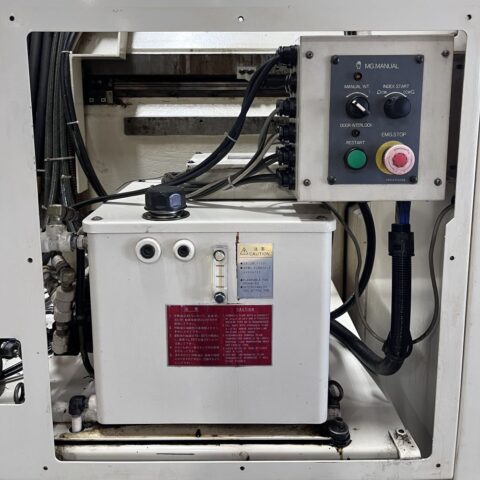

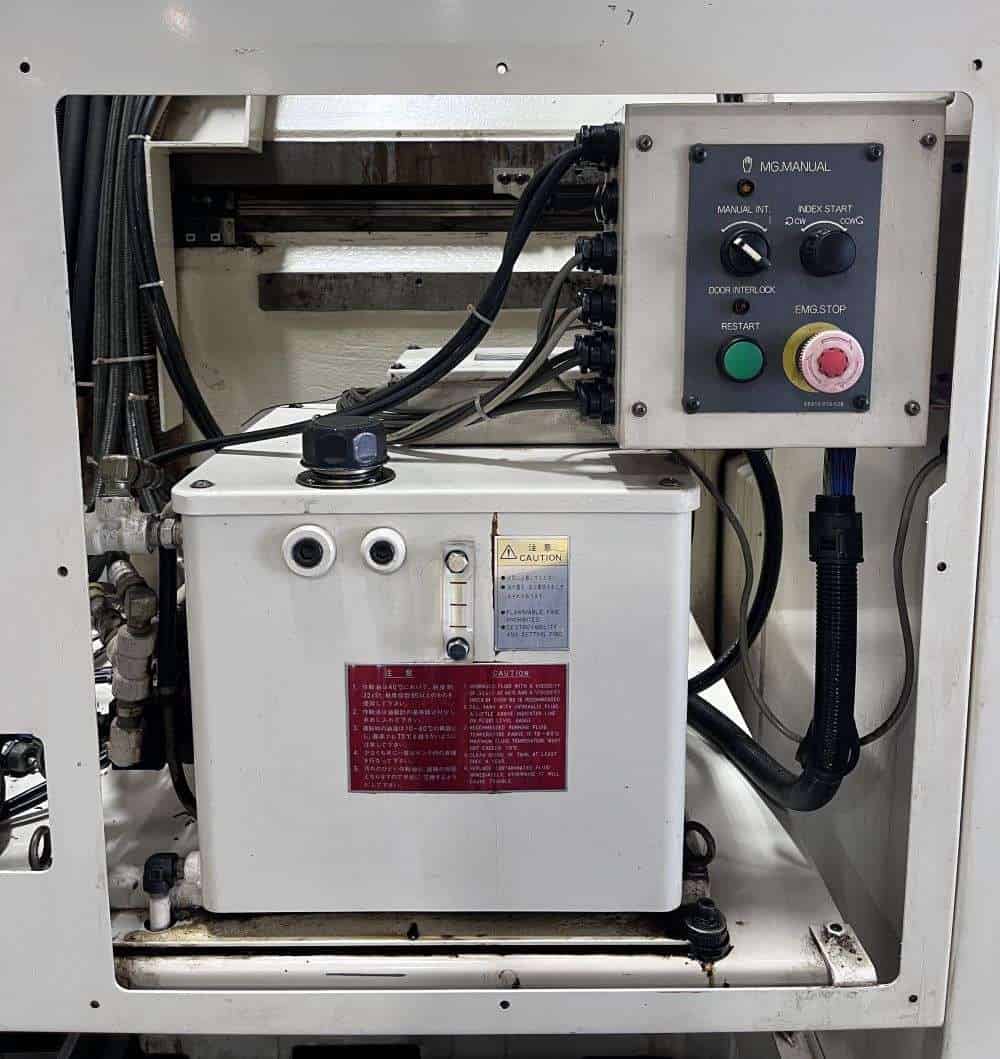

| Lubrication System |
| (2) Tool Holders |
| Machine Comes with Original Paint |
| Travels: |
| X-Axis: 30.00″ |
| Y-Axis: 18.11″ |
| Z-Axis: 17.72″ |
| Spindle Nose to Table (Min.- Max.): 6.29″ – 24.01″ |
| Rapid Traverse Rates X, Y Axis: 1181″ Per Minute |
| Rapid Traverse Rates Z Axis: 787″ Per Minute |
| Cutting Feed Rates: 394″ Per Minute |

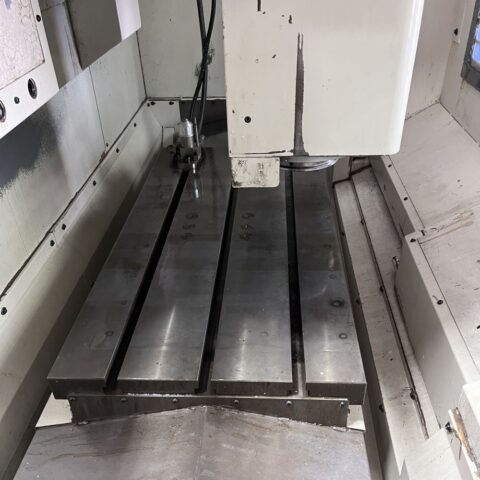

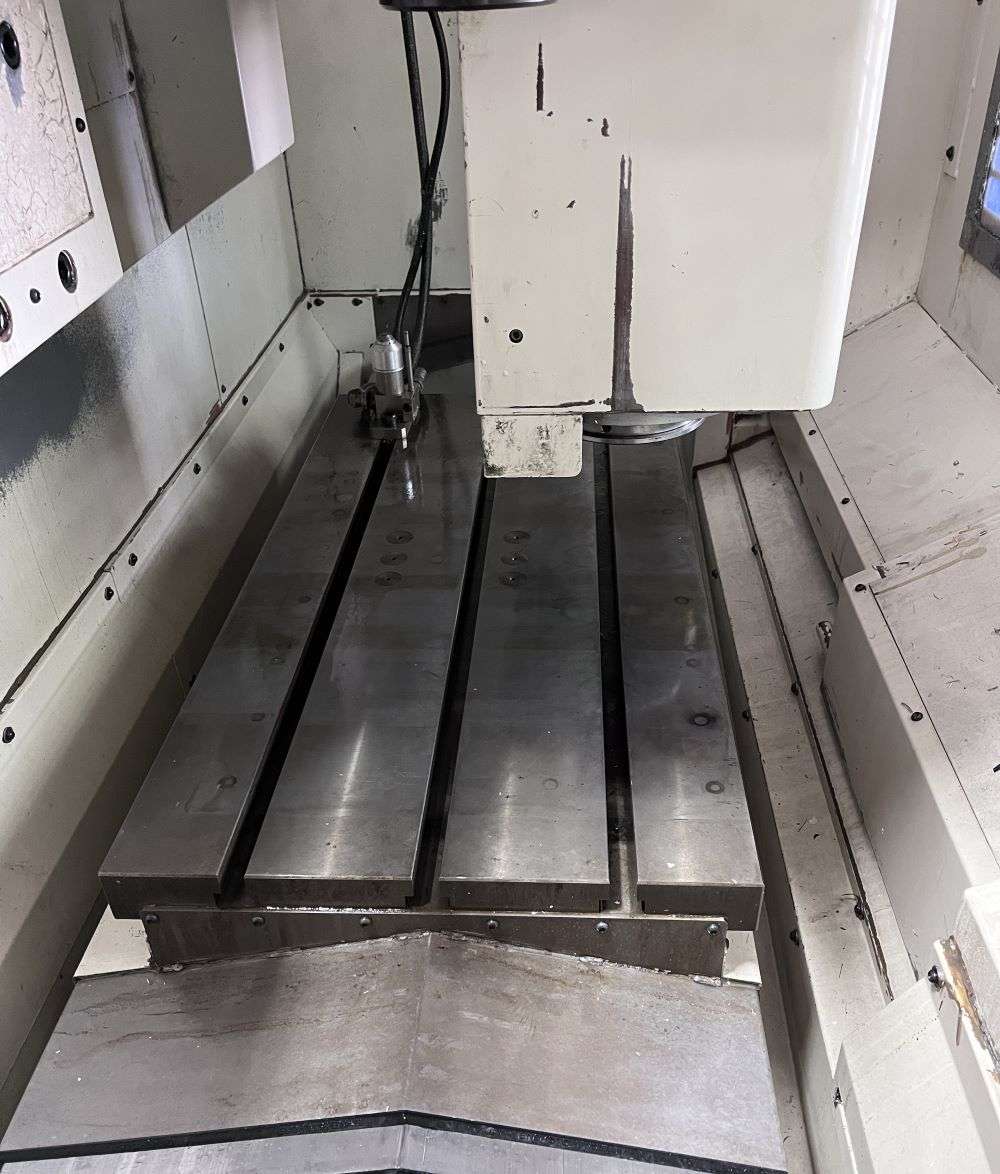

| Table: |
| Length: 39.37″ |
| Width: 18.11″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1102 lbs |
| Spindle: |
| Spindle: Taper Size: HSK-40 |
| Speed Range: 7,000 RPM |
| Spindle Power: 15 HP |

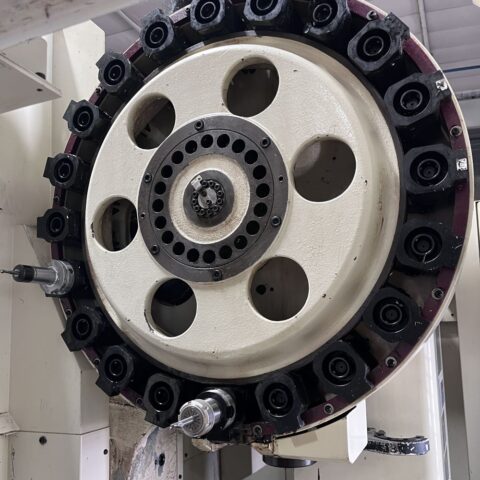

| Automatic Tool Changer: |
| Capacity: 20 Station Side Mounted |
| Tool Weight: 17.6 lbs |
| Max Tool Dia: 3.95″ |
| Max Tool Length: 9.84″ |
| General: |
| Air Required: 80 psi, 4 scfm |

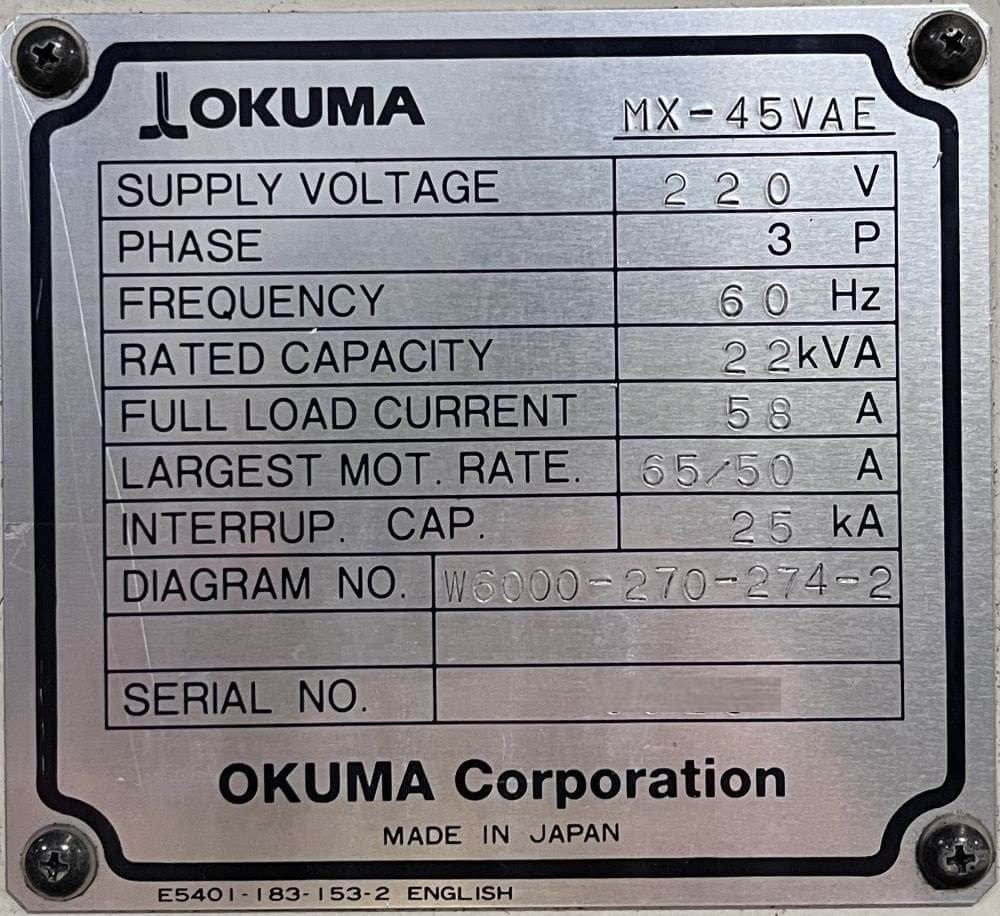

| Power: 220v / 3-Phase / 22 kva |
| Overall Dimensions: 90″ x 104″ x 106″ High |
| Weight: 12,125 lbs |
