Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Features: |

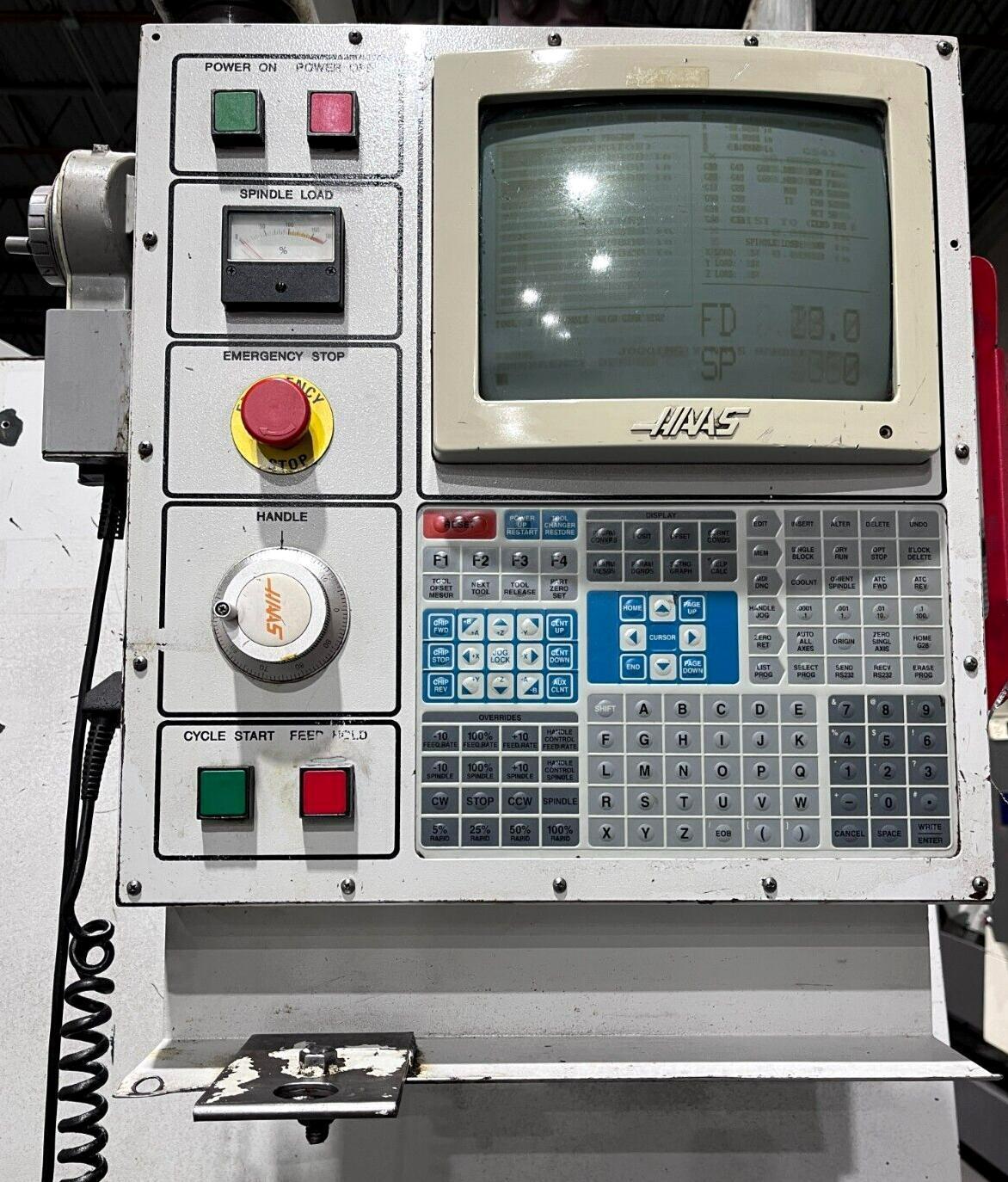

| Haas CNC Control |
| 7500 RPM Spindle |
| 11.2 kW High Torque Spindle |
| 20 Station Automatic Tool Changer |
| 4th Axis Ready |
| MPG Handwheel Control |
| Rigid Tapping |
| Spindle Orientation |
| Programmable Coolant |

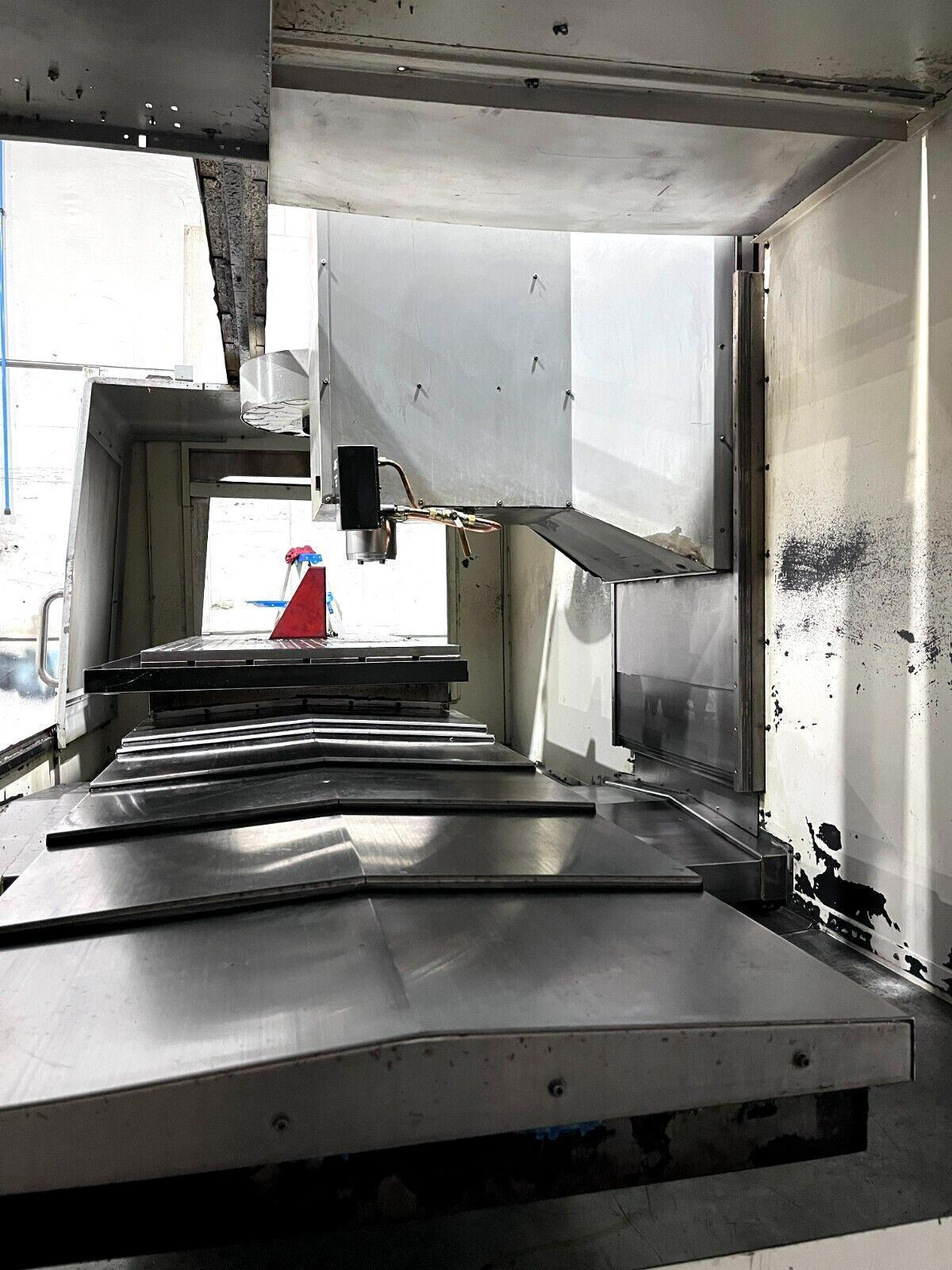

| Telescopic Way Covers |

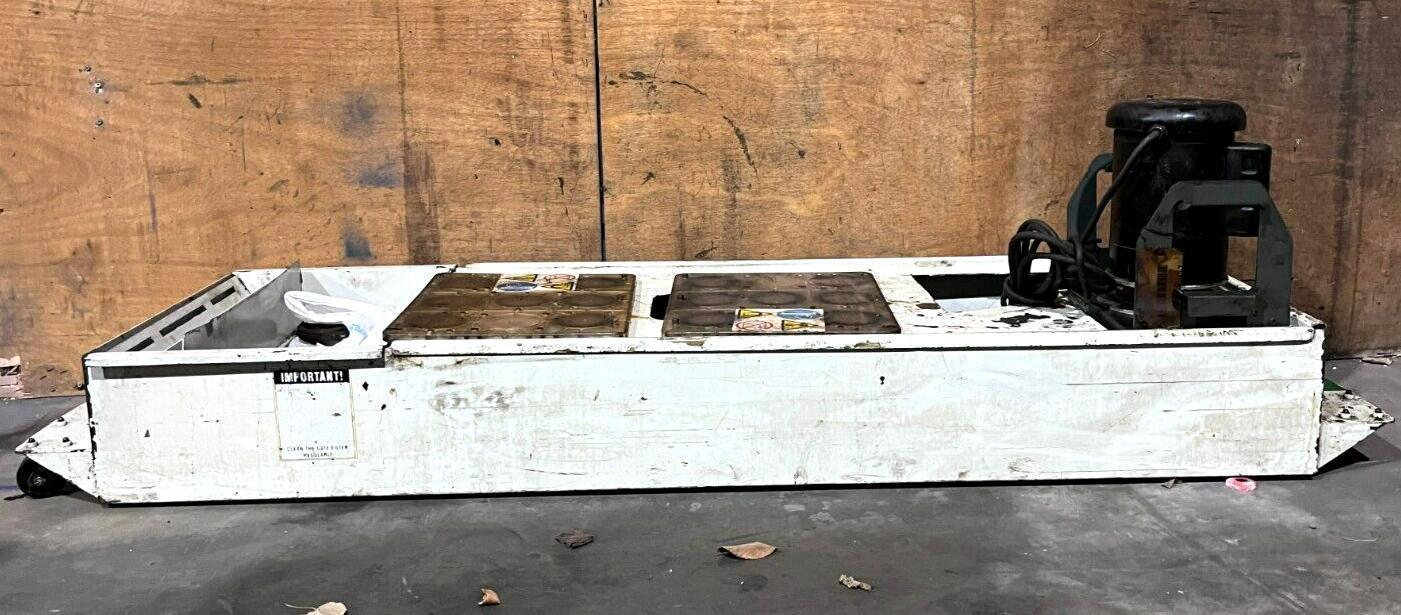

| Coolant System |
| Travels: |
| X-Axis: 1625.6 mm |
| Y-Axis: 812.8 mm |
| Z-Axis: 762 mm |
| Rapid Traverse Rates: 600 Inch Per Minute |
| Cutting Feed Rates: 500 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 127 mm – 889 mm |

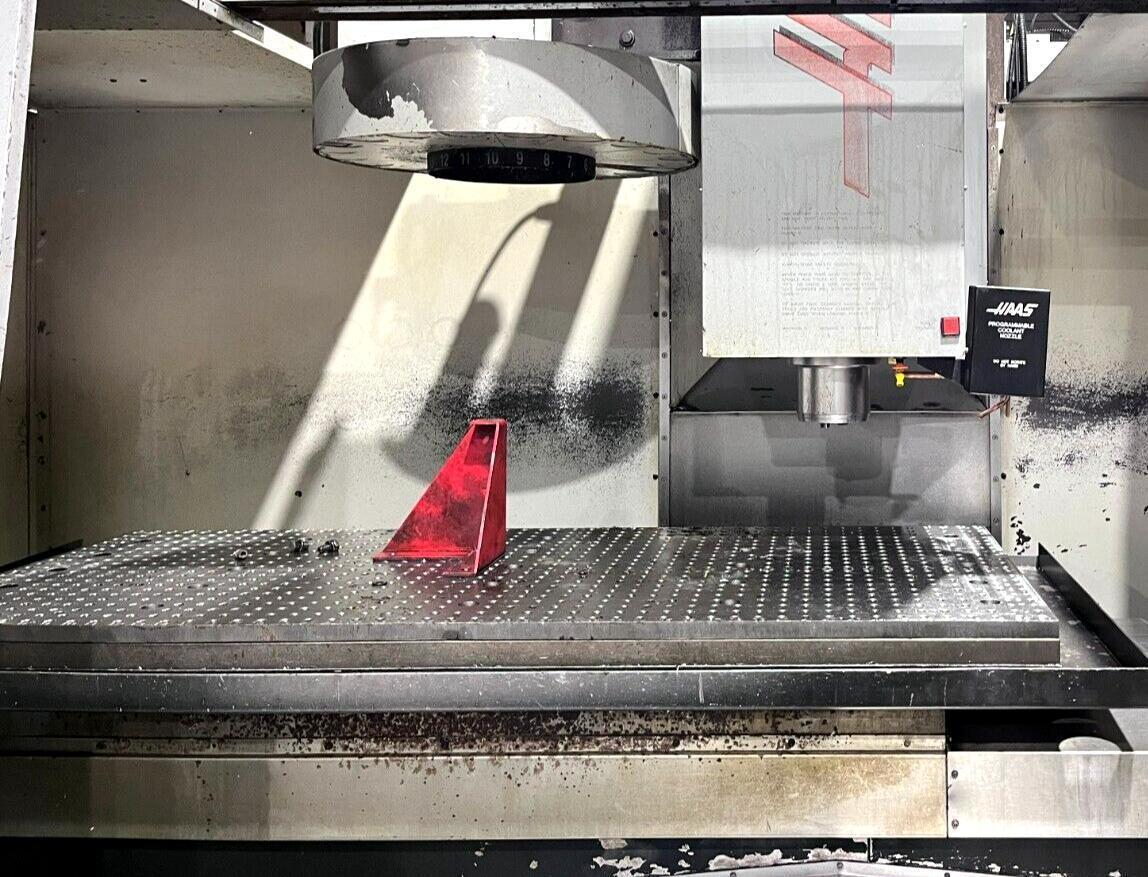

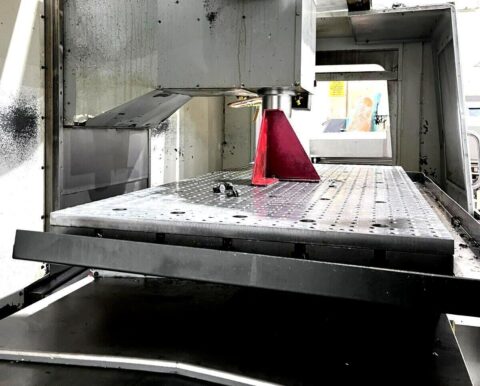

| Table: |
| Length: 1625.6 mm |
| Width: 711.2 mm |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/203.2 mm |
| Max Weight on Table: 1814.4 kg |
| Spindle: |
| Taper Size: CAT-40 |
| Speed Range: 7500 RPM |
| Spindle Power: 11.2 kW |
| Vector Drive Max Torque: 90ft-lb @ 2000 RPM |

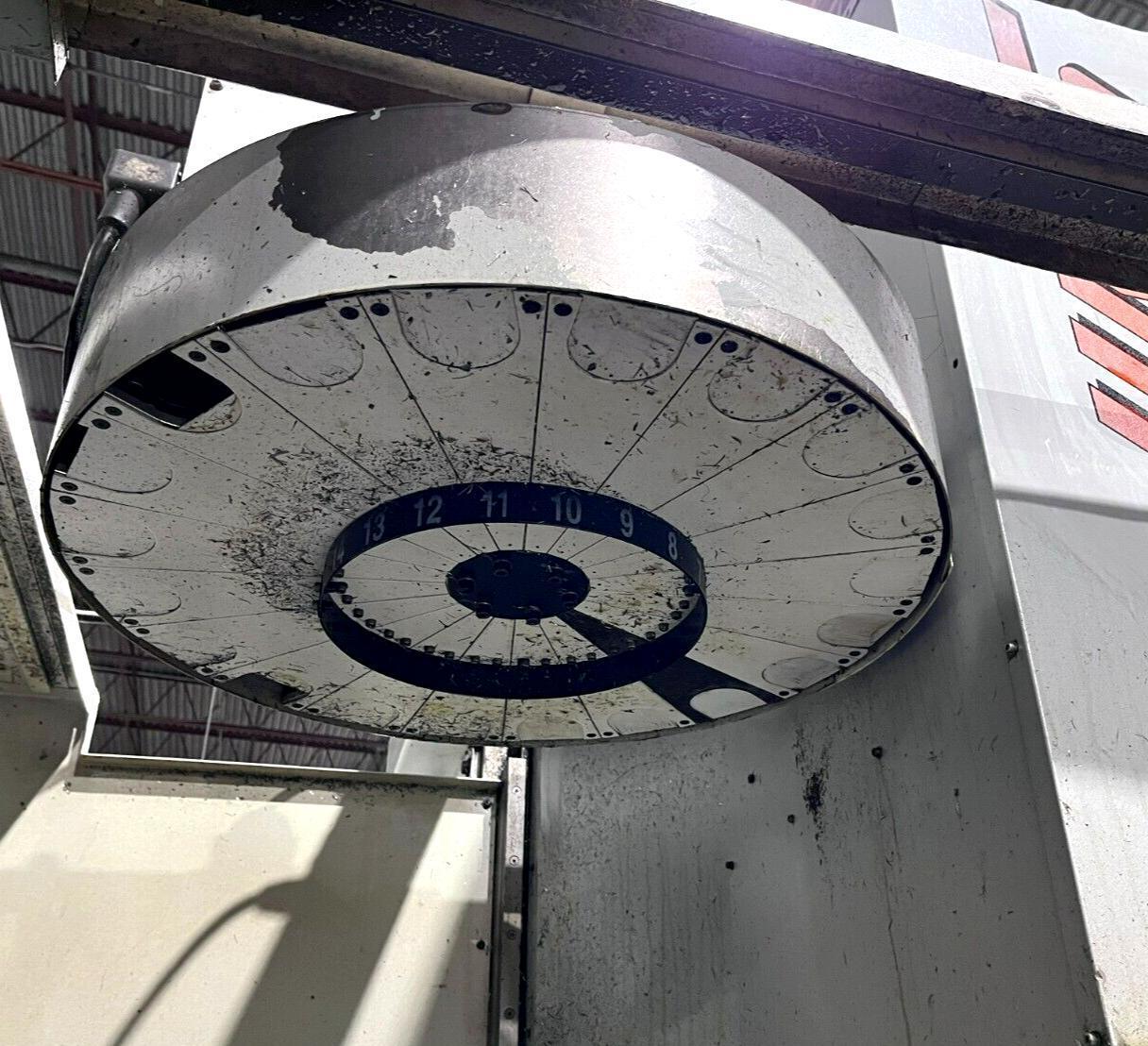

| Automatic Tool Changer: |
| Capacity: 20 Station Umbrella Type |
| Max Tool Weight: 5.4 kg |
| Max Tool Diameter (Full): 63.5 mm |
| Max Tool Diameter (adjacent empty): 127 mm |
| Max Tool Length: 406.4 mm |
| Tool Changing Time: 4.2 Seconds |
| General: |
| Air Required: 100 psi 4 scfm |

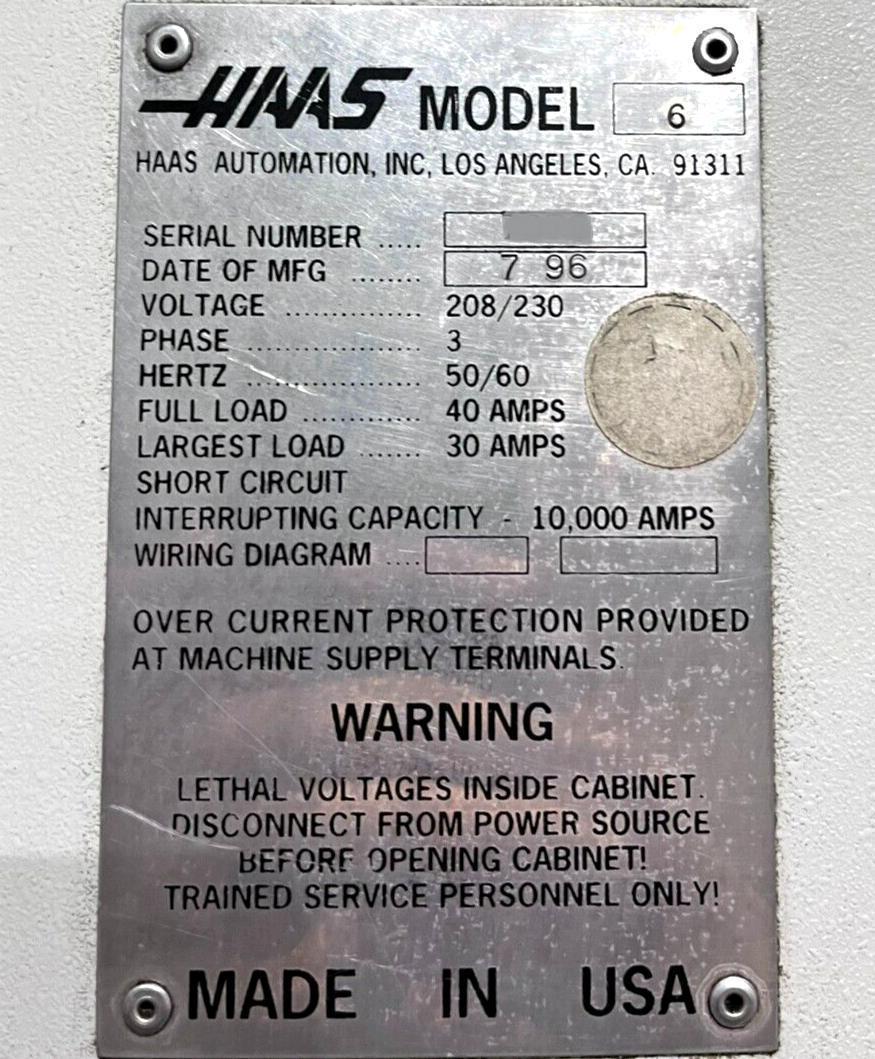

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 158″ x 98″ x 118″ High |
| Weight: 9979 kg |
