Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Features: |

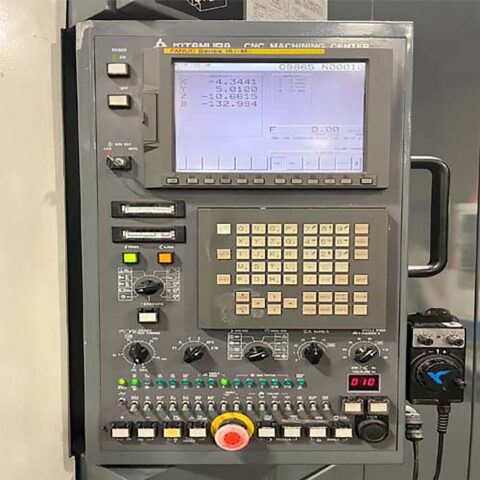

| Fanuc 16iMB CNC Control w/10.4 Color LCD |
| Full 4th Axis |
| 13,000 RPM Geared Head Spindle |
| Through Spindle Coolant |

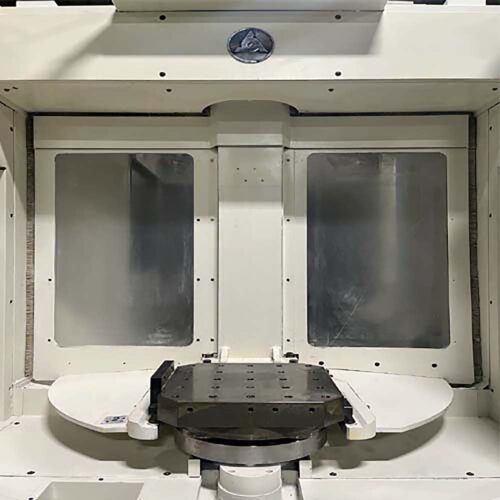

| Twin Pallet Changer |
| 50 High Speed Tool Changer |
| Scales on the Axis |
| PCMCIA Card Slot |
| MPG Control |
| 50 MB Memory |
| Overhead Shower Coolant |
| Spindle Orientation |
| Rigid Tapping |
| Custom Macros |
| Fast Rapid Traverse Rate |
| Spindle Chiller |
| Flood coolant with large separate coolant tank |
| Chip Conveyor |
| Travels: |
| X Axis: 28.93″ |
| Y Axis: 24.01″ |
| Z Axis: 24.01″ |
| B Axis: 0.001° ( Full 4th ) |

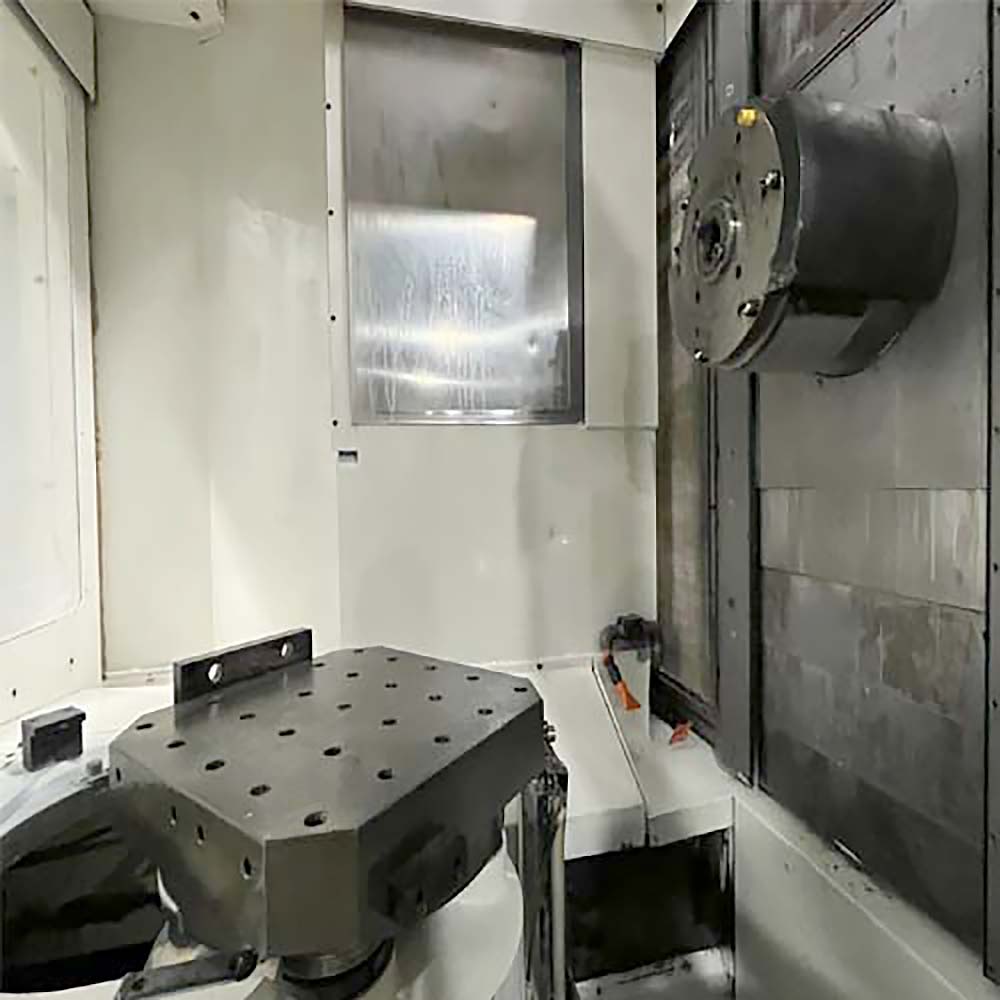

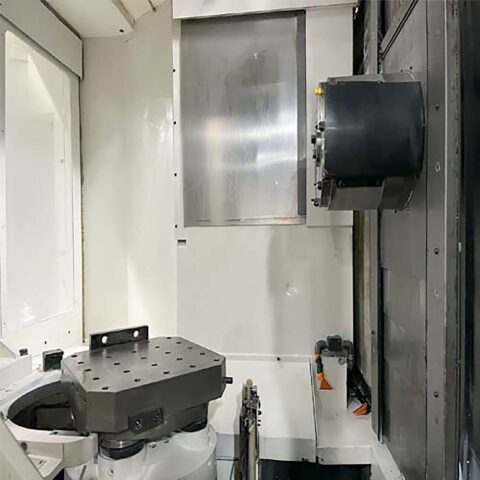

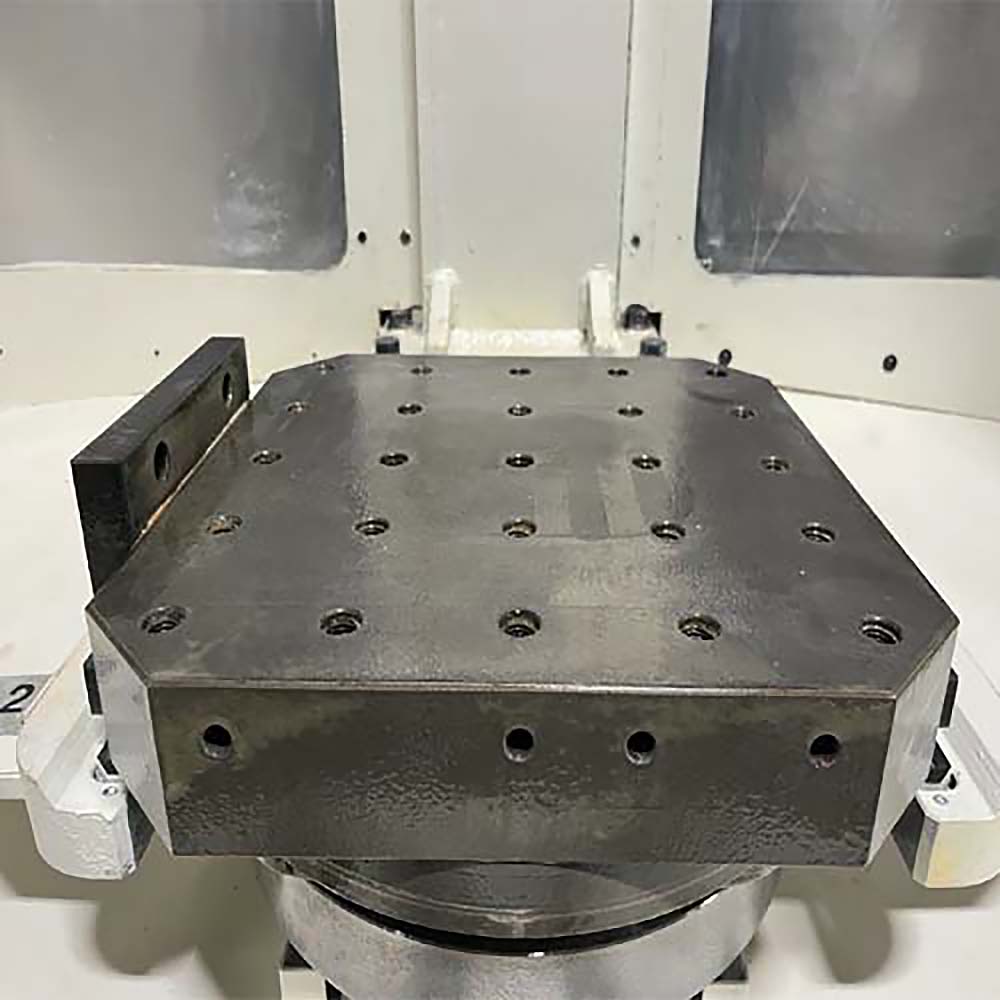

| Table: |
| Length: 15.7″ |
| Width: 15.7″ |
| Max Weight on Table: 400.1 kg |
| Max Workpiece Dia: 27.5″ |
| Max Workpiece Height: 37.8″ |
| Index Time: 6 seconds |
| Spindle: |
| Taper Size: CAT 40 |
| Max. Speed: 13,000 RPM |
| Power: 22.4 kW |
| Torque: 76.7 ft/lbs |
| Feed rates: |
| Rapid X & Y : 1968 Inch Per Minute |
| Rapid Z : 1968 Inch Per Minute |
| Cutting Feedrate: 984 Inch Per Minute |

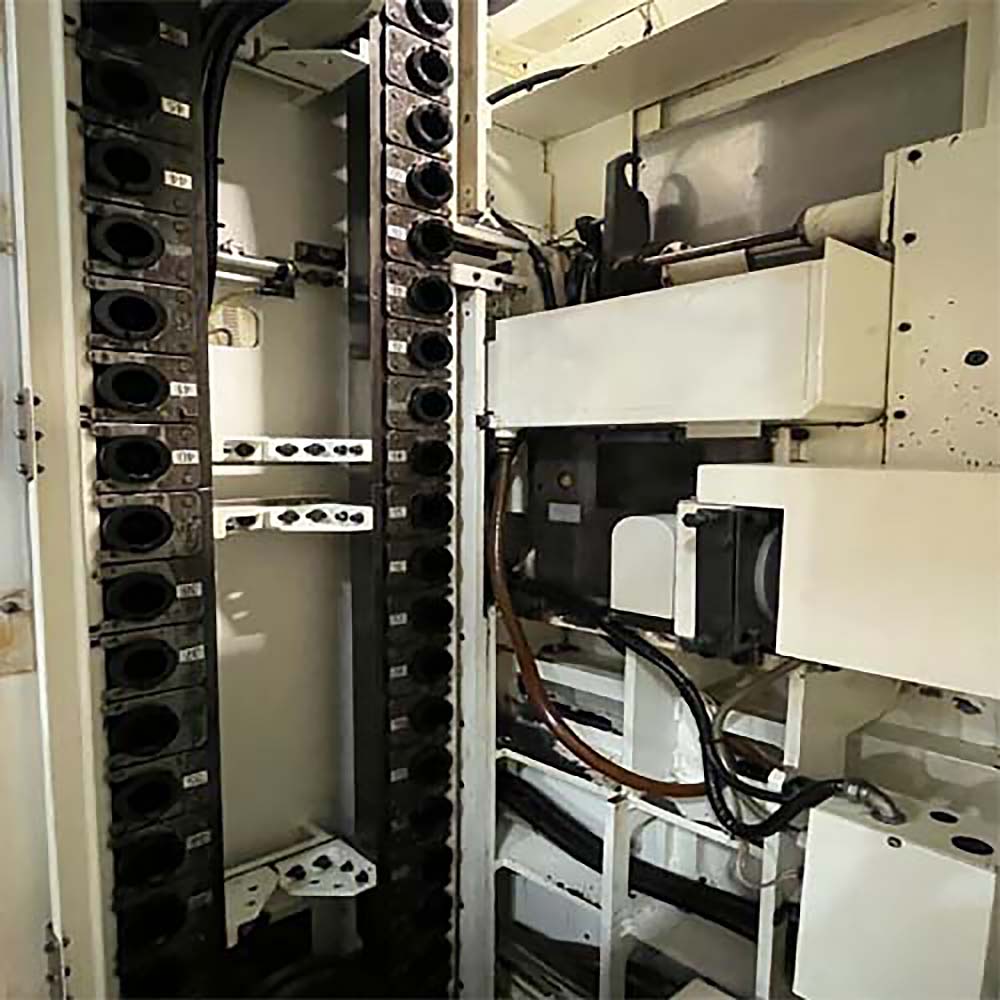

| Tool Changer: |
| Capacity: 50 Tools |
| Taper: 40 |
| Max Tool Size: 5.9″ |
| Max Tool Length: 17.7″ |
| Max Tool Weight: 10 kg. |
| Tool Change Time: 0.9 Second |
| General: |
| Air Required: 90 psi, 4 scfm |
| Power: 45kva / 205-220v / 3-Phase |
| Overall Dimensions: 165″ X 105″ x 120″ High |
| Weight: 13018.1 kg |
