Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |
| Features: |

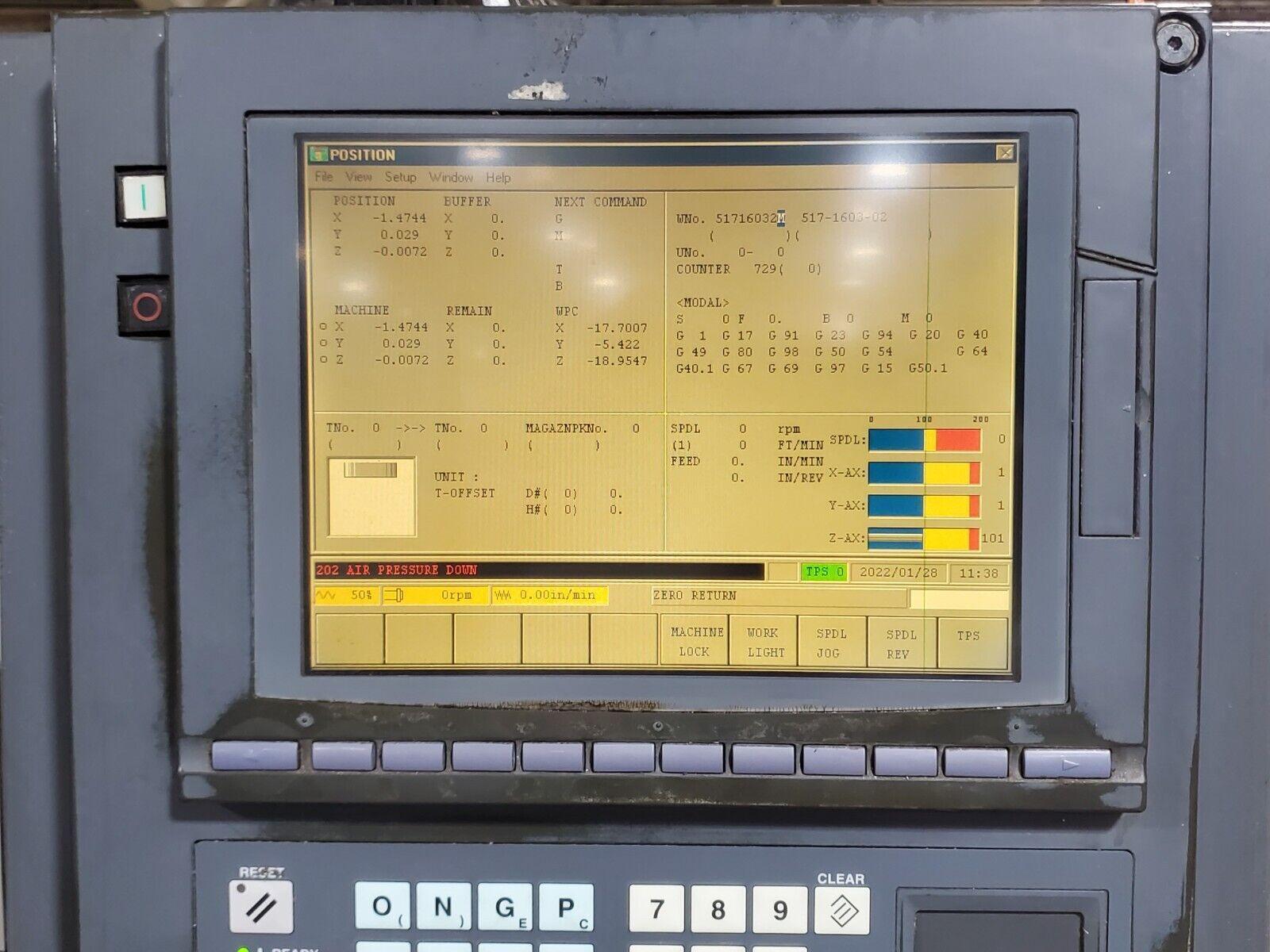

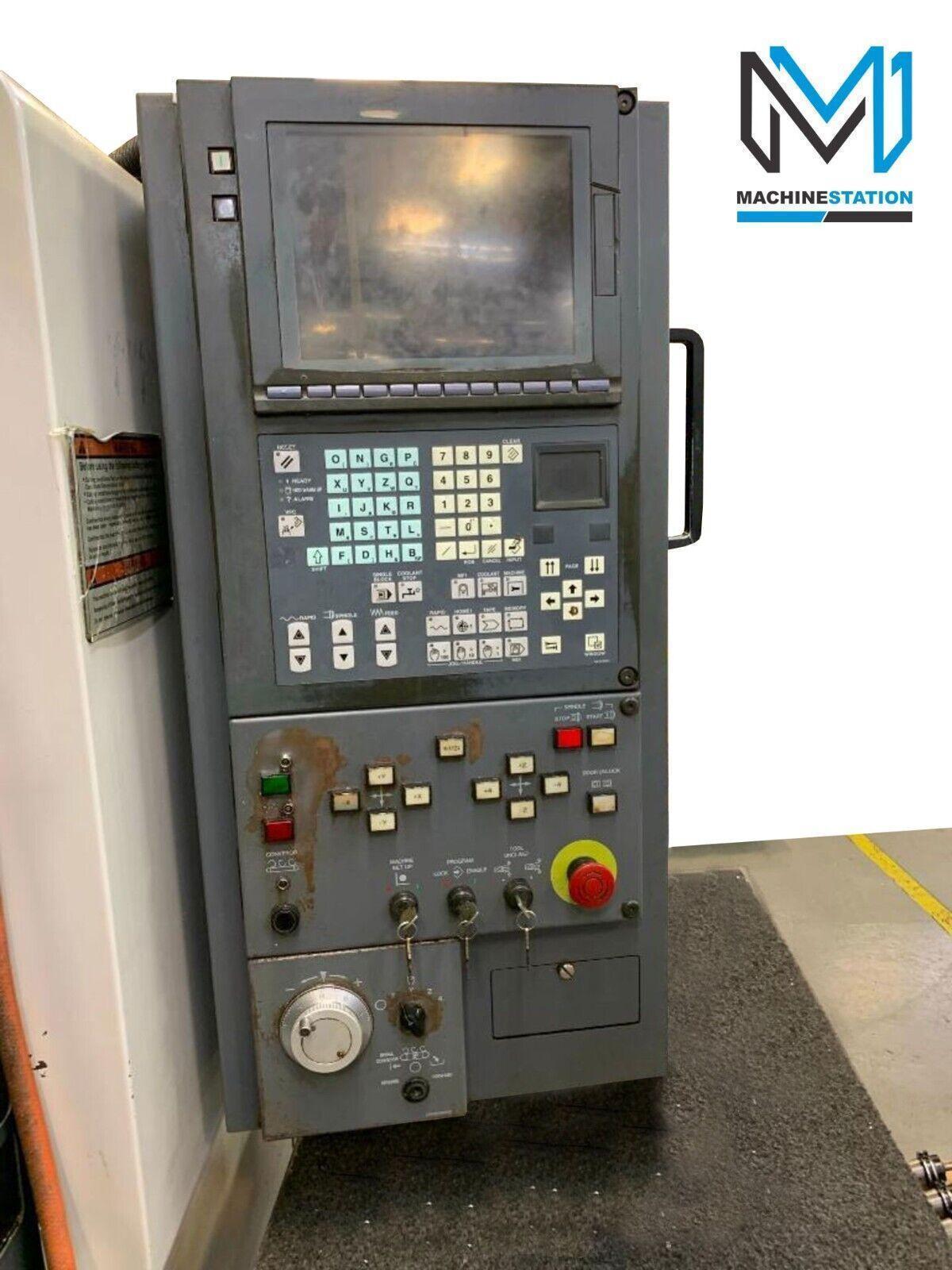

| Mazatrol Fusion 640 Control |
| 24 Station Automatic Tool Changer |

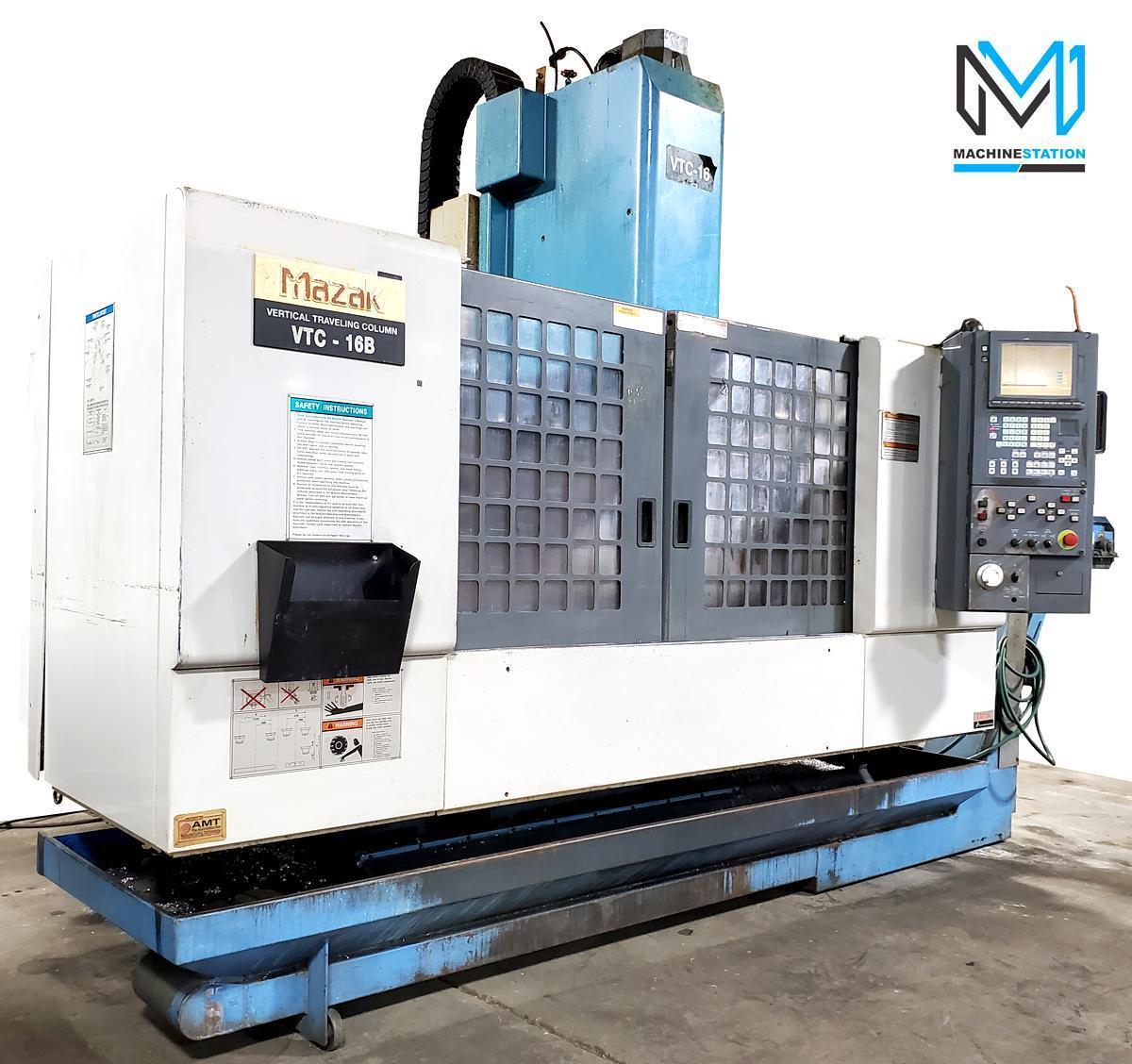

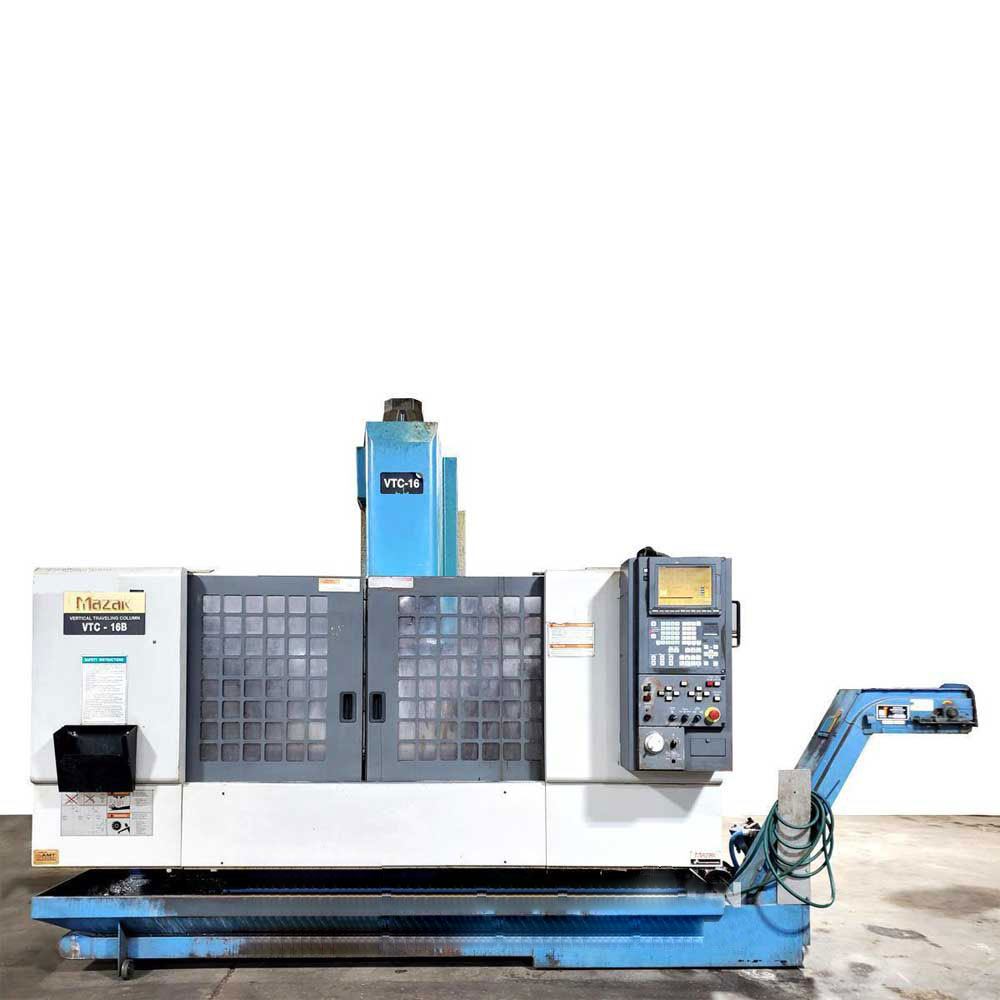

| Travelling Column Design |

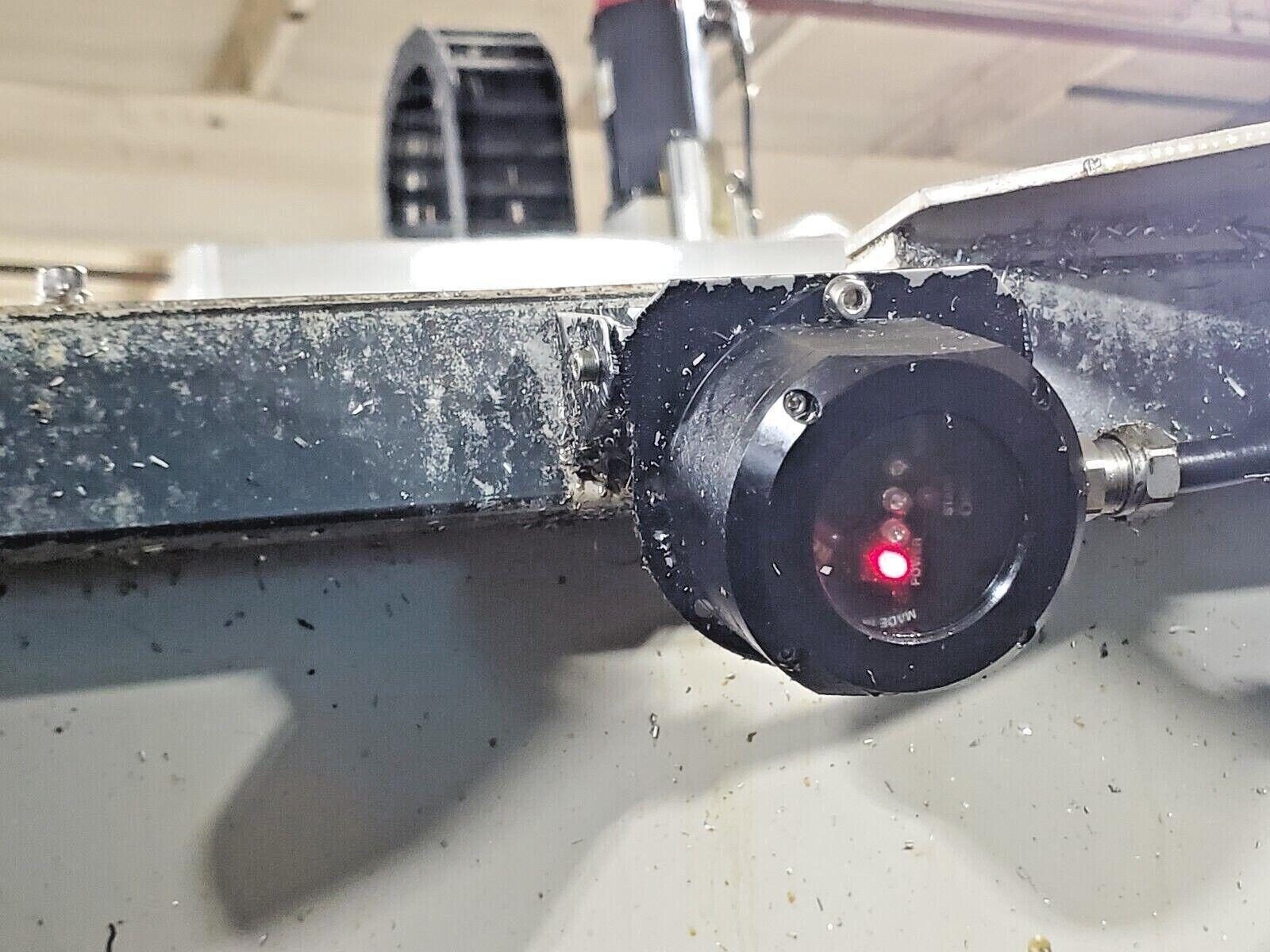

| Renishaw Probe |
| Full Enclosure |
| Auto Lube System |
| Coolant System |
| Chip Conveyor |
| Manual Pulse Generator |
| Books & Manuals |
| Travels: |
| X Axis: 44.10″ |
| Y Axis: 16.14″ |
| Z Axis: 20.08″ |
| Spindle Nose to Table (Min-Max.): 109.22 mm – 619.76 mm |
| Spindle Center to Column: 561.34 mm |
| Table: |
| Length: 57.4″ |
| Width: 16.2″ |
| Spindle: |
| Taper Size: 40 |
| Speed : 0-8000 RPM |
| Spindle Power: 11.2 kW |
| Feed rates: |
| Rapid Traverse rate X & Y : 787 Inch Per Minute |
| Rapid Traverse Rate Z : 590 Inch Per Minute |
| Automatic Tool changer: |
| Capacity: 24 Tools |
| Max Tool Length: 350.01 mm |
| Max Tool Weight: 8 kg. |
| Max Tool Dia: 109.22 mm |
| General: |
| Air Required: 70 psi 5 scfm |

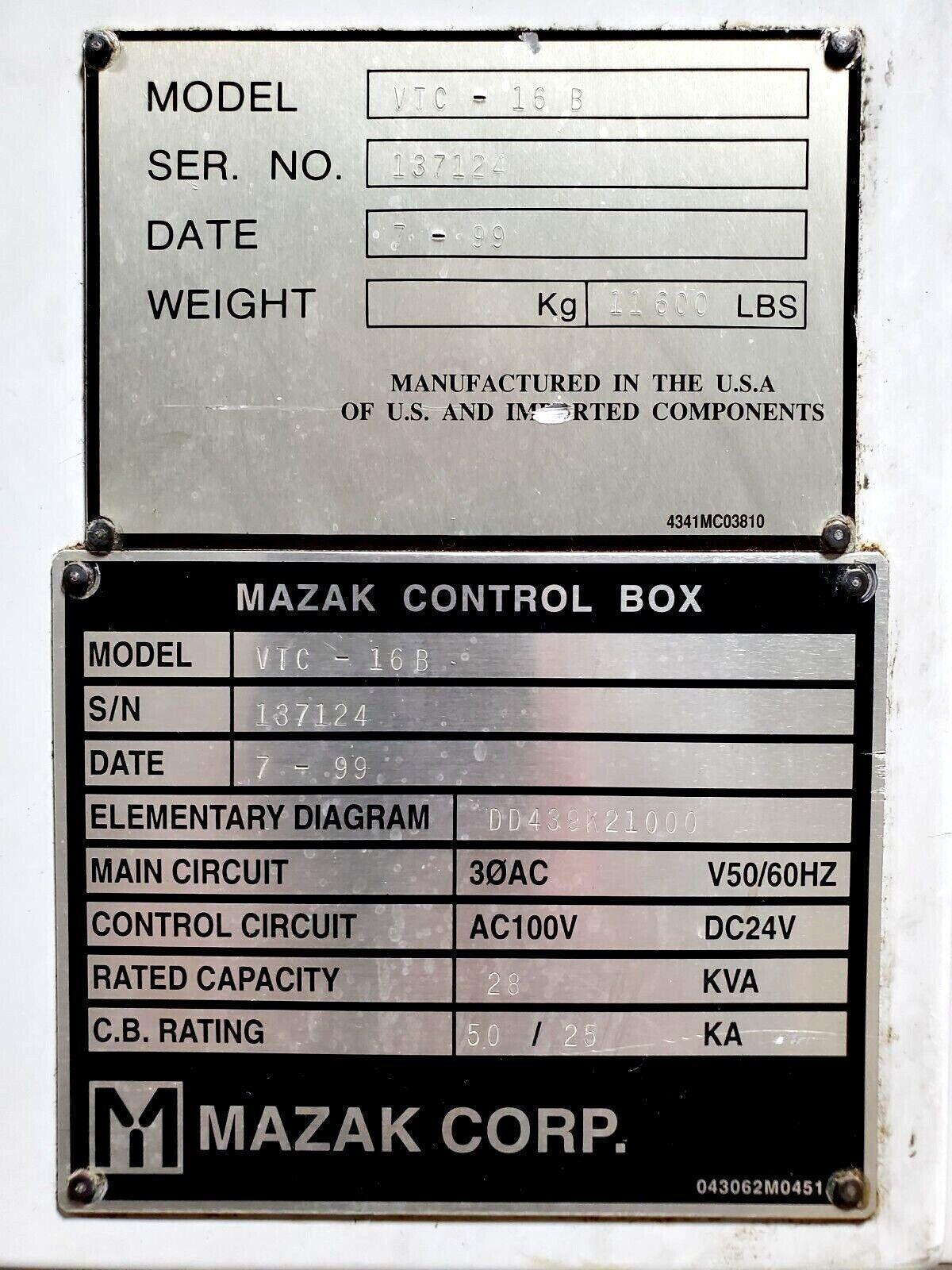

| Power: 66 FLA / 220v / 3-Phase/ 28 KVA |
| Overall Dimensions: 2997.2 mm X 2590.8 mm X 106″ High |
| Weight: 5261.7 kg |
