Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Features: |

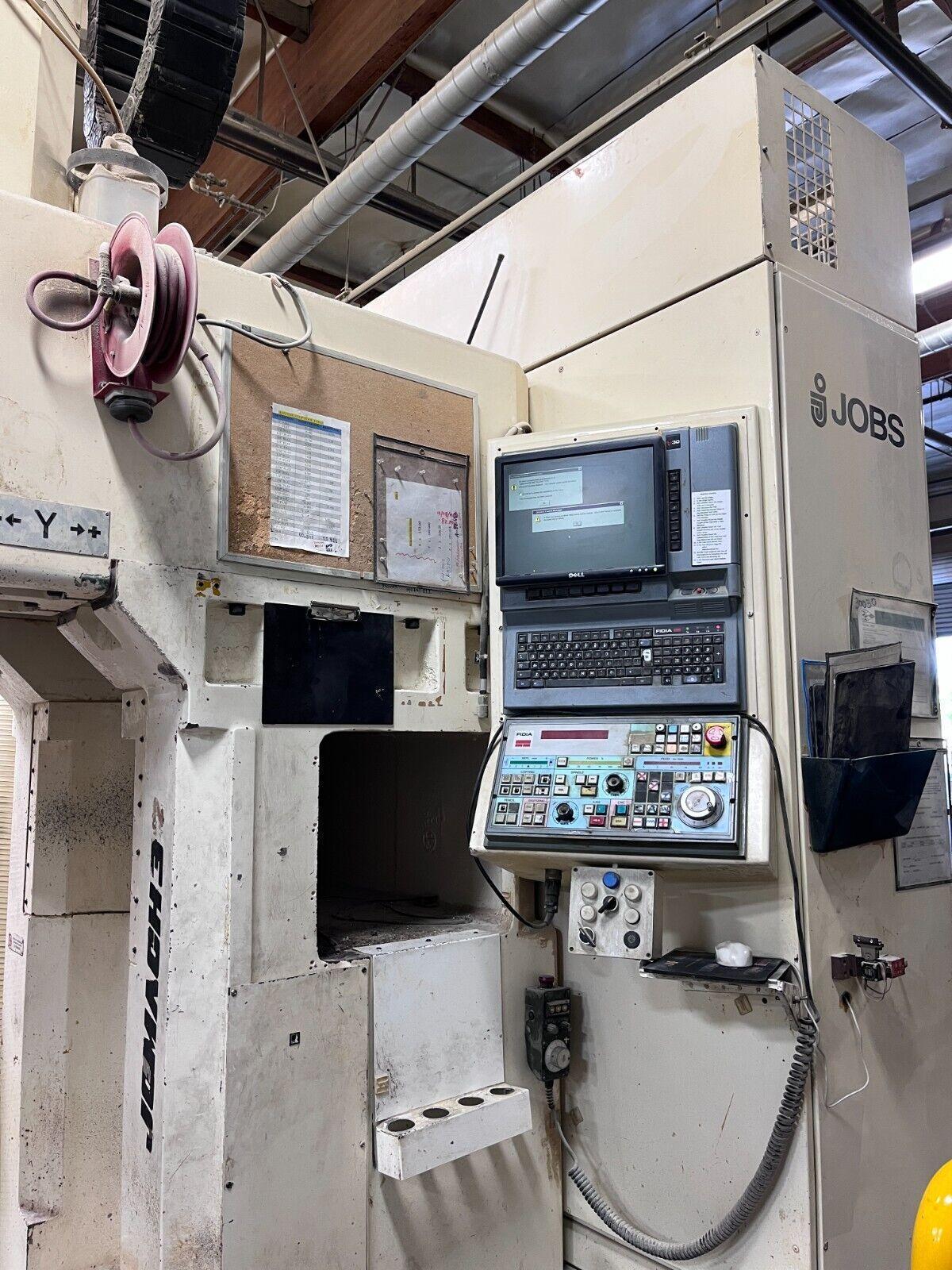

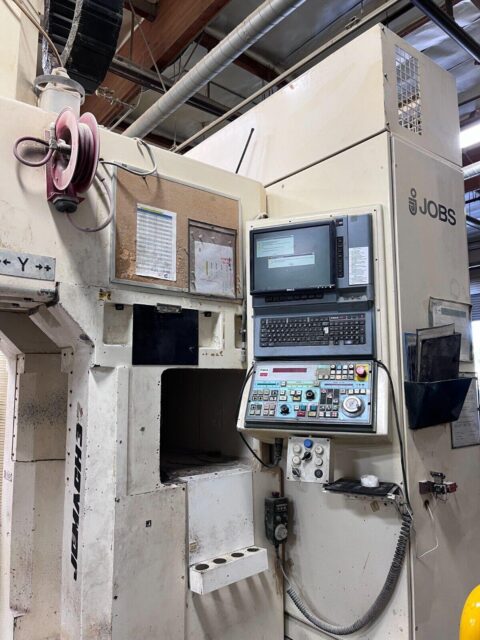

| FIDIA C-20 Series CNC Control |
| Simultaneous 5 Axis Cutting |

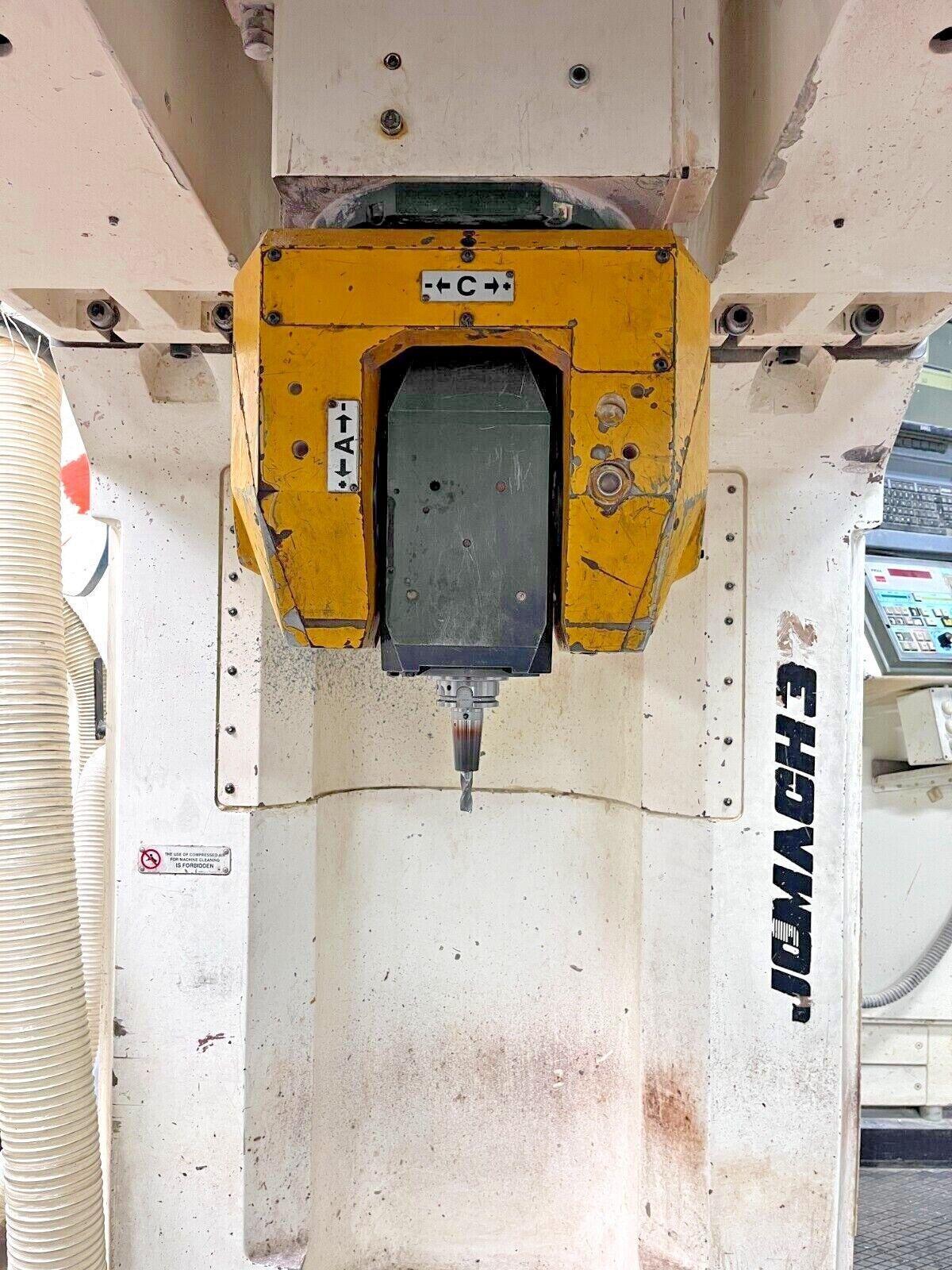

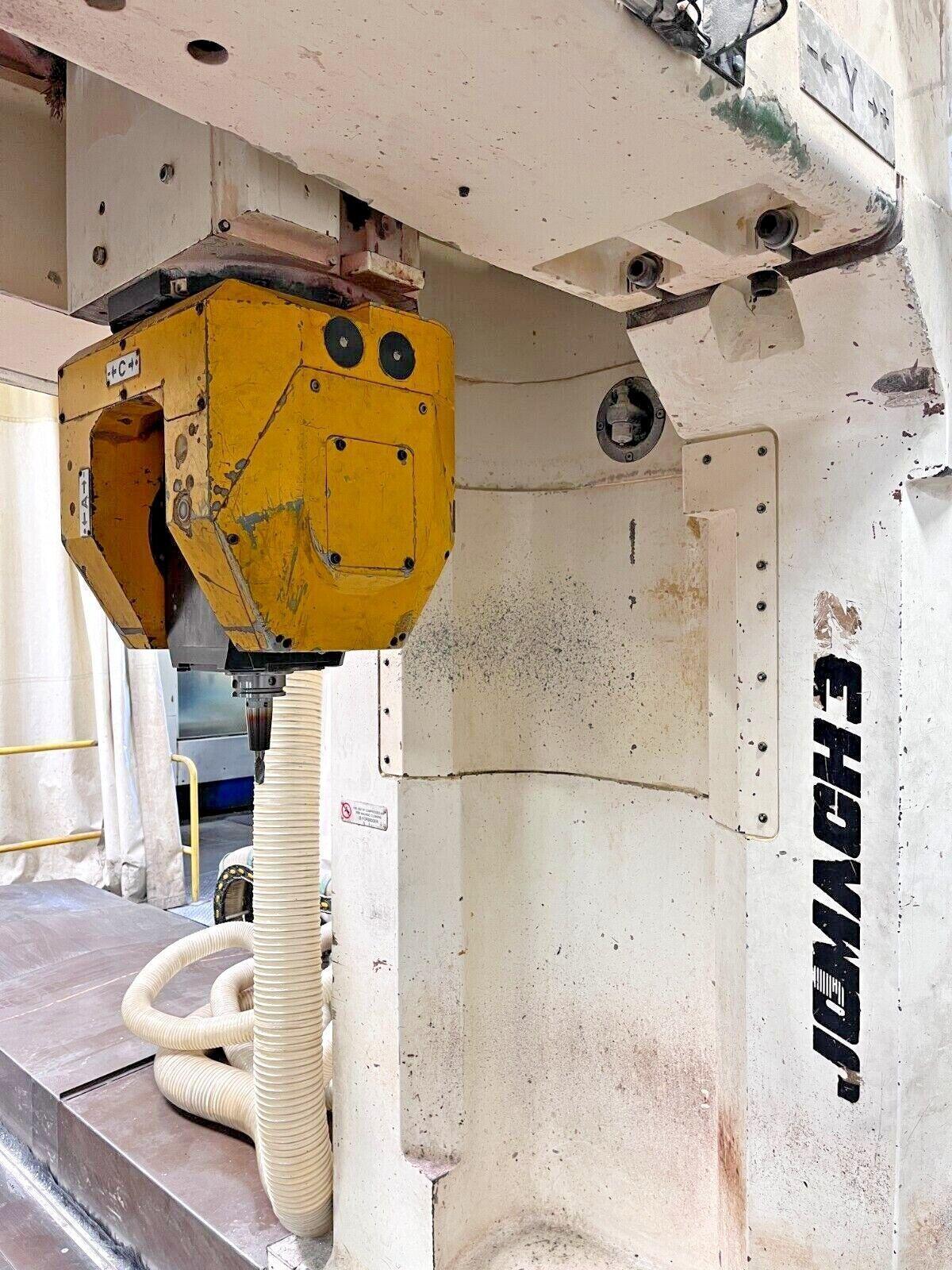

| Swivel Milling Head (A & C Axis) |
| Three-Dimensional Milling |
| Three-Dimensional Measuring System |
| 24000 RPM High Speed Spindle |
| Fast Rapid Traverse Rate |
| Hand Wheel MPG Control |
| Spindle Orientation |
| Helical Interpolation |
| Rigid Tapping |
| Telescopic Way Covers |
| Books & Manuals |
| Travels: |
| X Axis: 256″ |
| Y Axis: 70″ |
| Z Axis: 55″ |
| A Axis: +100˚/ -100˚ (Swivelable) |
| C Axis: +200° / – 200° (Rotate) |
| Min. Increment: 0.001° |

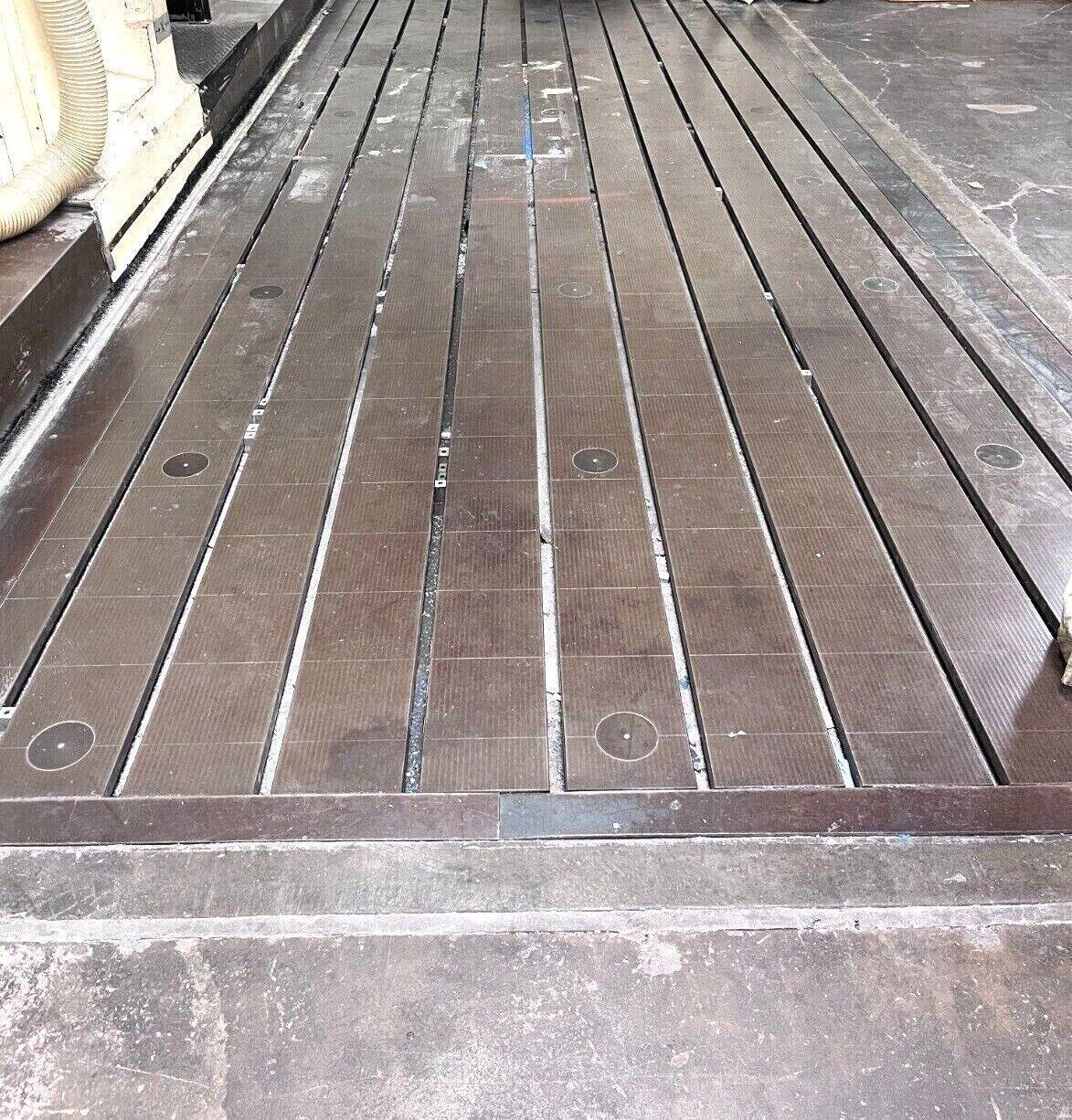

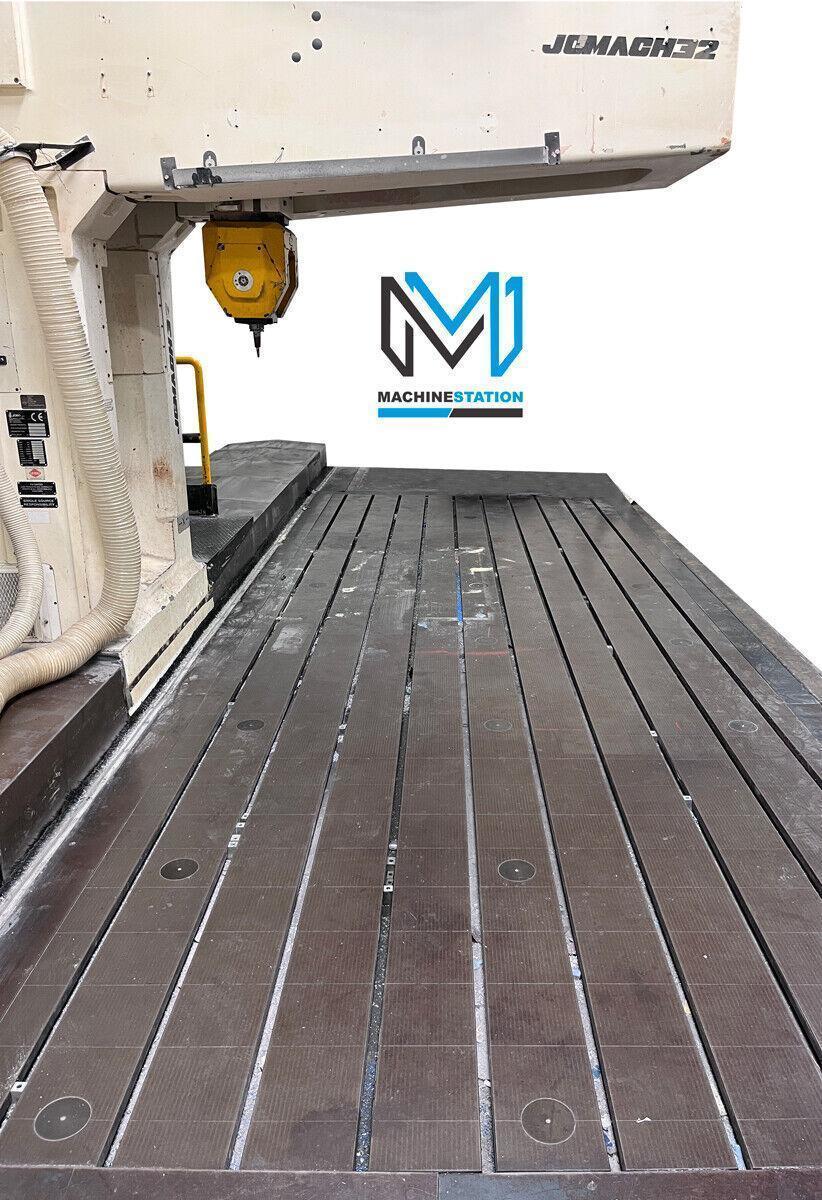

| Table: |
| Length: 157.5″ |
| Width: 59.05″ |
| Number of Std T-Slots: 14 |
| T-Slot Width: 5″/8″ |
| Table to Spindle Nose: 3.9″ – 57.82″ |
| Spindle: |
| Taper Size: HSK 63A |
| Speed Range: 24000 RPM |
| Spindle Power: 11.2 kW |
| Feed rates: |
| Rapid X Y Z Axis: 3000 cm/min |
| Rapid A: 3.240˚ / min |
| Rapid C: 3.240˚ / min |
| Cutting Feed rate: 1001 cm/min |
| General: |
| Air Required: 80 psi 4 scfm |
| Power: 70 kva /480v / 3-Phase |
| Weight: 21999.7 kg |
