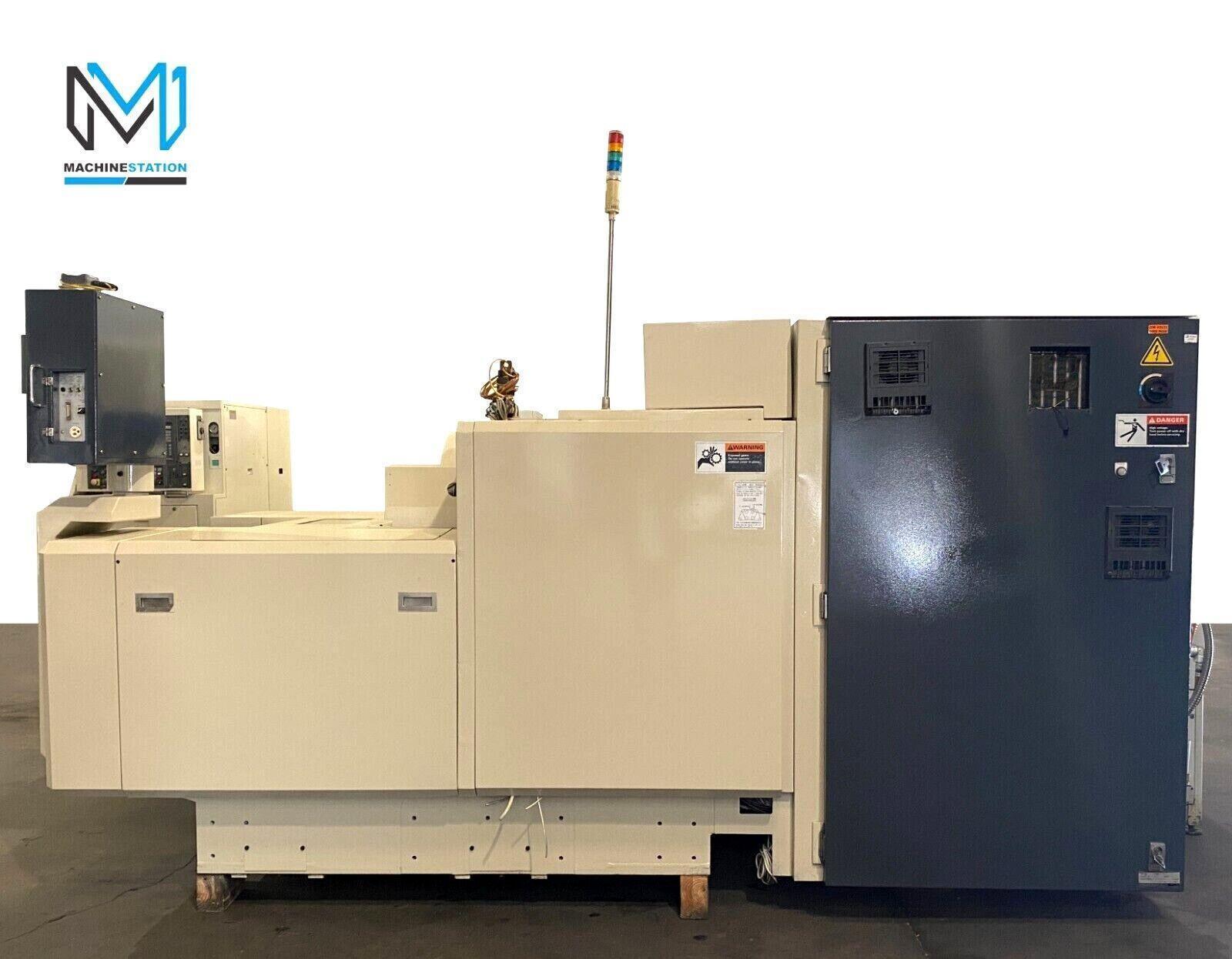

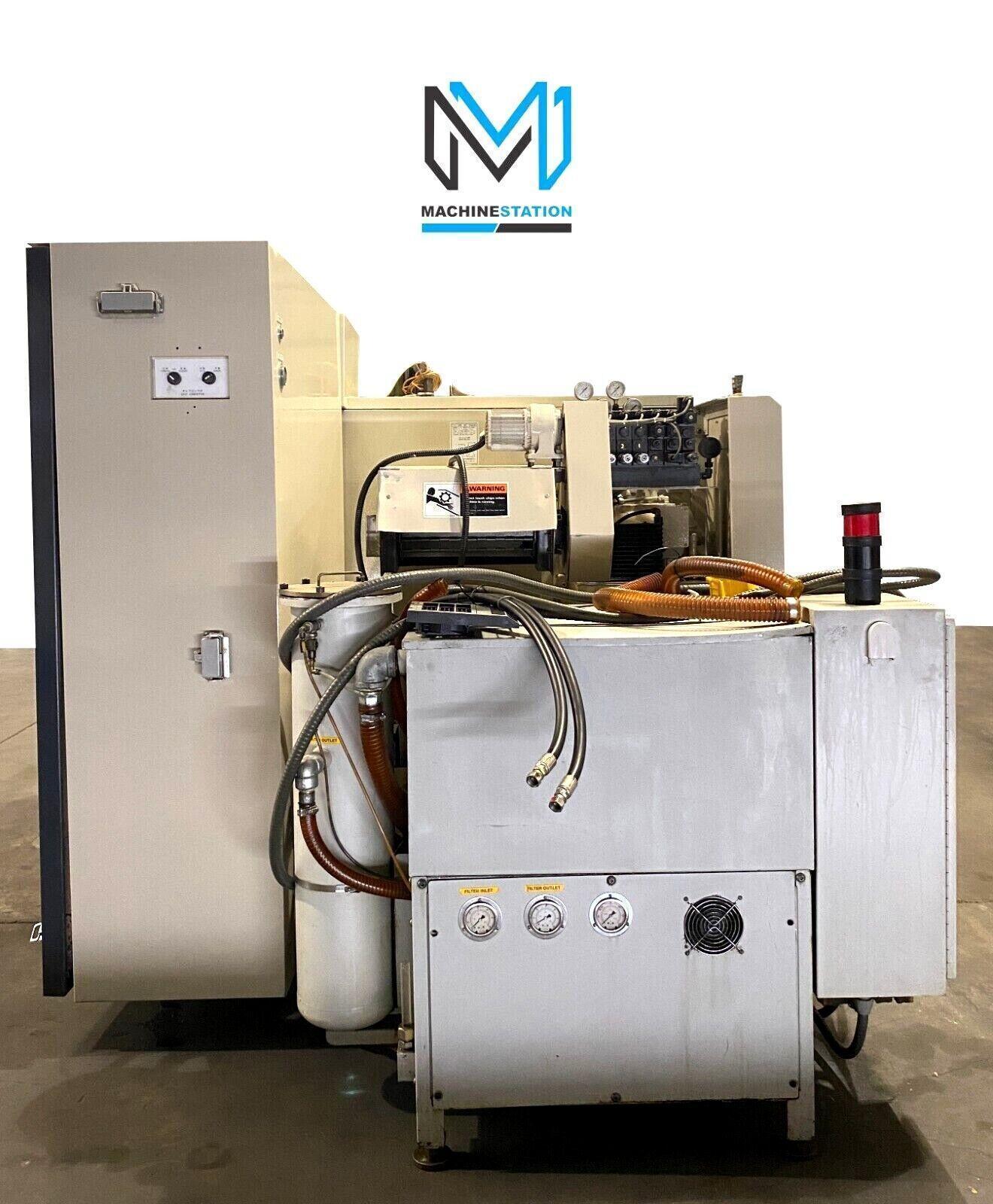

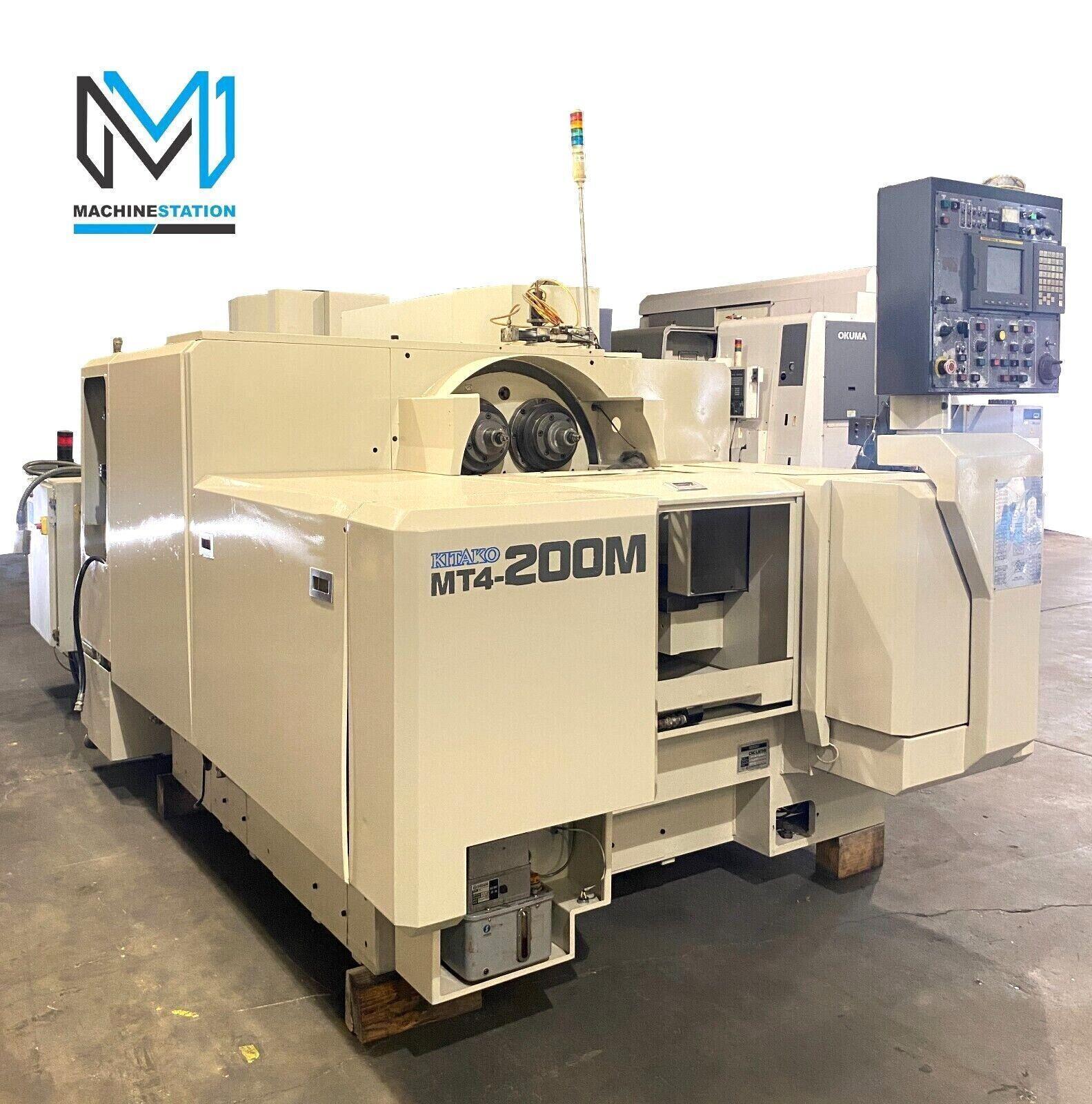

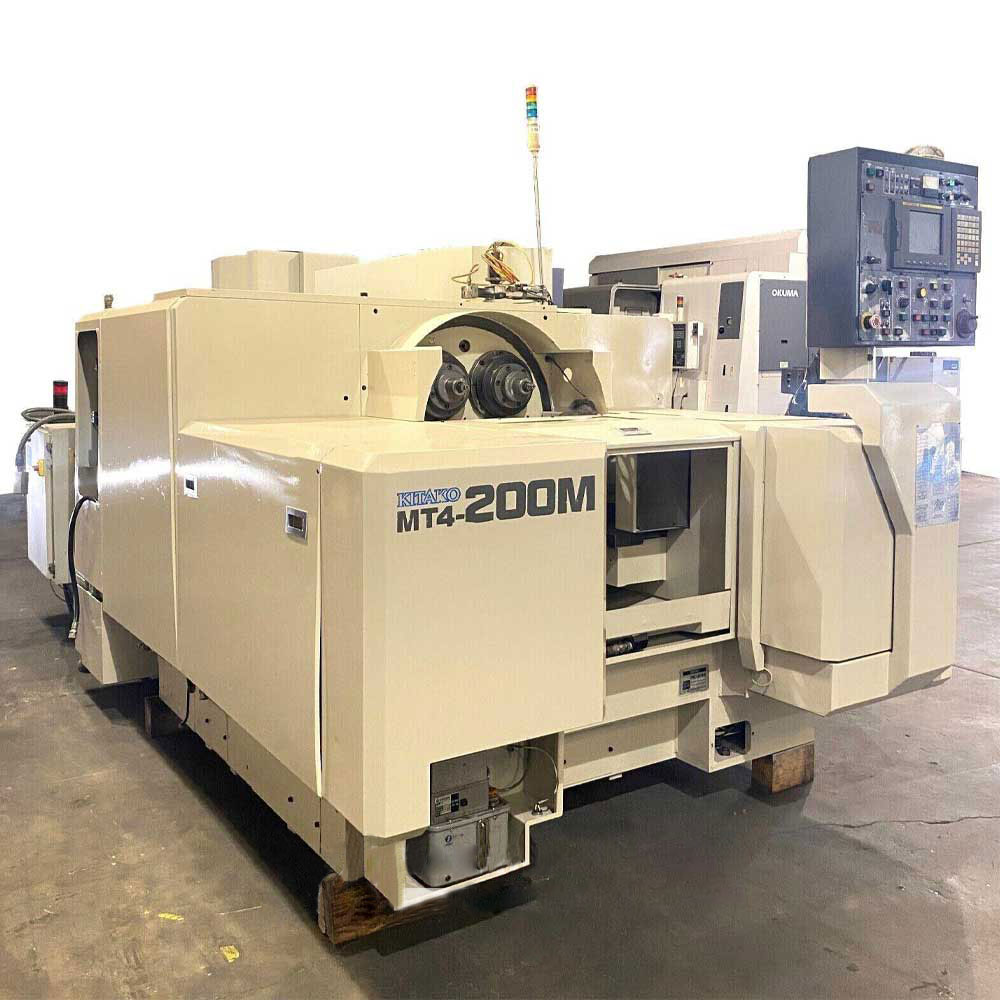

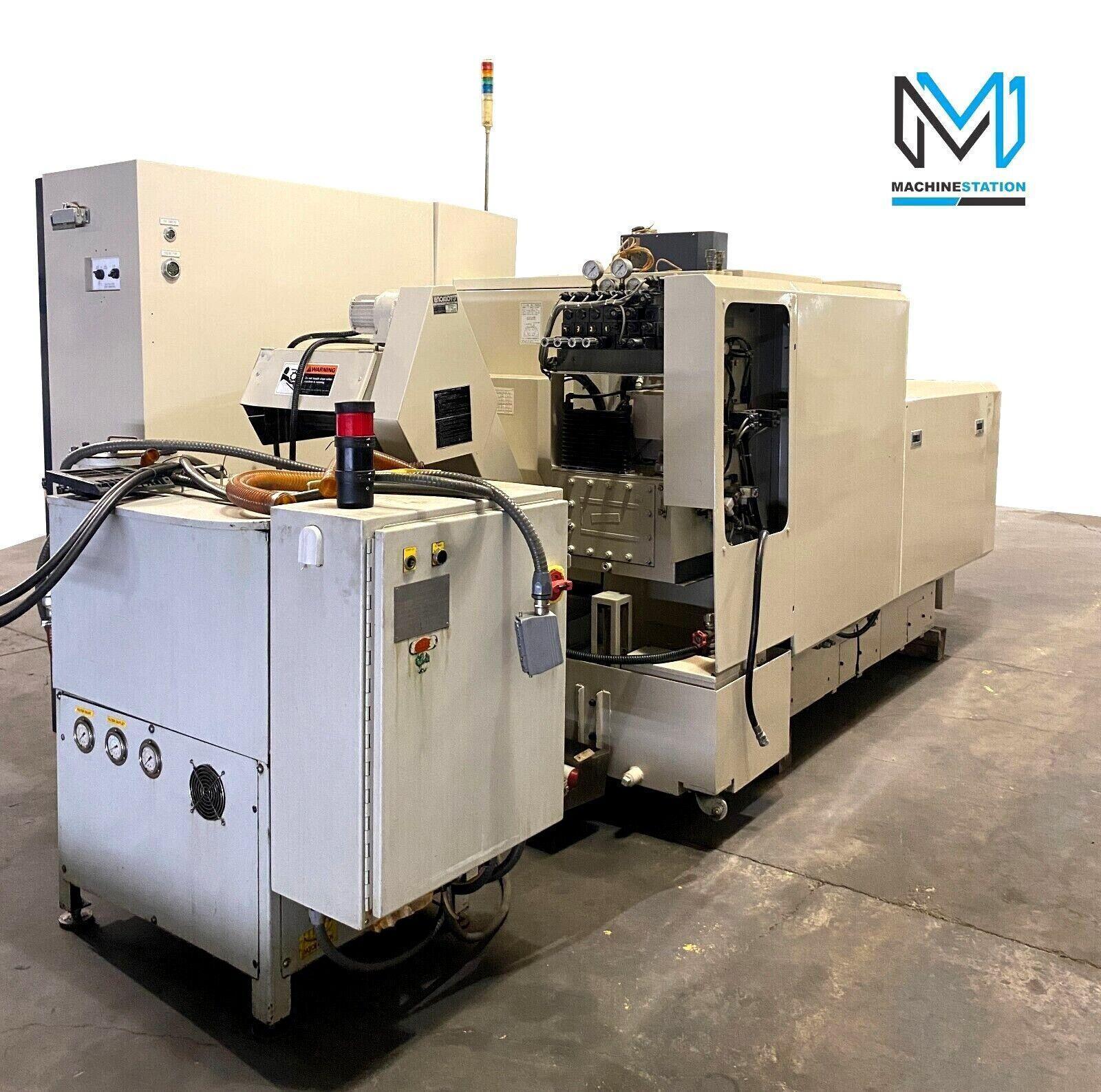

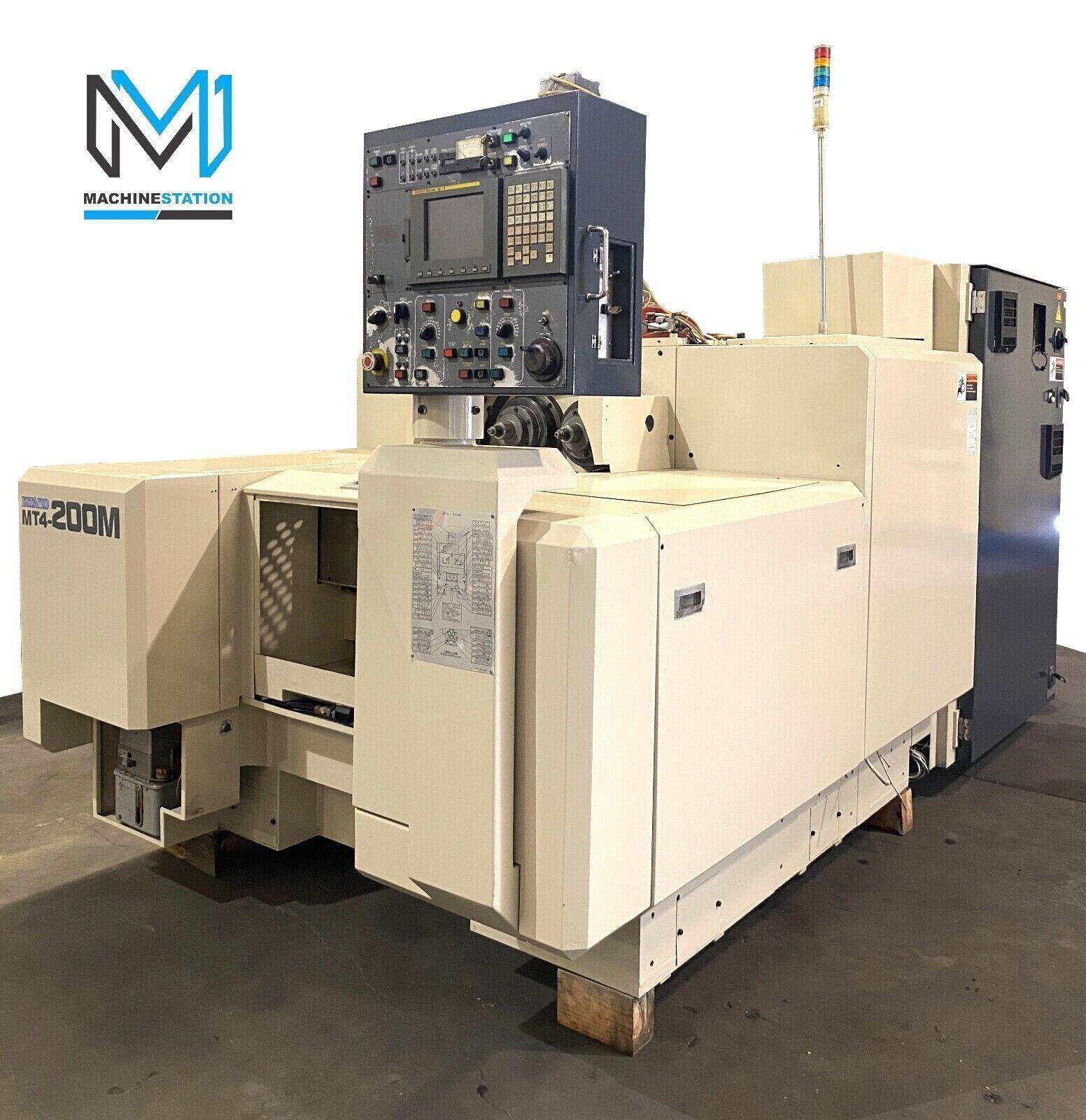

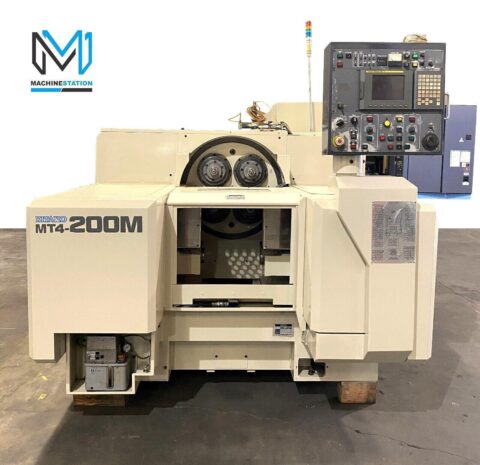

Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |
| Fanuc 18i-T Series 6 Axis CNC Control |
| (4 no.) Spindles Design (2 no.) In Machining Area (2 no.) in Loading Area |
| (4 no.) Collet Chucks (Capable 203.2 mm Chucks) |
| Servo Controlled Full C-Axis on Spindles |
| Twin Turrets with Live Tools |
| 8 Station Left Turret with Live Tools |
| 8 Station Right Turret with Live Tools |
| Auto Parts Catcher? |
| High Pressure Coolant System |
| Foot Switches |
| Chip Conveyor |
| Coolant Tank |
| Transformer |
| Automatic Lubrication |
| Capacity: |
| Max Turning Diameter Left Turret : 200.66 mm |
| Max Turning Diameter Right Turret : 200.66 mm |
| Max Swing : 210.82 mm |
| Max Turning Length: 160.02 mm |
| Max Bar Capacity Main Spindle : 39.62 mm |
| Travels: |
| X1 Axis Travel (Left Turret): 169.93 mm |
| X2 Axis Travel (Right Turret) : 169.93 mm |
| Z1 Axis Travel (Left Turret) : 249.94 mm |
| Z2 Axis Travel (Right Turret) : 249.94 mm |
| C Axis: 360° (0.001°) |
| Rapid Traverse X1, X2 Axis: 2400 cm/min |
| Rapid Traverse Z1, Z2 Axis: 1999 cm/min |
| Spindle: |
| No. of Spindles: 4 |
| Spindle Nose: A2-6 |
| Spindle Bore: 1.97″ |
| Spindle Speed: 50-4000 RPM |
| Spindle Motor: 14.9 kW |
| Turret: |
| Left Turret Capacity: 8 Stations |
| Right Turret Capacity: 8 Stations |
| General: |
| Power Source: AC 220v / 3-Phase / 60 Hz |
| Machine Dimensions: 2692.4 mm x 1981.2 mm x 2159 mm Height |
| Machine Weight: 7937.9 kg Approx. |
