Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

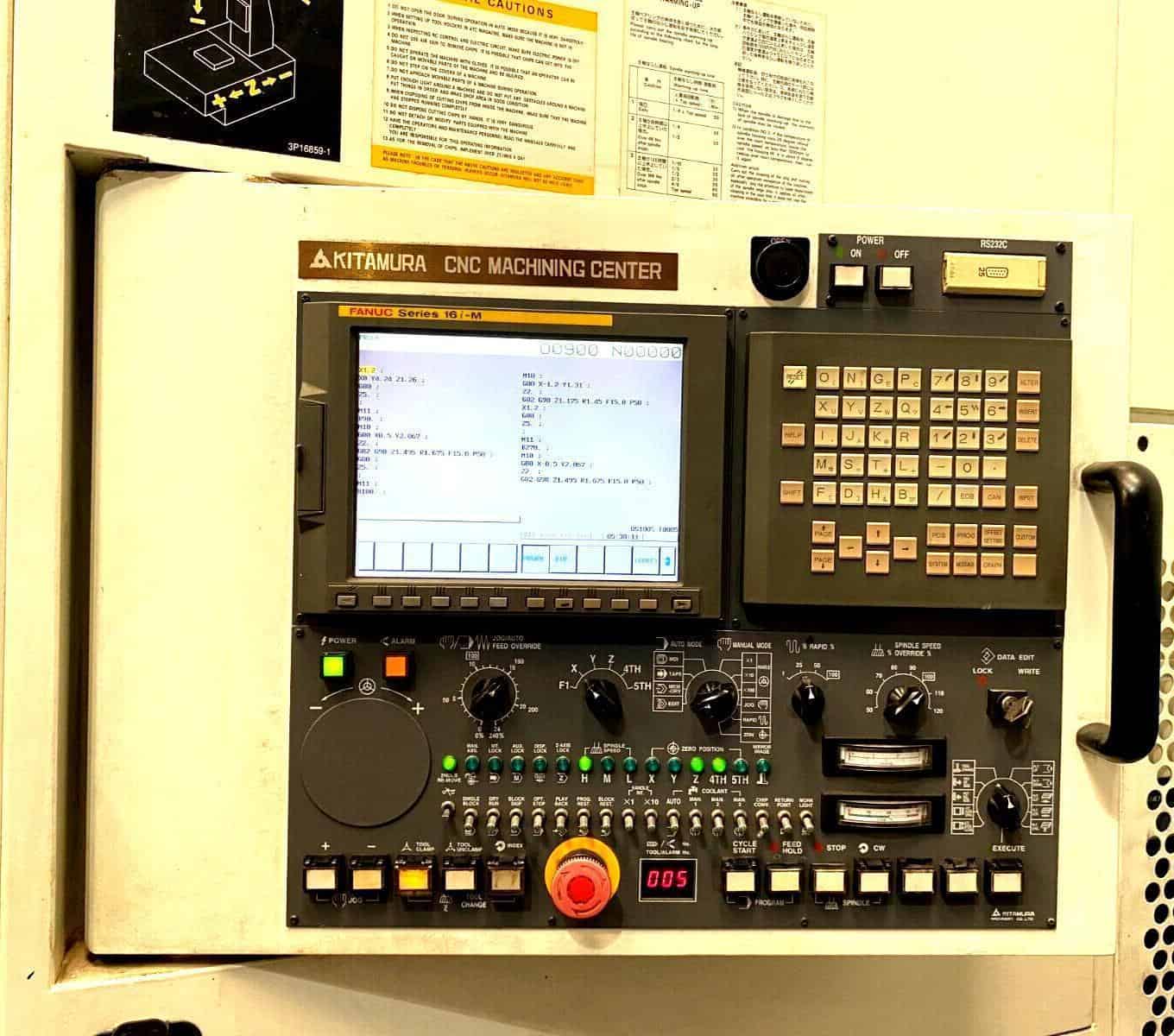

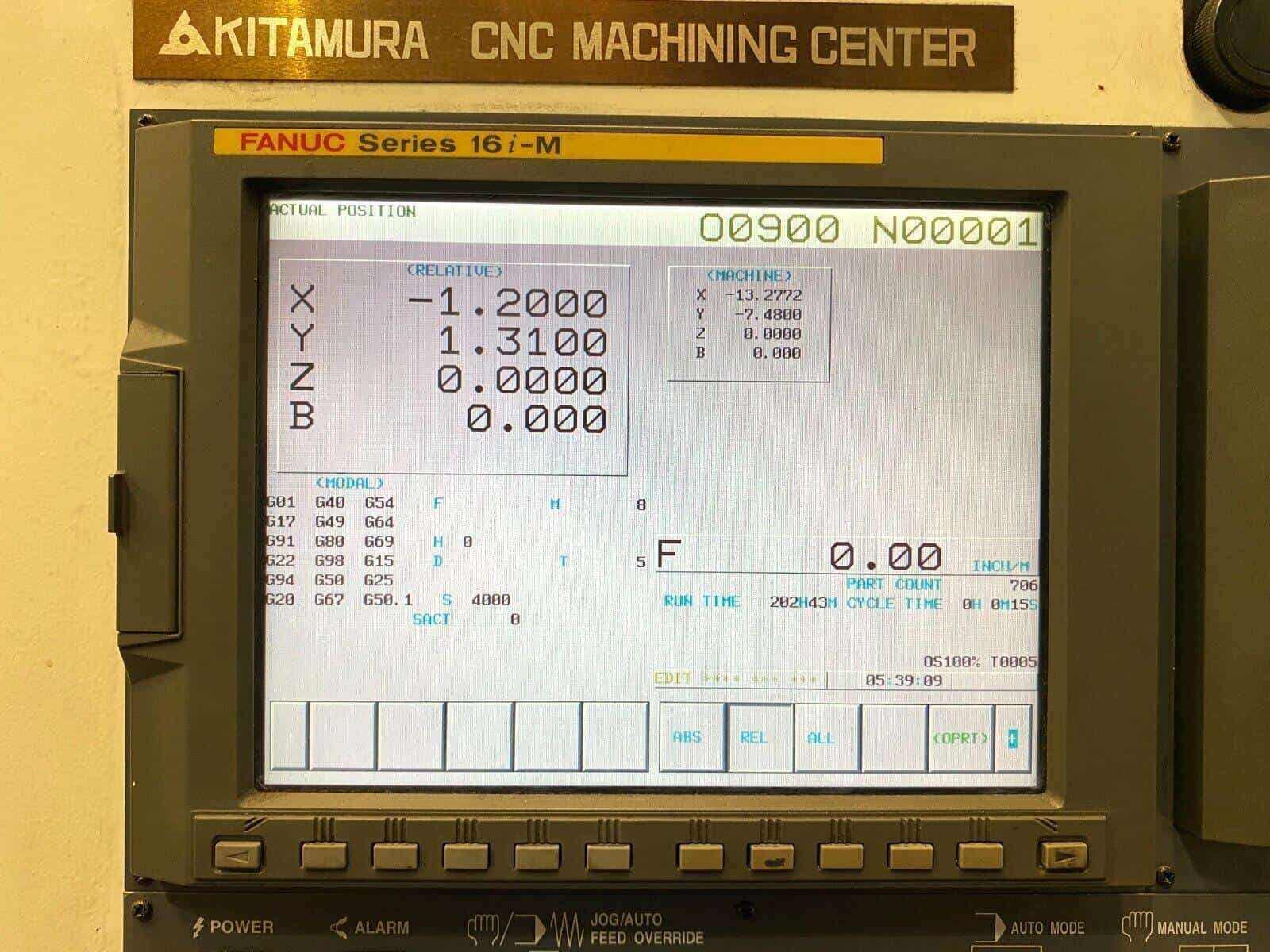

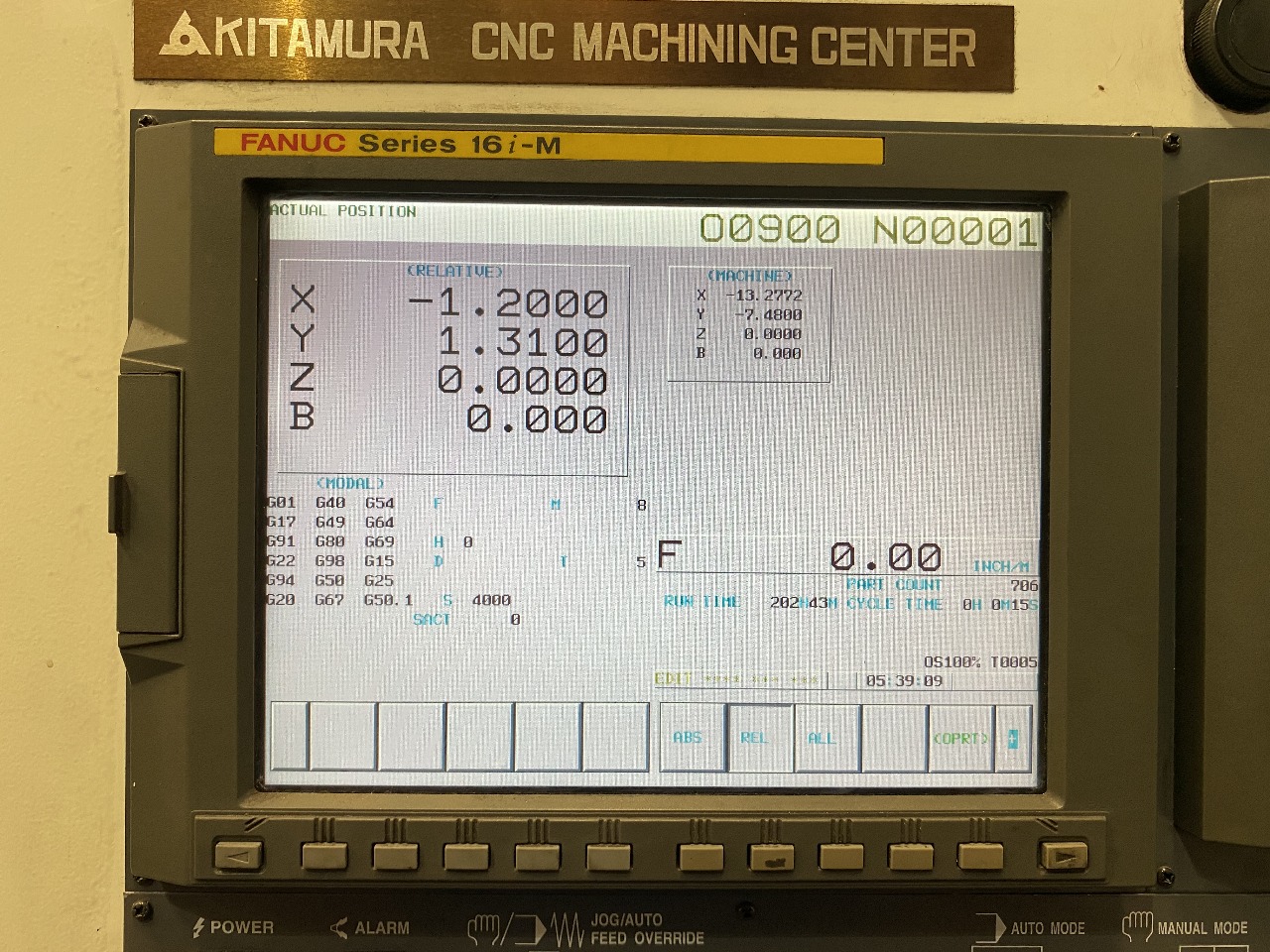

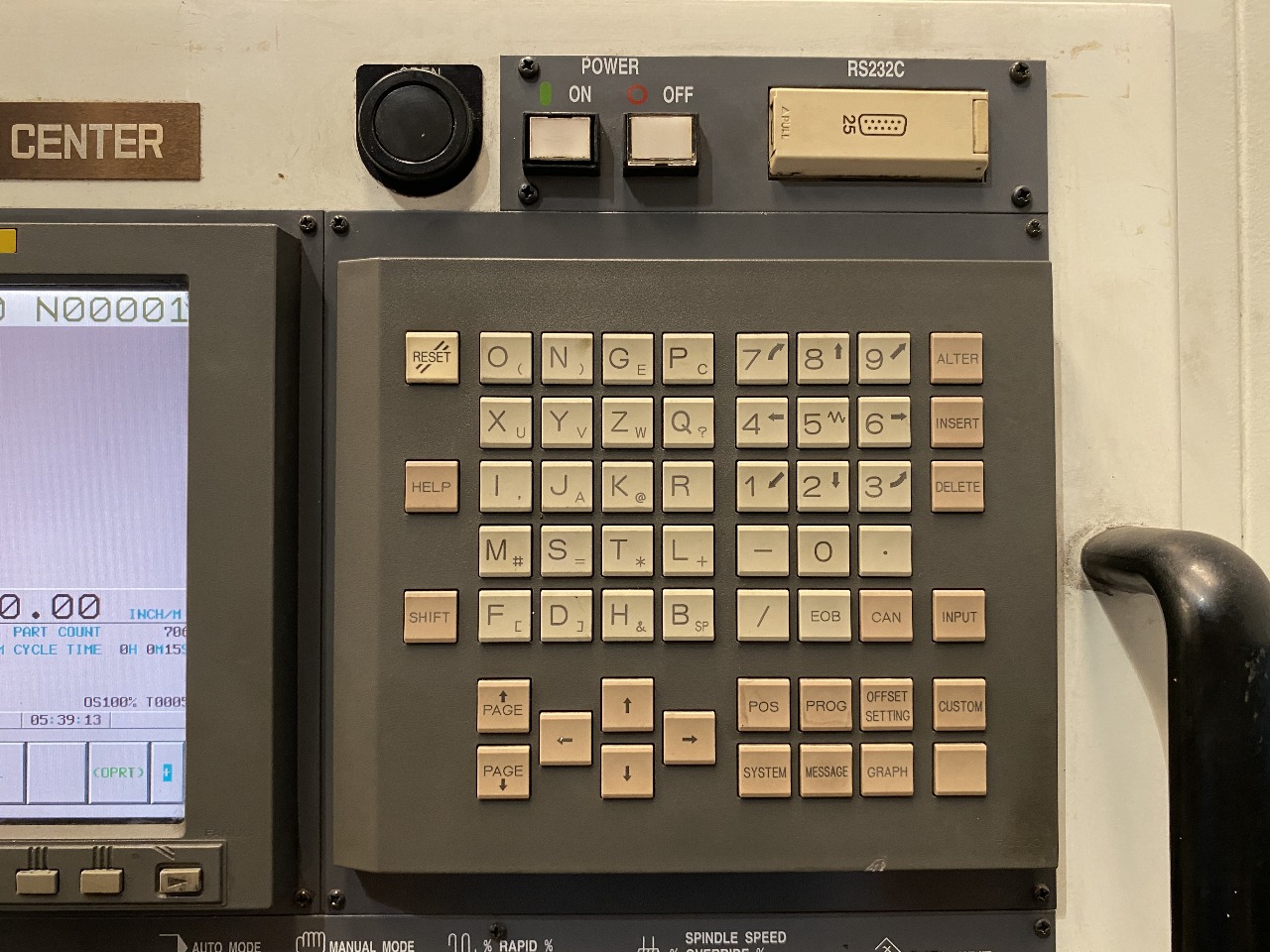

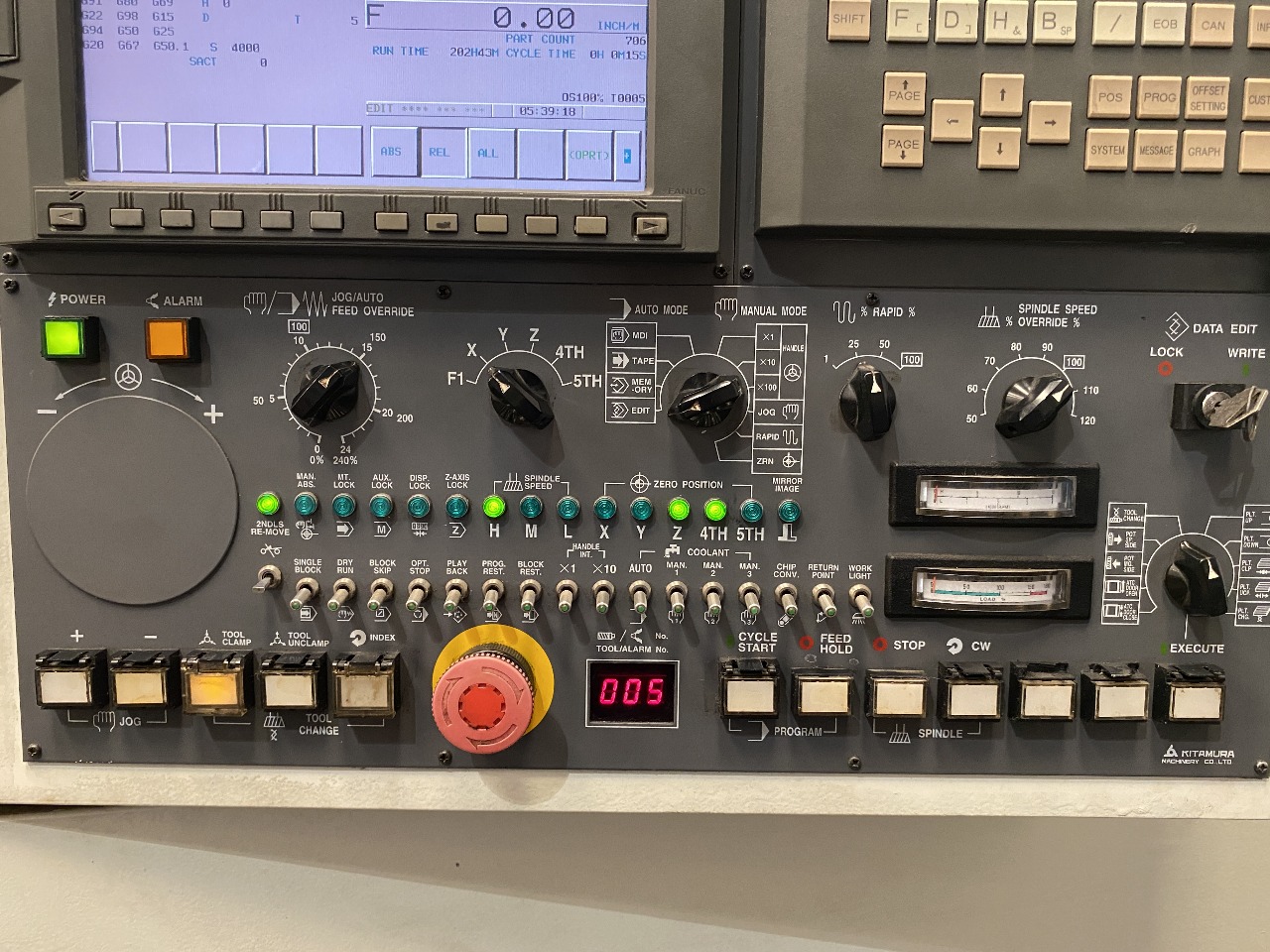

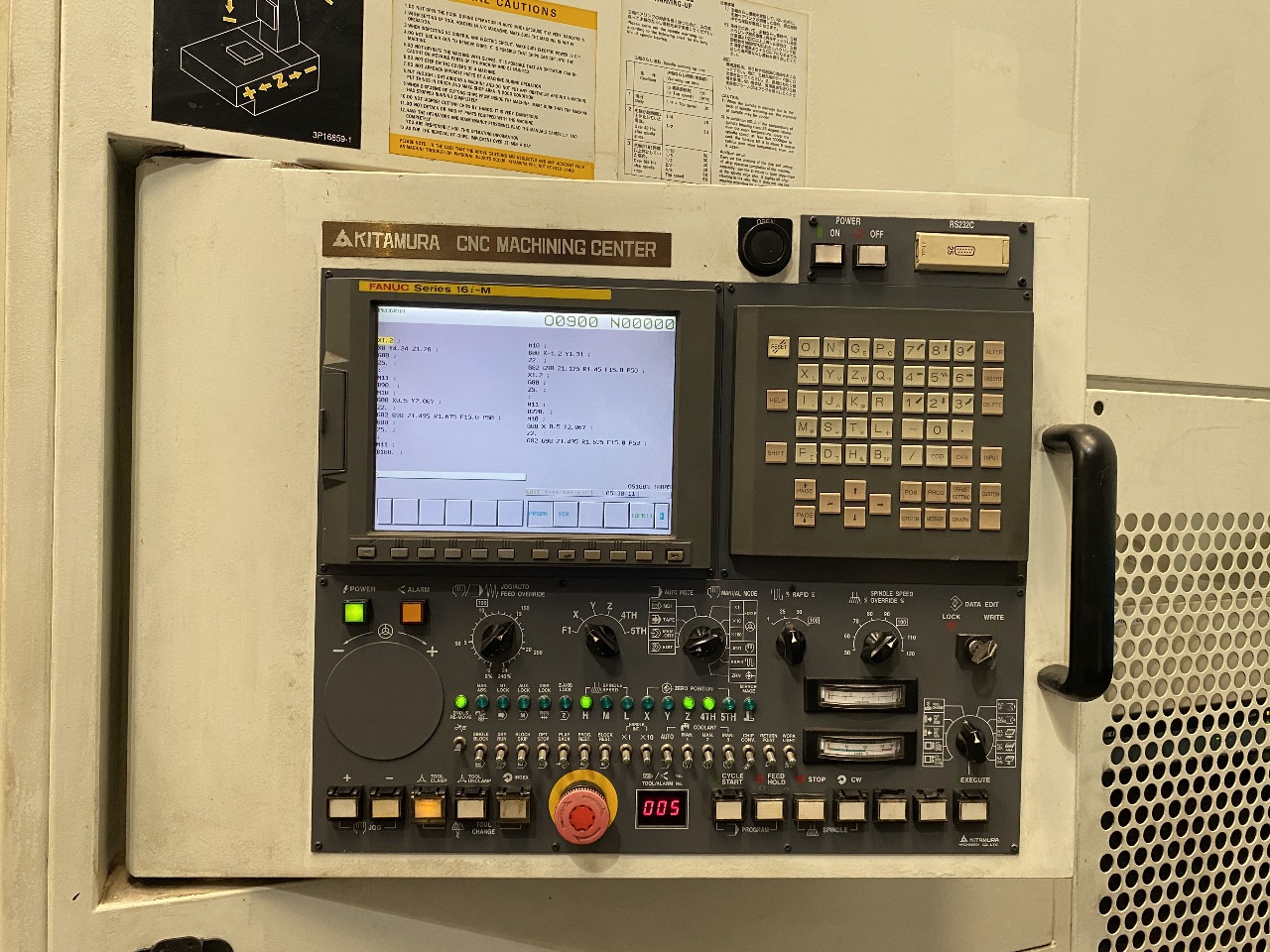

| FANUC 16iM CNC Control |

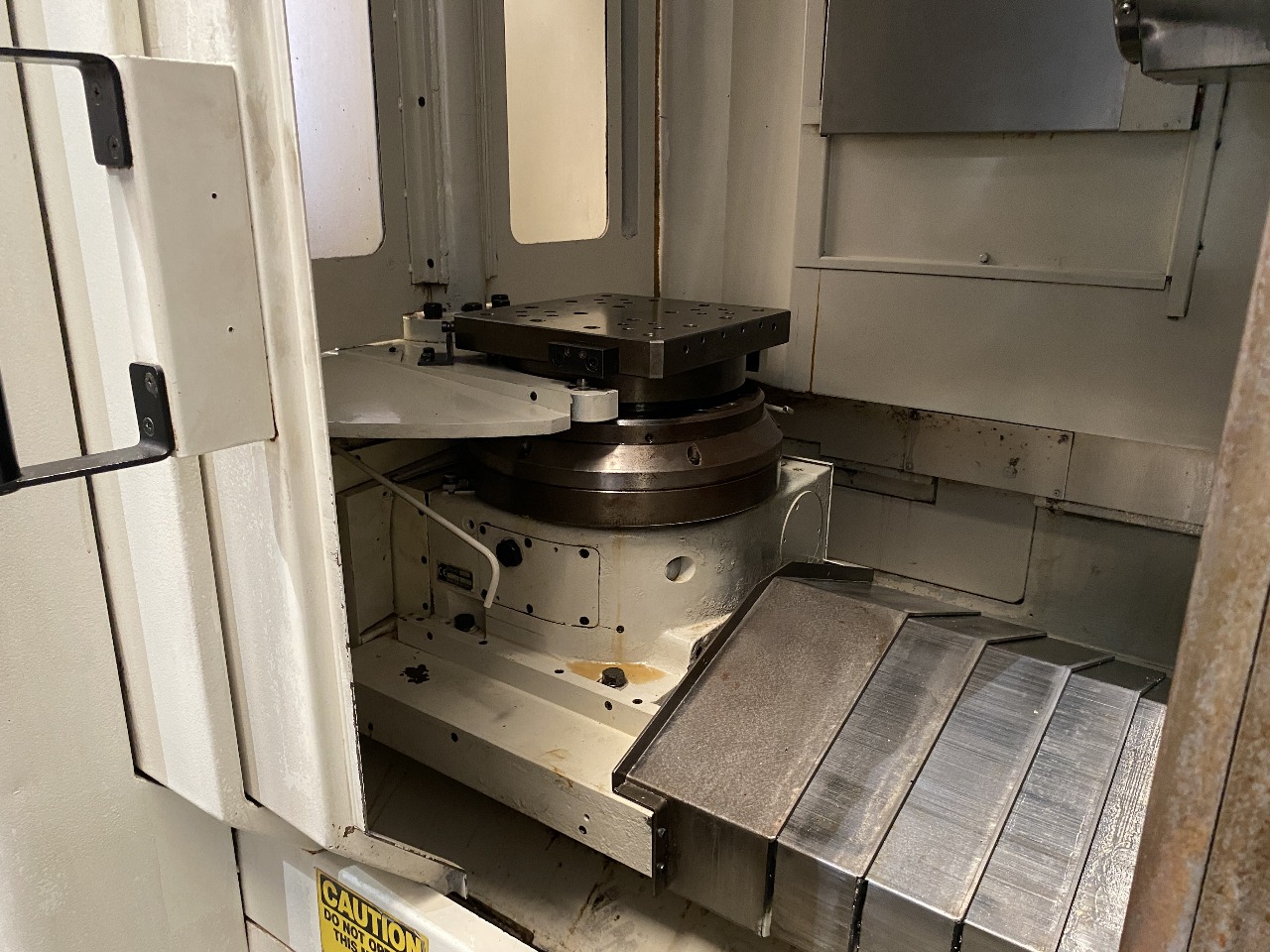

| Full 4th Axis |
| 10000 RPM High Torque Spindle |
| Through Spindle Coolant |

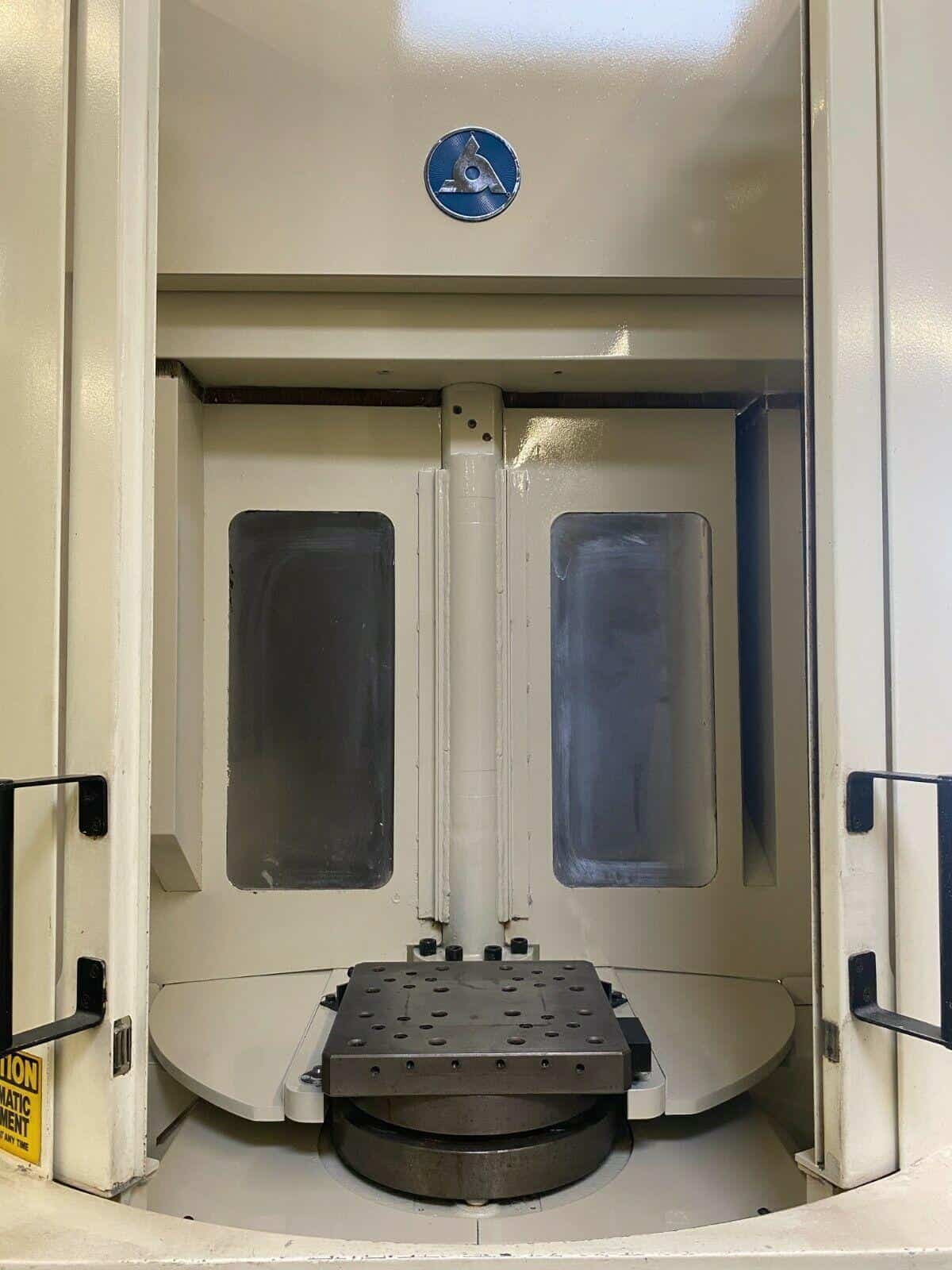

| Twin Pallet Changer |

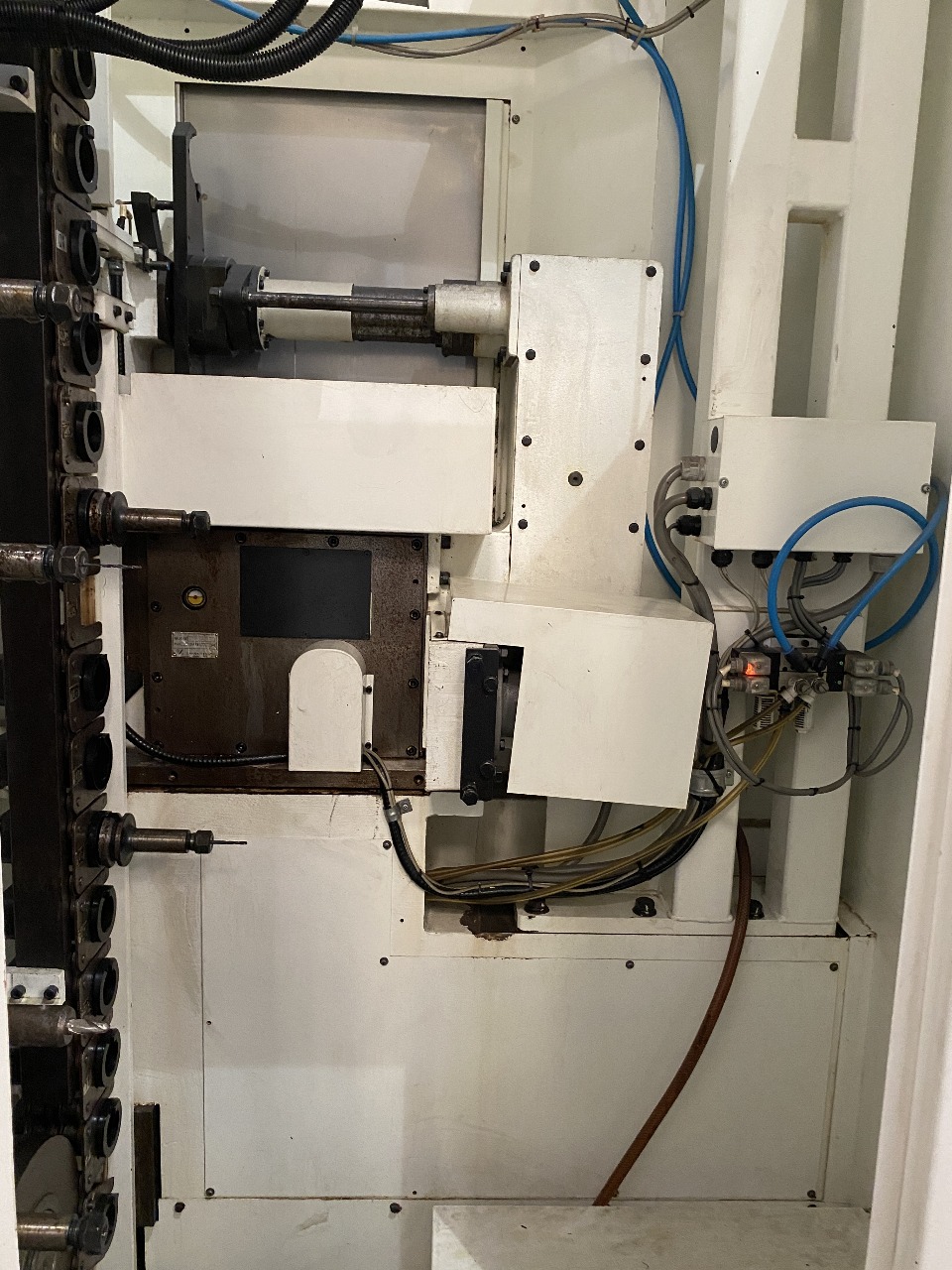

| 40 Station Tool Changer |
| PCMCIA Card Slot |
| Upgraded Memory |
| Pallet Seat Detection |
| Spindle Orientation |
| Rigid Tapping |
| Helical Interpolation |
| Fast Rapid Traverse Rate |

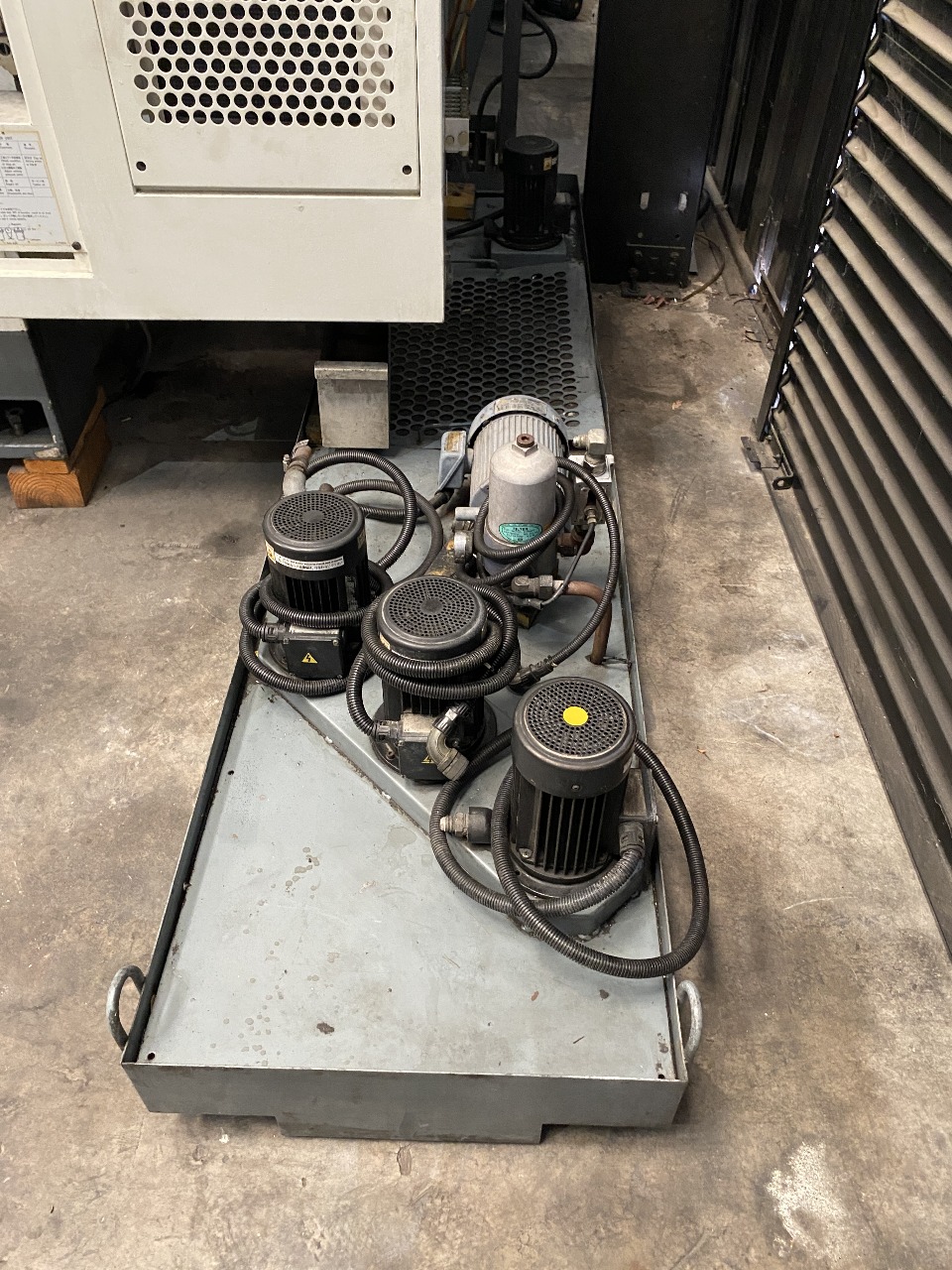

| Flood coolant with large coolant tank |

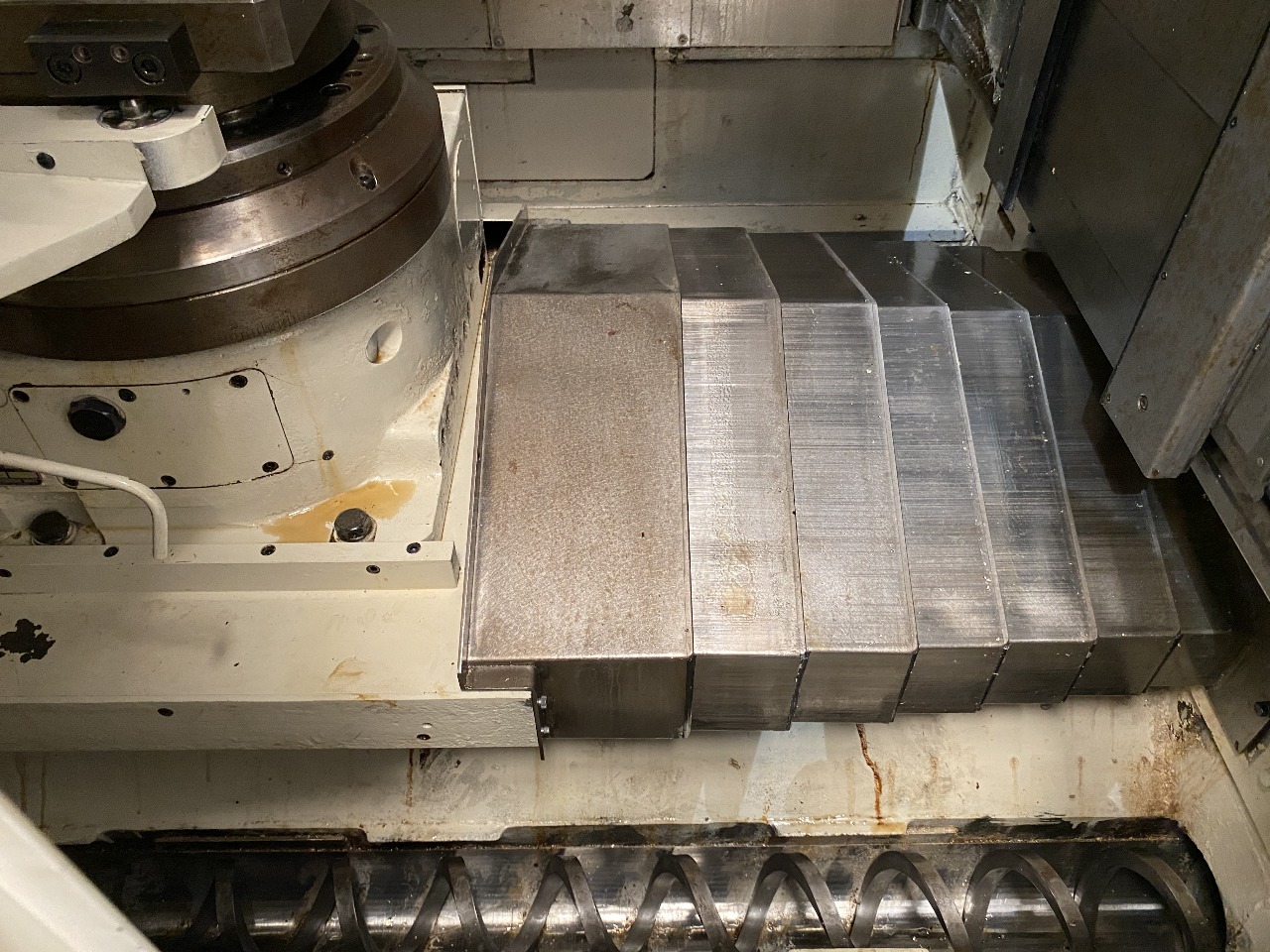

| Chip Conveyor |
| Travels: |
| X Axis: 20.1″ |
| Y Axis: 20.1″ |
| Z Axis: 16.1″ |
| B Axis: 0.001° ( Full 4th ) |
| Spindle Nose to Table Center: 99.06 mm – 510.54 mm |
| Spindle Center to Table Top: 40.64 mm – 551.18 mm |

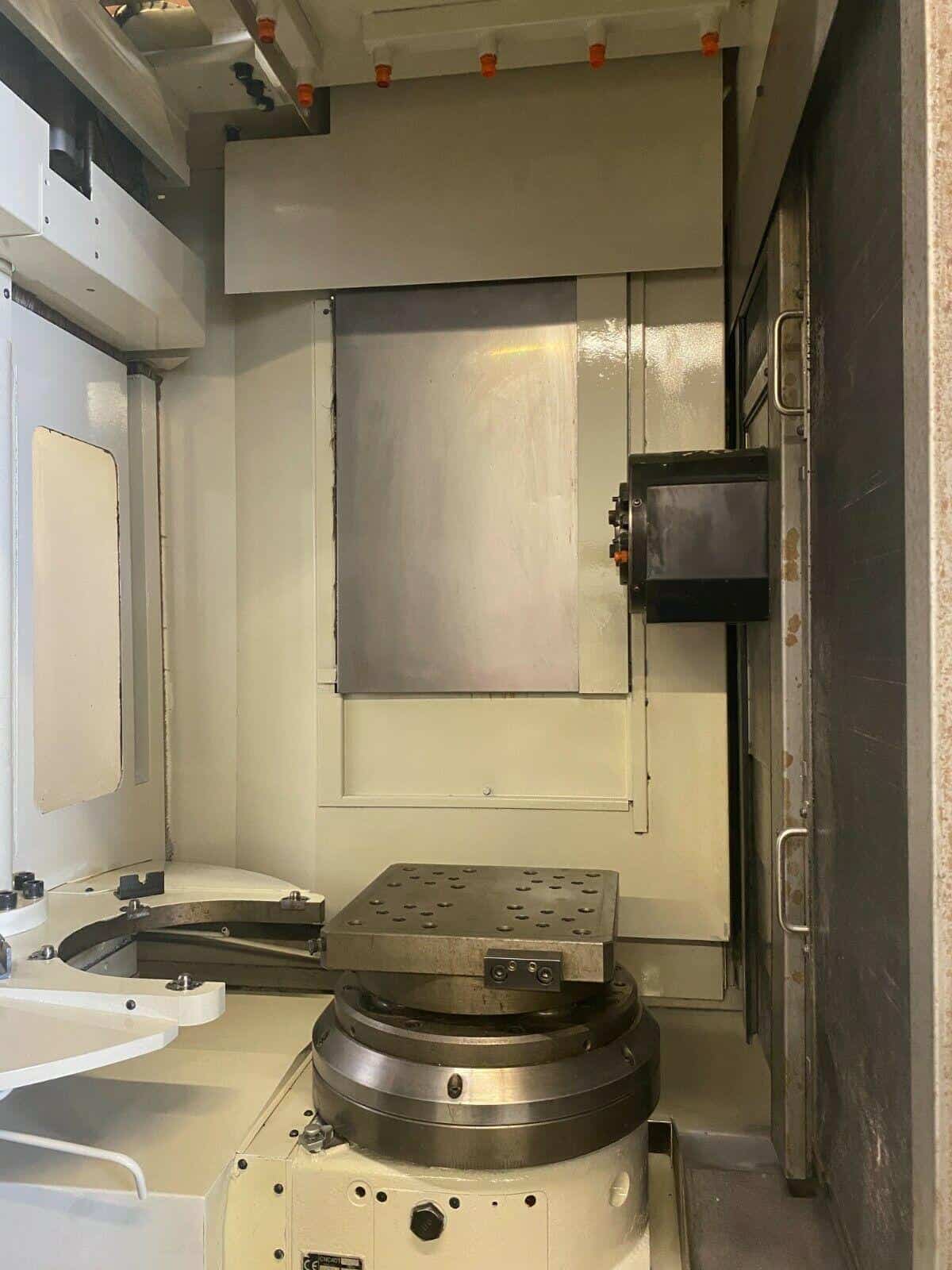

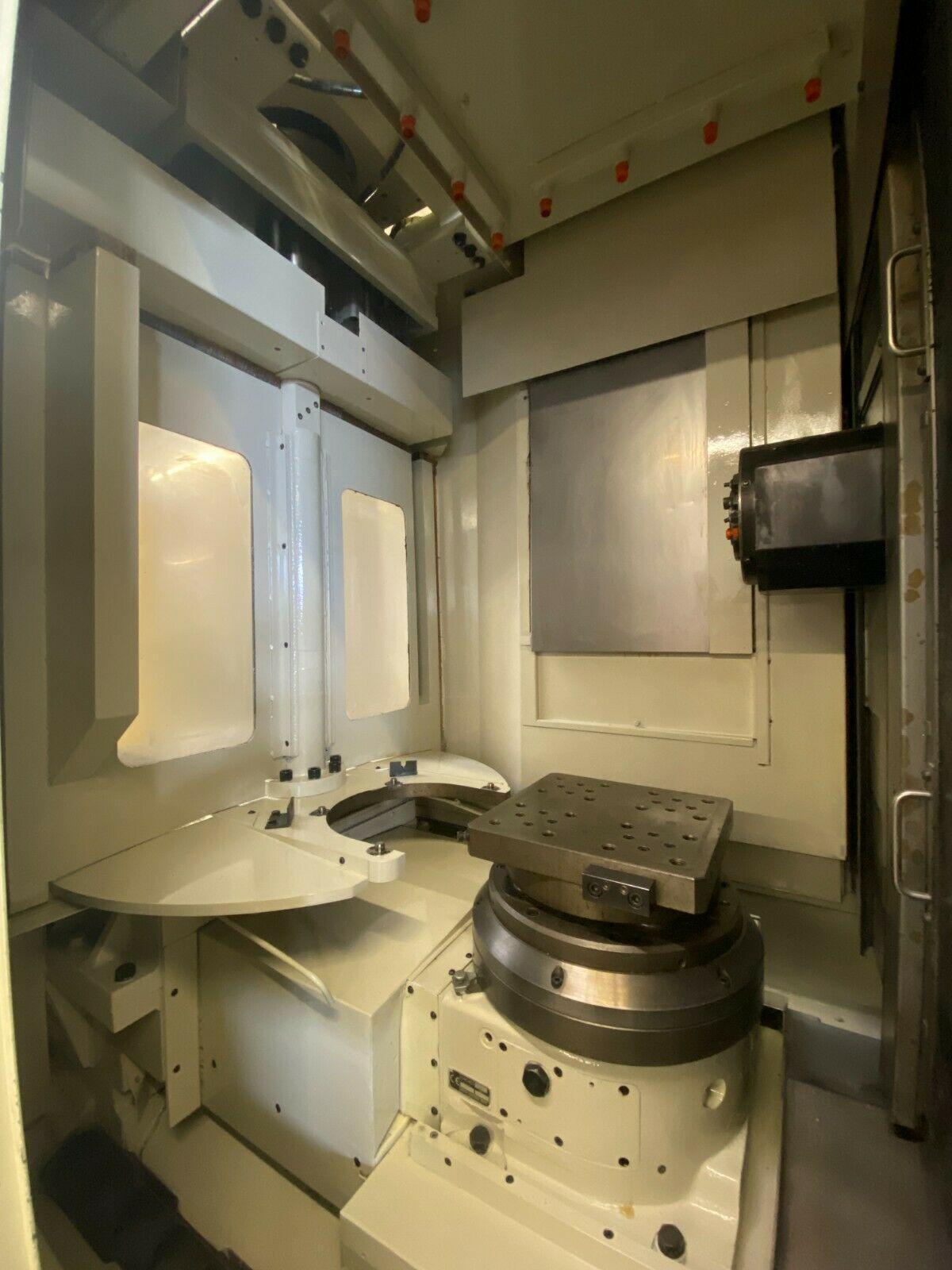

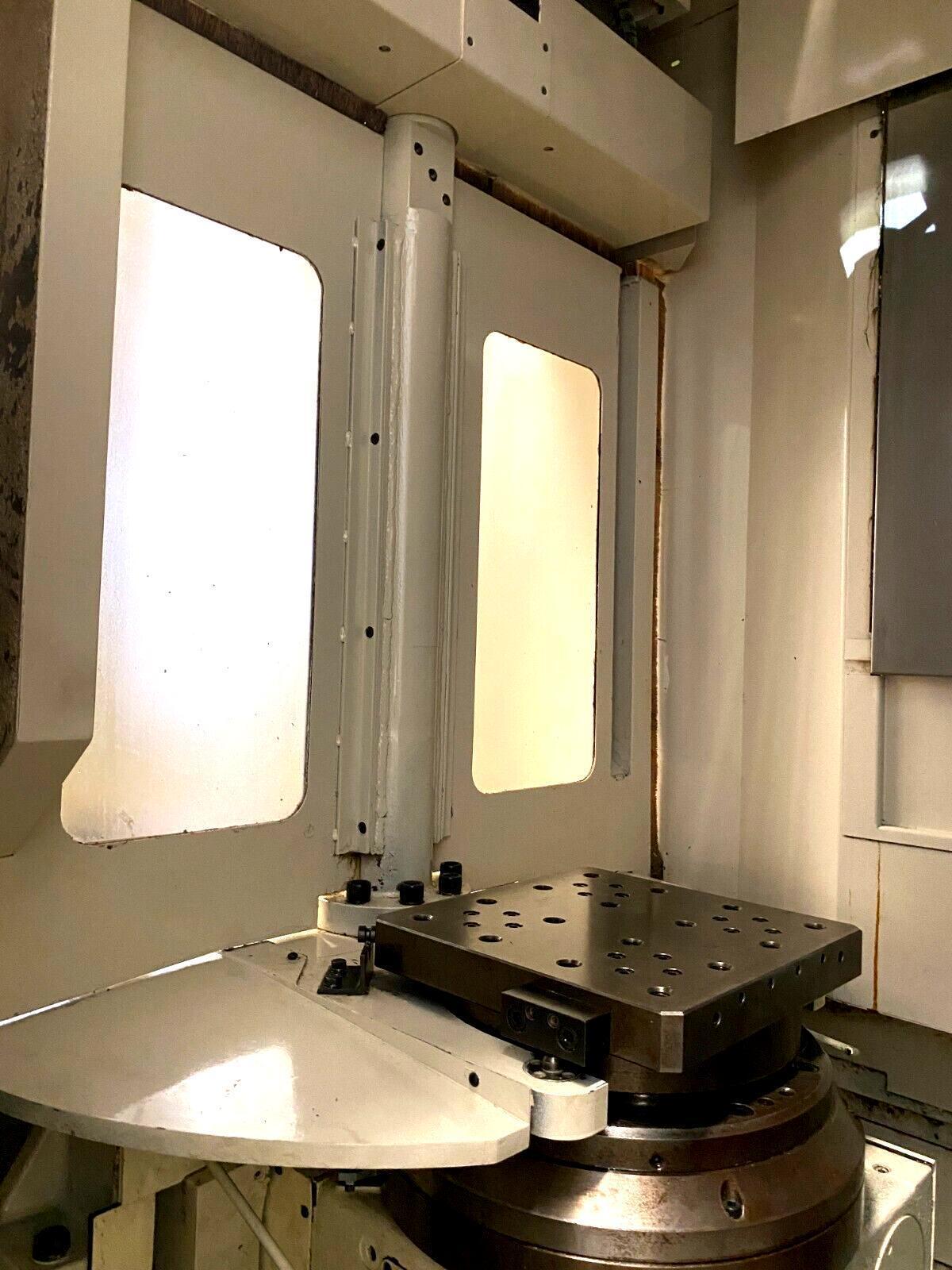

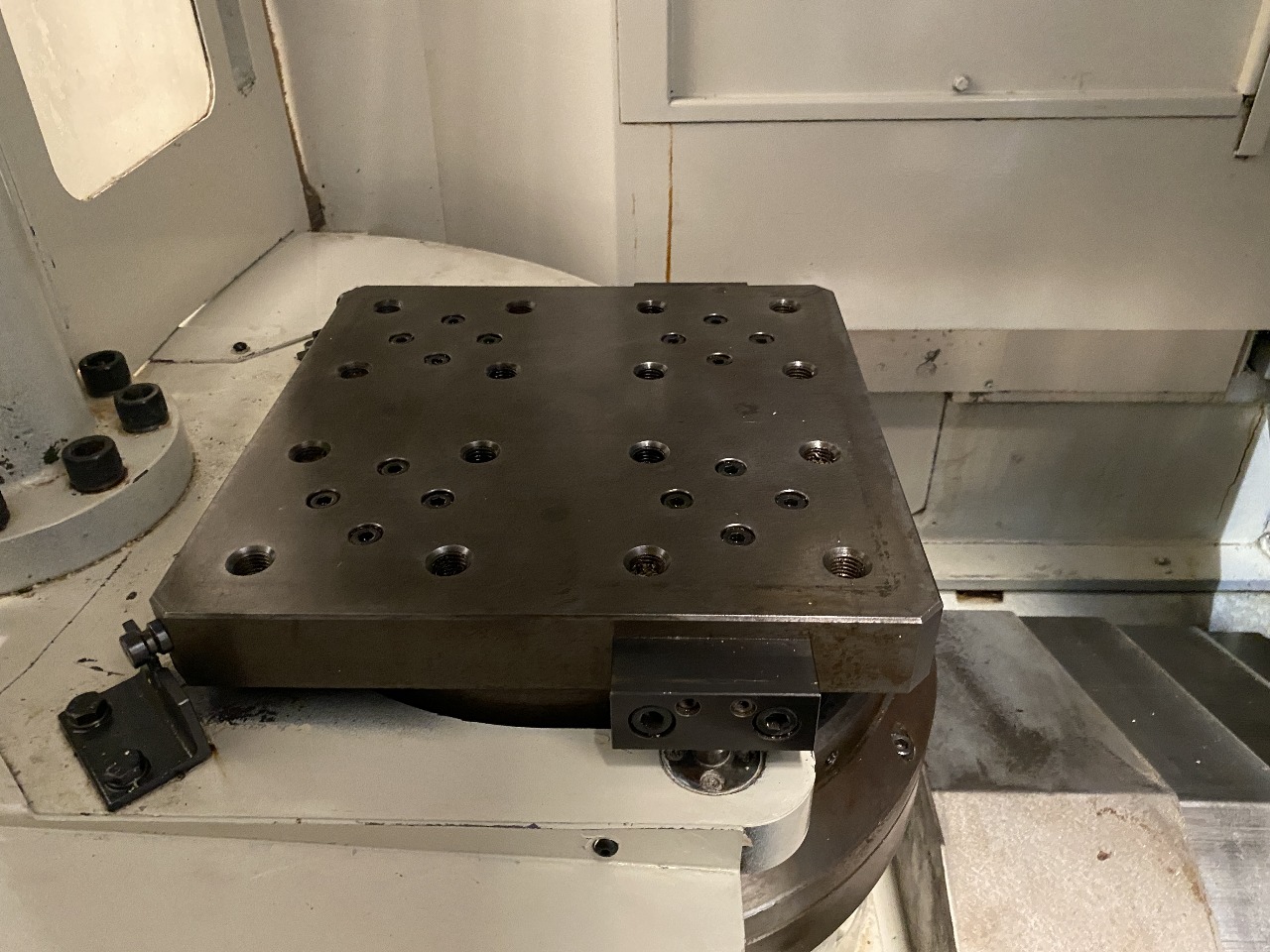

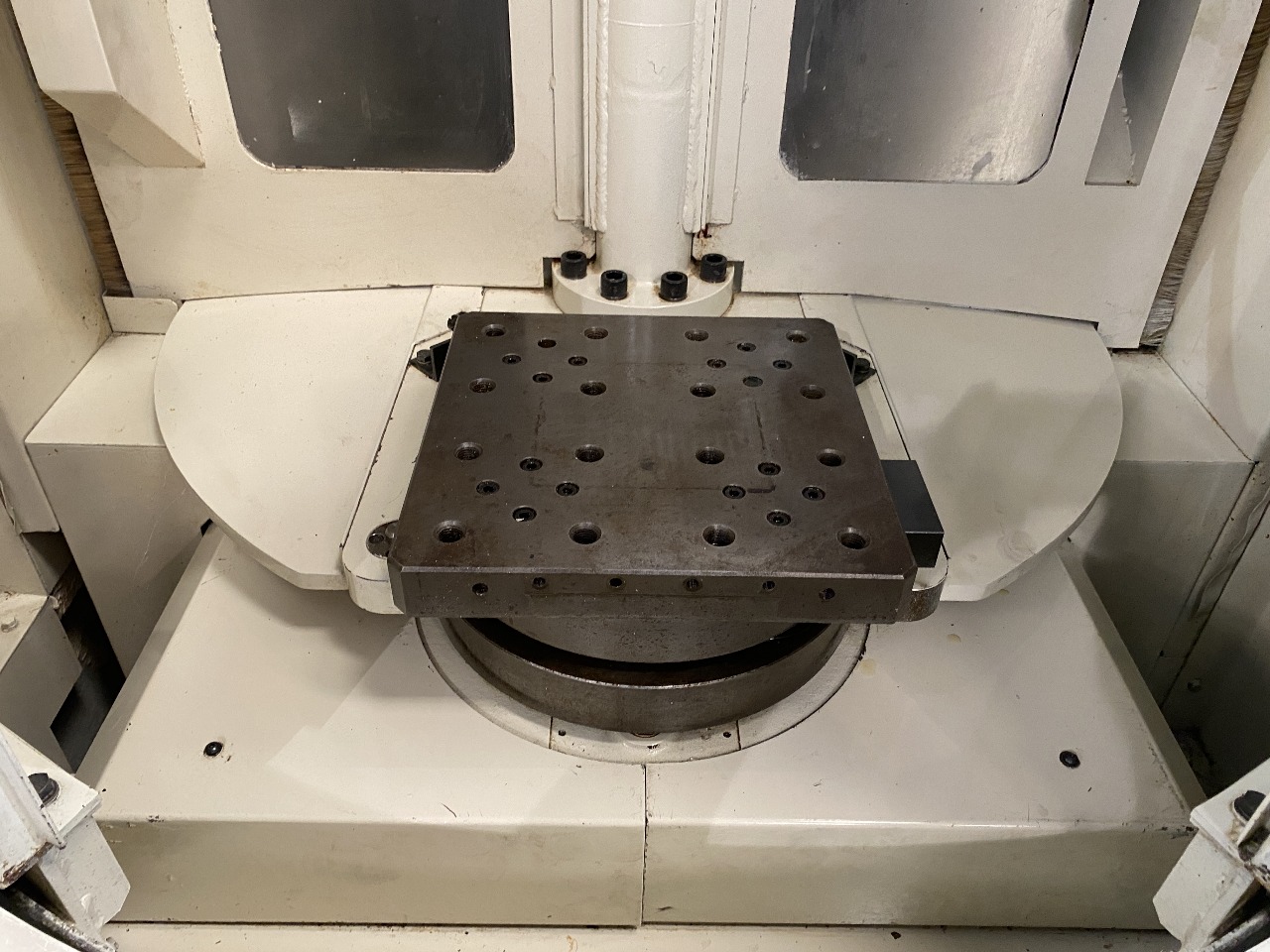

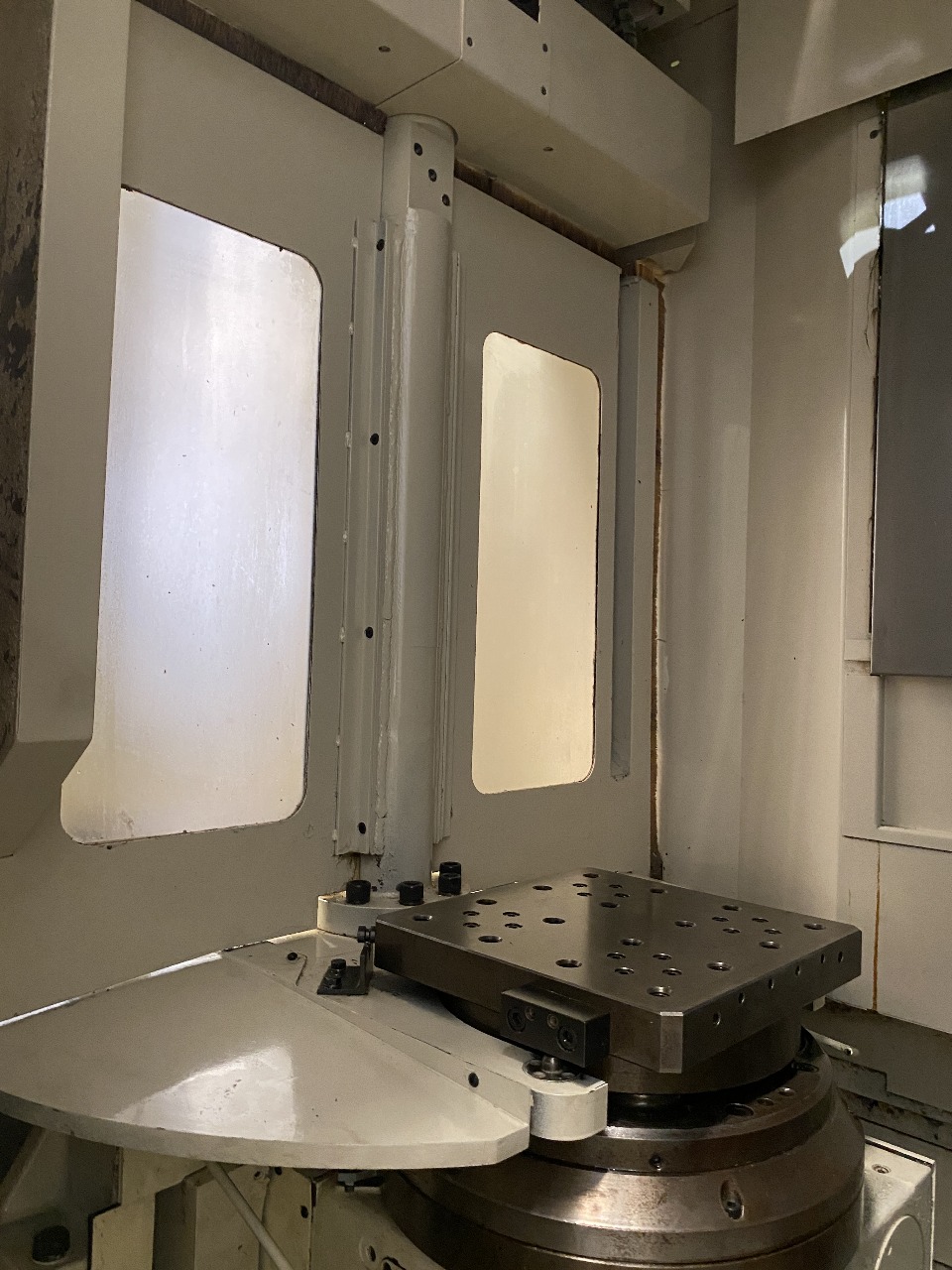

| Table: |
| Length: 12.0″ |
| Width: 12.0″ |
| Max Weight on Table: 249.5 kg |
| Index Time: 5.5 seconds |

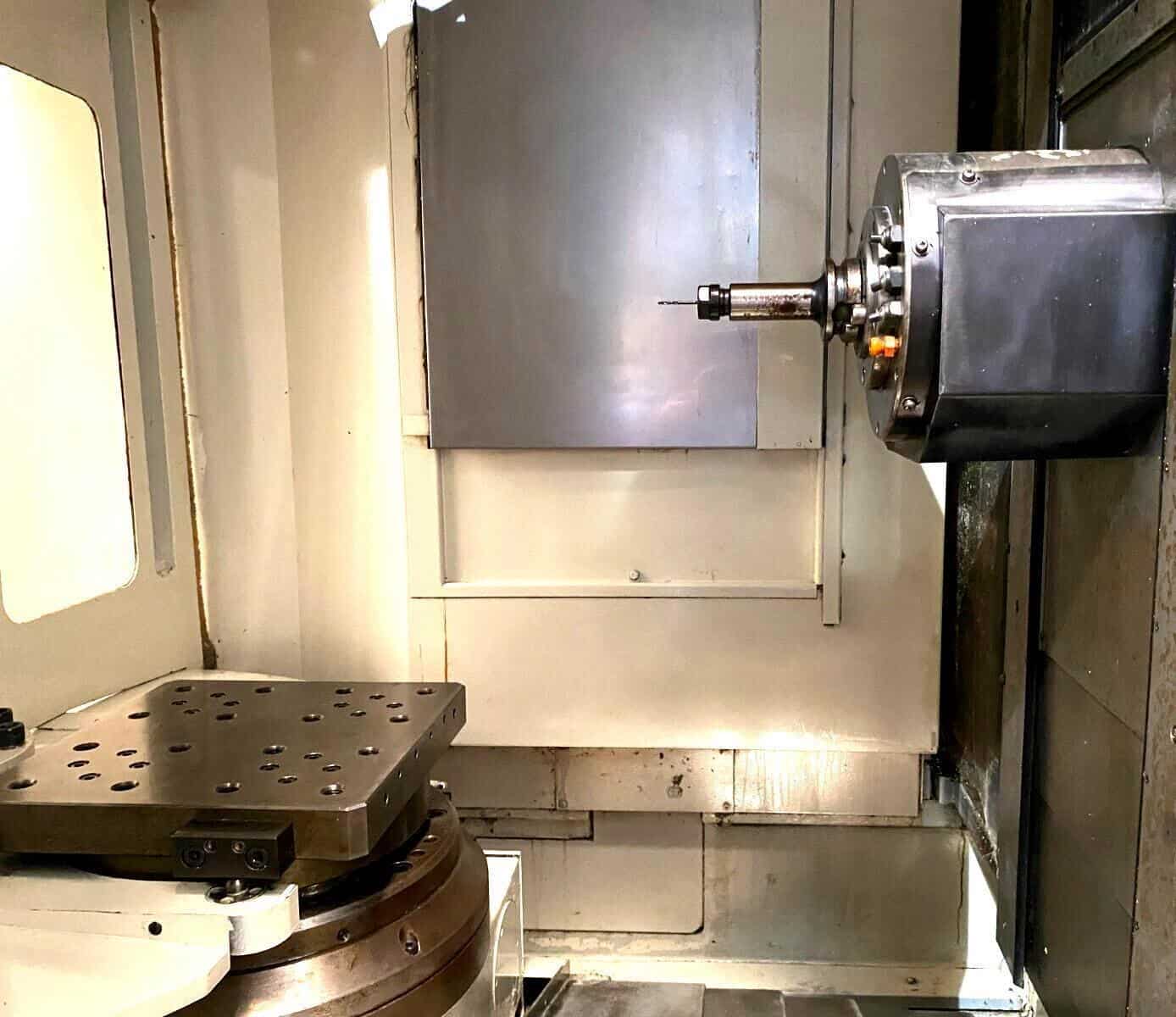

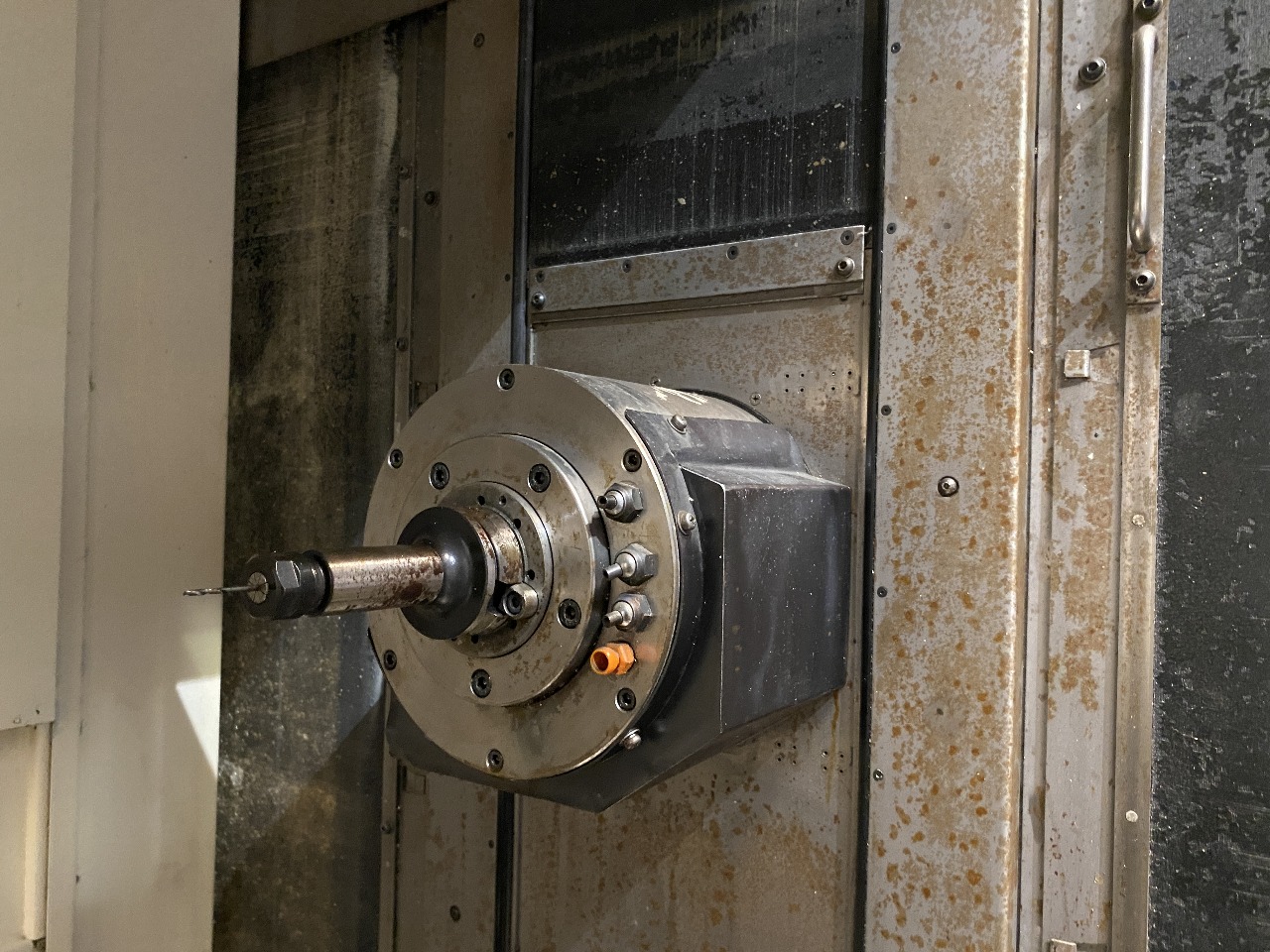

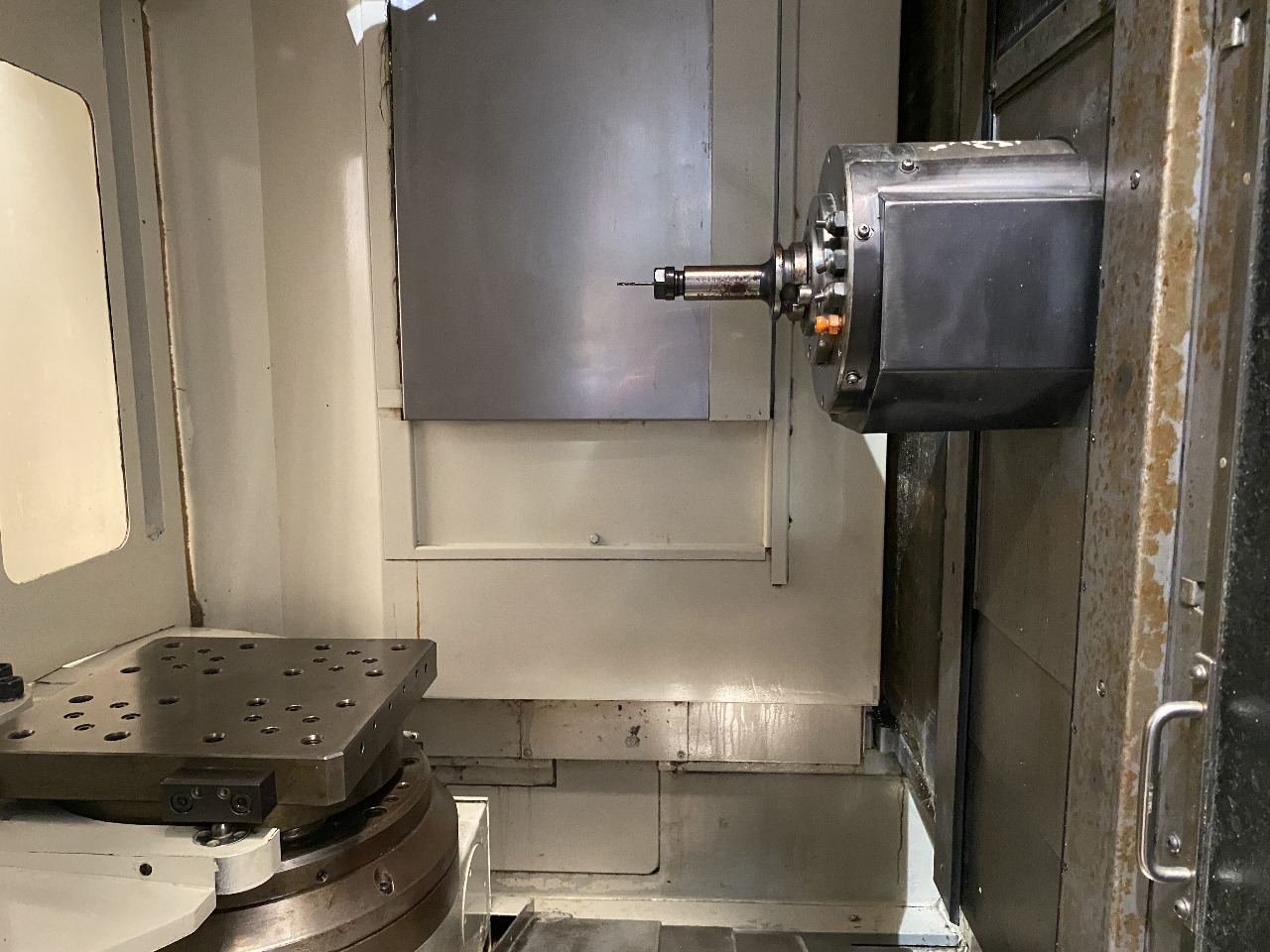

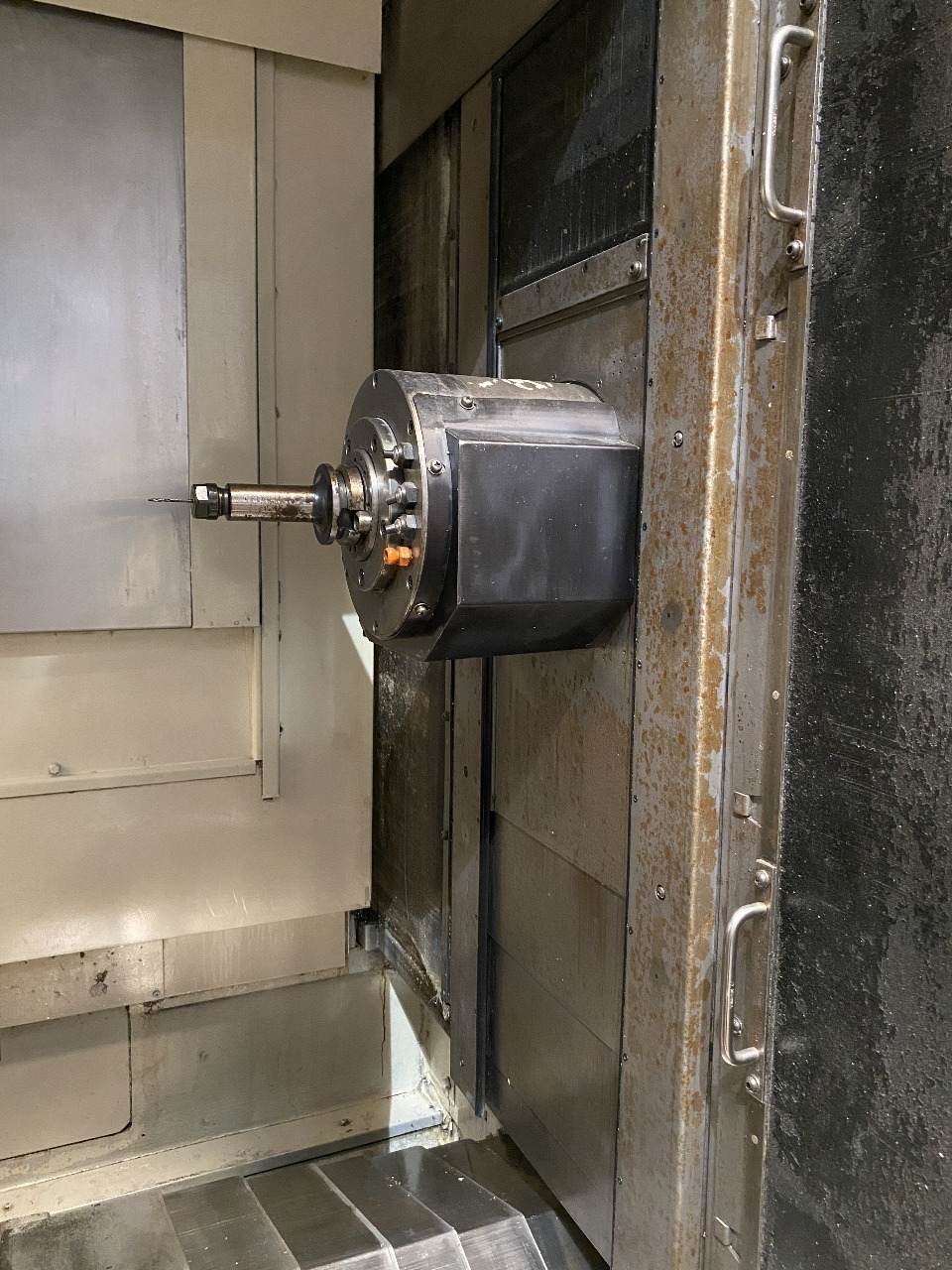

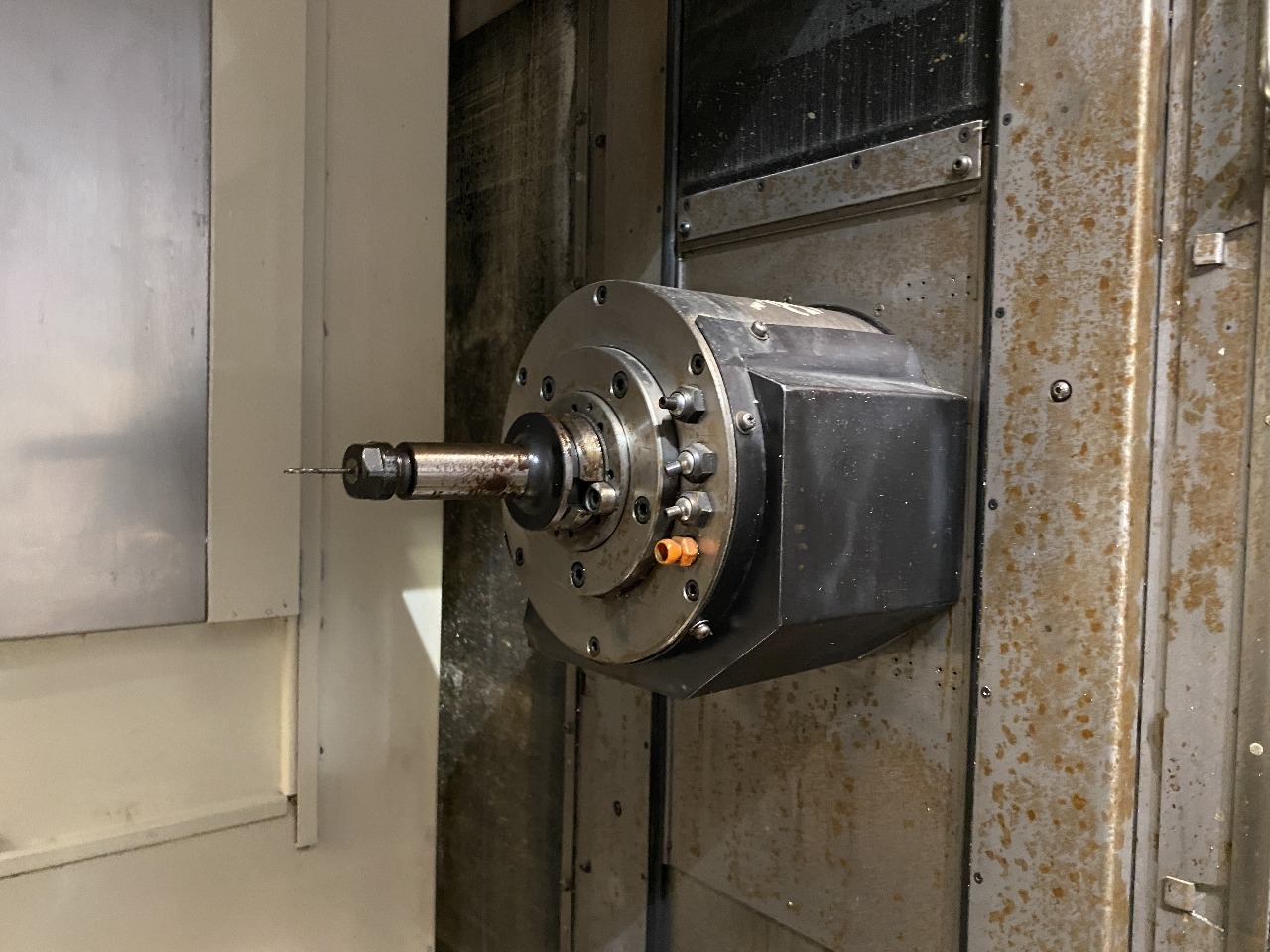

| Spindle: |
| Taper Size: 40 |
| Max. Speed: 10000 RPM |
| Power: 14.9 kW |
| Feed rates: |
| Rapid X & Y : 1969 Inch Per Minute |
| Rapid Z : 1969 Inch Per Minute |
| Cutting Feedrate: 1945 Inch Per Minute |

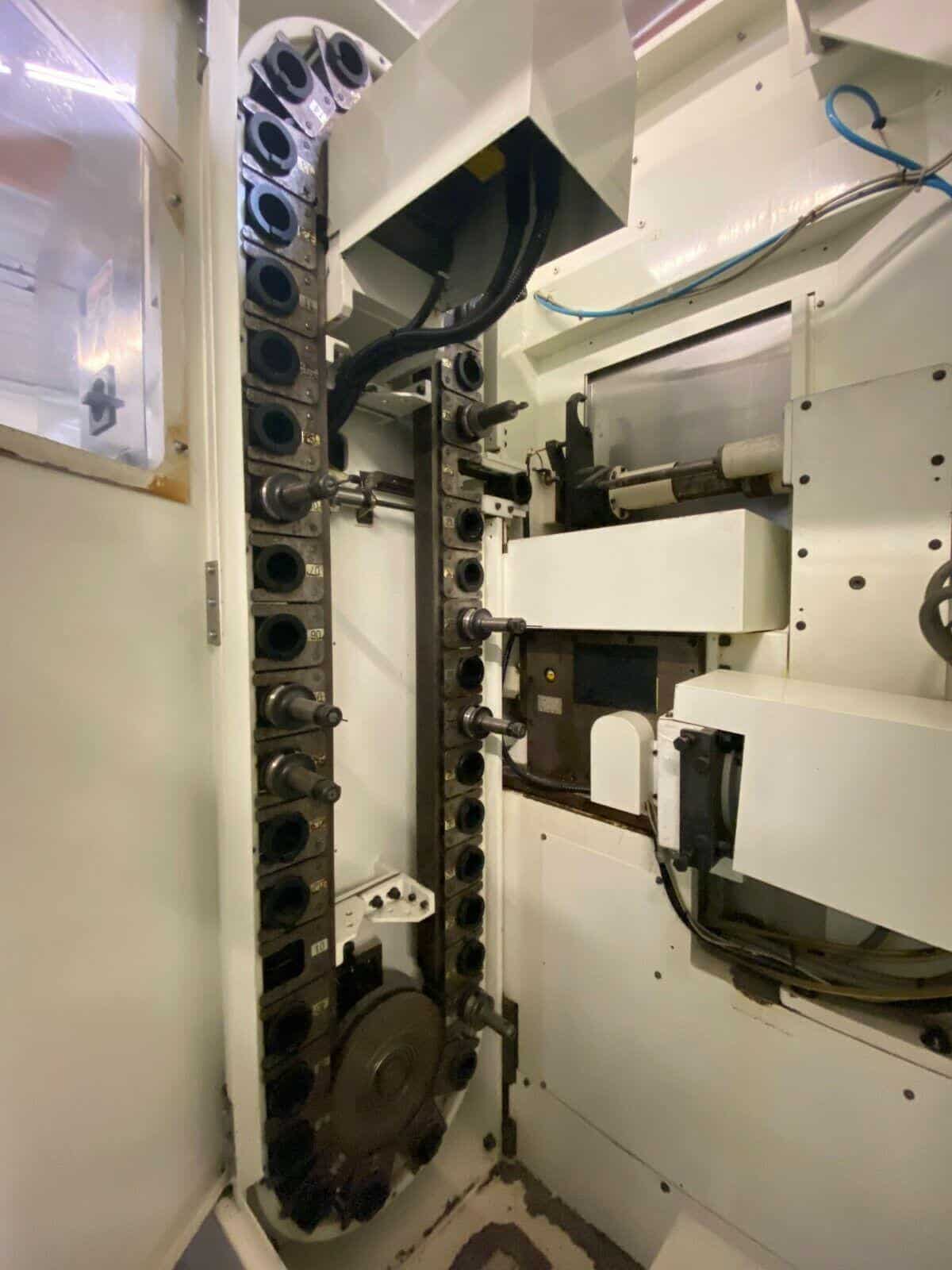

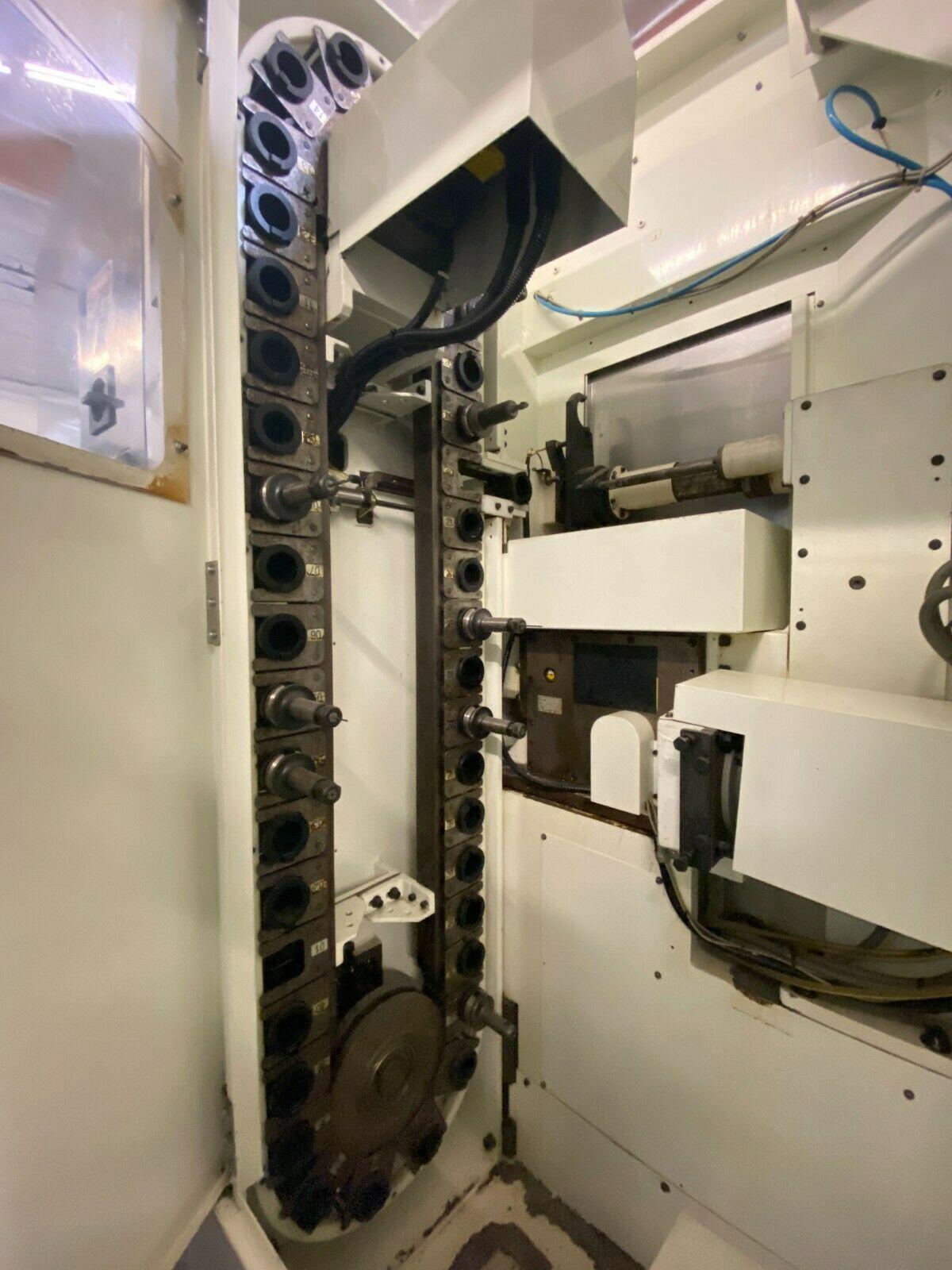

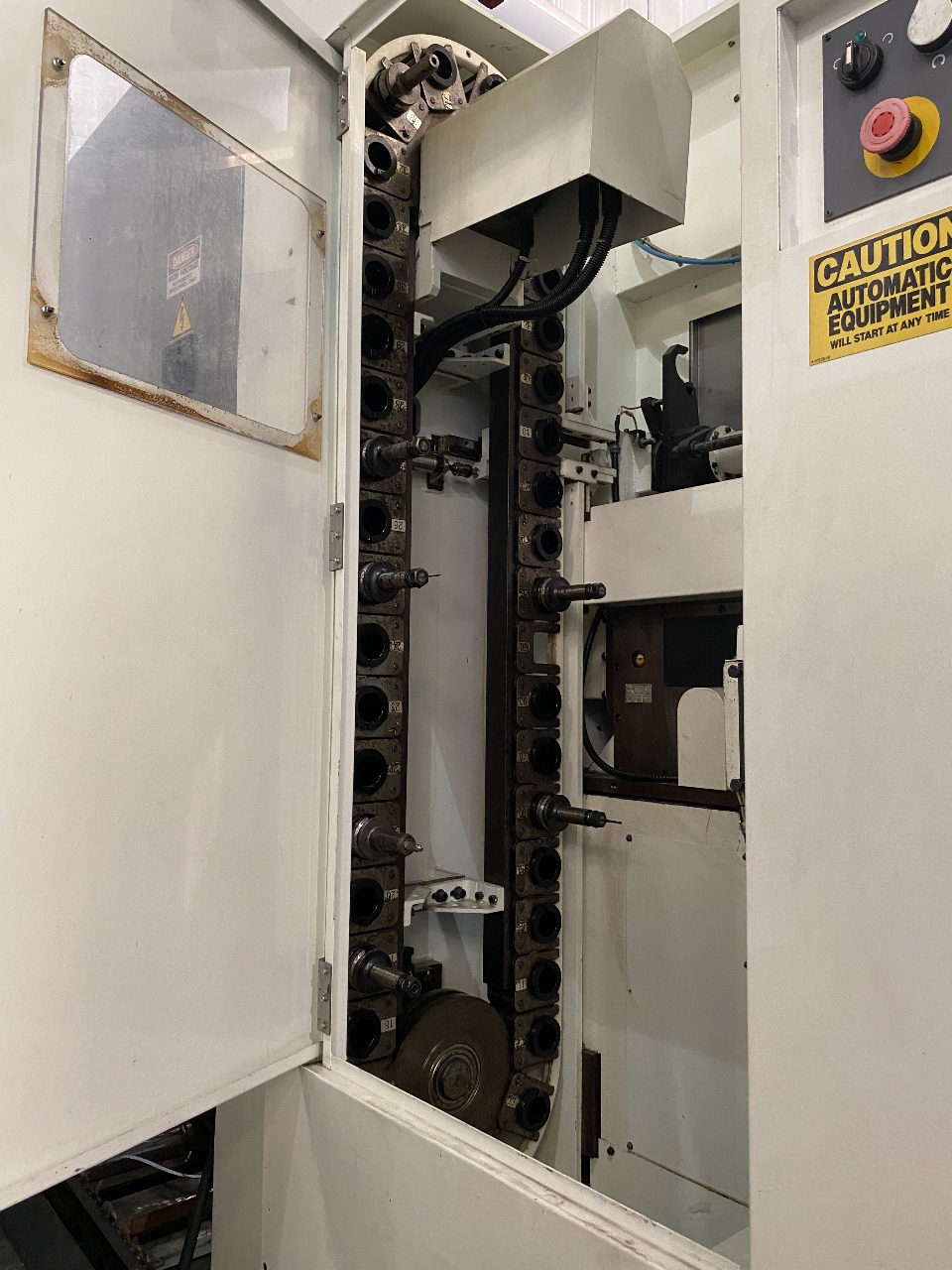

| Tool changer: |
| Capacity: 40 Tools |
| Taper: BT-40 |
| Max Tool Size: 89.92 mm |
| Max Tool Length: 11.8″ |
| Max Tool Weight: 10 kg. |
| Tool Change Time: 1.7 Second |

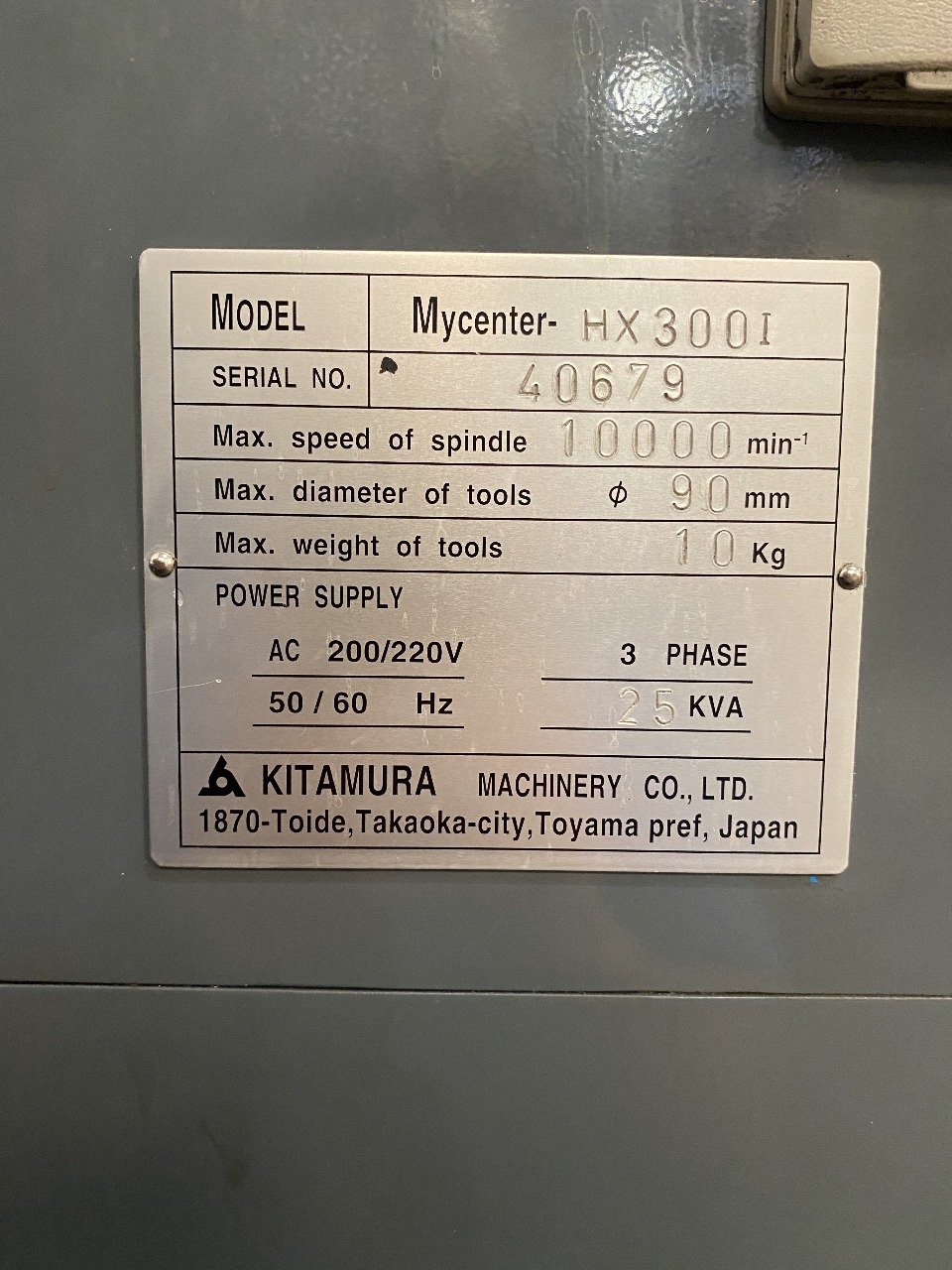

| General: |

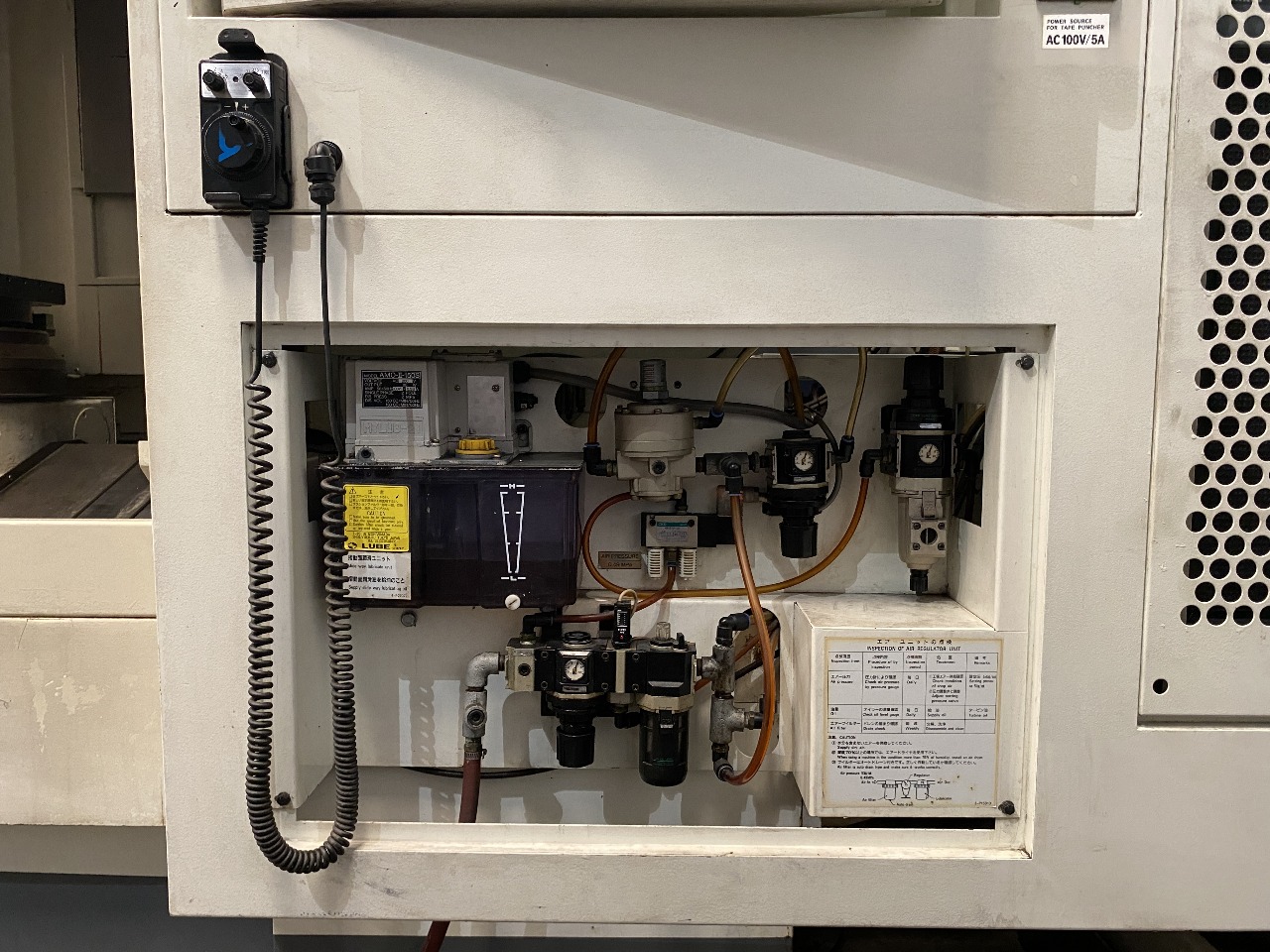

| Air Required: 90 psi 4 scfm |

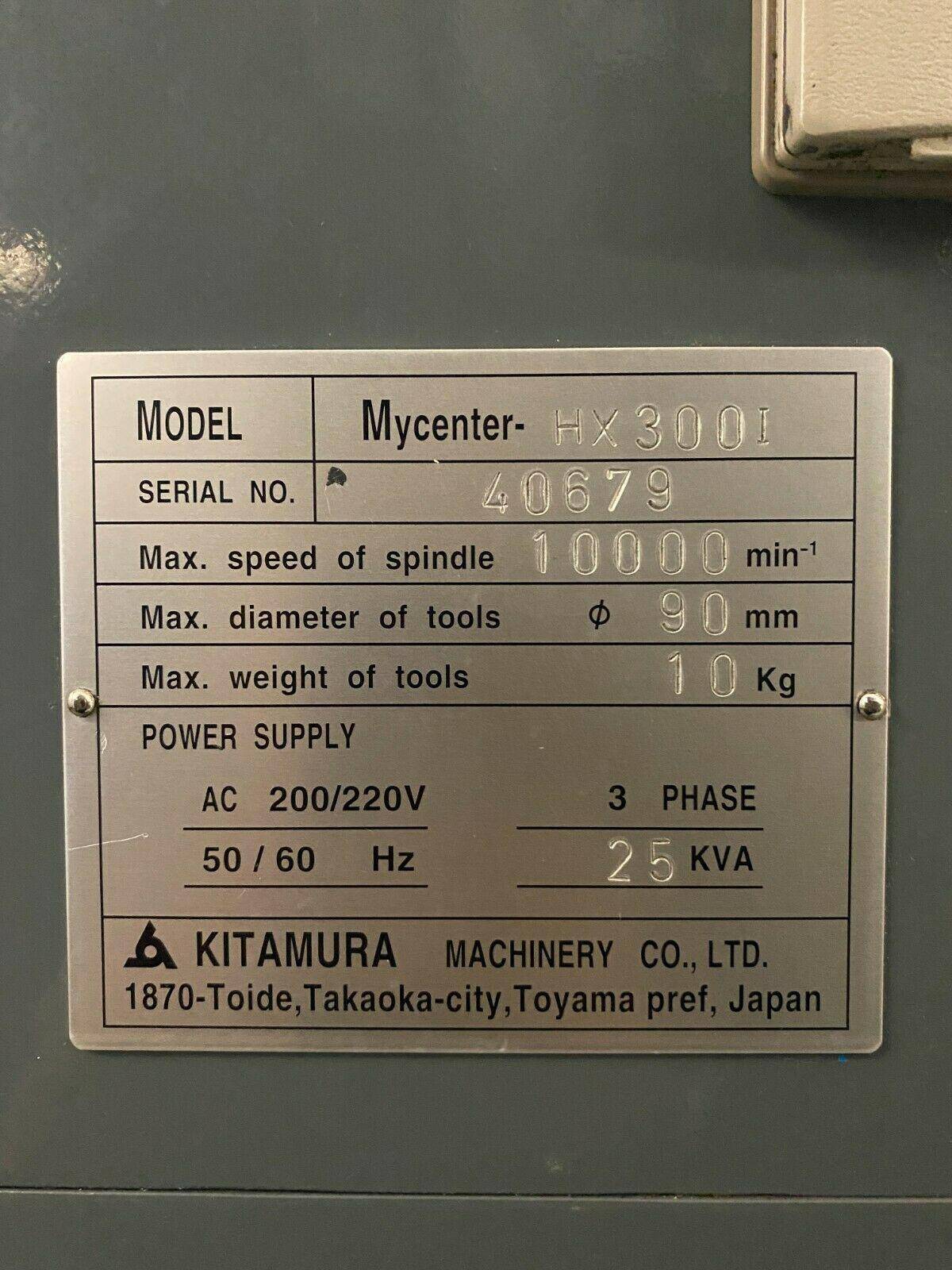

| Power: 25kva / 200-220v / 3-Phase |
| Overall Dimensions: 3556 mm X 2286 mm x 100″ High ? |
| Weight: 9071.8 kg |
| Categories | CNC Horizontal Machining Center - HMC |
|---|

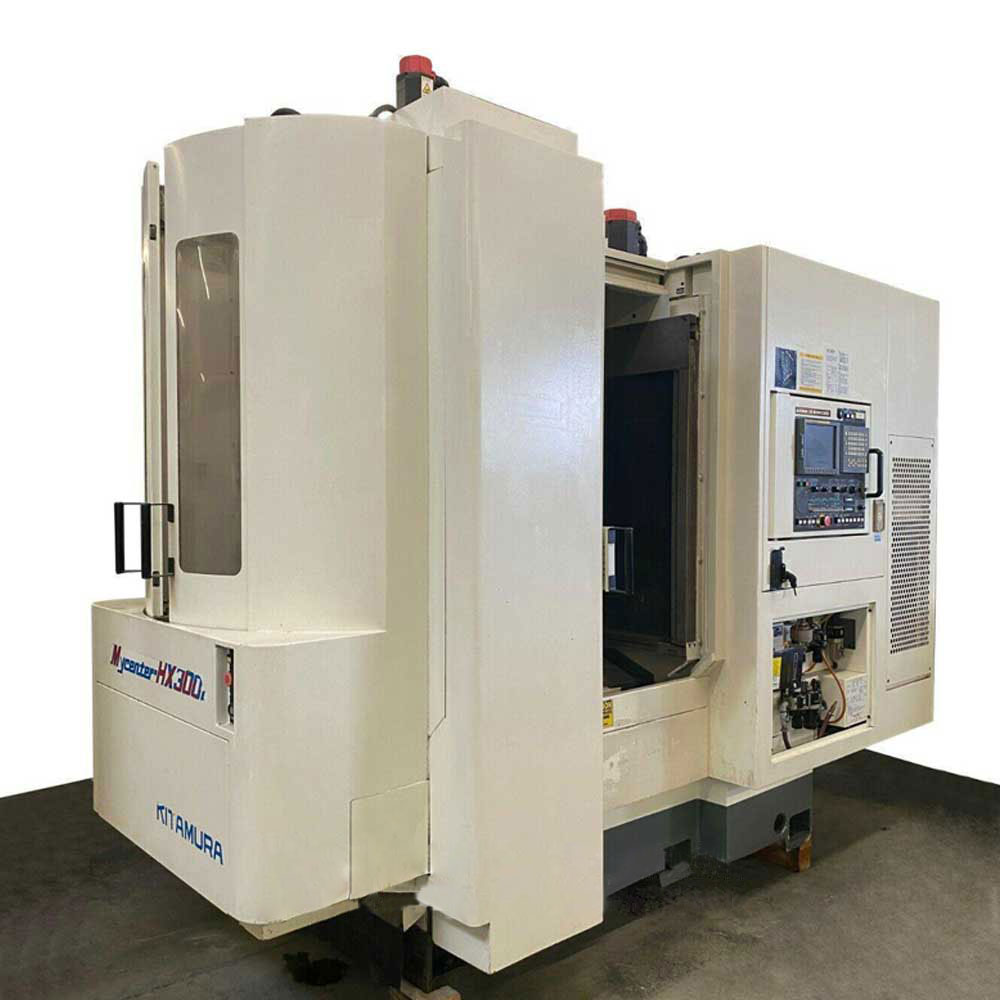

| Series | Kitamura HX Series |
|---|
| Categories | CNC Horizontal Machining Centers - HMC, Previously Sold Machines |
|---|
