*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

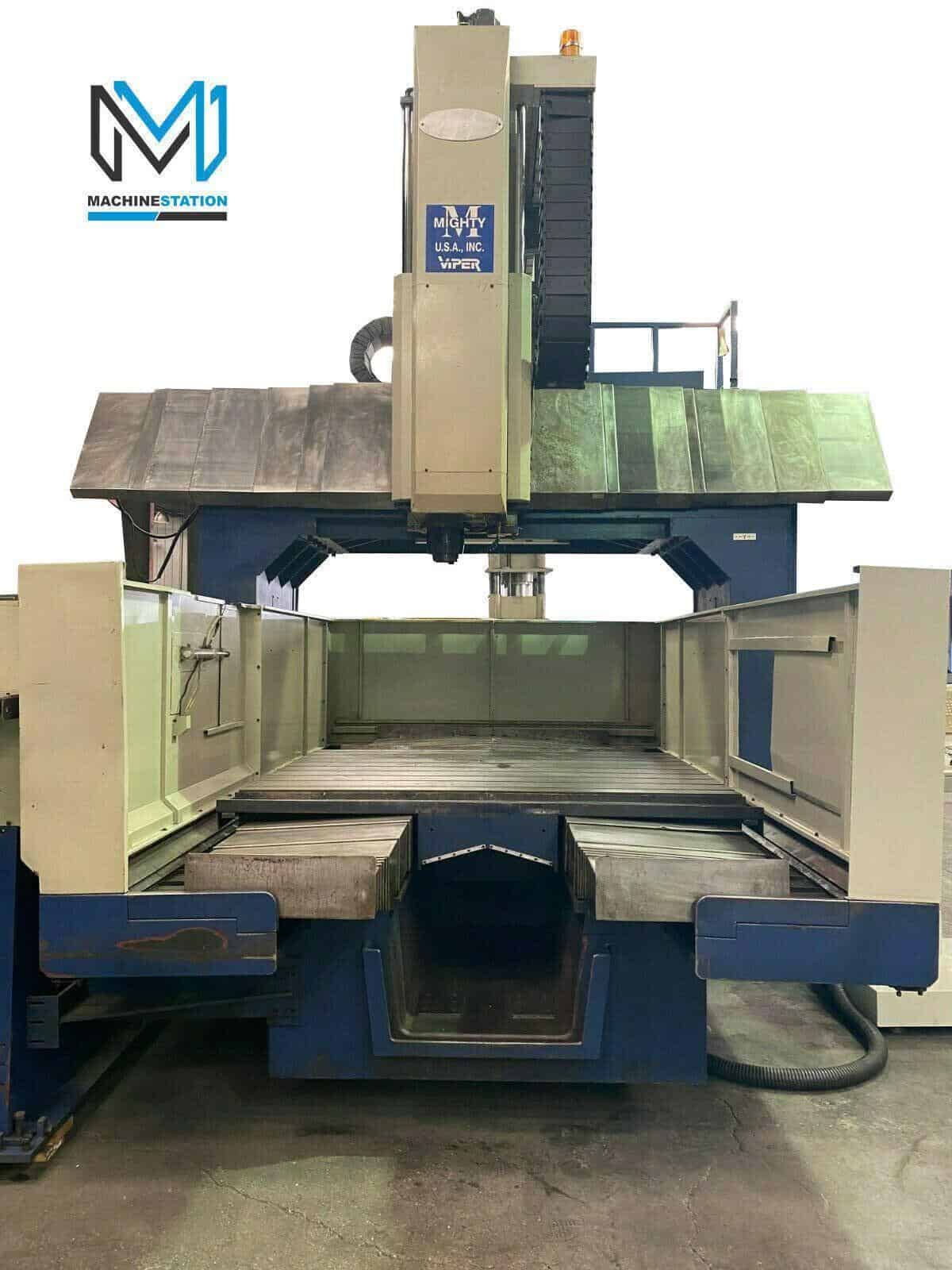

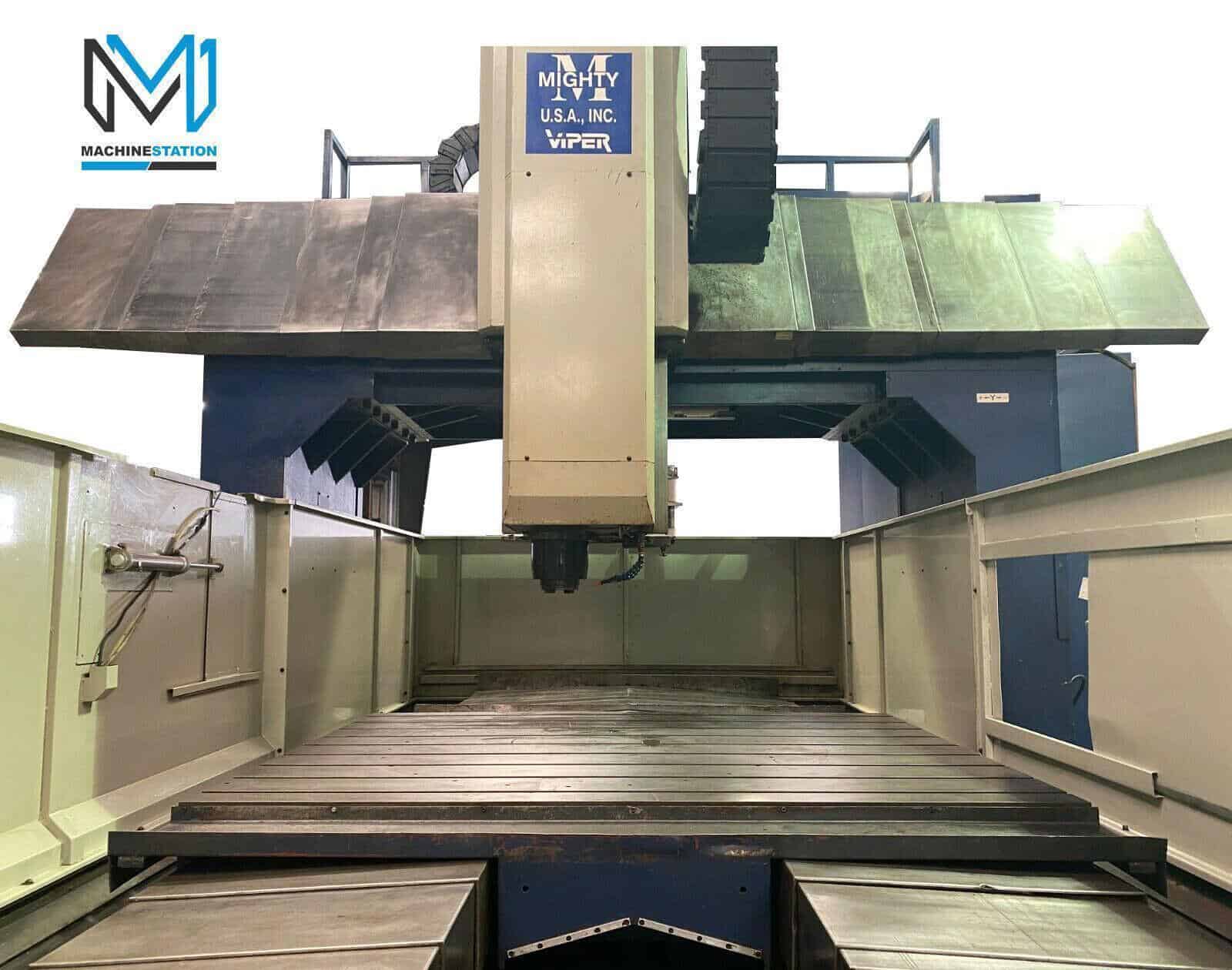

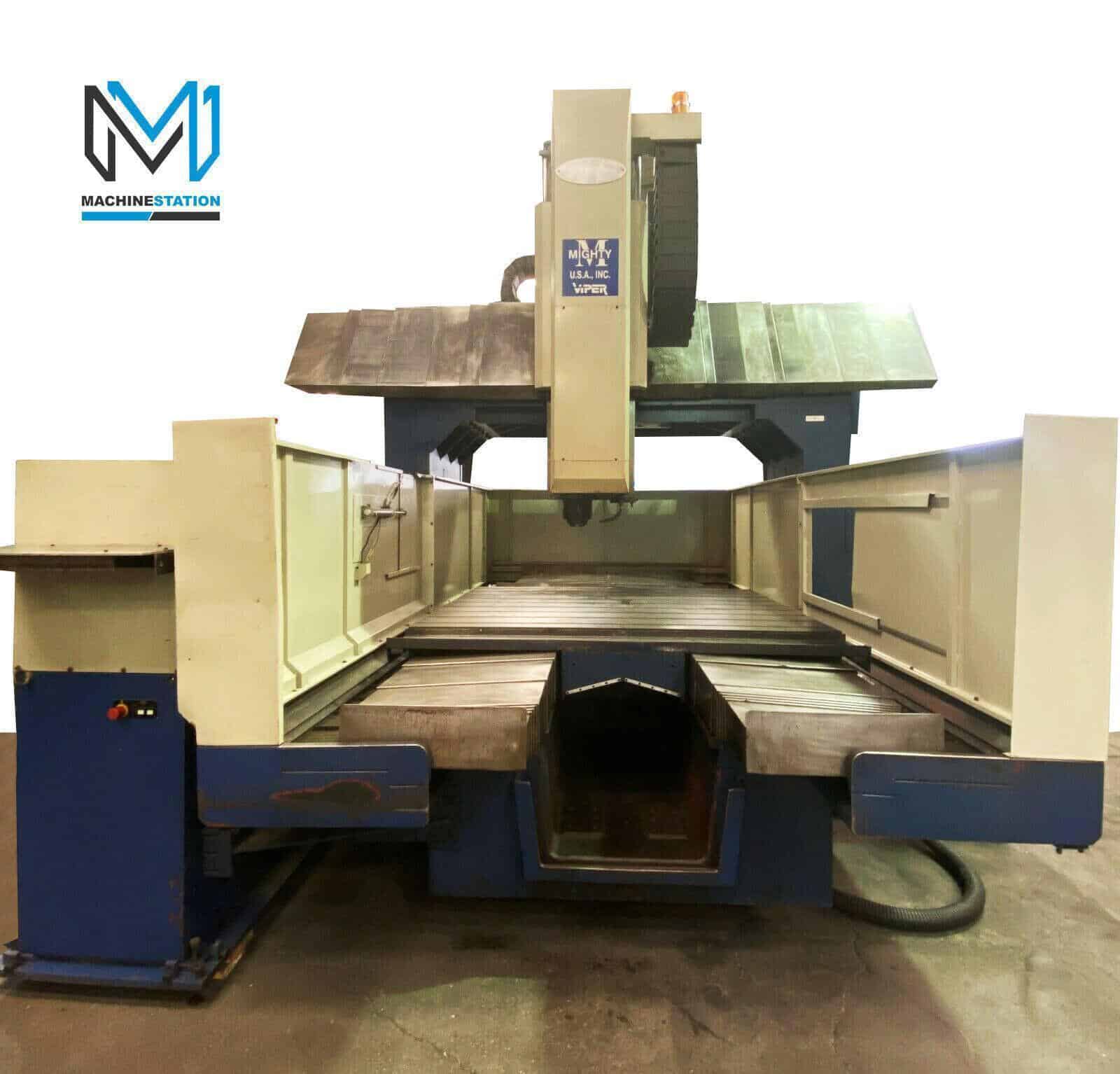

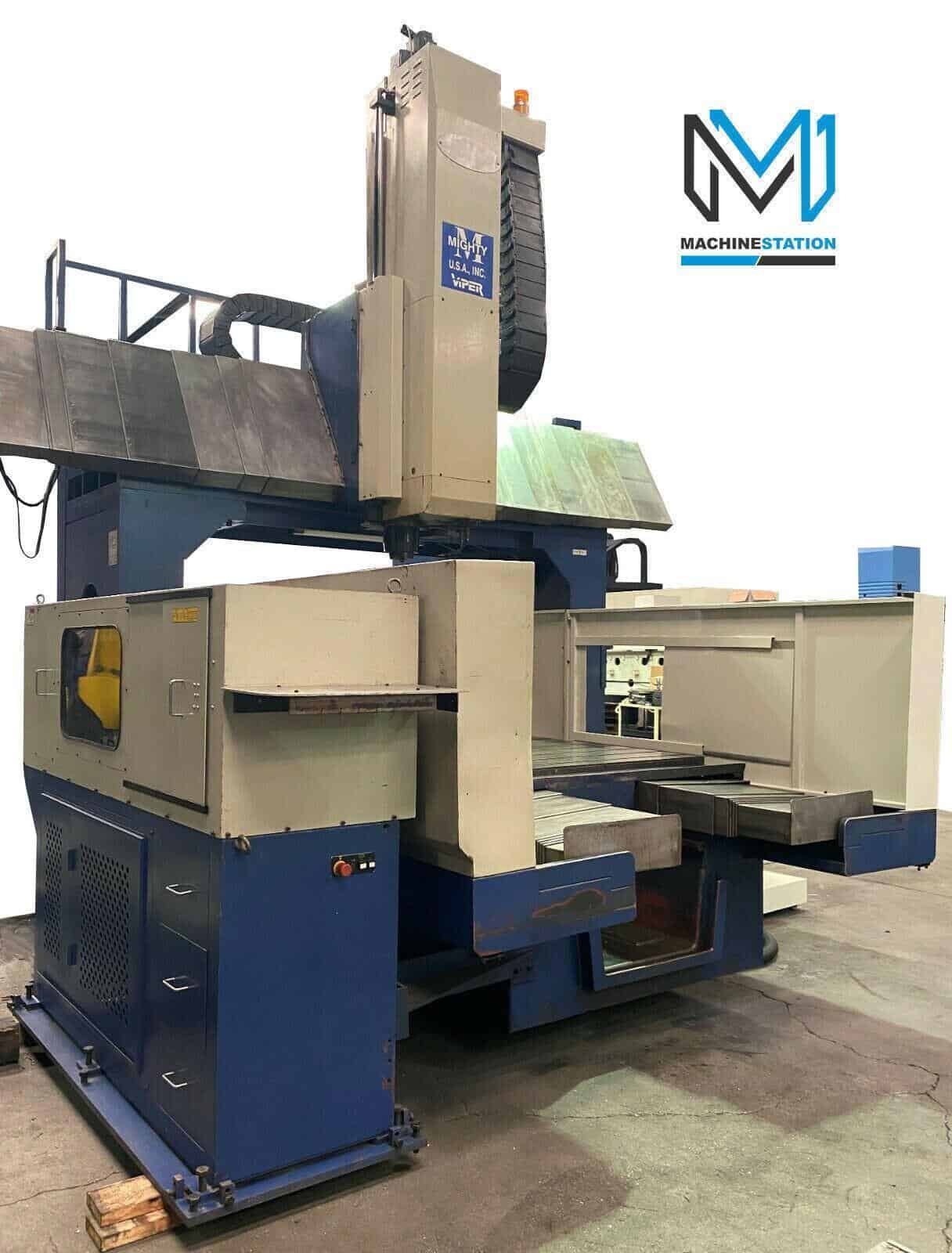

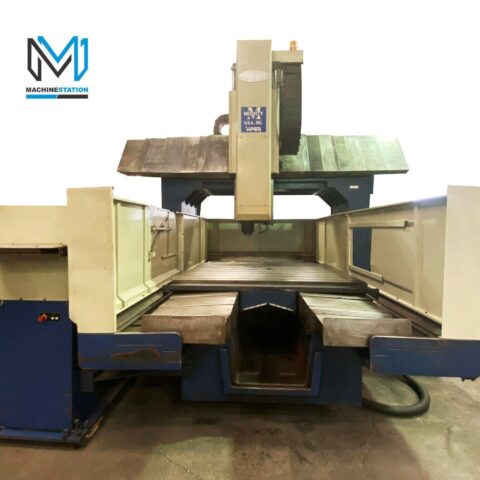

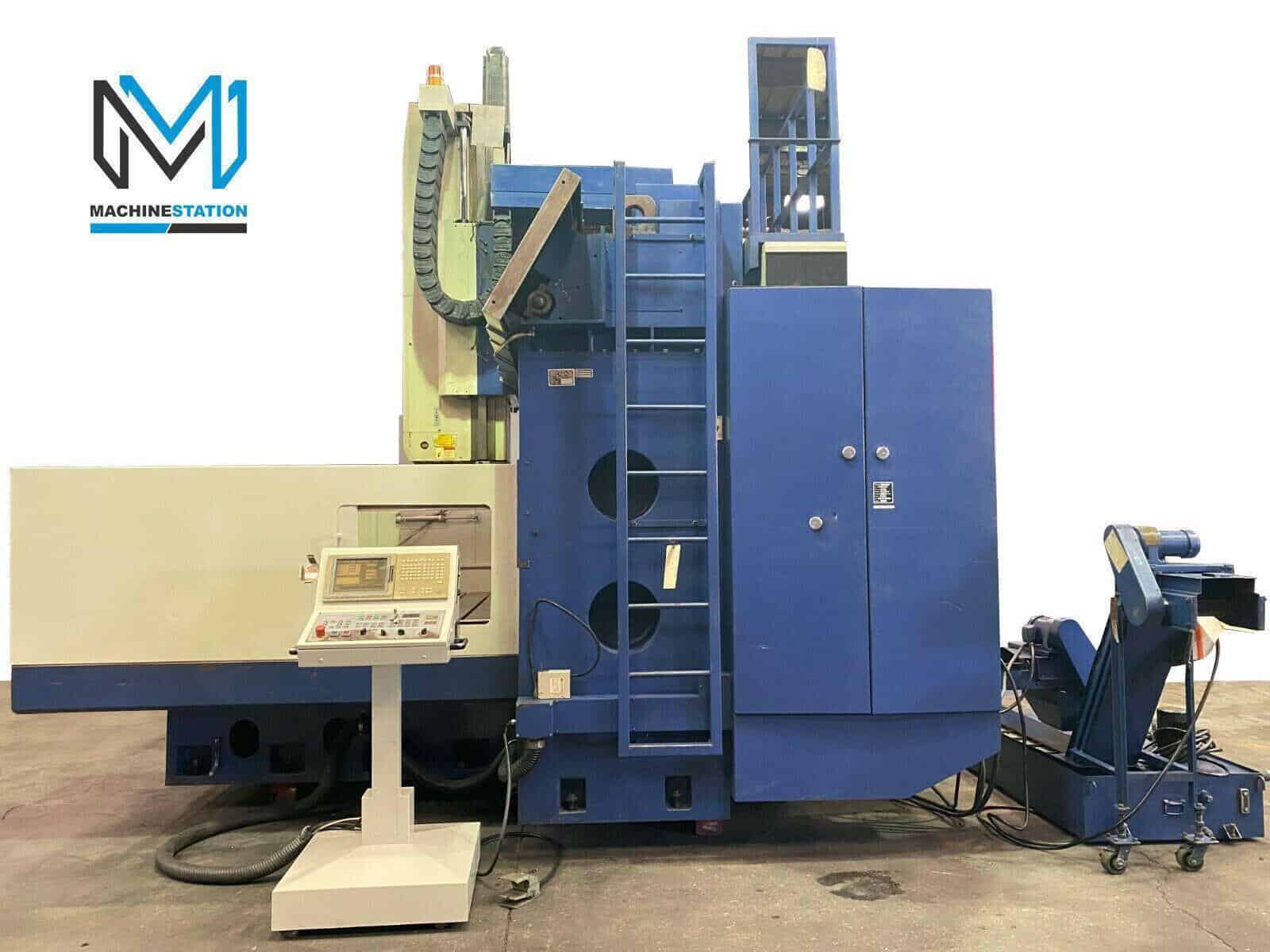

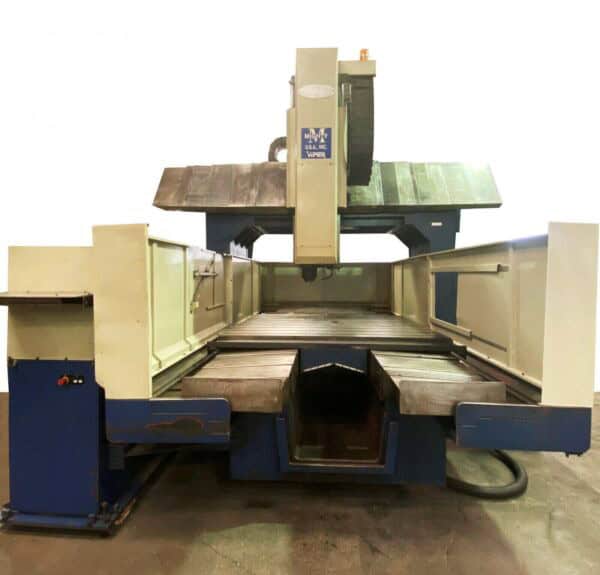

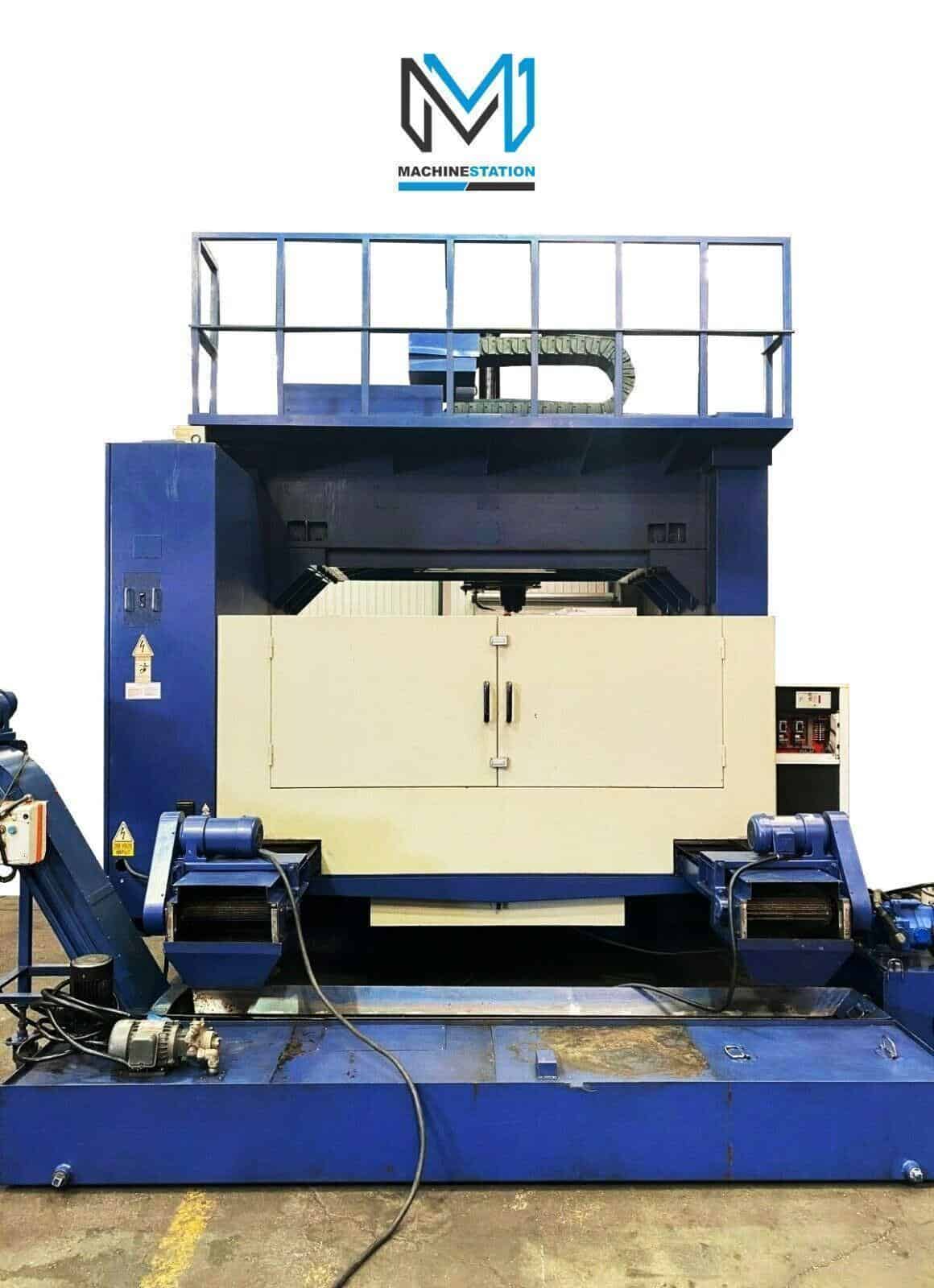

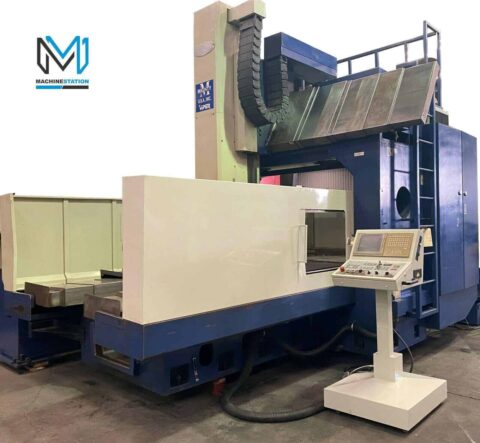

| Make: | MIGHTY VIPER |
| Model: | DM100 |
| Year: | 2002 |
| Condition: | Used – Good |
| Equipped With: |
|---|

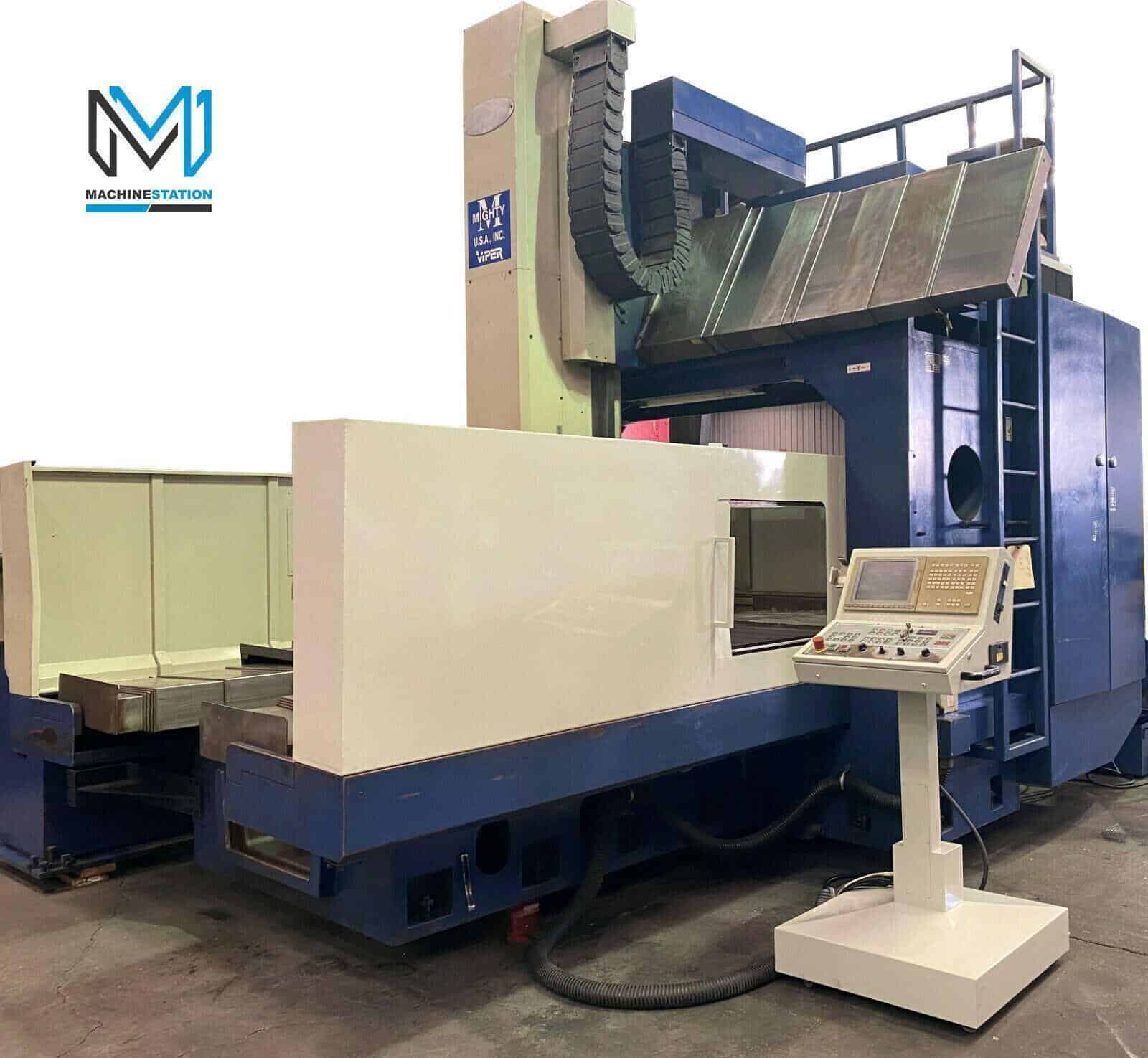

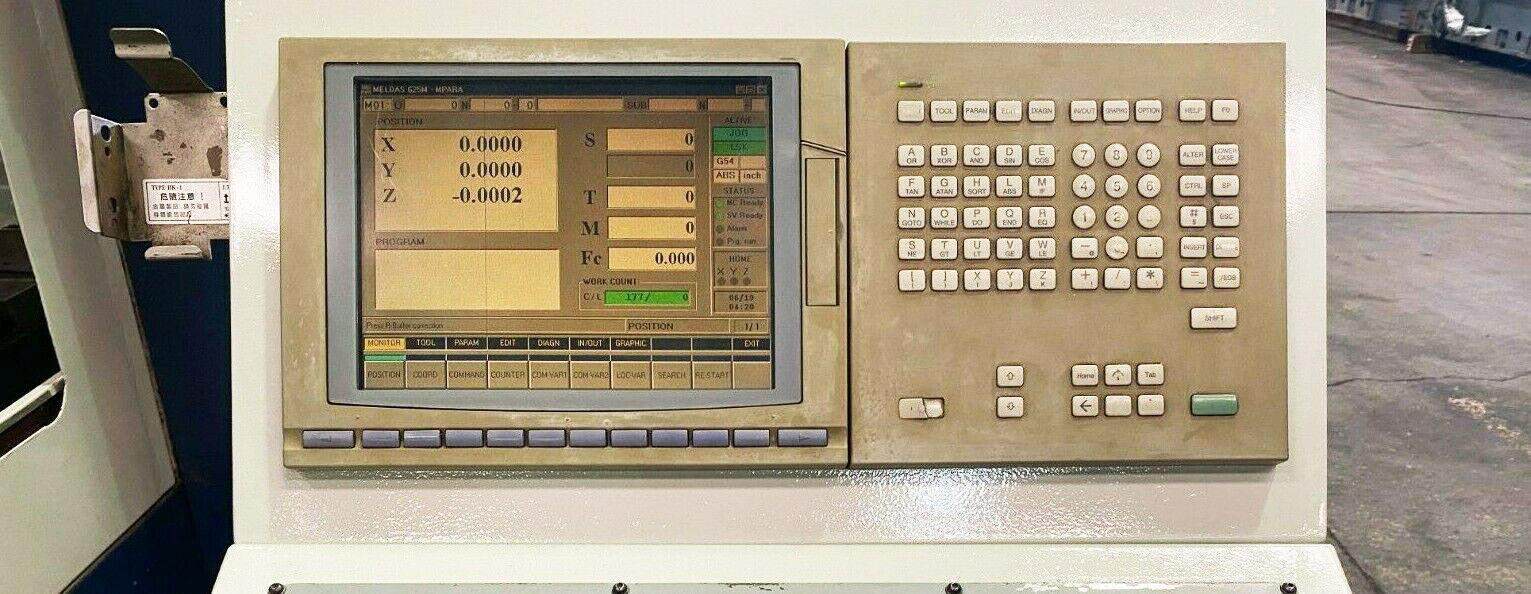

| Mitsubishi 600M CNC Control |
| 64″ X 80″ Table for Die Mold Applications |
| 30 Station Side Mount Tool Changer |
| 50 Taper Geared Head |
| 6000 RPM Spindle |
| Powerful 35 HP high torque spindle motor |
| PCMCIA Card Slot |
| RS-252 Port |
| Spindle Orientation |
| Box Way Construction |
| Portable manual pulse generator |
| Flood coolant with large separate coolant tank Base |
| Flush Chip Disposal with Dual Auger |

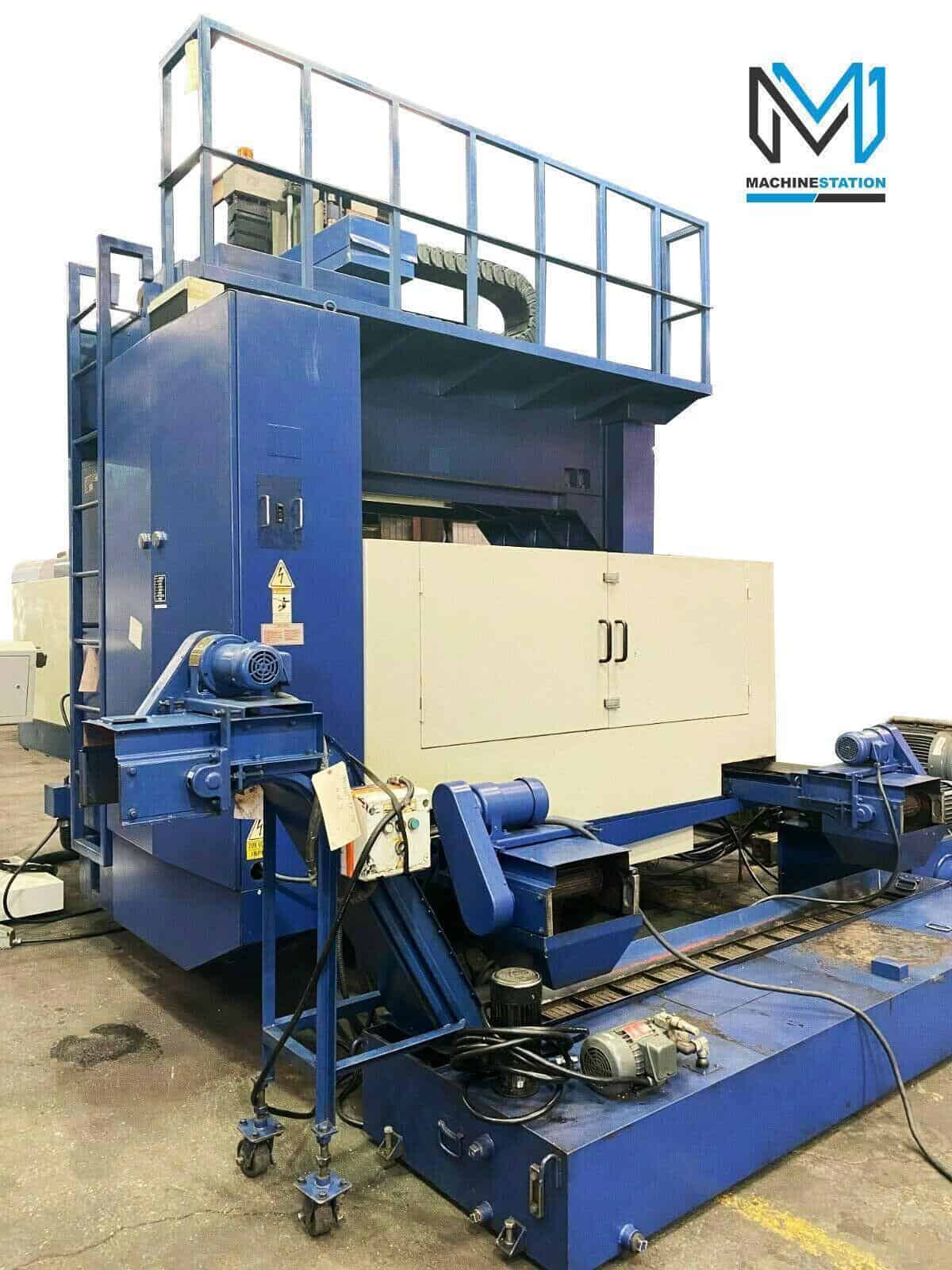

| Chip Conveyor |
| Chiller Unit |
| Books and Manuals |
| Replacement Cost over $300000.00 |
| Travels: |
|---|
| X-Axis: 61.75″ |
| Y-Axis: 86.66″ |
| Z-Axis: 36.22″ |
| Distance Between Columns: 102.36″ |
| Spindle Nose to Table (Min.- Max.): 7.4″- 43.7″ |
| Table: |
|---|
| Length: 64.96″ |
| Width: 80.31″ |
| T-Slot: 0.87″ Wide X 20 X 7.87″ |
| Max Weight on Table: 22000 lbs |
| Feed rates: |
|---|
| Rapid X Y & Z: 590 inch per minute |
| Cutting Feedrate: .04″ – 376″ inch per minute |
| Spindle: |
|---|
| Taper Size: 50 |
| Speed Range: 6000 RPM |
| Spindle Power: 35 HP |
| Tool Changer: |
|---|
| Capacity: 30 |
| Max Tool Weight: 43 lbs |
| Max Tool Length: 13.77″ |
| Max Tool Dia.: 5.2 – 7.7″ |
| General: |
|---|
| Air Required: 100 psi 4 scfm |
| Power: 220v / 3-Phase 65 Kva |
| Floor Dimensions: 224″ X 144″ x 130″ High |

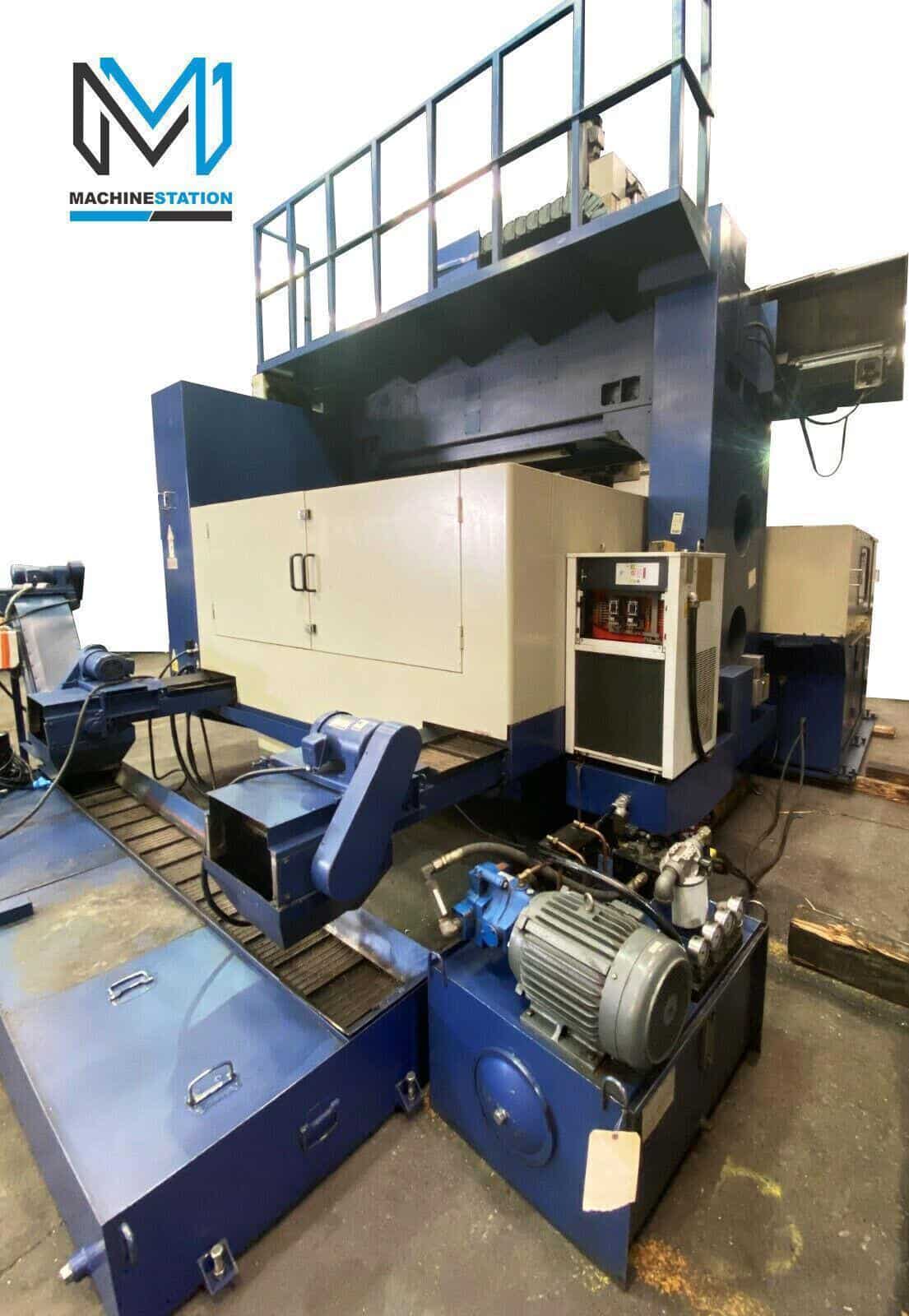

| with Hydraulic Unit Chip Conveyor Chiller unit |
| Weight: 55000 lbs. |
| “No Charges for loading at list Price” |
