Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Features: |
|---|

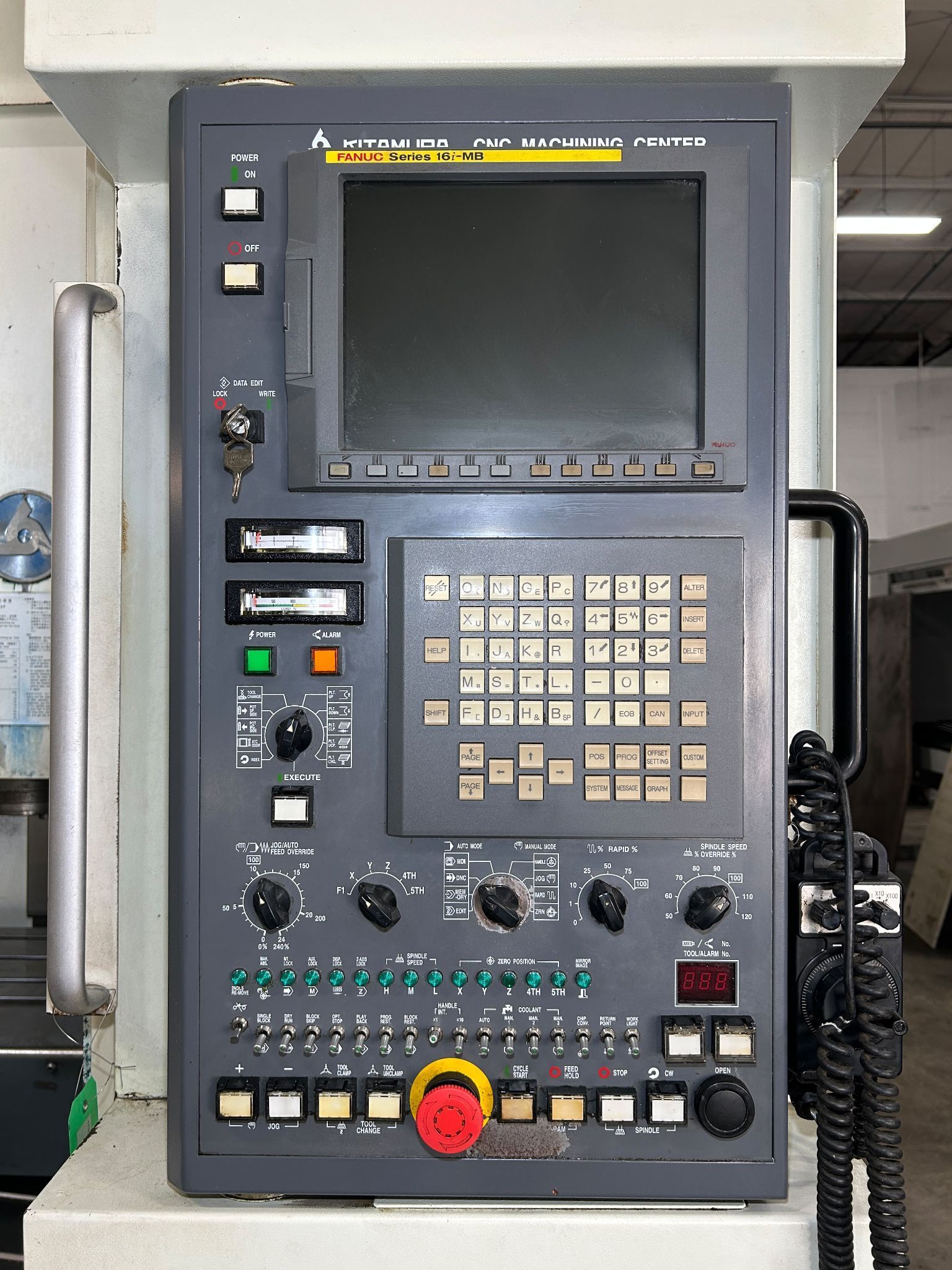

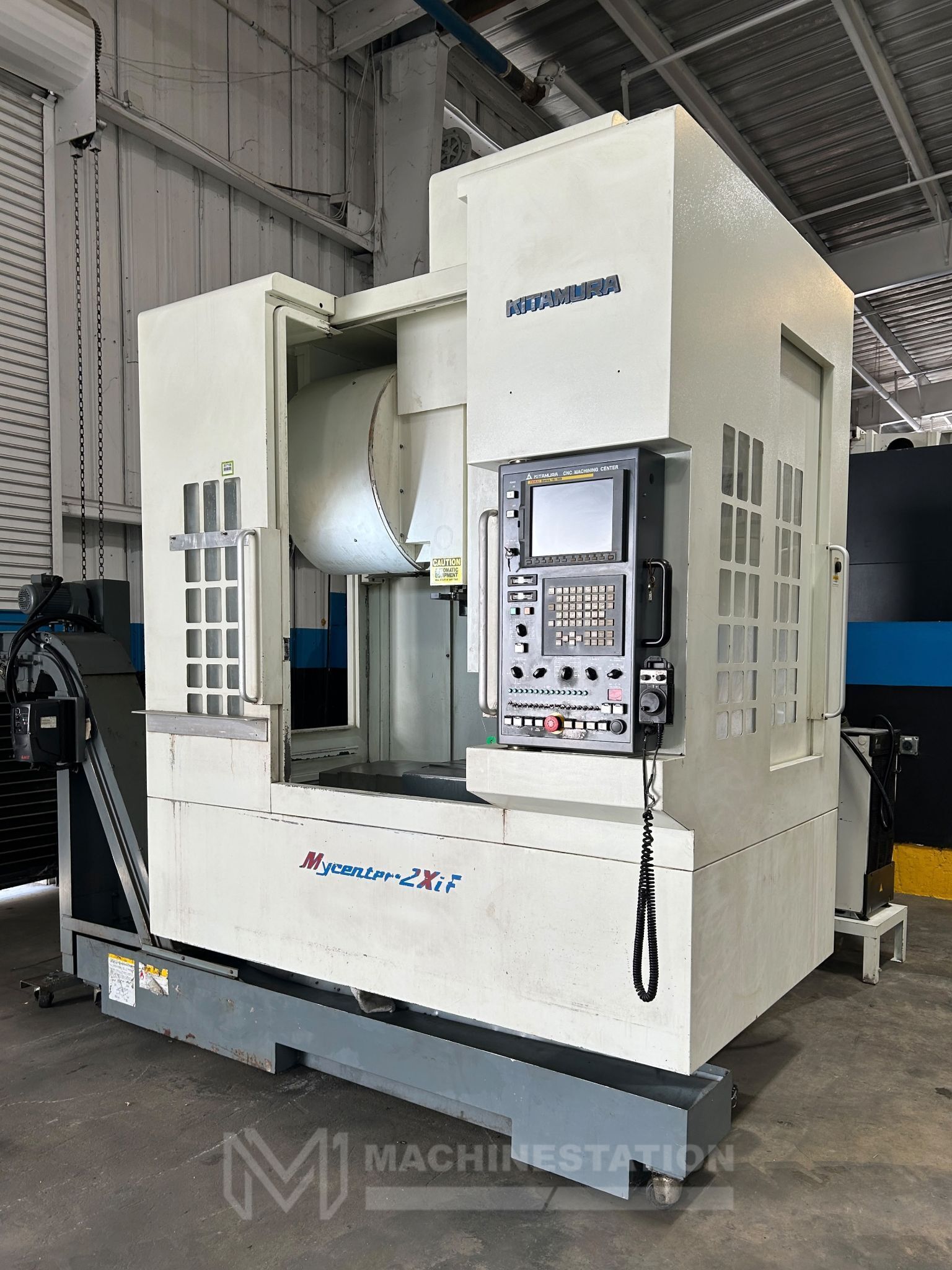

| Fanuc 16iM CNC Control |
| 20,000 RPM High-Speed Spindle |

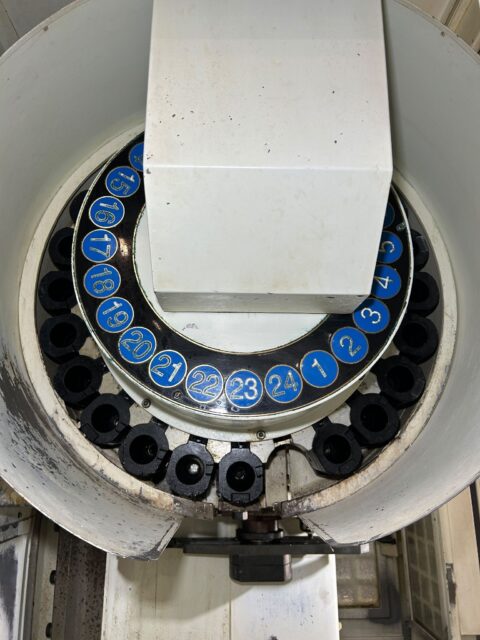

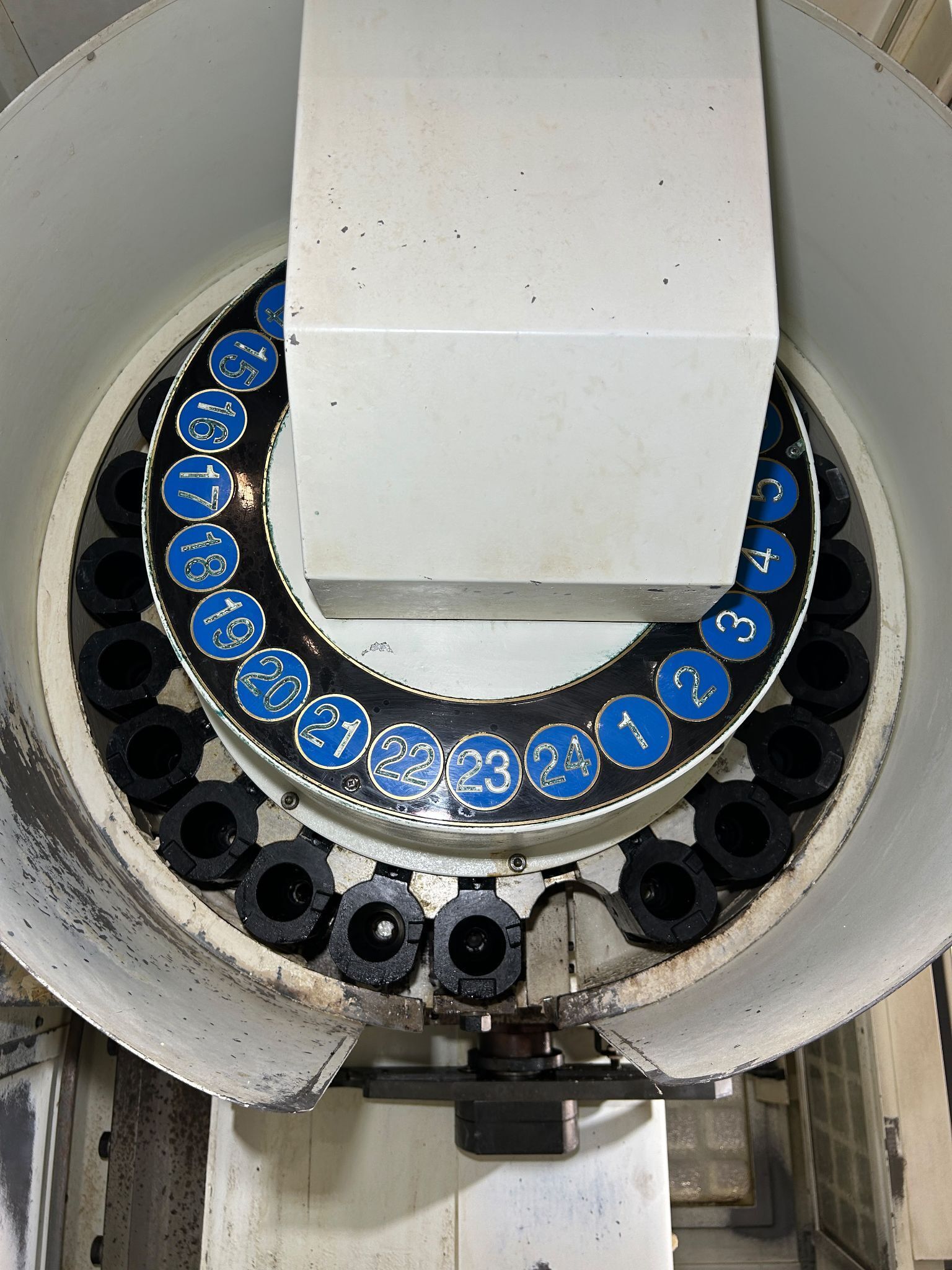

| 24 Station Automatic Tool Changer |

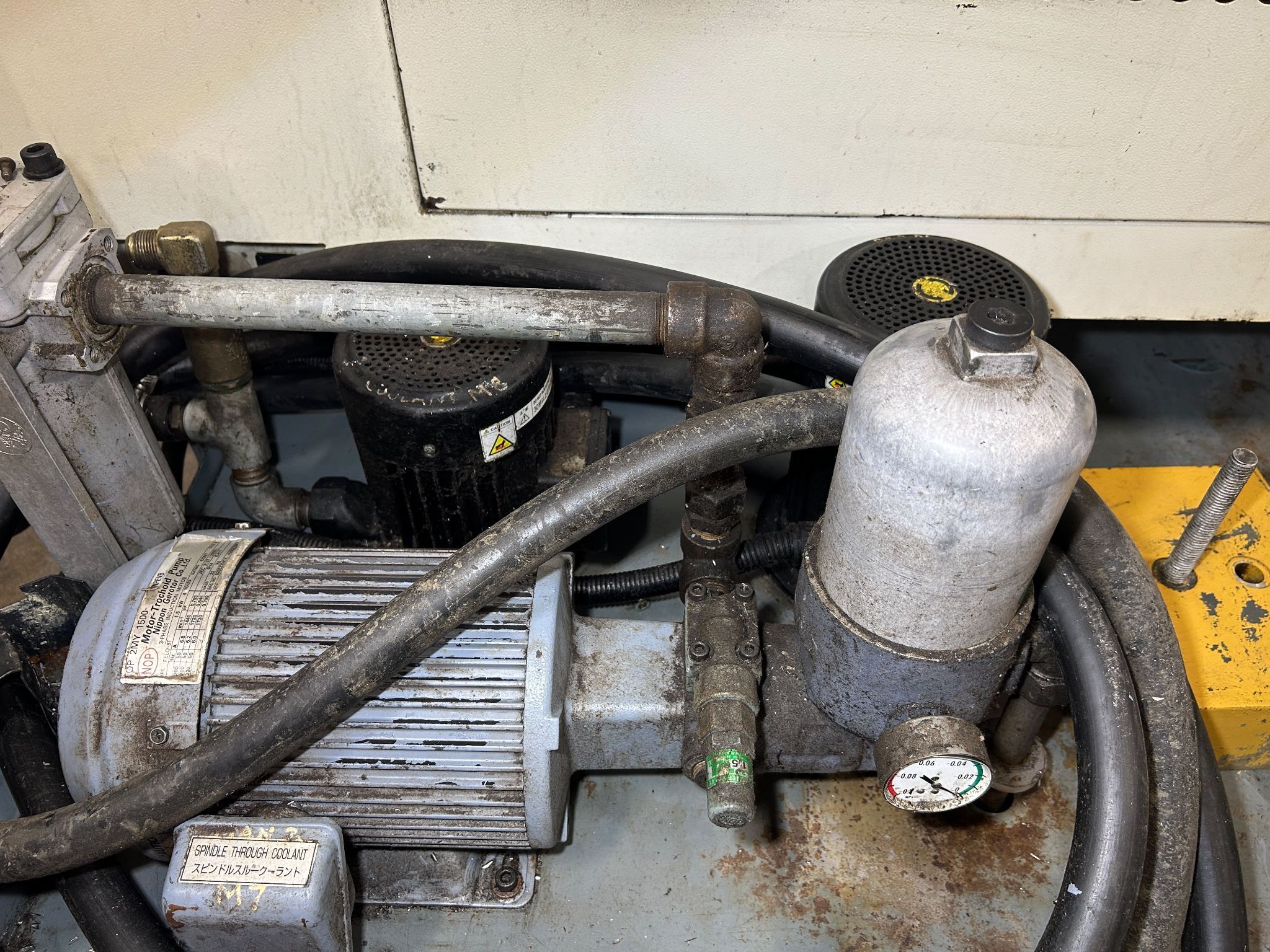

| Through Spindle Coolant |

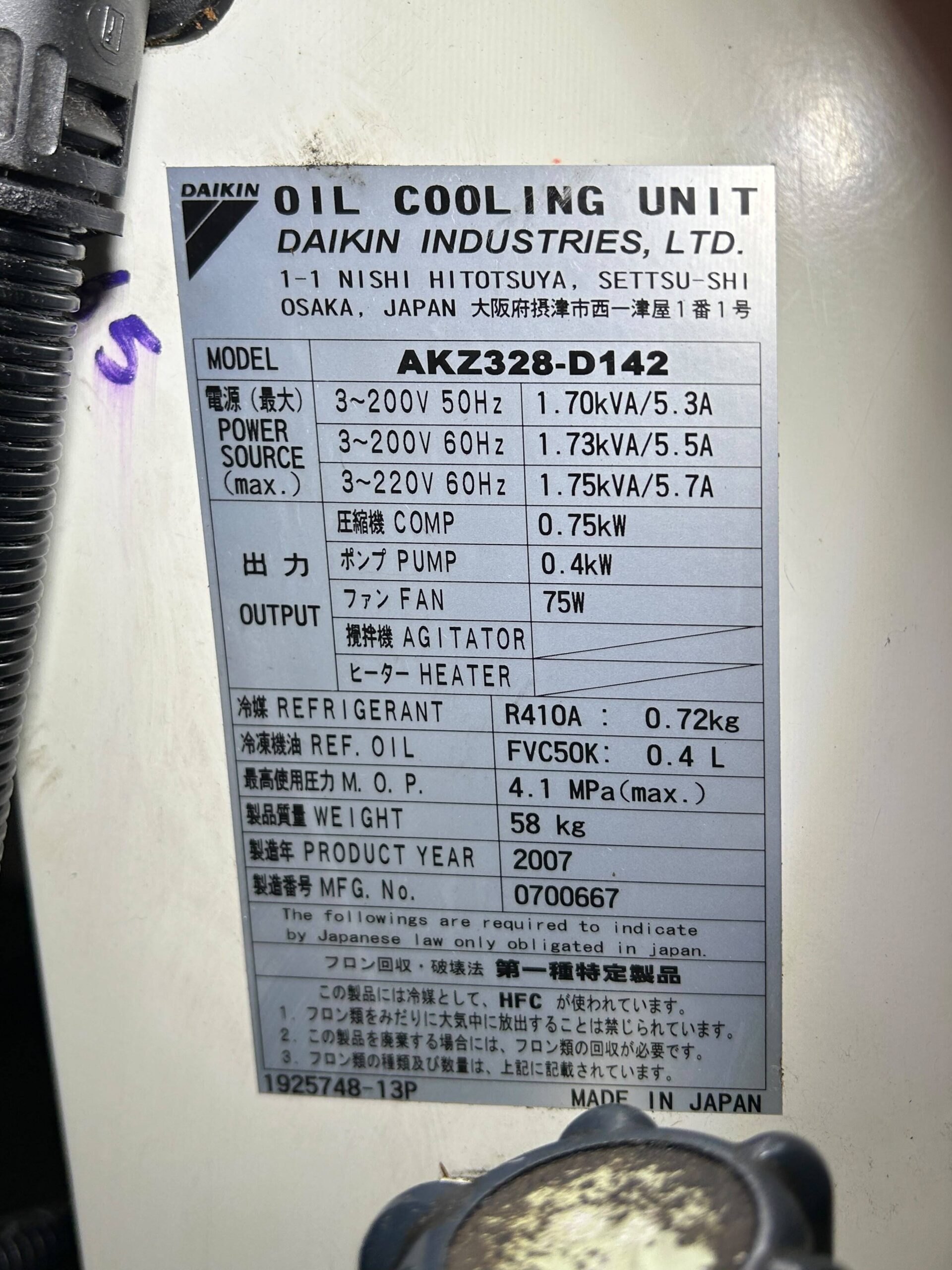

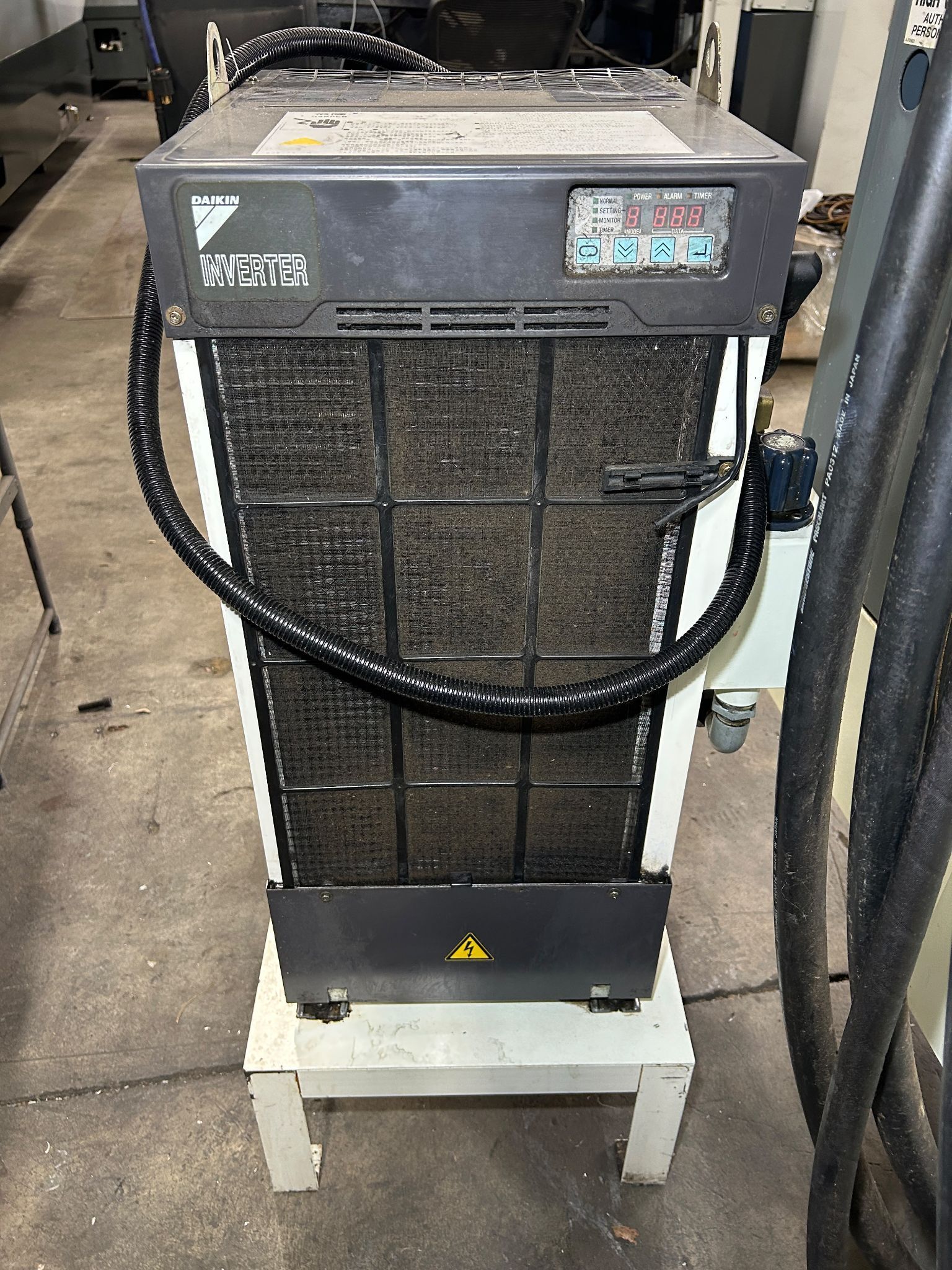

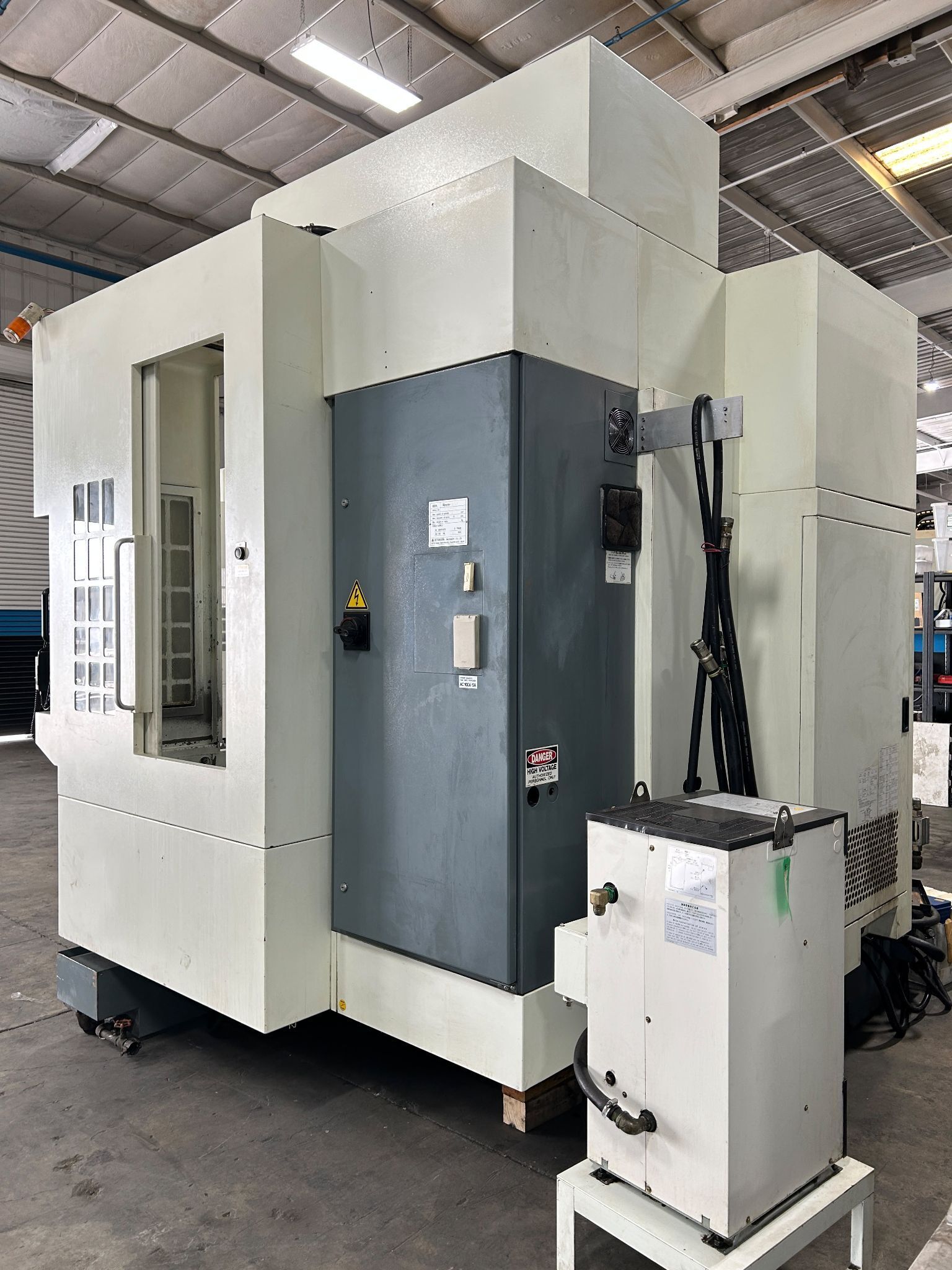

| Daikin AKZ328-D142 Oil Cooling Unit |
| Fast Rapid Traverse |
| MPG Handwheel Control |
| Coolant Tank |

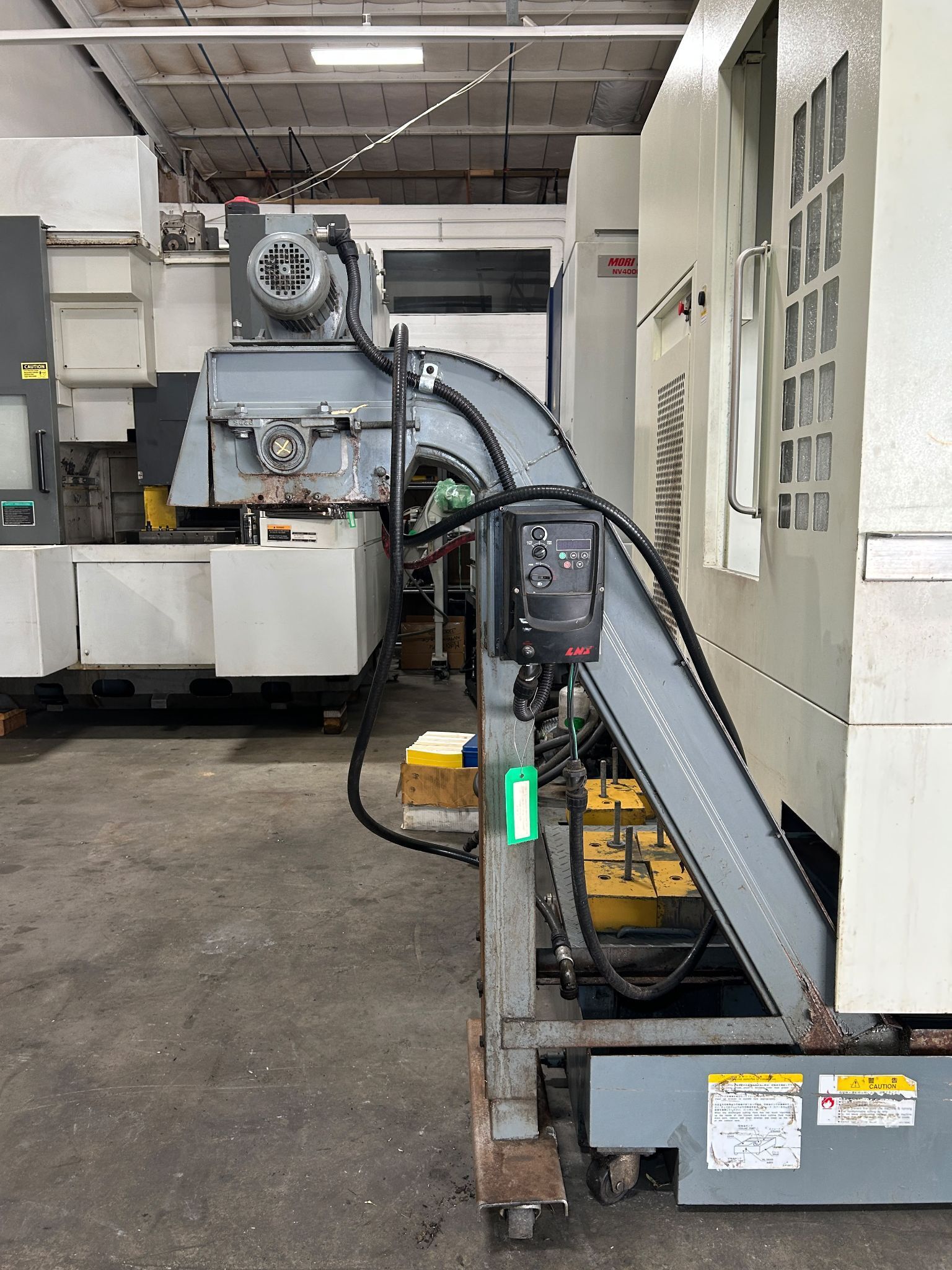

| Chip Conveyor |
| Books and Manuals |

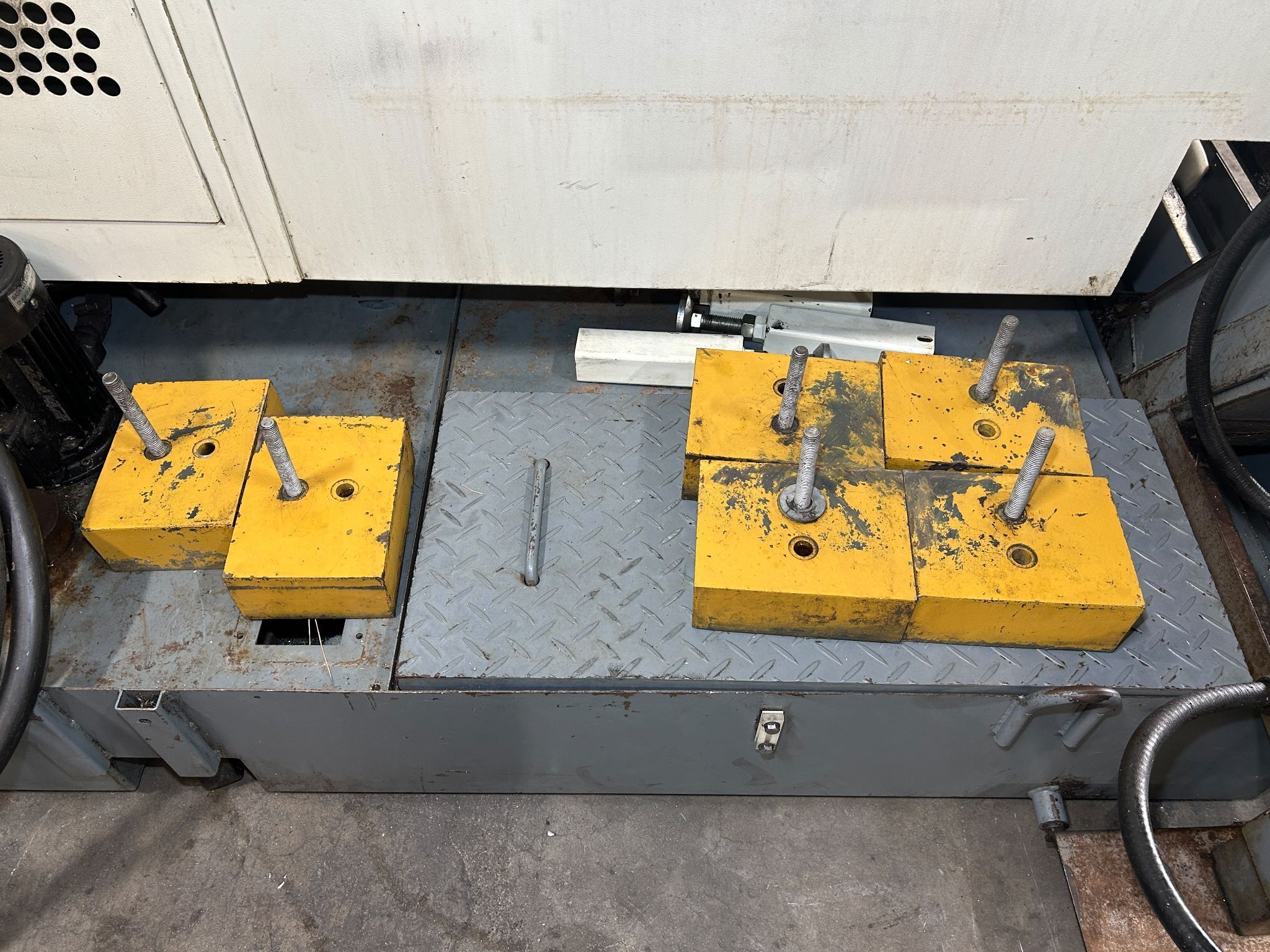

| Levelling Pads |
| Travel: |
|---|
| X-Axis: 20.07 inch |
| Y-Axis: 13.97 inch |
| Z-Axis: 18.11 inch |
| Spindle Nose to Table (Min.-Max.): 6.3 inch – 24.4 inch |
| Rapid Traverse X Axis: 1,969 IPM |
| Rapid Traverse Y Axis: 1,969 IPM |
| Rapid Traverse Z Axis: 1,417 IPM |

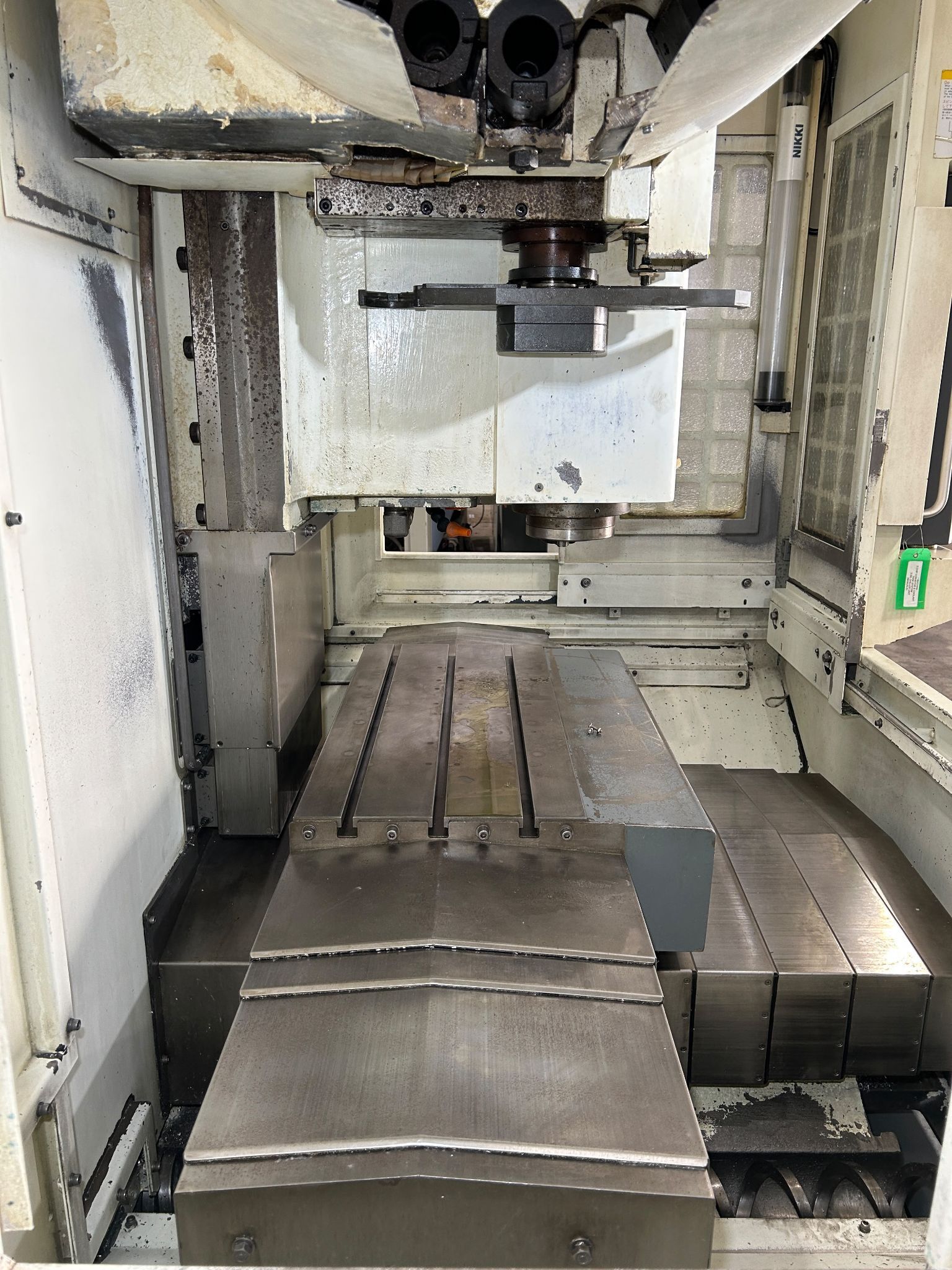

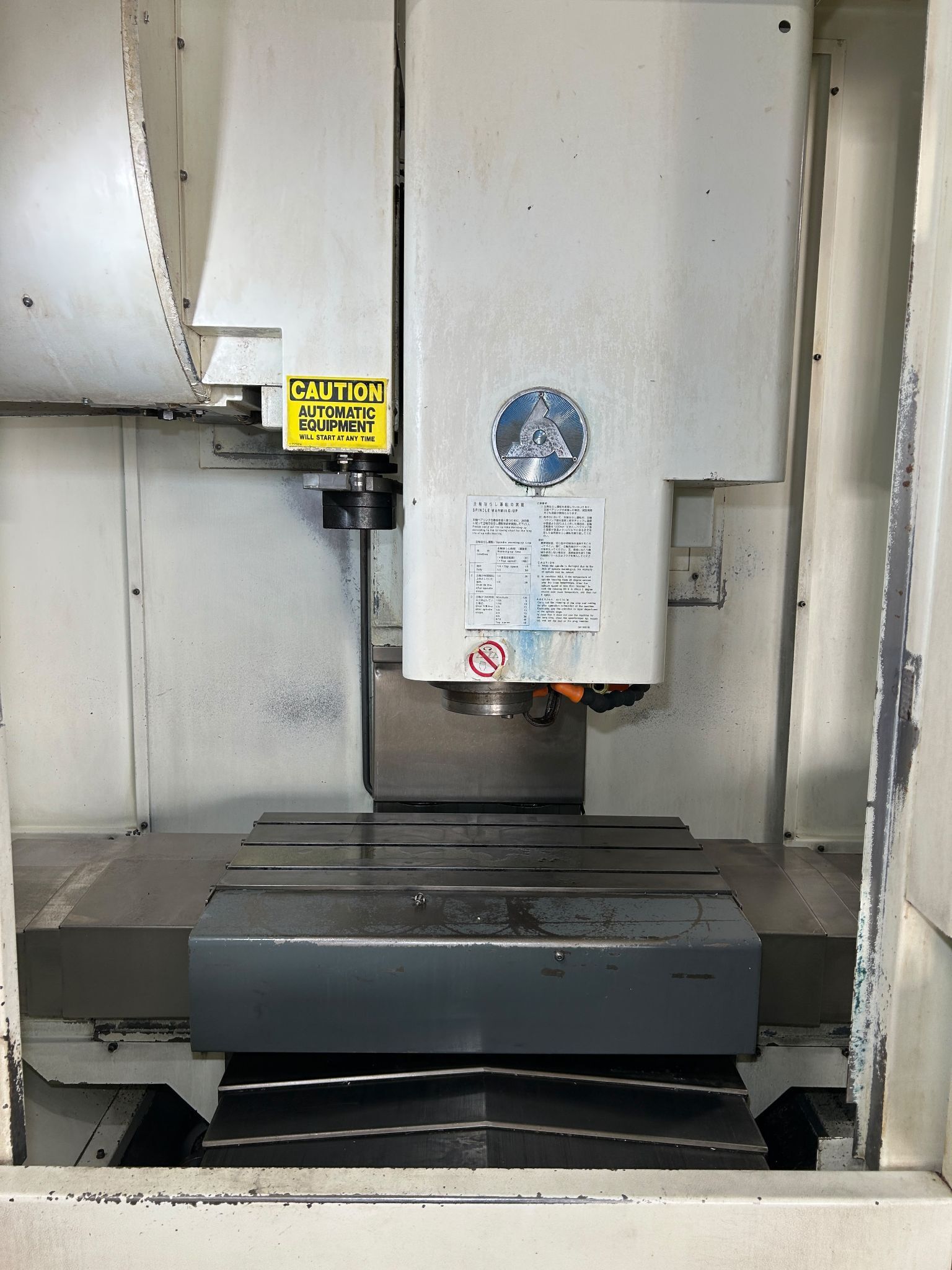

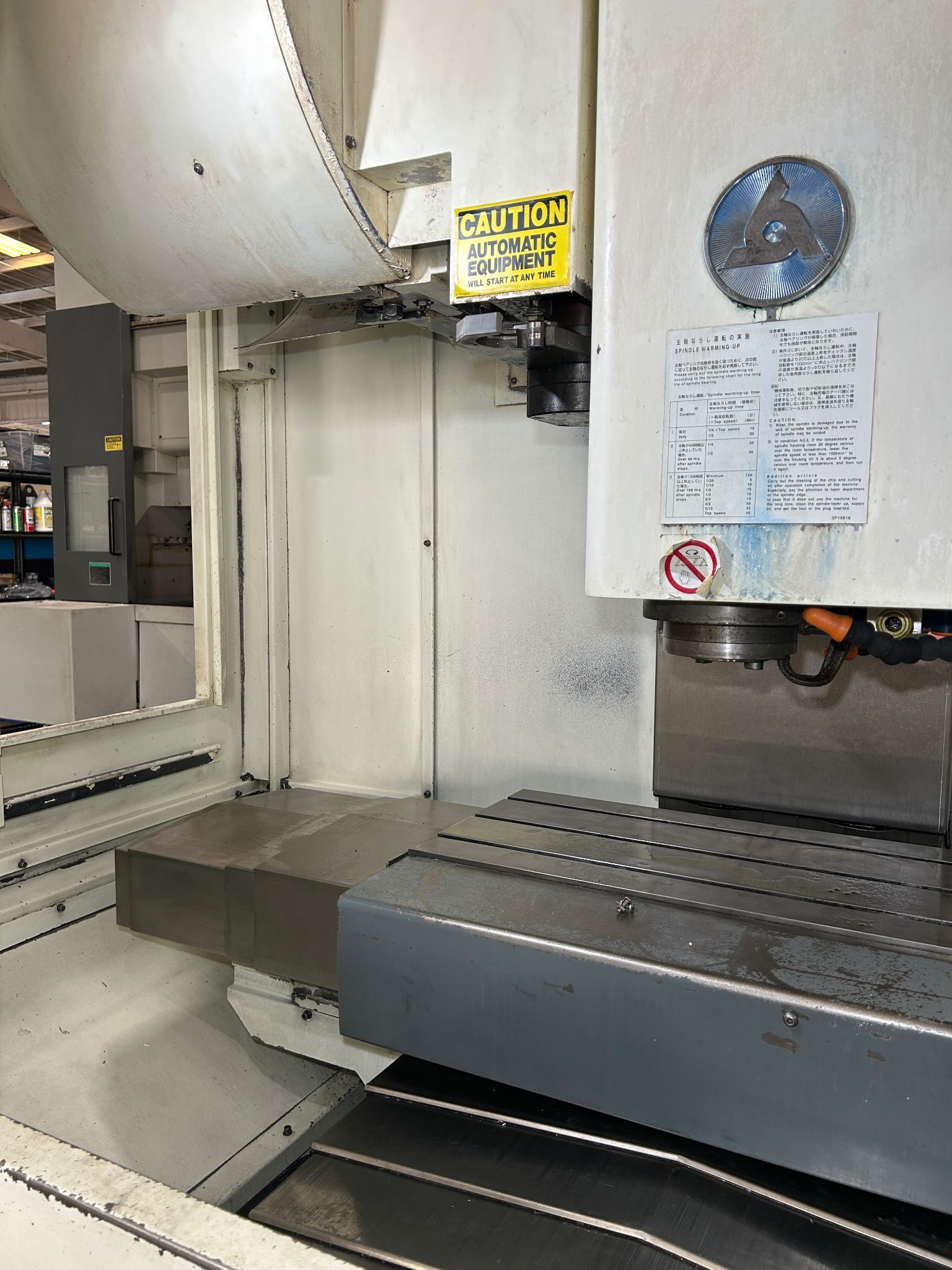

| Table: |
|---|
| Length: 30.94 inch |
| Width: 13.97 inch |
| Number of T-Slots: 3 |
| Max Weight on Table: 529.2 lbs |

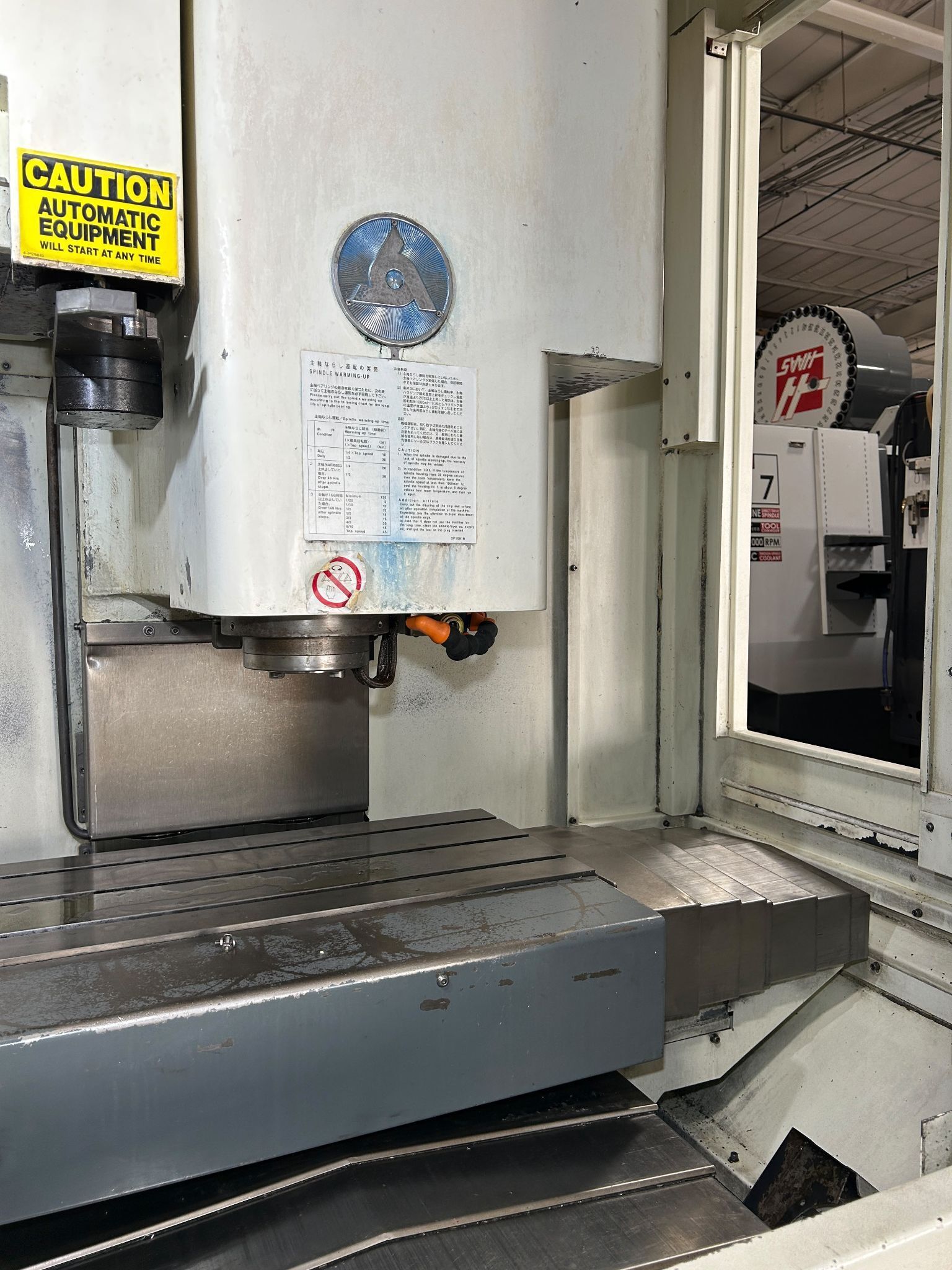

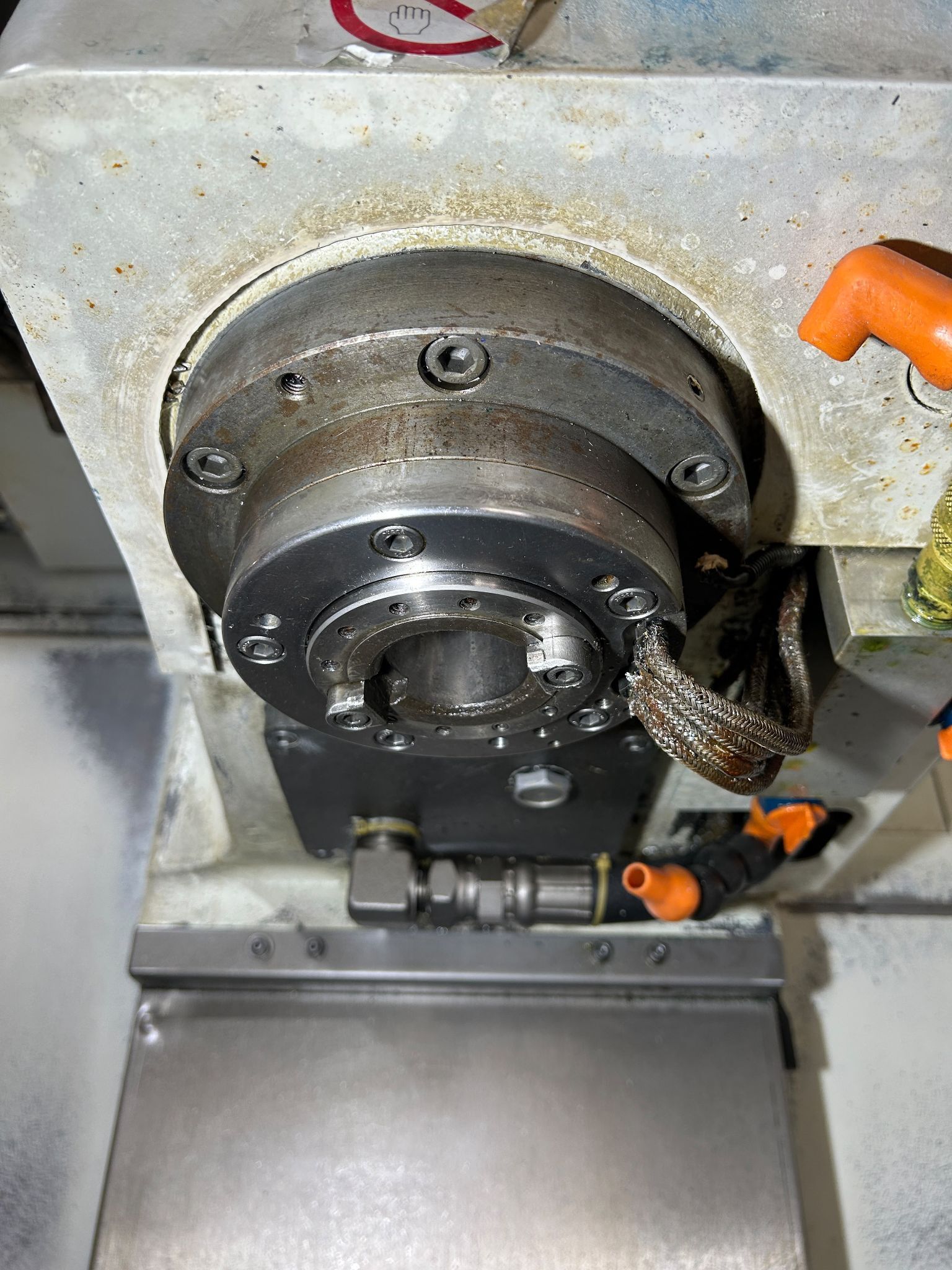

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 20,000 RPM |
| Spindle Power: 15 HP |

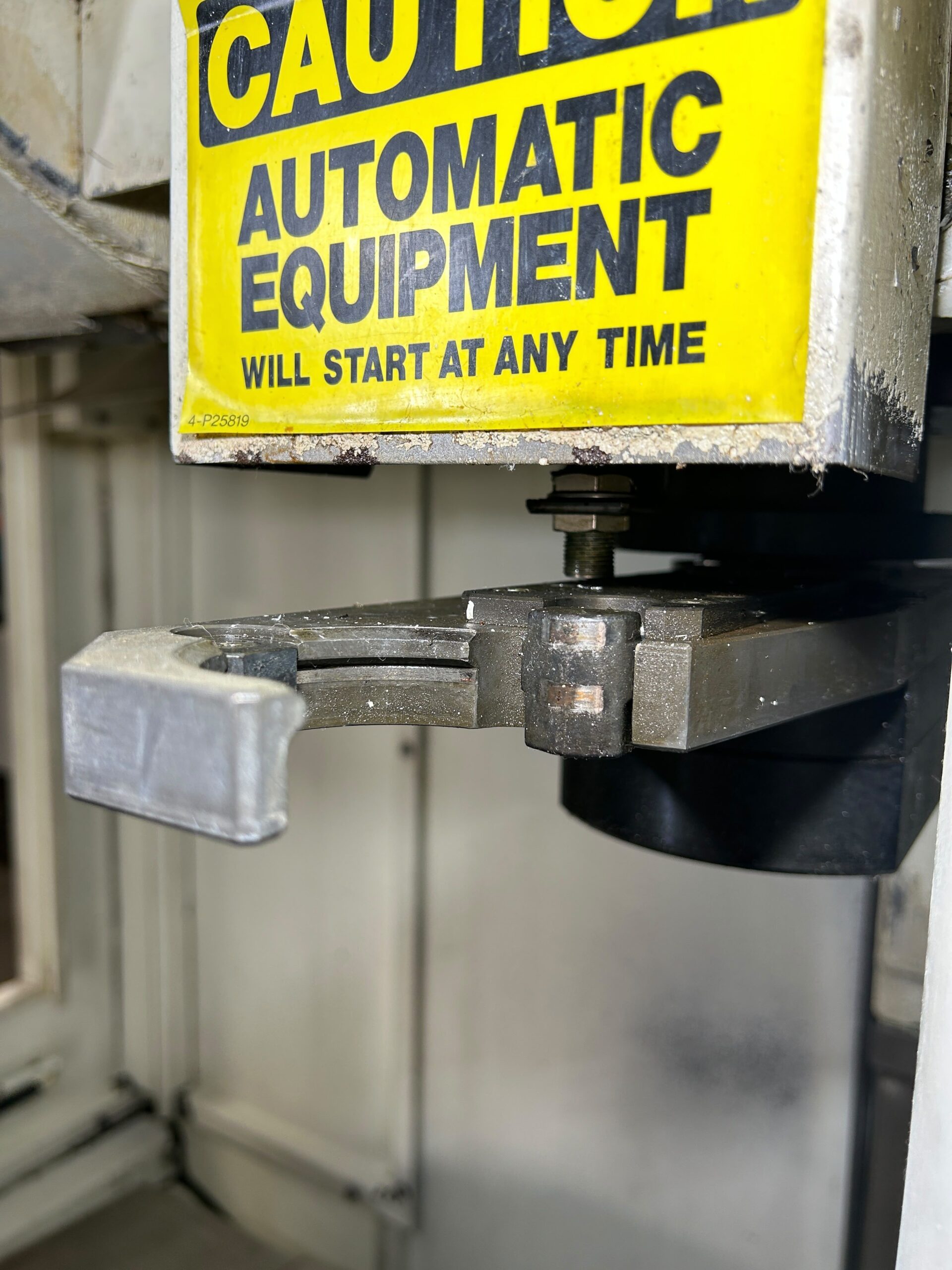

| Automatic Tool Changer: |
|---|
| Capacity: 24 Tools |
| Max Tool Weight: 17.63 lbs |
| Max Tool Diameter: 3.14 inch |
| Max Tool Length: 18.1 inch |
| General: |
|---|

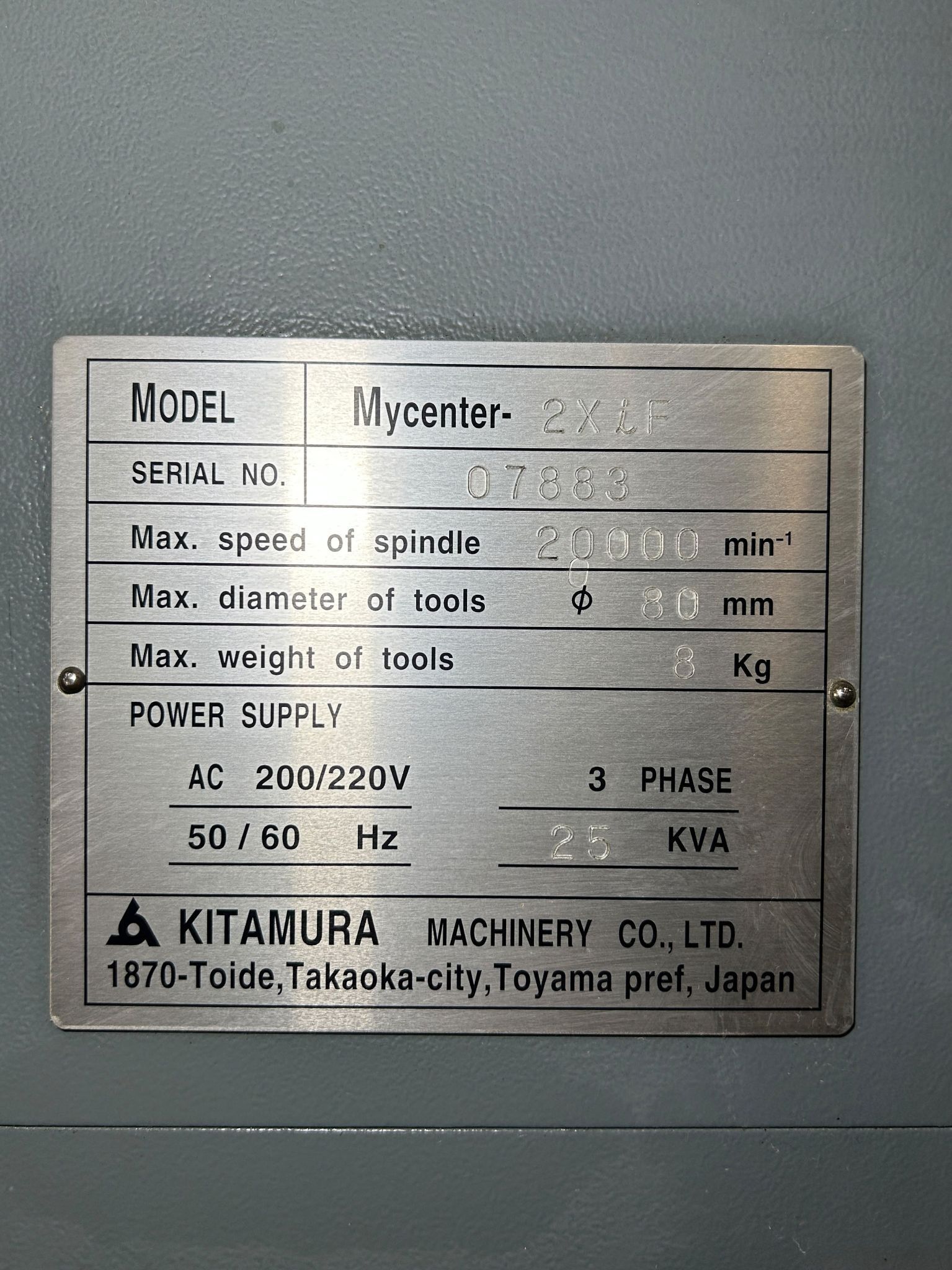

| Power: 25 kVA / 200-220V / 50-60 Hz / 3-Phase |
| Overall Dimensions: 98 inch x 93.5 inch x 111.2 inch High |
| Weight: 9,680 lbs Approx. |
