Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |
|---|

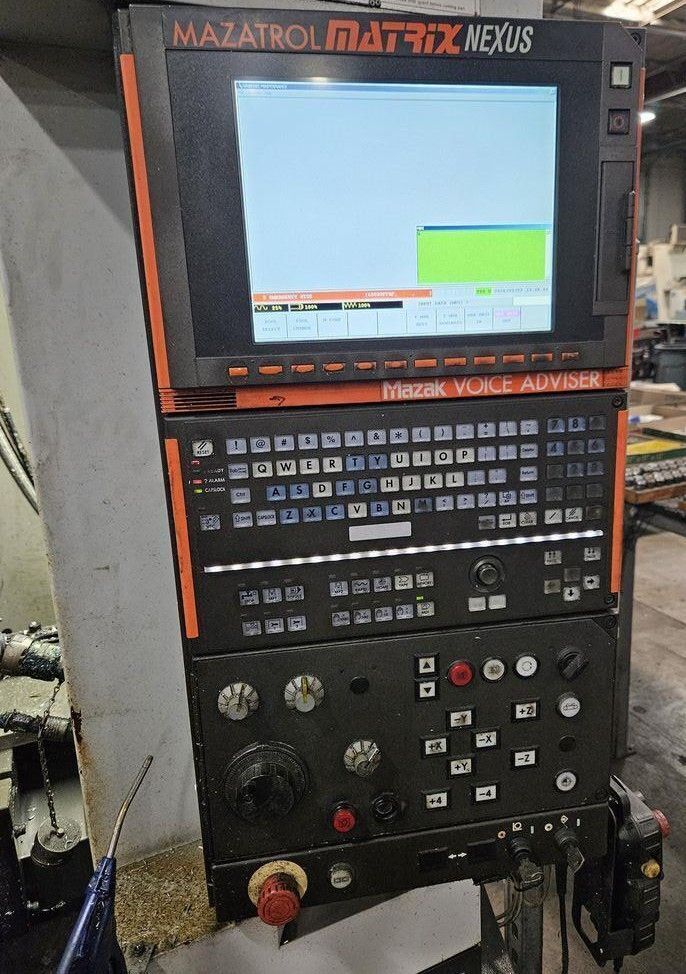

| Mazatrol Matrix Nexus CNC Control |
| 4th Axis Ready |
| 12,000 RPM High Speed Spindle |
| 30 Station Automatic Tool Changer |
| CAT-40 Taper Spindle |
| 25 HP High Torque Spindle |
| MPG Handwheel Control |
| Rigid Tapping |
| Coolant Tank |
| Chip Conveyor |
| Note: 4th Axis Rotary Table Is Not Included with the Machine |
| Travels: |
|---|
| X-Axis: 41.3 inch |
| Y-Axis: 20.8 inch |
| Z-Axis: 20.8 inch |
| Rapid Traverse Rates Axis: 1,417 IPM |
| Cutting Feed Rates: 787 IPM |
| Spindle Nose to Table (Min.-Max.): 5.9 inch – 26 inch |

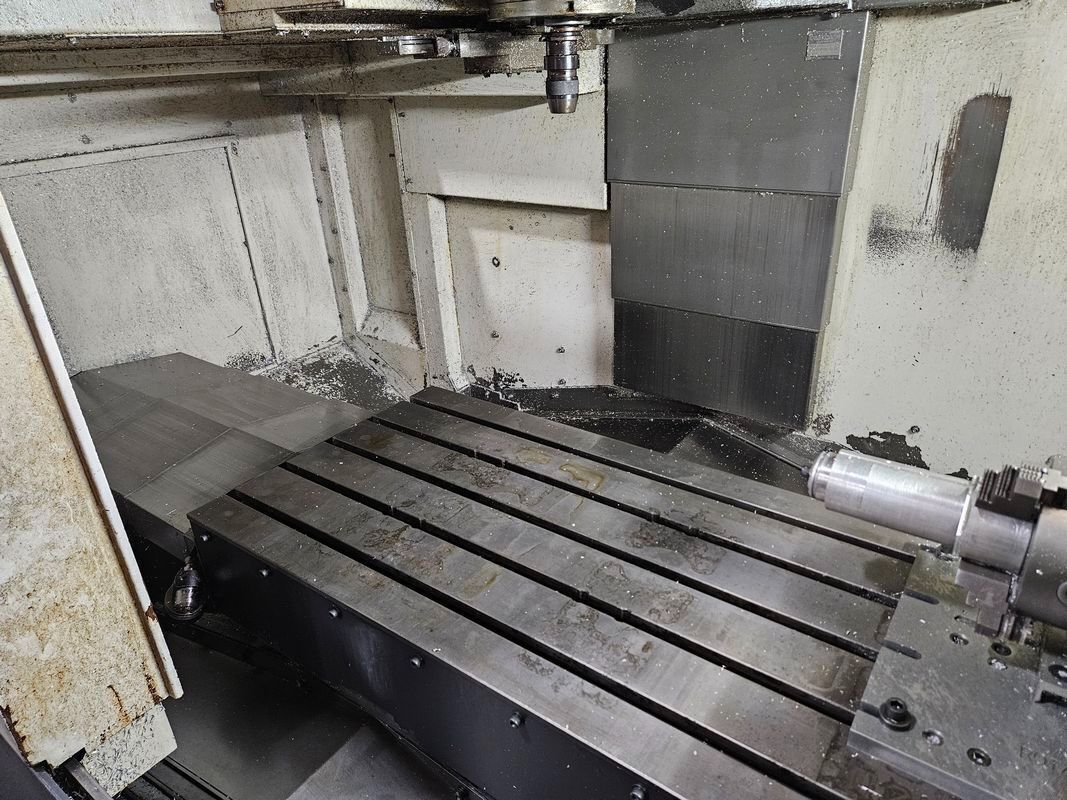

| Table: |
|---|
| Length: 51.18 inch |
| Width: 21.65 inch |
| Number of Standard T-Slots: 5 |
| T-Slot Width: 5/8 inch |
| Max Weight on Table: 2,646 lbs |

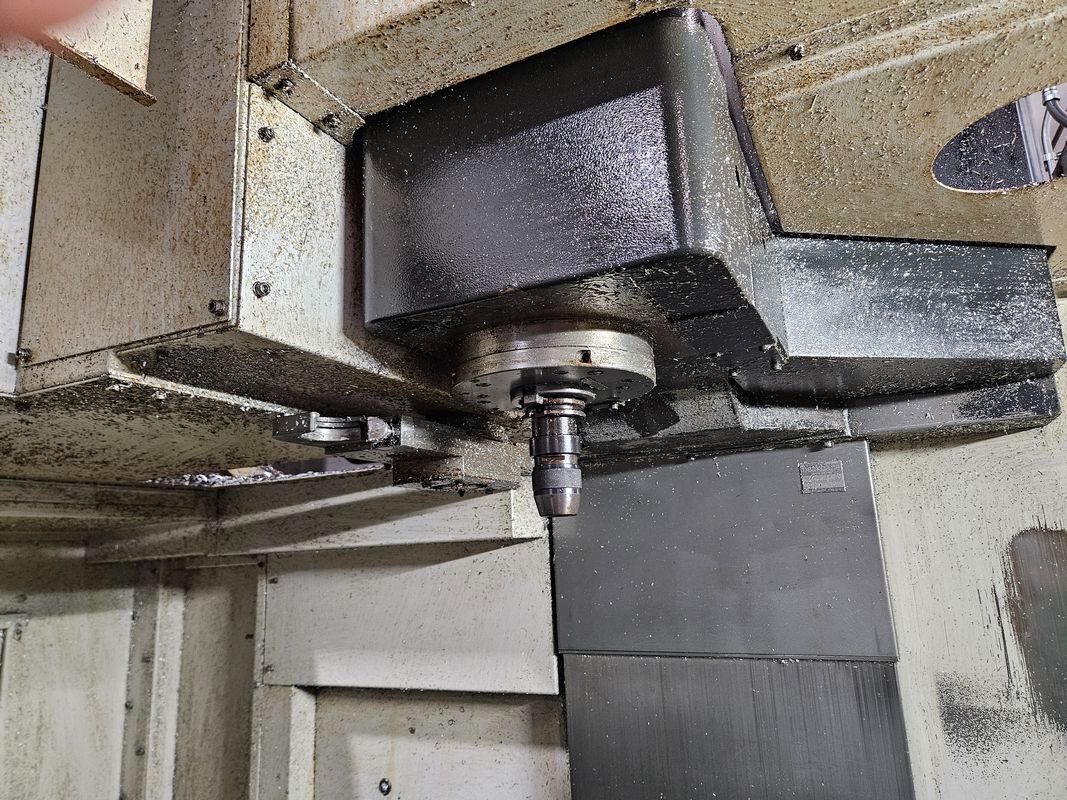

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 12,000 RPM |
| Spindle Type: Direct Drive |
| Spindle Power: 25 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Station Side Mounted |
| Max Tool Weight: 13.78 lbs |
| Max Tool Diameter: 3.15 inch |
| Max Tool Length: 13.78 inch |
| Tool Changing Time: 1.3 Seconds |
| General: |
|---|
| Air Required: 80 PSI, 4 SCFM |

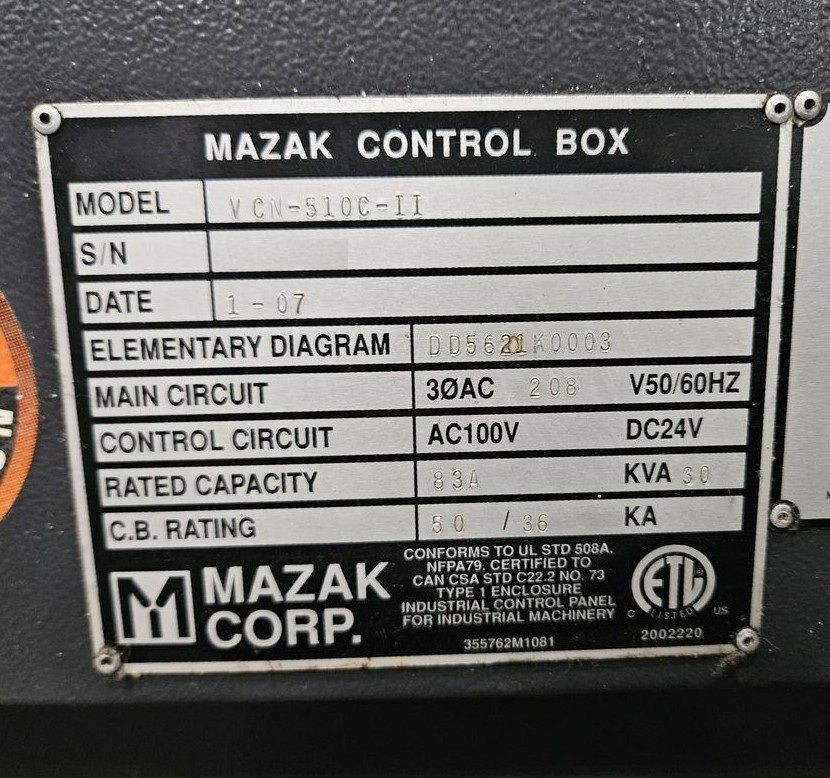

| Power: 220V / 30 kVA / 3-Phase |
| Overall Dimensions: 120 inch x 112 inch x 114 inch High |
| Weight: 15,200 lbs |
