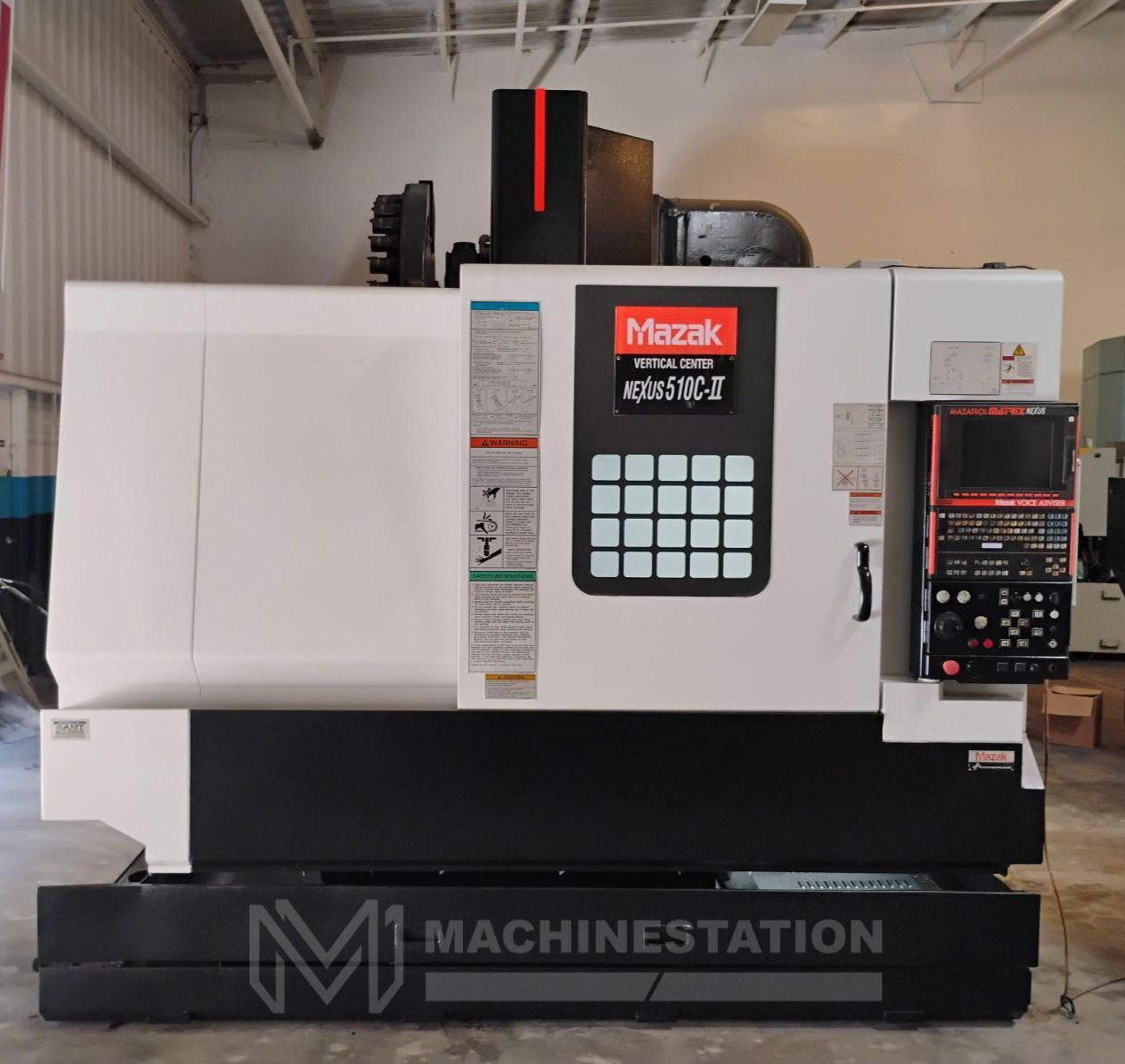

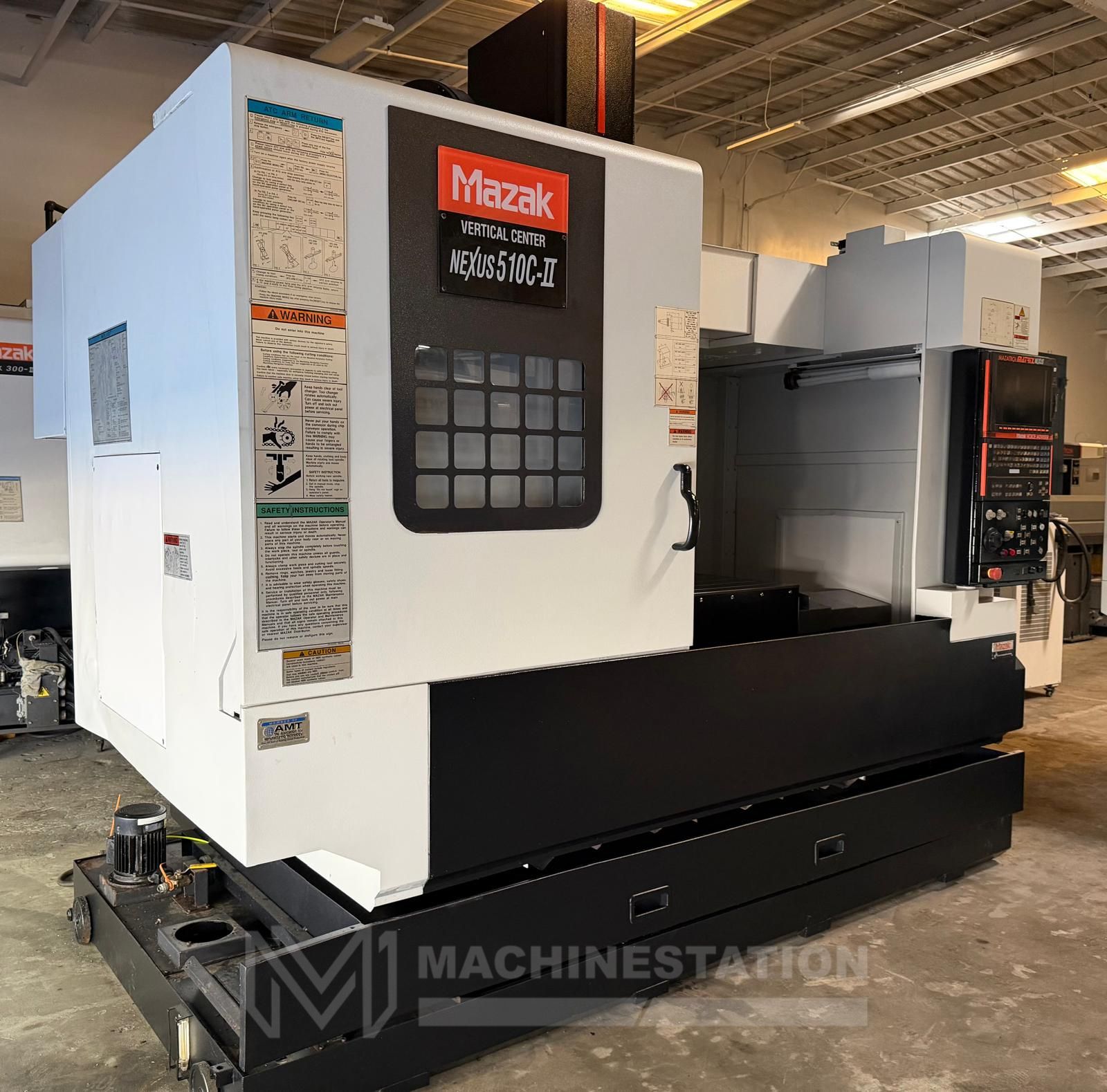

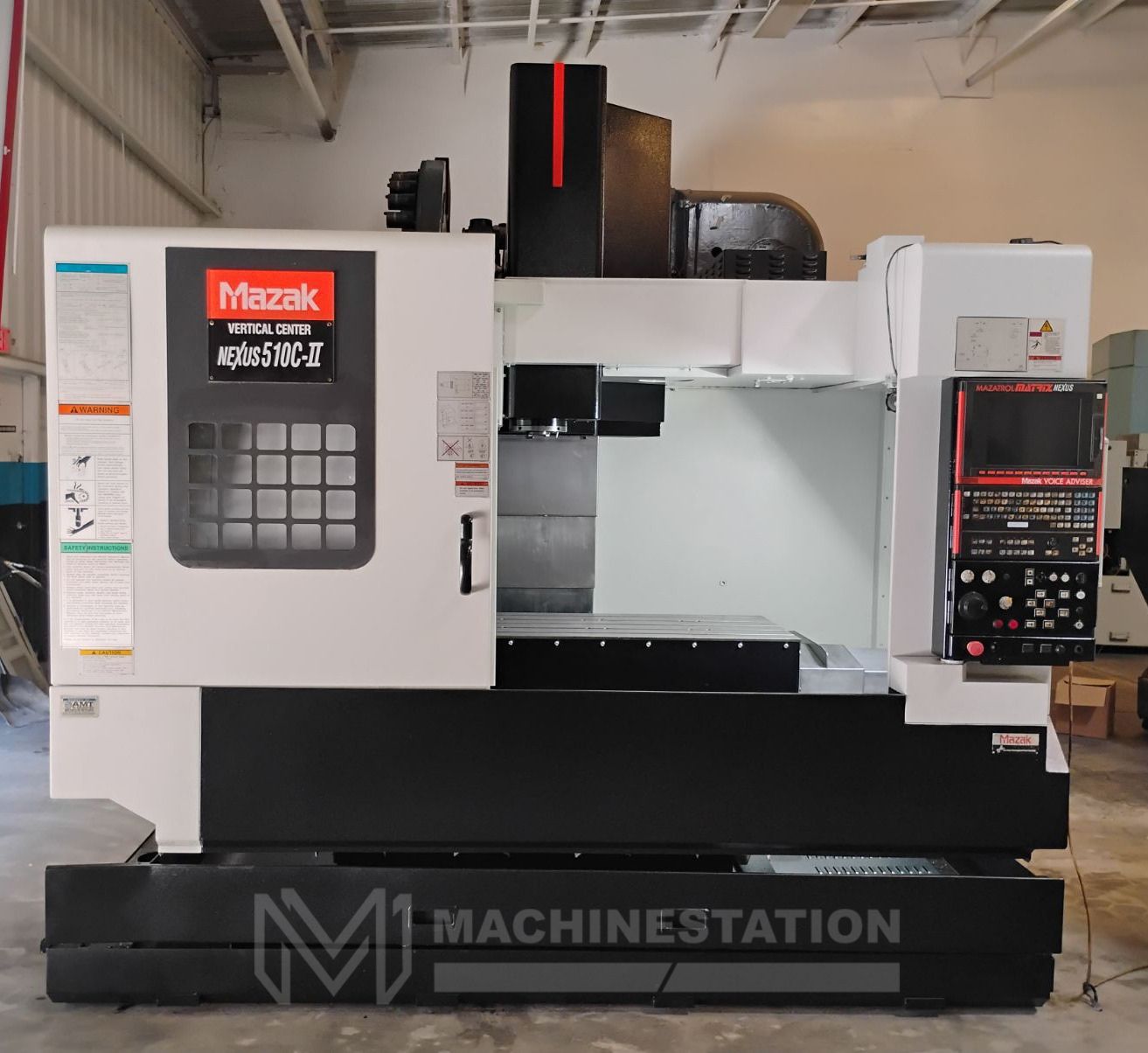

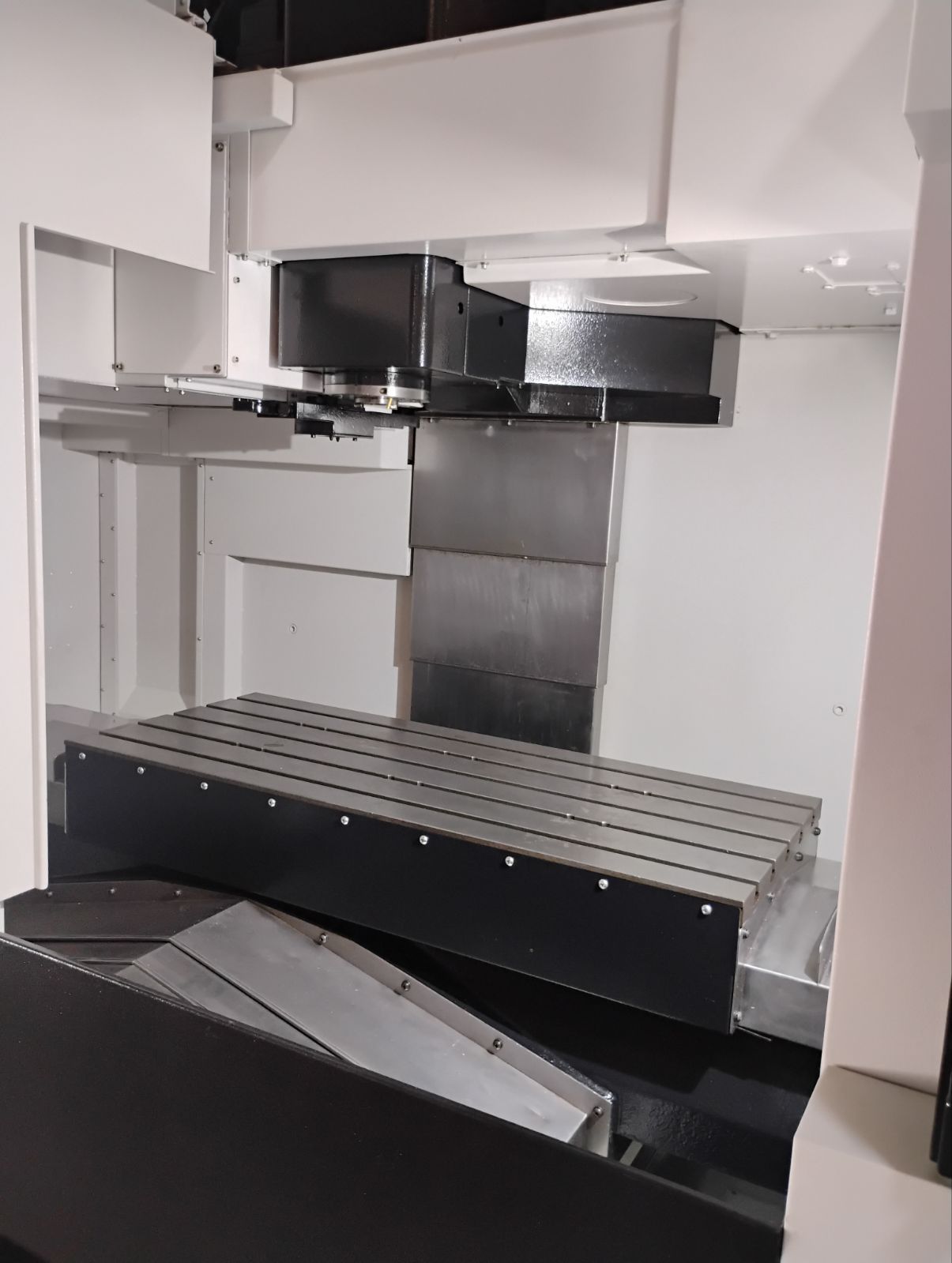

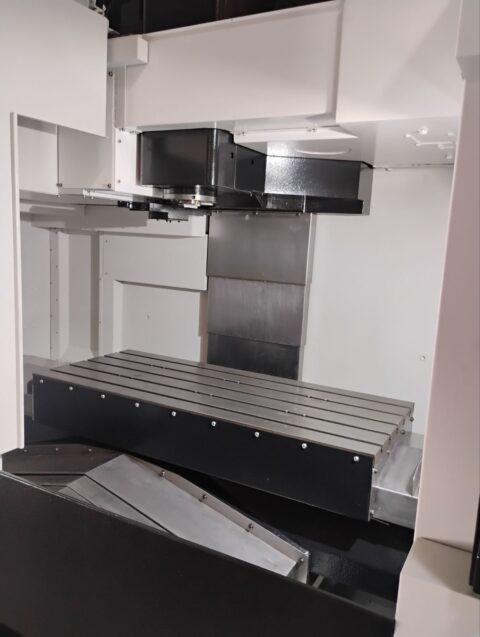

Used Mazak VCN 510C-II CNC Vertical Machining Center

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:	112978
Make:	Mazak
Model No.:	VCN 510C-II
Year of Manufacture:	2006
Condition:	Used – Good

Equipped With:

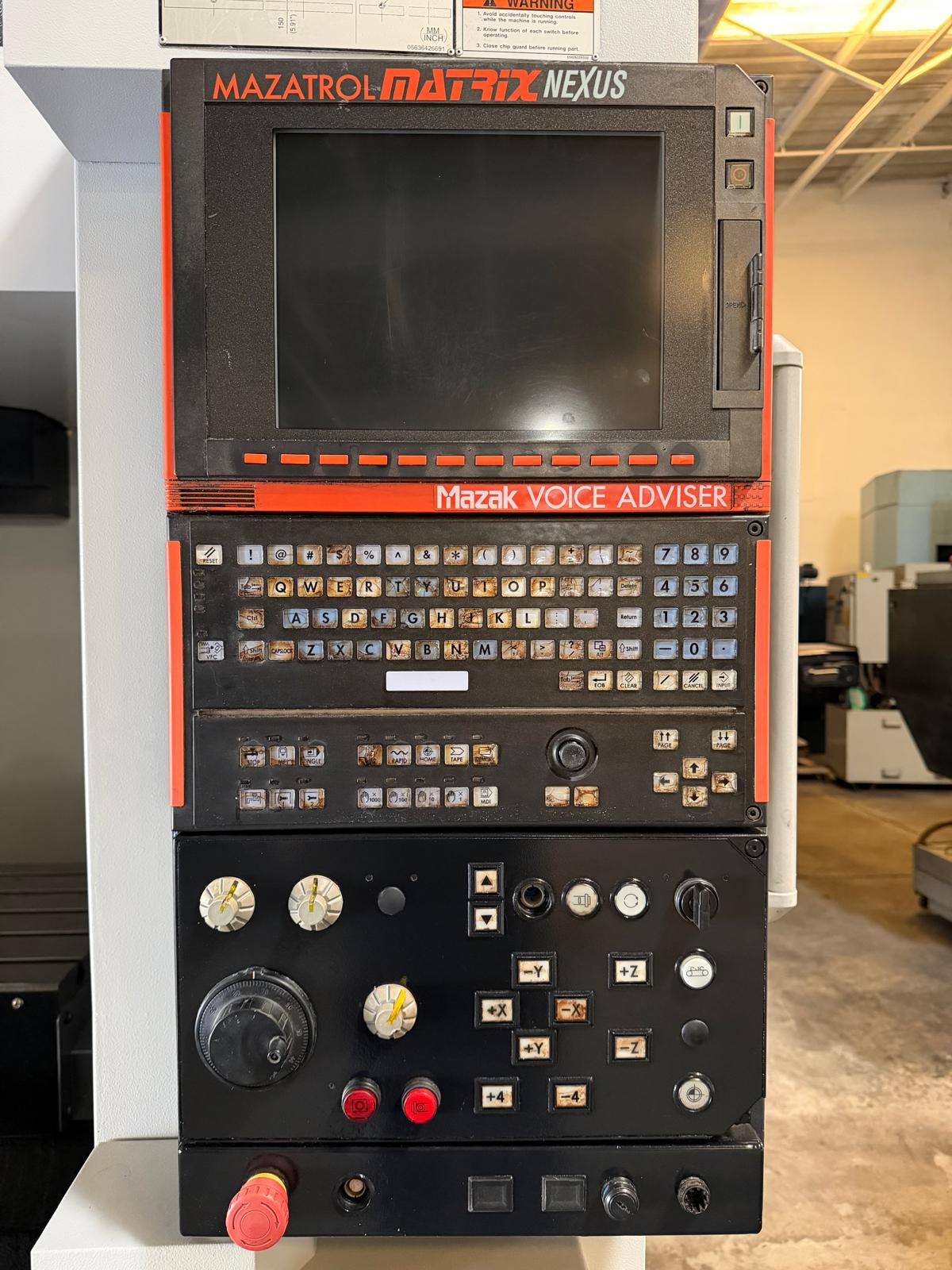

Mazatrol Matrix Nexus CNC Control
12,000 RPM High Speed Spindle
30 Station Automatic tool changer
CAT-40 Taper Spindle
25 HP High Torque Spindle
Automatic Lubrication System
Rigid Tapping

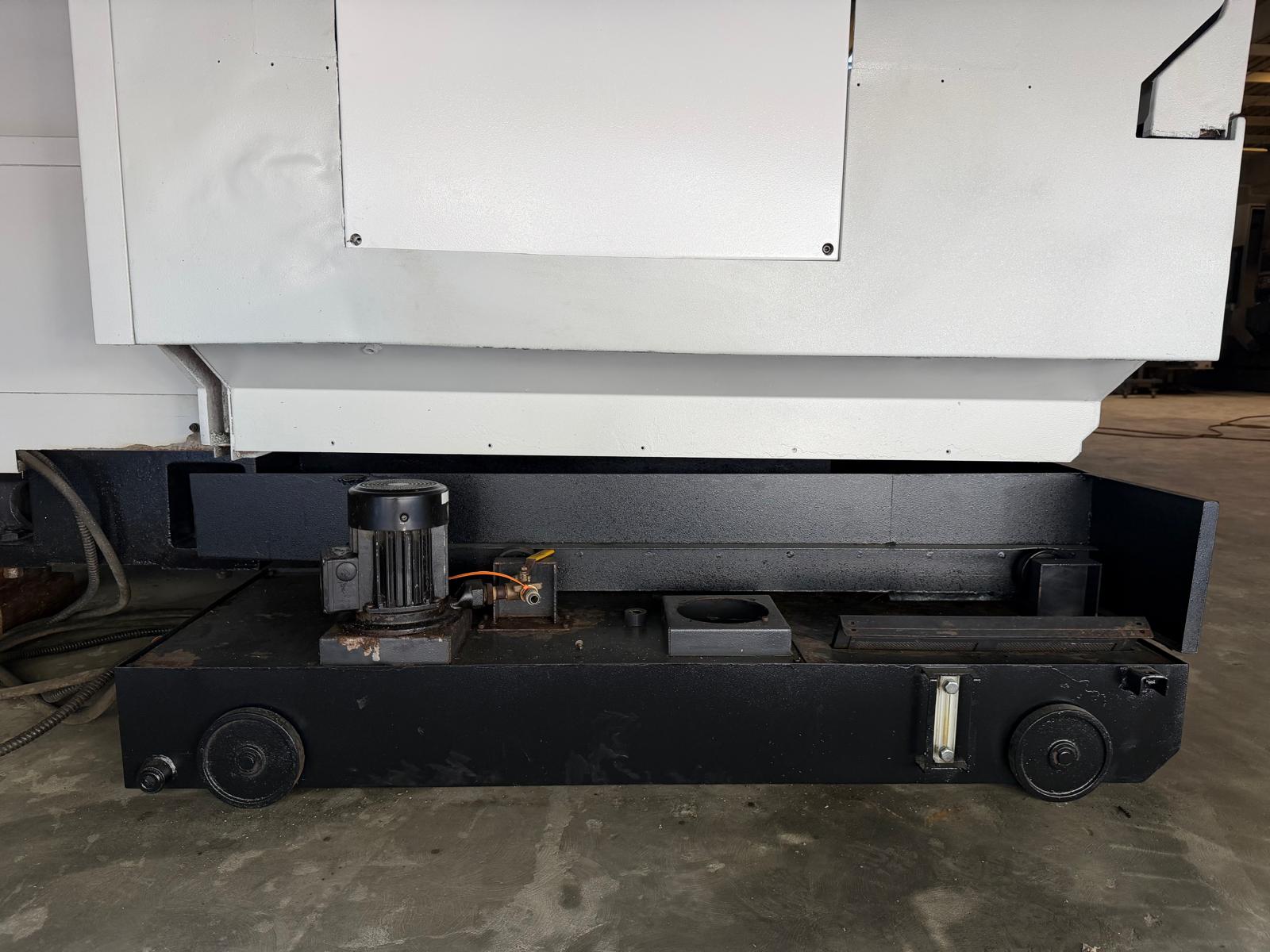

Coolant System

Travels:
X-Axis: 41.3″
Y-Axis: 20.8″
Z-Axis: 20.8″
Rapid Traverse Rates Axis: 1417 IPM
Cutting Feed Rates: 787 IPM
Spindle Nose to Table (Min.- Max.): 5.9″ – 26″

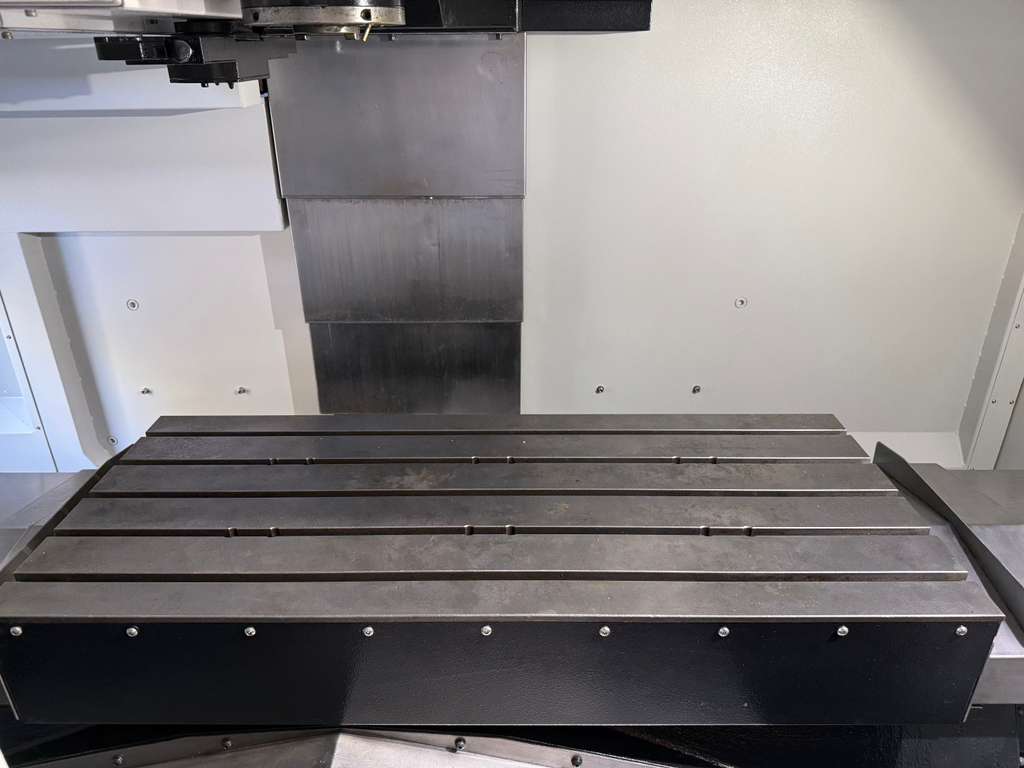

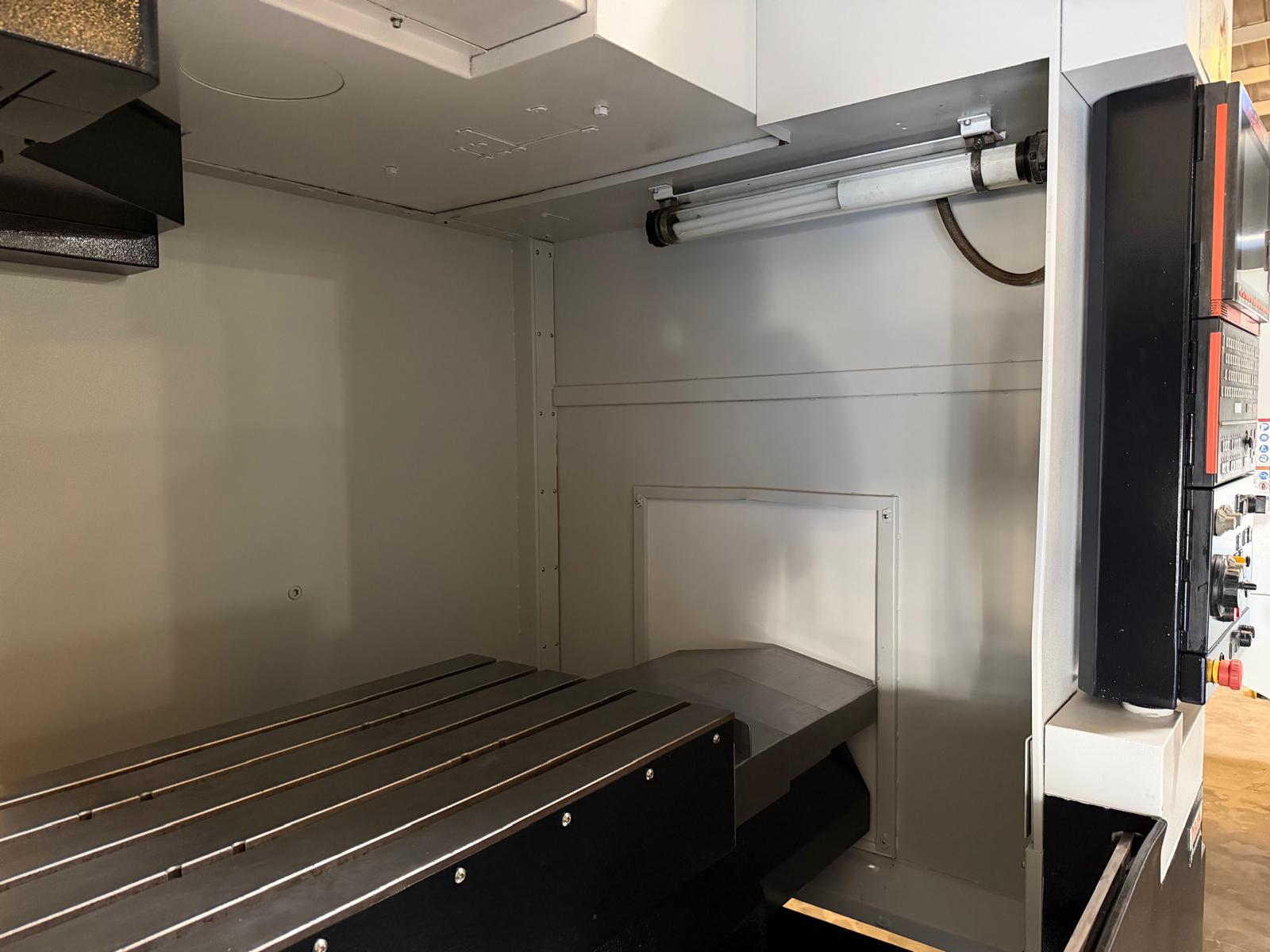

Table:
Length: 51.18″
Width: 21.65″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 2646 lbs

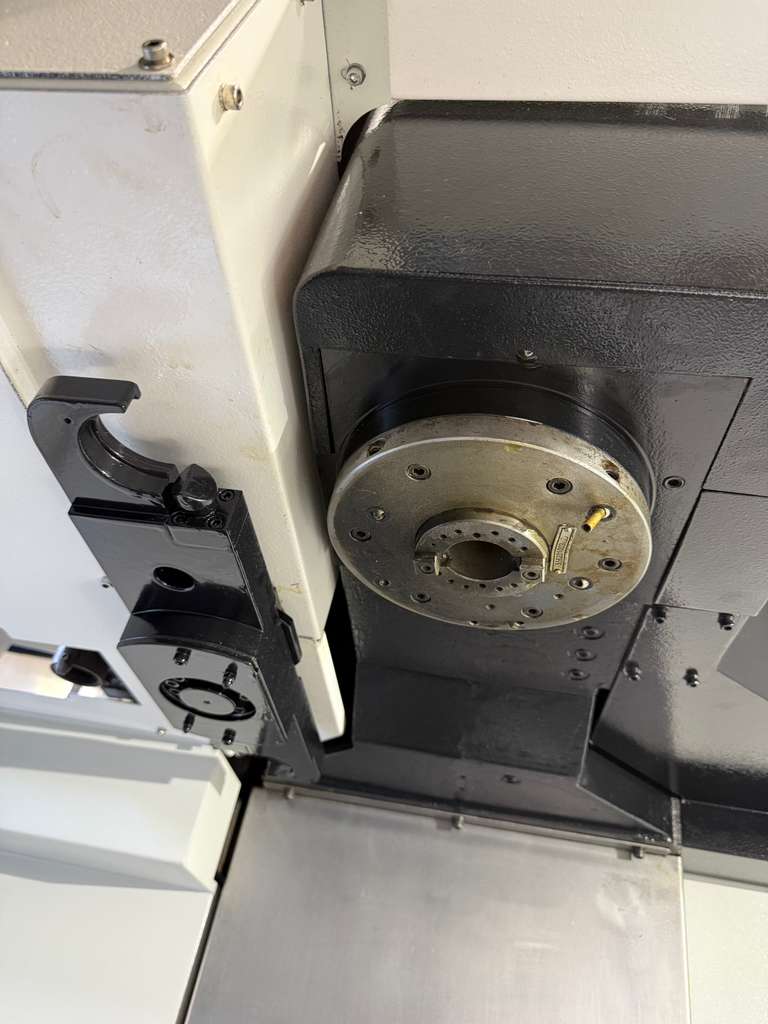

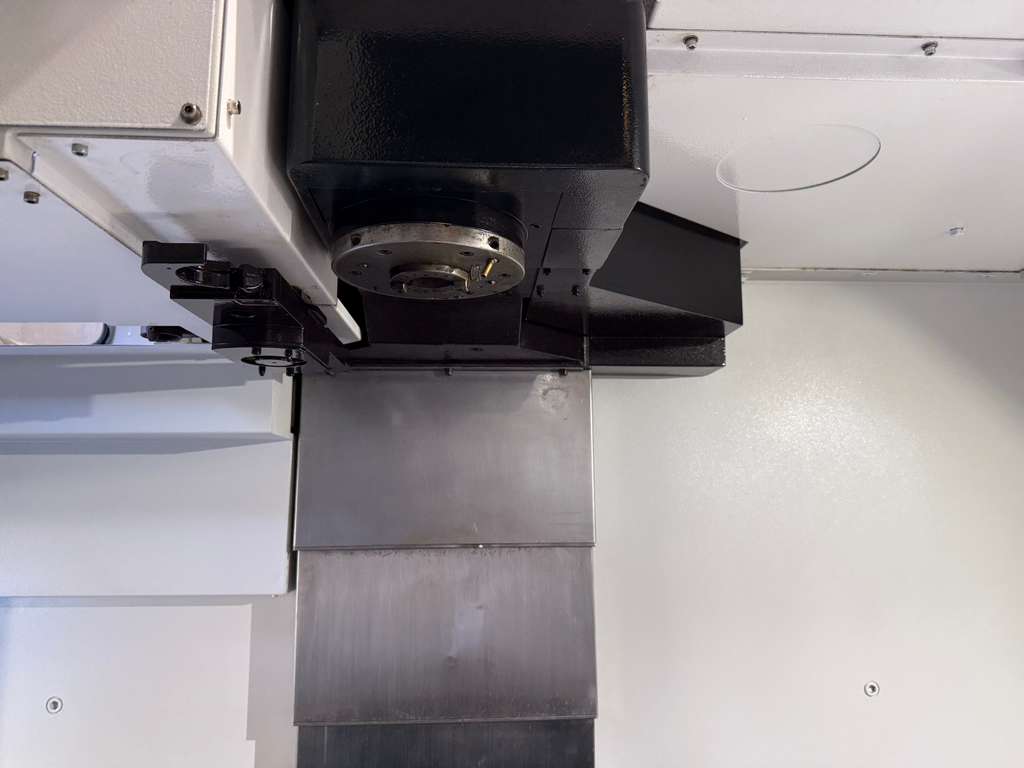

Spindle:
Taper Size: CAT-40
Speed Range: 12000 RPM
Spindle Type: Direct Drive
Spindle Power: 25 HP

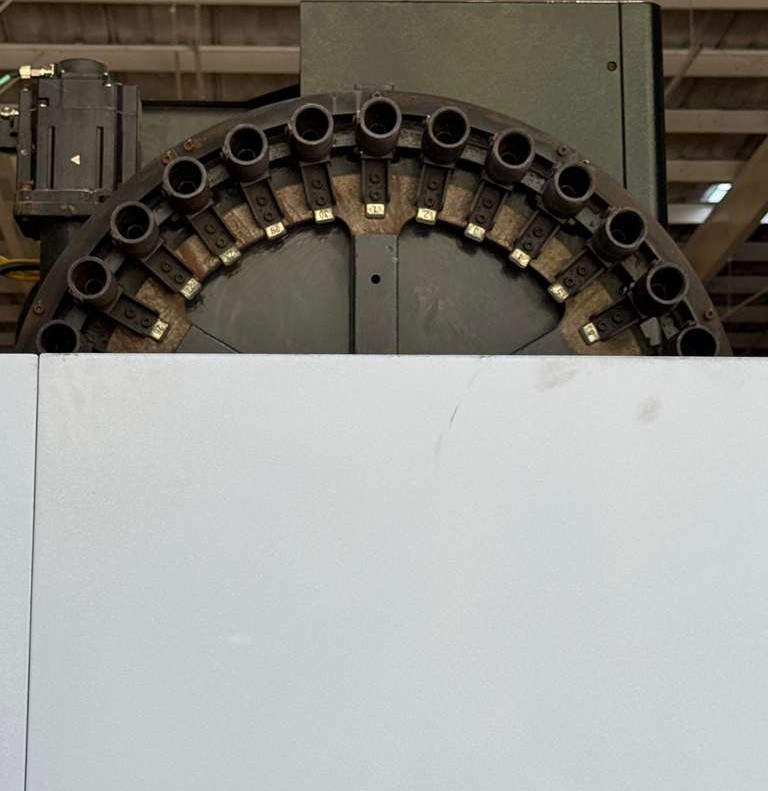

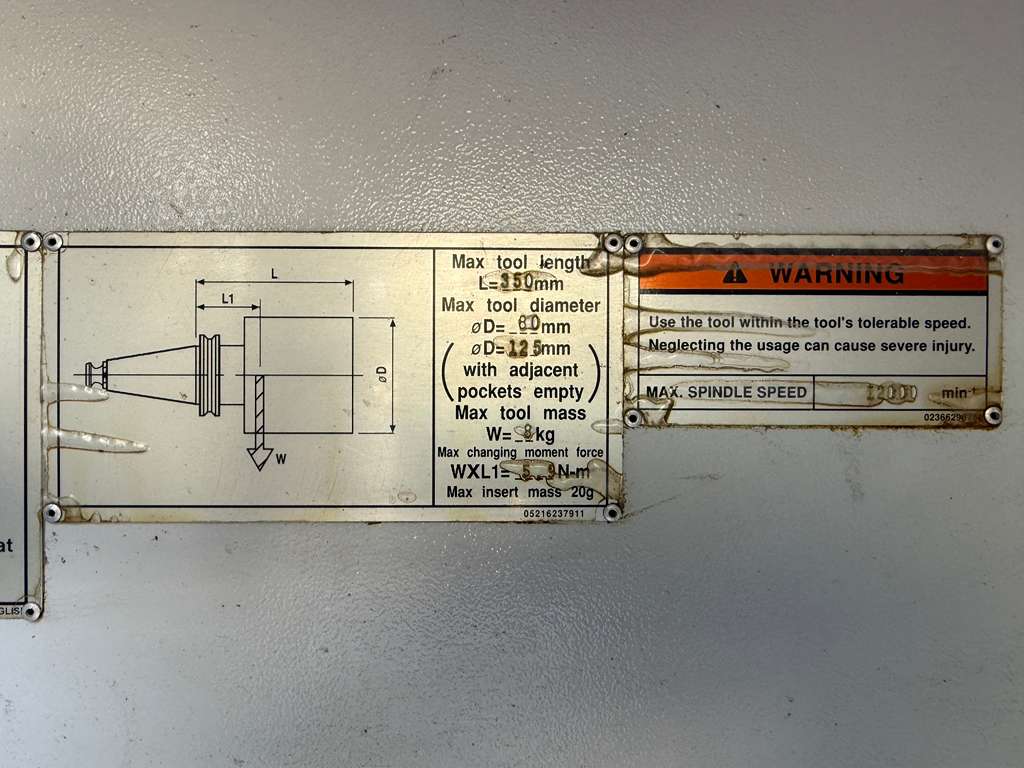

Automatic Tool Changer:
Capacity: 30 Station Side Mounted

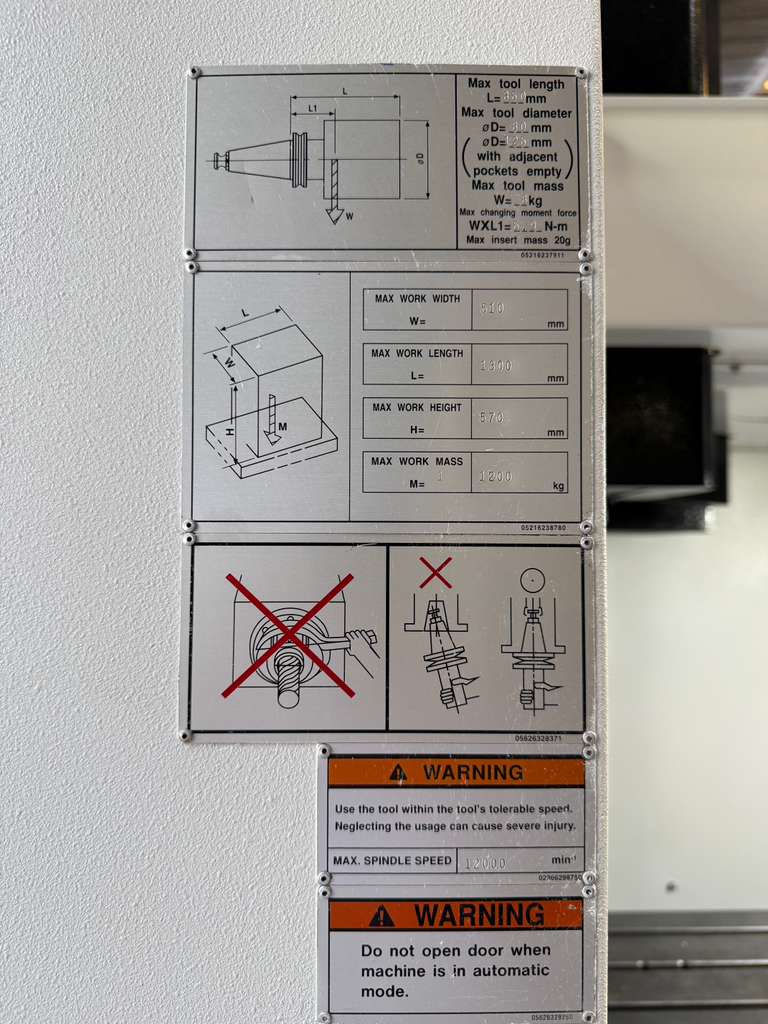

Max Tool Weight: 13.78 lbs
Max Tool Dia: 3.15″
Max Tool Length: 13.78″
Tool Changing Time : 1.3 Seconds

General:
Air Required: 80 psi, 4 scfm

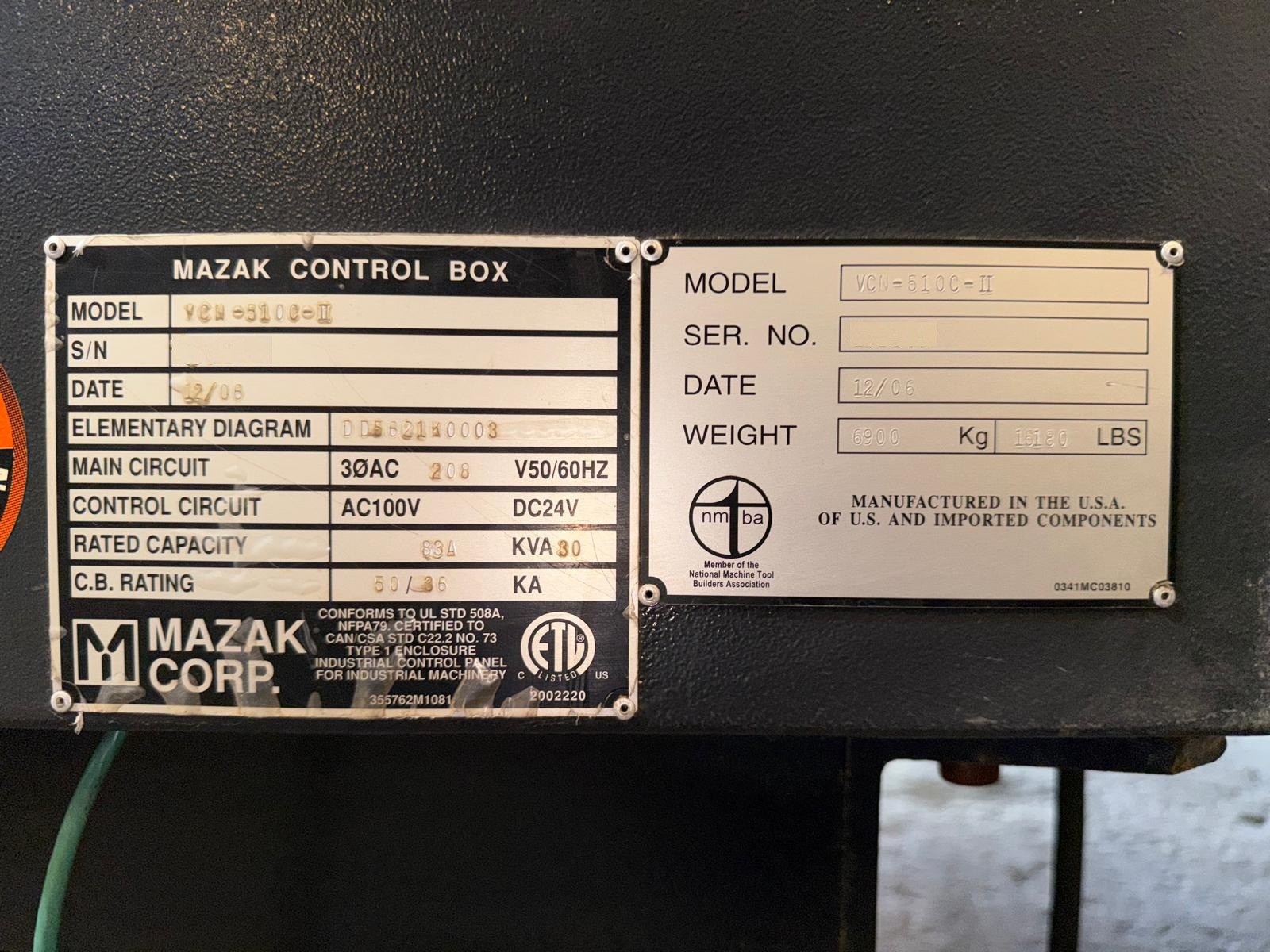

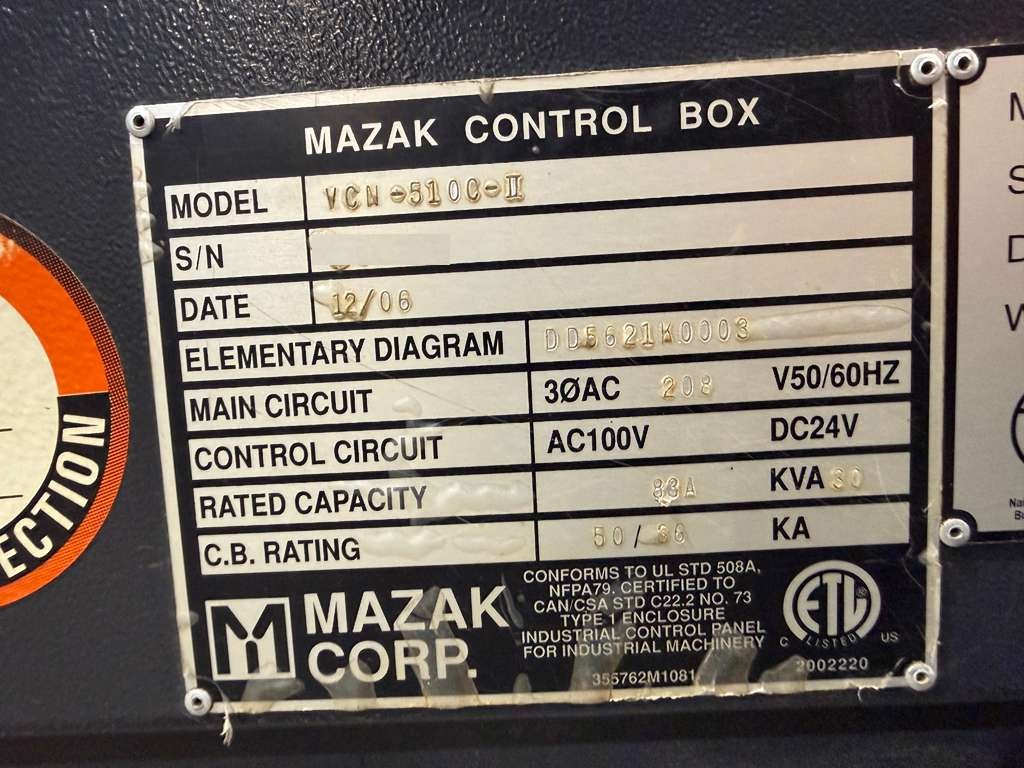

Power: 220v / 30 kva / 3-Phase
Overall Dimensions: 120″ x 112″ x 114″ High

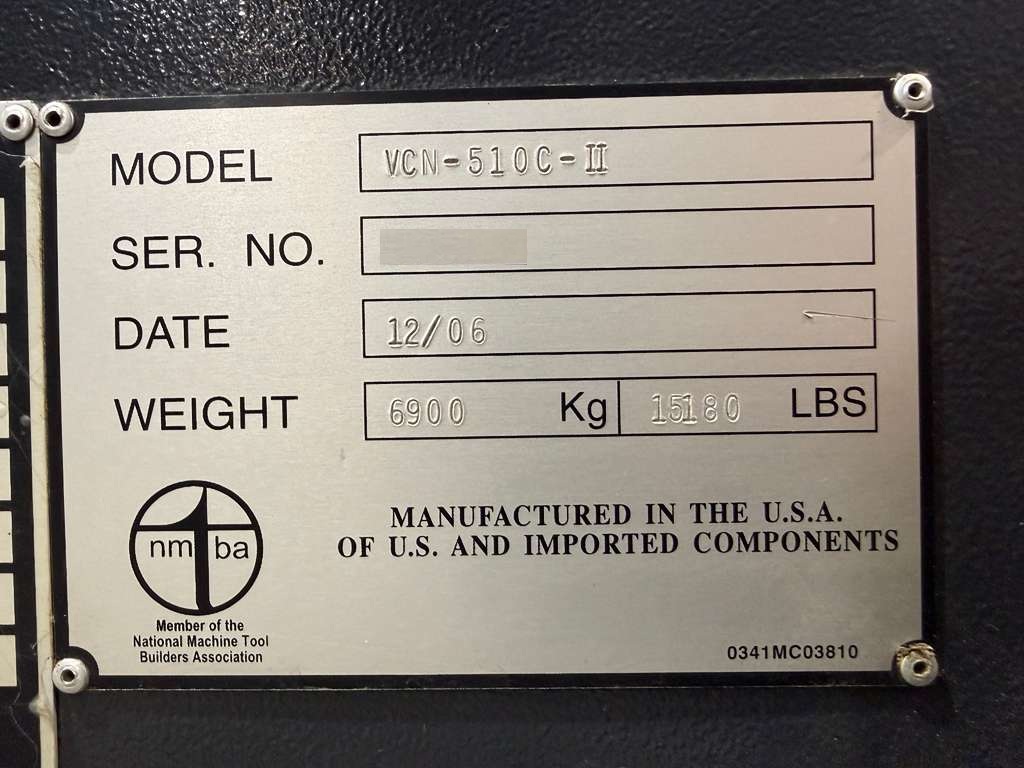

Weight: 15,200 lbs

Equipped With:
Mazatrol Matrix Nexus CNC Control
12,000 RPM High Speed Spindle
30 Station Automatic tool changer
CAT-40 Taper Spindle
25 HP High Torque Spindle
Automatic Lubrication System
Rigid Tapping
Coolant System

Travels:
X-Axis: 1,049 mm
Y-Axis: 528 mm
Z-Axis: 528 mm
Rapid Traverse Rates Axis: 1417 IPM
Cutting Feed Rates: 787 IPM
Spindle Nose to Table (Min.- Max.): 150 mm - 660 mm

Table:
Length: 1,300 mm
Width: 550 mm
Number of Std T-Slots: 5
T-Slot Width: 5/203 mm
Max Weight on Table: 2646 lbs

Spindle:
Taper Size: CAT-40
Speed Range: 12000 RPM
Spindle Type: Direct Drive
Spindle Power: 25 HP

Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 13.78 lbs
Max Tool Dia: 80 mm
Max Tool Length: 350 mm
Tool Changing Time : 1.3 Seconds

General:
Air Required: 80 psi, 4 scfm
Power: 220v / 30 kva / 3-Phase
Overall Dimensions: 3,048 mm x 2,845 mm x 2,896 mm High
Weight: 15,200 lbs

Make	Mazak
Model	VCN 510C-II
Categories	CNC Vertical Machining Centers - VMC
Series	Mazak Nexus Series, Mazak VCN
