Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Features: |

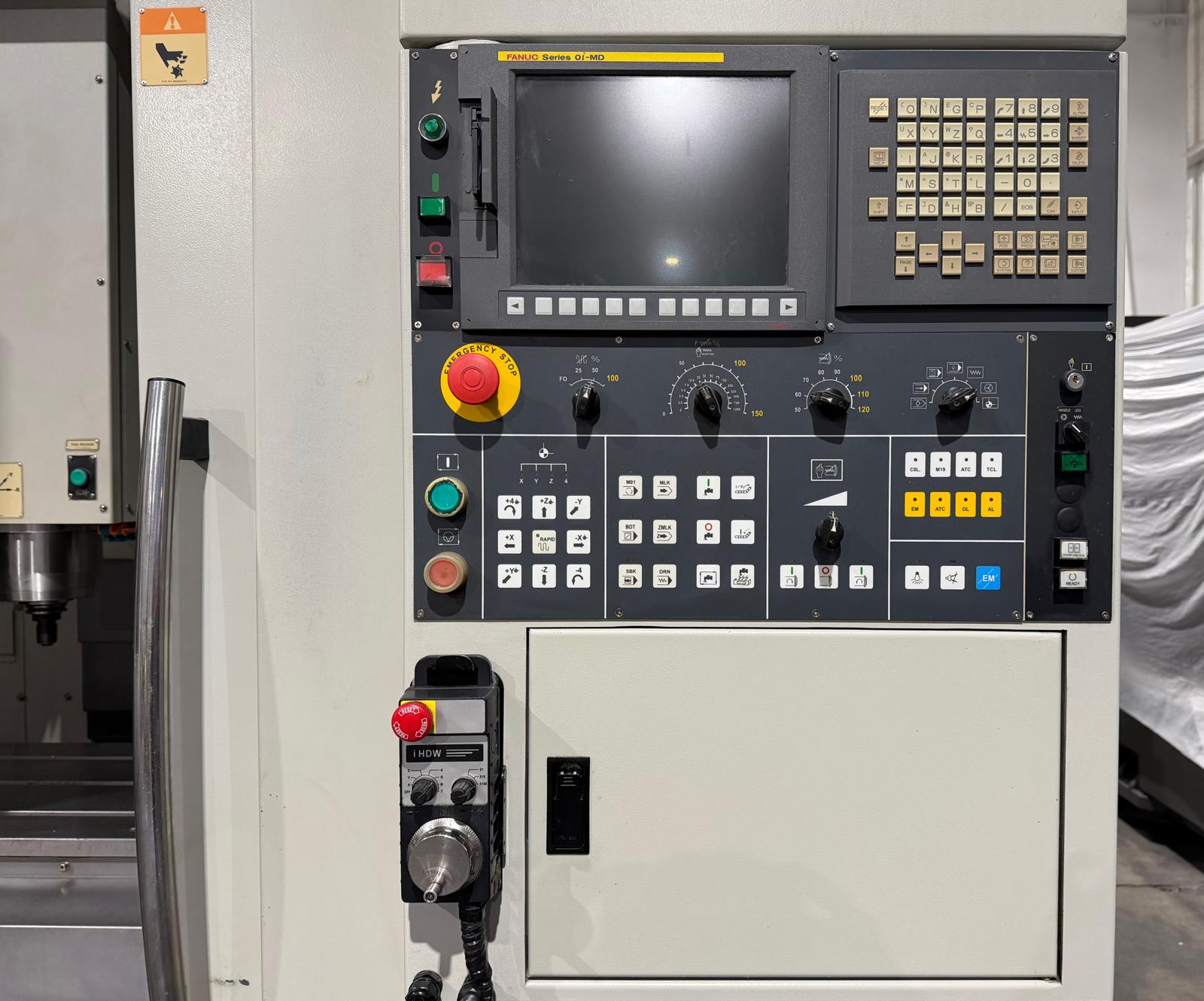

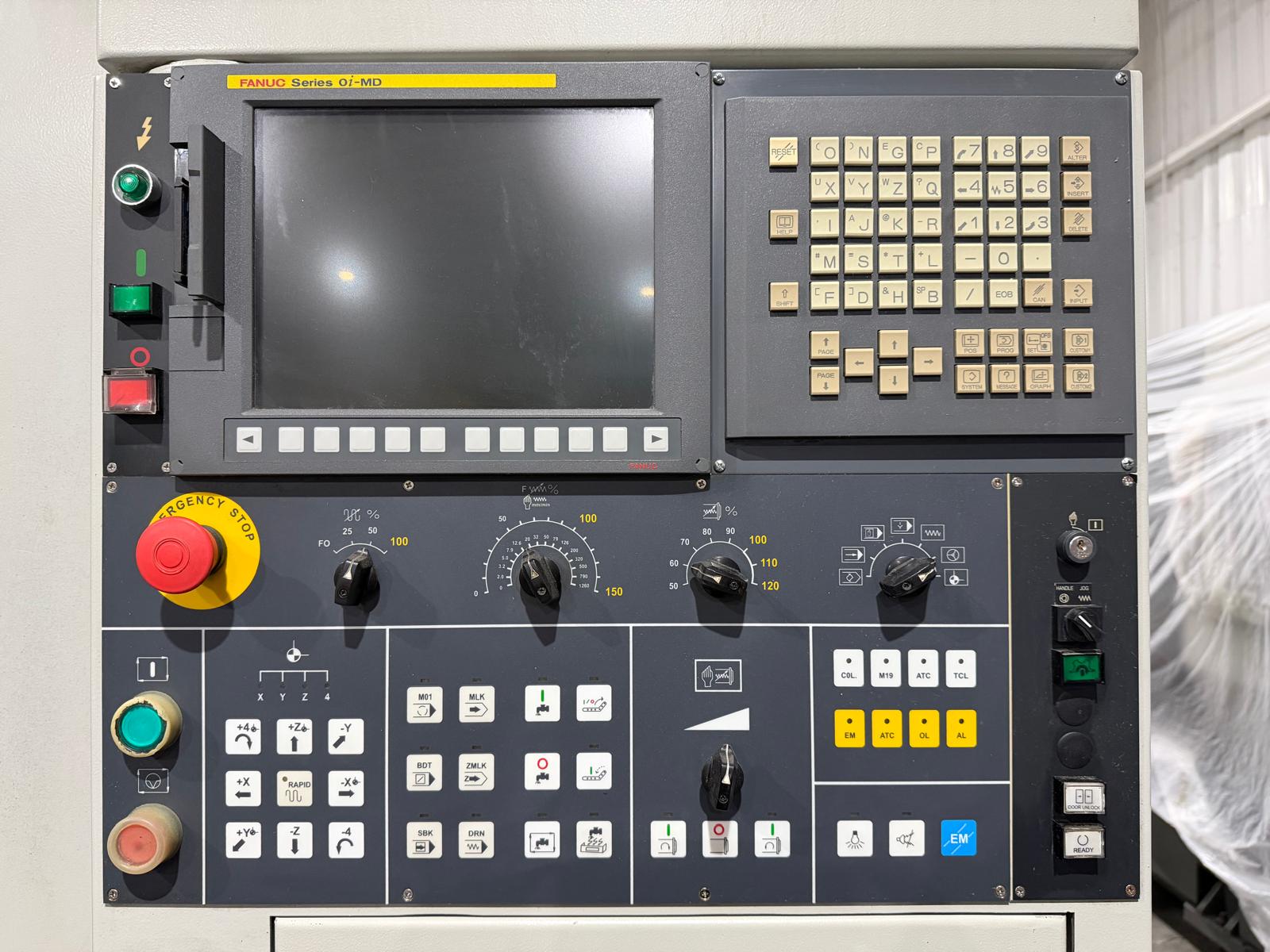

| Fanuc Oi-MD Series CNC Control |
| 4th Axis Wired |
| 10000 RPM High Precision Spindle |
| 30 Station Side Mounted Automatic Tool changer |
| PCMCIA Card Slot |
| Hand Wheel MPG Control |
| Rigid Tapping |

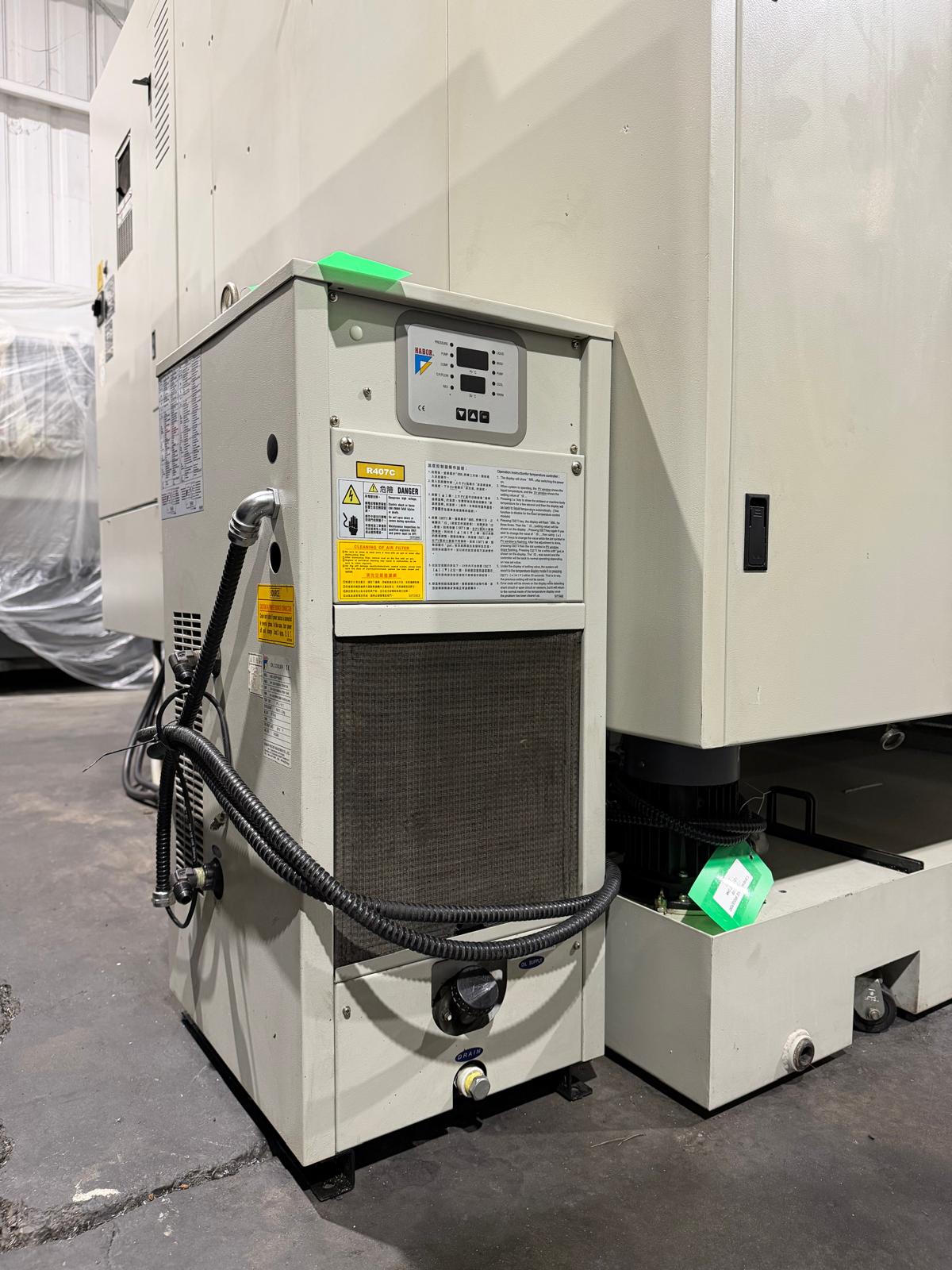

| Spindle Chiller Unit |

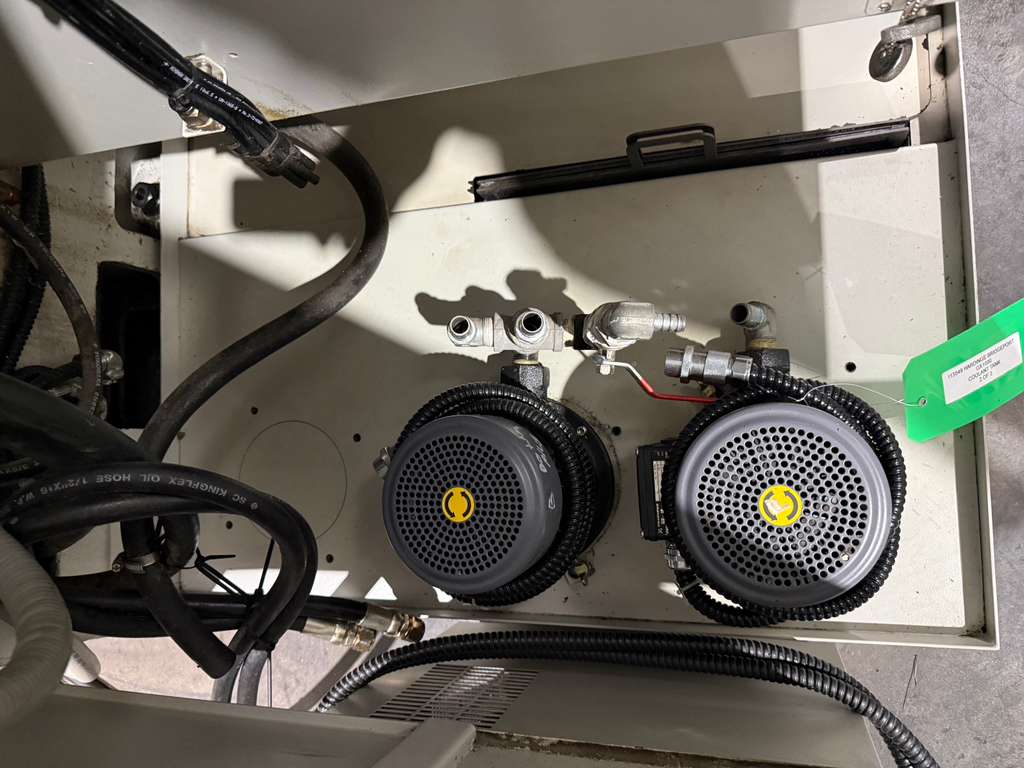

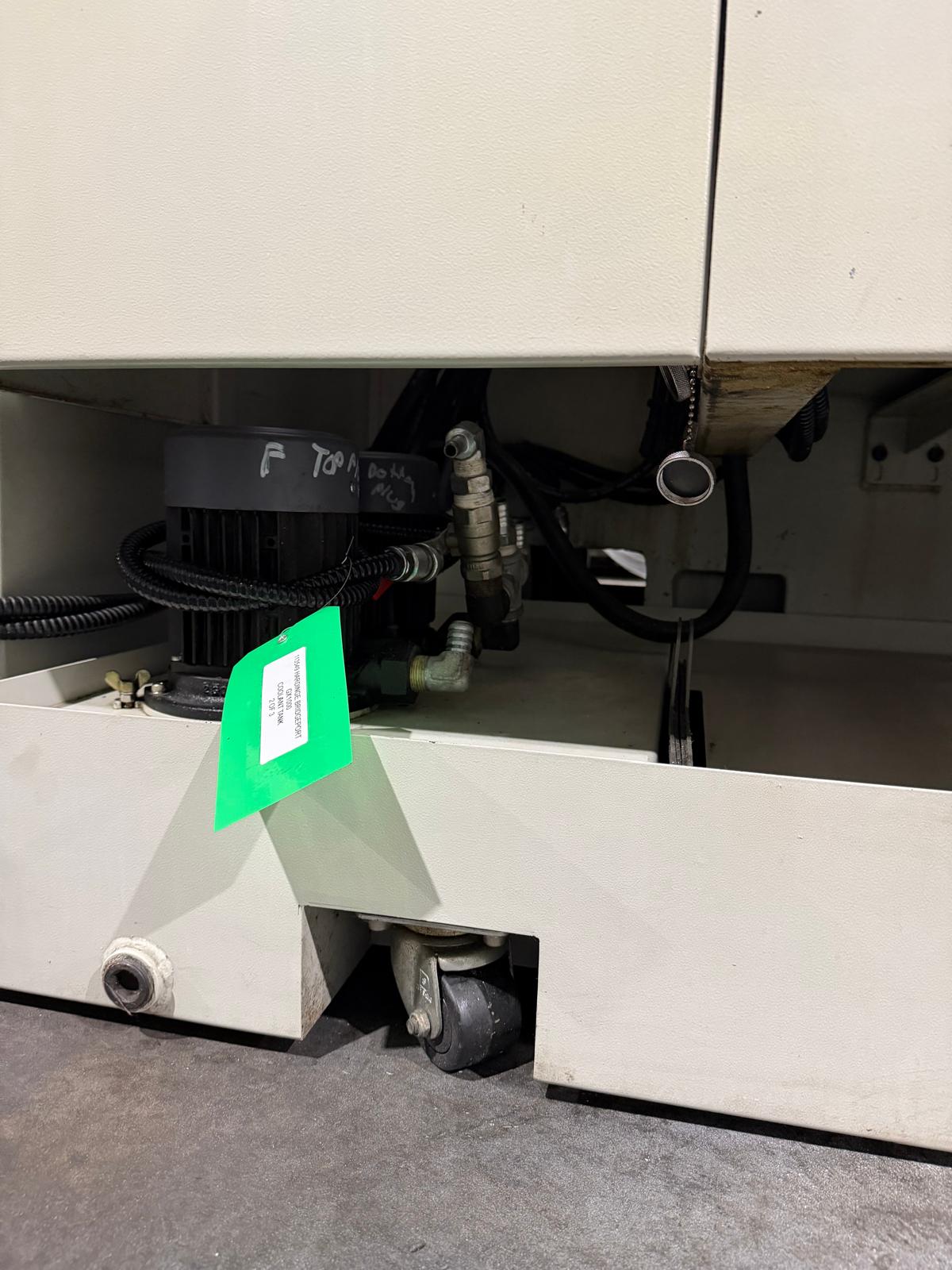

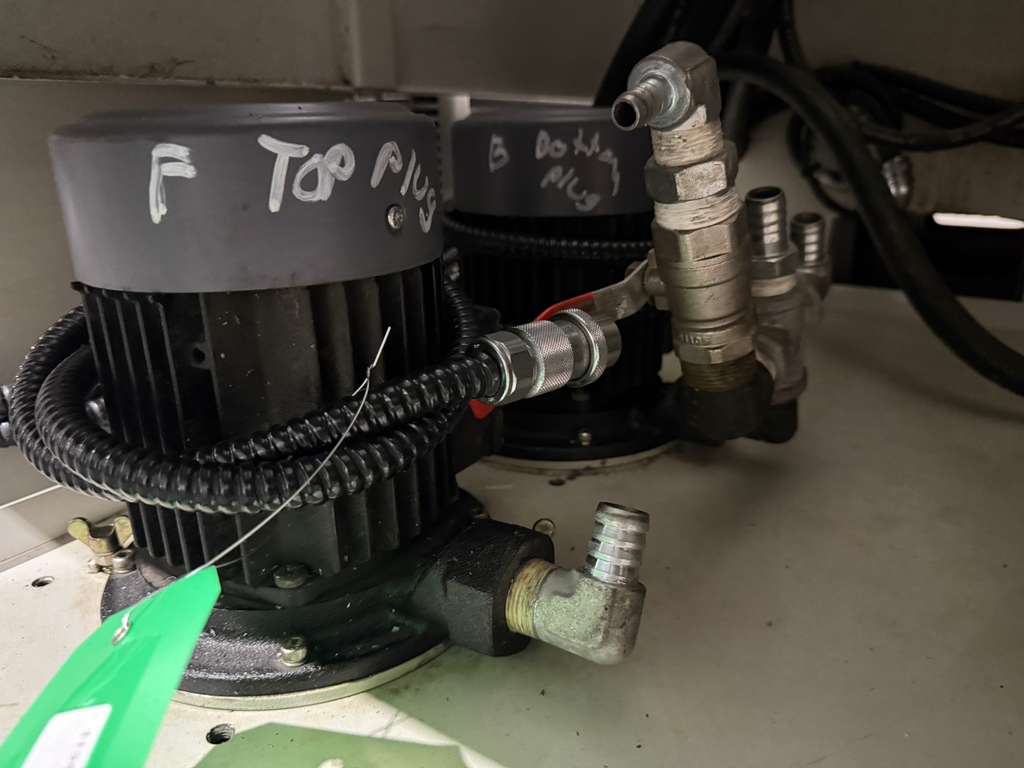

| Coolant System |
| Books & Manuals |

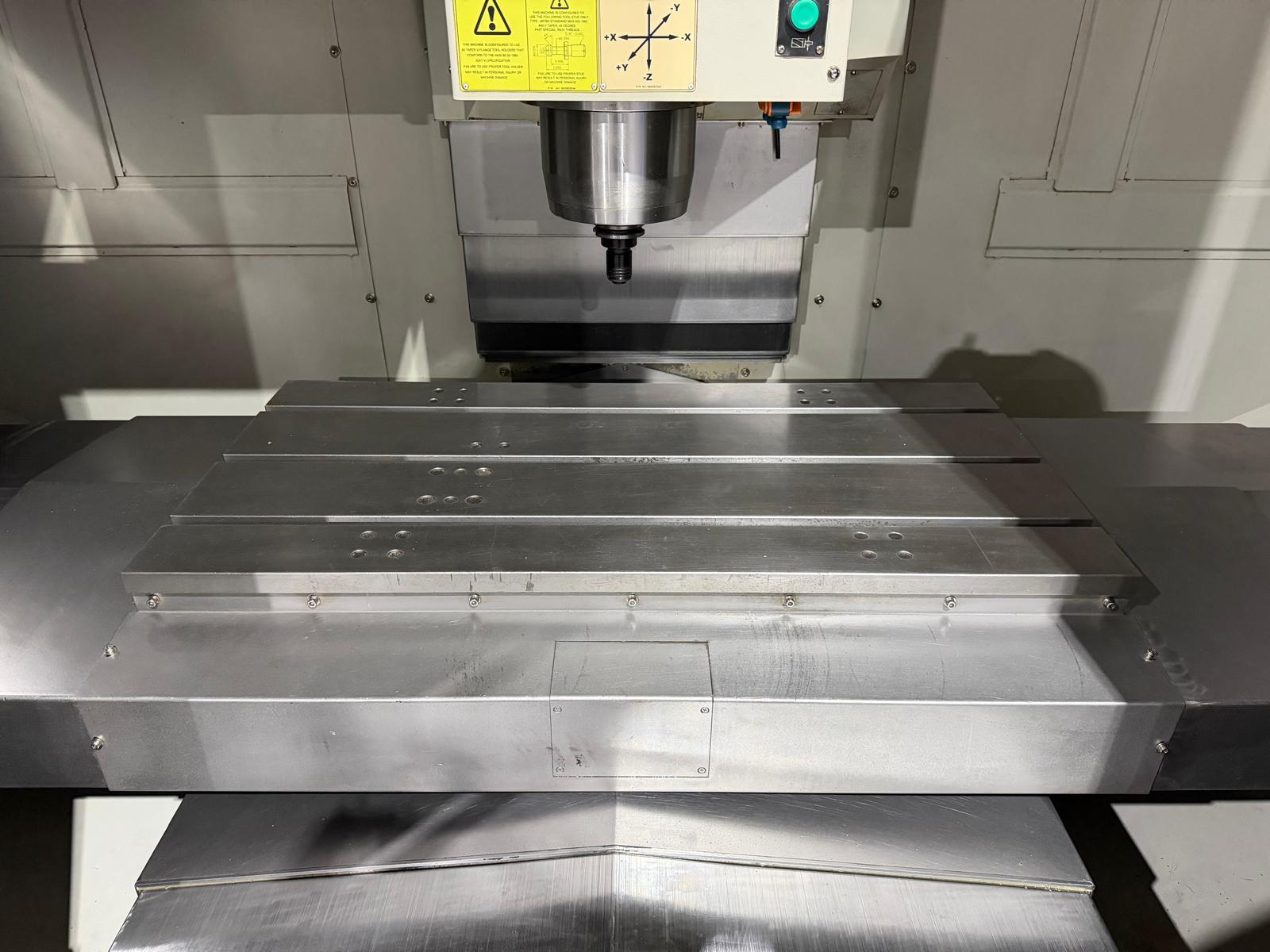

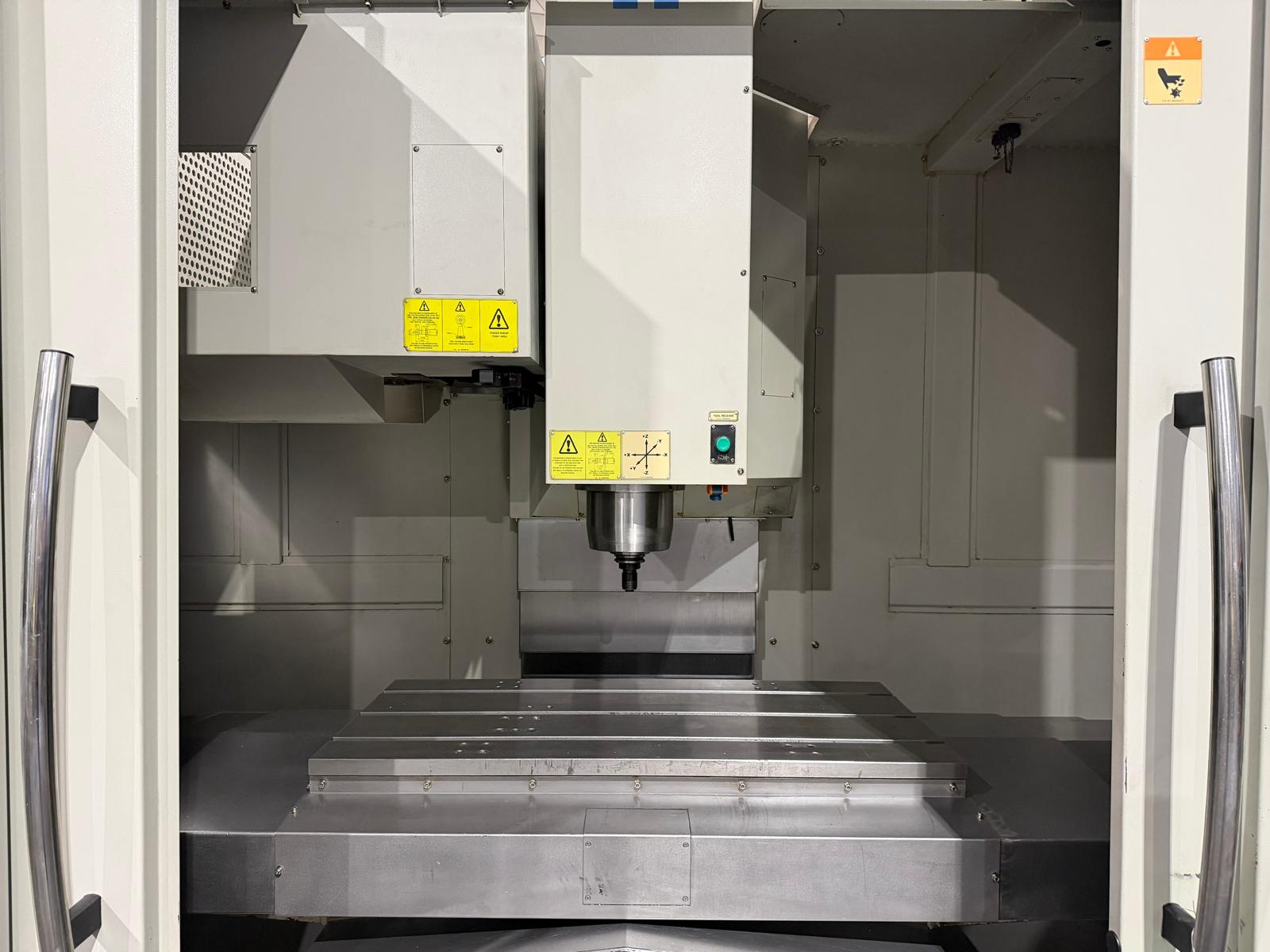

| Table: |
| Length: 44.09″ |
| Width: 21.25″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 0.7″X 3.93″ |
| Max Weight on Table: 1543 lbs |
| Travels: |
| X-Axis: 40.15″ |
| Y-Axis: 21.25″ |
| Z-Axis: 21.25″ |
| Rapid Traverse Rates X & Y Axis: 1692 IPM |
| Rapid Traverse Rates Z Axis: 1417 IPM |
| Cutting Feed Rates: 787 IPM |
| Spindle Nose to Table (Min.- Max.): 5.70″ – 26.96″ |

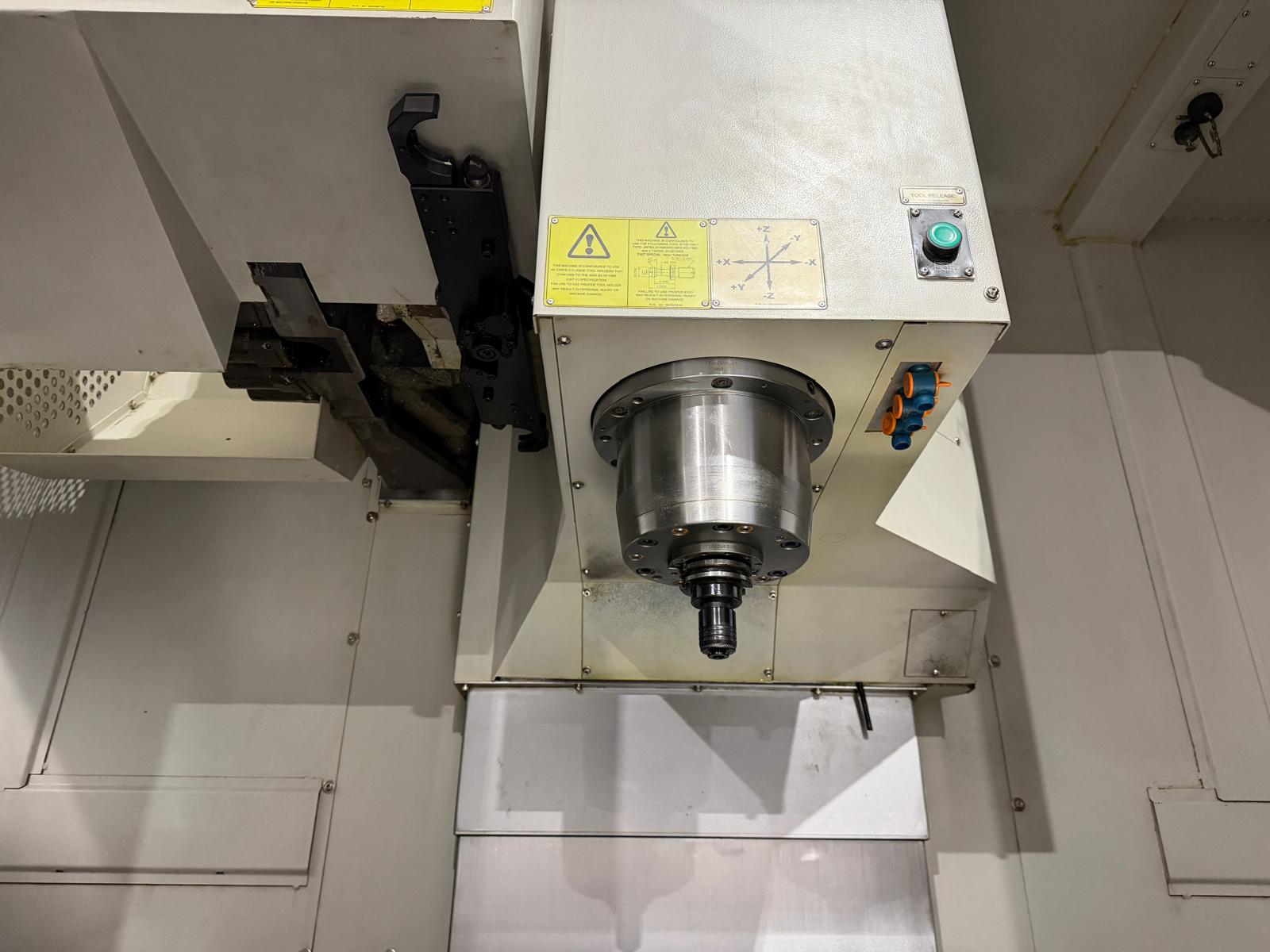

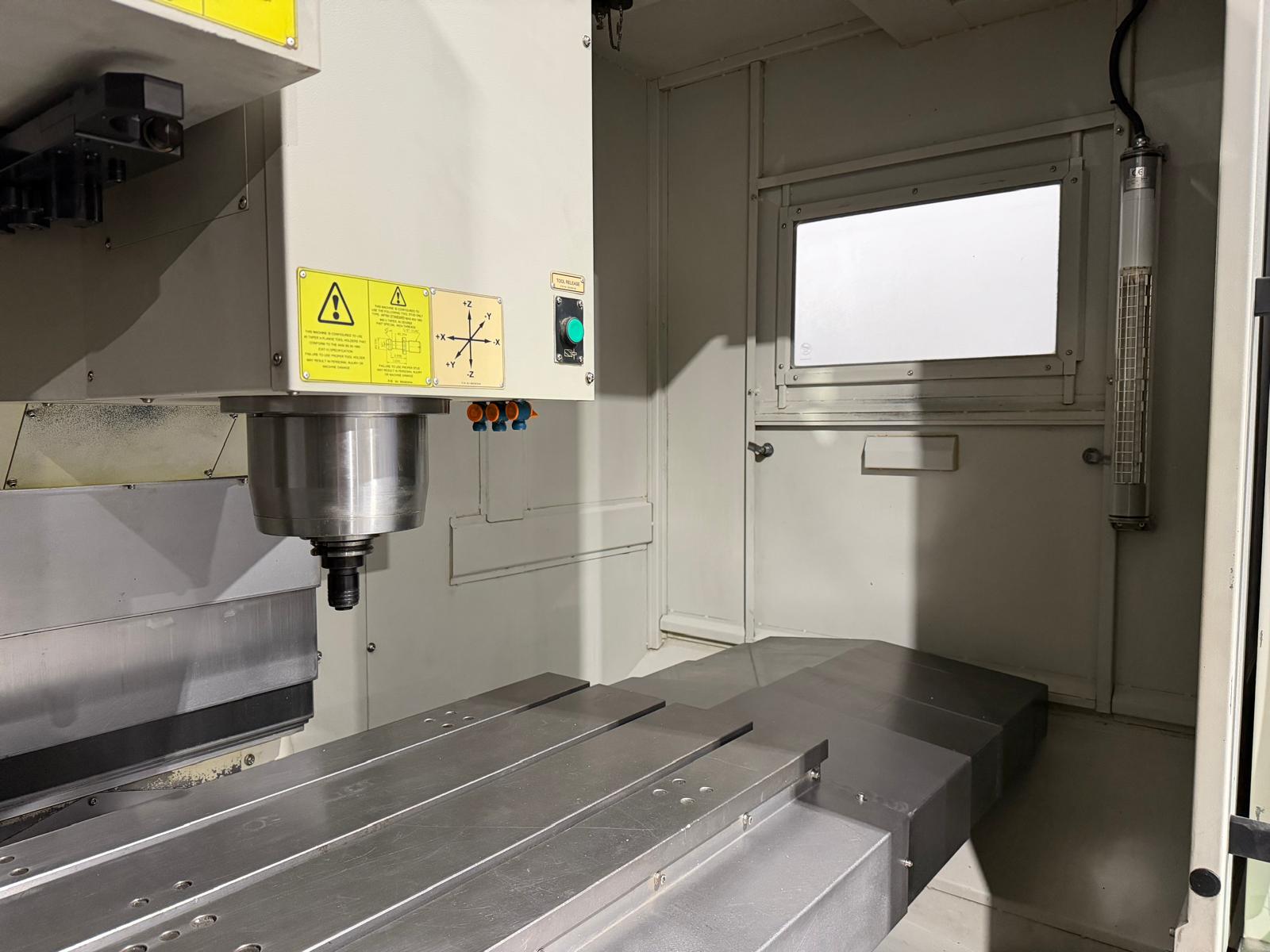

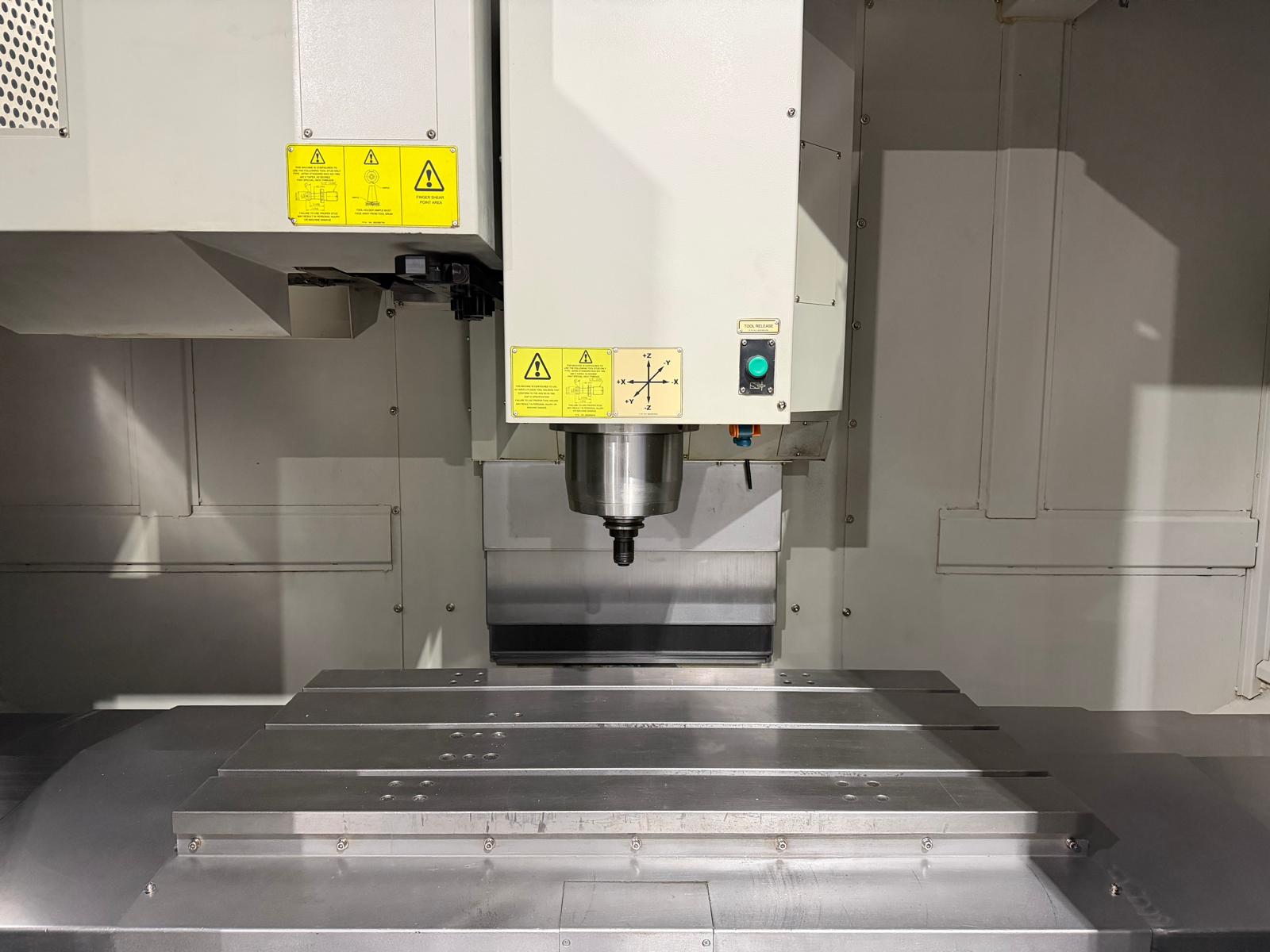

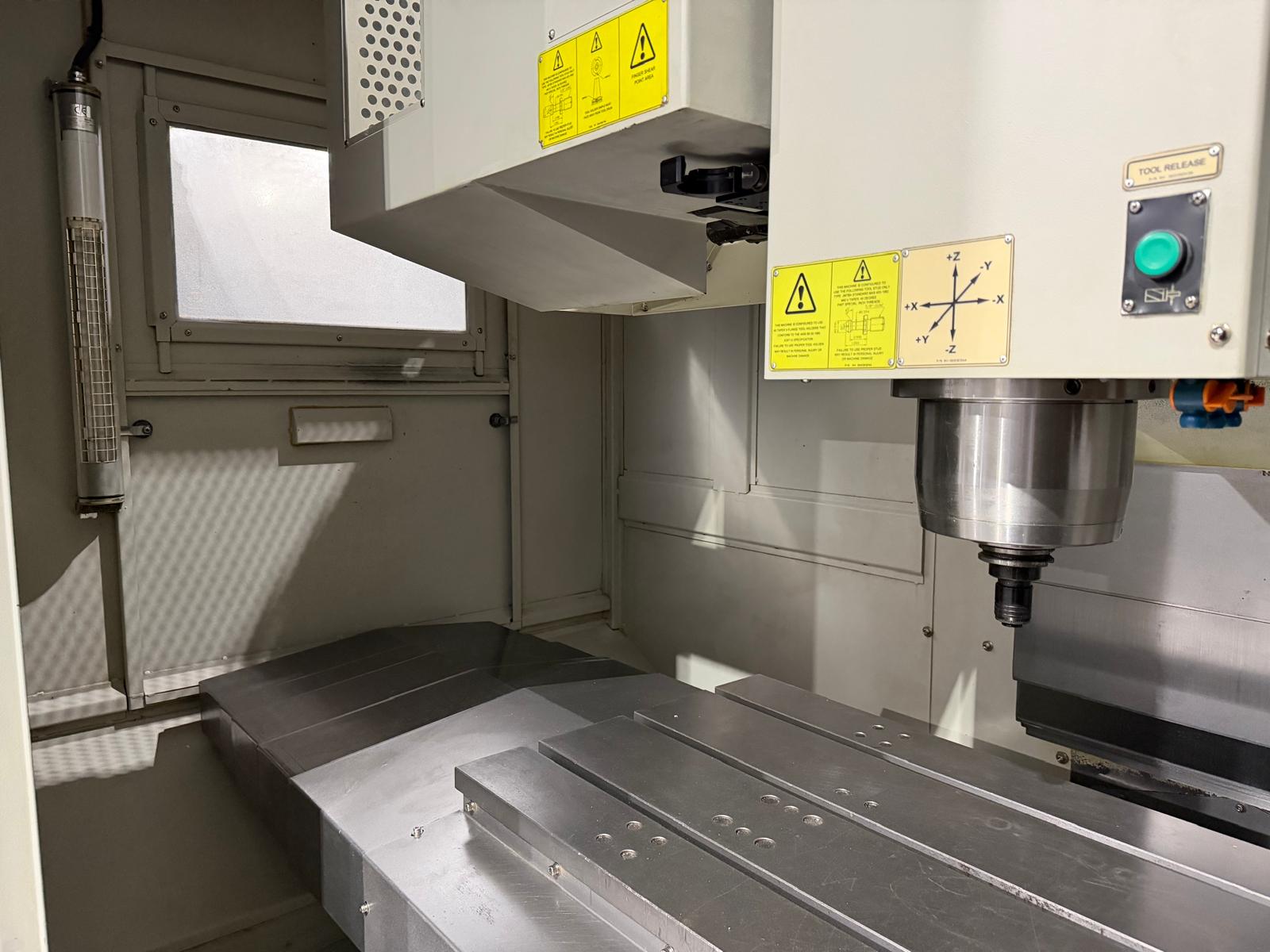

| Spindle: |

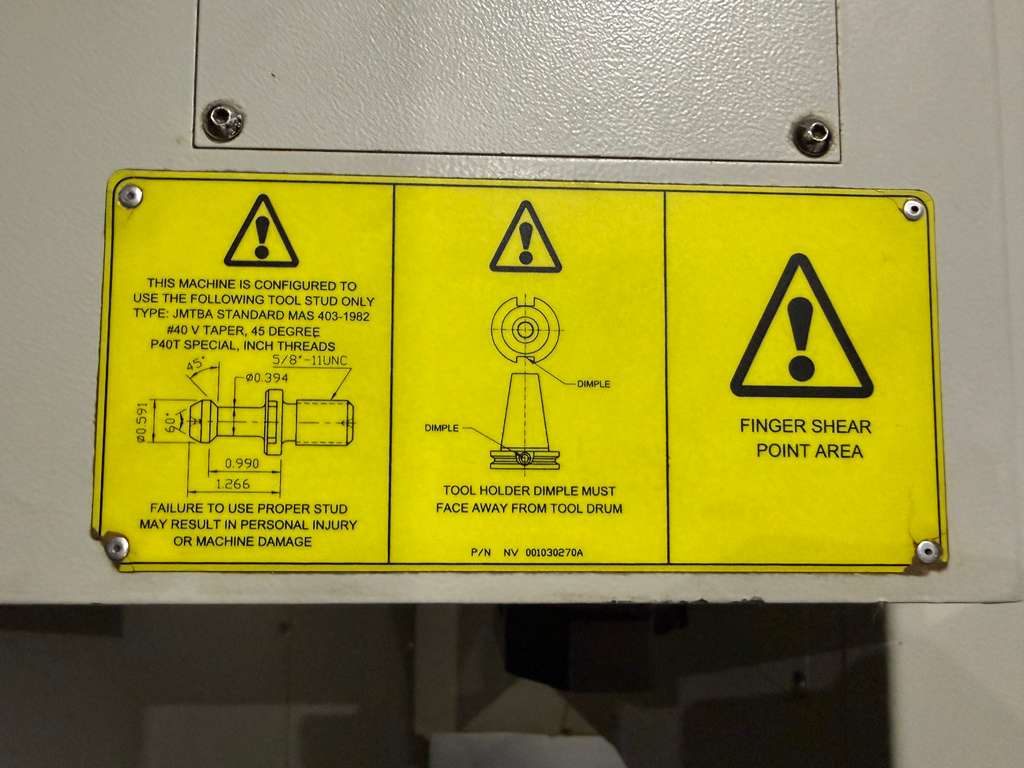

| Taper Size: CAT-40 |
| Speed Range: 10000 RPM |
| Spindle Power: 25 HP |
| Automatic Tool Changer: |
| Capacity: 30 Station Side Mounted |

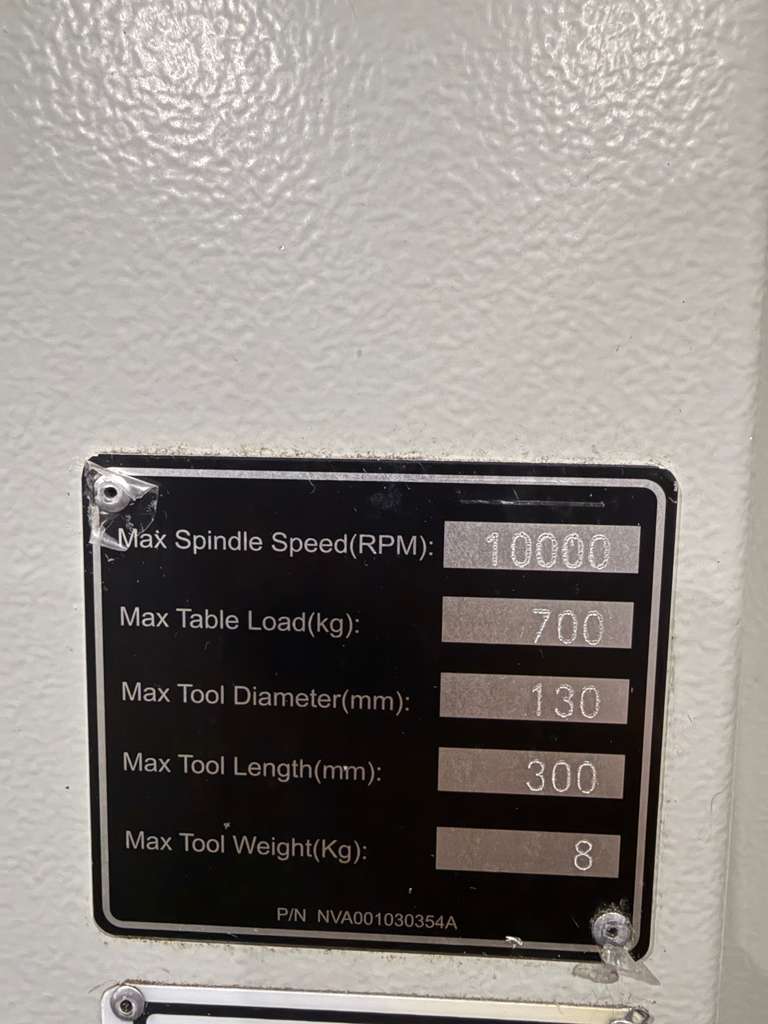

| Max Tool Weight: 15.43 lbs |
| Max Tool Dia: 5.11″ |
| Max Tool Length: 11.81″ |
| Tool Changing Time (Chip to Chip): 1.6 Seconds |
| General: |
| Air Required: 80 psi, 4 scfm |
| Power: 220v / 60 Hz / 3-Phase |
| Overall Dimensions: 116″ x 86″ x 106″ High |
| Weight: 14,330 lbs |
| Categories | CNC Vertical Machining Center |
|---|
| Series | Hardinge Bridgeport Series |
|---|
| Categories | Recently Added CNC Machines, CNC Vertical Machining Centers - VMC |
|---|
