All specifications are approximations and are subject to verification.

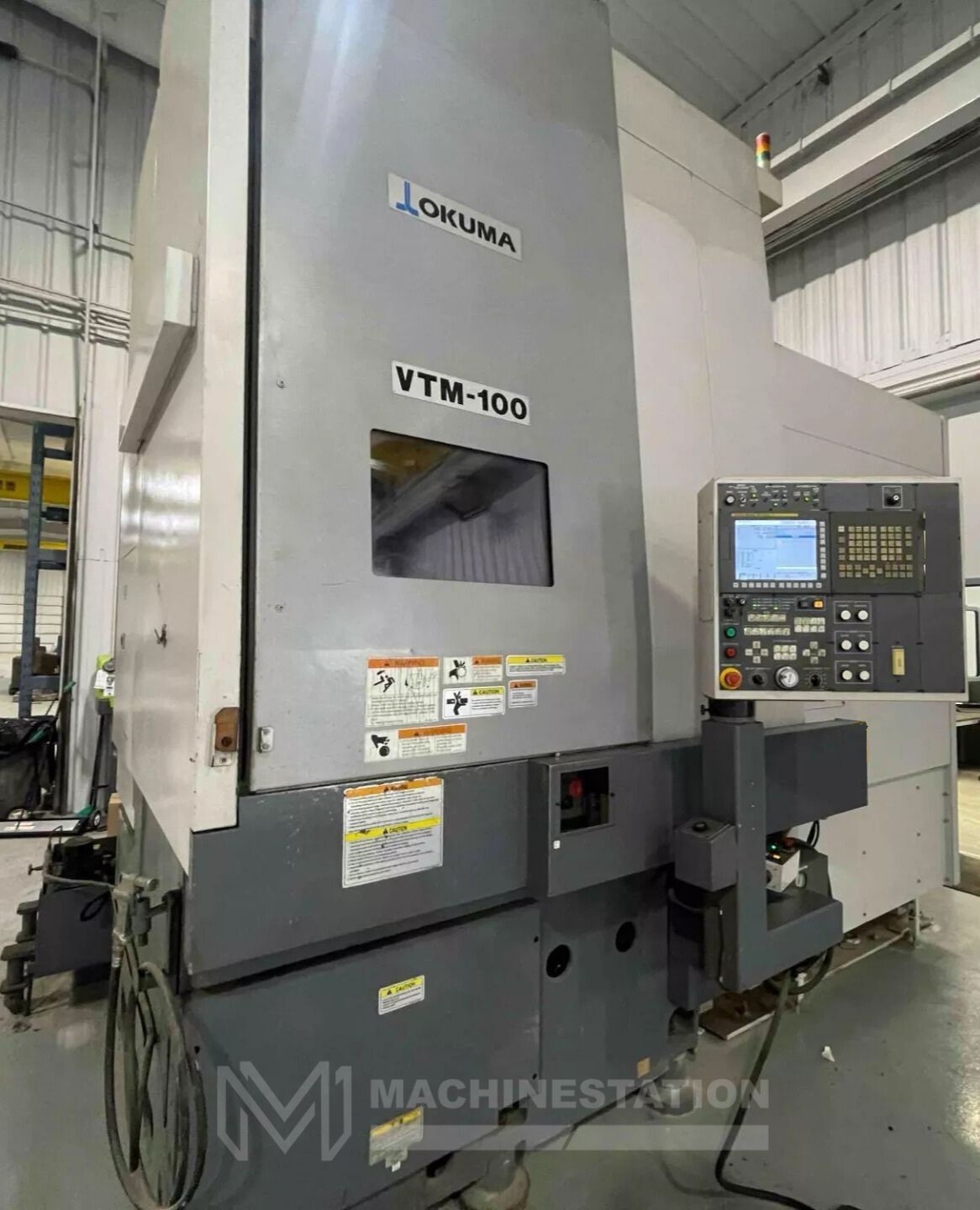

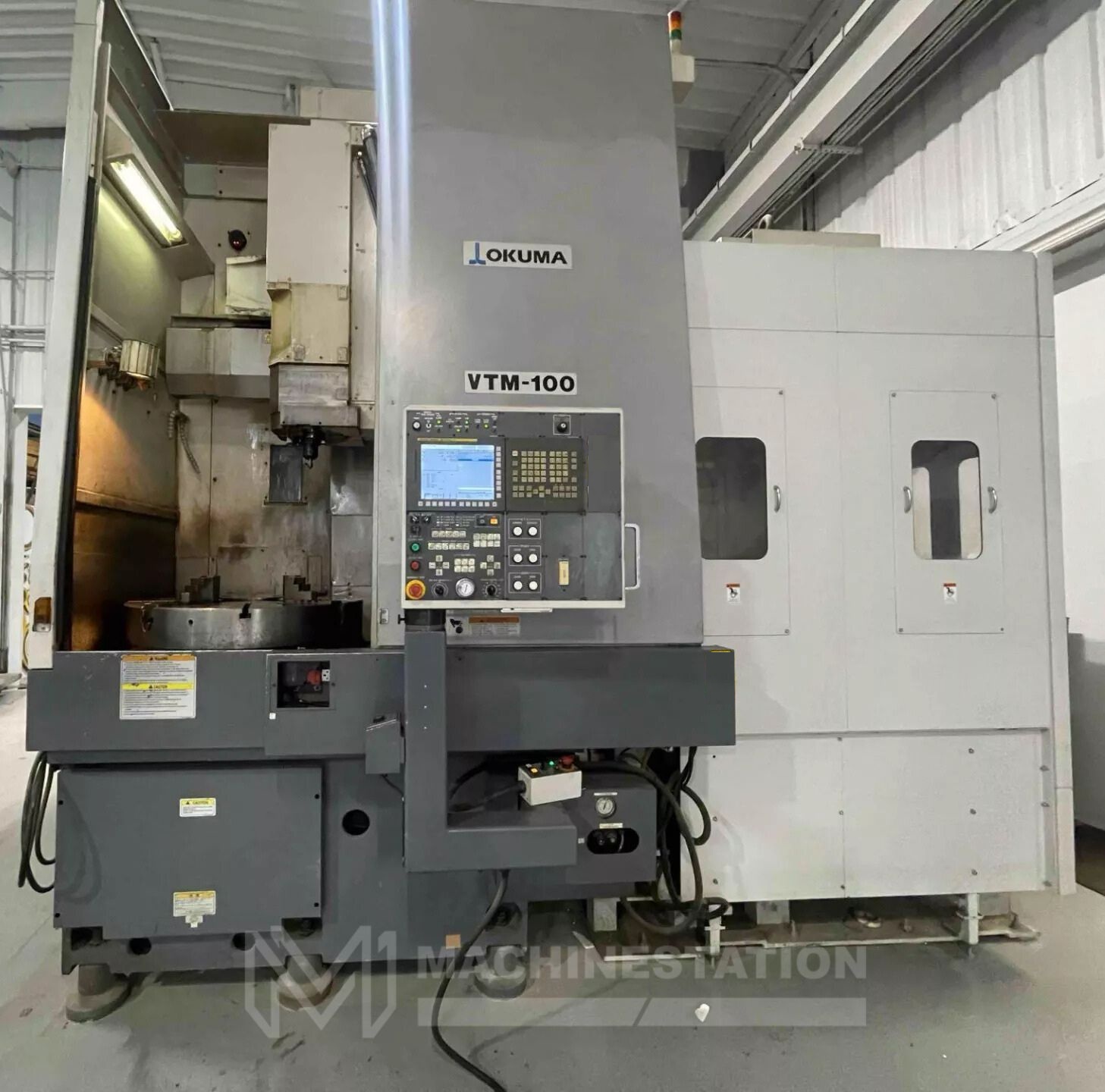

| SKU | 113565 |

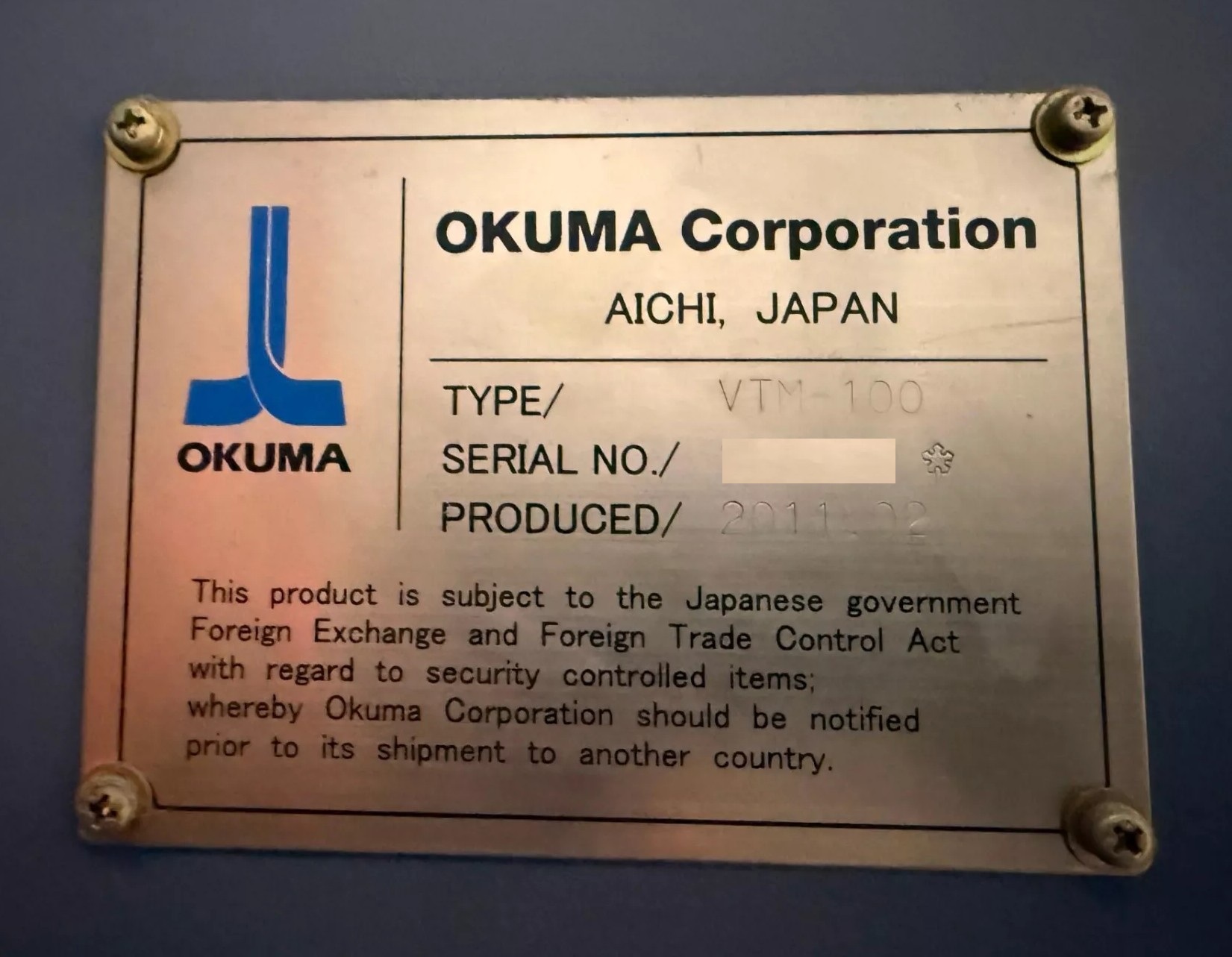

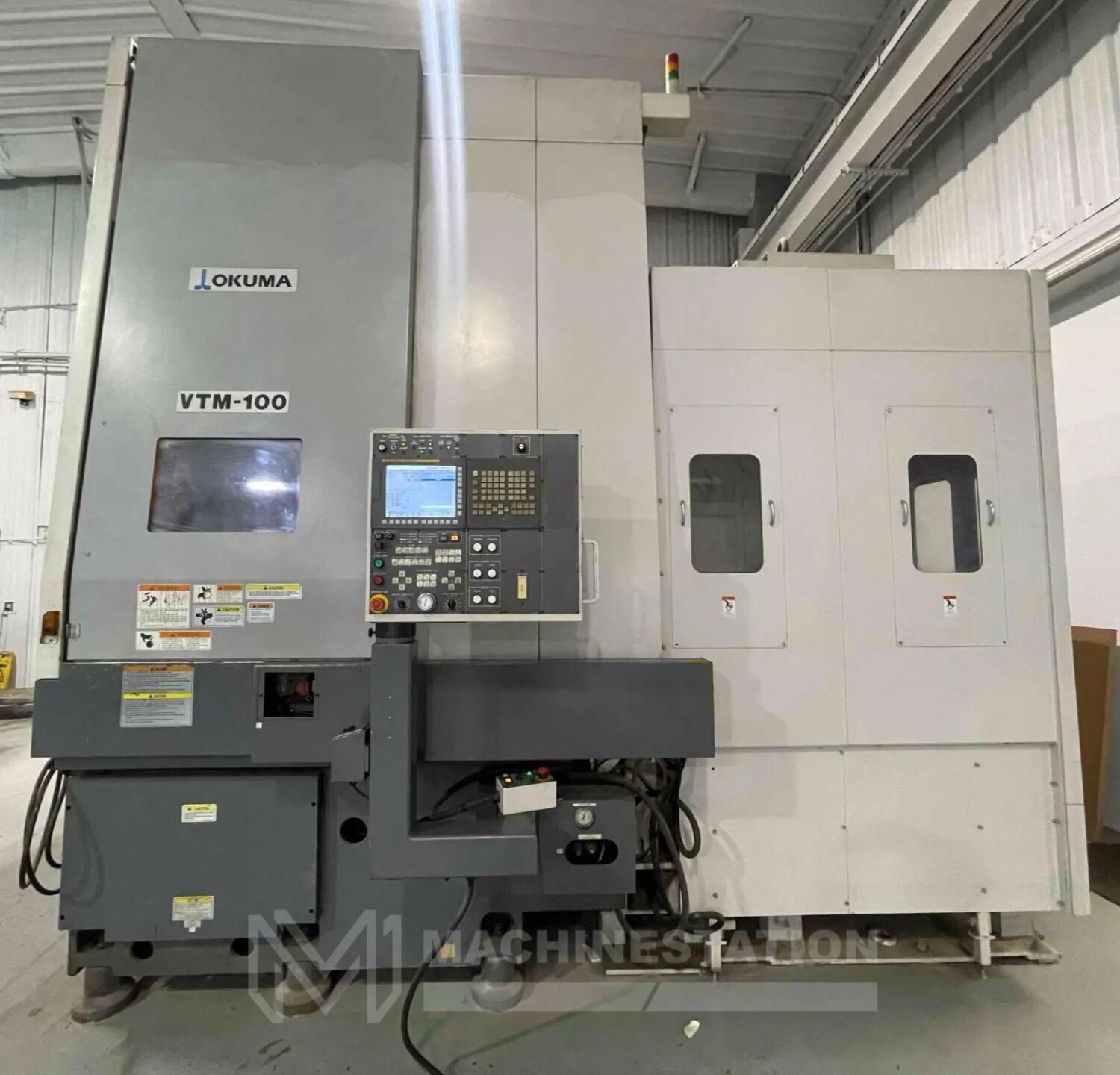

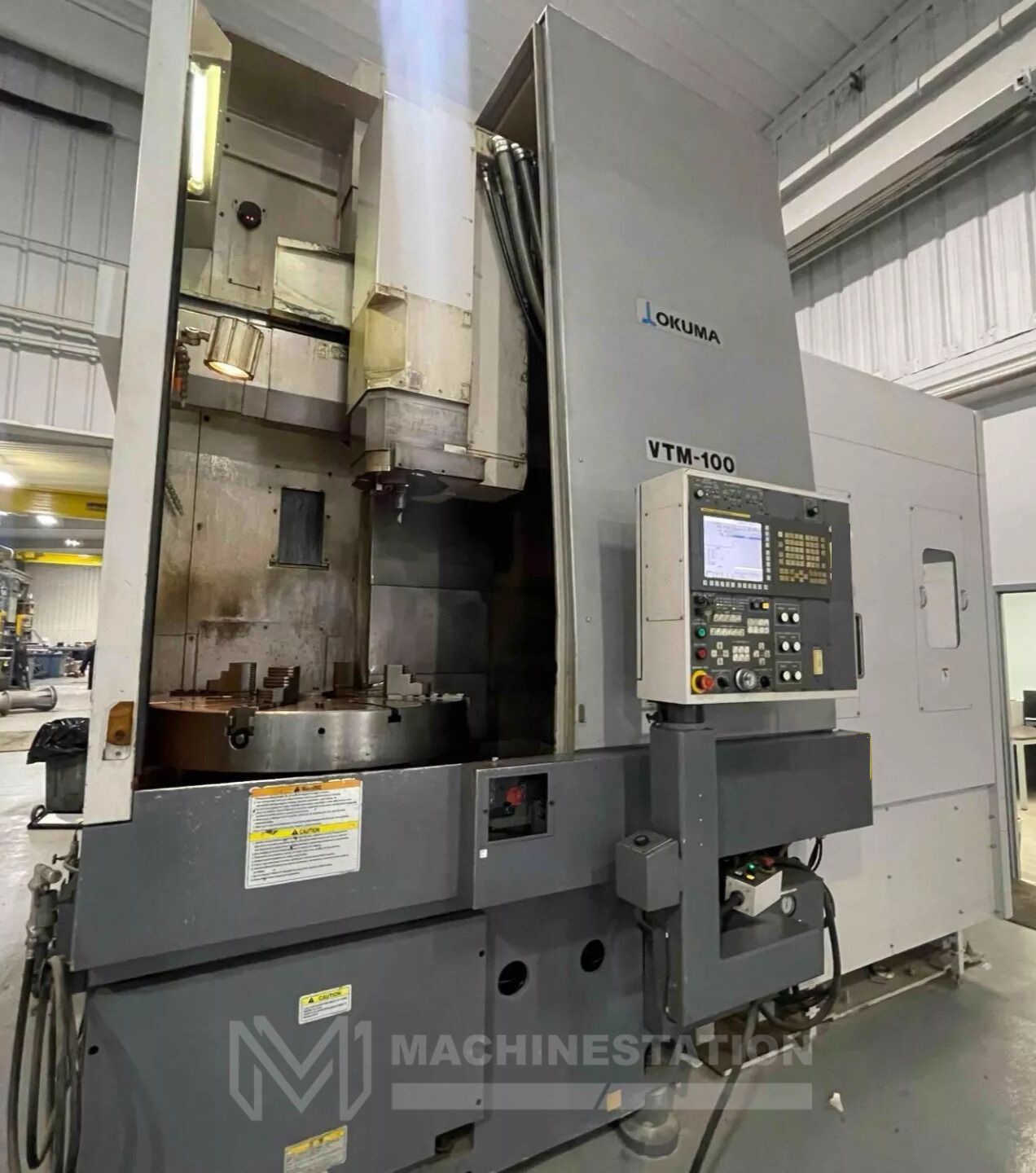

| Make | Okuma |
| Model No. | VTM-100 |
| Year | 2011 |
| Condition | Used – Good |
| Equipped With: |
|---|

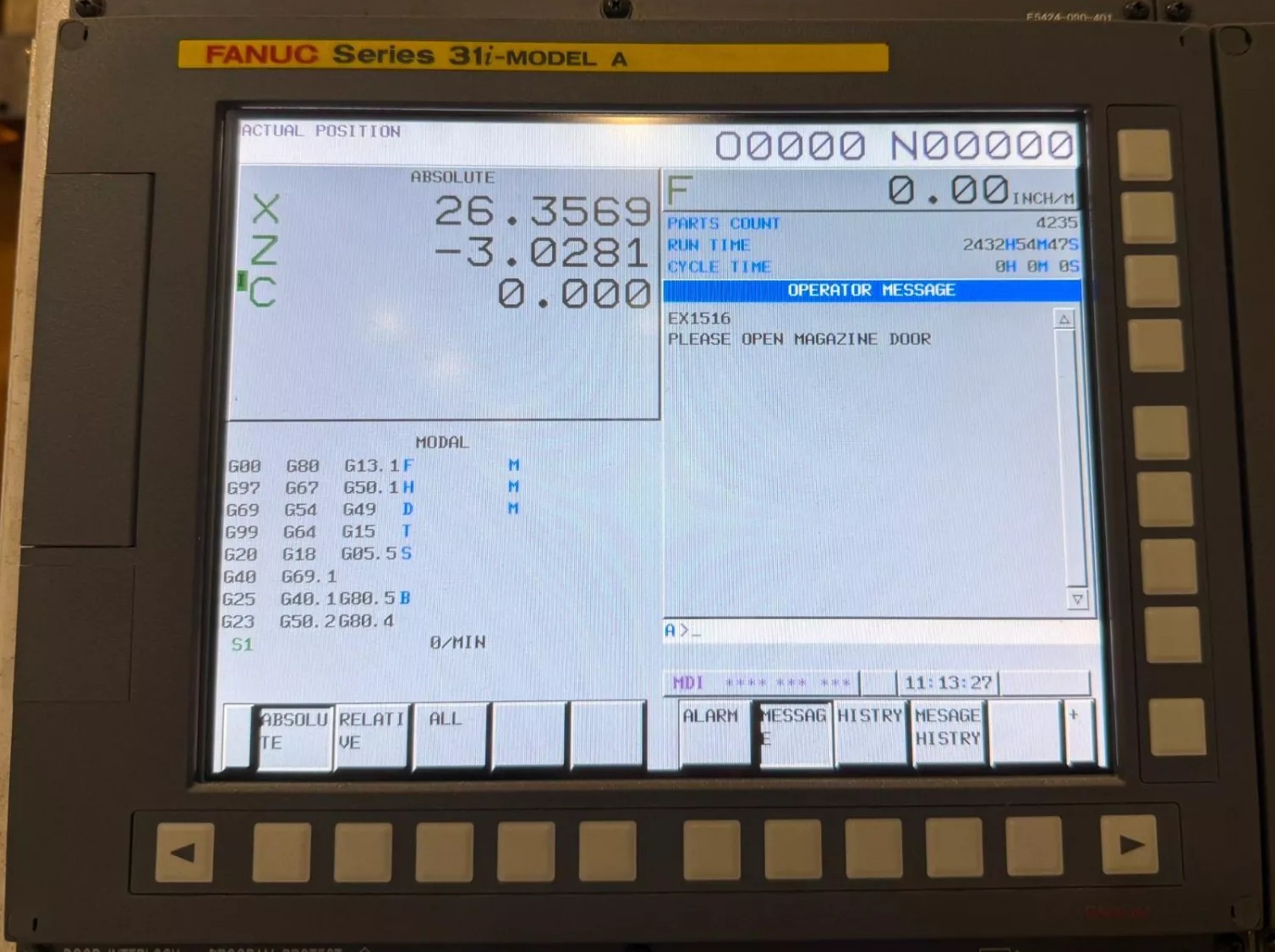

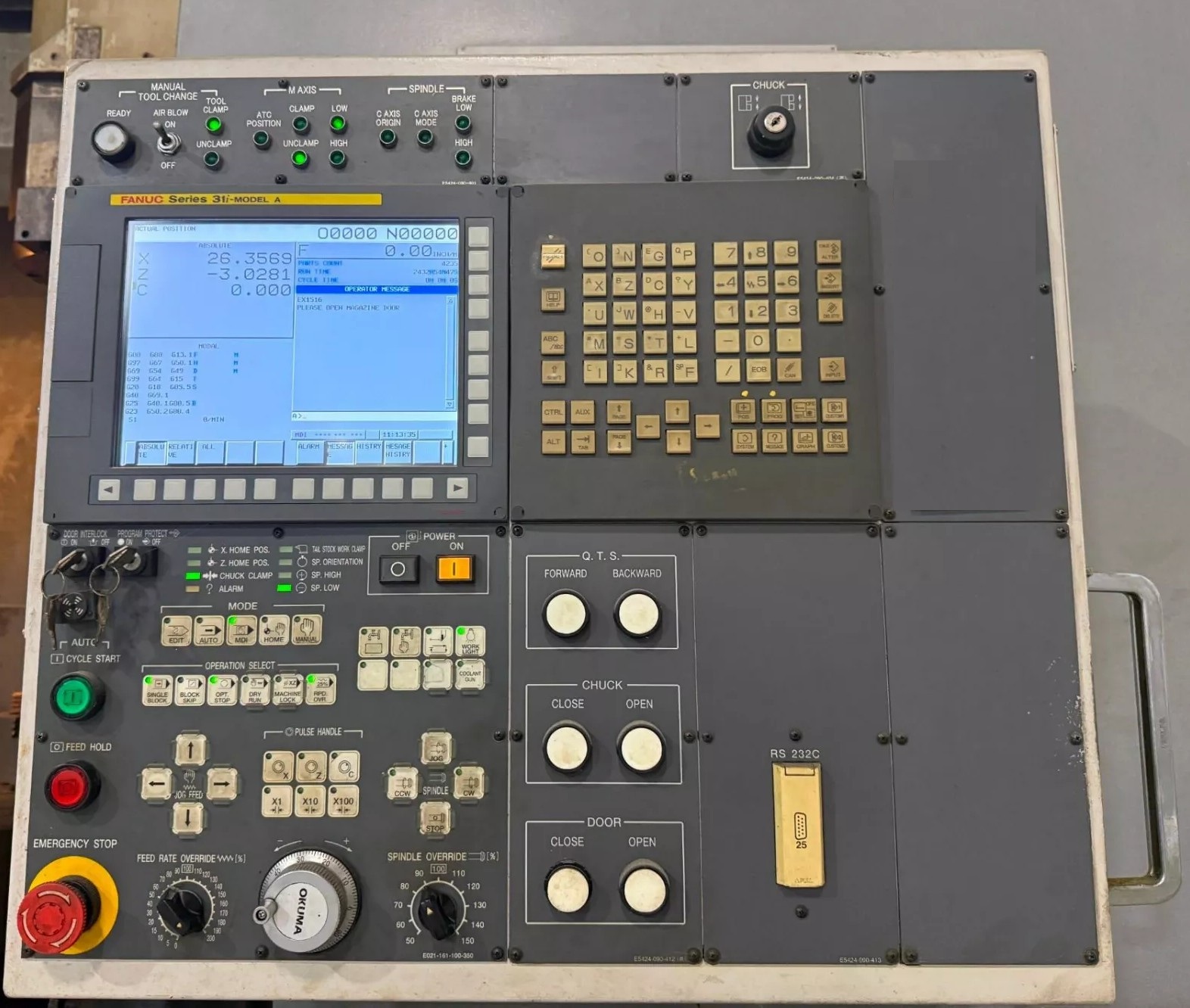

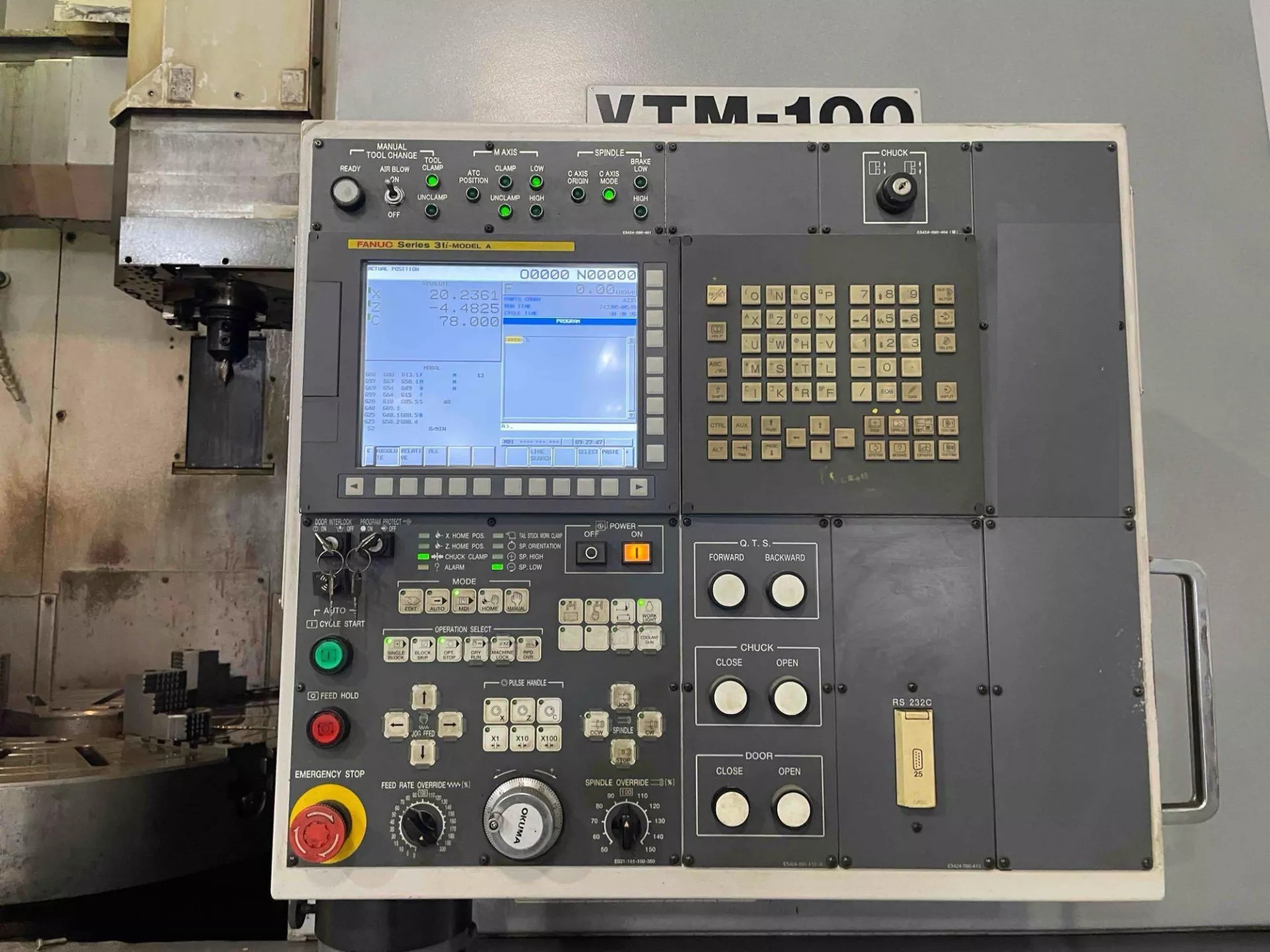

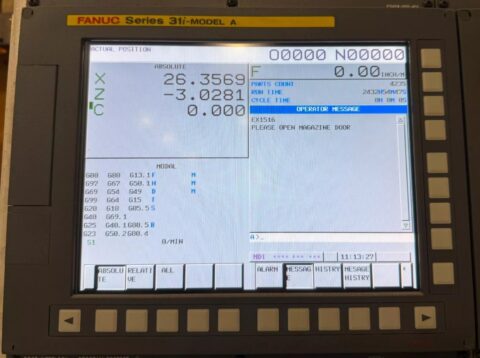

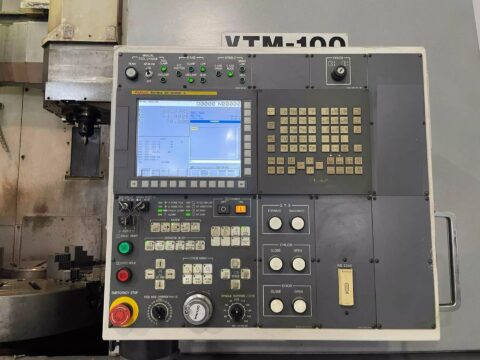

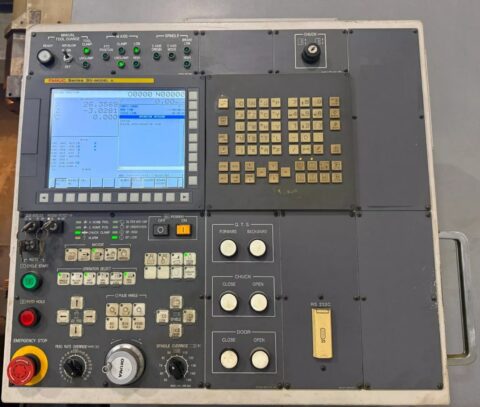

| Fanuc 31i-MA Series CNC Control |

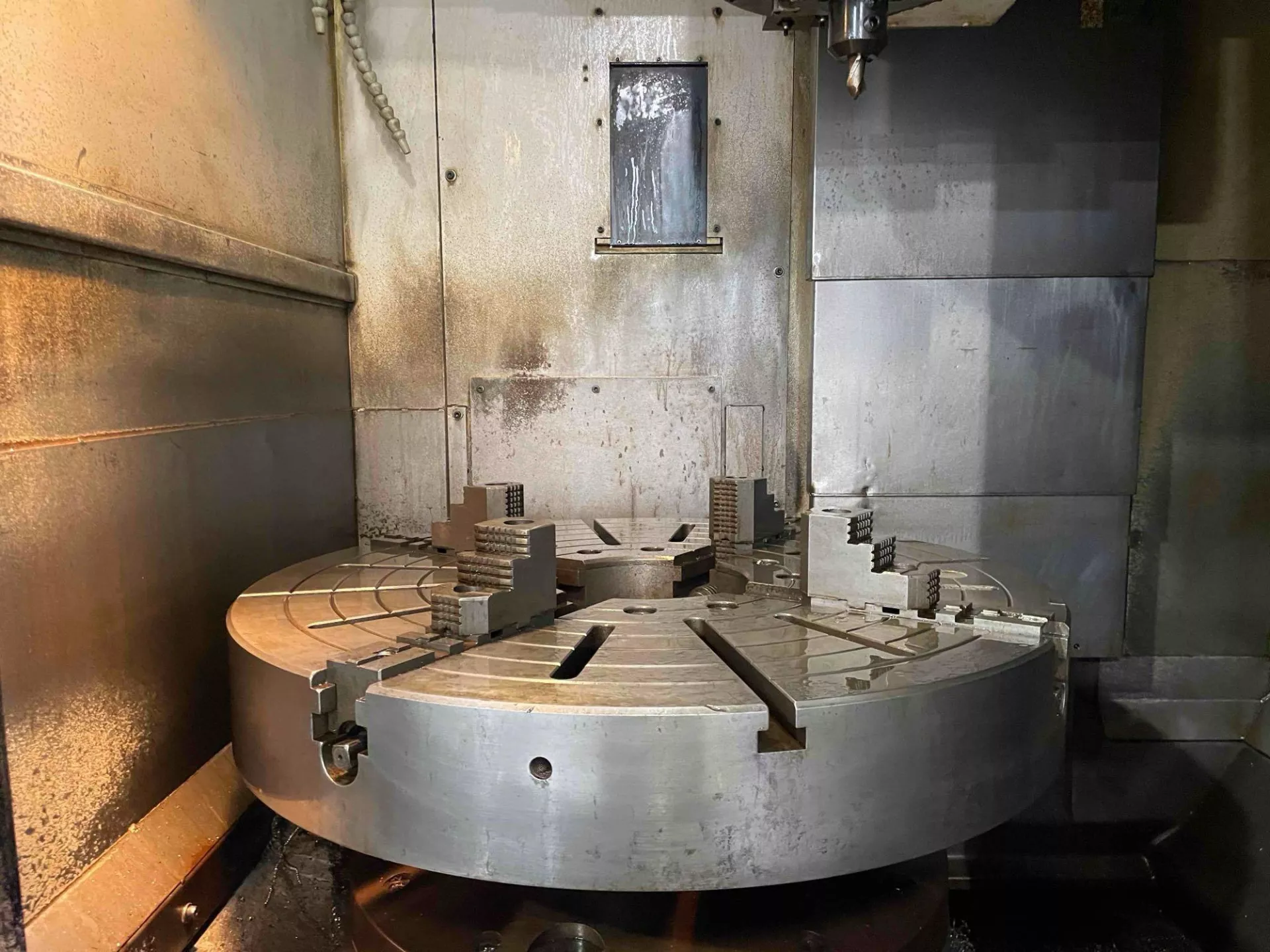

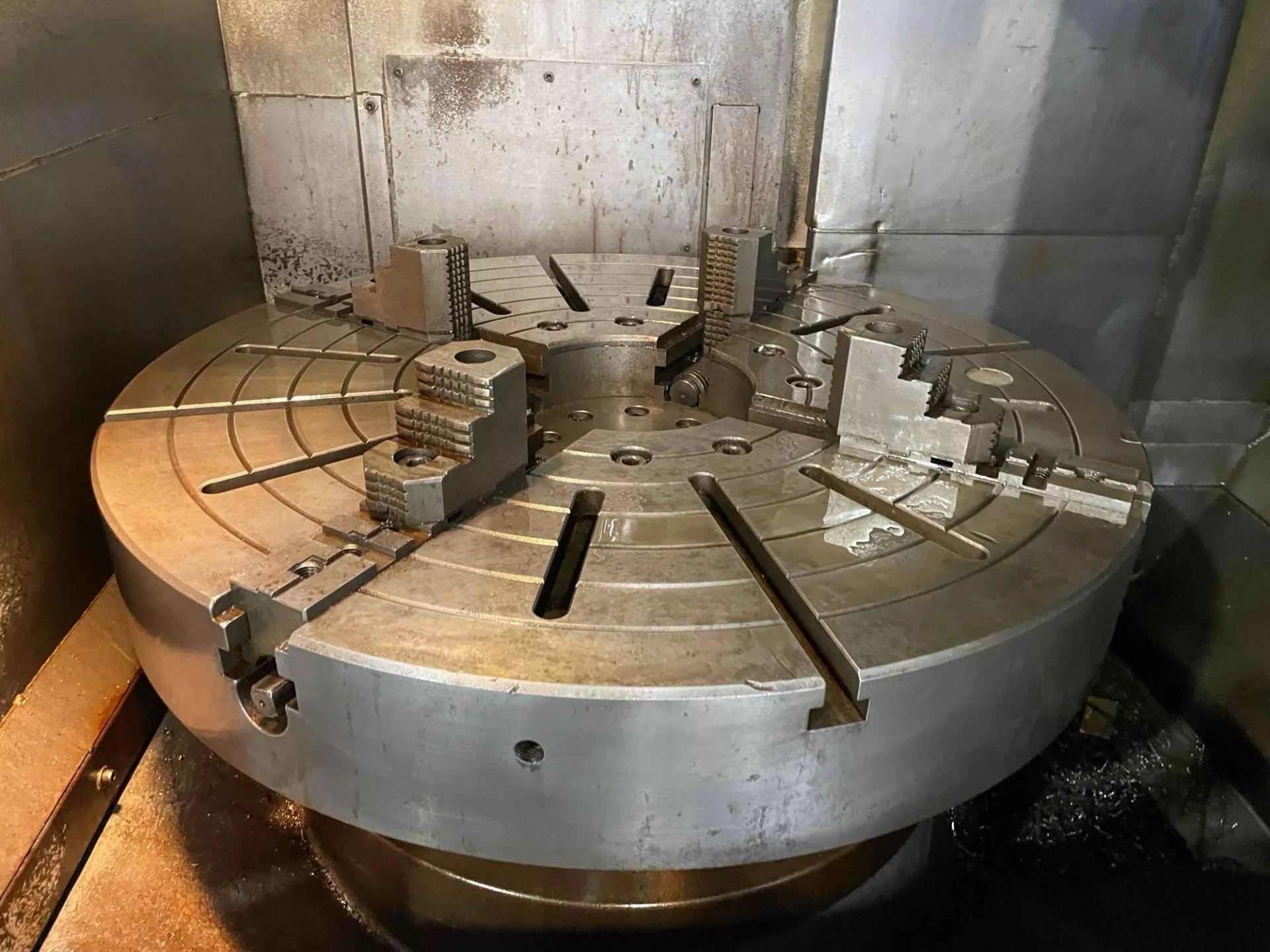

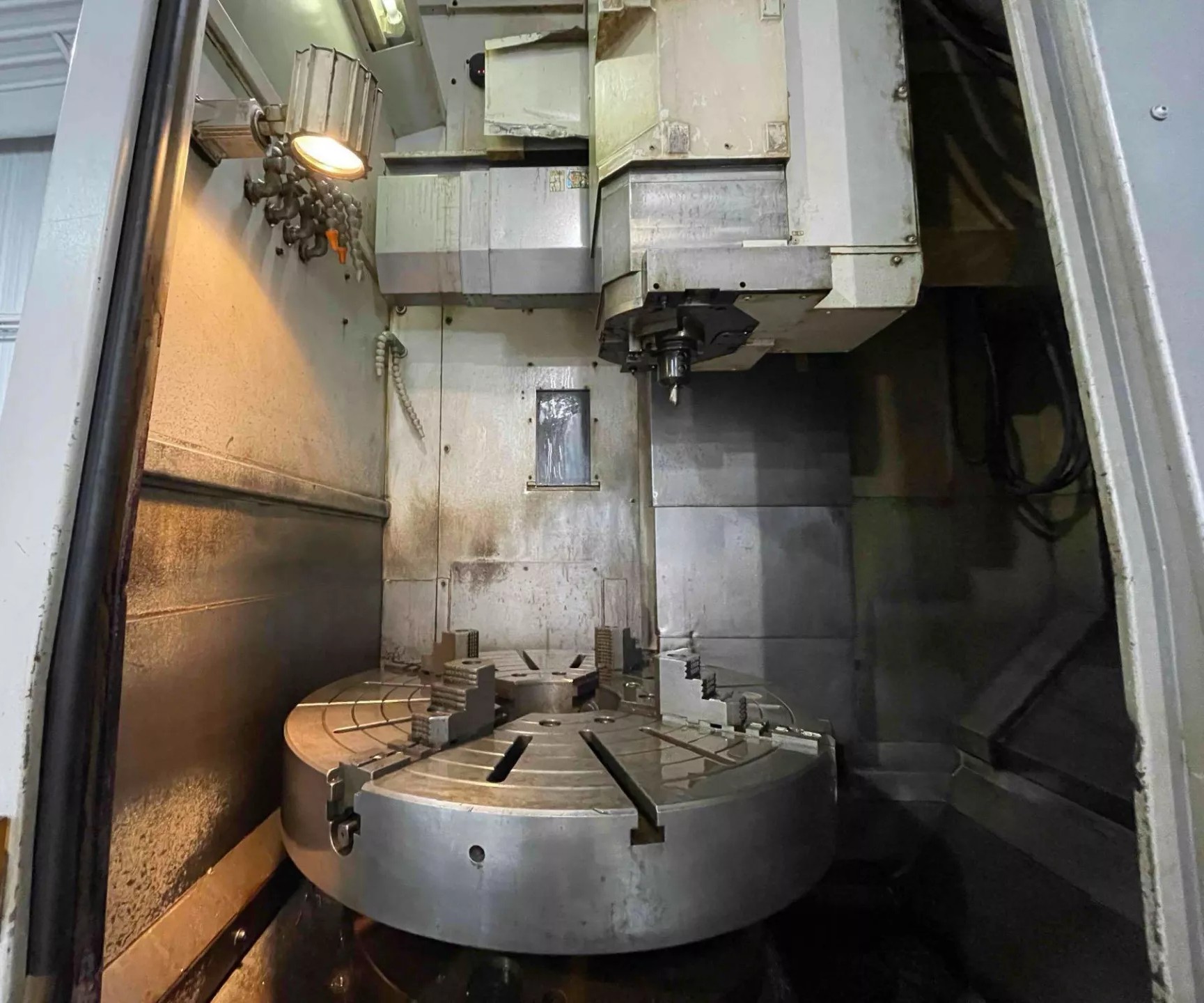

| 39.37″ 4-Jaw Chuck |
| C Axis Live Tool |
| 50 Taper Milling Spindle |

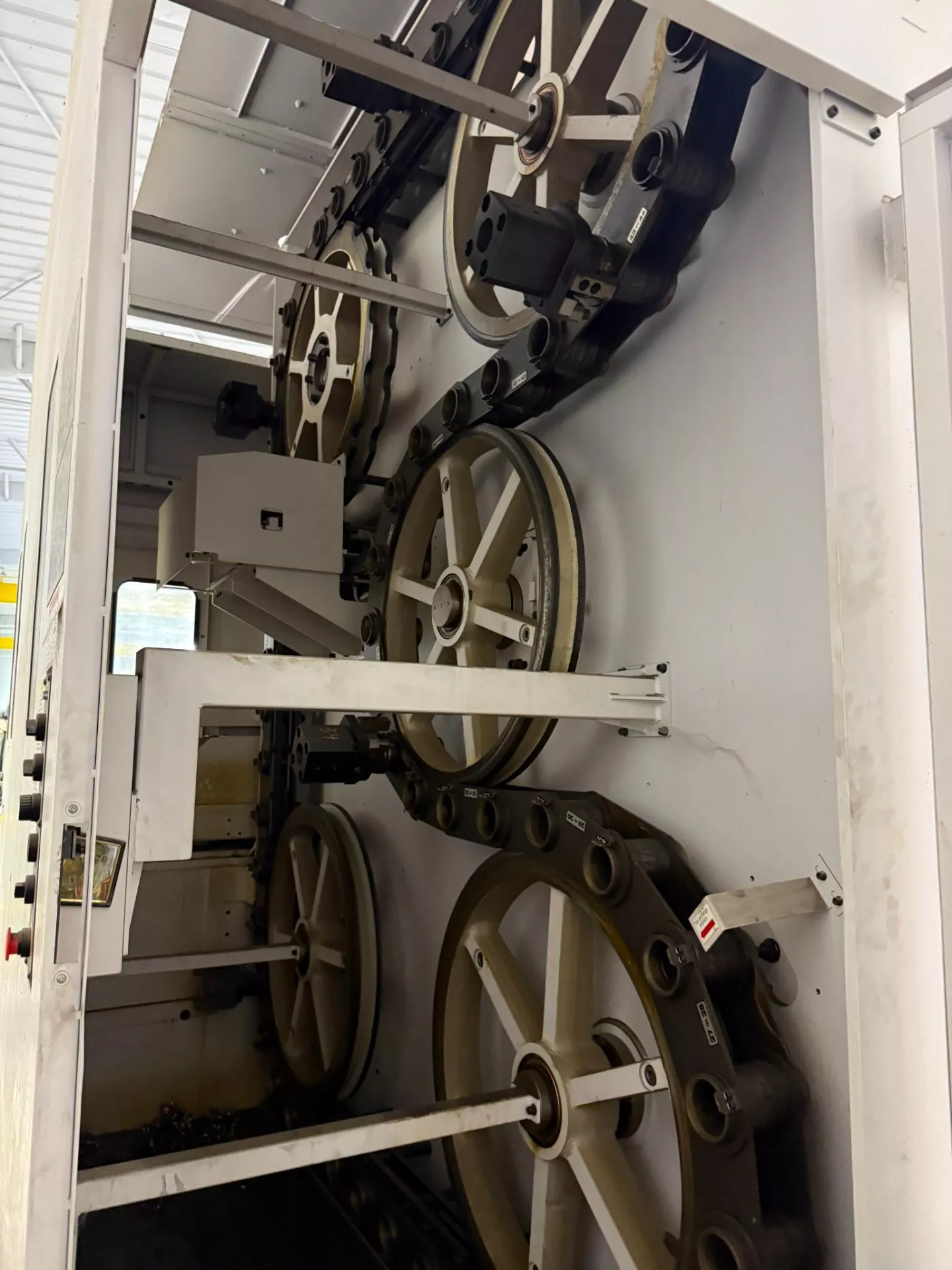

| 60 Station Automatic Tool Changer |
| A2-11 Spindle Nose |
| 4.33″ Spindle Bore |

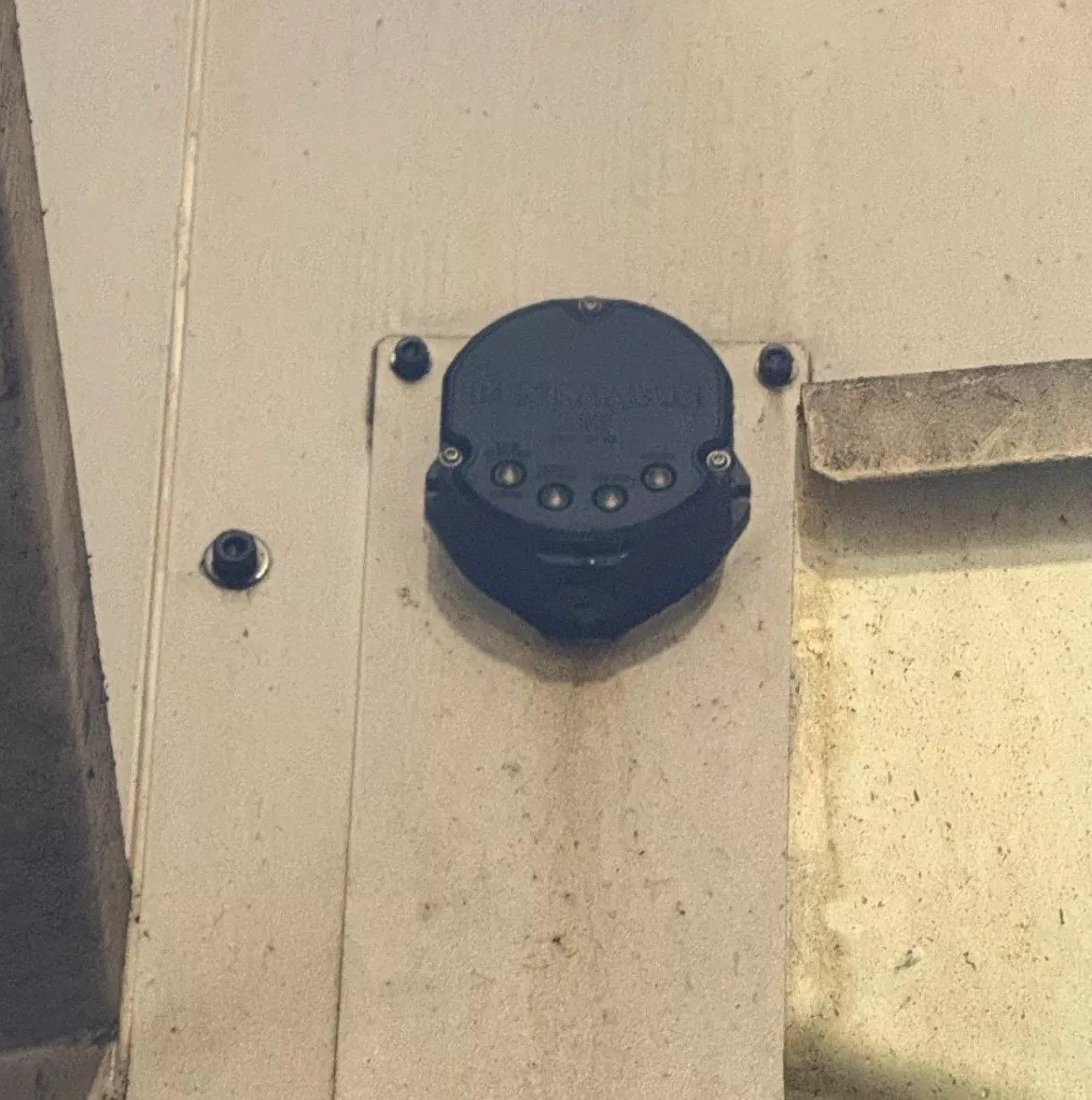

| Probing System (Tool Probe Included) |

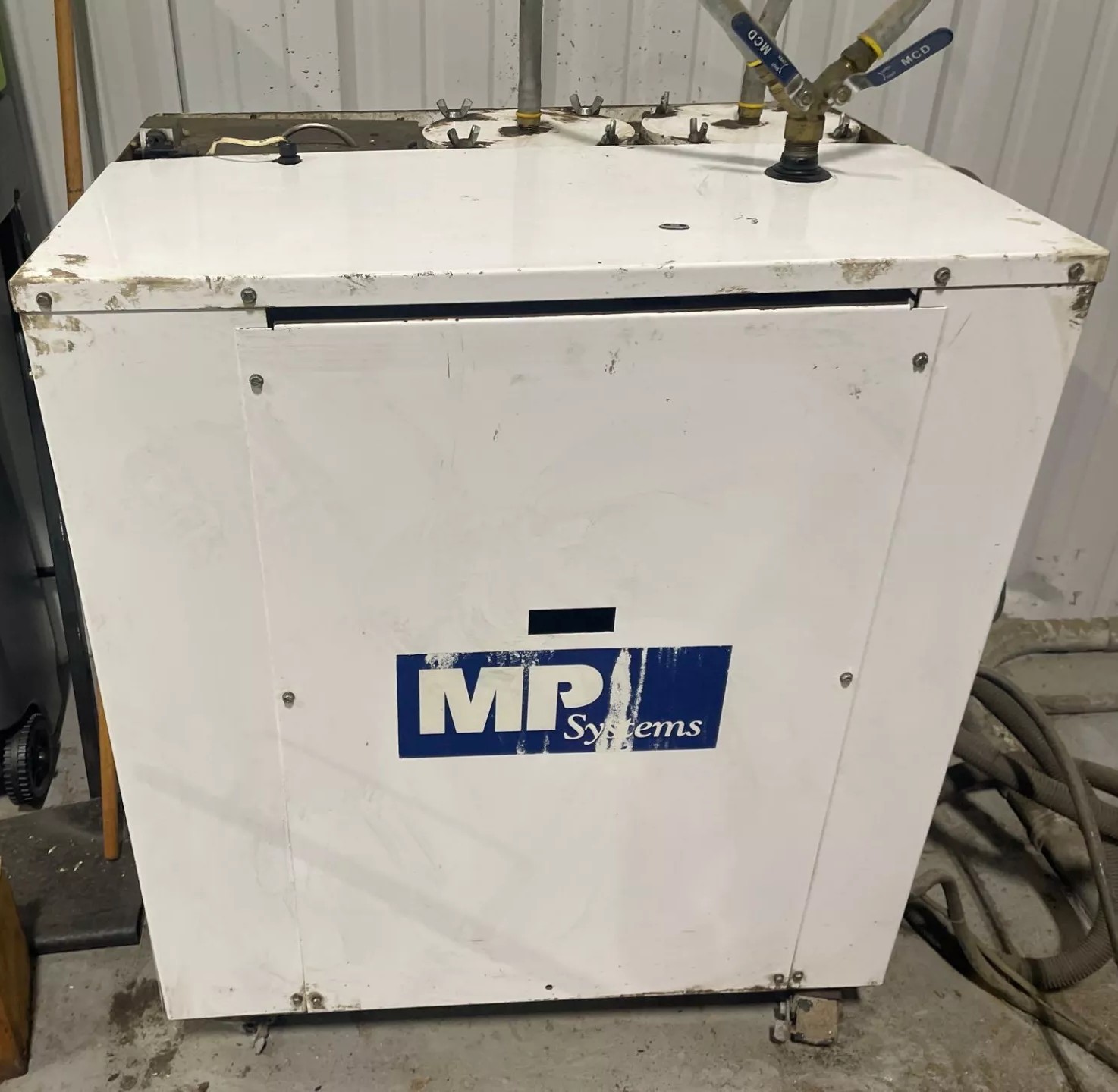

| Through Spindle Coolant |
| PCMCIA Card Slot |
| RS232 Port |

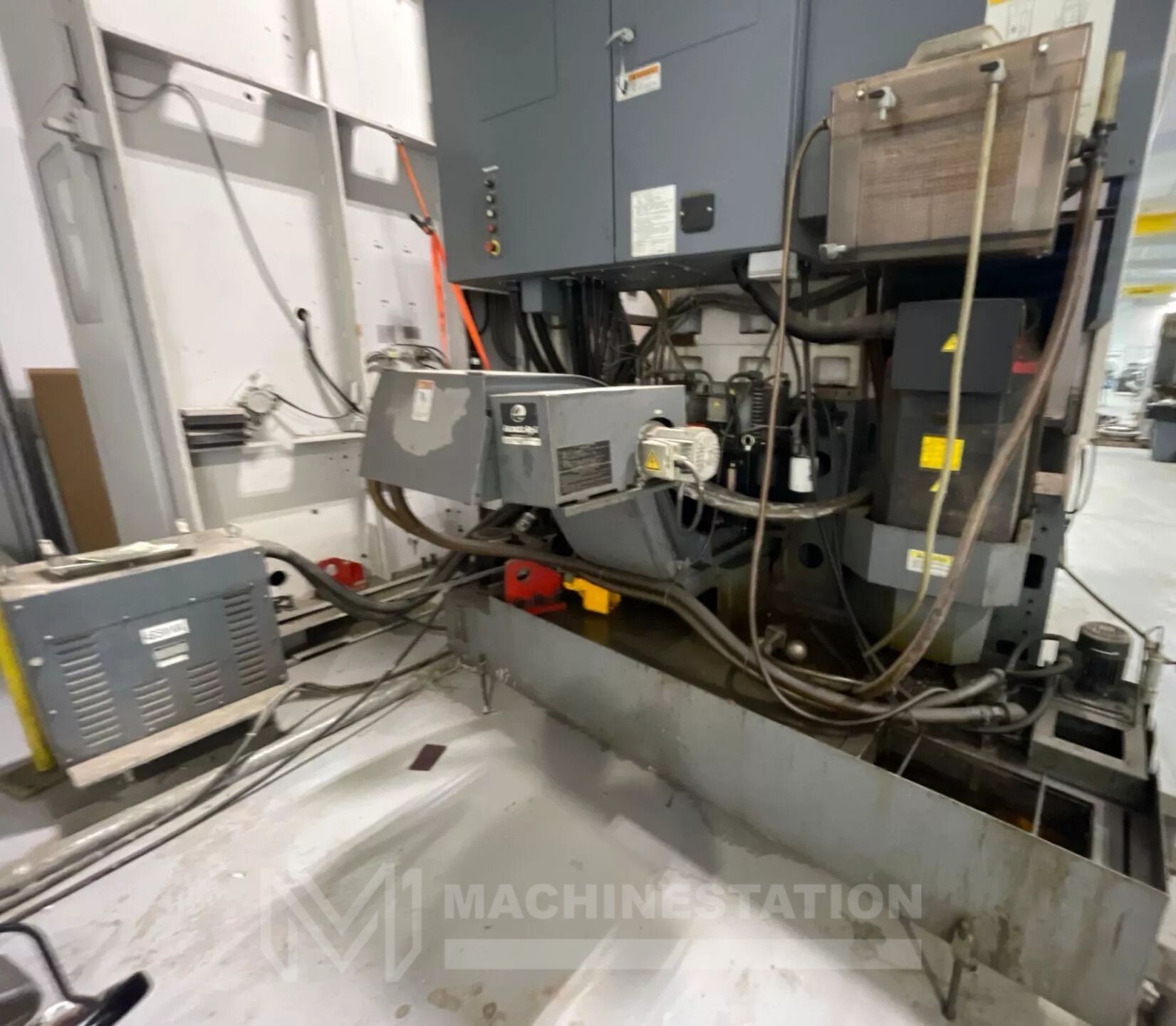

| Coolant System |
| Chip Conveyor |
| Foot Swiches |
| Capacity: |
|---|
| Max Machining Diameter: 39.37″ |
| Max Machining Height: 33.07″ |
| Max Swing Diameter: 39.37″ |
| Max Workpiece Load: 2,640 lbs |
| Travel: |
|---|
| X-Axis Travel: 25.59″ |
| Z-Axis Travel: 30.07″ |
| C-Axis: 360° (0.001°) |
| Rapid Traverse X Axis: 630 IPM |
| Rapid Traverse Z Axis: 630 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-11 |
| Spindle Bore: 4.33″ |
| Spindle Speed: 10 – 1,250 RPM |
| Spindle Motor: 40 HP |
| Turret (Tool Spindle): |
|---|
| Turret Type: ATC Single Tool |
| Tool Size: 1.0″, 1.25″ |
| Boring Bar Diameter: ø1.5″, ø2.0″ |

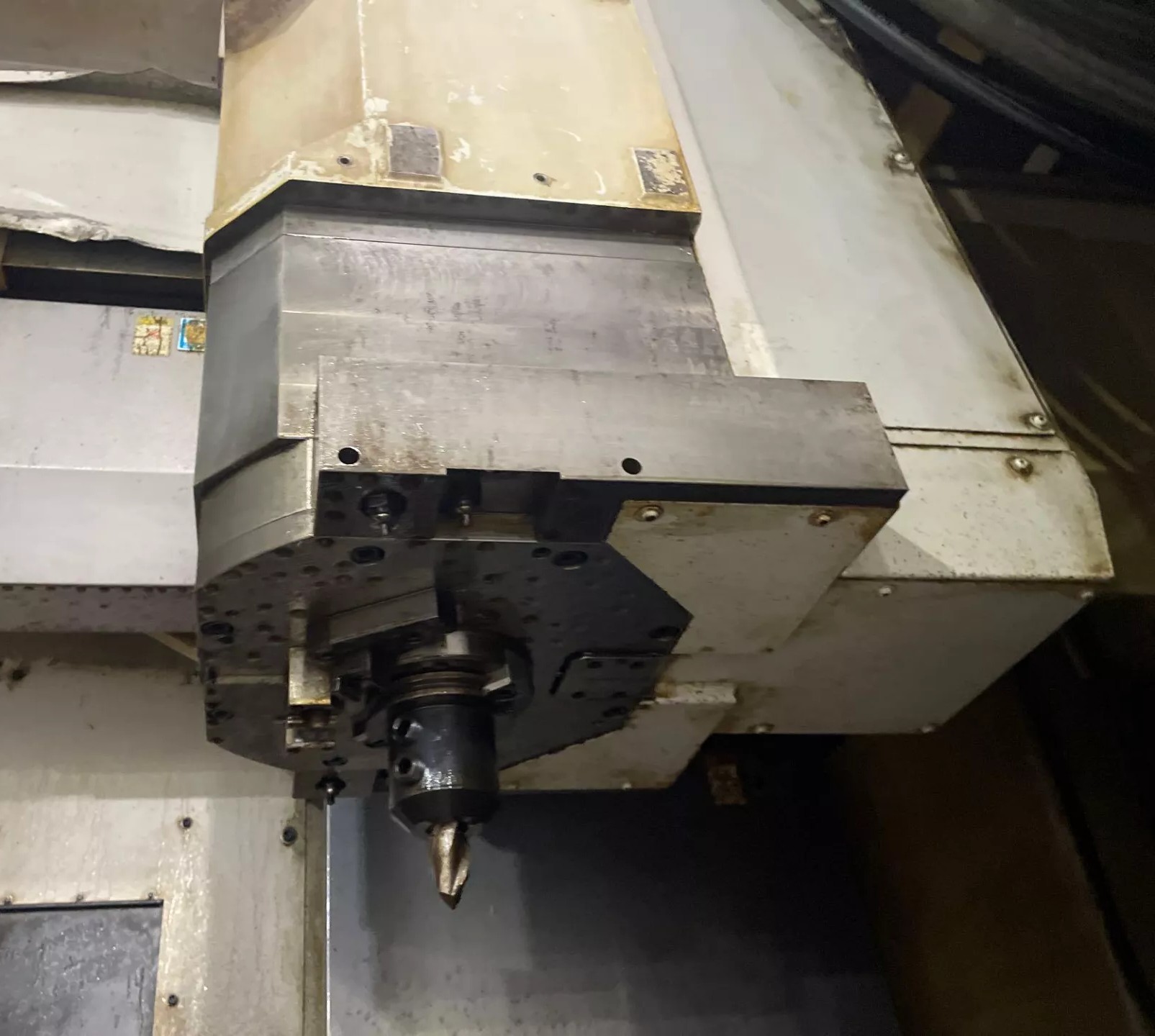

| Milling Tool Spindle: |
|---|
| Max Spindle Speed: 10 – 4,500 RPM |
| Speed Ranges: 2 Auto Ranges |
| Taper: 50 |

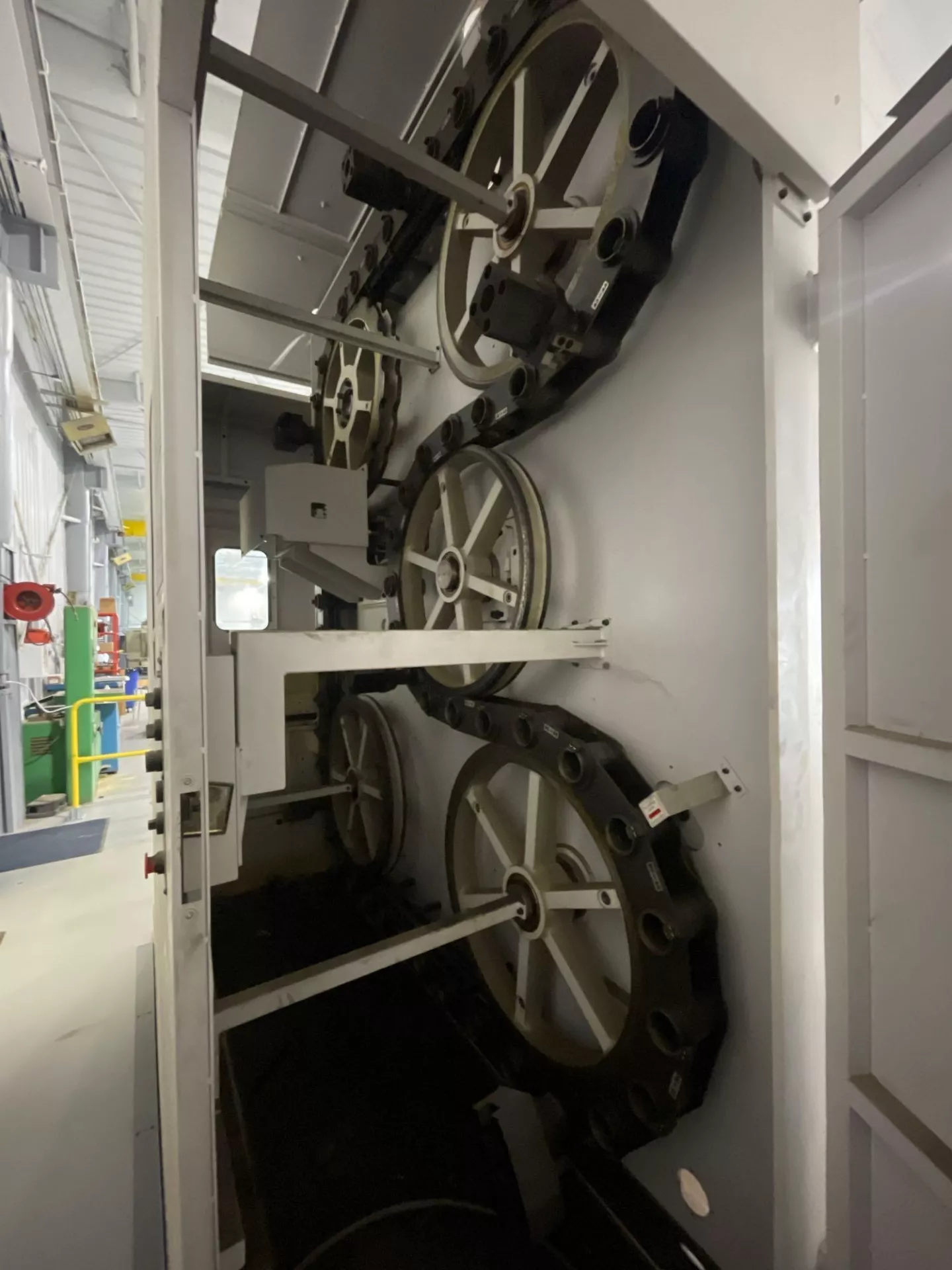

| Auotmatic Tool Changer: |
|---|
| Capacity: 60 Tools |
| Max Tool Diameter: 6.70″ – 9.84″ |
| Max Tool Length: 19.69″ |
| Max Tool Weight: 66 lbs |
| General: |
|---|
| Power Source: AC 220/480 V, Three Phase, 60 Hz |
| Overall Diemensions: 169″ x 126″ x 169″ High |
| Weight : 29,700 lbs Approx. |
