*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

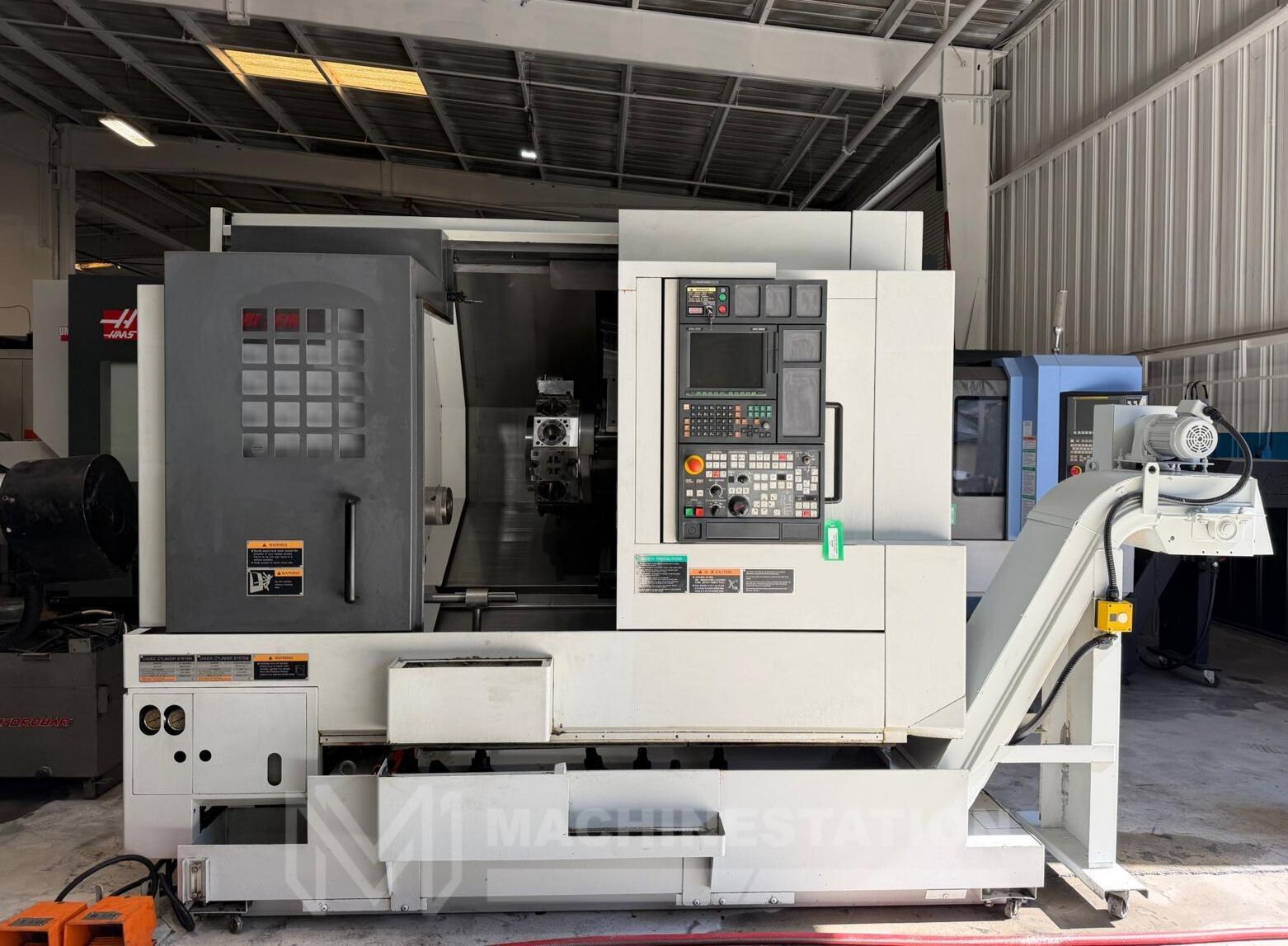

| Make: | Mori Seiki |
| Model: | NL-2000SY/500 |
| Year: | 2009 (Installed in 2010) |
| Condition: | Used – Good |
| Equipped With: |
|---|

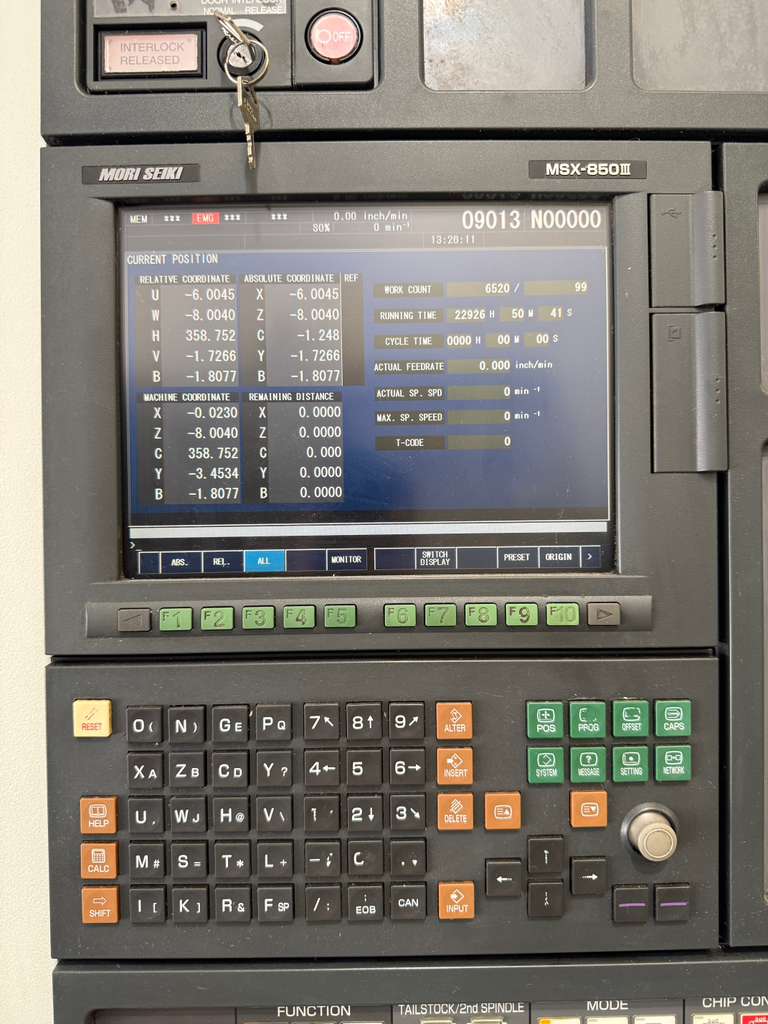

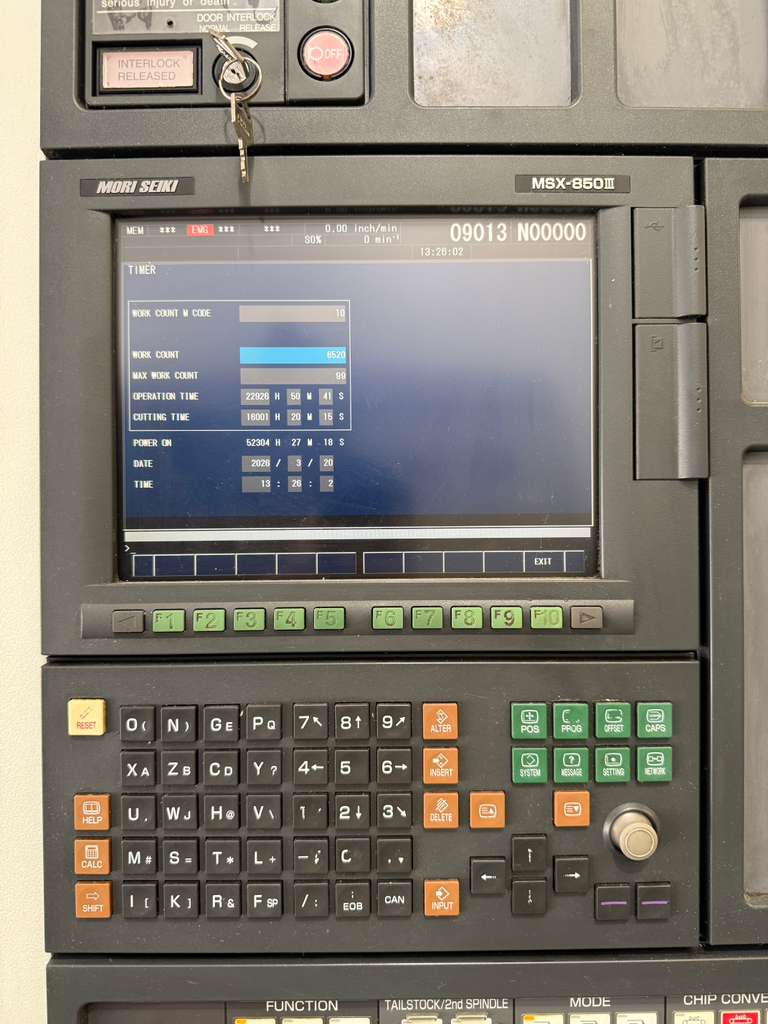

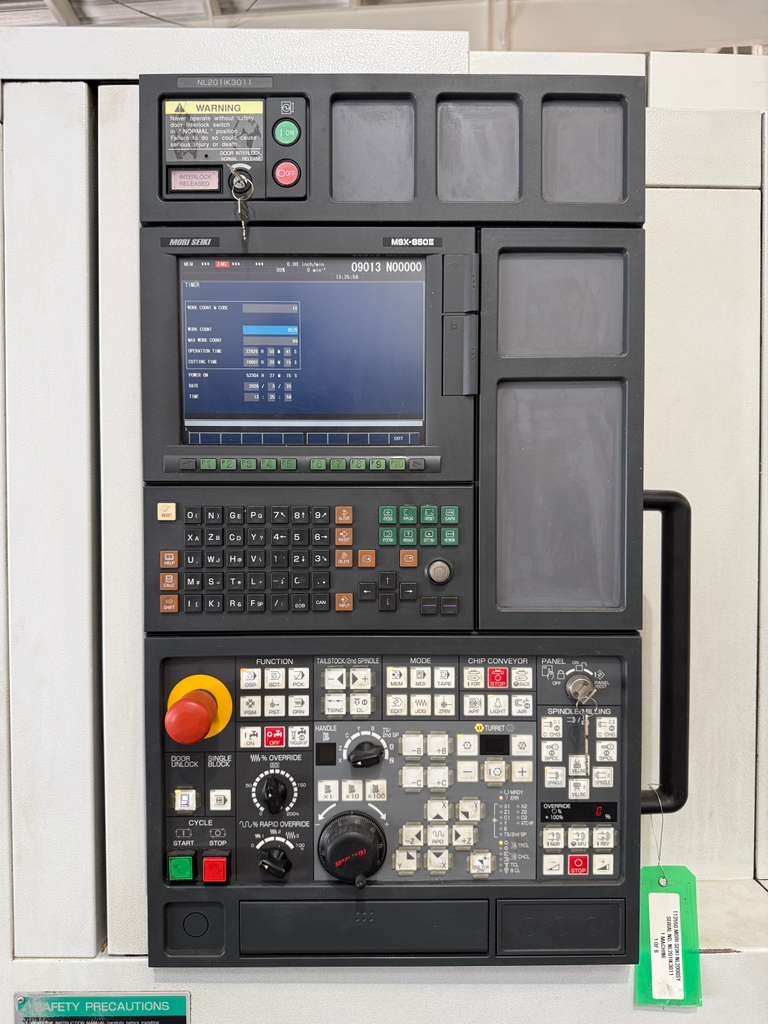

| Mori Seiki MSX-850III CNC Control |

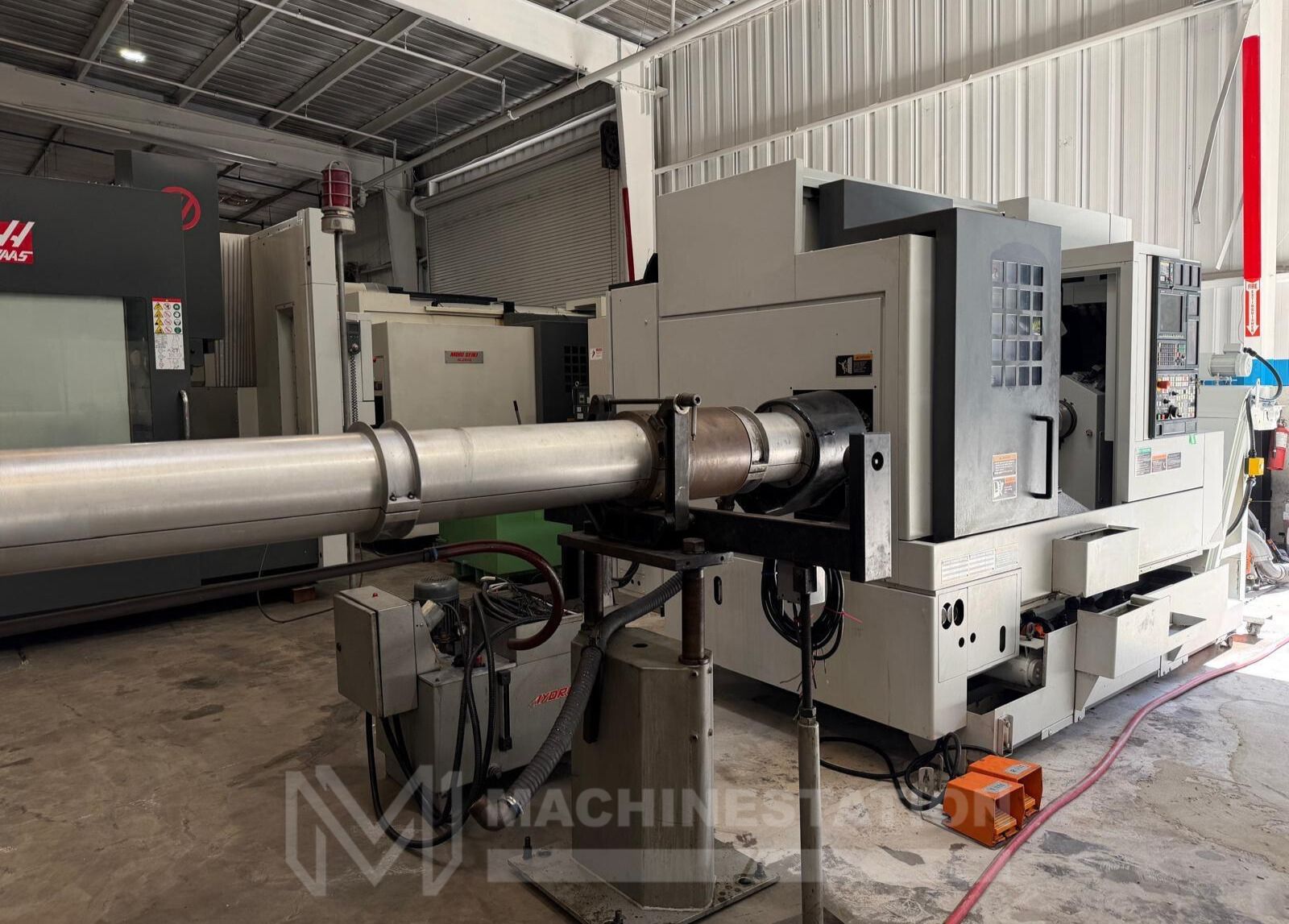

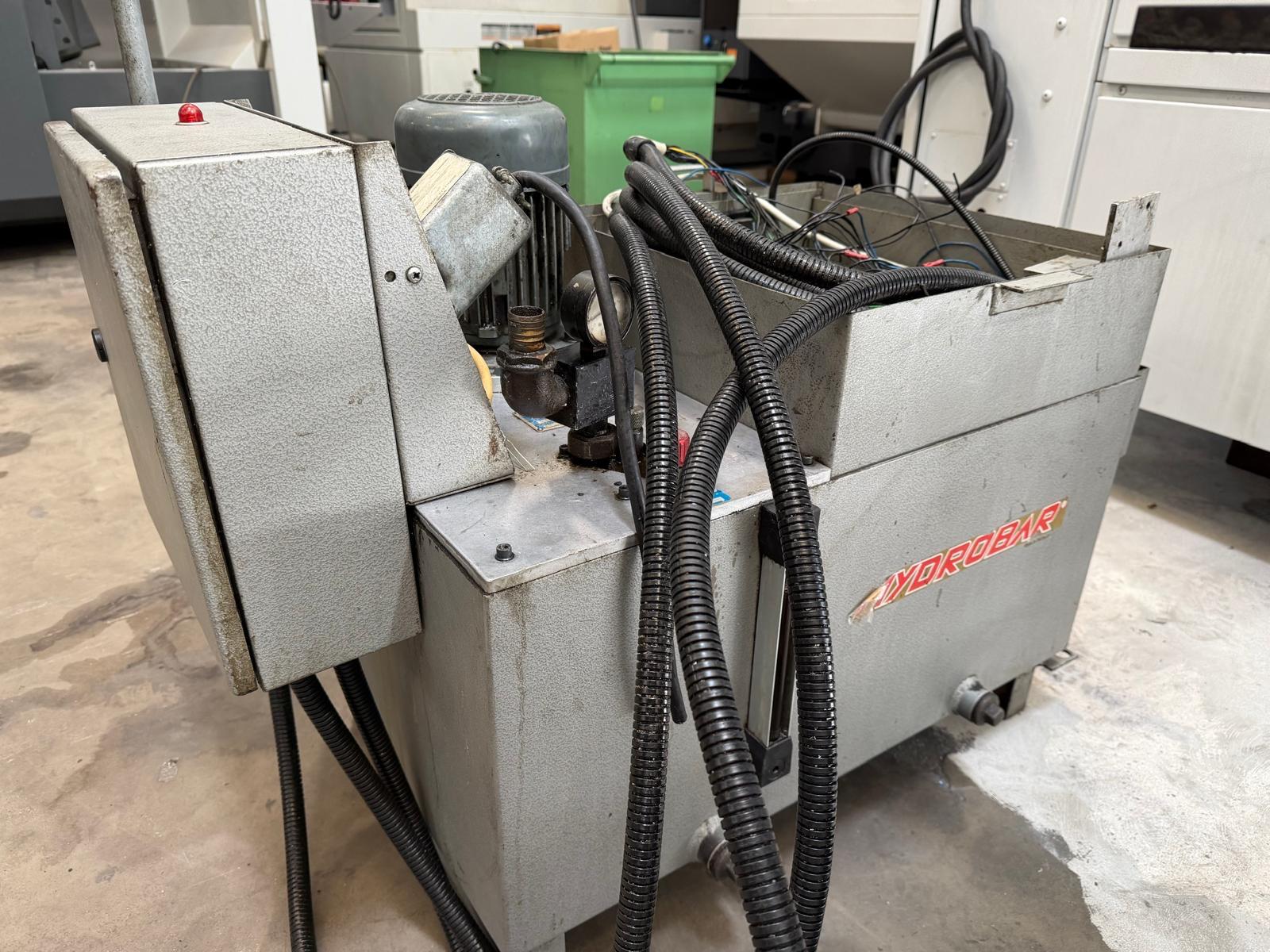

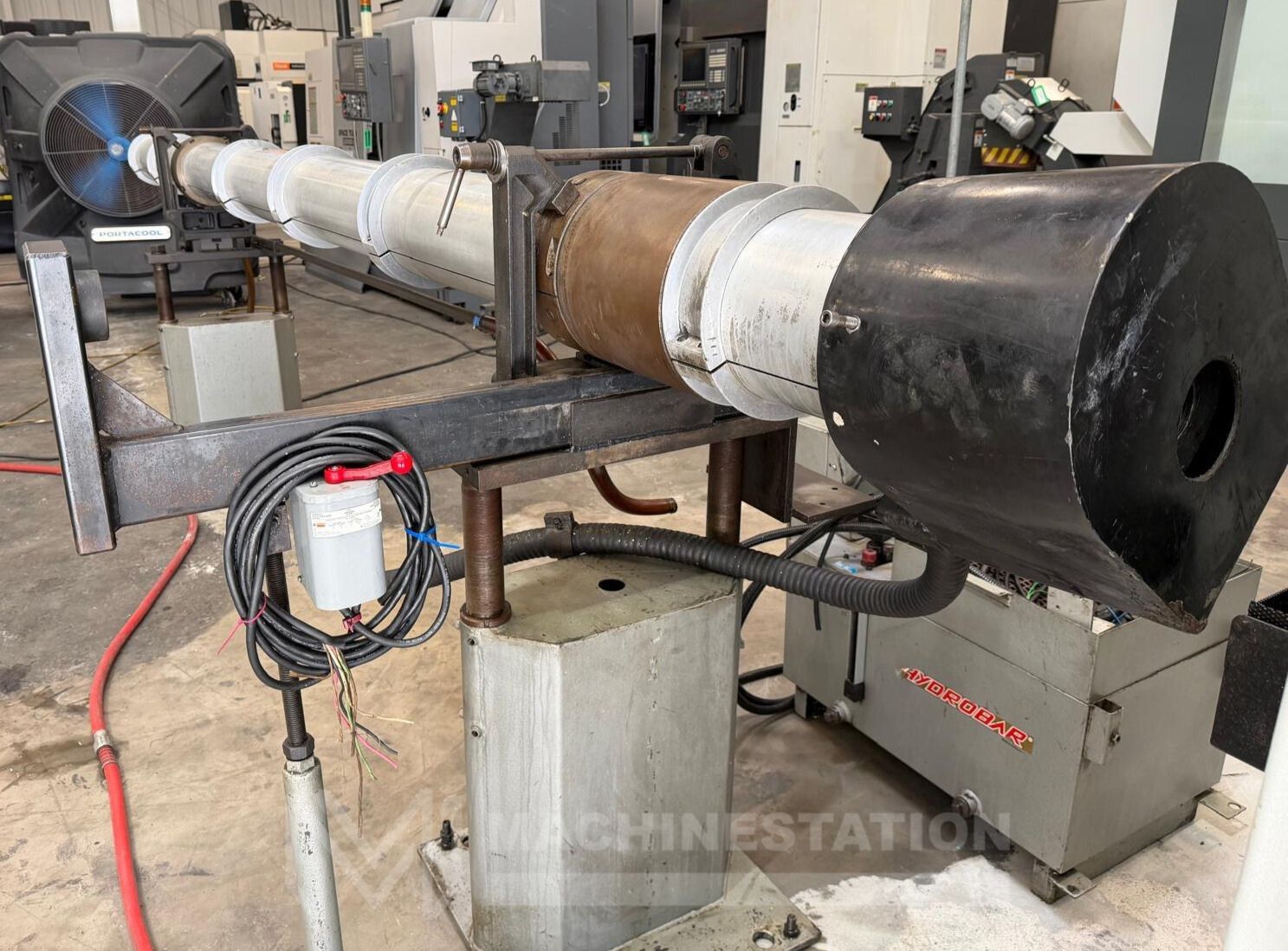

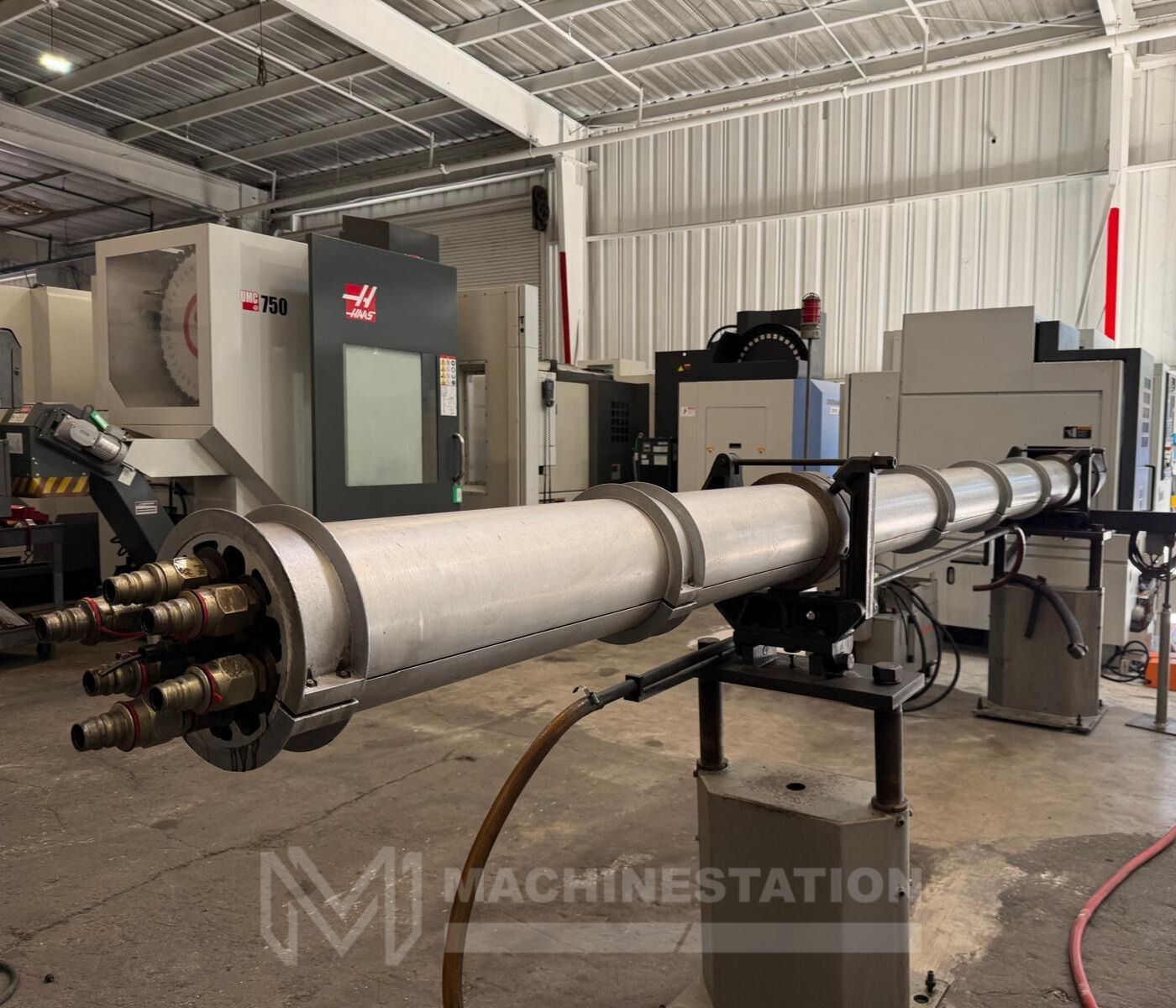

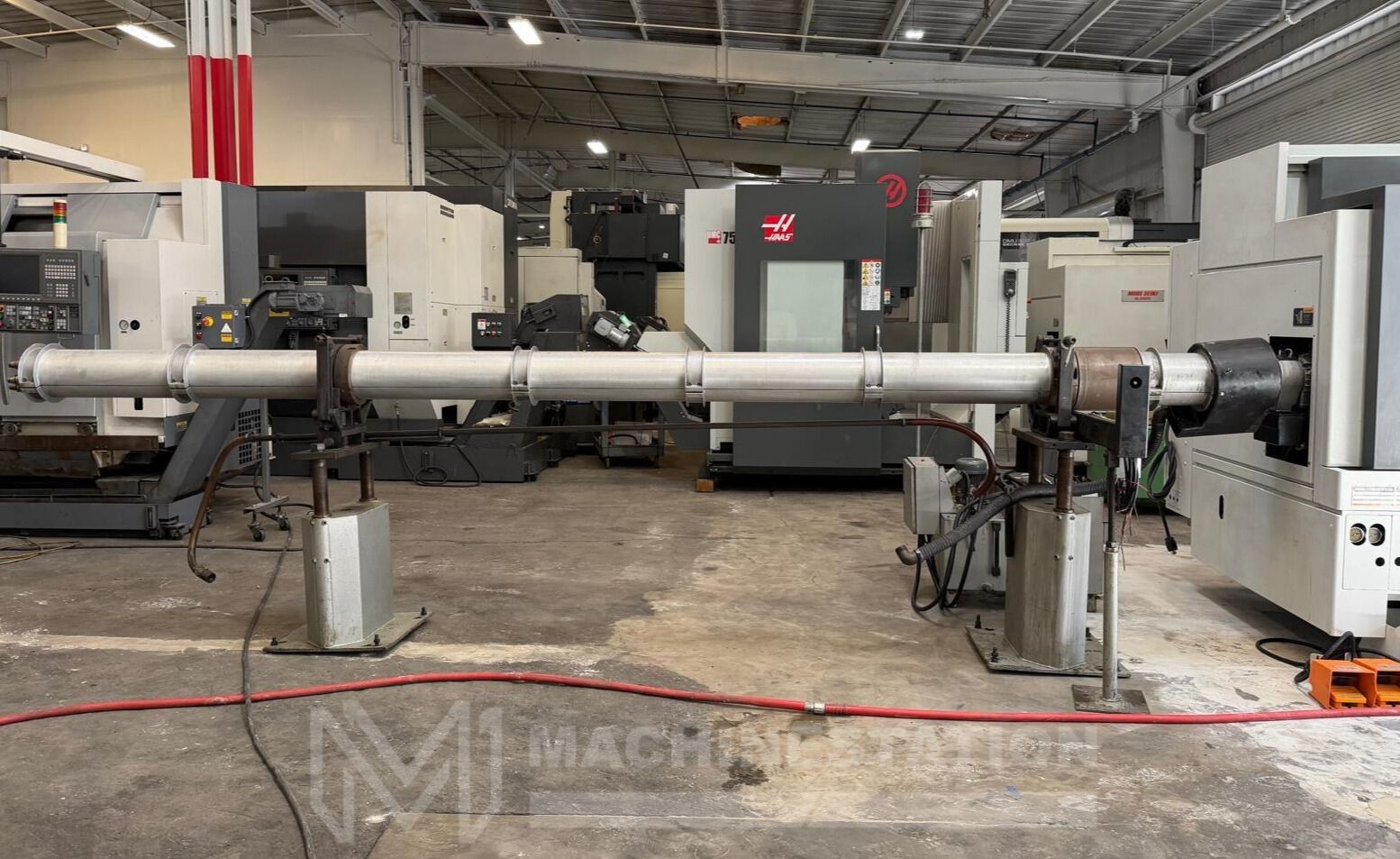

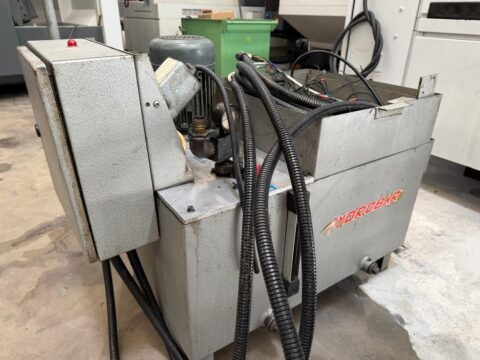

| LNS Hydrobar Bar Feeder |

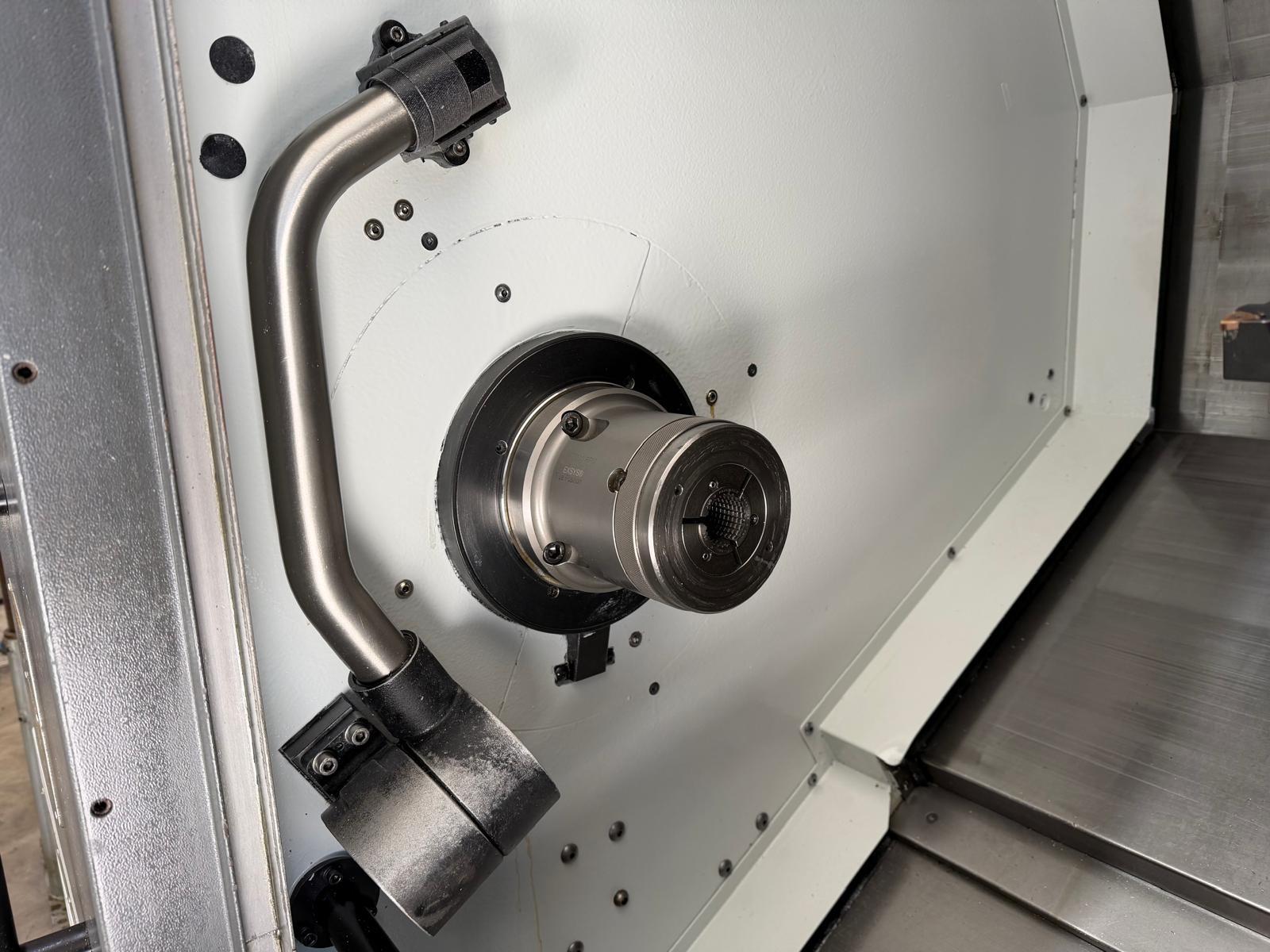

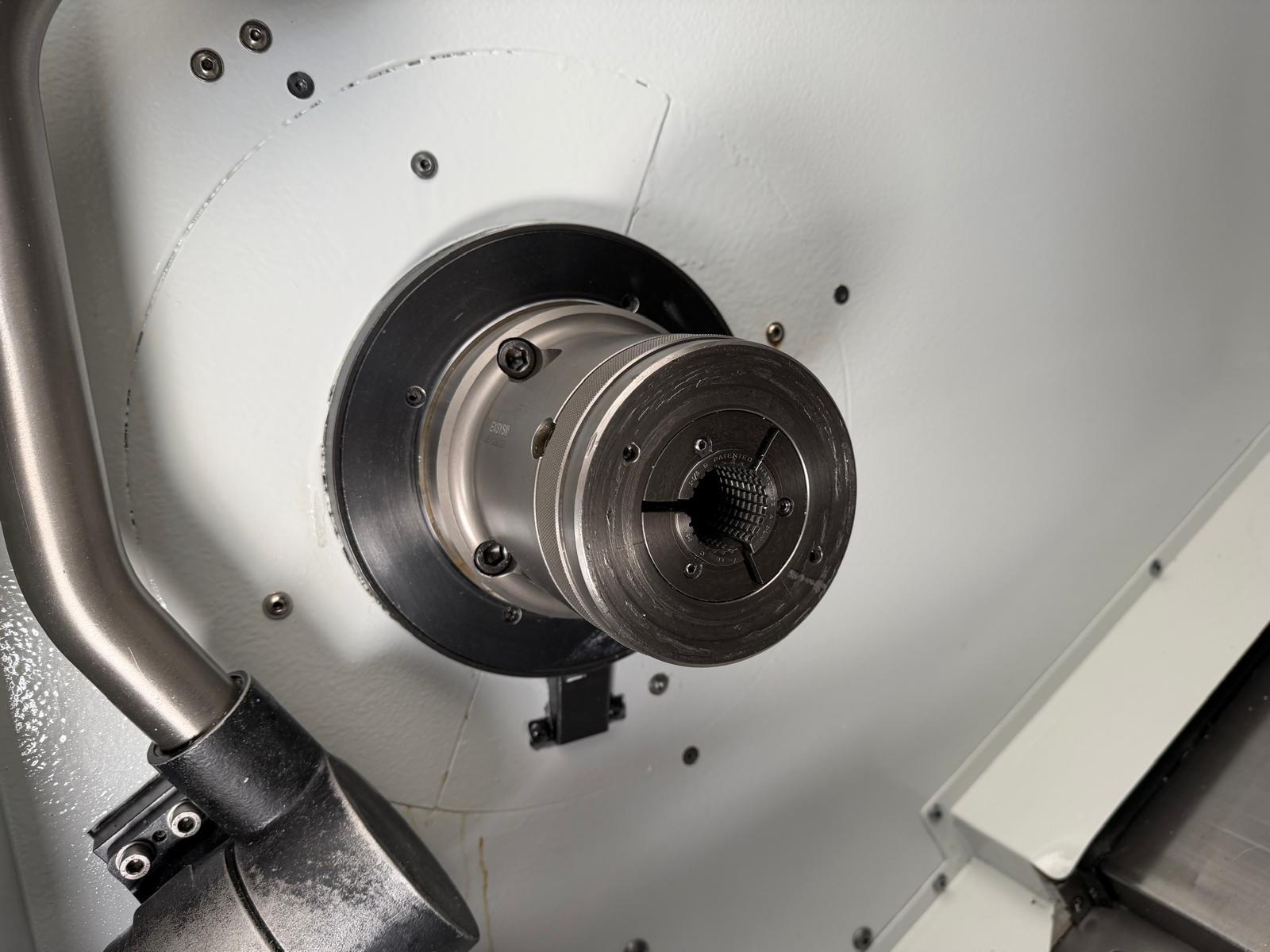

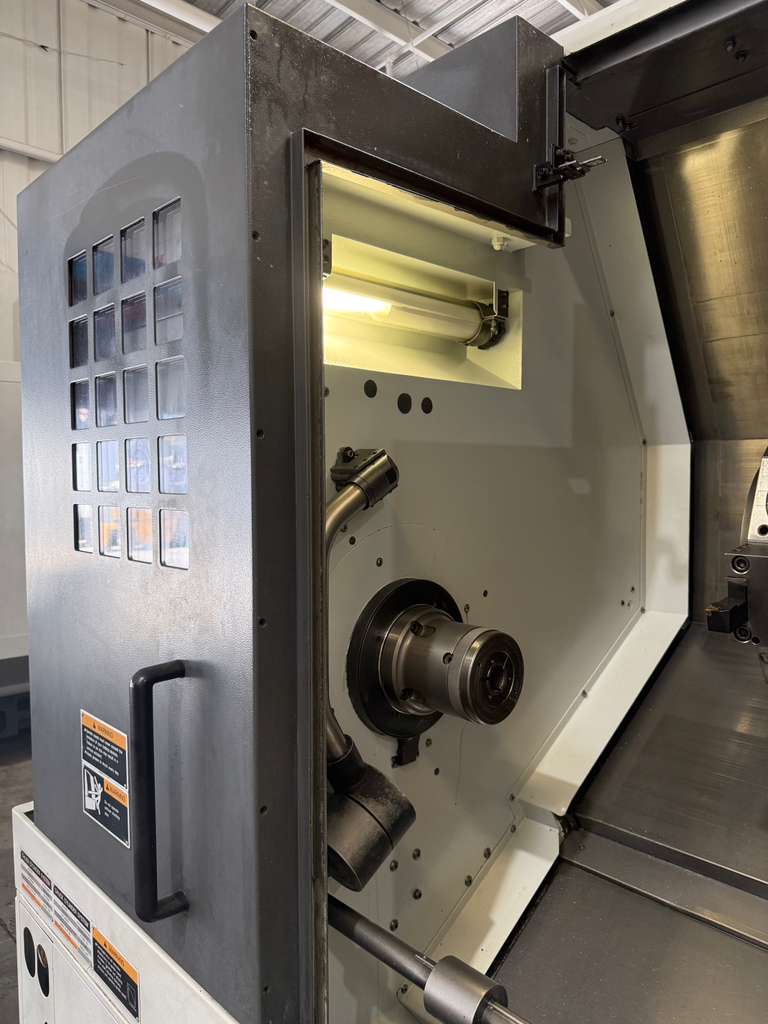

| Collet Chuck (Capable 10″ Chuck) On Main Spindle |

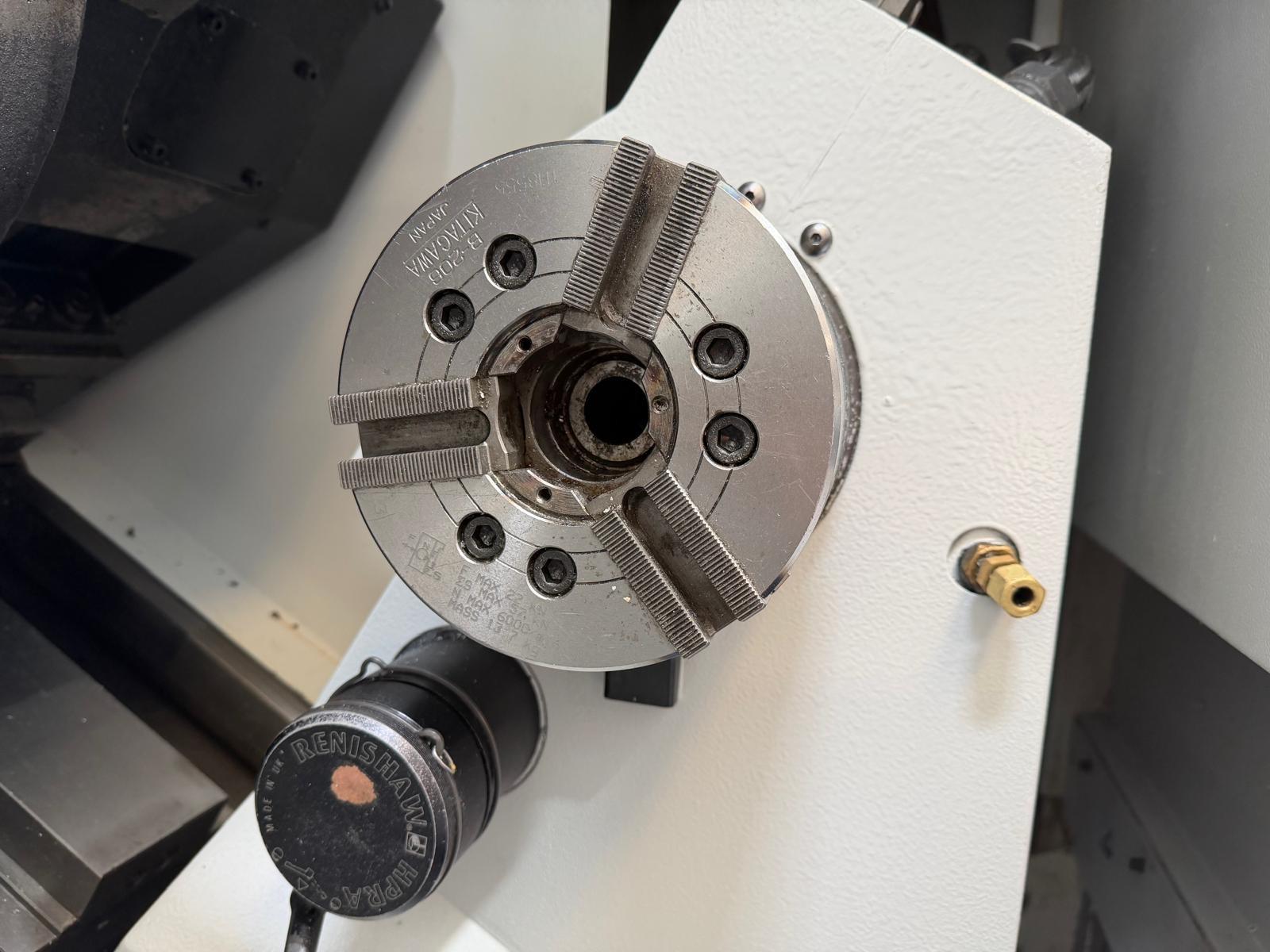

| 6″ 3-Jaw Kitagawa B-206 Chuck On Sub Spindle |
| Servo Controlled C Axis On Both Spindles |

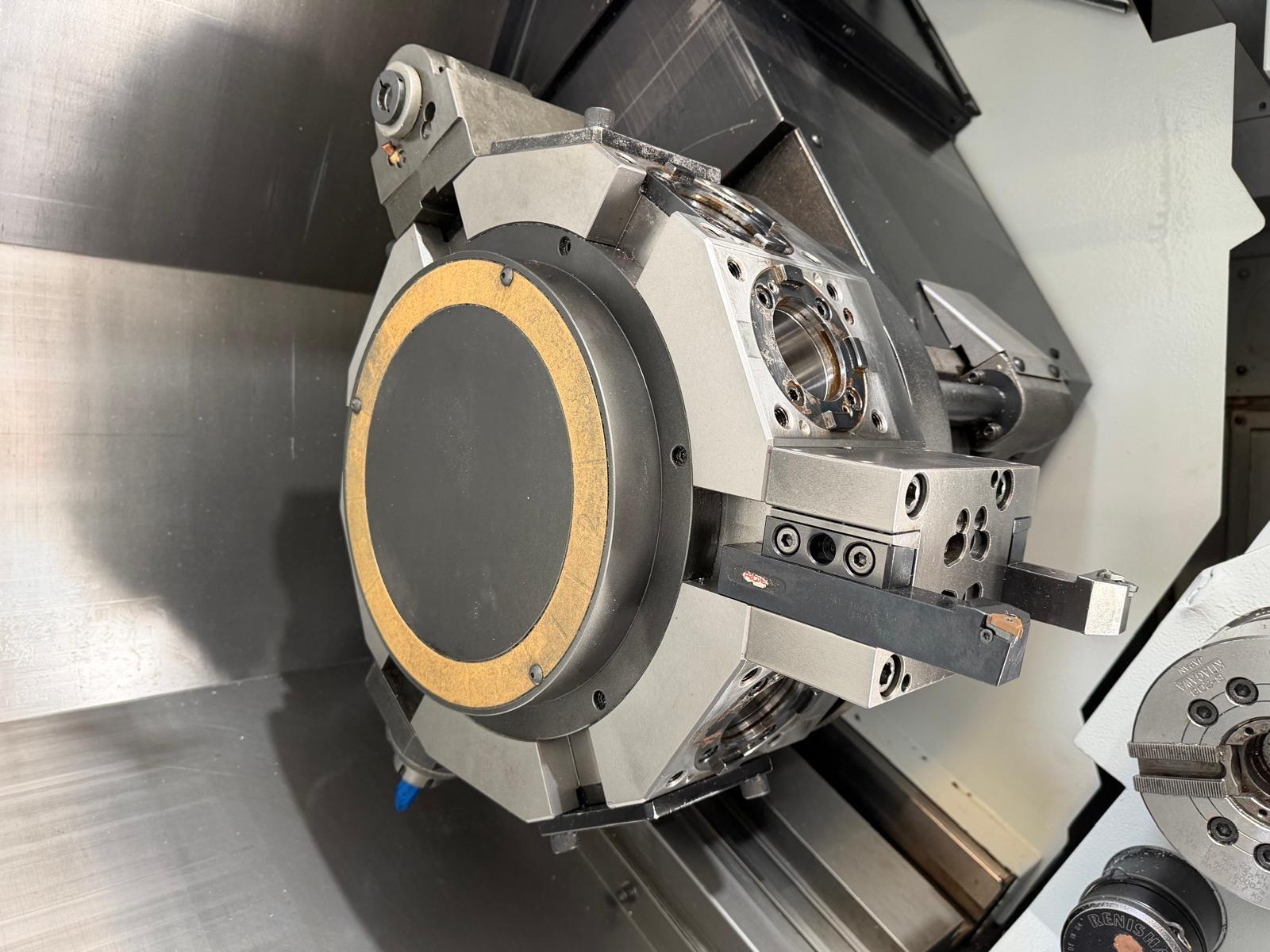

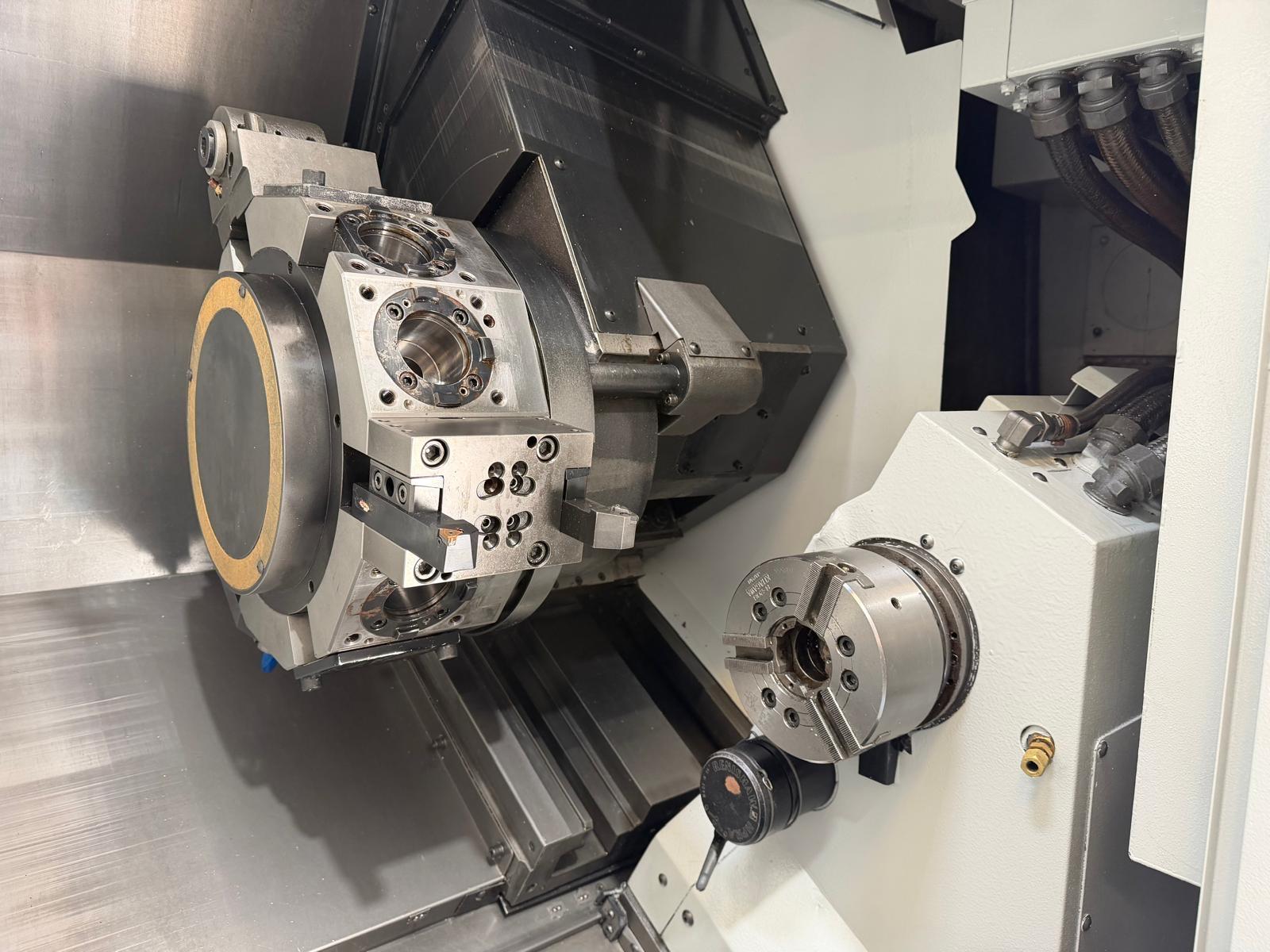

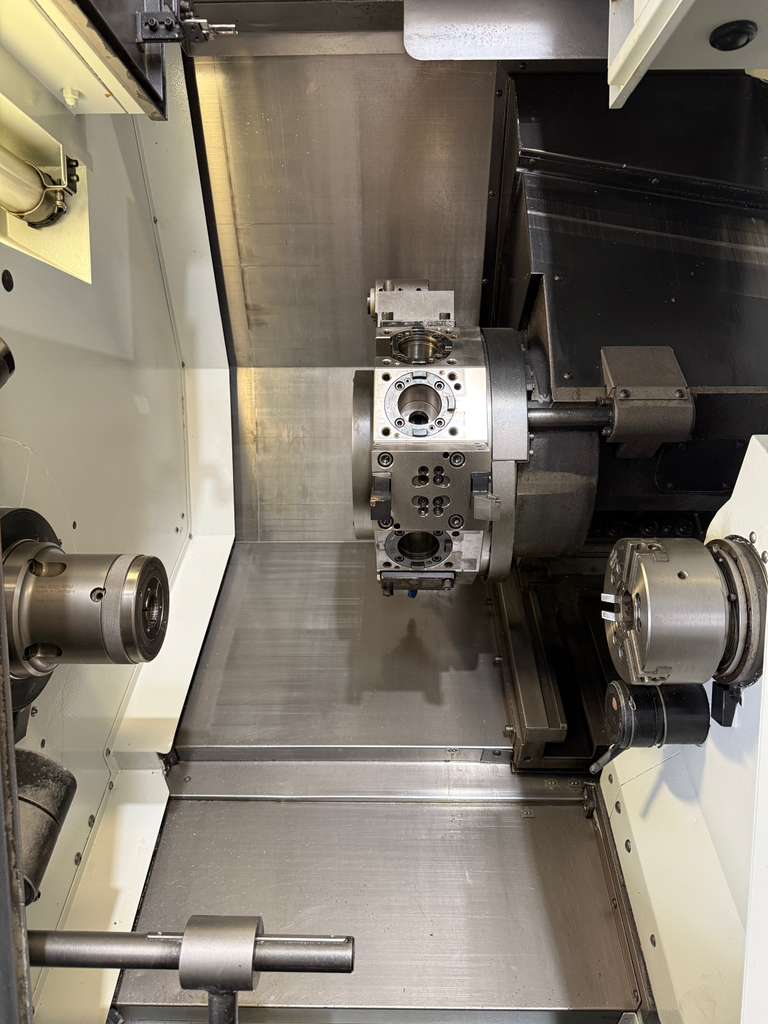

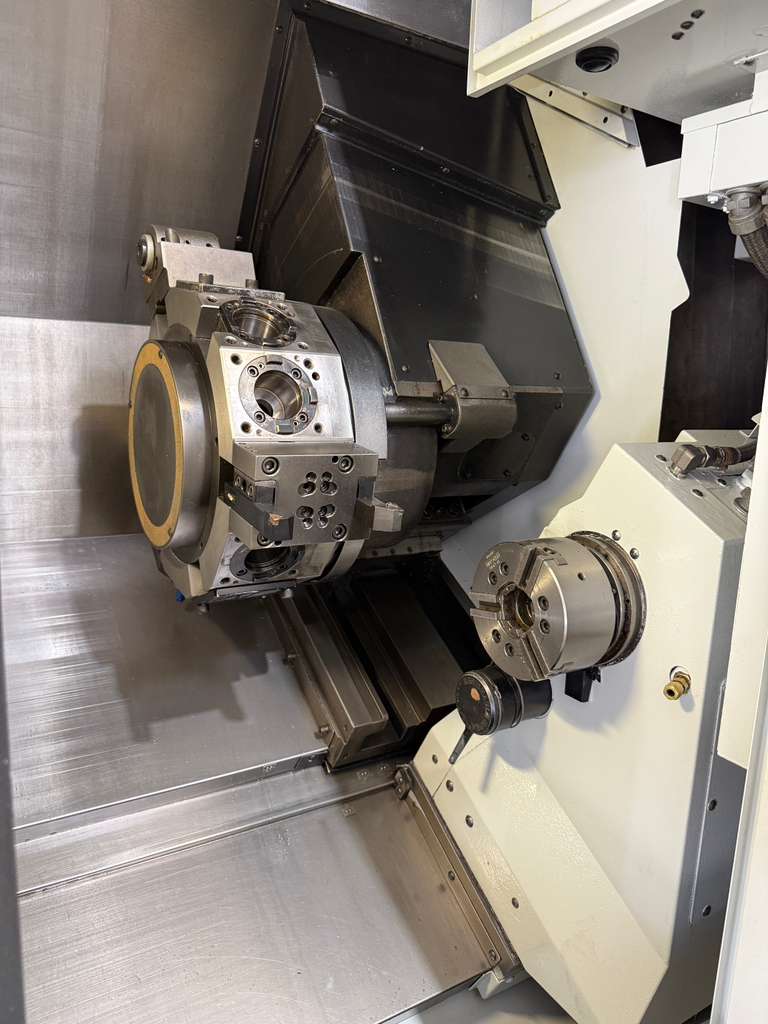

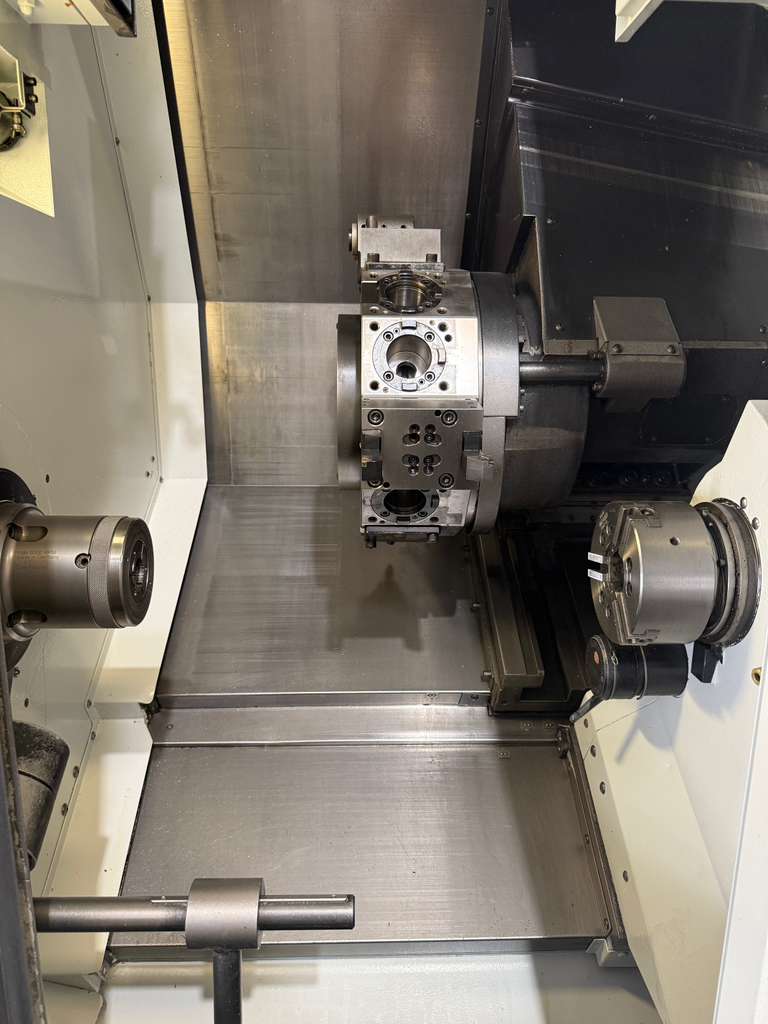

| 12 Station Live Tool Turret |
| Y Axis On Turret |
| Tool Presetter |
| Parts Catcher |
| PCMCIA Card Slot |
| RS-232 |
| Rigid Tapping |

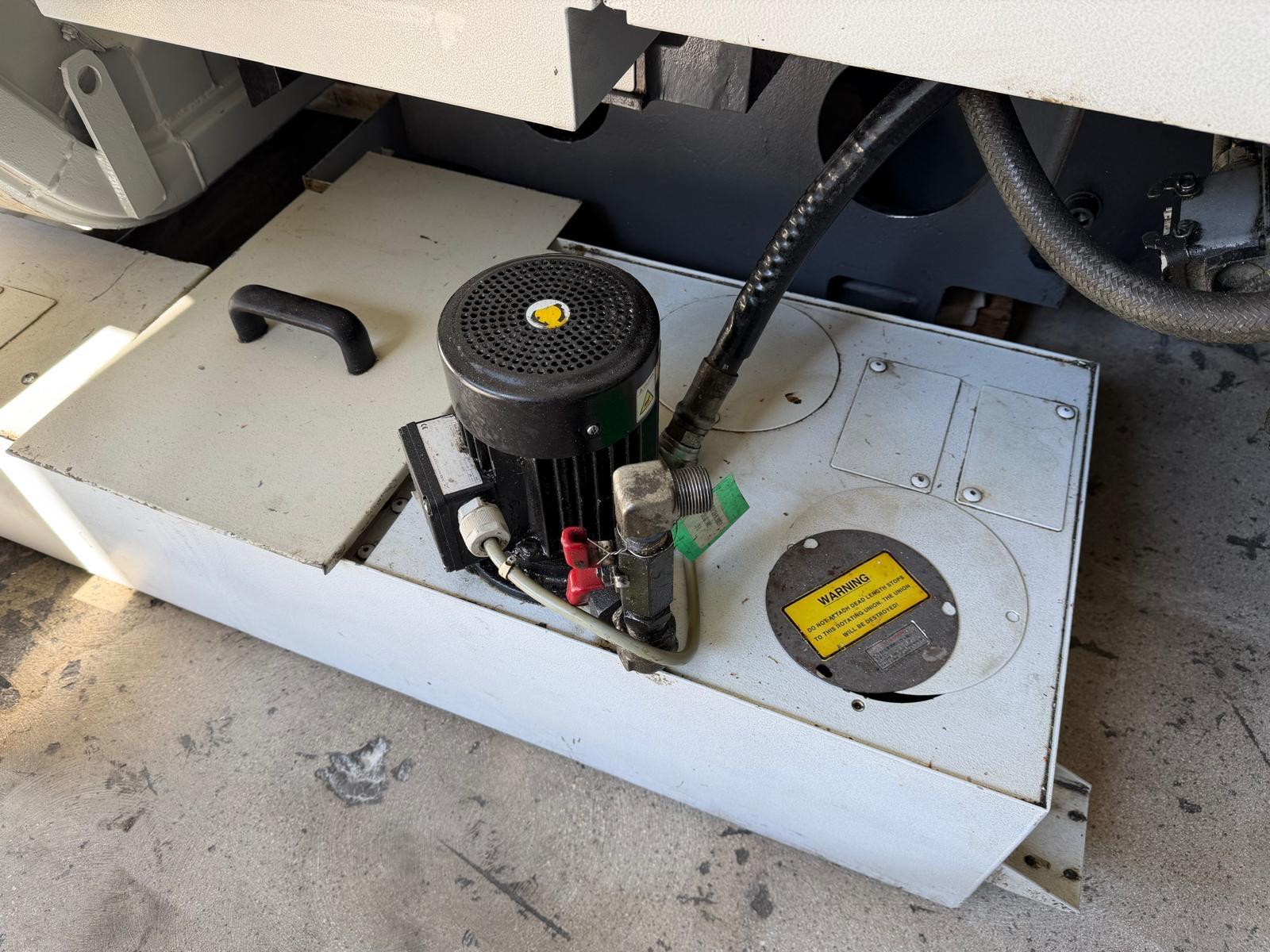

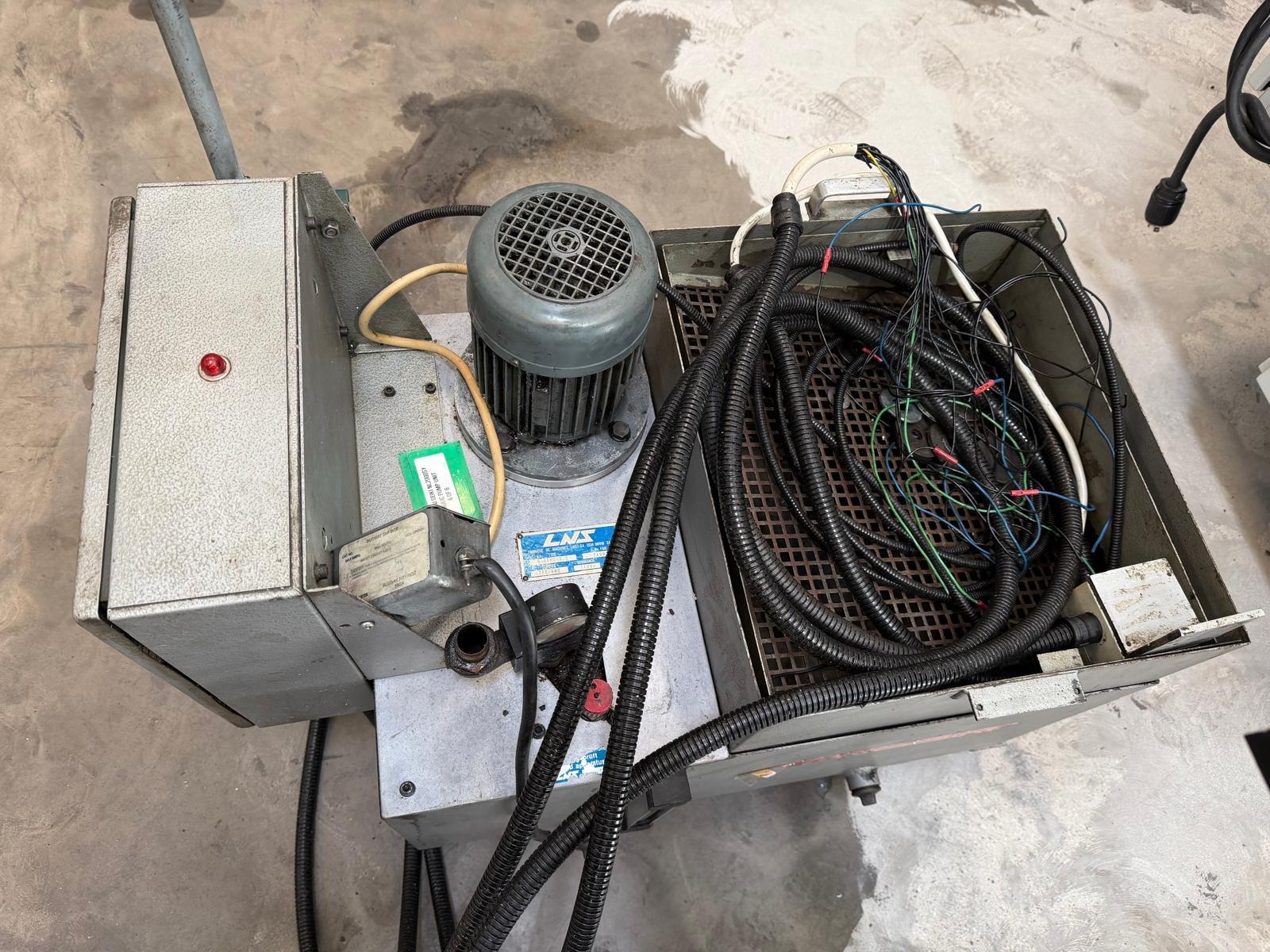

| Coolant System |
| Transformer |

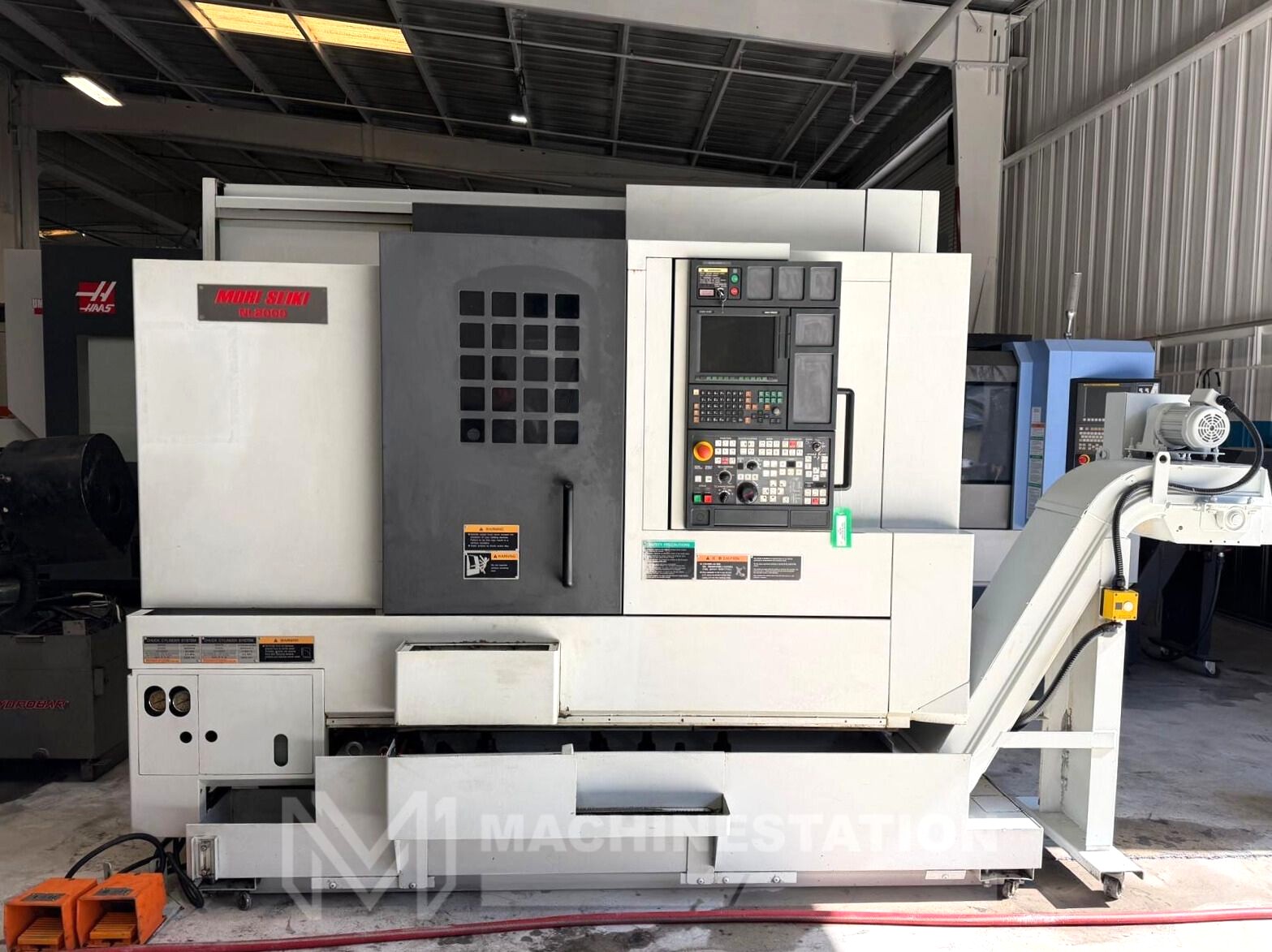

| Chip Conveyor |
| Misc Tool Holders Mounted on Turret (As shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter: 14.4″ |
| Max Turning Length: 20.0″ |
| Swing Over Bed: 22.8″ |
| Max Bar Capacity: 2.50″ |
| Travel: |
|---|
| X Axis Travel: 10.2″ |
| Z Axis Travel: 23.2″ |
| Y Axis Travel: 3.9″ (±2.0) |
| B Axis Travel (Sub Spindle): 24.6″ |
| C Axis: 360° (0.001°) |
| Rapid Traverse X,Z,B Axis: 1181 IPM |
| Rapid Traverse Y Axis: 394 IPM |
| Main Spindle: |
|---|
| Main Spindle Nose: A2-6 |
| Main Spindle Bore: 2.9″ |
| Main Spindle Speed: 5000 RPM |
| Main Spindle Motor: 20 HP |
| Sub Spindle: |
|---|
| Sub Spindle Nose: A2-5 |
| Sub Spindle Bore: 1.7″ |
| Sub Spindle Speed: 6000 RPM |
| Sub Spindle Motor: 15 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.25 Second |
| Rotary Tool Speed: 6,000 RPM |
| Rotary Tool Motor: 7.5 HP |
| Tool Holders Type: Bolt Mounted |

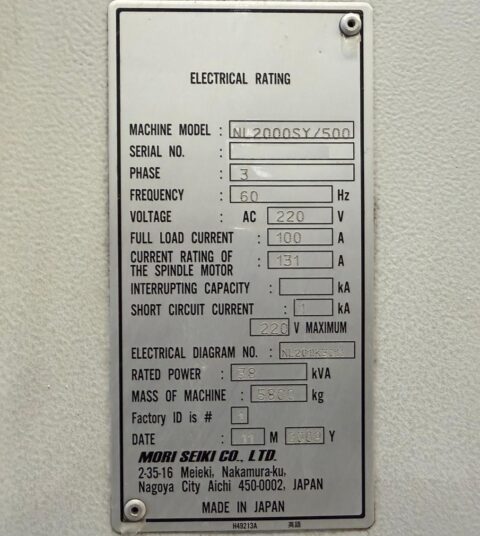

| General: |
|---|

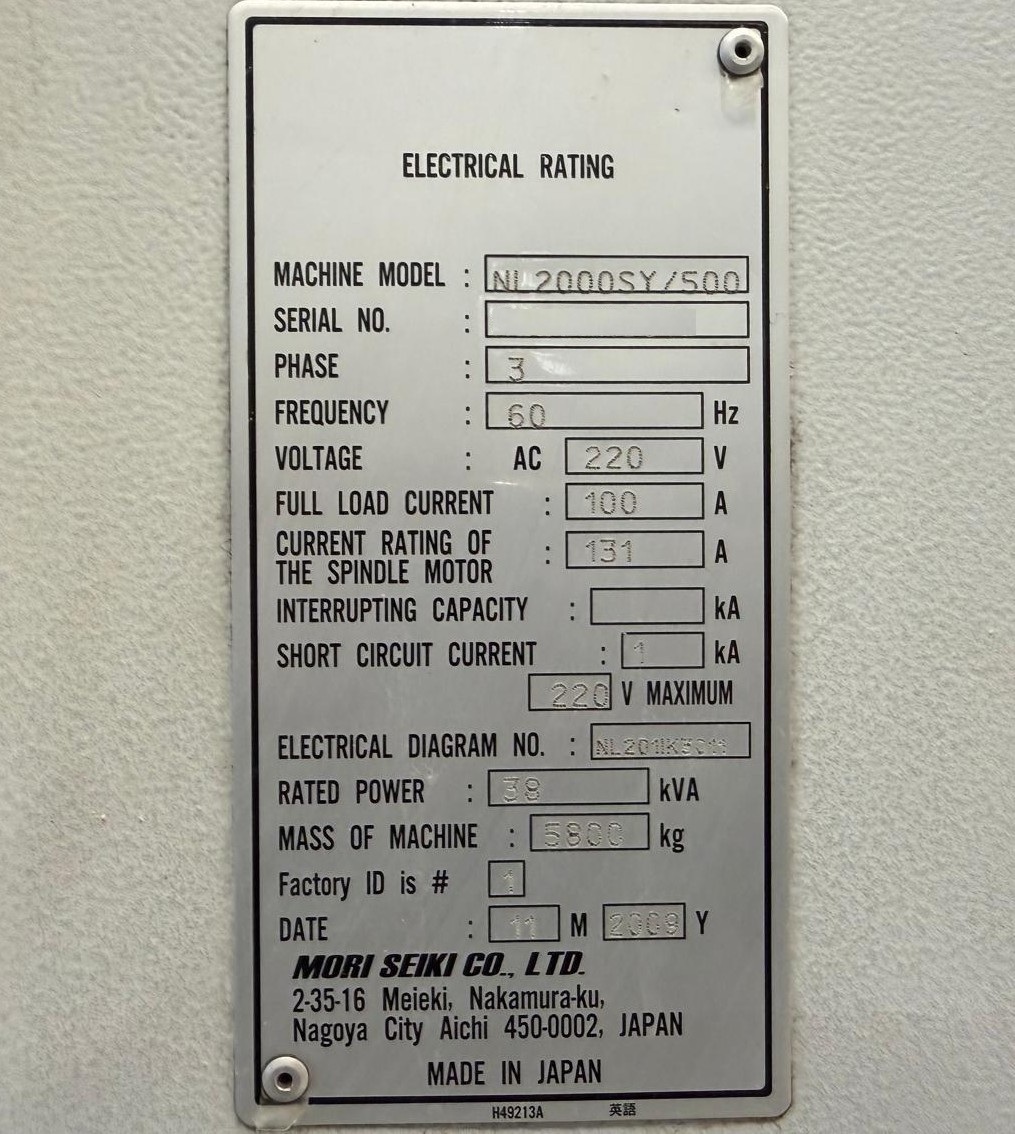

| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: 38 kva |
| Overall Dimensions: 107″ X 79″ X 84″ High |
| Weight : 12,785 lbs. Approx. |
