Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

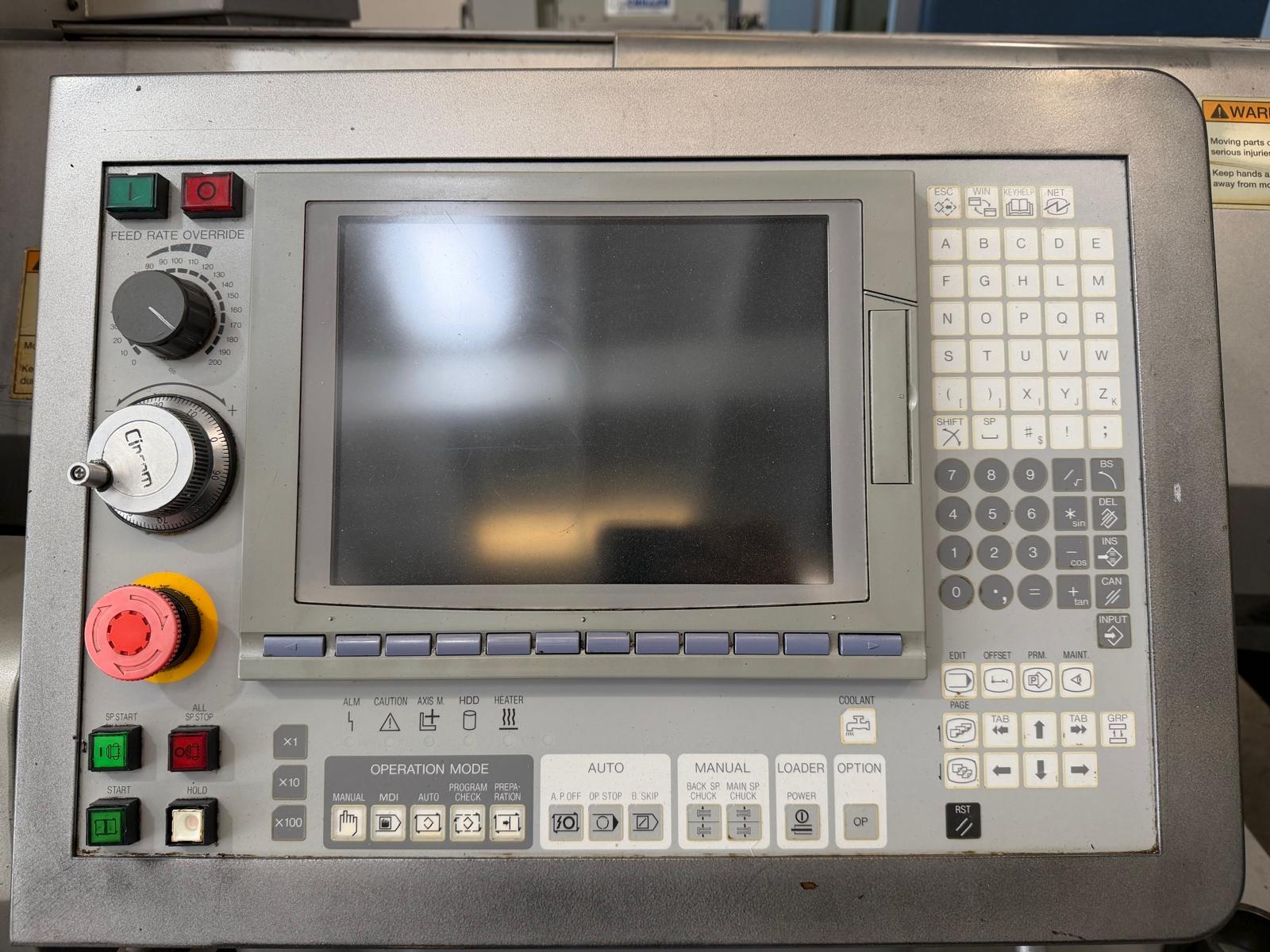

| Citizen Cincom CNC Control |
| Controlled Axes (Liner Axes) X1, X2, X3, Y1, Z1, Z2, Z3 |

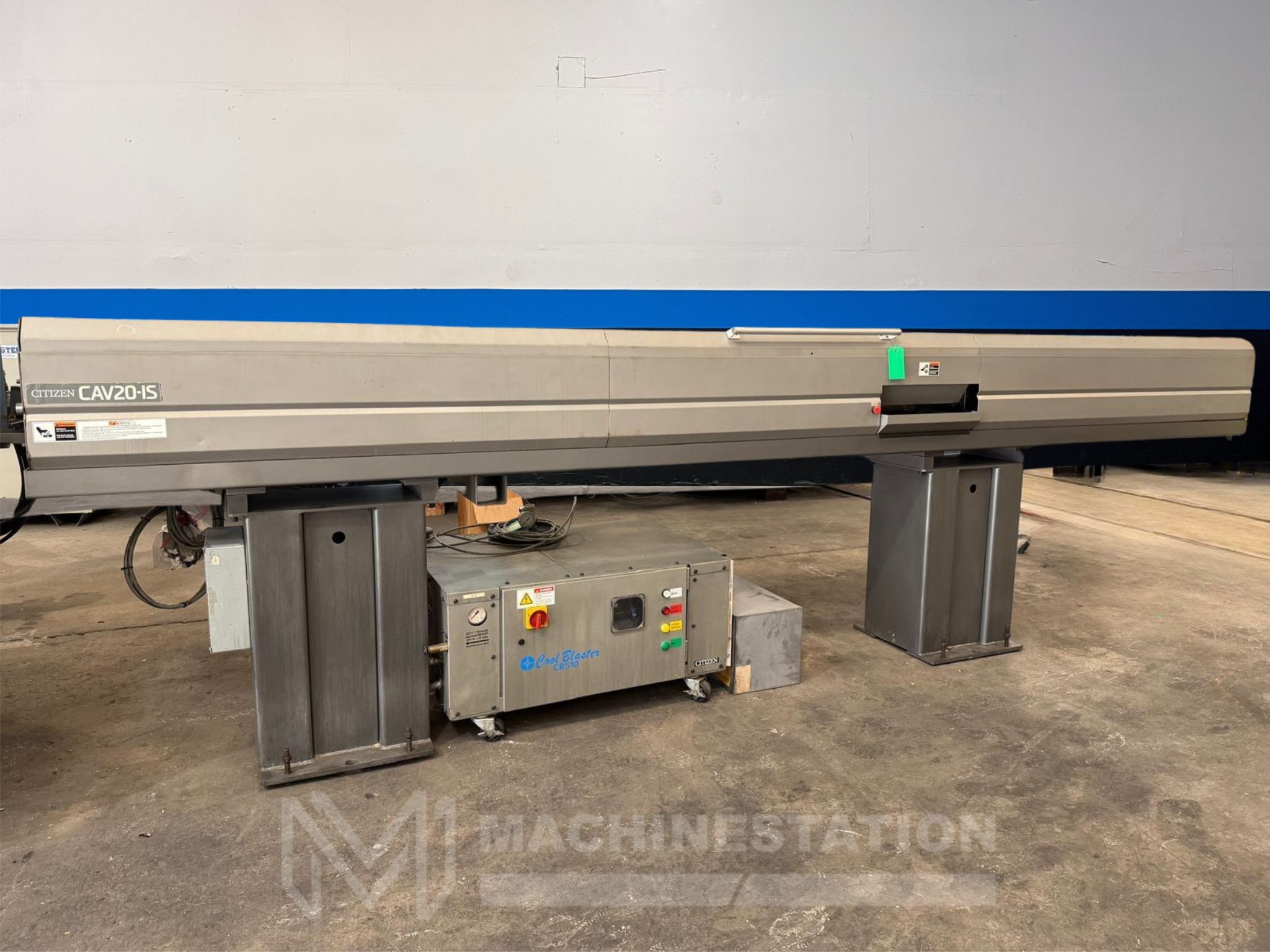

| Comes with Citizen CAV20-IS Bar Feeder |

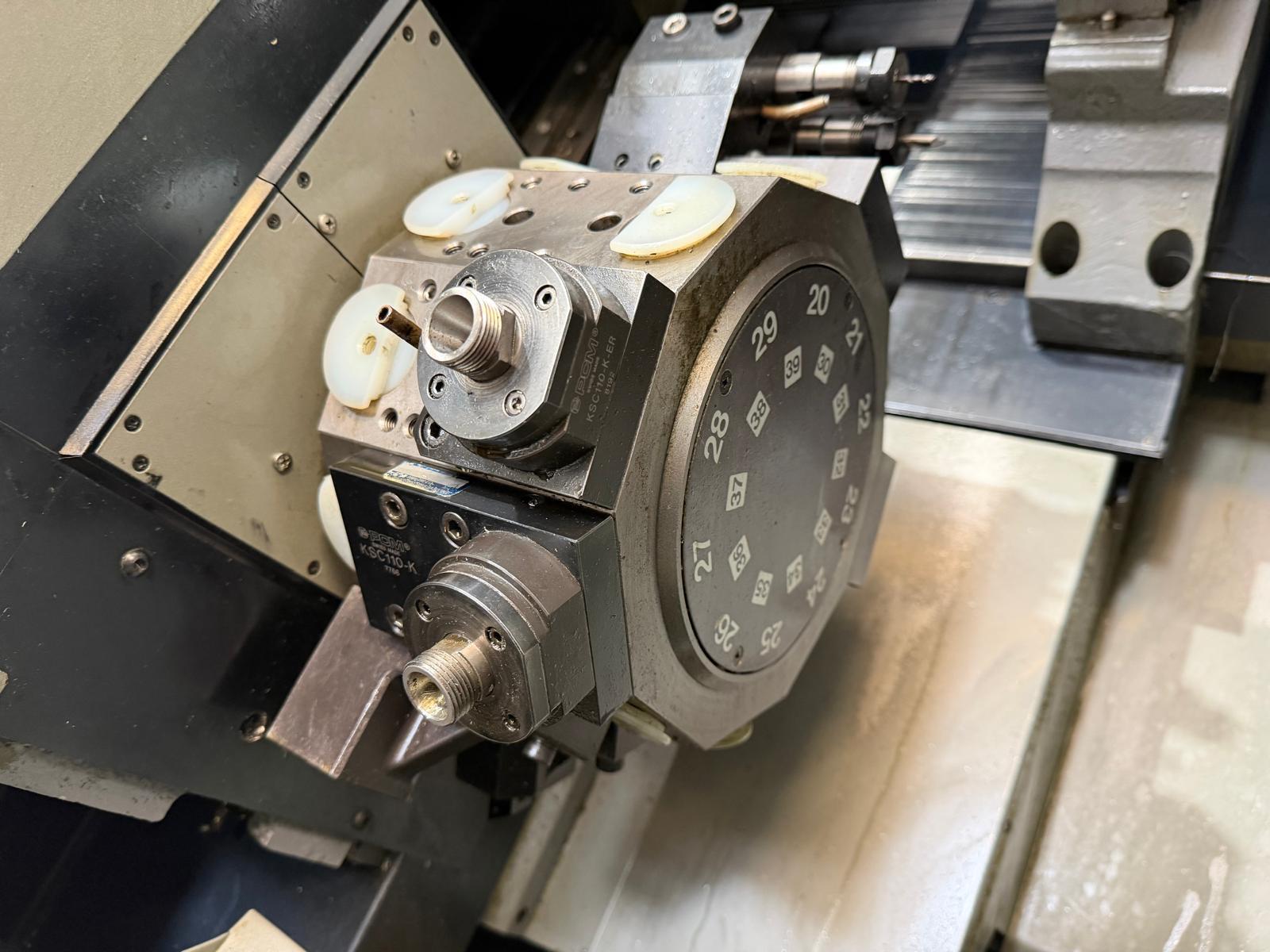

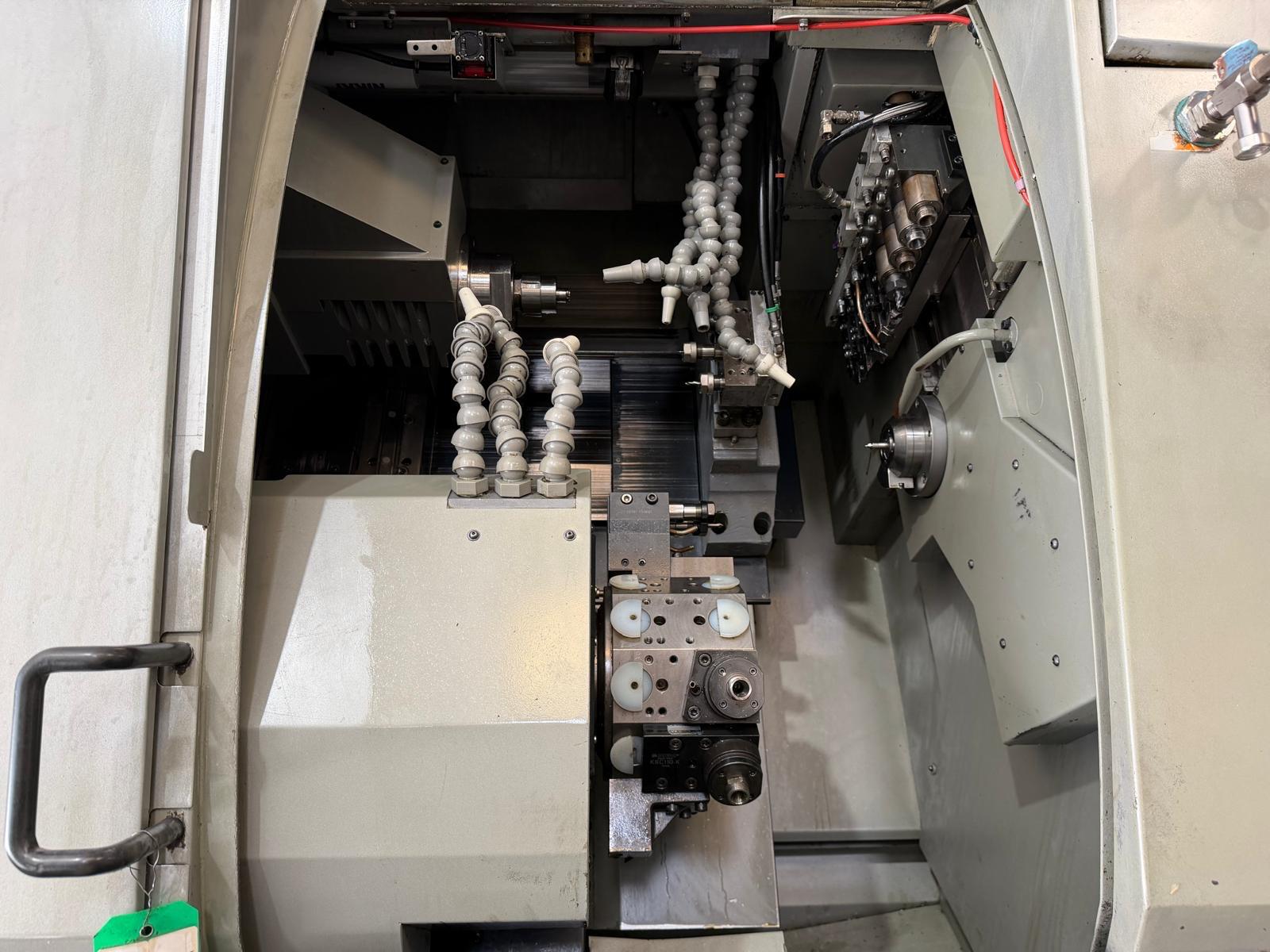

| 10 Station (20 Positions) Live Tool Automatic Turret |

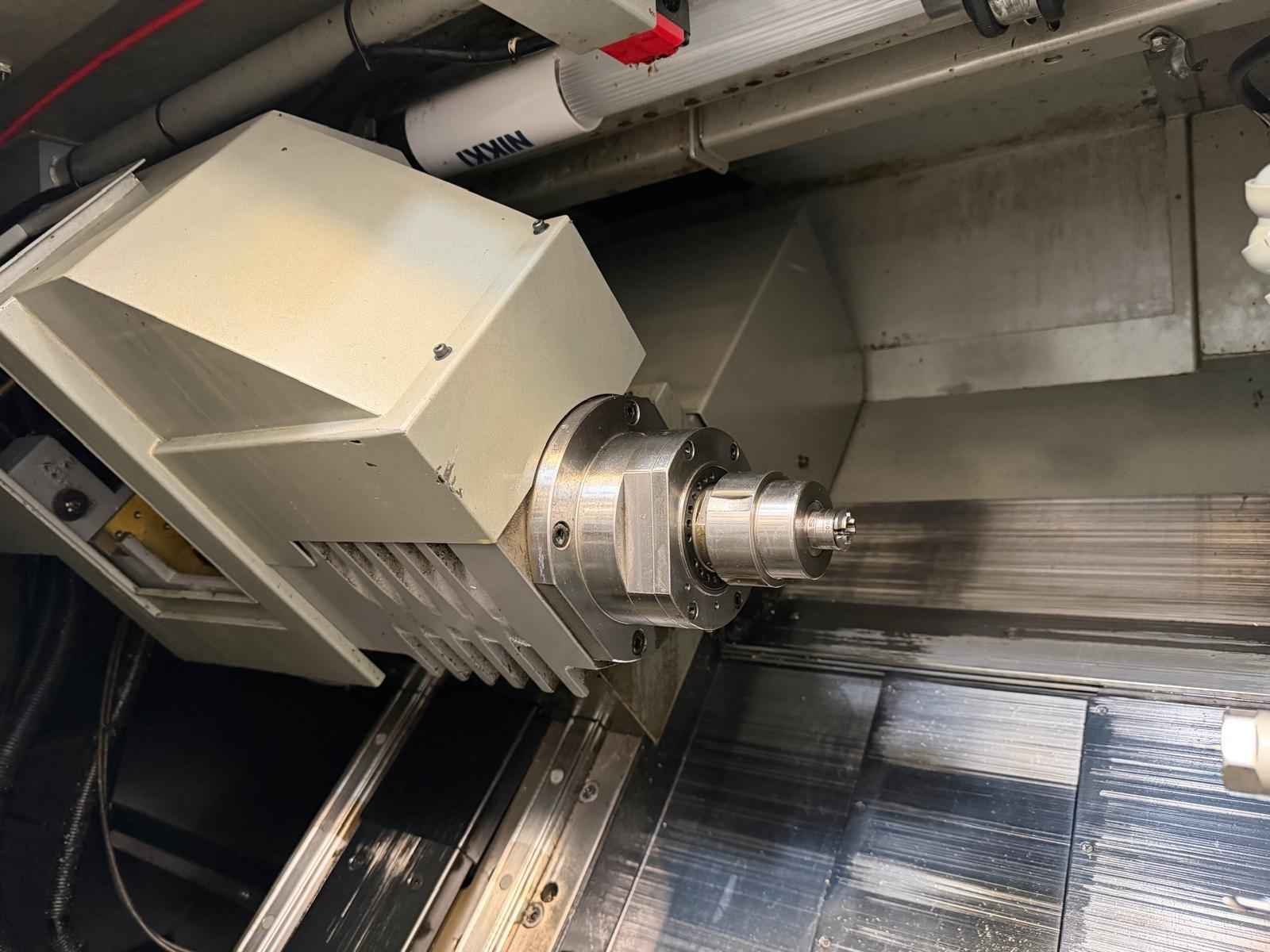

| Back Spindle |
| C & Y Axis Capable |
| Live Tools Capable |
| Long Parts Capable |
| MPG Control |
| Main & Back Spindle Synchronization |
| Automatic Lubrication System |

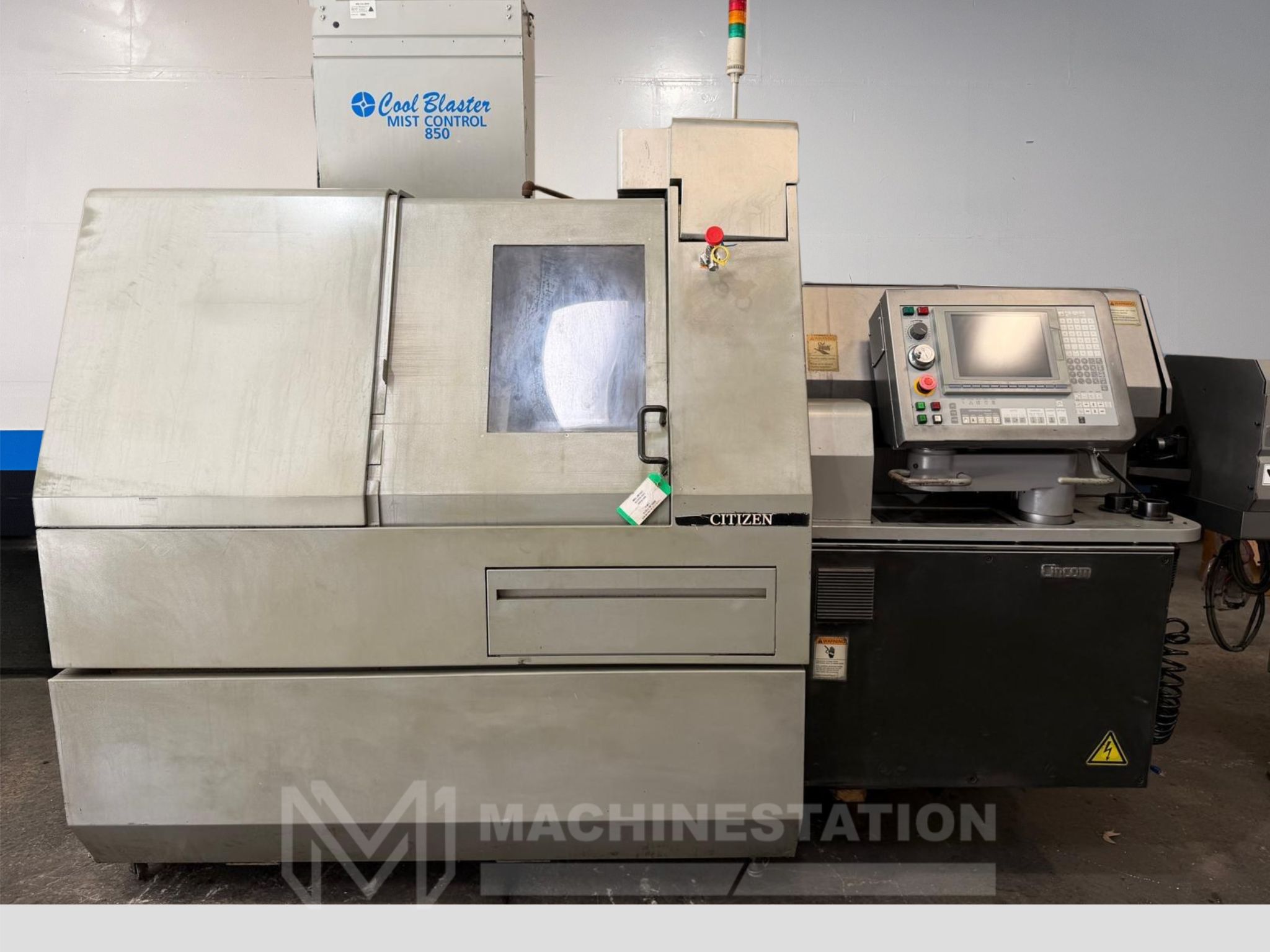

| Cool Blaster Mist Control 850 Unit |

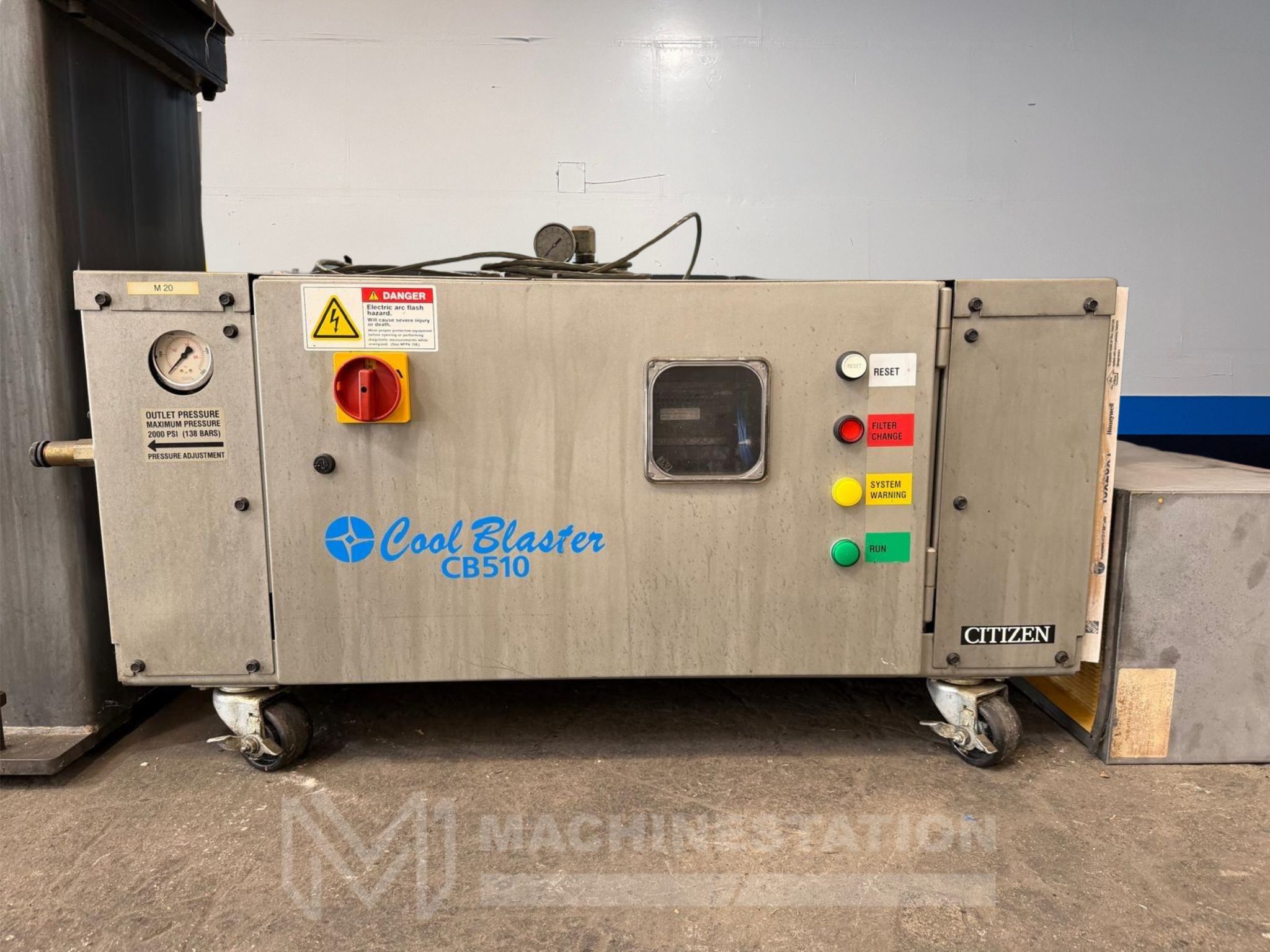

| Cool Blast CB510 Unit |
| Coolant System |
| Capacity: |
| Max Turning Diameter: 0.79″ (20 mm) |
| Max Turning Length: 12.59″ (320 mm) |
| Max Bar Capacity: 0.79″ (20 mm) |
| Spindle: |
| Main Spindle Indexing: 360° (Full C-Axis) |
| Main Spindle Bore: 0.79″ (20 mm) |
| Main Spindle Speed: 200 – 10,000 RPM |
| Main Spindle Motor: 5 HP |
| Back Spindle Indexing: 360° (Full C-Axis) |
| Back Spindle Speed: 200 – 8,000 RPM |
| Back Spindle Motor: 3 HP |
| Turret & Gang Tooling: |
| Turret Tools: 10 Station (20 Positions) |

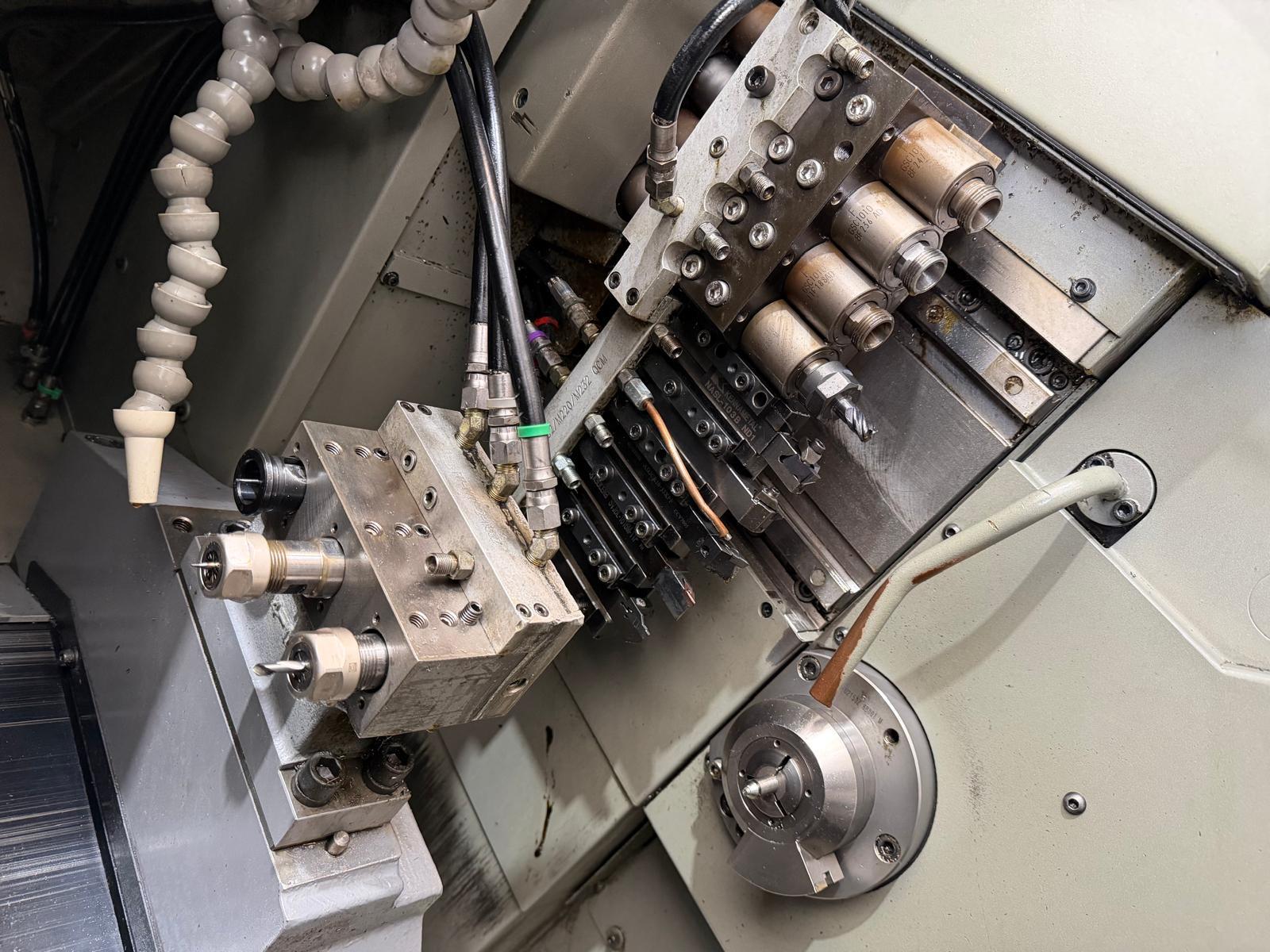

| Gang Tools: 5 Turning + 4 Rotary |
| Back Working Tool Post: 3 (+ Rear Facing Tools On Turret) |
| Rotary Tool Speed: 200 – 5000 RPM |
| Rotary Tool Motor: 2 HP |
| General: |
| Power Source: AC 220v / 3-Phase /60 Hz |
| Overall Dimensions: 110″ X 50″ X 72″ High without Bar Feeder |
| Weight: 6,830 lbs. Approx. |
| Categories | CNC Turning Centers, Swiss Type Lathe |
|---|
| Categories | CNC Turning Centers |
|---|
