*All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
| Make: | Mori Seiki |
| Model No.: | NV4000 DCG |
| Year: | 2004 |
| Equipped With: |
|---|

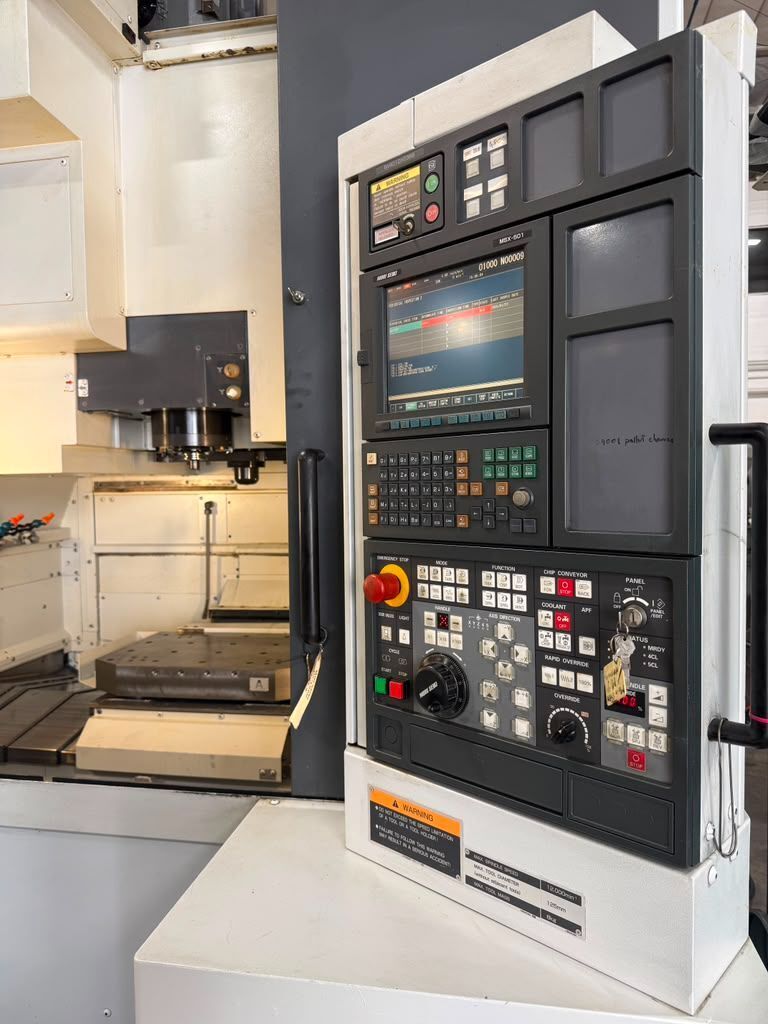

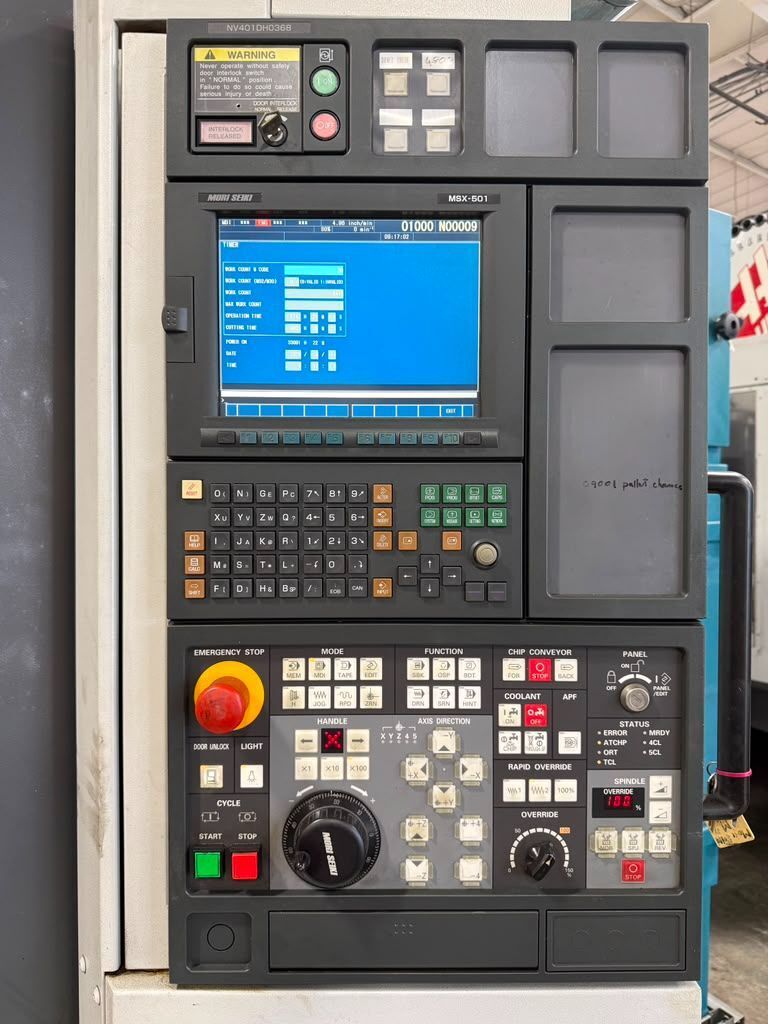

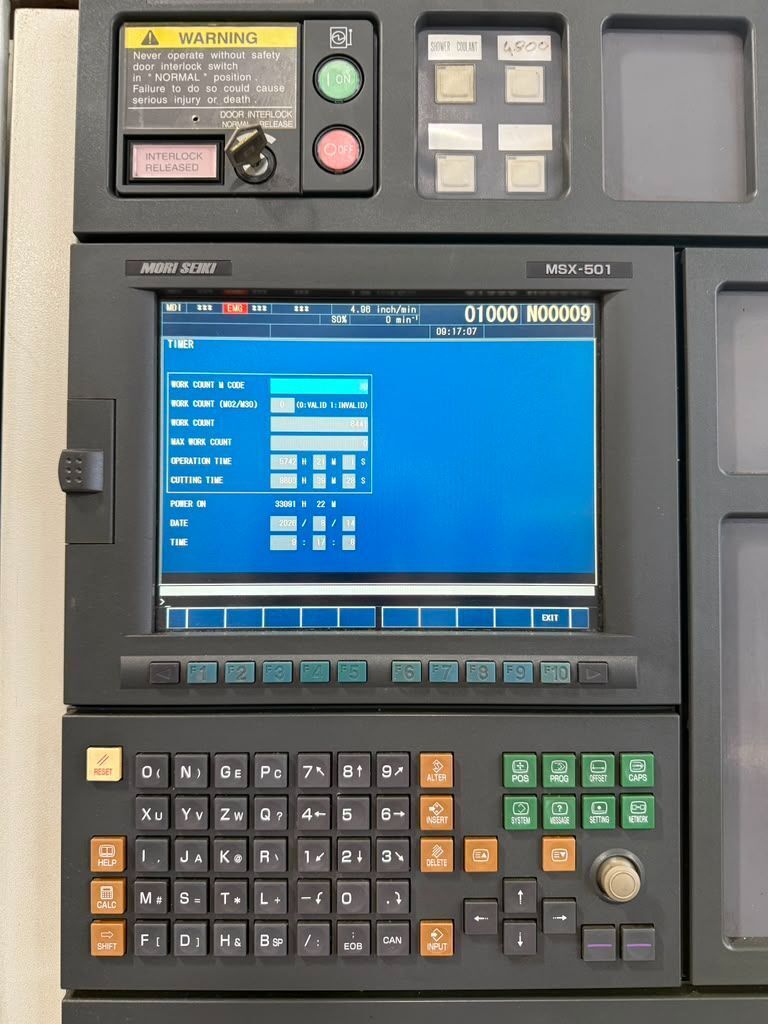

| Mori Seiki MSX-501 (Fanuc) CNC Control |
| DCG (Driven at the Center of Gravity) Technology |

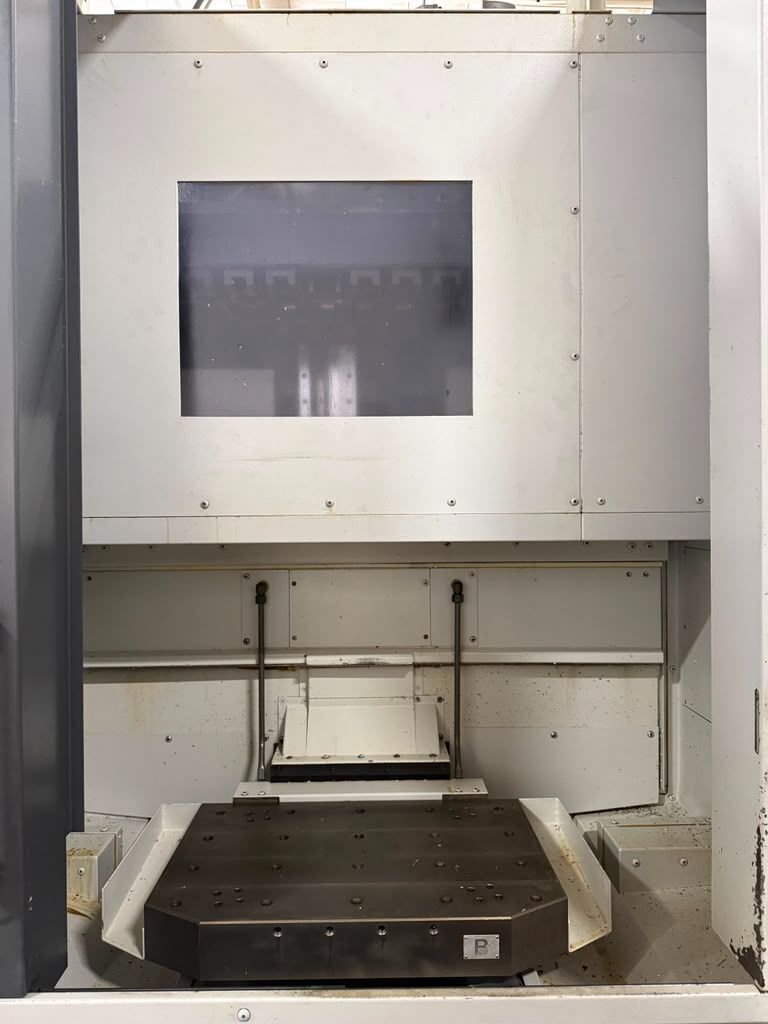

| Automatic Pallet Changer (APC) |
| 12,000 RPM High Speed Spindle |
| 30 Station Automatic Tool Changer |
| Through Spindle Coolant |

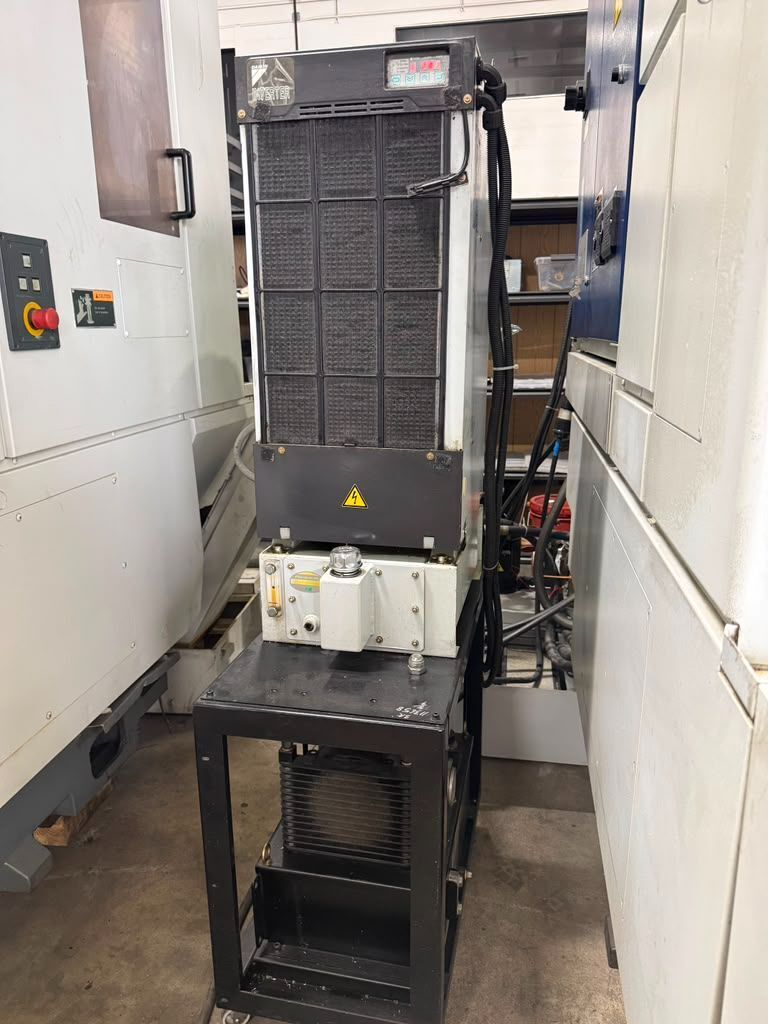

| Spindle Chiller Unit |

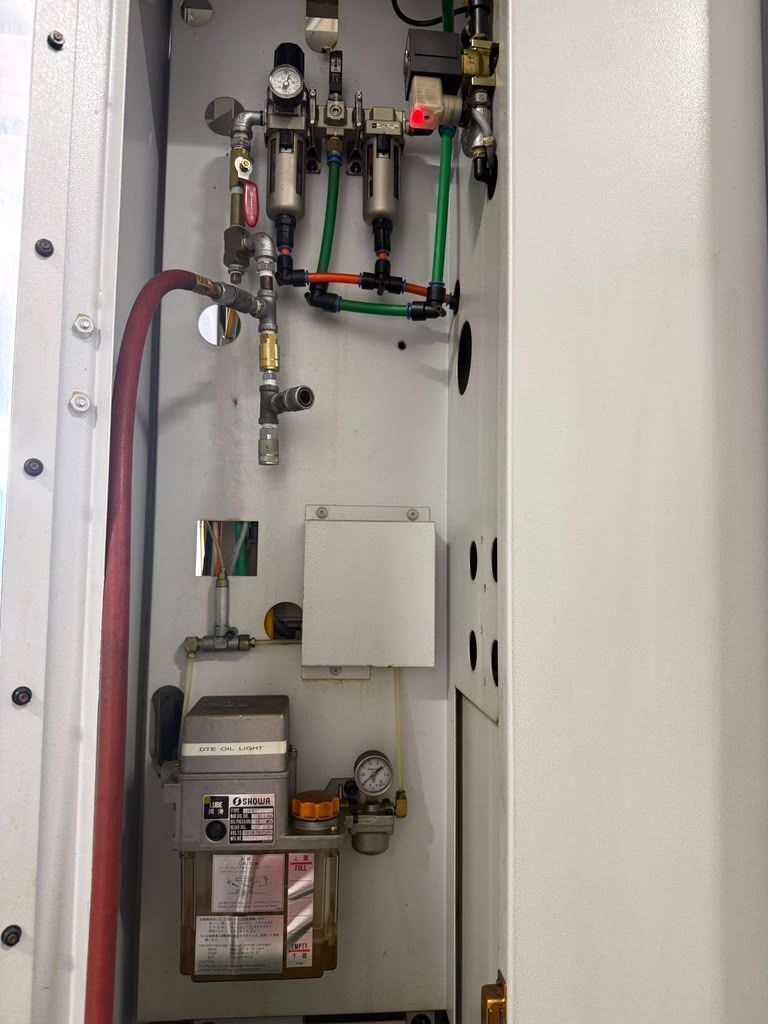

| Automatic Lubrication Unit |
| Rigid Tapping |

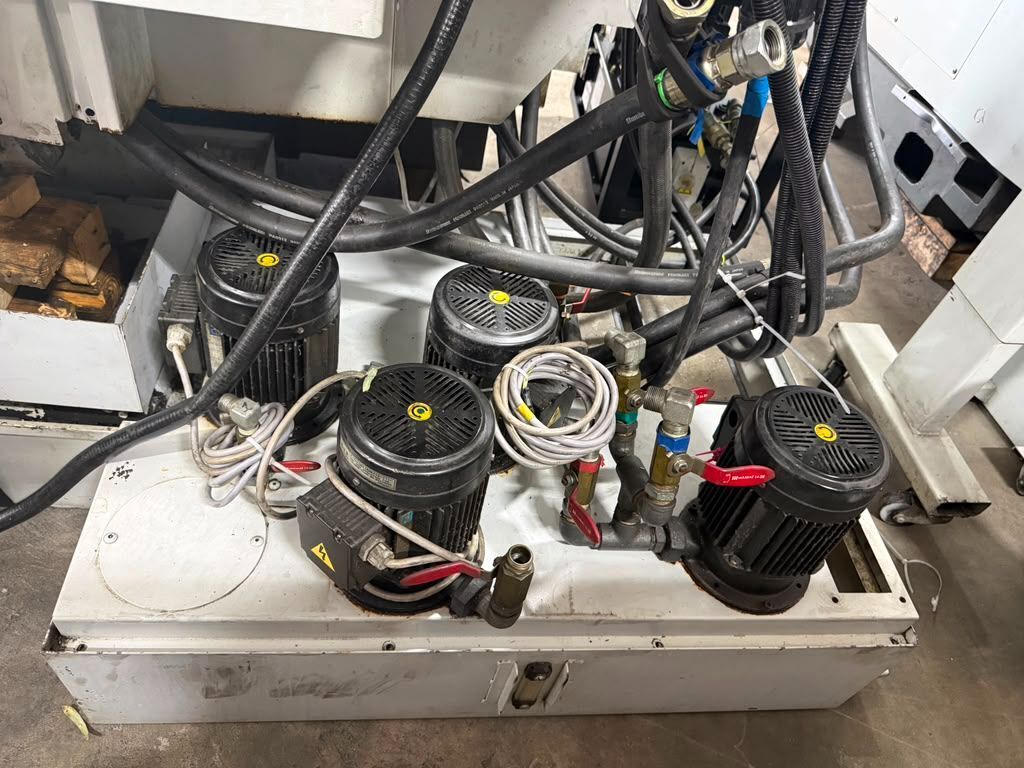

| Coolant Tank |
| Chip Conveyor |
| Travels: |
|---|
| X-Axis Travel: 23.6″ |
| Y-Axis Travel: 15.7″ |
| Z-Axis Travel: 15.7″ |
| Spindle Nose to Pallet (Min.- Max.): 5.9″ – 21.7″ |
| Rapid Traverse (X/Y/Z): 1653 IPM |
| Cutting Feedrate: 1653 IPM |

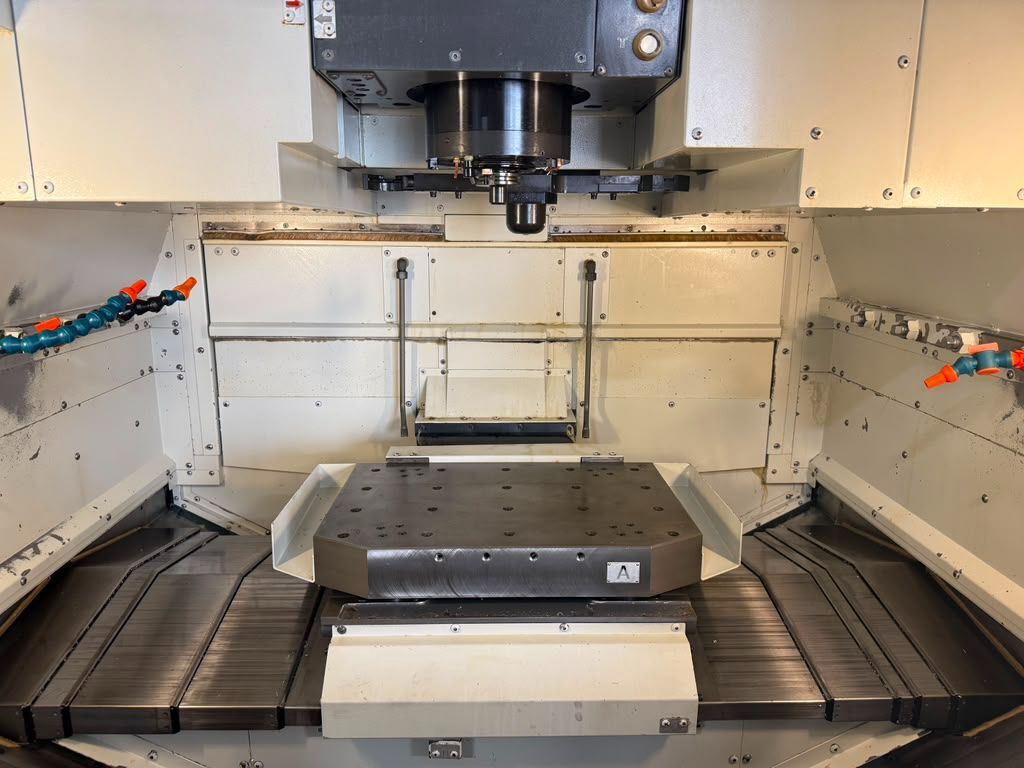

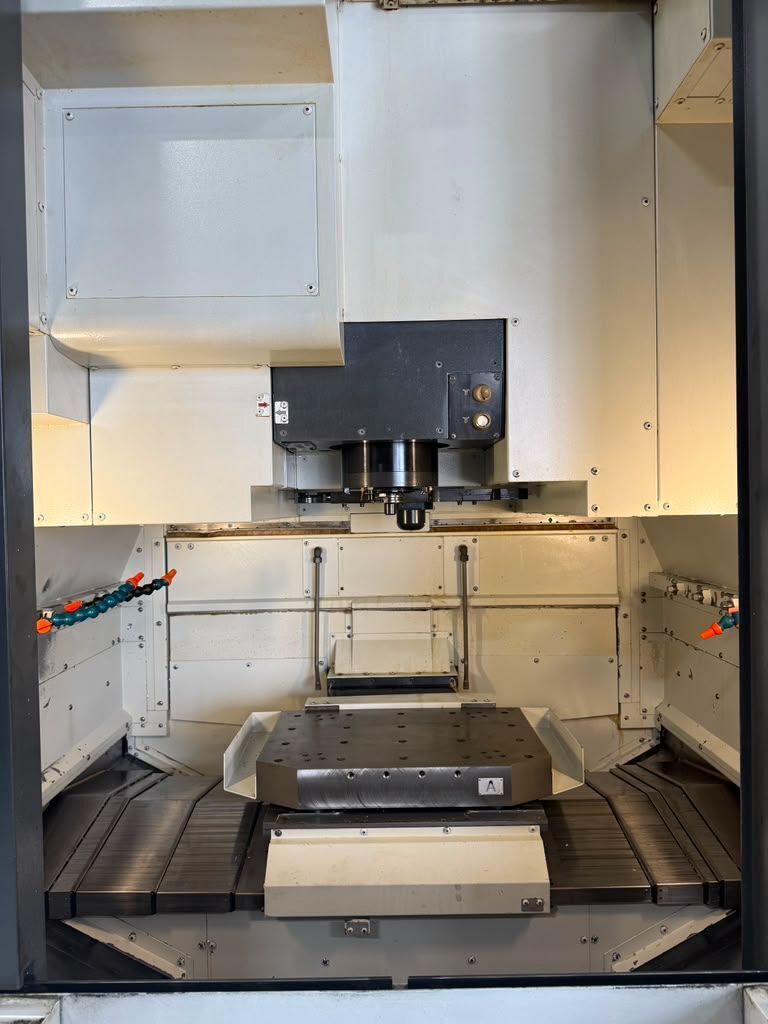

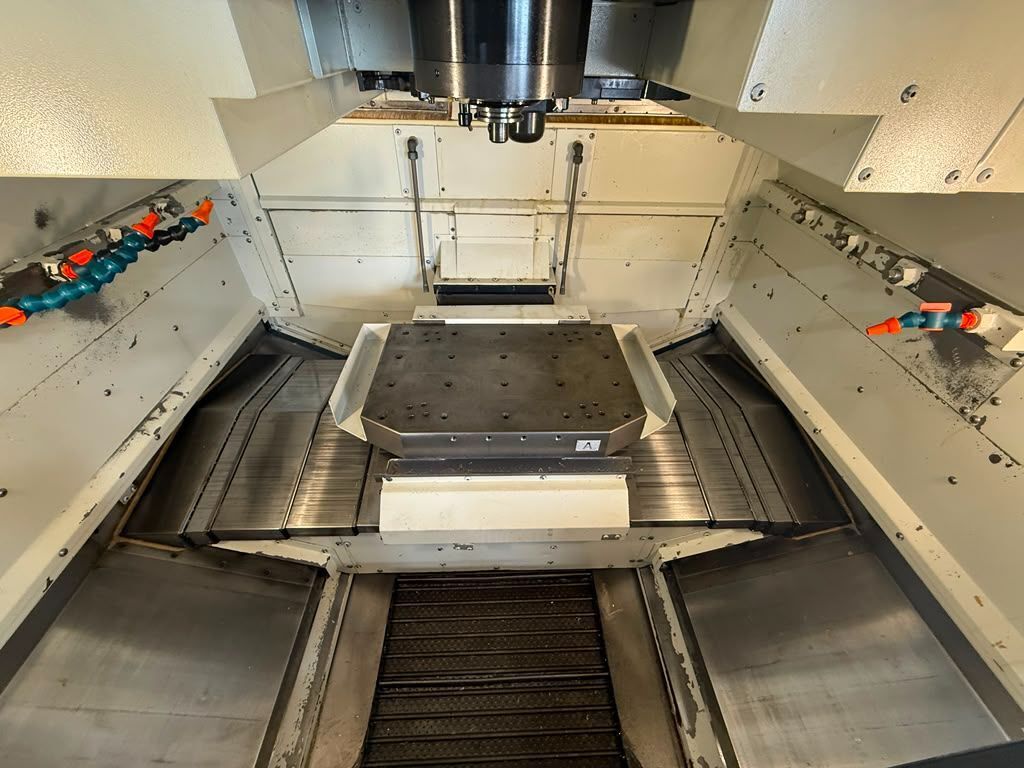

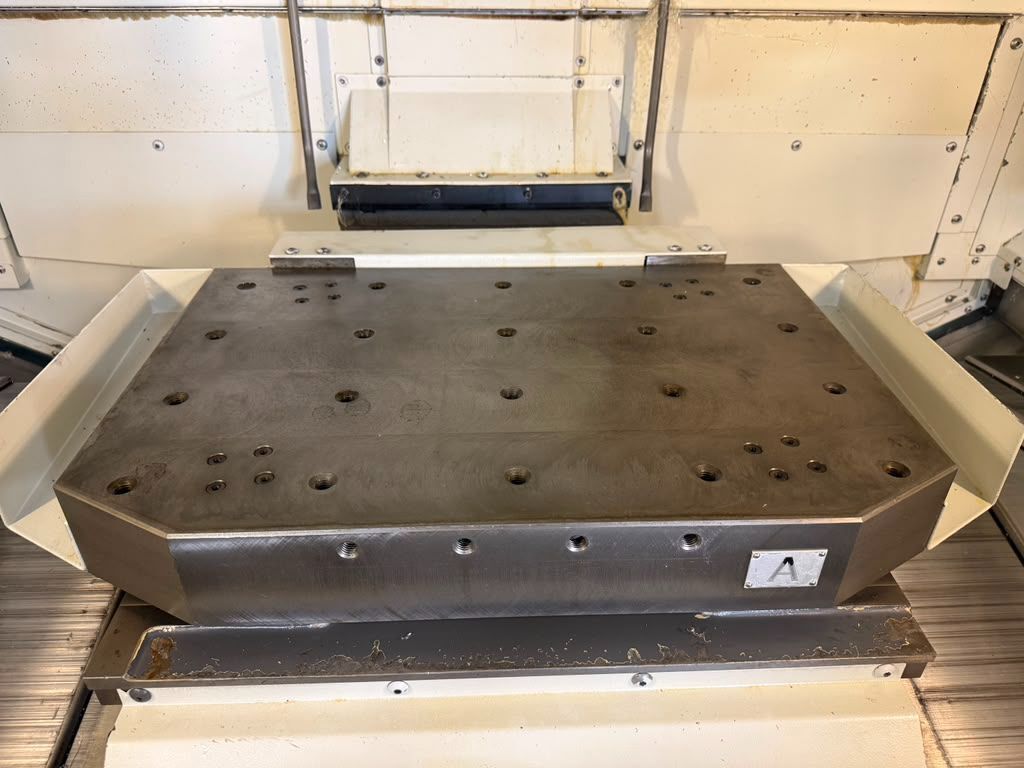

| Pallet: |
|---|
| Pallet Size: 23.6″ x 15.7″ |
| Maximum Pallet Load: 550 lbs. |
| Pallet Change Time: 13 Sec. |

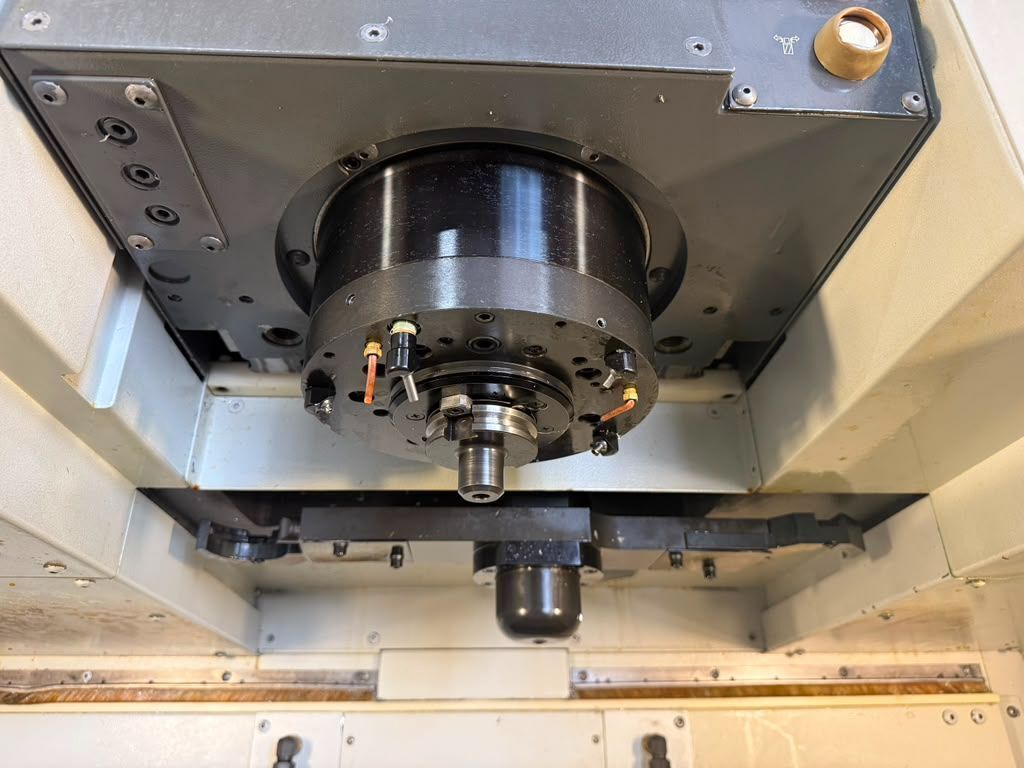

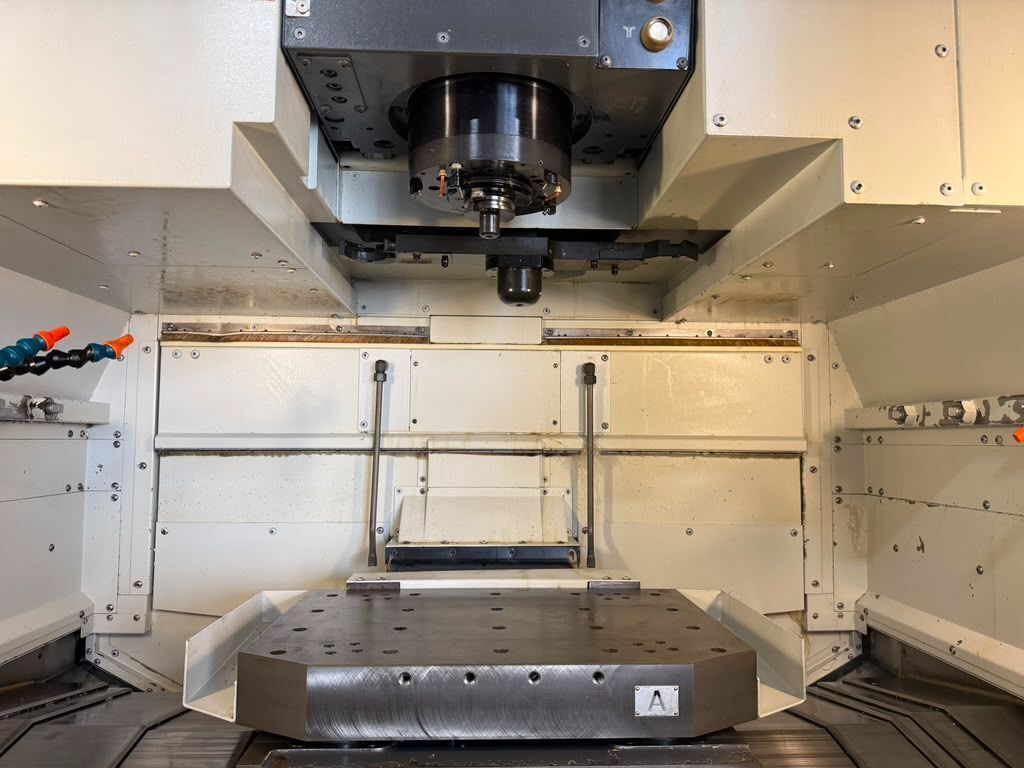

| Spindle: |
|---|
| Spindle Taper: CAT 40 |
| Spindle Speed: 12,000 RPM |
| Spindle Motor Power: 25 HP |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 30 Tools |
| Maximum Tool Diameter: 3.1″ / 5.0″ |
| Maximum Tool Length: 11.8″ |
| Maximum Tool Weight: 17.6 lbs |
| General: |
|---|

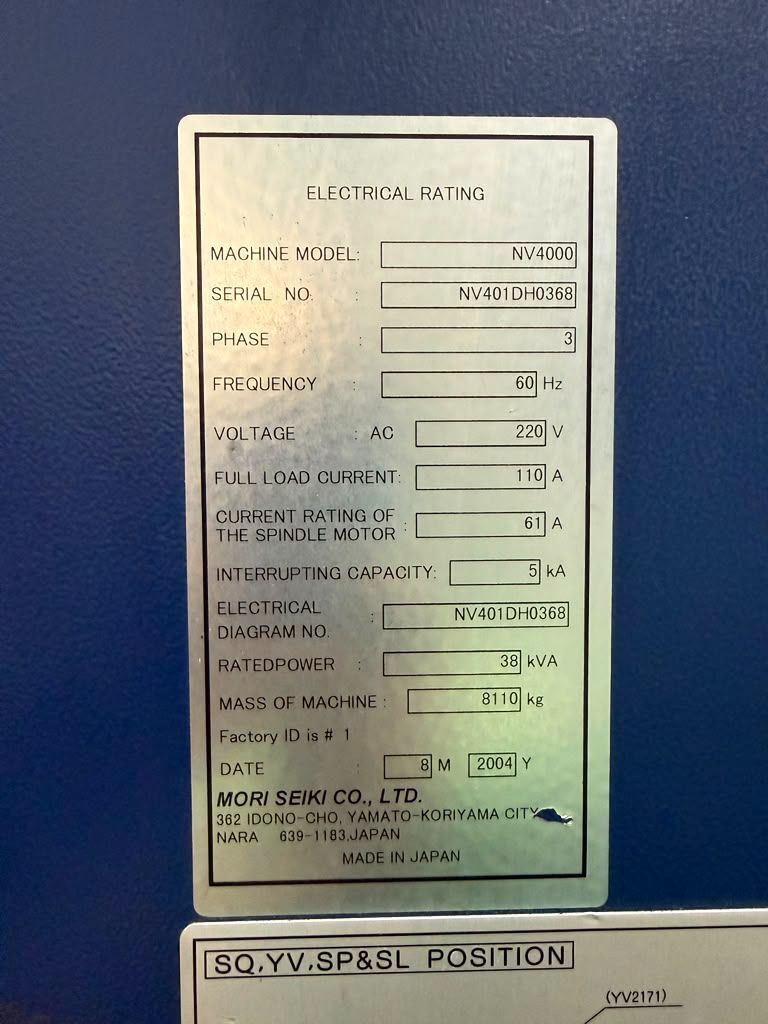

| Power: AC 220V / 3-Phase / 60 Hz / 38 kVA |
| Overall Dimensions: 85.3″ x 105.7″ x 109.1″ High |
| Machine Weight: 17,880 lbs Approx. |
