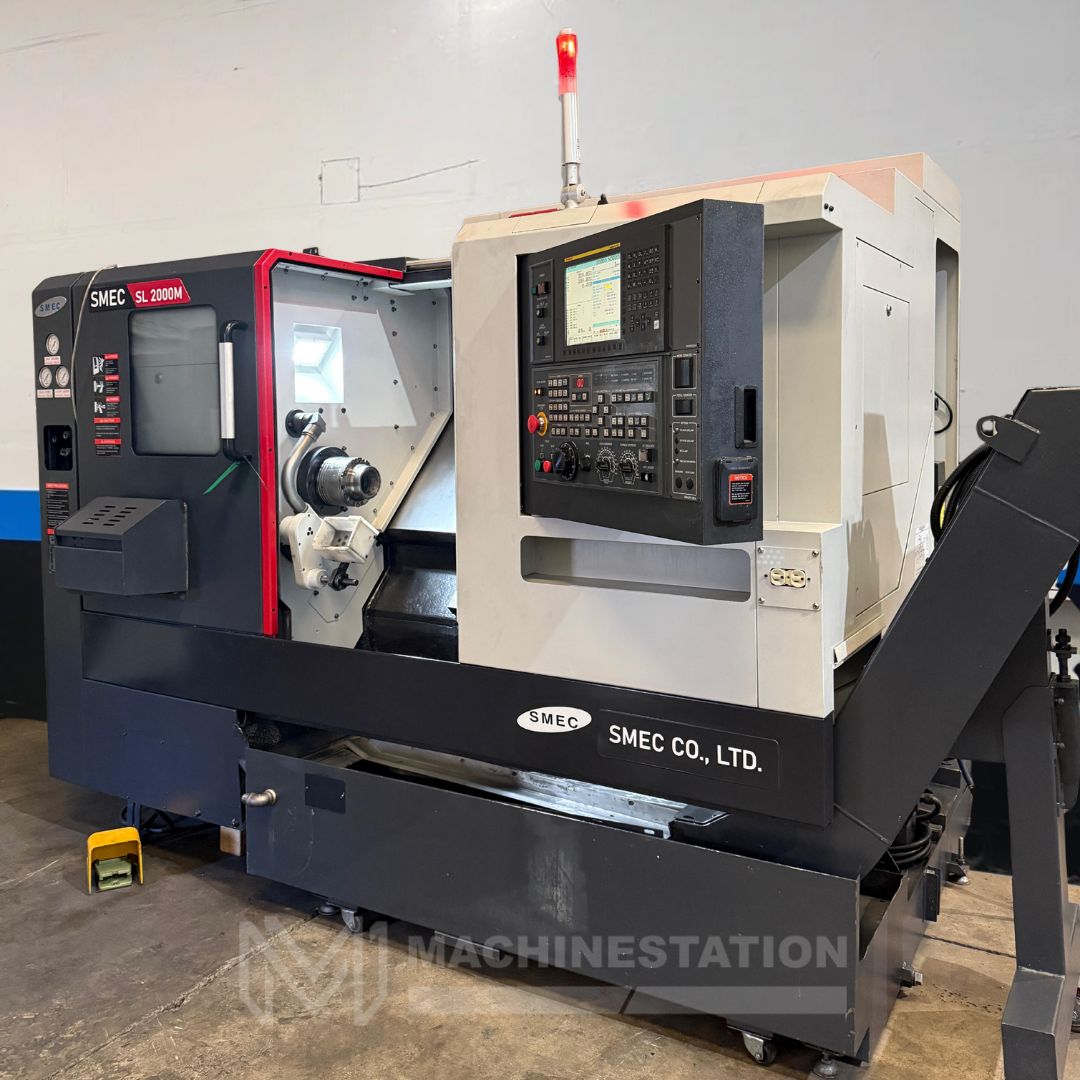

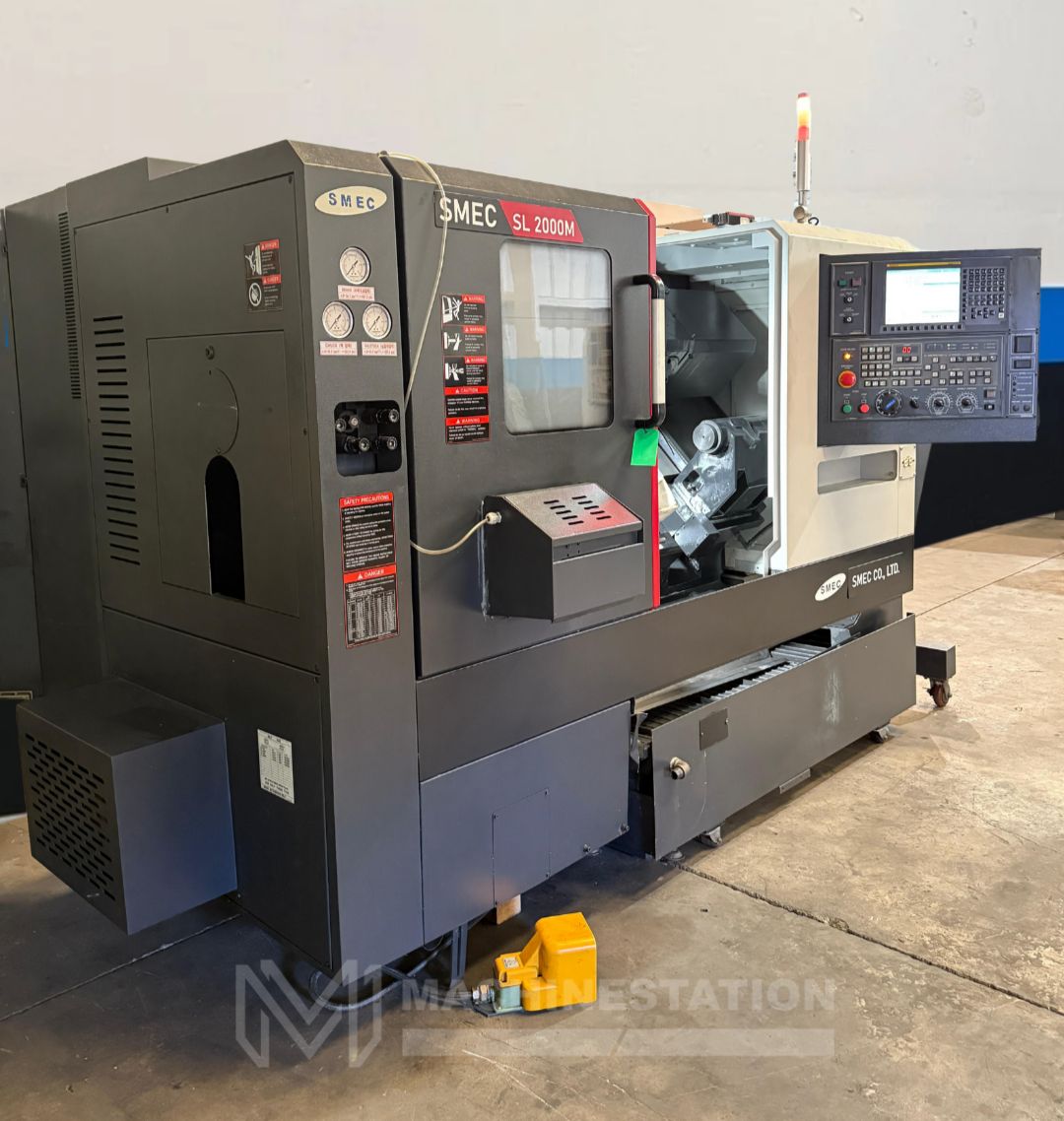

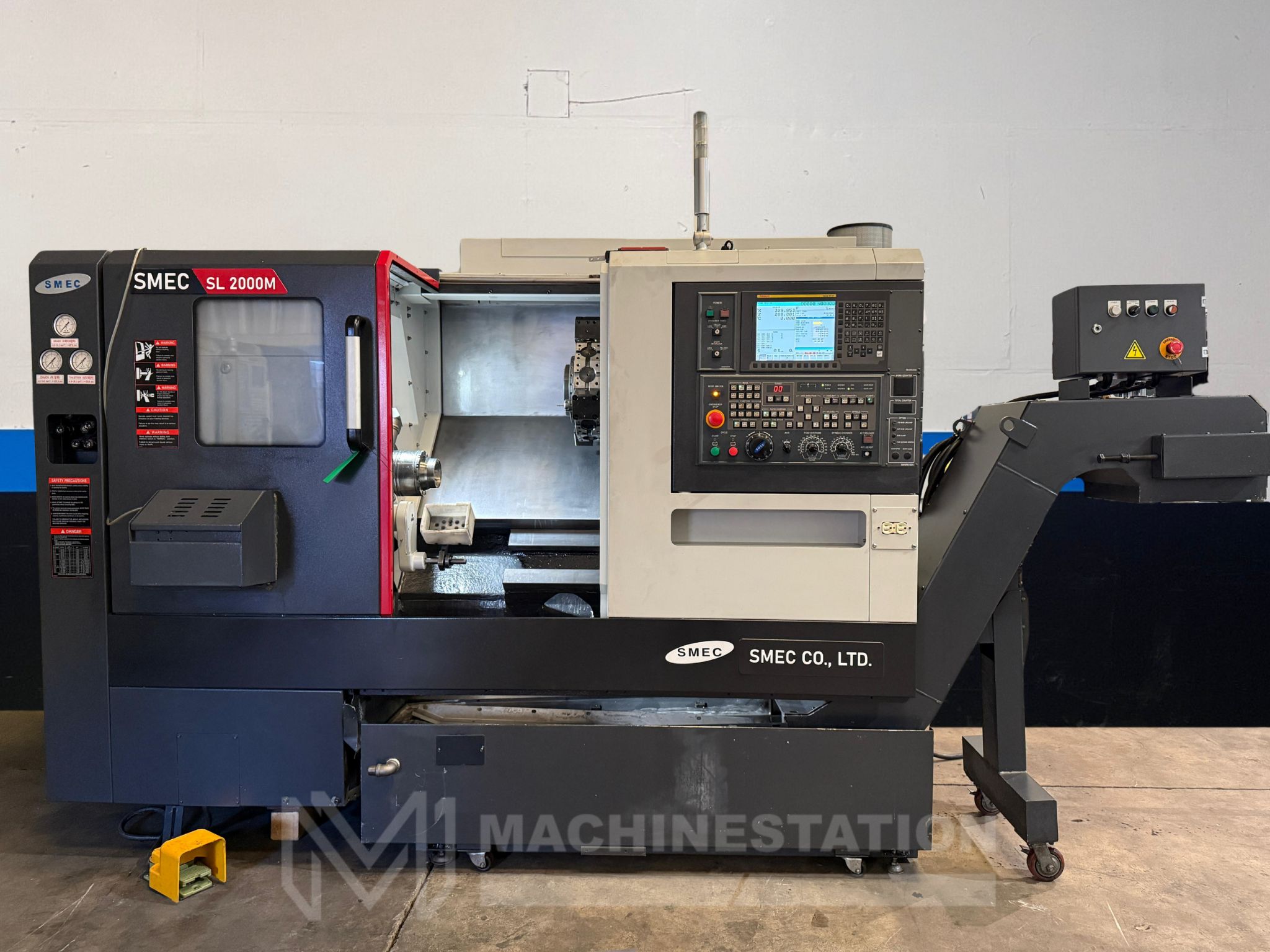

Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

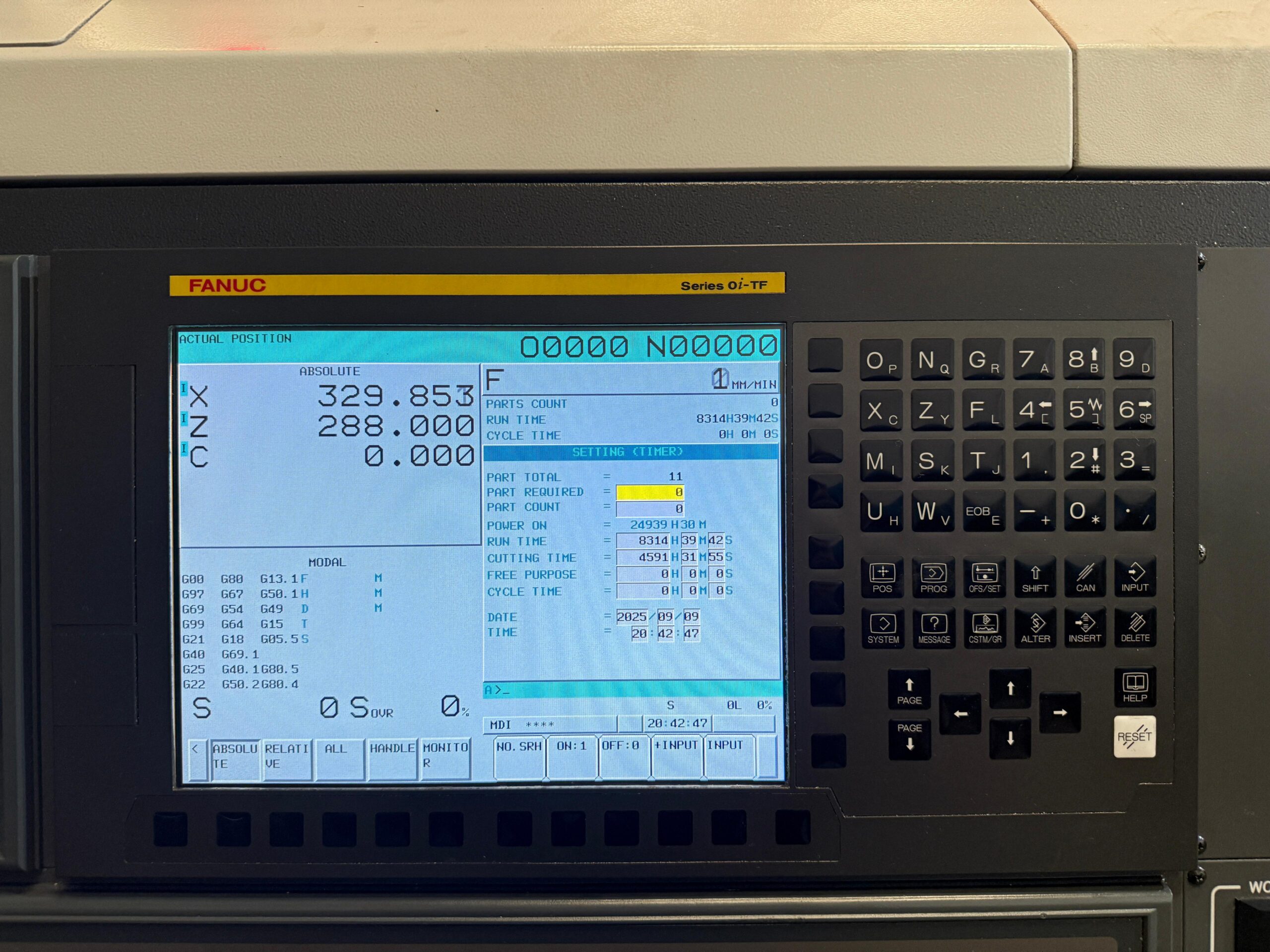

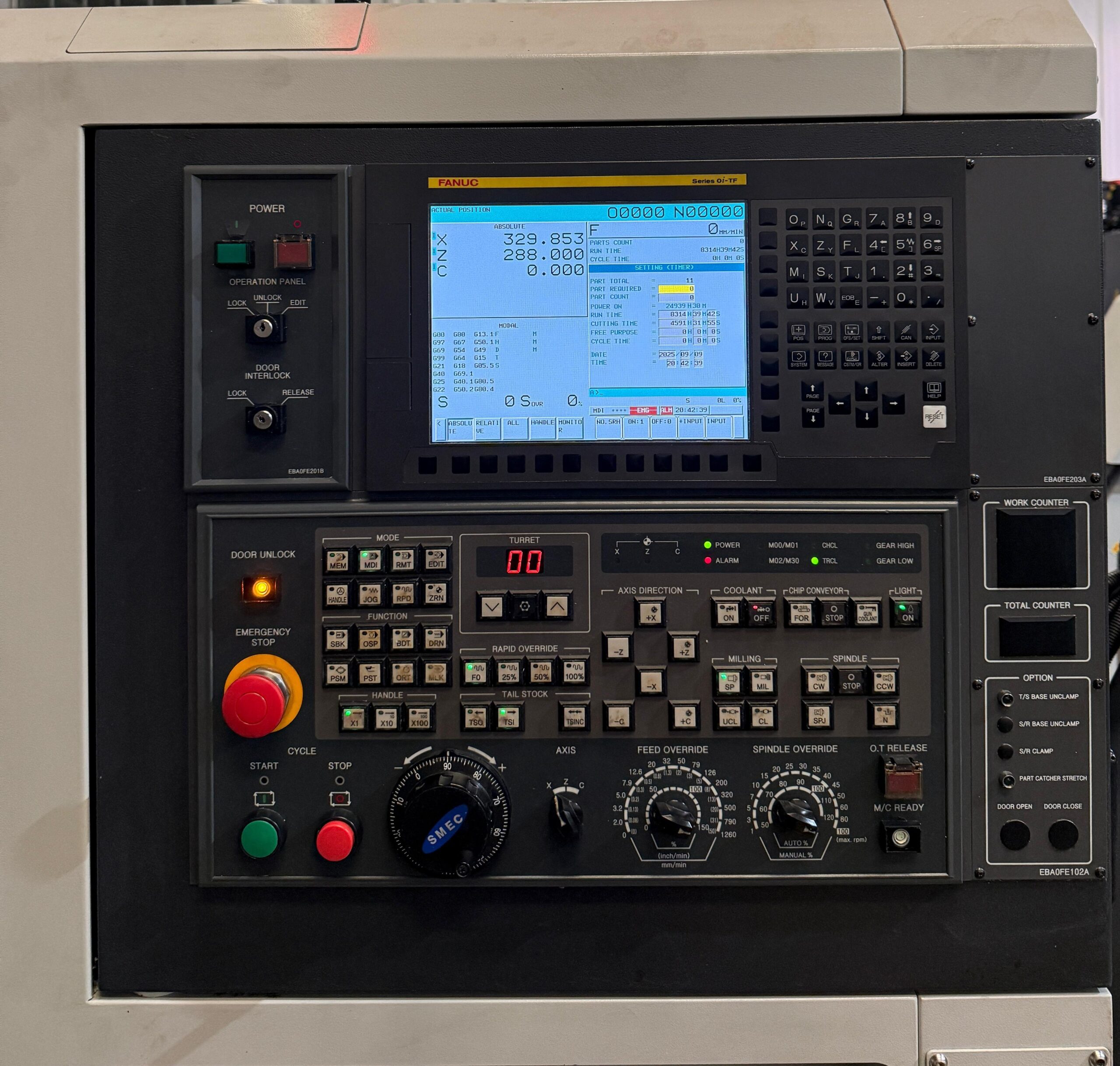

| Fanuc Oi-TF series CNC Control |
| Box Way Construction |

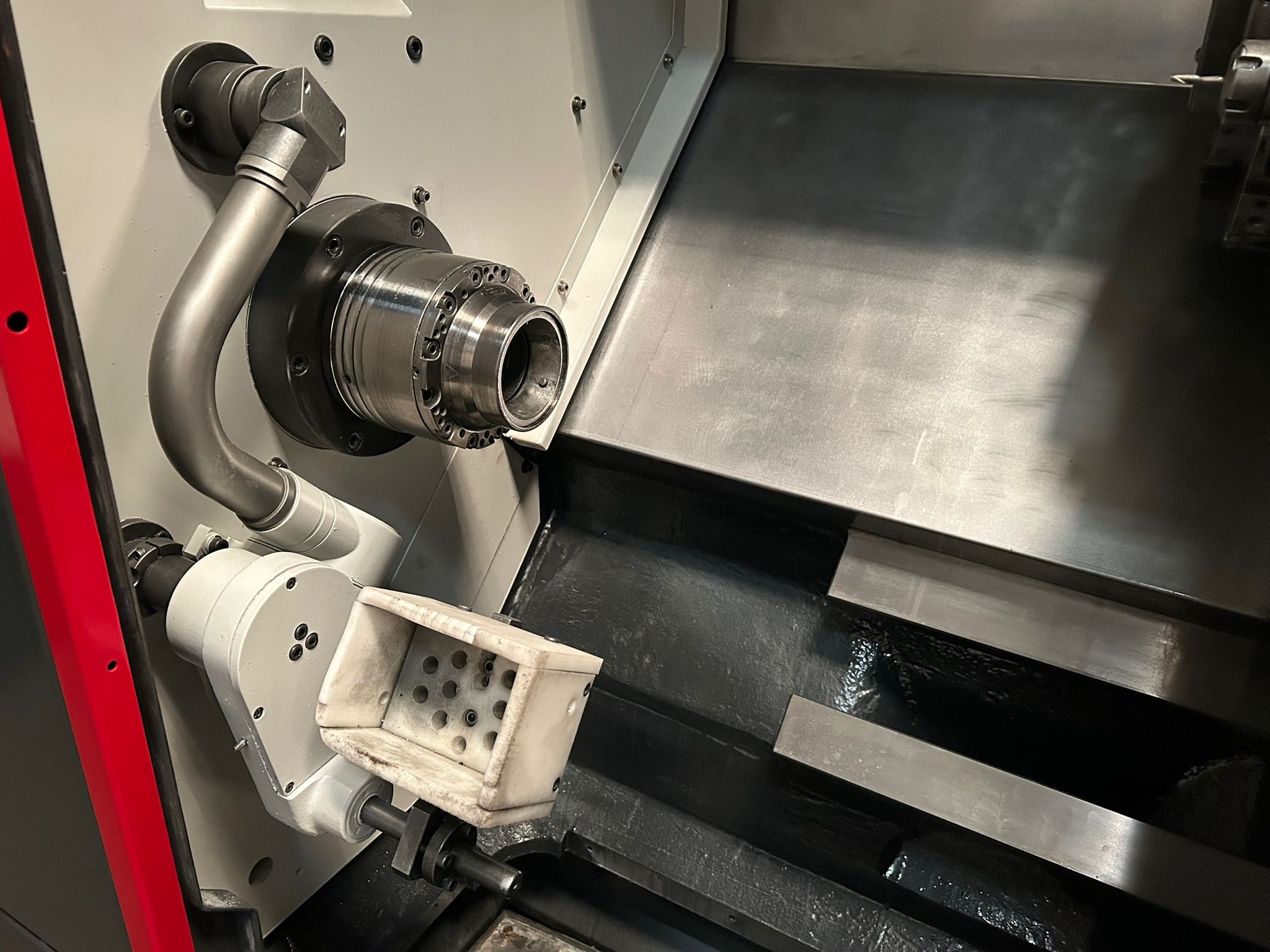

| Collet Chuck (Capable 6″ Chuck) |
| A2-5, 6,000 RPM Spindle |
| Servo Controlled C Axis on Spindle |

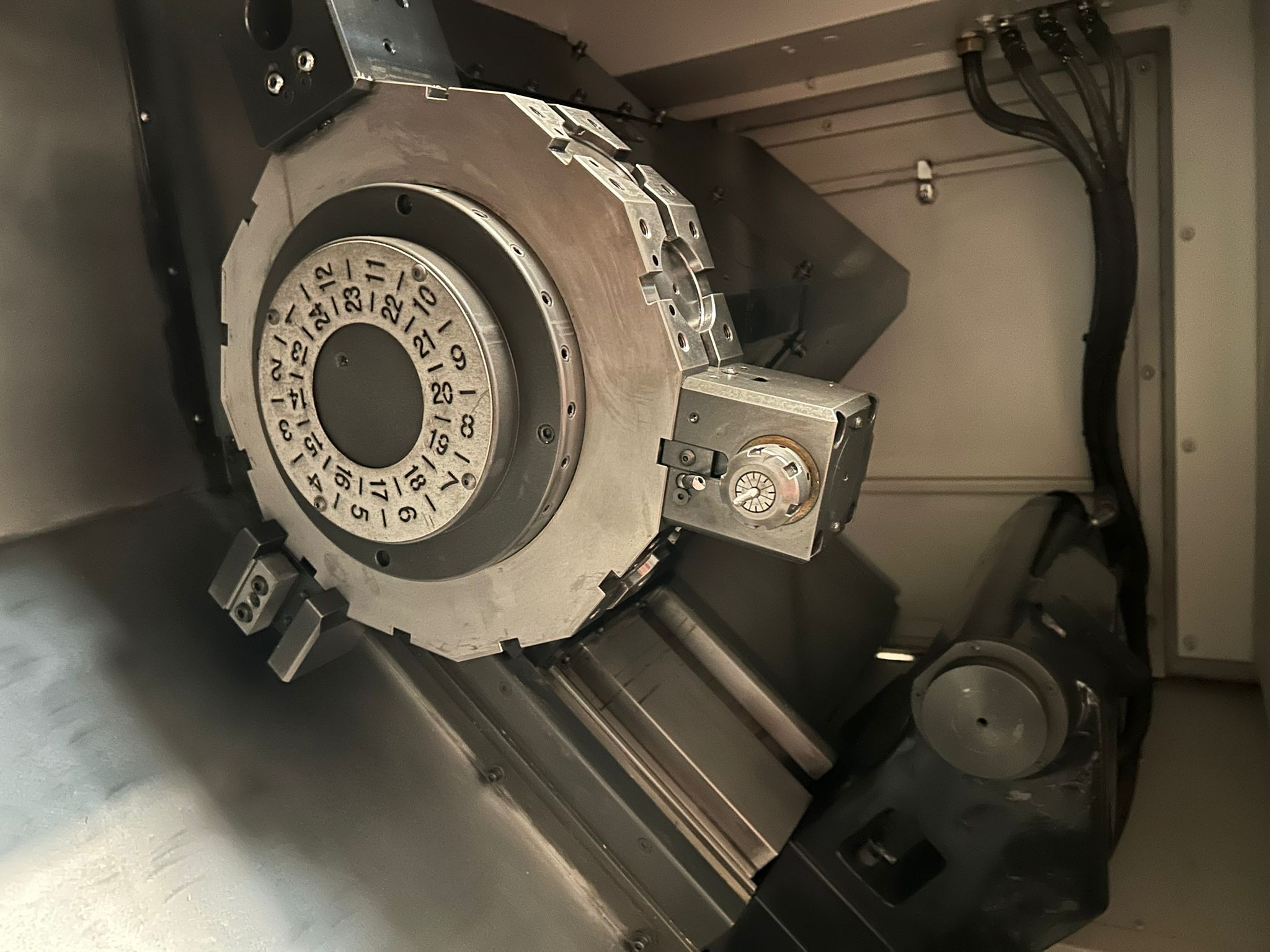

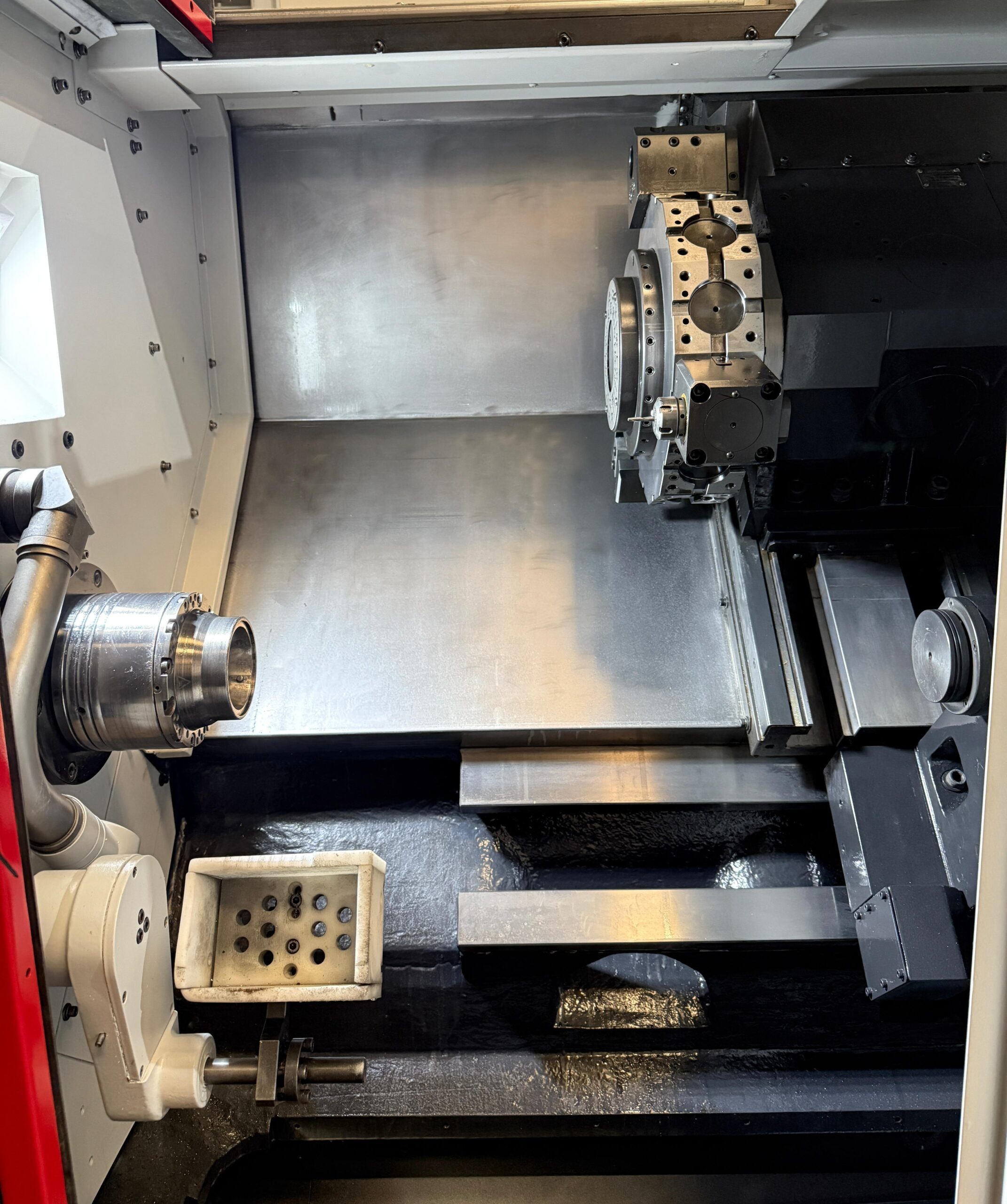

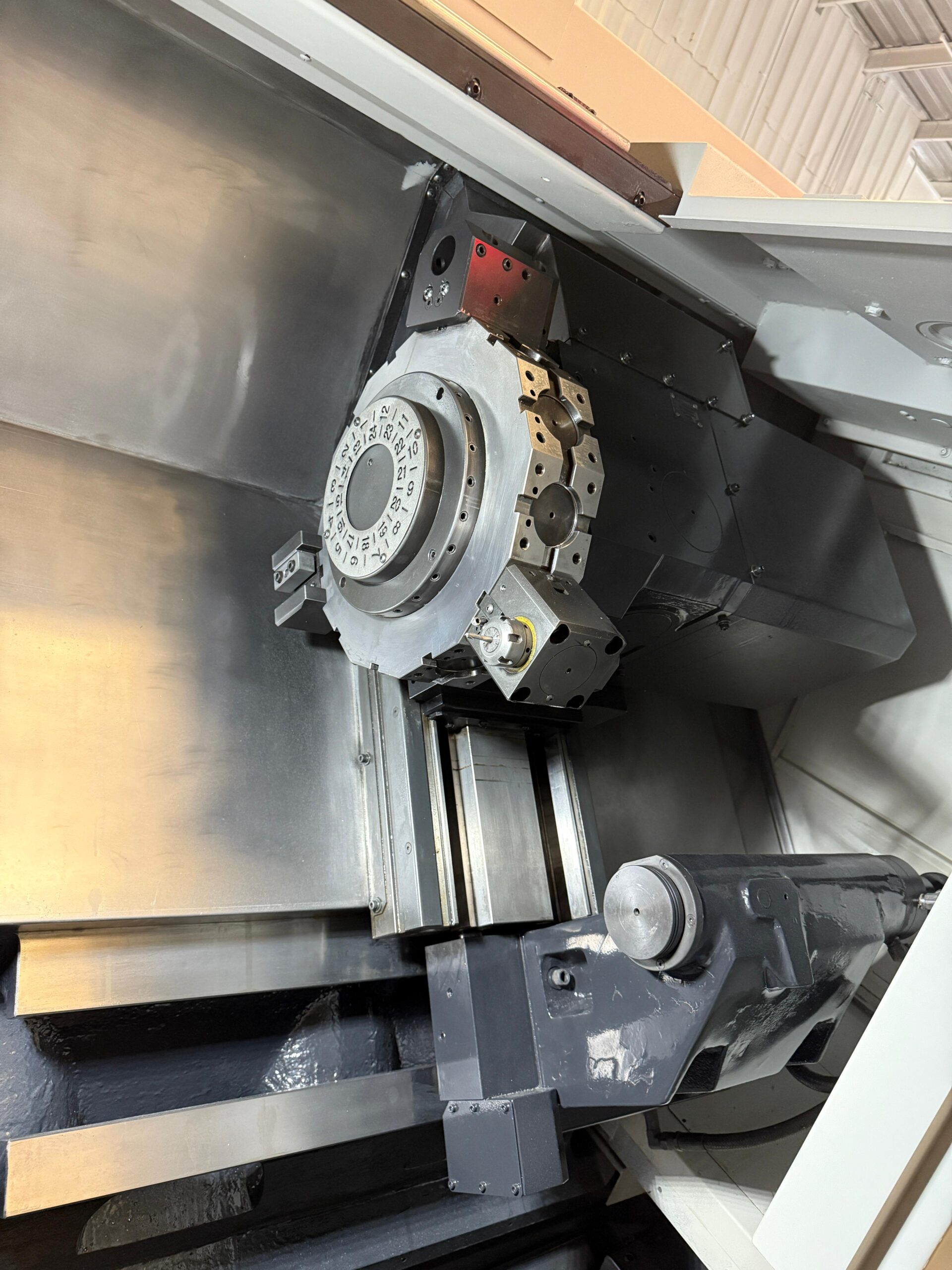

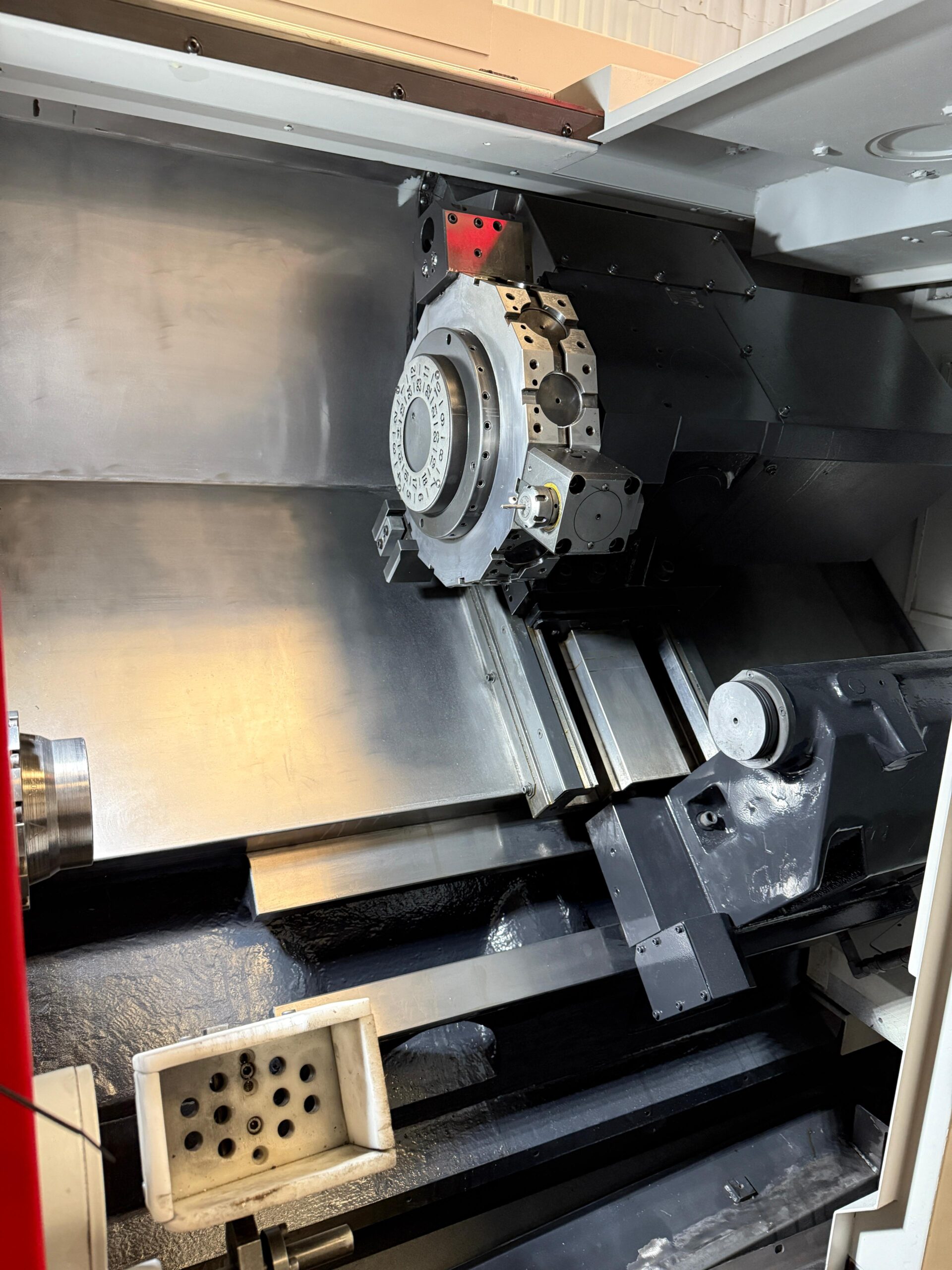

| 12 Station Live Tool Turret – 24 Positions |
| Bar Feeder Interface |

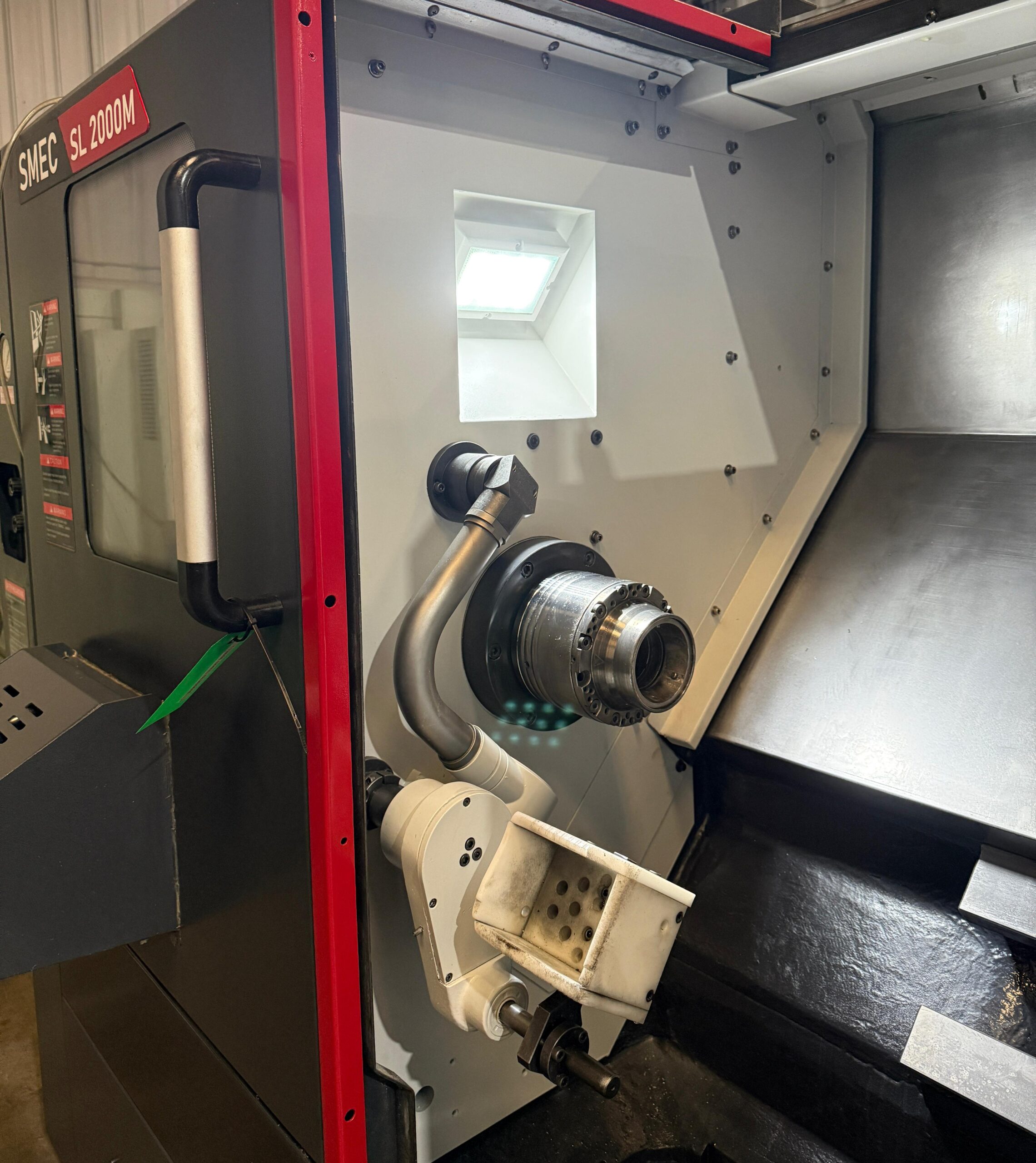

| Part Catcher |
| Tool Presetter |
| Tailstock |
| PCMCIA Card Interface & USB Port |
| Coolant System |
| Chip Conveyor |
| Foot Switch |
| (1) Turning Tool Holder, (1) Boring Tool Holder, (1) Live Tool Holder are Equipped on Turret (As shown in the images) |
| Specifications: |
| Max Turning Diameter: 14.65″ |
| Max Turning Length: 20.48″ |
| Swing Over Bed: 22.45″ |
| Swing Over Cross Slide: 18.12″ |
| Max Bar Capacity: 2.05″ |
| Travel: |
| X Axis Travel: 8.47″ |
| Z Axis Travel: 22.14″ |
| C Axis: 0.001 Degrees |
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Z Axis: 1181 IPM |
| Spindle: |
| Spindle Nose: A2-5 |
| Spindle Bore: 2.40″ |
| Spindle Speed: 6,000 RPM |
| Spindle Motor: 20 HP |
| Turret: |
| Turret Capacity: 12 Stations (24 positions) |
| Turret Index Time: 0.2 Second |
| OD Tool Size: 1.0″ |
| Boring Bar Diameter: 1.58″ |
| Rotary Tool Speed: 5000 RPM |
| Rotary Tool Motor Power: 7.5 HP |
| Tool Holders Type: BMT-55 |
| Tailstock: |
| Tailstock Taper: MT-4 |
| Tailstock Body Travel: 17.72″ |
| General: |

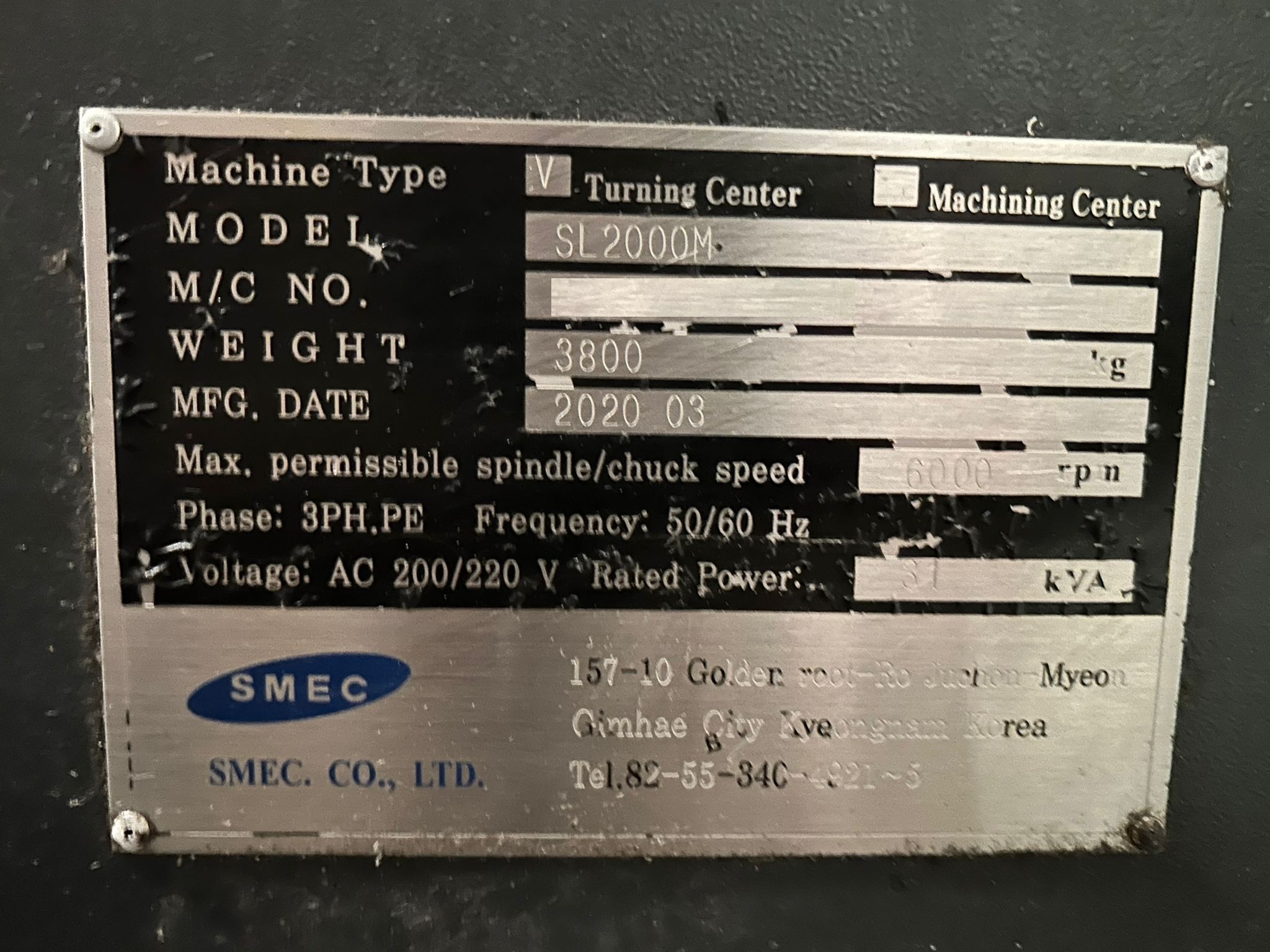

| Power: 200v – 220v / 3-Phase / 31 kva / 50/60 Hz |
| Overall Dimensions: 108″ x 61″ x 76″ High Approx. |
| Weight: 8,378 lbs Approx. |
