*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 50123 |

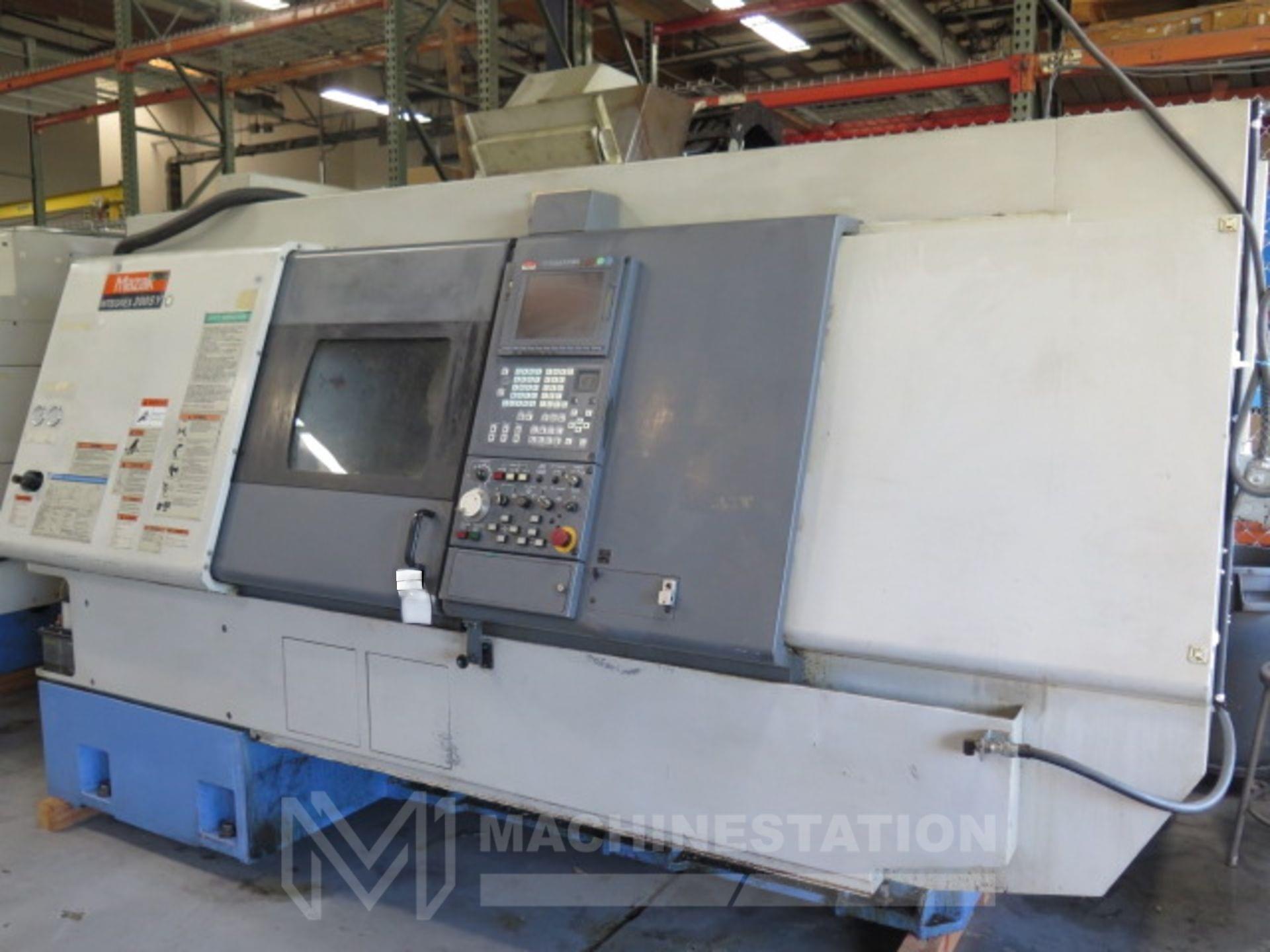

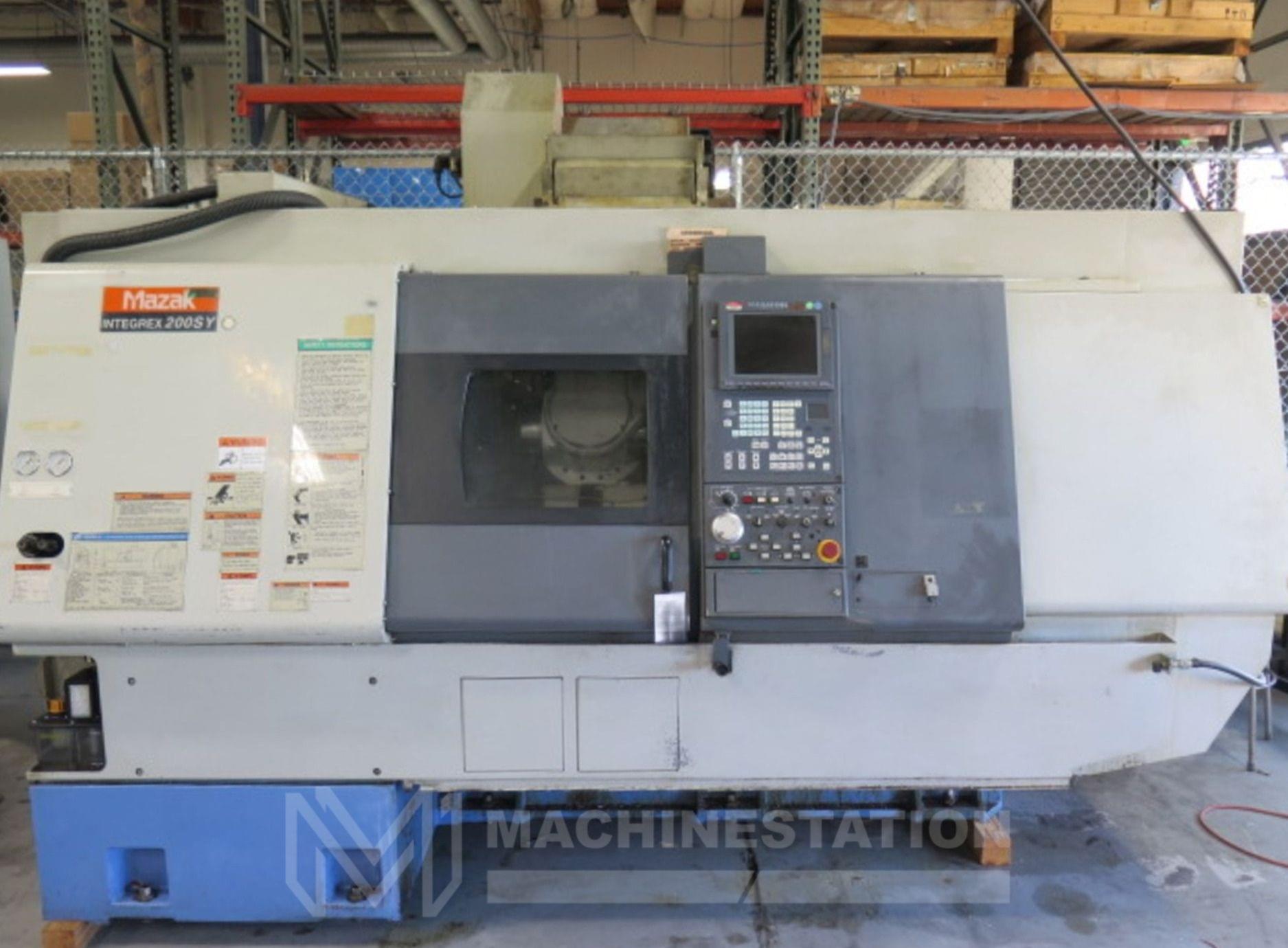

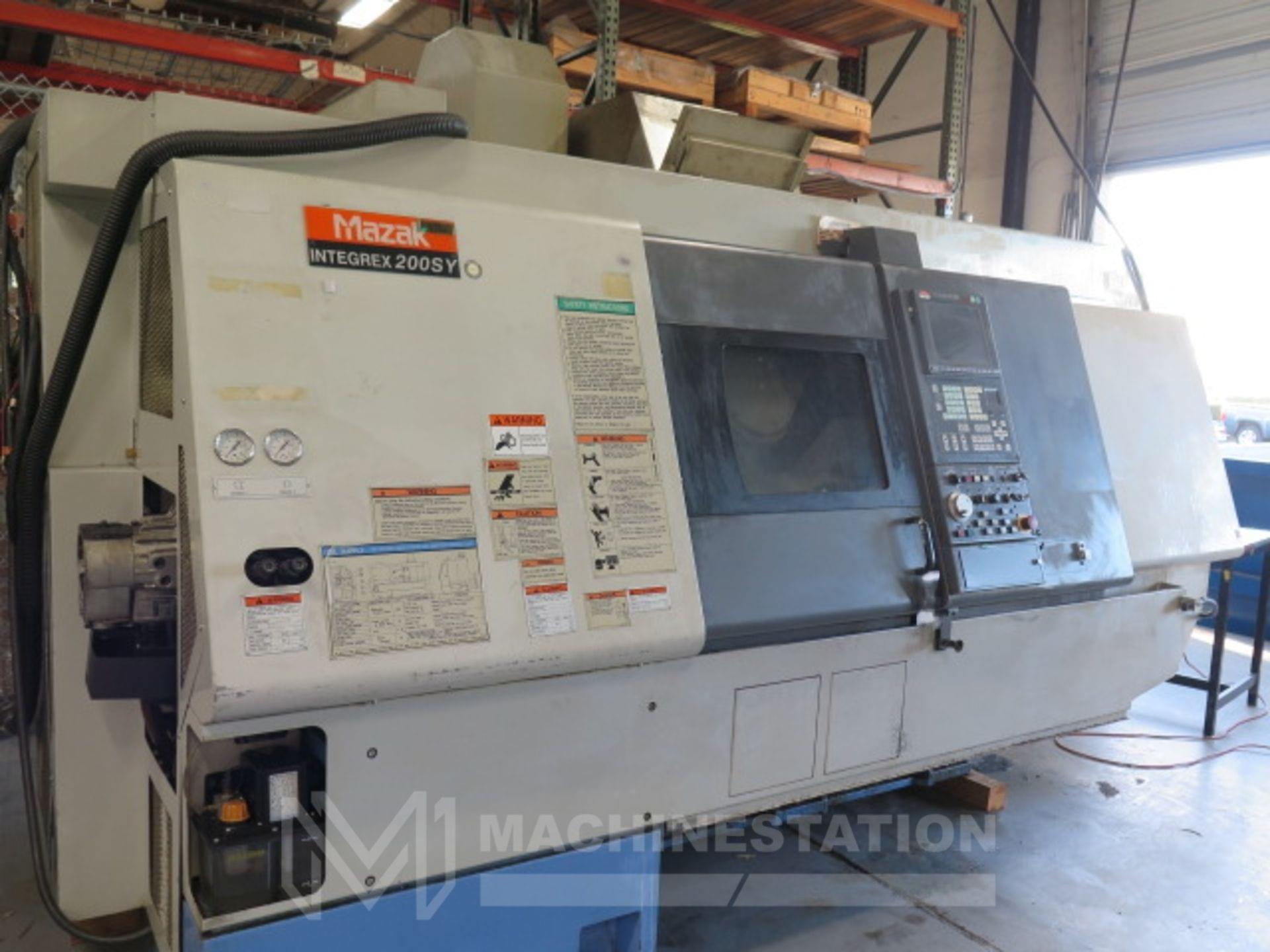

| Make: | Mazak |
| Model: | Inregrex 200SY |
| Year: | 1999 |
| Equipped With: |
|---|

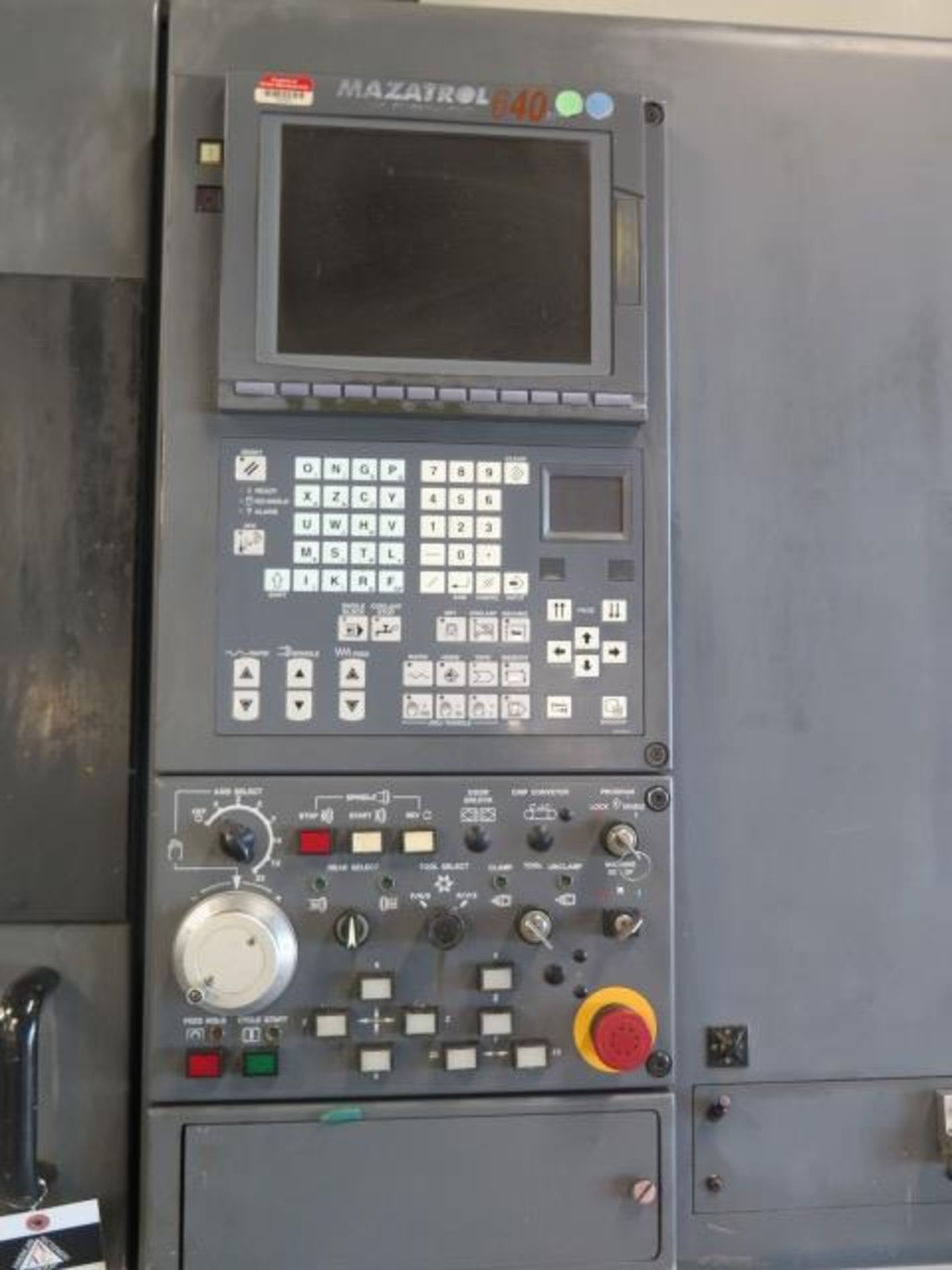

| Mazatrol Fusion 640MT CNC Control |

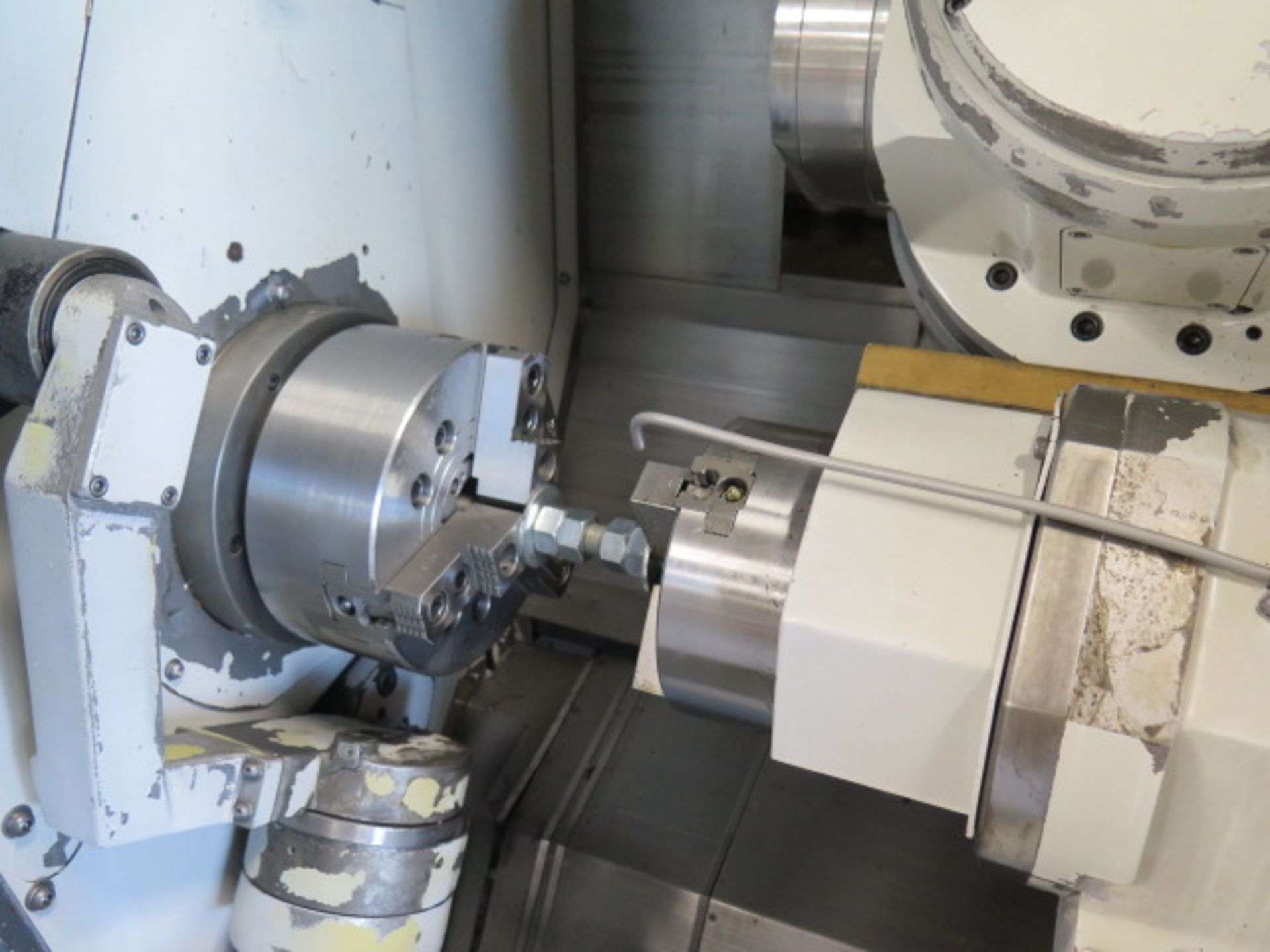

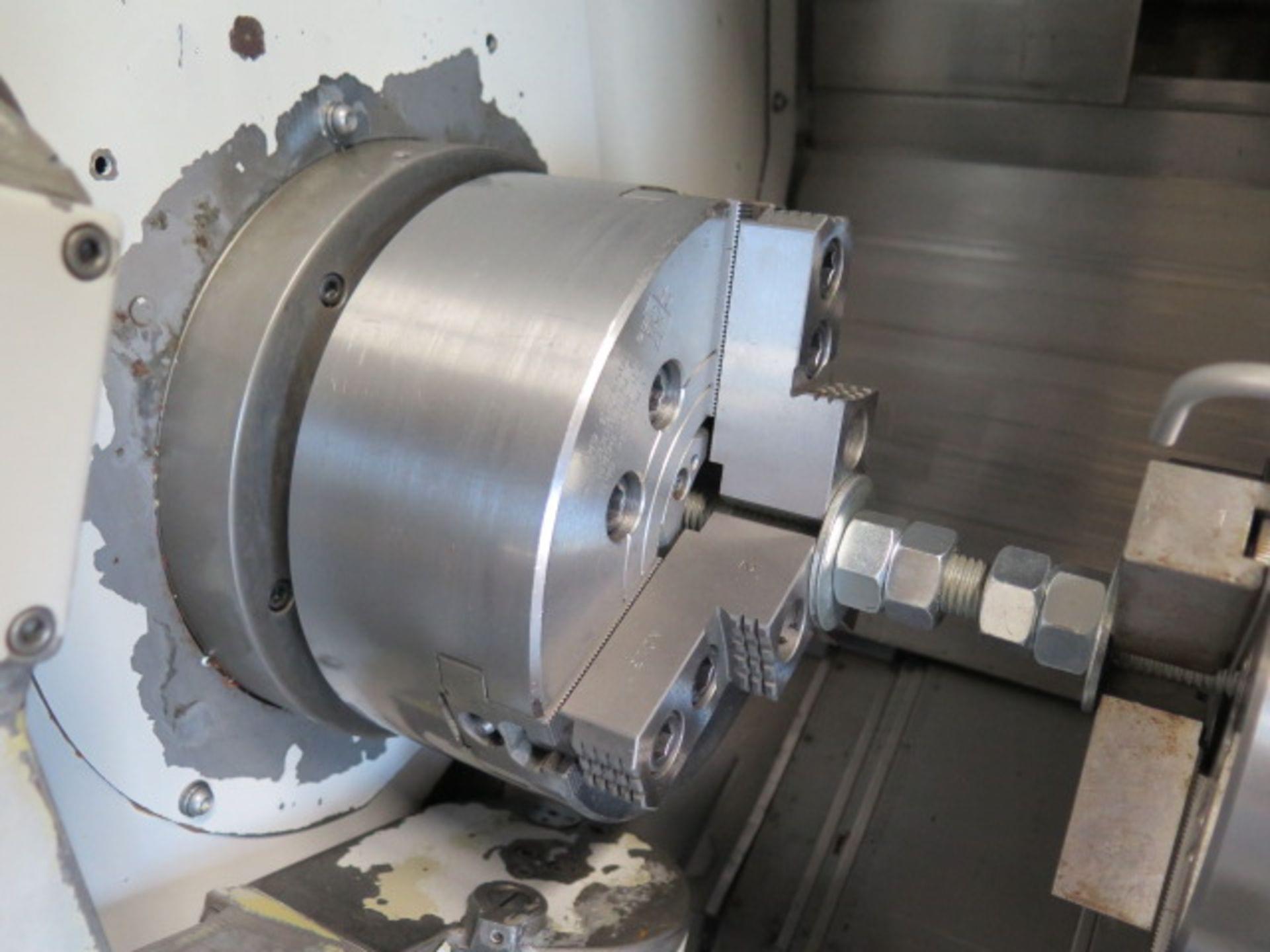

| 203 mm 3-Jaw Chuck on Main Spindle |

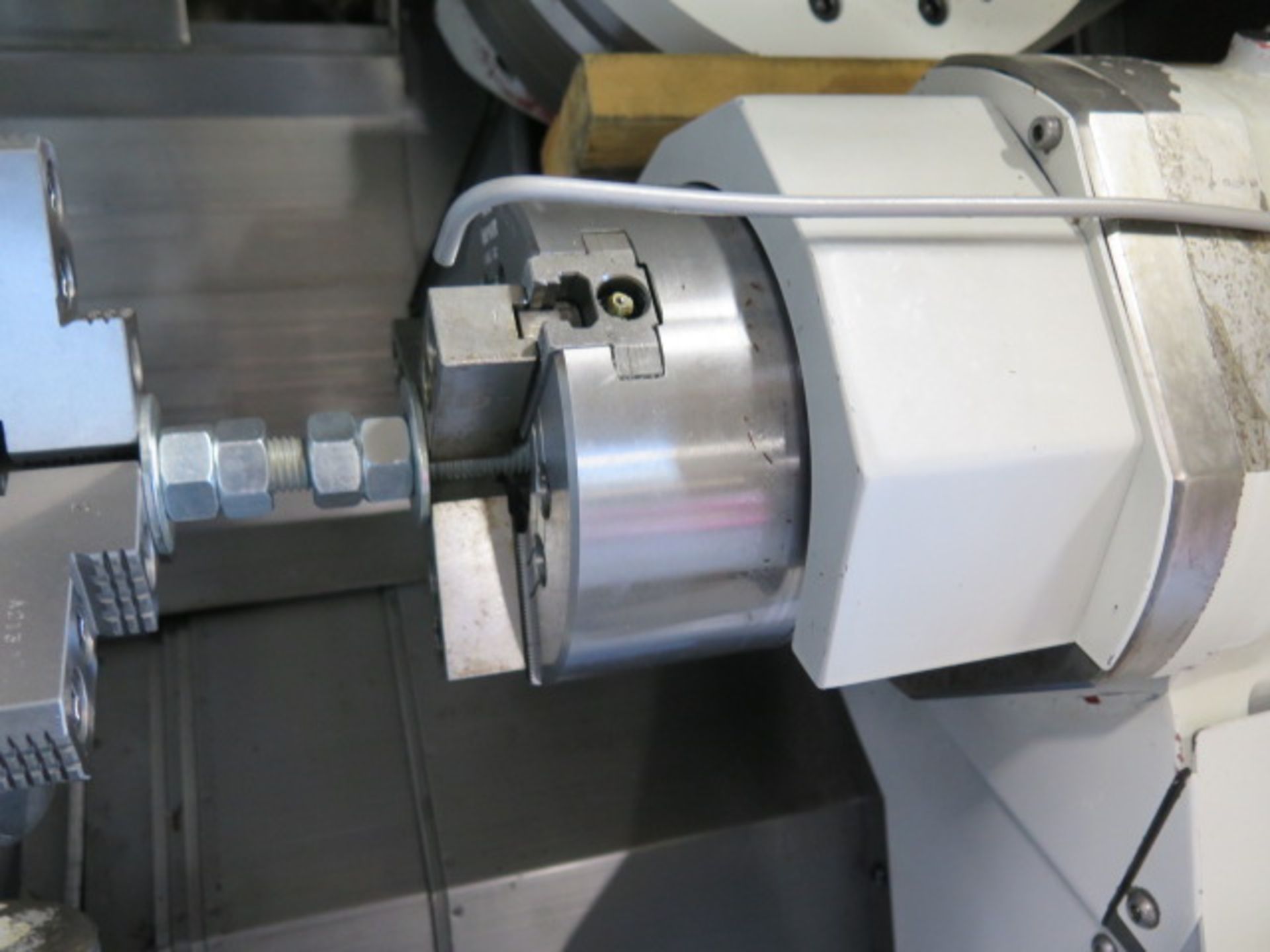

| 203 mm 3-Jaw Chuck on Sub Spindle |
| Full C-Axis on Both Spindles |
| Sub Spindle |
| C-Axis Live Tool |
| Y-Axis Capability |

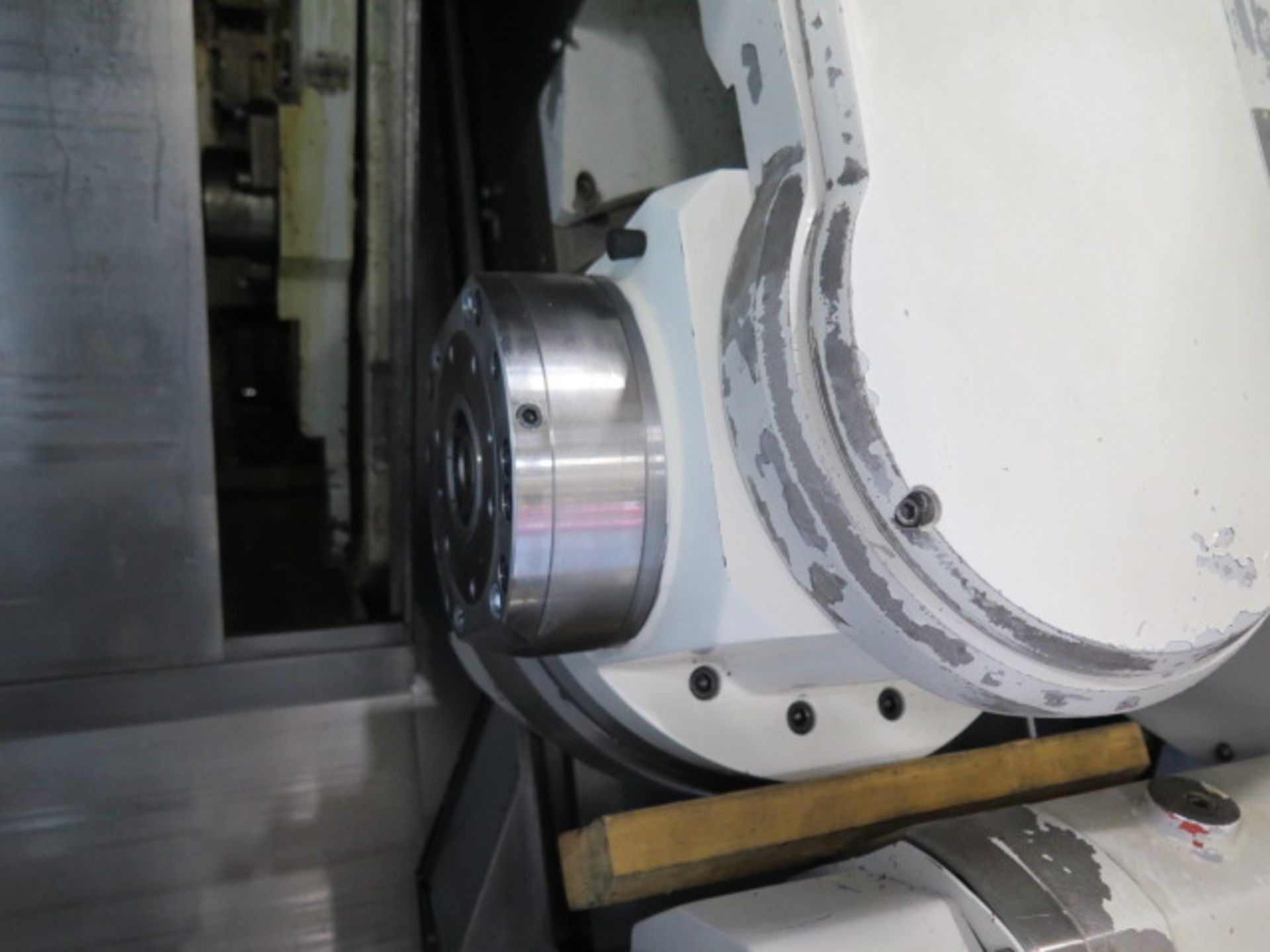

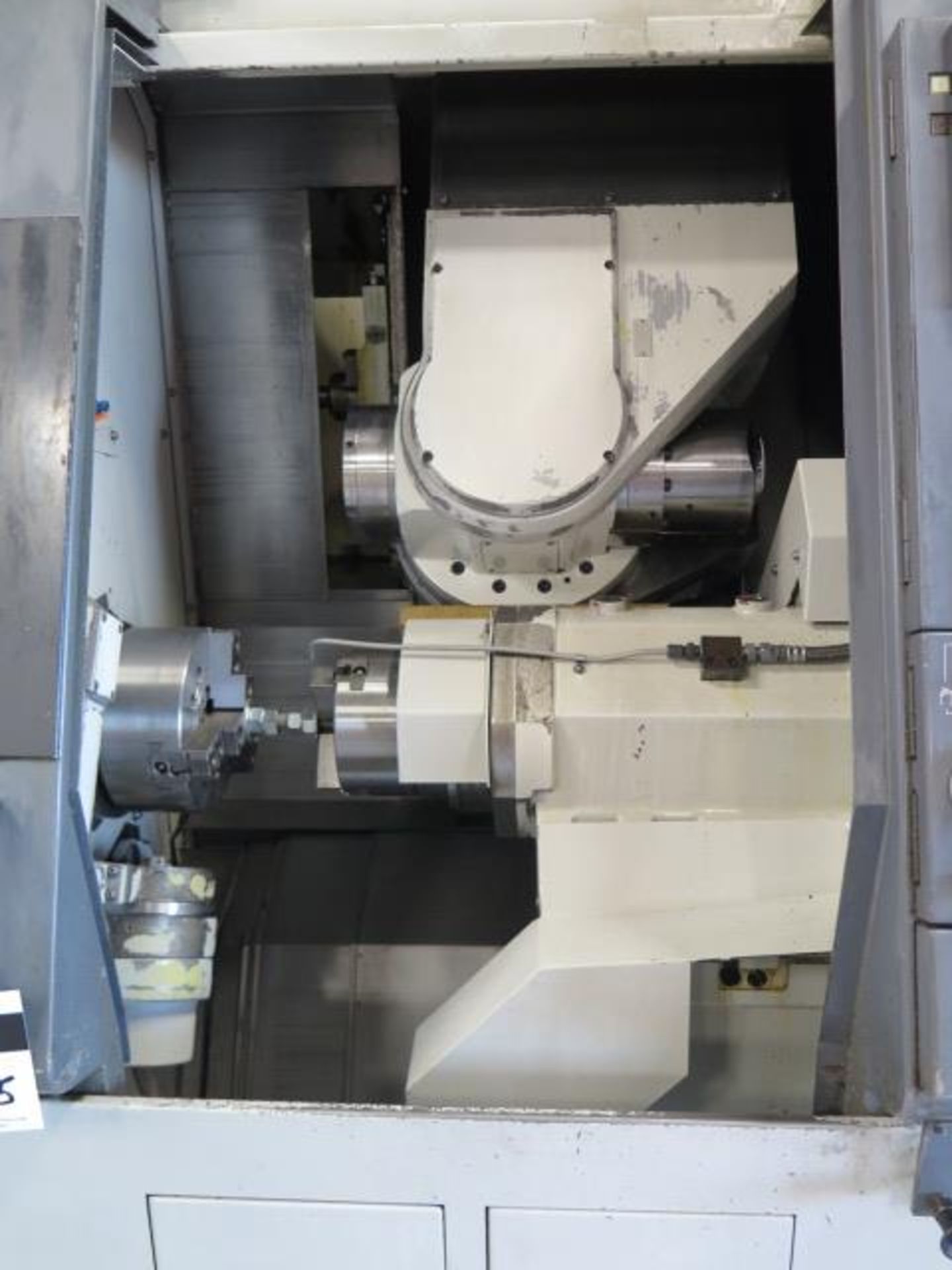

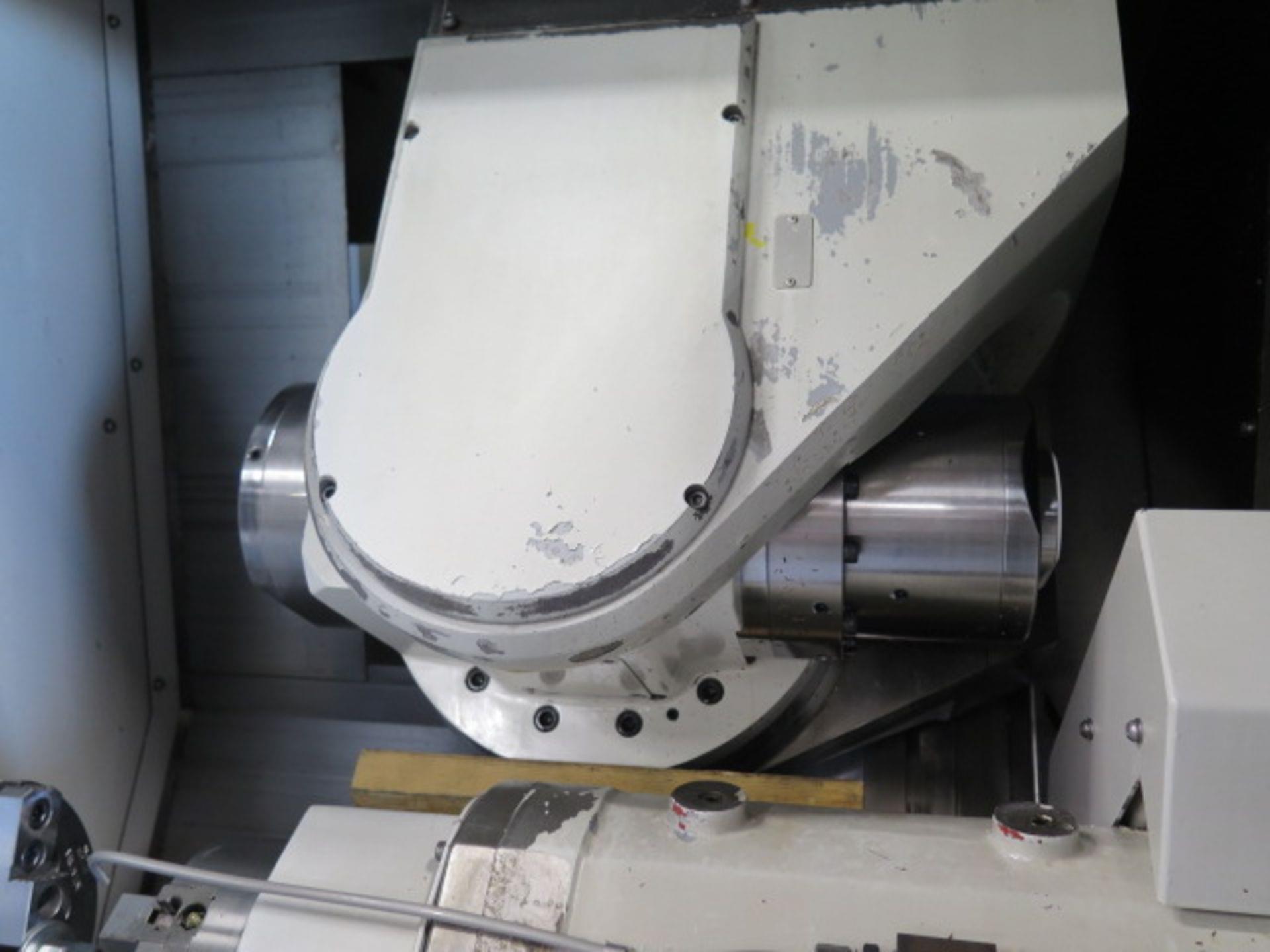

| 6,000 RPM Pendulum Milling Head |
| 40-Station Automatic Tool Changer |
| Rigid Tapping |

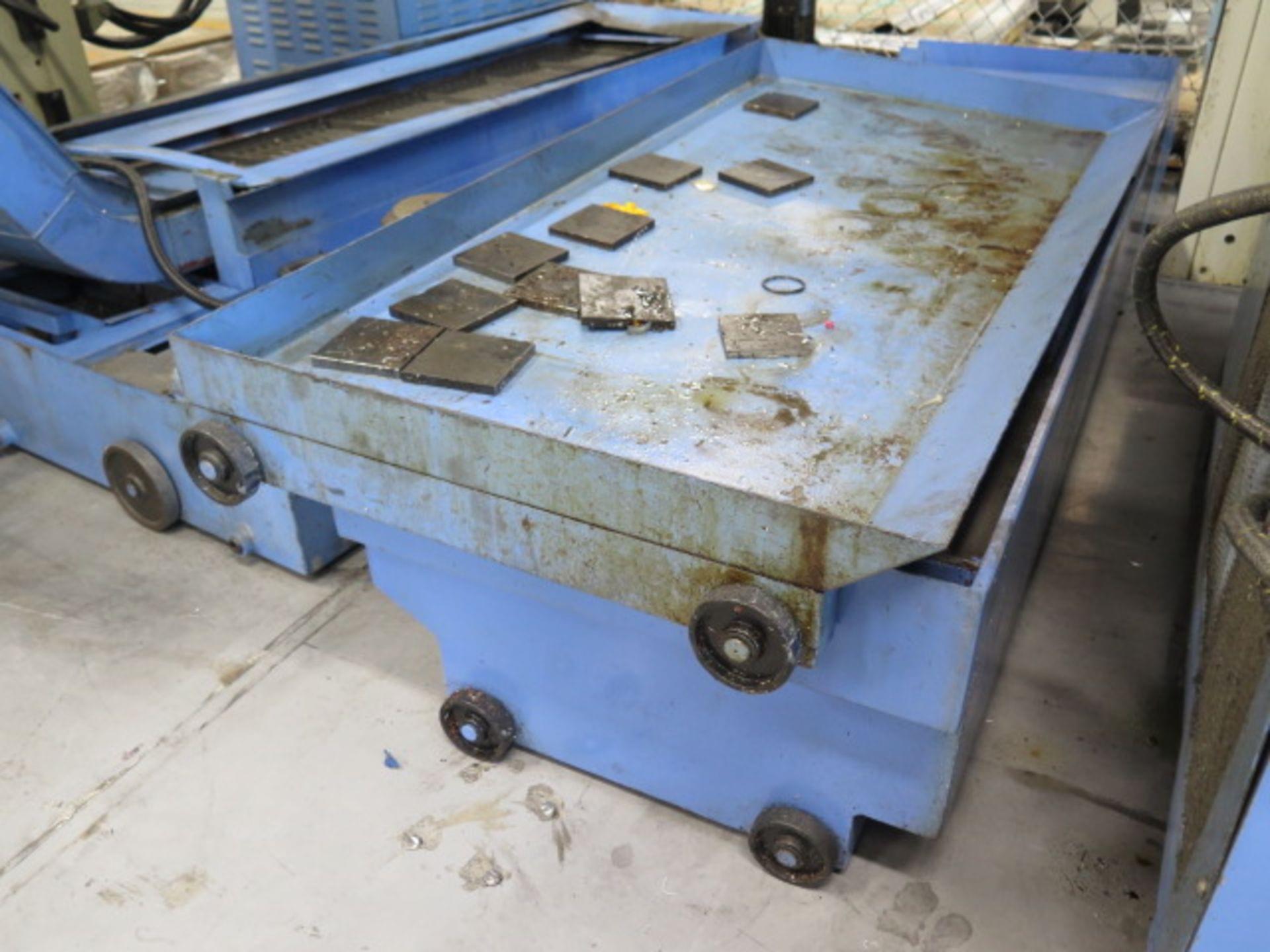

| Coolant Tank |

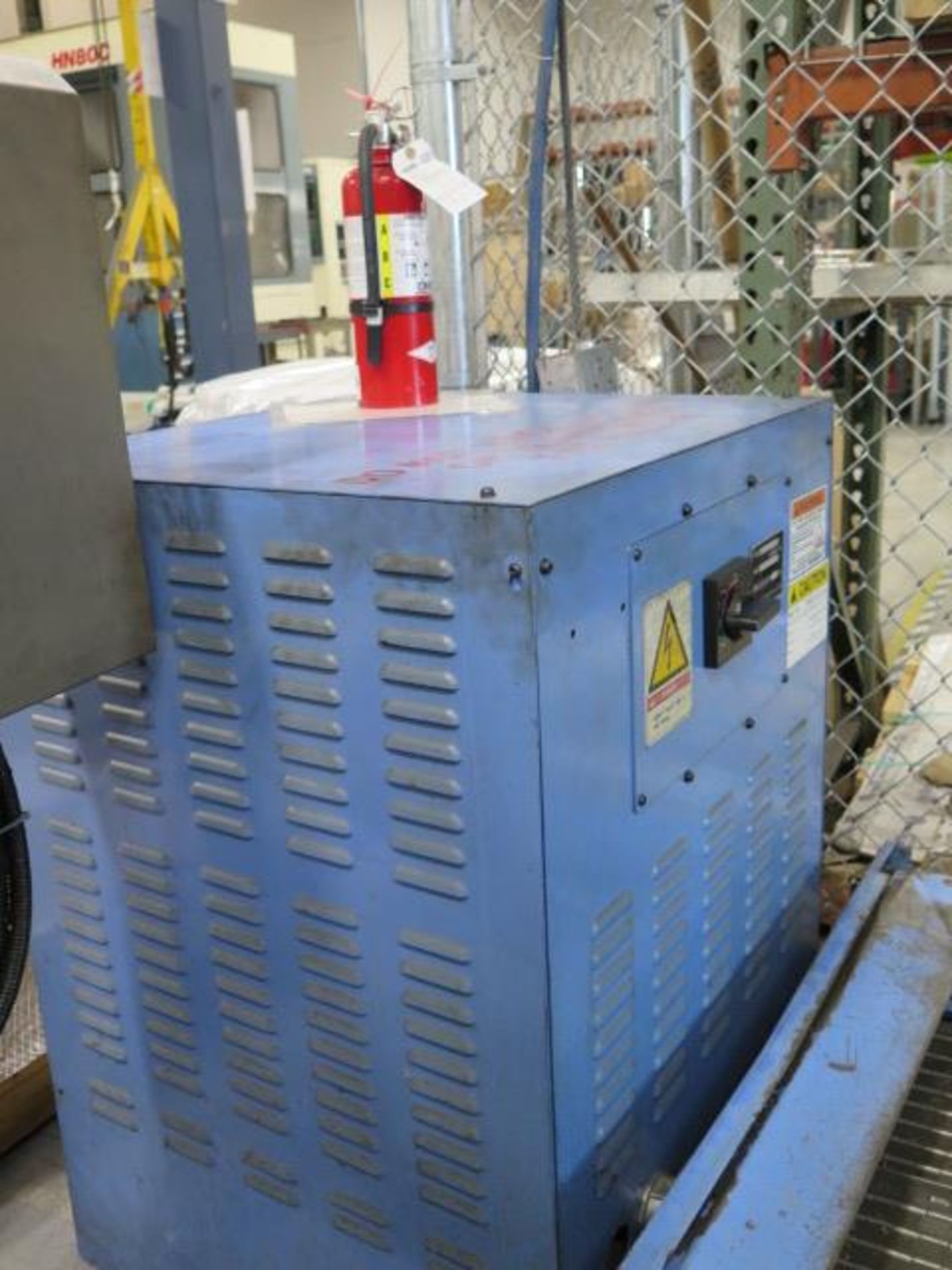

| Transformer |
| Capacity: |
|---|
| Maximum Swing: 538 mm |
| Maximum Turning Diameter: 538 mm |
| Maximum Turning Length: 1016 mm |
| Main Spindle Bar Capacity: 50 mm |
| Main Spindle Bore: 61 mm |
| Sub Spindle Bore: 44 mm |
| Travels: |
|---|
| X-Axis Travel: 531 mm |
| Y-Axis Travel: 70 mm |
| Z-Axis Travel: 1064 mm |
| B-Axis Rotation: 225° |
| Main Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Speed: 5,000 RPM |
| Spindle Motor: 25 HP |
| Sub Spindle: |
|---|
| Spindle Speed: 5,000 RPM |
| Spindle Motor: 10 HP |
| Milling Spindle: |
|---|
| Spindle Speed: 6,000 RPM |
| Spindle Motor: 15 HP |
| Tool Taper: Kennametal KM63 |
| Automatic Tool Changer: |
|---|
| Capacity: 40 Tools |
| Tool System: Kennametal KM63 |
| Maximum Tool Length: 250 mm |
| Maximum Tool Weight: 15.4 lbs. |
| General: |
|---|

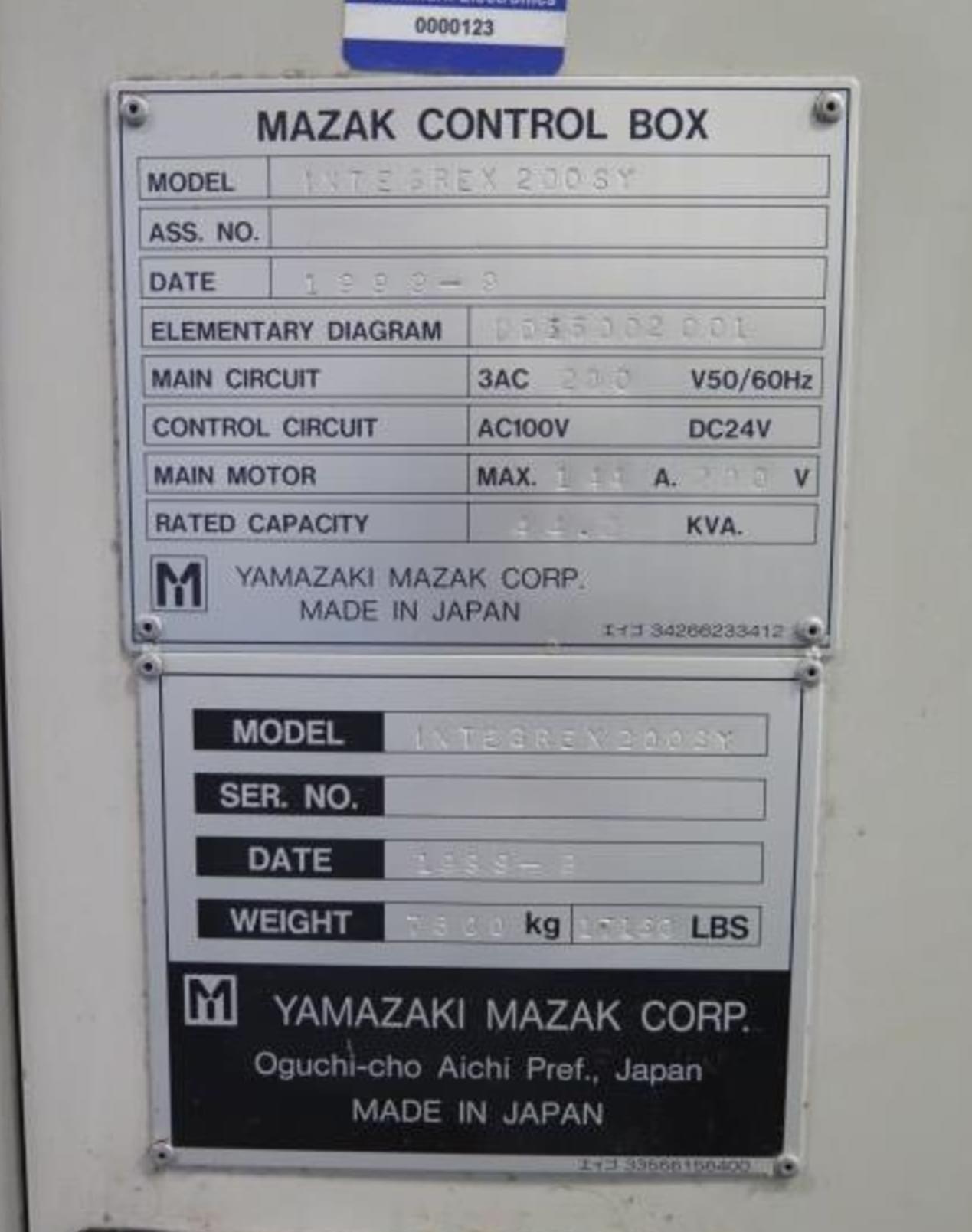

| Power Requirement: 200V / 3 Phase / 50–60 Hz |
| Machine Dimensions (Approx.): 3251 mm × 1829 mm × 2743 mm High |
| Machine Weight (Approx.): 7800 kg |
