Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

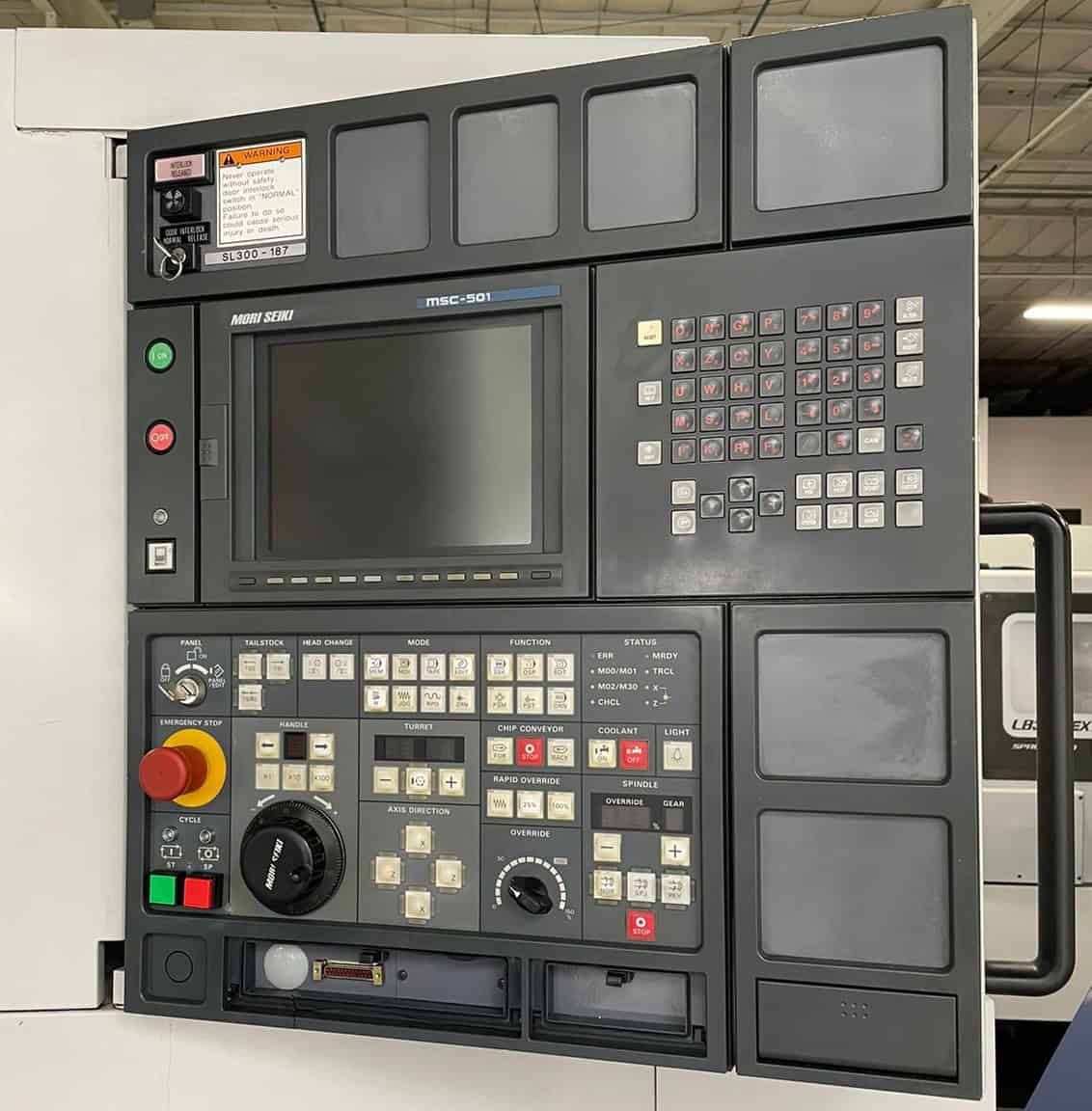

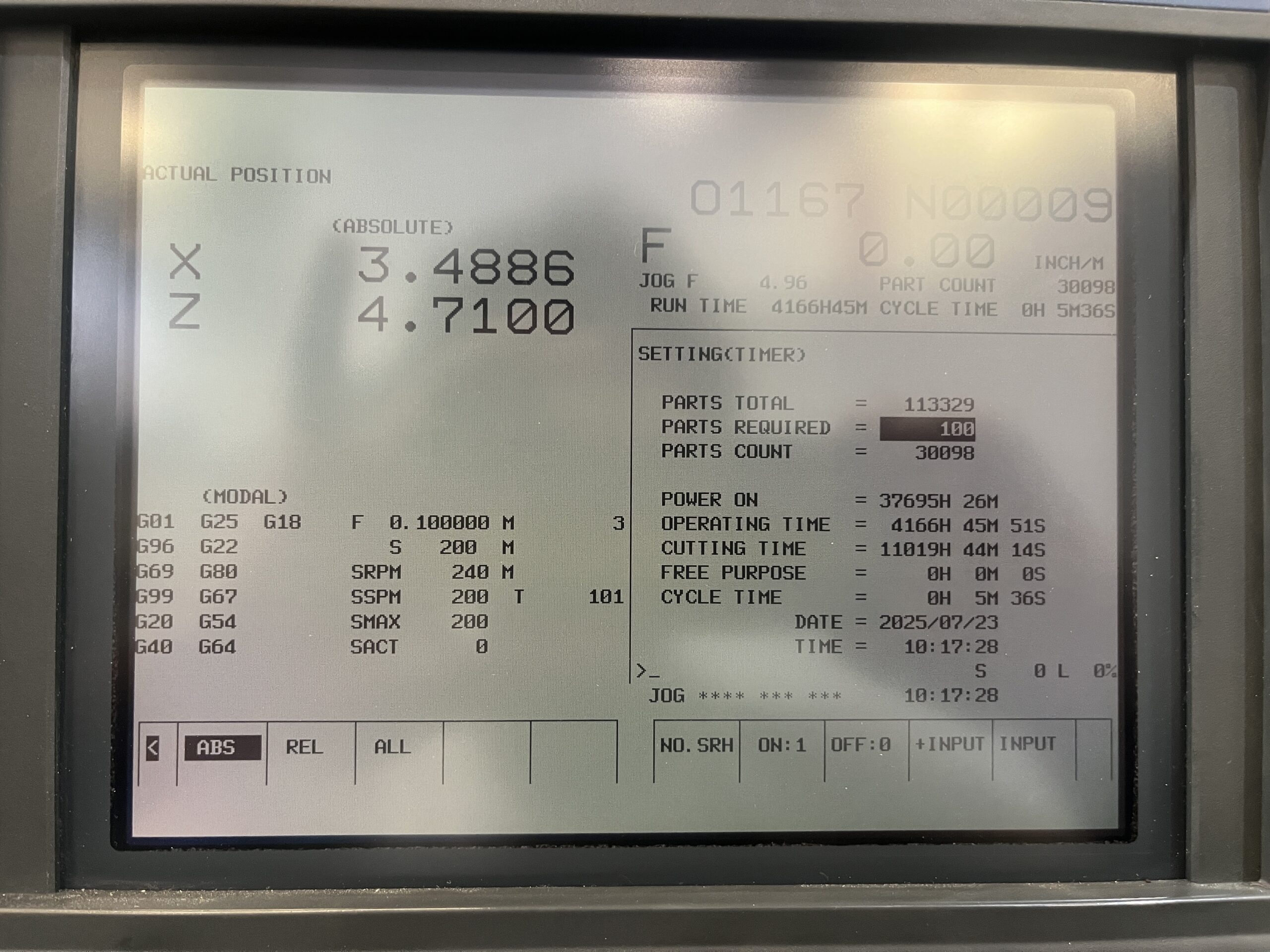

| Mori Seiki MSC-501 (Fanuc) CNC Control |

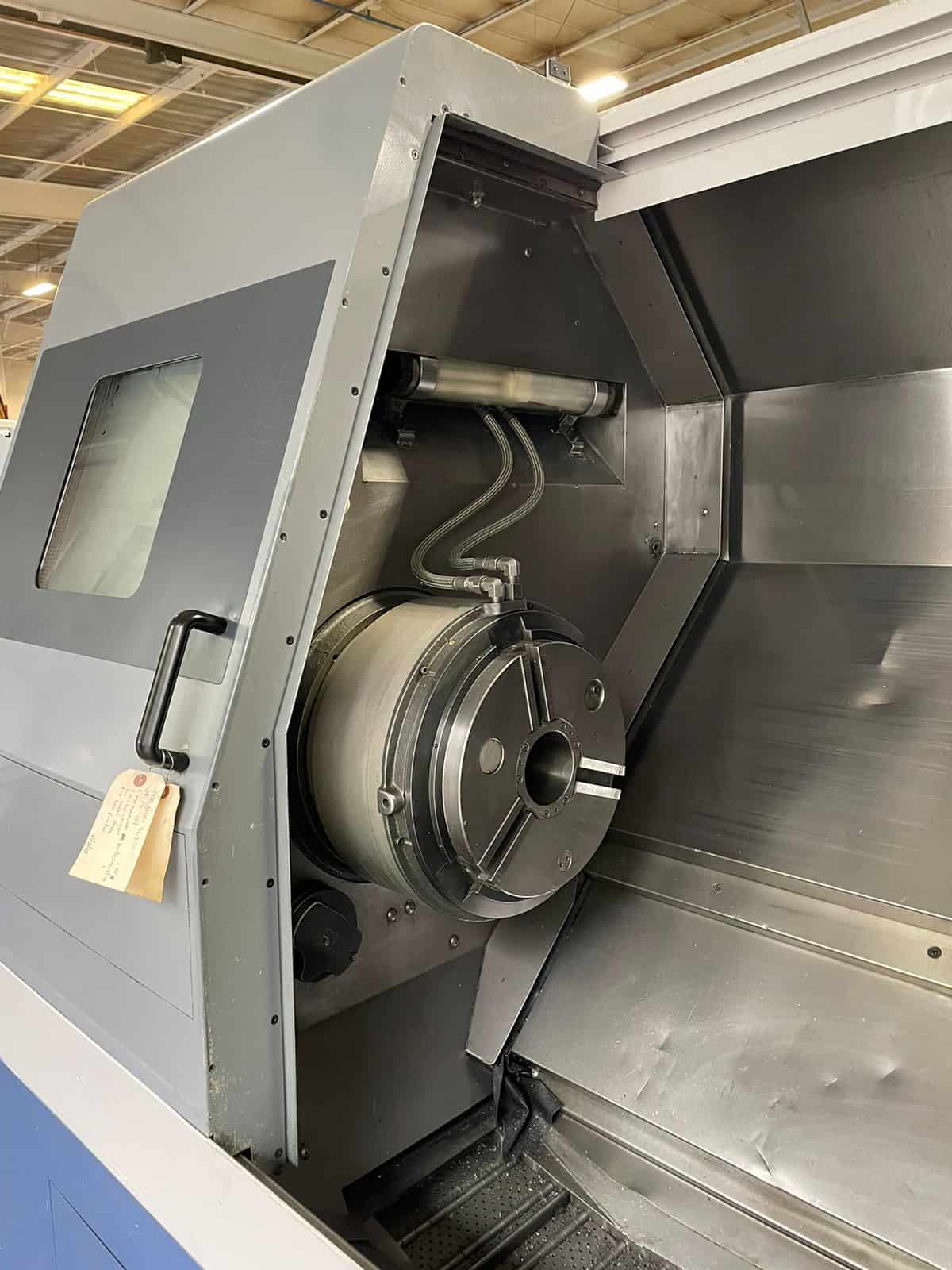

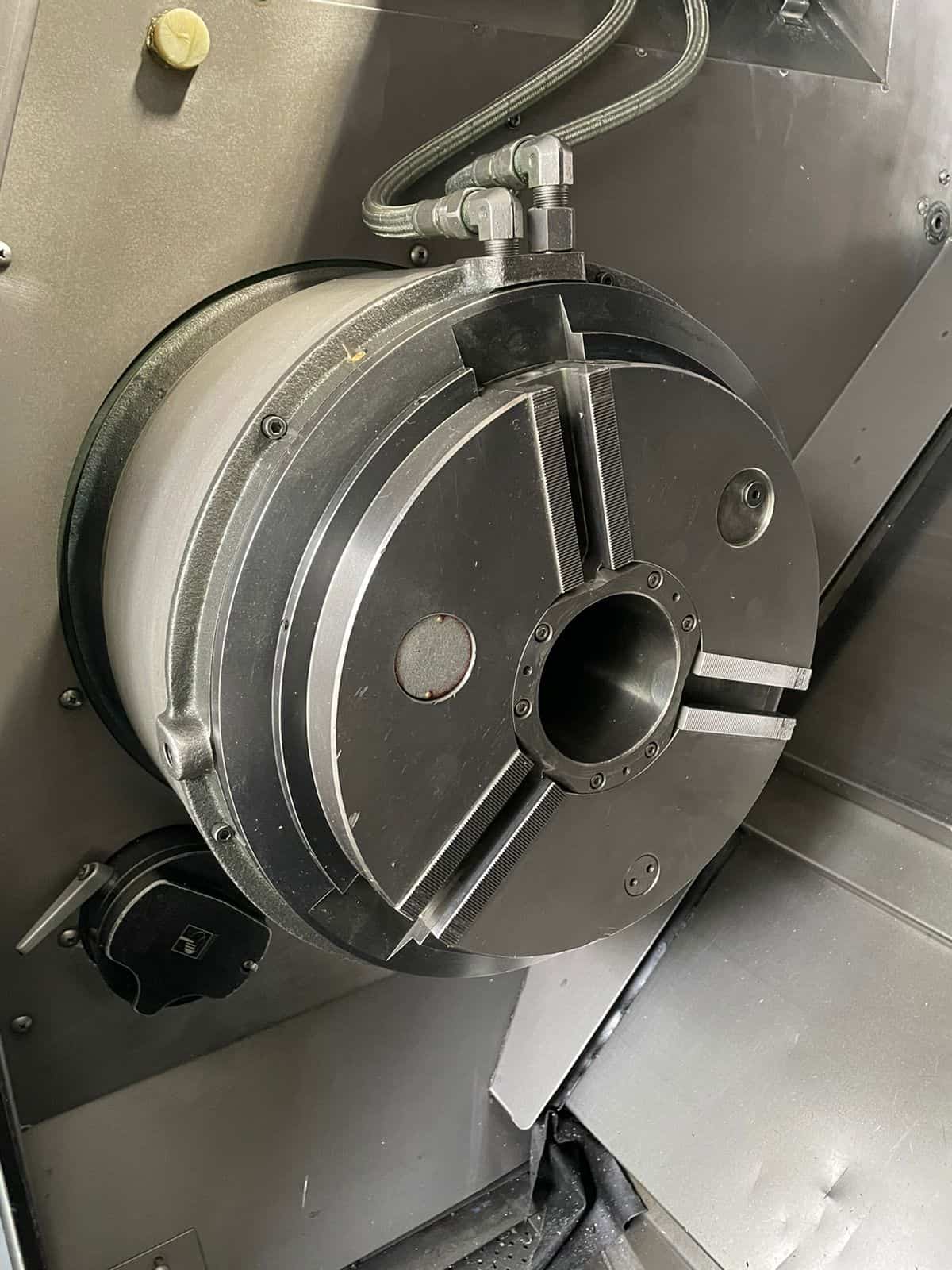

| 12″ 3-Jaw Air Chuck |
| 12 Station Automatic Turret |

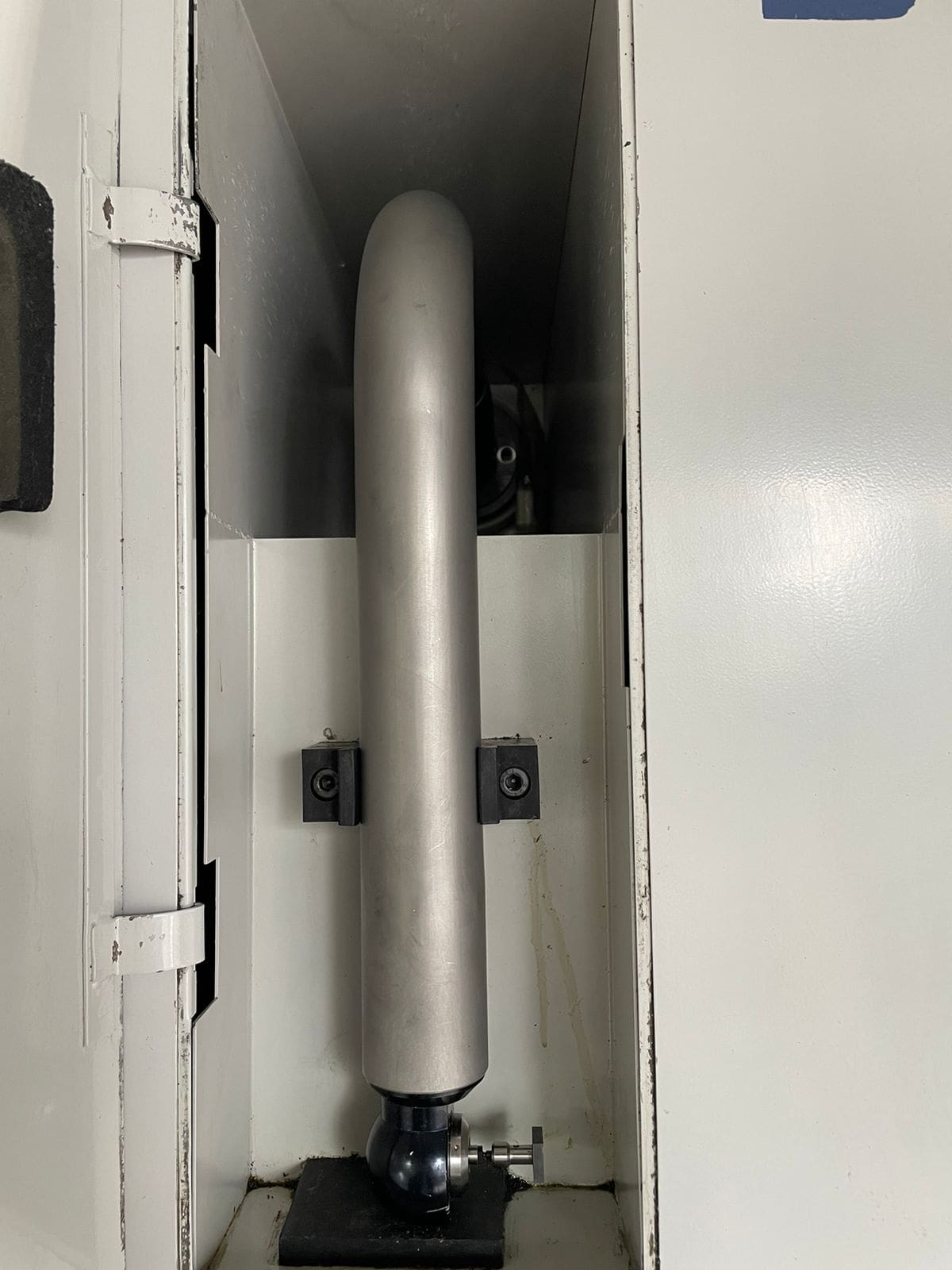

| Tool Presetter |
| 2 Step gear spindle for powerful torque |
| RS-232 Port |
| Hydraulic Tailstock with Power Quill |
| Rigid Tapping |
| Coolant System |

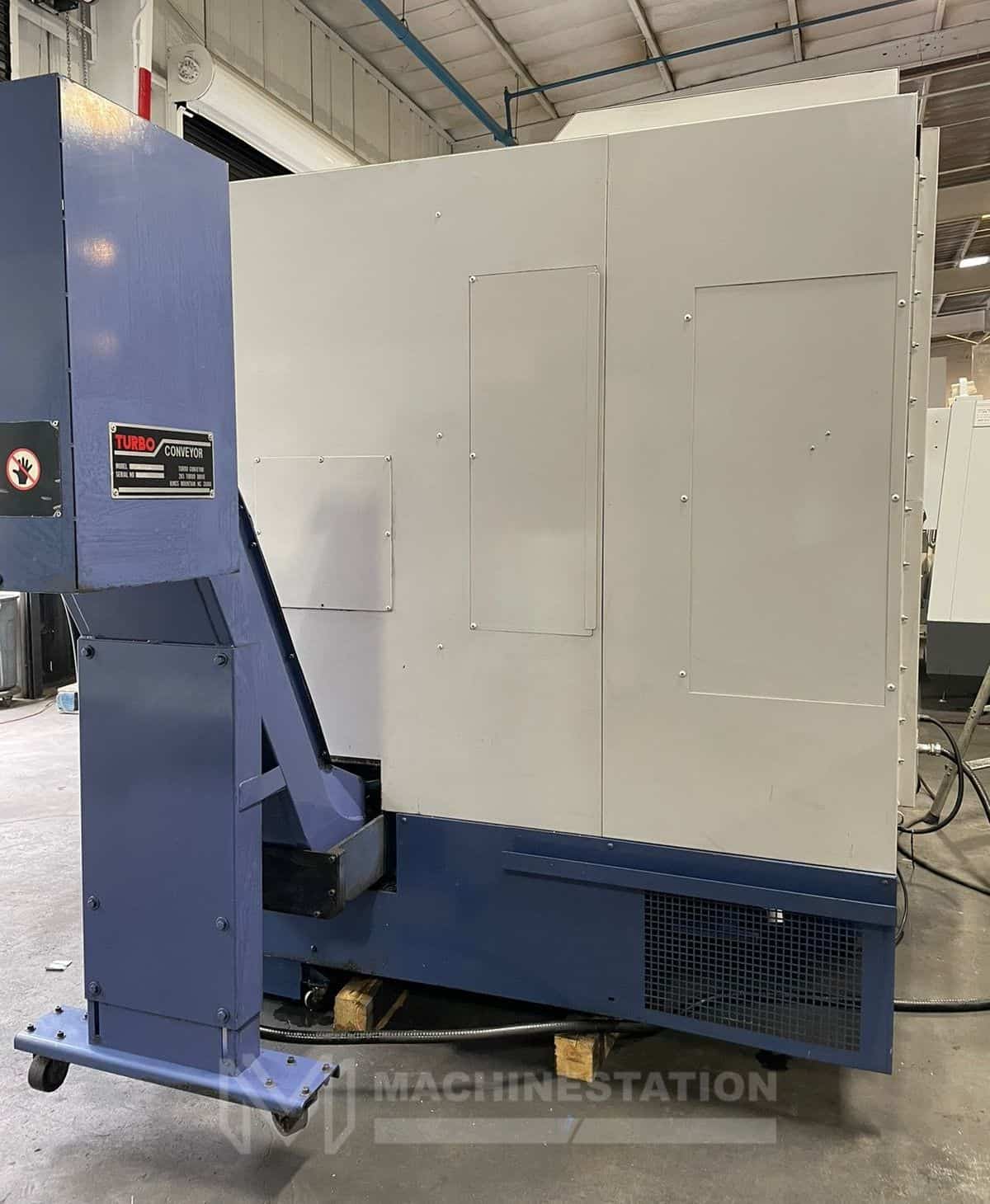

| Turbo Chip Conveyor |
| Foot Switch |

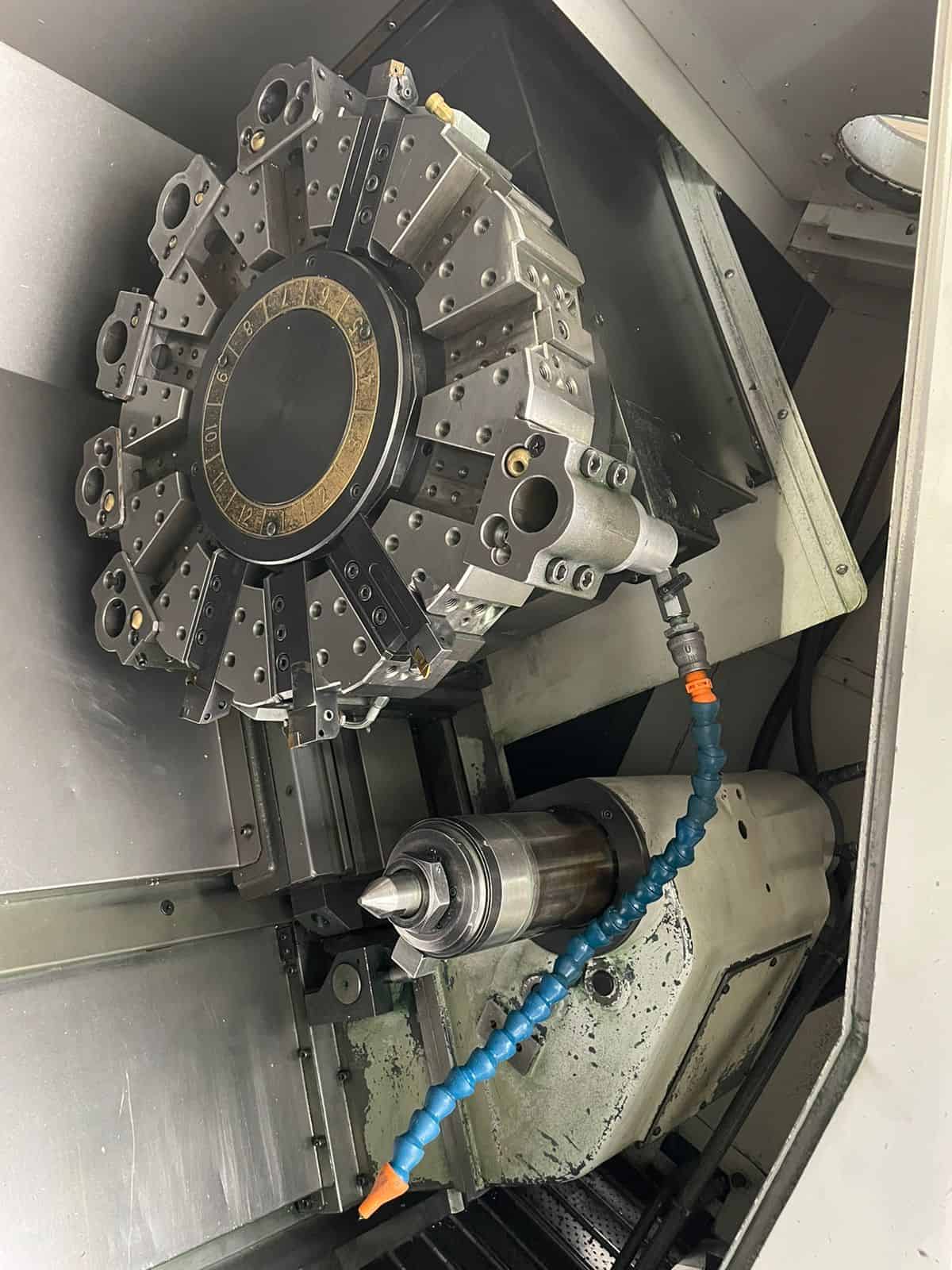

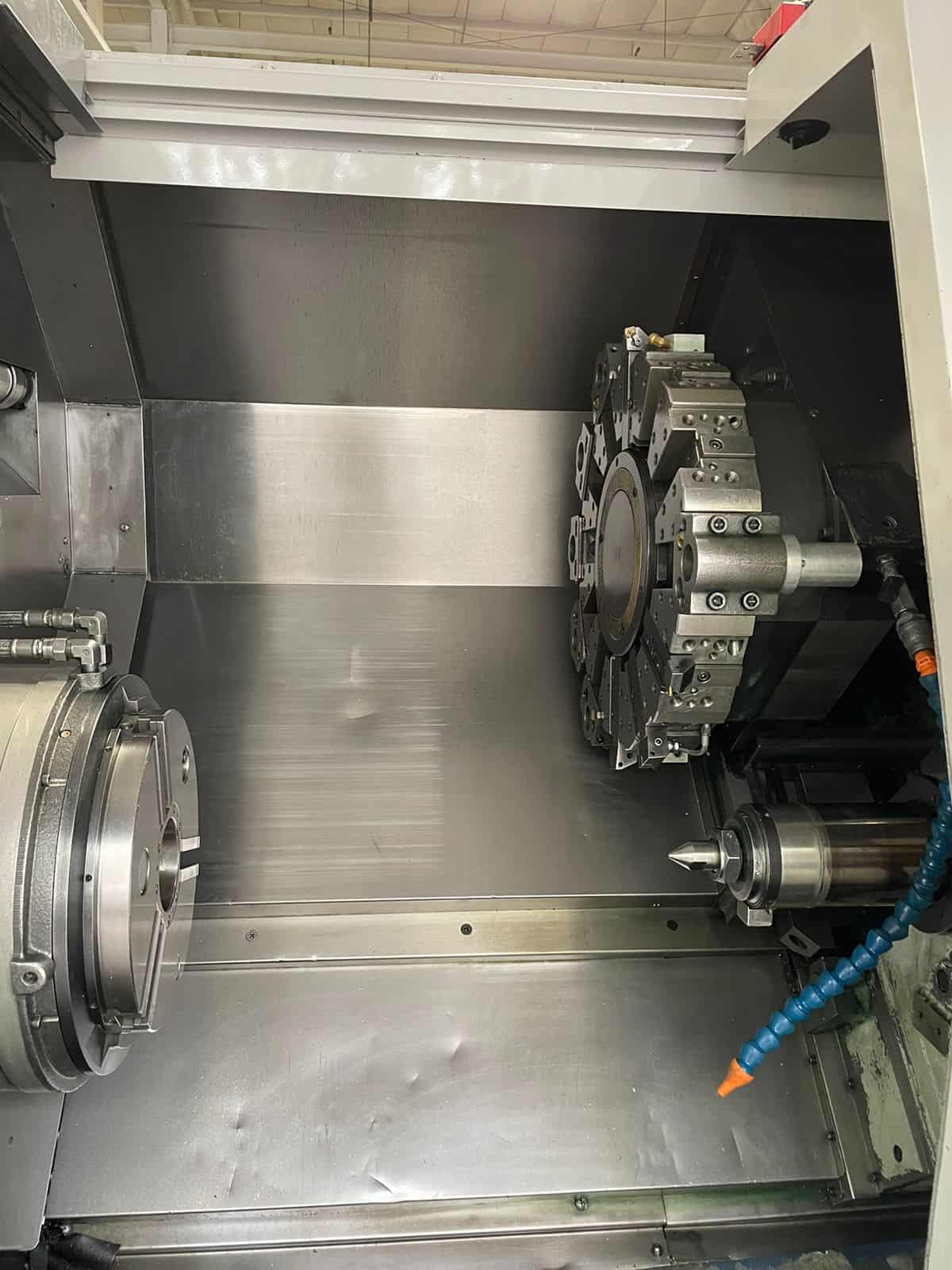

| (4) Turning Tools & (6) Boring Tool Holders are Mounted on Turret (As shown in the images) |
| Capacity: |
| Max Turning Diameter: 16.5″ |
| Max Turning Length: 27.9″ |
| Max Bar Capacity: 3.4″ |
| Swing Over Bed: 28″ |
| Distance Between Centers: 31.5″ |
| Travel: |
| X Axis Travel: 9.84″ |
| Z Axis Travel: 31.49″ |
| Rapid Traverse X Axis: 790 IPM |
| Rapid Traverse Z Axis: 940 IPM |
| Spindle: |
| Spindle Nose: A2-8 |
| Spindle Bore: 3.4″ |
| Spindle Speed: 35 – 3500 RPM |
| Spindle Motor: 30 HP |
| Turret: |
| Turret Capacity: 12 Stations |
| Tooling Type: BMT |
| Shank Height For Square Tool: 1.0″ |
| Shank Diameter For Boring Bar: 2.0″ |
| Turret Index Time: 0.5 Second |
| Tailstock: |
| Tailstock Quill Dia.: 4.3″ |
| Tailstock Quill Stroke: 5.9″ |
| Tailstock Taper: MT-5 |
| General: |

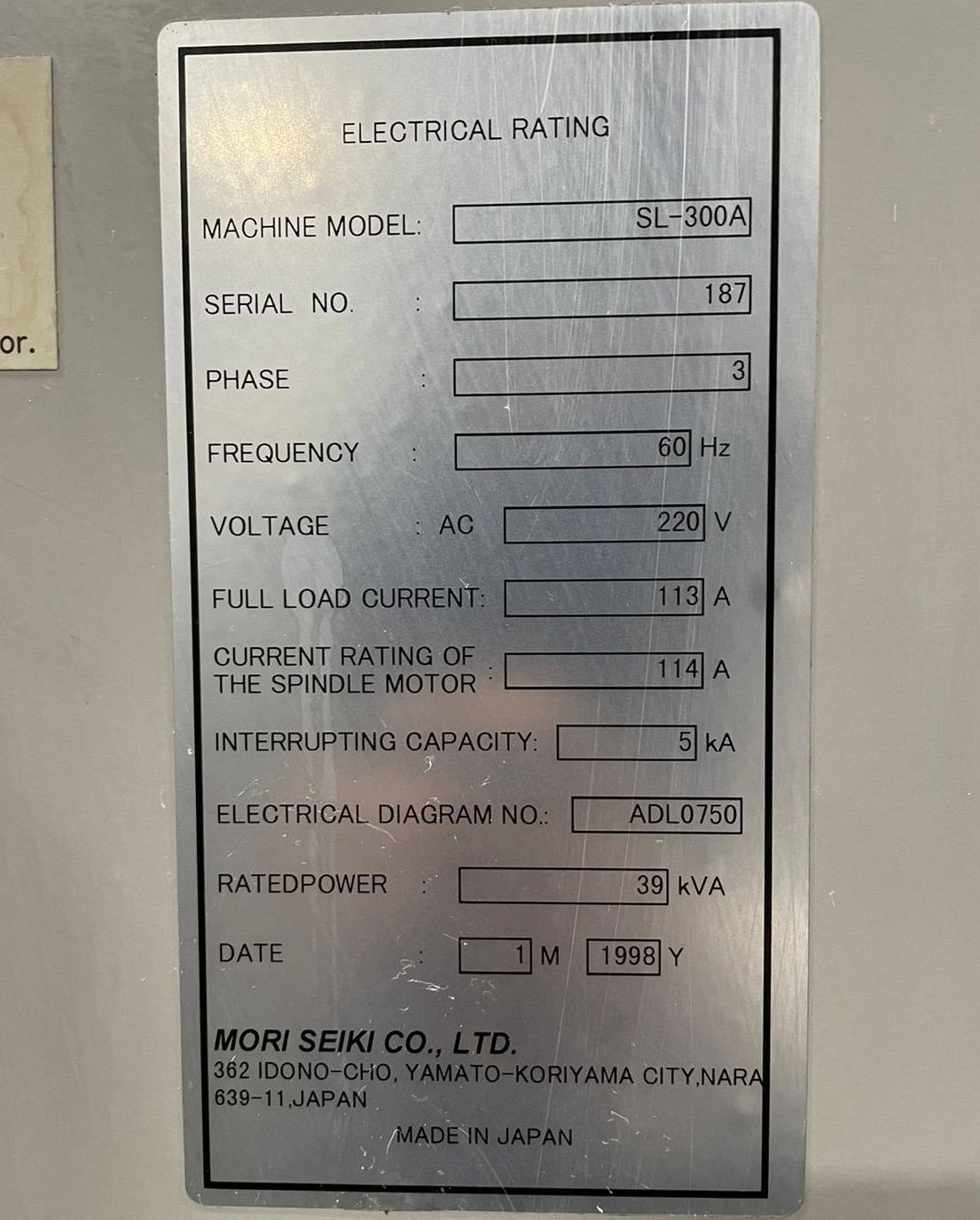

| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: 39 kva |
| Overall Dimensions: 137″ X 84″ X 94″ High Approx. |
| Weight : 15,000 lbs. Approx. |
