Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.

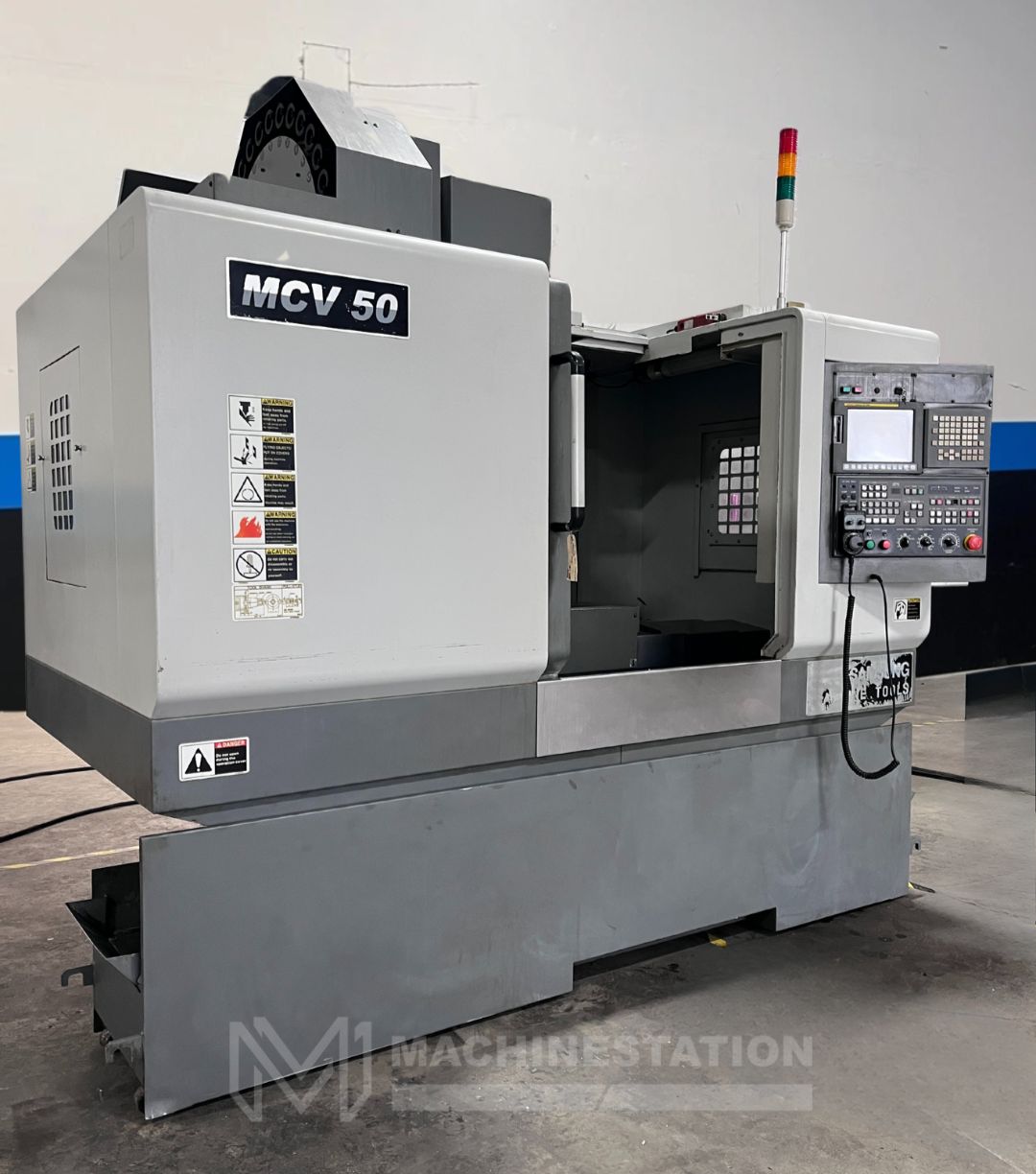

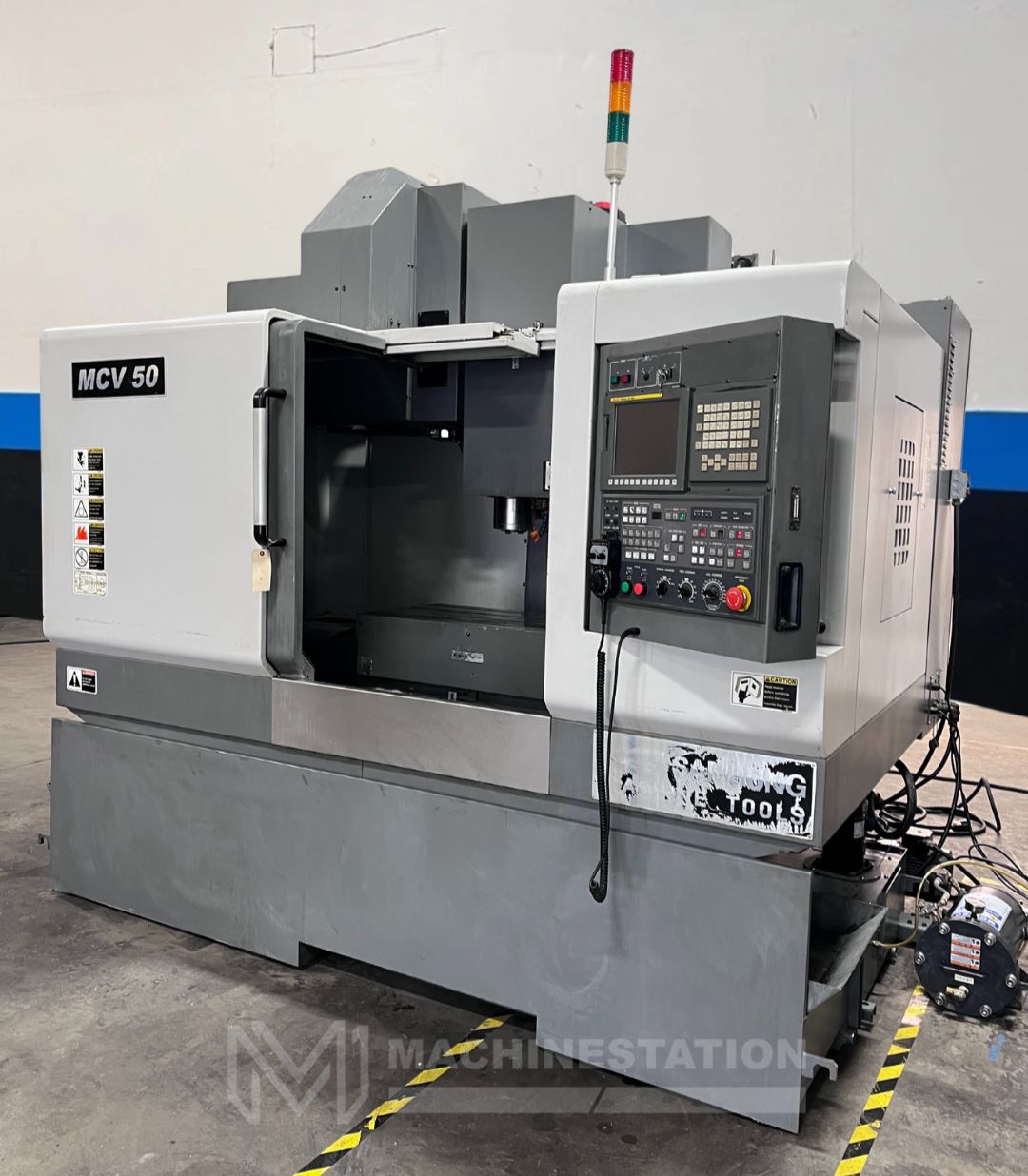

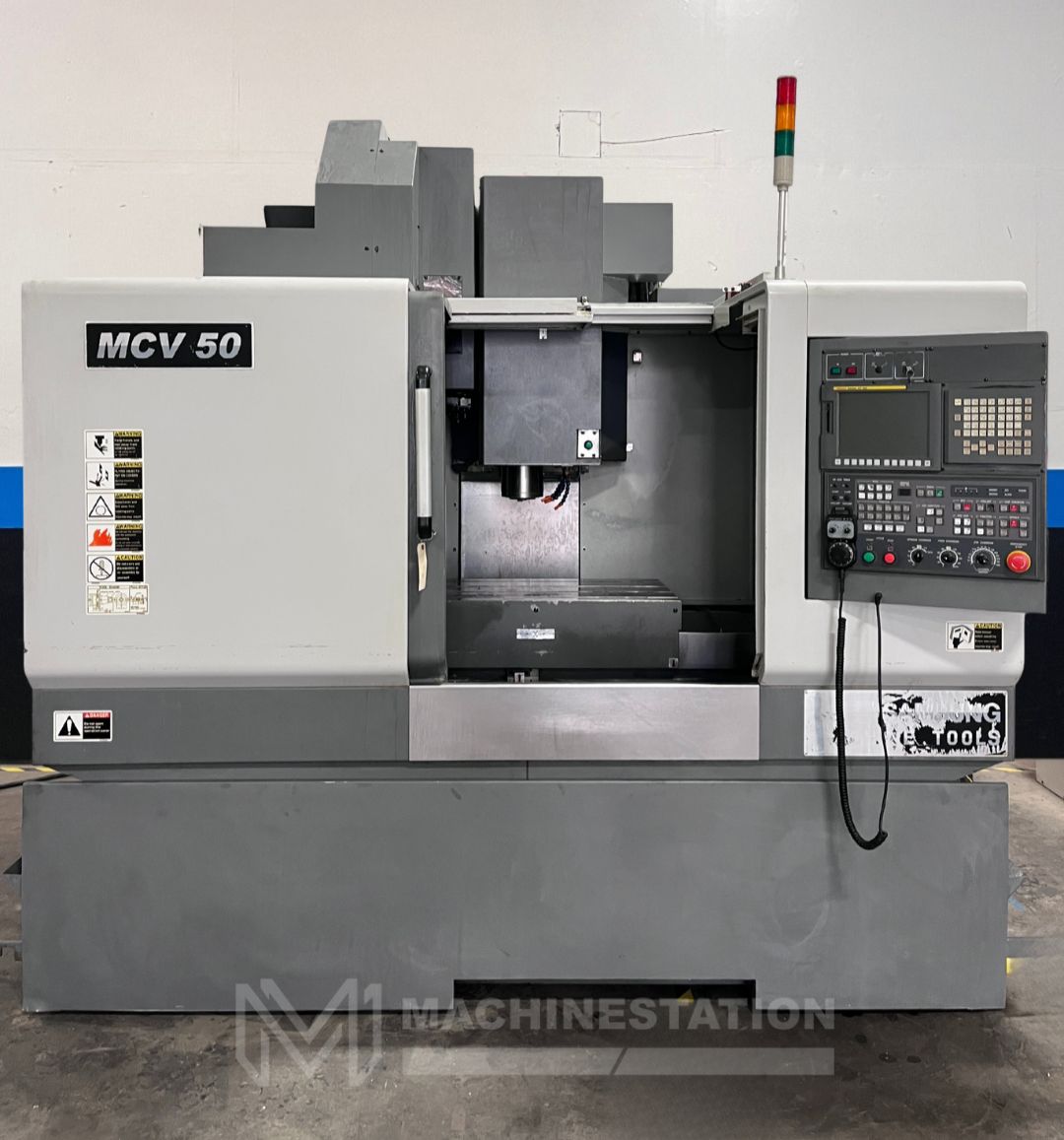

| Key Features of the Samsung MCV 50: |

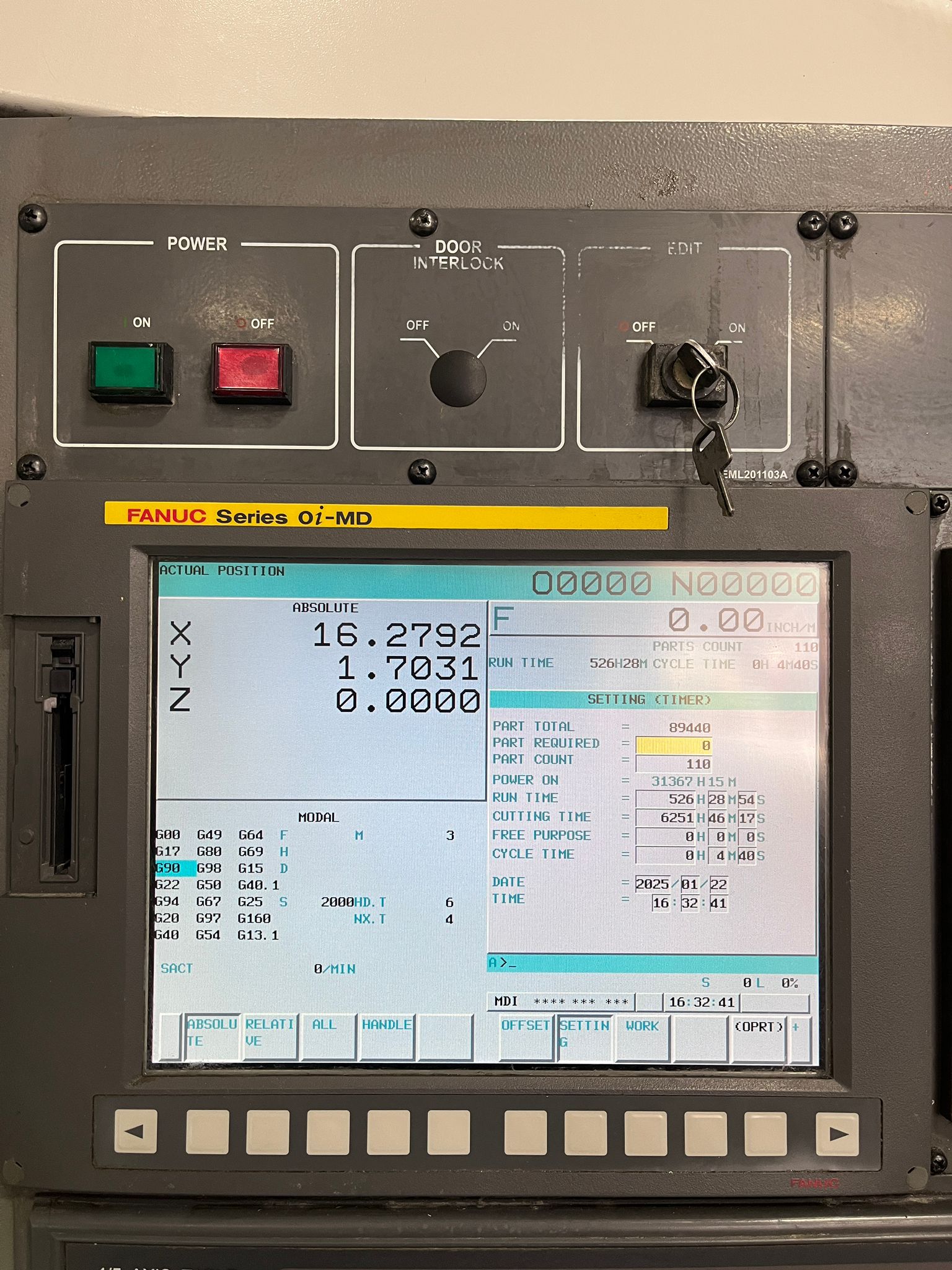

| Fanuc Oi-MD CNC Control |
| 12,000 RPM High-Speed Spindle |

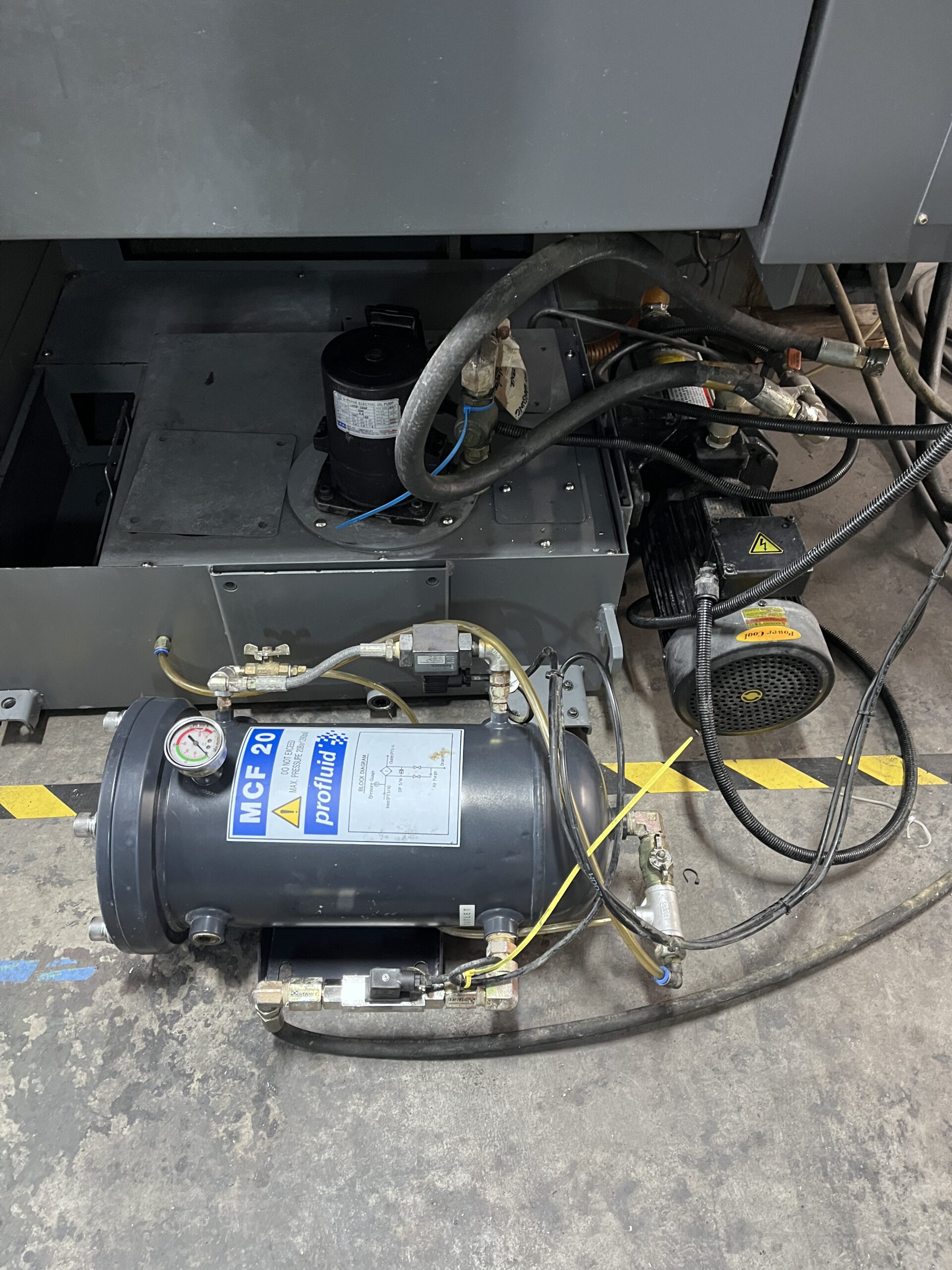

| Through Spindle Coolant – 290 psi |
| 30 Station High-Speed Tool Changer |
| 20 HP High Torque Spindle |
| 1417 IPM Fast Rapid Traverse |

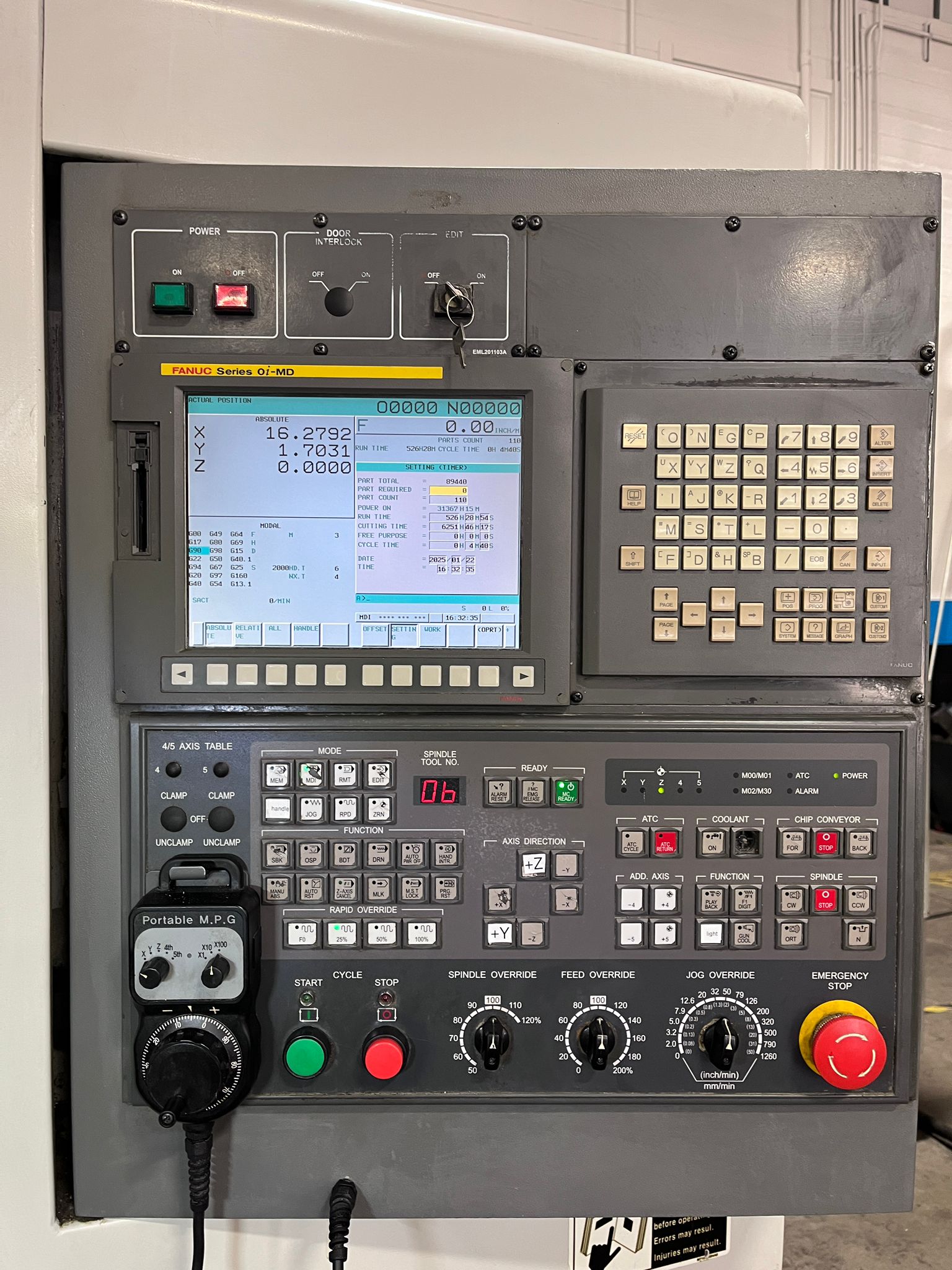

| MPG Handwheel Control |
| Rigid Tapping |
| Spindle Orientation |
| Coolant System |

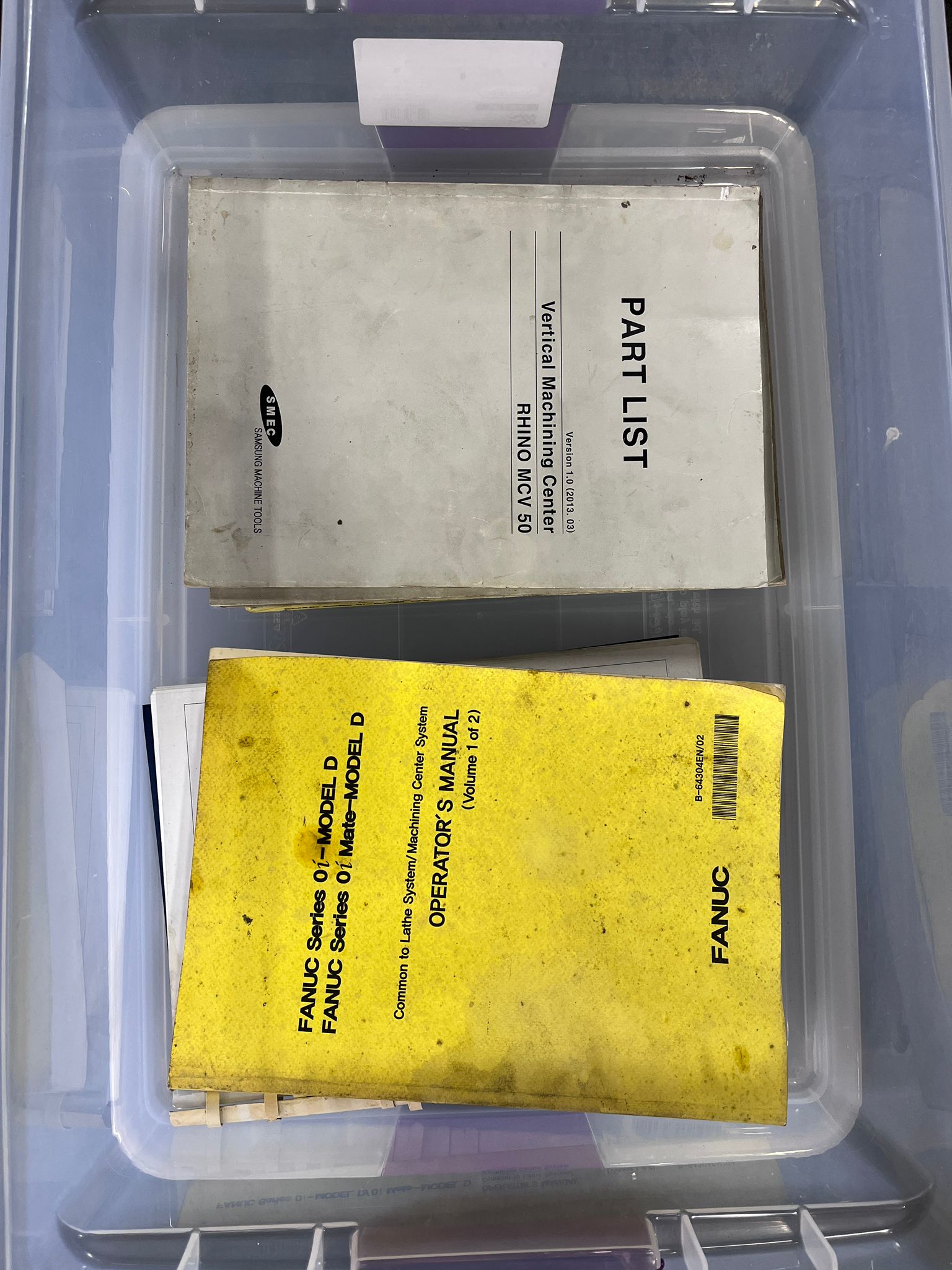

| Books & Manuals |
| Travel: |
| X-Axis: 35.43″ |
| Y-Axis: 19.69″ |
| Z-Axis: 20.08″ |
| Rapid Traverse Rates X & Y Axis: 1417 Inch Per Minute |
| Rapid Traverse Rates Z Axis: 1181 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 5.11″ – 25.19″ |

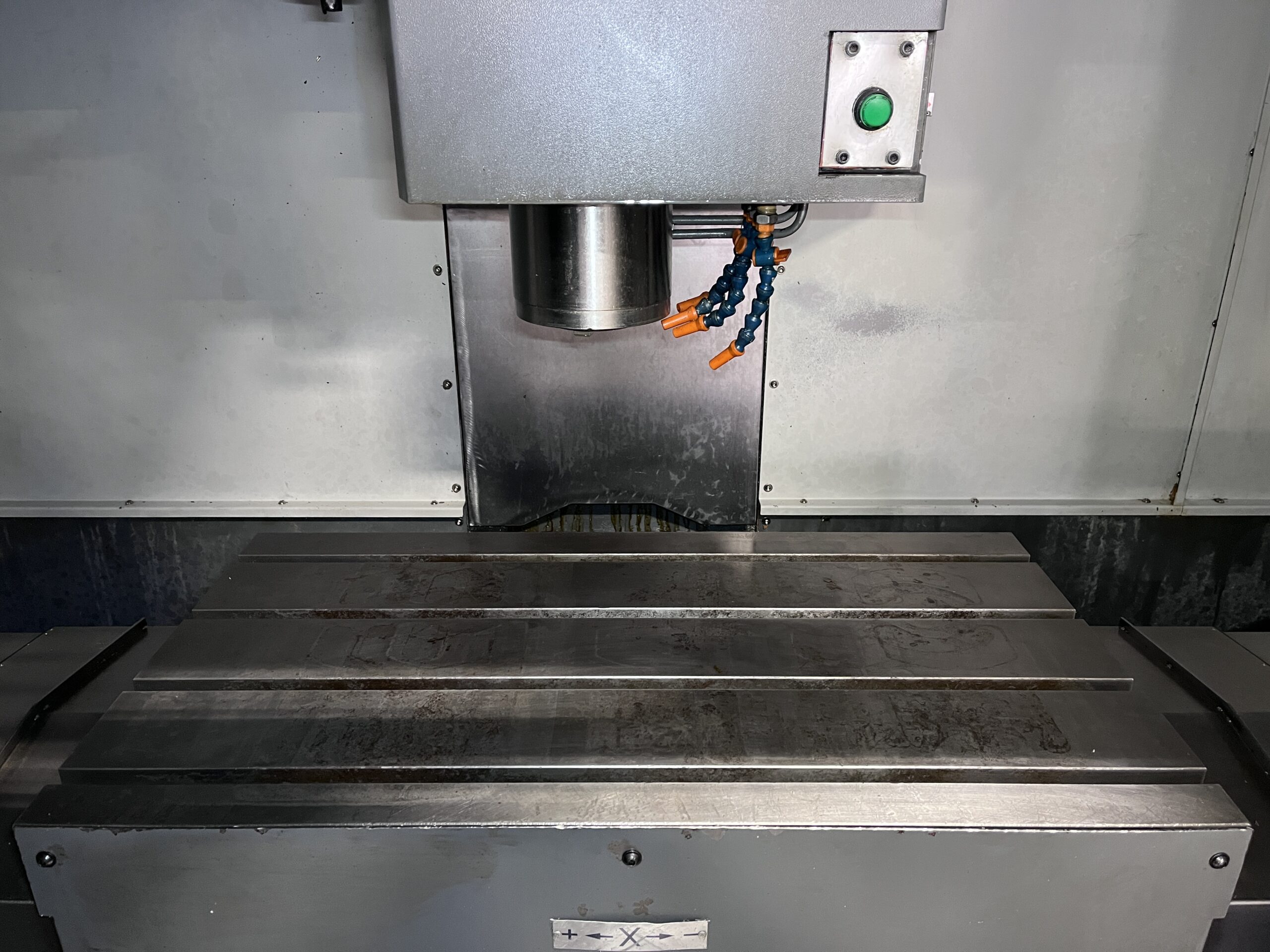

| Table: |
| Length: 36.22″ |
| Width: 19.69″ |
| Number of Std T-Slots: 4 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1322 lbs |

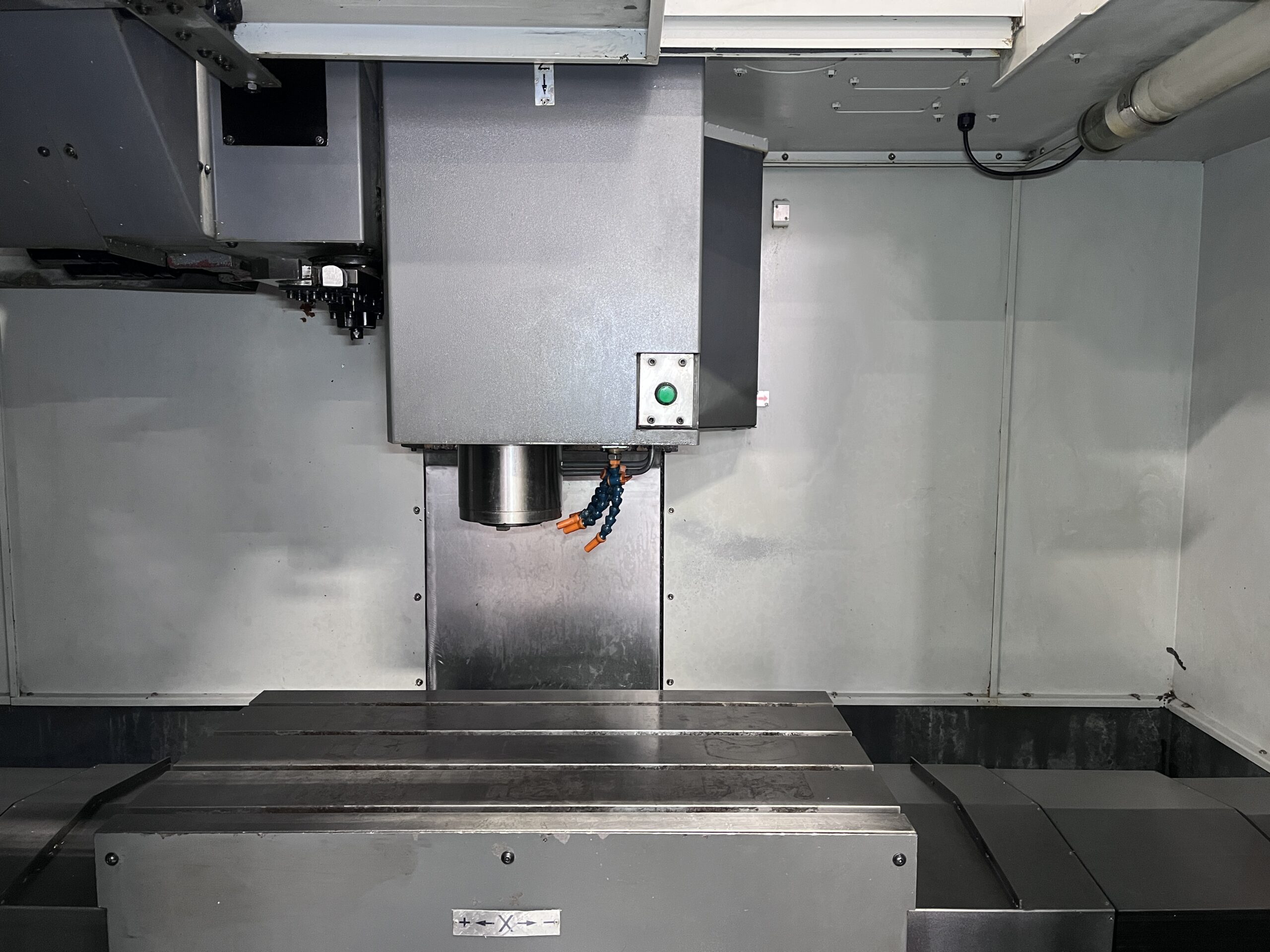

| Spindle: |
| Taper Size: CAT-40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 20 HP |

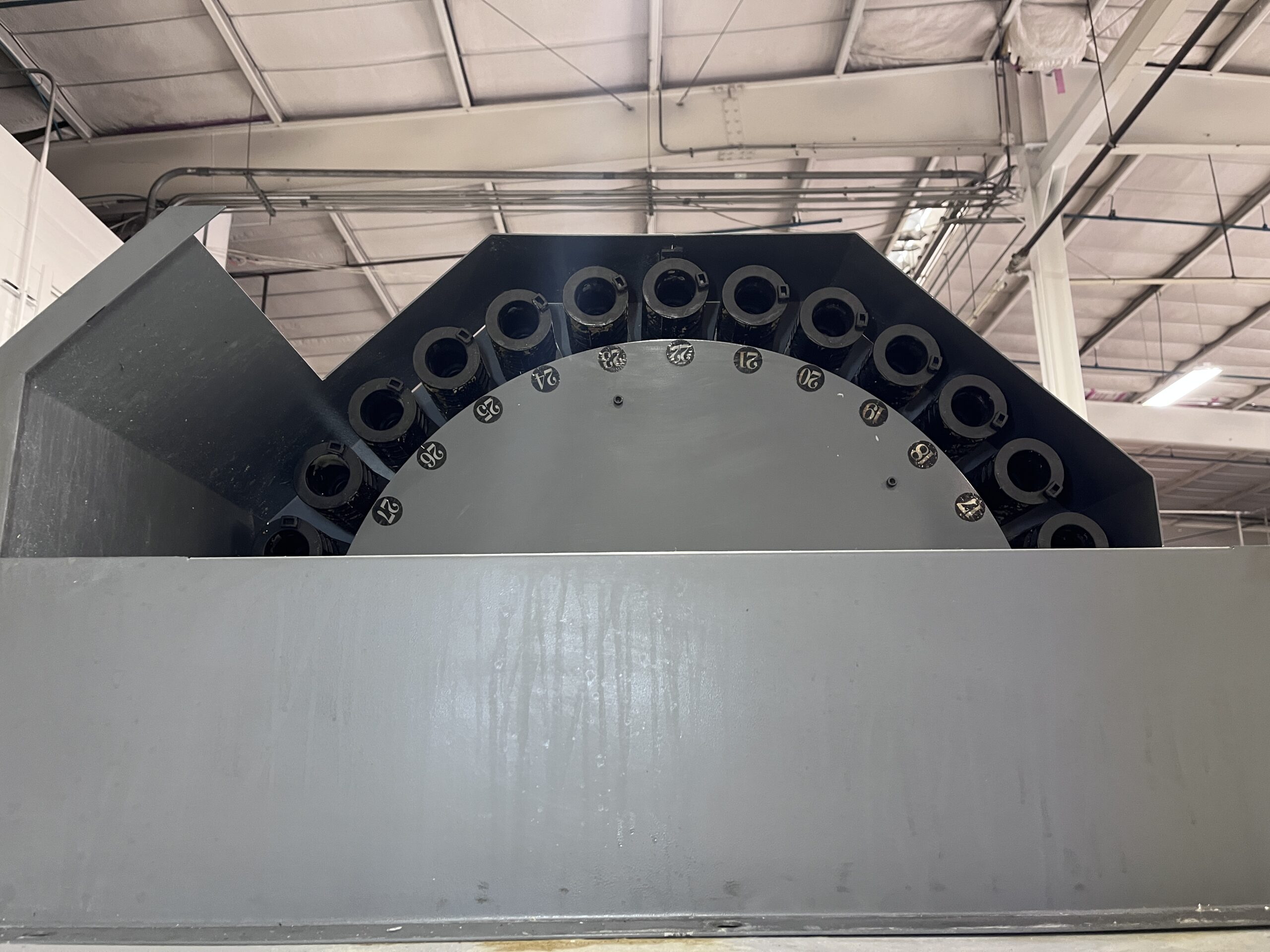

| Automatic Tool Changer: |
| Capacity: 30 Tools |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 2.5″ – 5.0″ |
| Max Tool Length: 11″ |
| General: |
| Air Required: 80 psi 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 102″ x 87″ x 100″ High |
| Weight: 13,800 lbs Approx. |
