Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Features: |

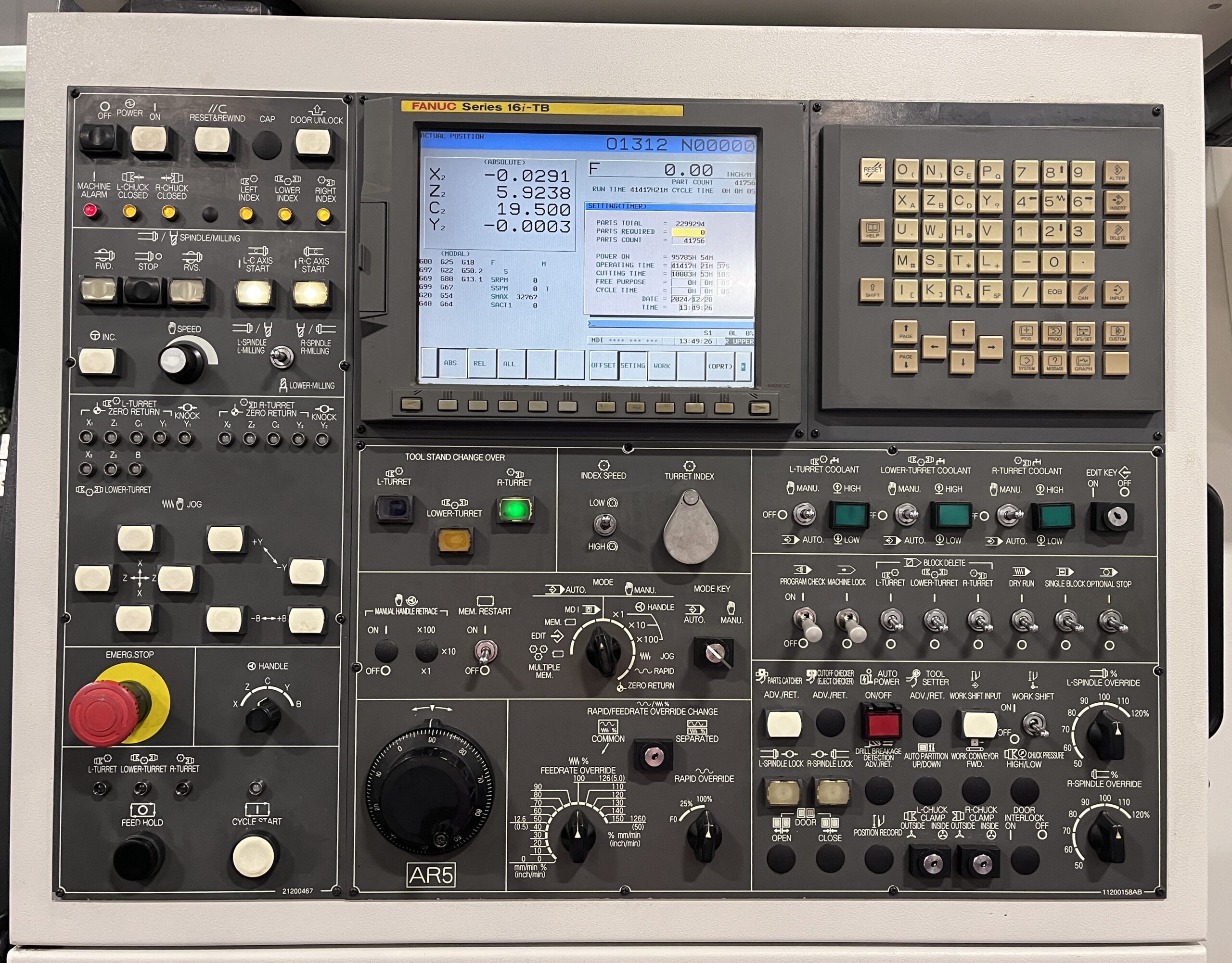

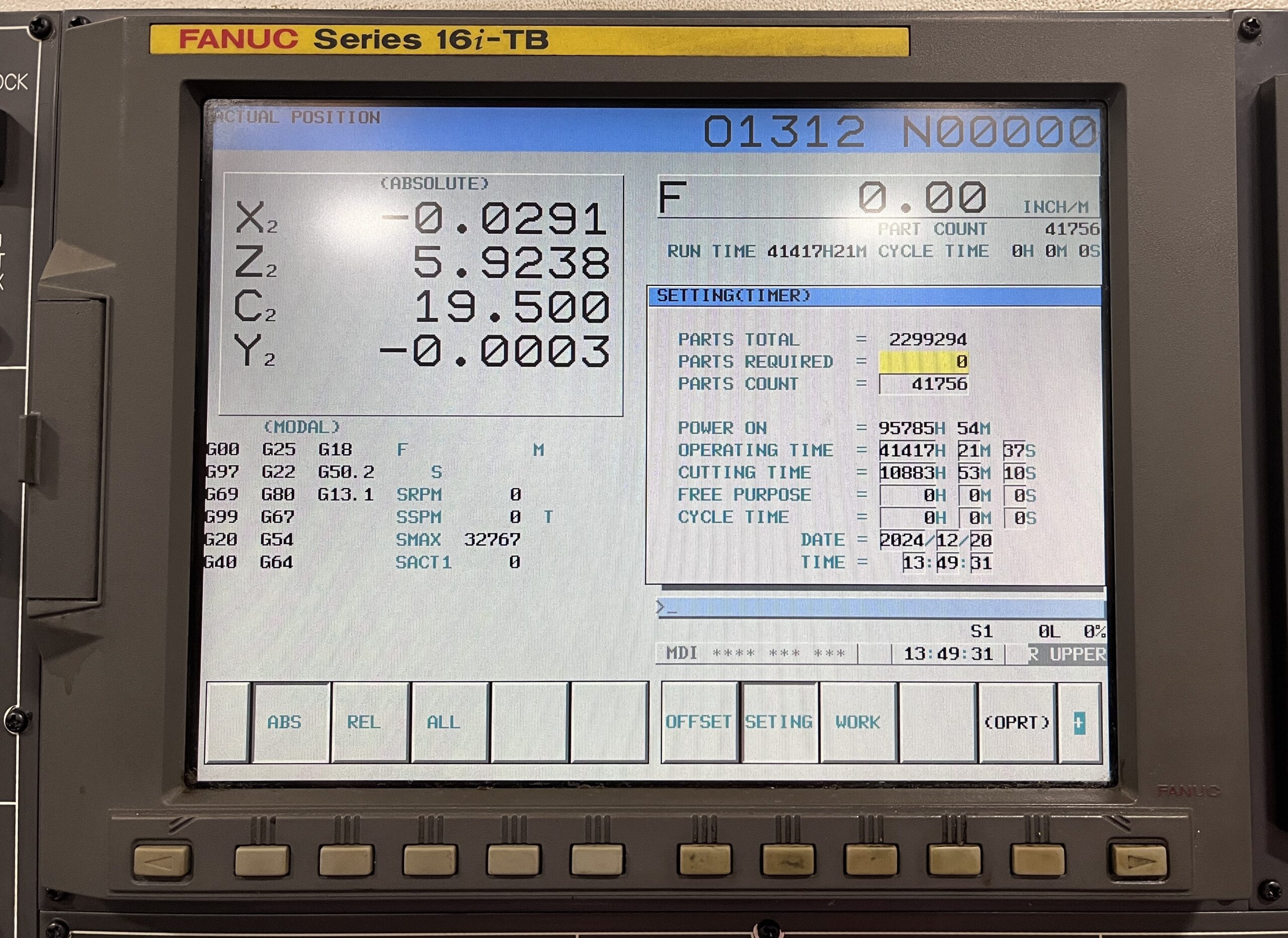

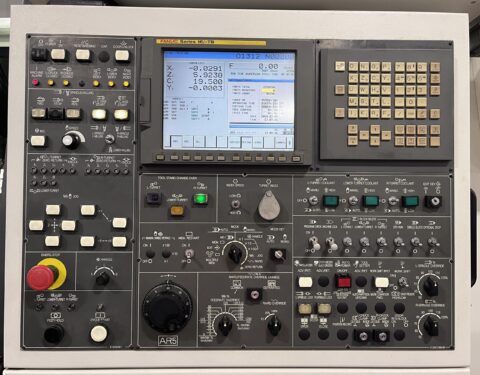

| Fanuc 16i-TB CNC Control |

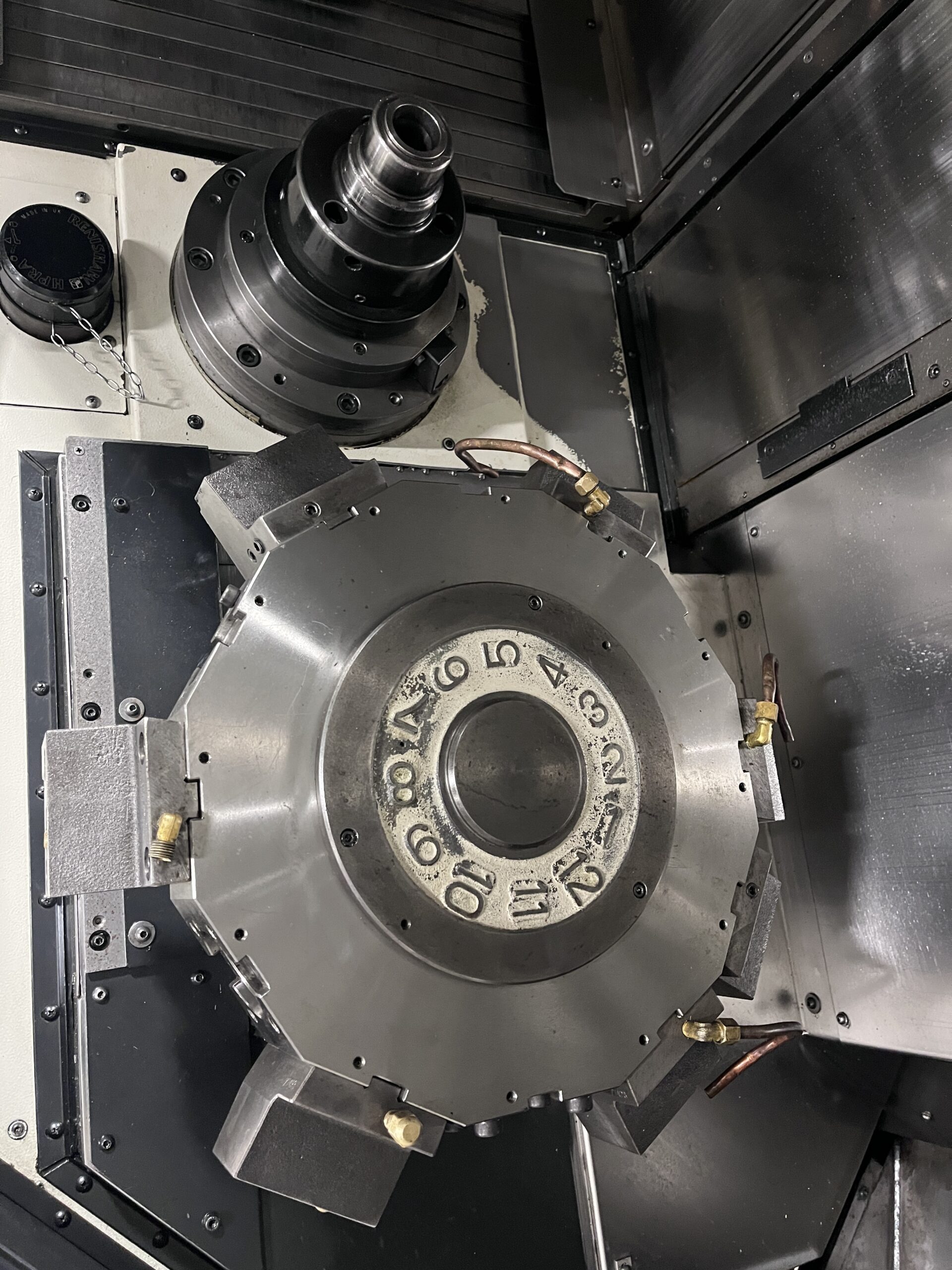

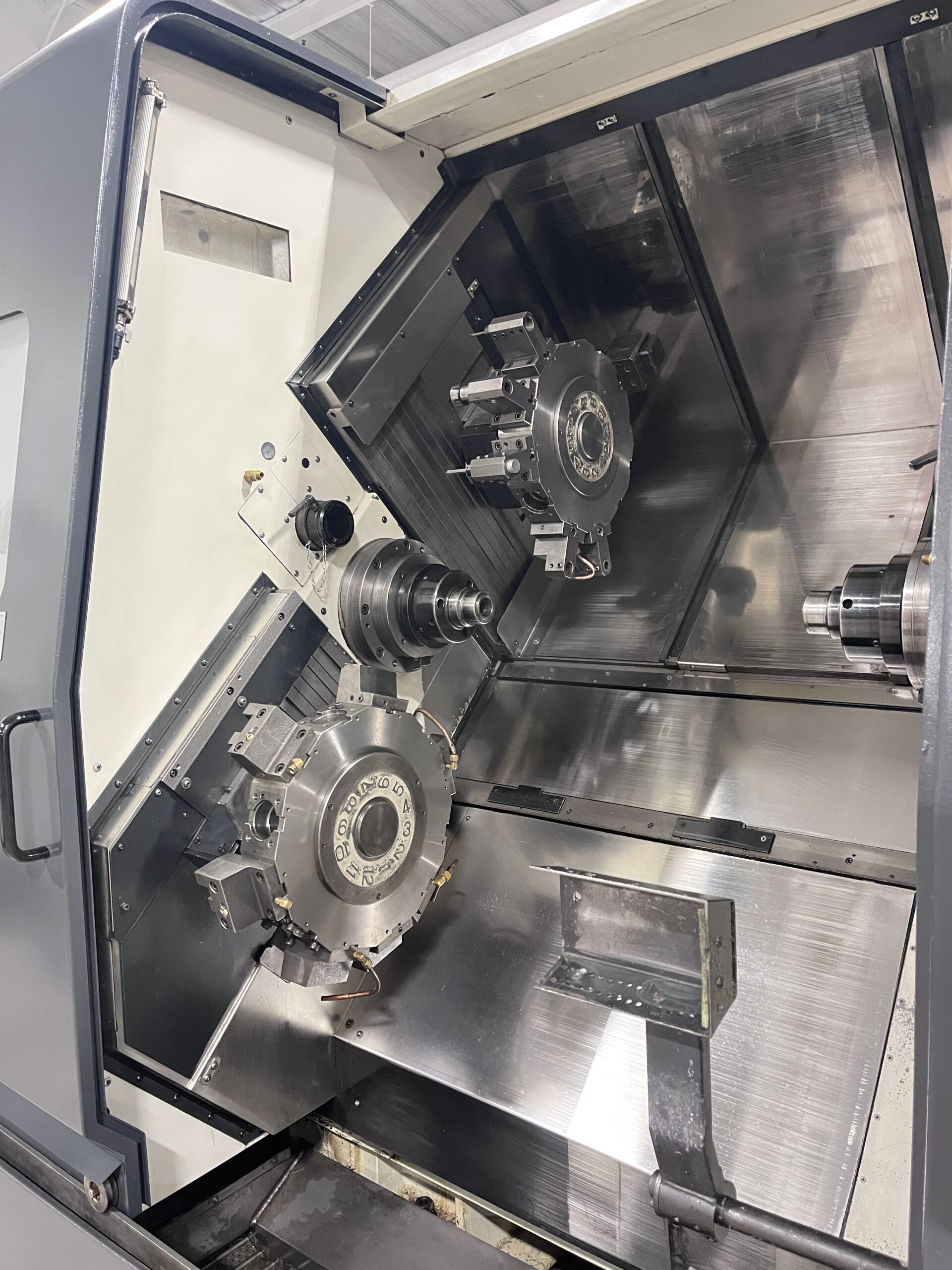

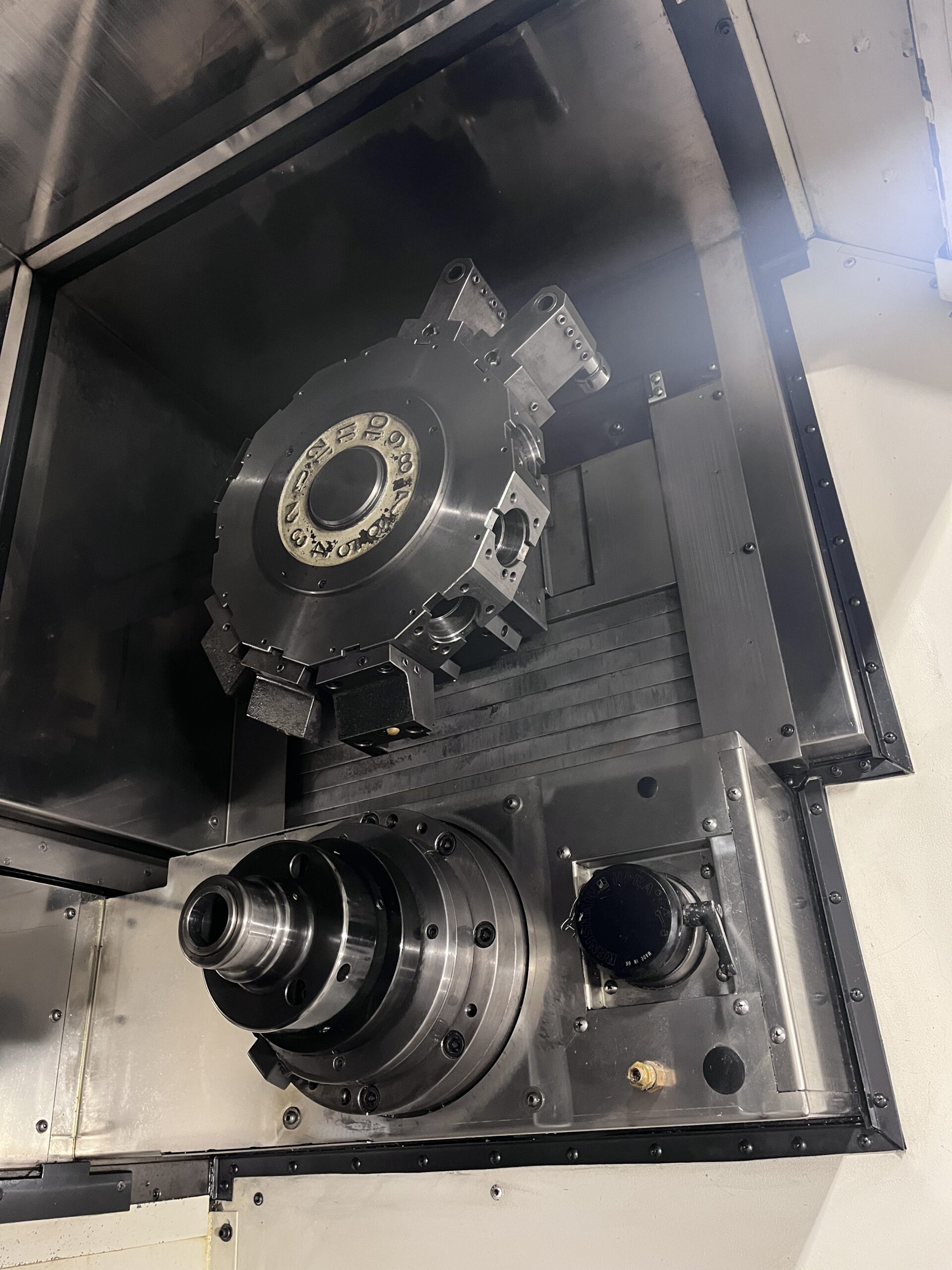

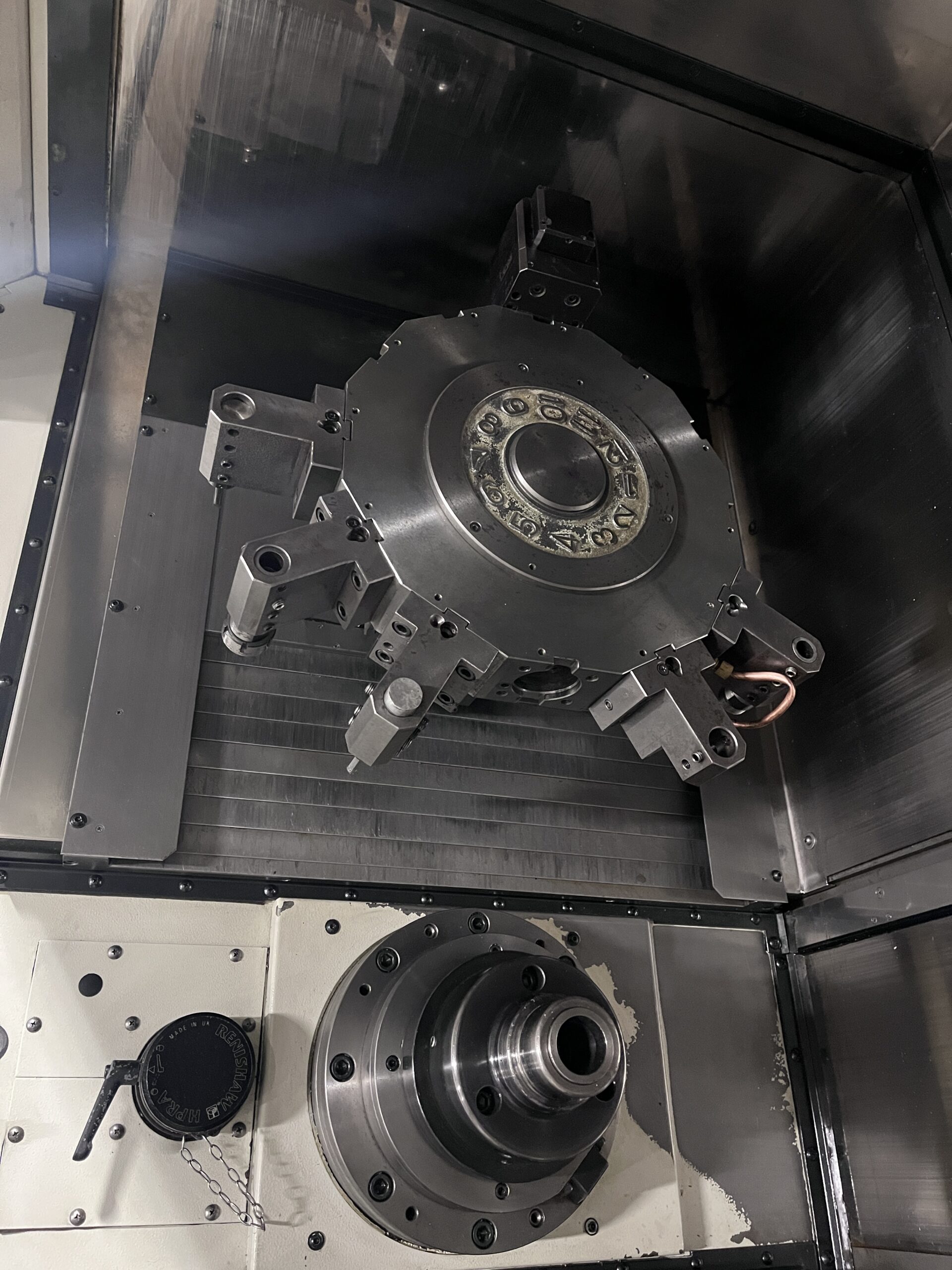

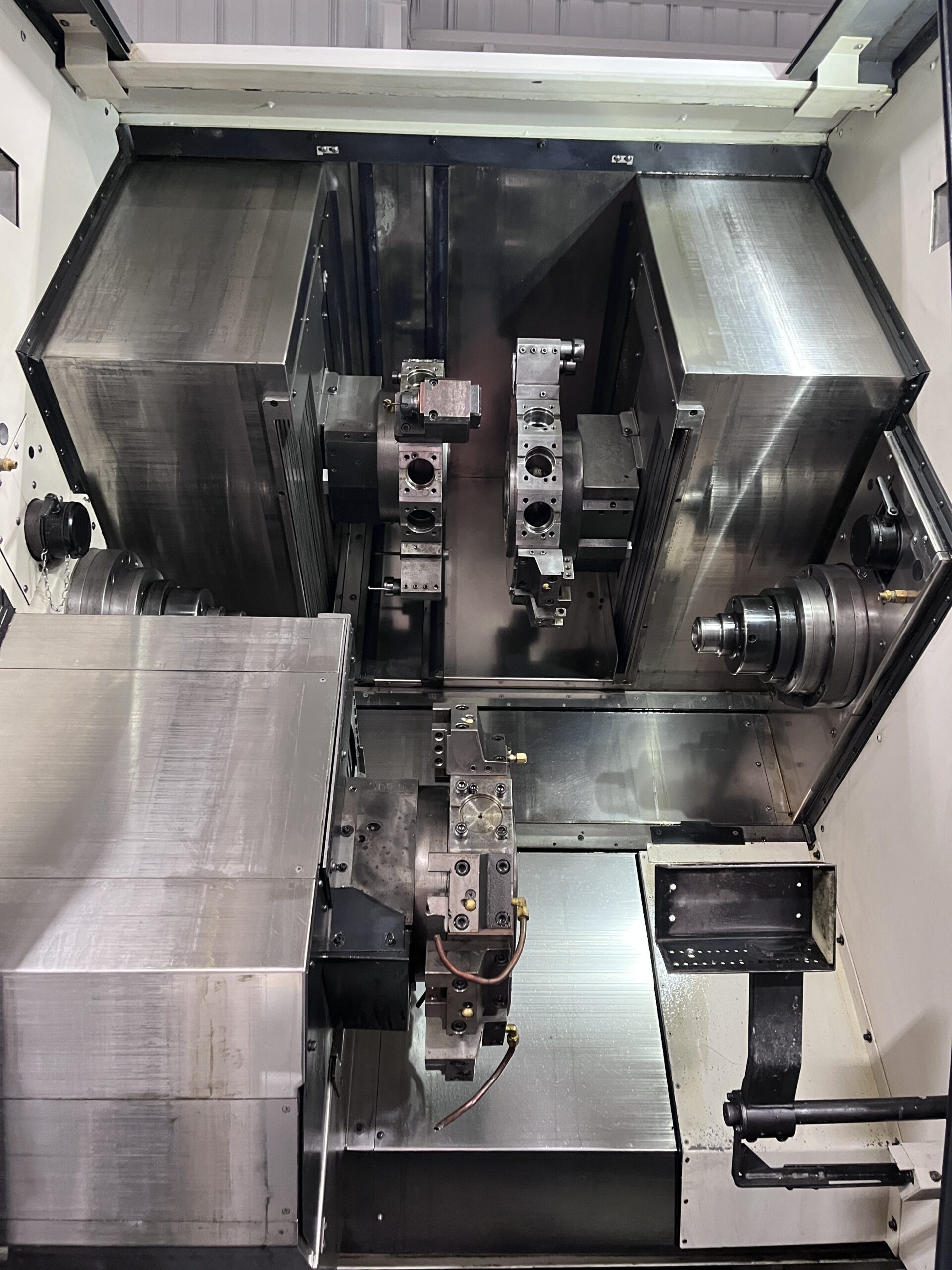

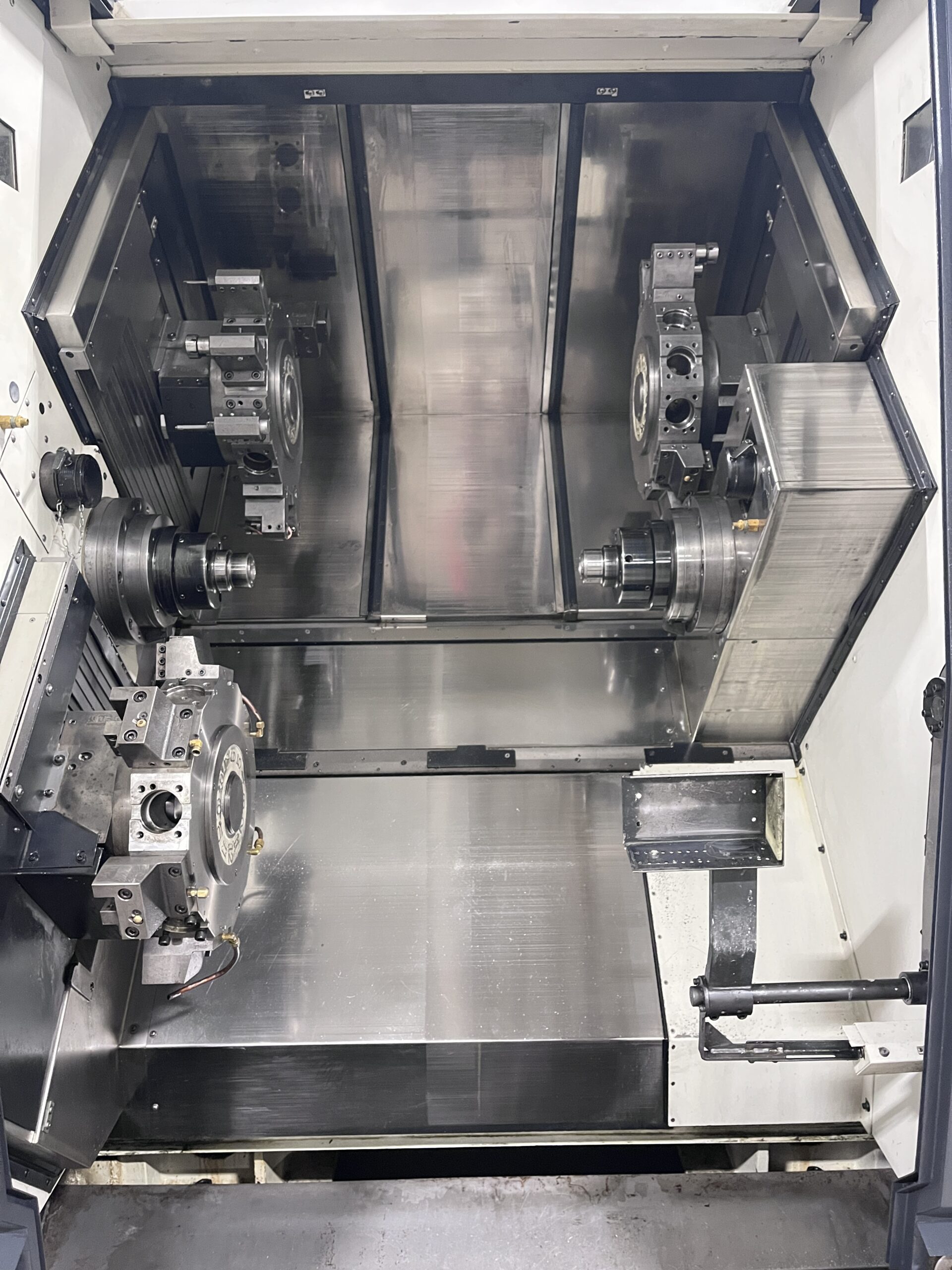

| (2) 12 Station Upper Turrets With Live Milling |
| (1) 12 Station Lower Turret With Live Milling |
| Y Axis Capability Upper Turrets Only |

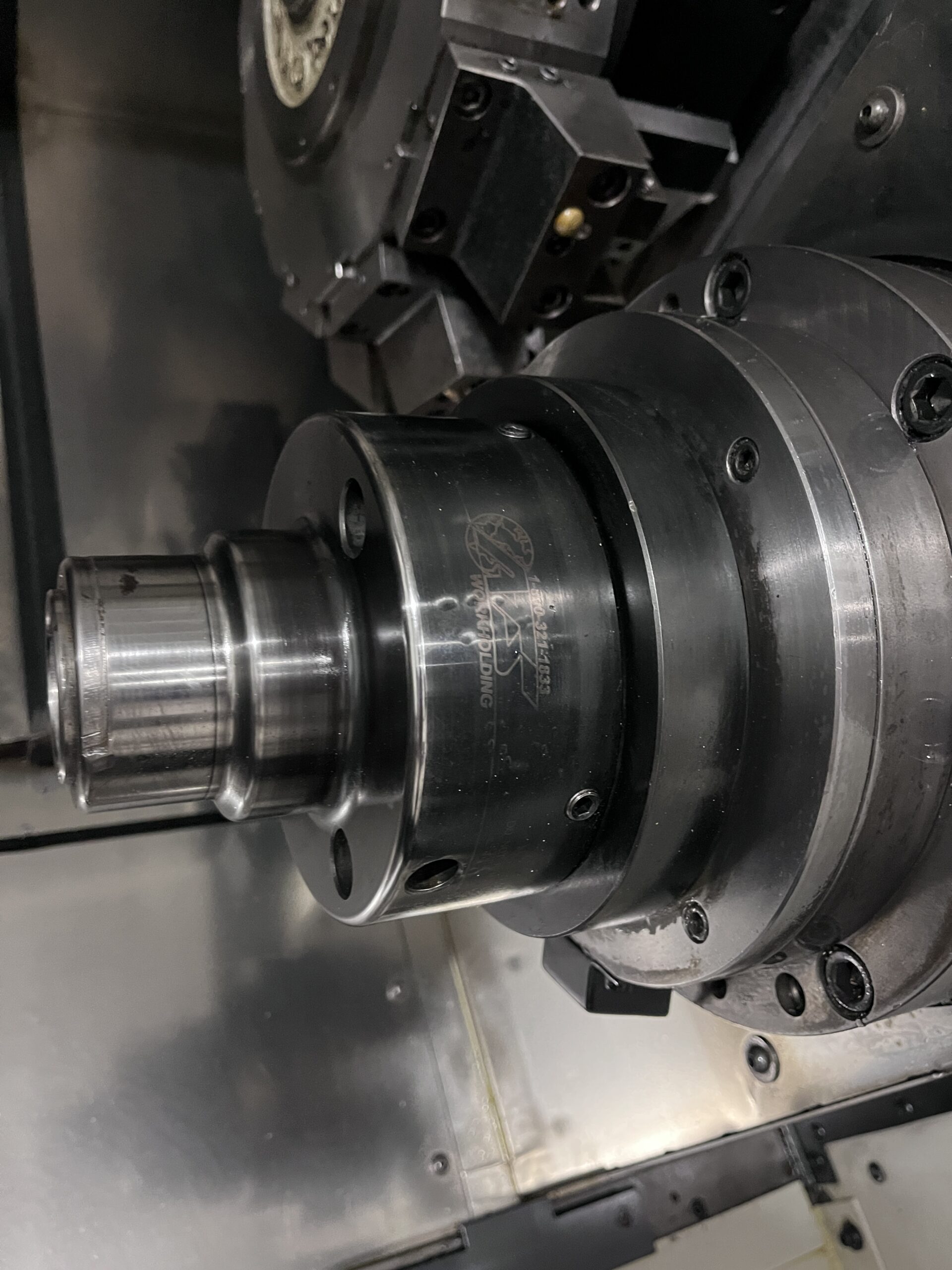

| Collet Chucks on Both Spindles |
| Servo Controlled Full C-Axis on Both Spindles |

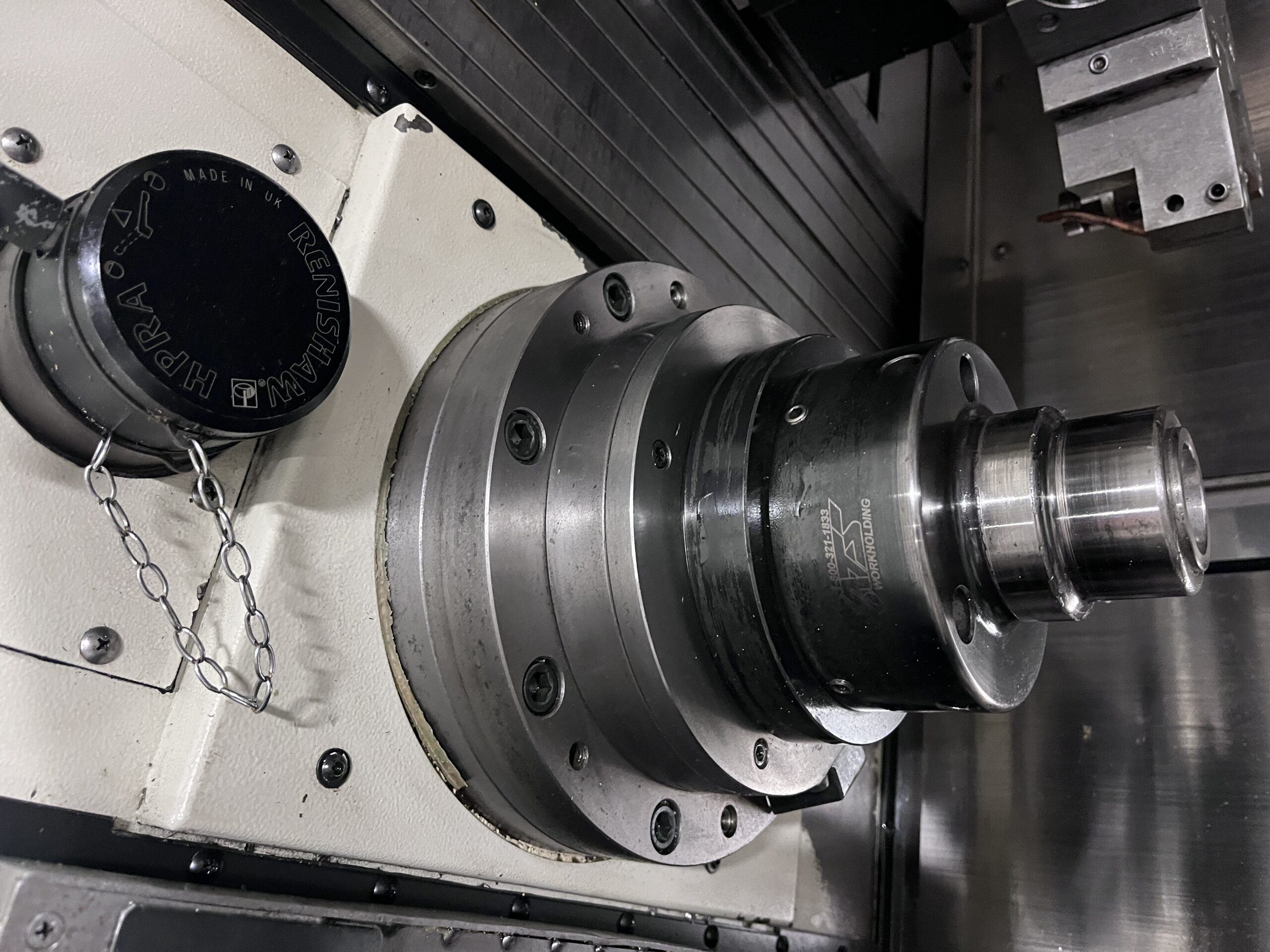

| Main Spindle & Sub Spindle |
| Rigid Tapping on Both Spindles |
| Foot Operated Control for Chuck |

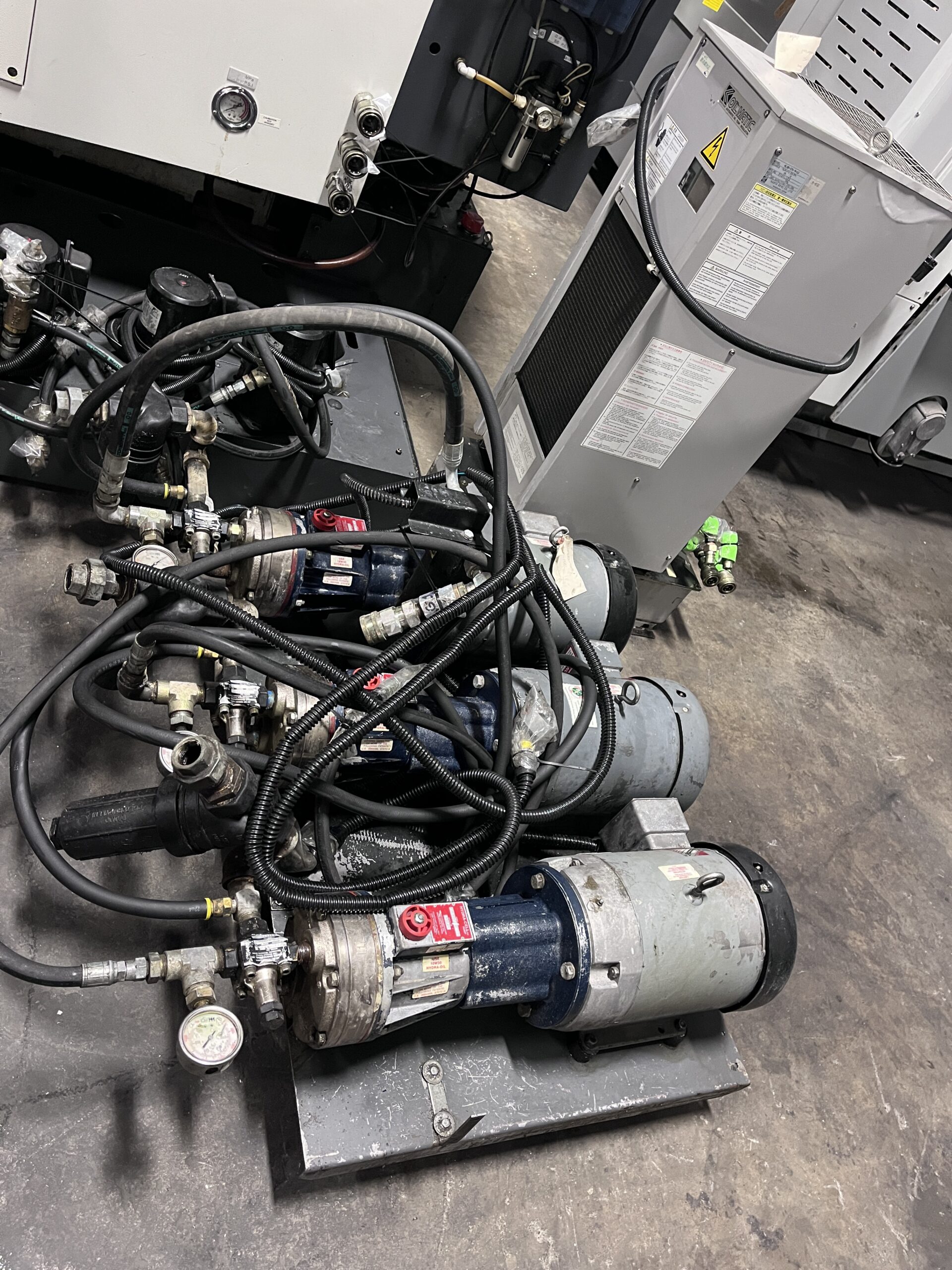

| High Pressure Coolant System |

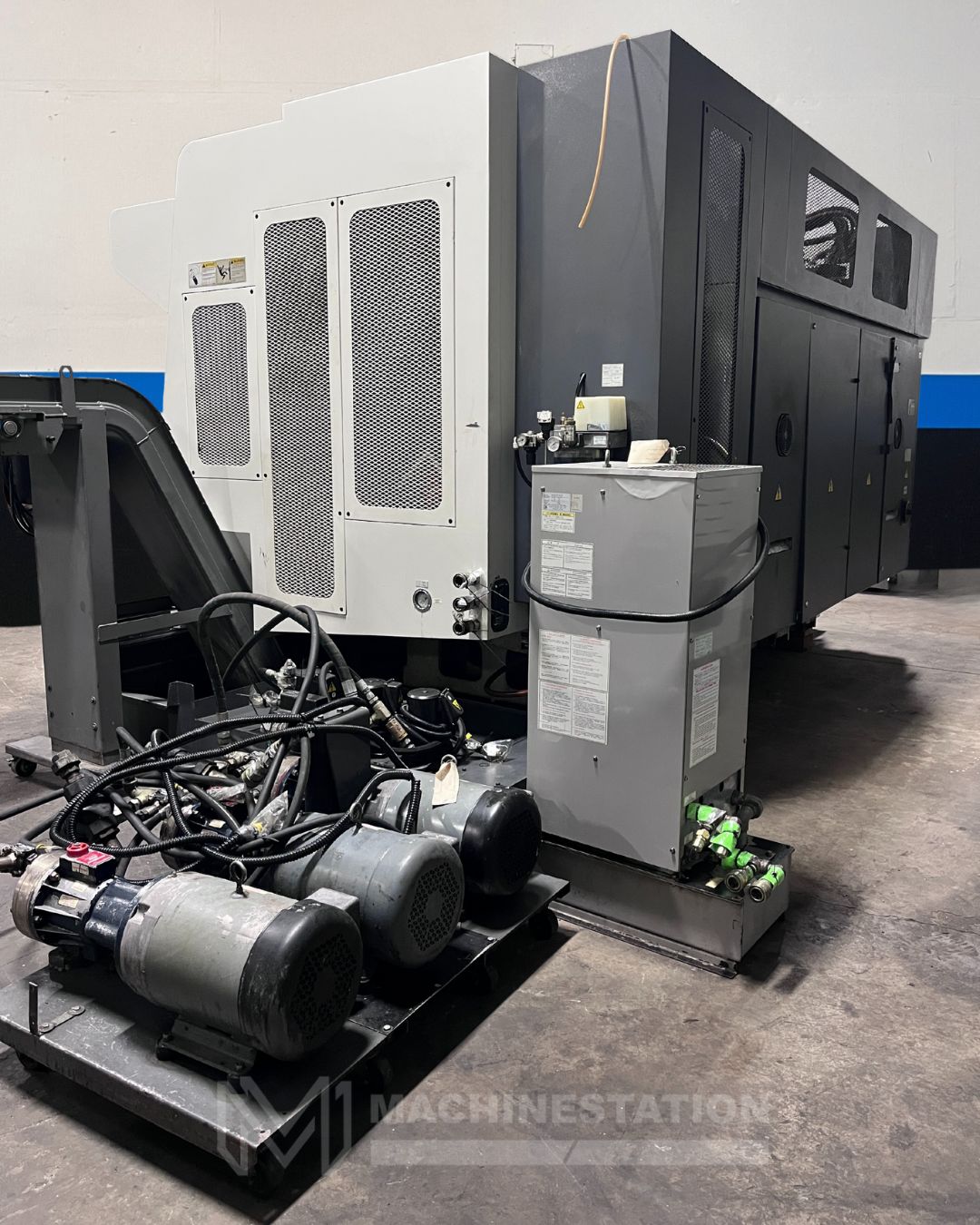

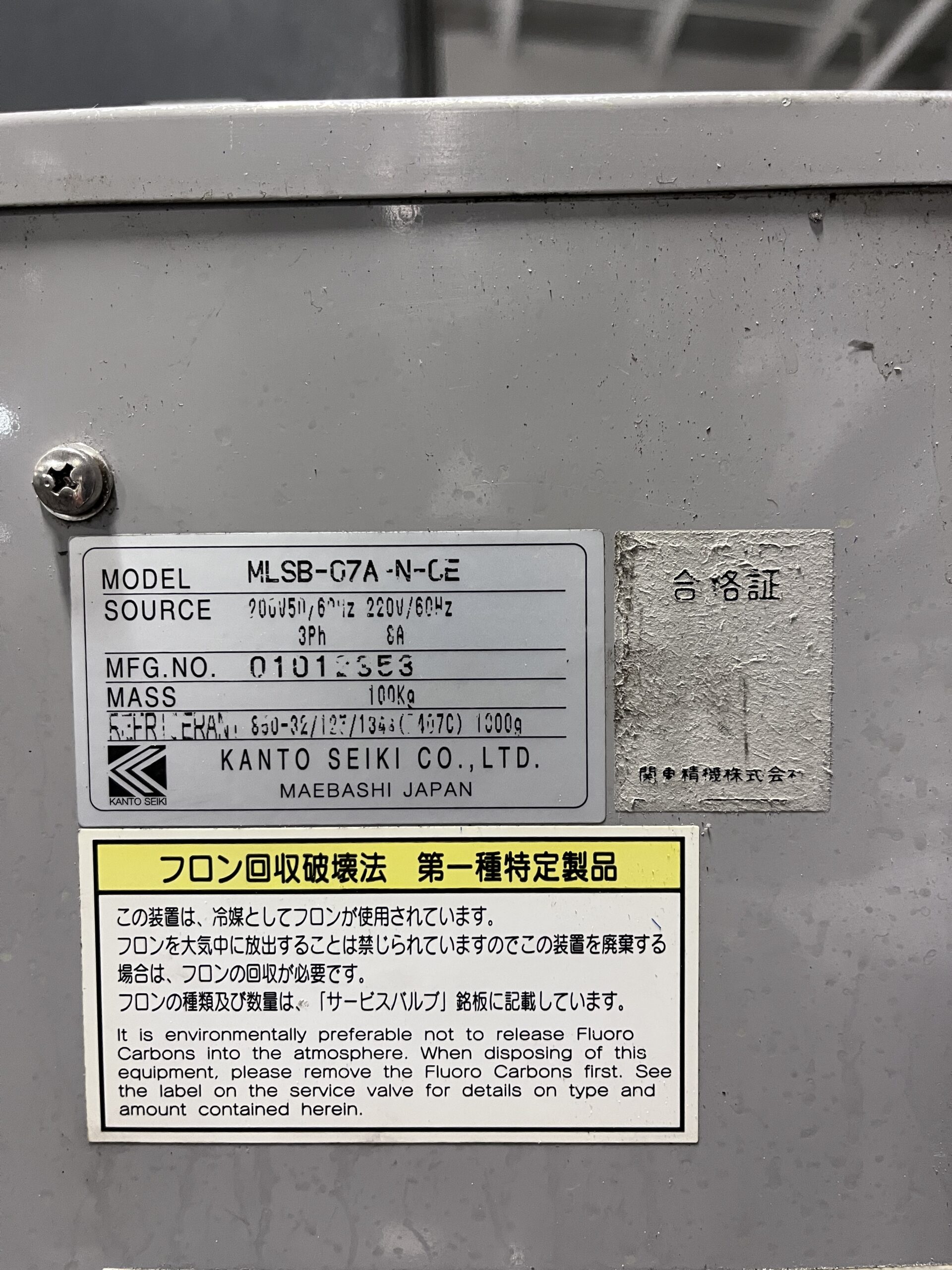

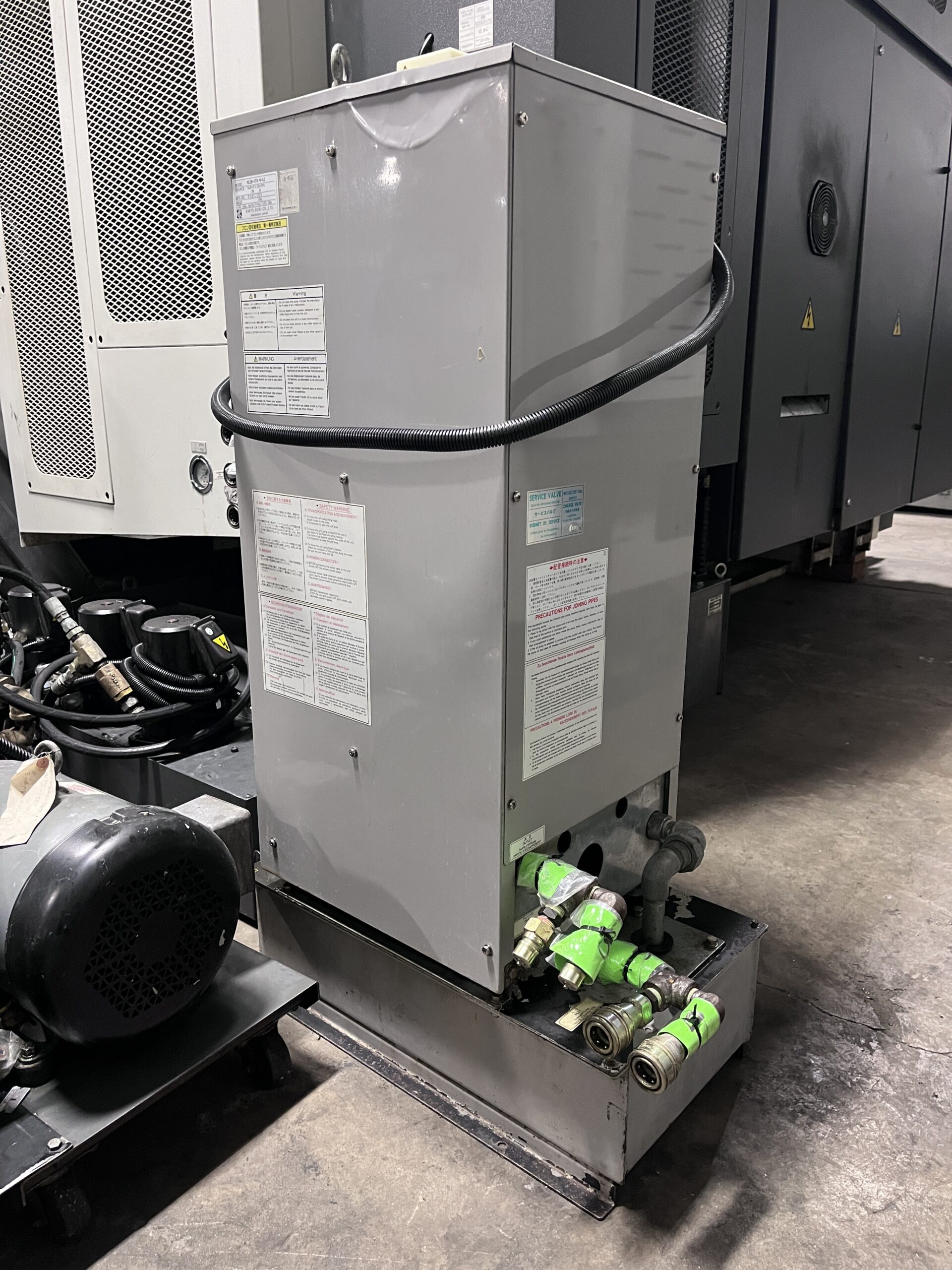

| Chiller Unit |
| Tool Presetter |
| Part Catcher |

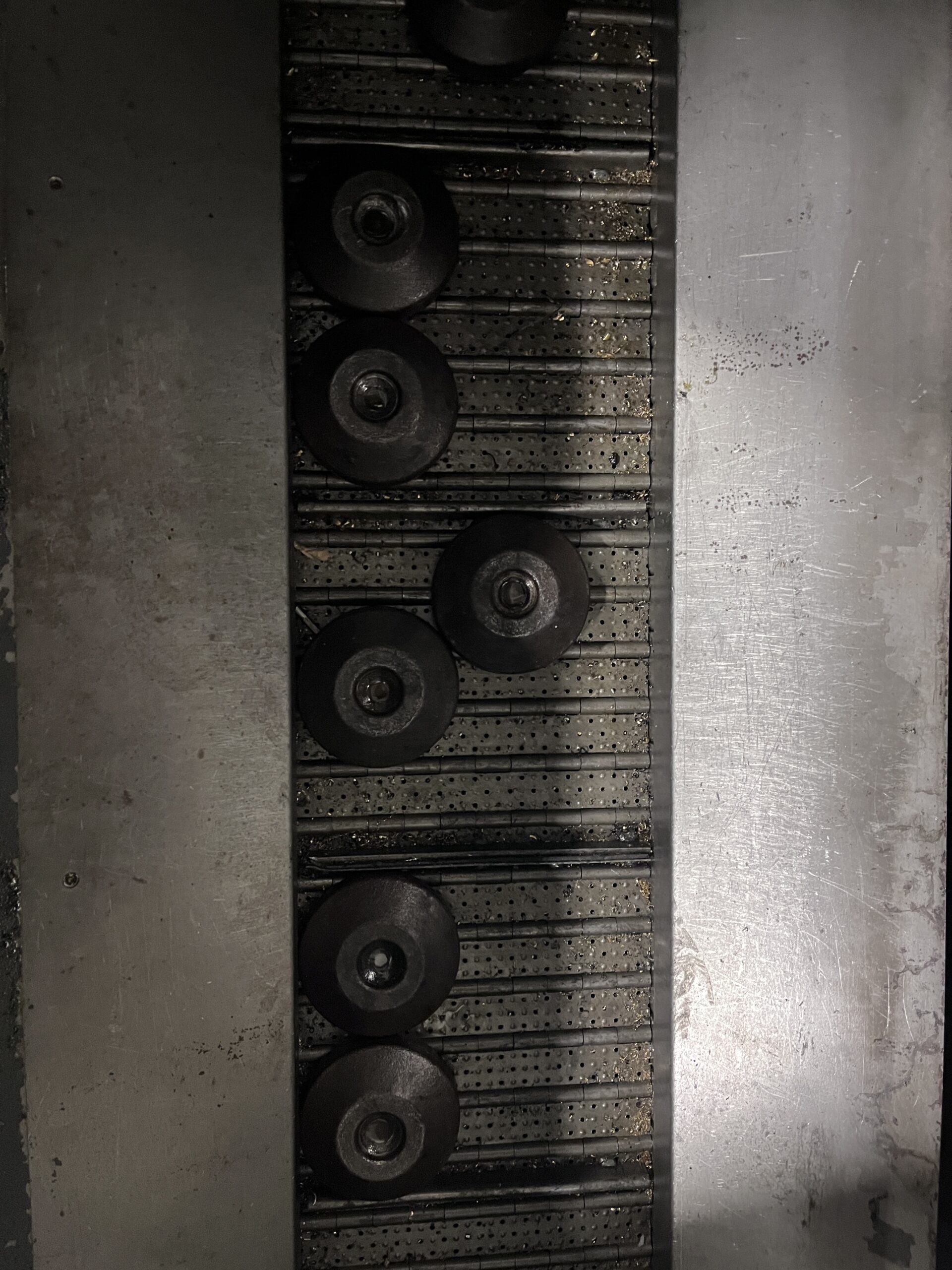

| Chip Conveyor |
| Levelling Pads |
| Tool Holders Equipped on Turrets (As shown in the images) |
| Capacity: |
| Max Turning Diameter : 12.20″ |
| Max Turning Length : 10.03″ |
| Max Bar Capacity Main Spindle : 1.65″ |
| Max Bar Capacity Sub Spindle : 1.25″ |
| Distance Between Spindle Nose : 42″ |
| Travel: |
| X Axis Travel Upper : 8.16″ |
| Z Axis Travel Upper : 11.81″ |
| Y Axis Travel Upper : 2.36″ (+/-1.18″) |
| B2 Axis Travel Upper : 34.4″ |
| X Axis Travel Lower : 8.16″ |
| Z Axis Travel Lower : 31.49″ |
| C Axis: 360° (0.001°) Both Spindle |
| Feedrate: |
| X Axis: 1181 IPM Rapid Traverse |
| Z Axis: 1181 IPM Rapid Traverse |
| Y Axis: 787 IPM Rapid Traverse |
| B Axis: 787 IPM Rapid Traverse |
| Spindle: |
| Main Spindle Nose: A2-6 |
| Sub Spindle Nose: A2-6 |
| Main Spindle Speed: 6000 RPM |
| Sub Spindle Speed: 8000 RPM |
| Main Spindle Power: 20 HP |
| Sub Spindle Power: 20 HP |
| Turret: |
| (2) Upper Turret Capacity: 12 Stations |
| (1) Lower Turret Capacity: 12 Stations |
| Live Tool Speed: 6000 RPM |
| Live Tool Power: 5 HP |
| General: |

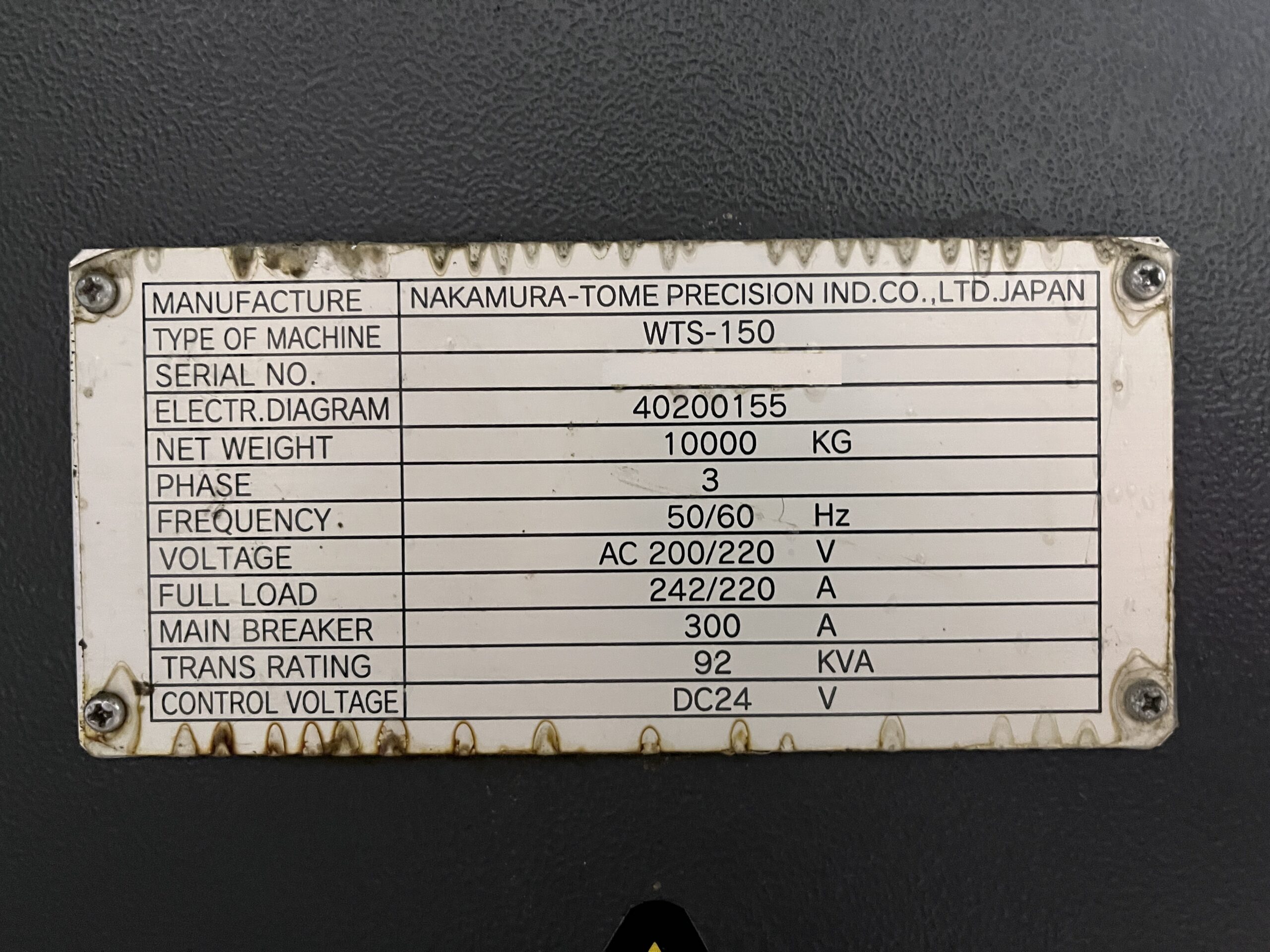

| Power Source: AC 220v / 3-Phase / 60 Hz |
| Power Requirement: 92 kva |
| Overall Dimensions: 152″ x 92″ x 92″ High |
| Weight: 22,000 lbs Approx. |
