*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

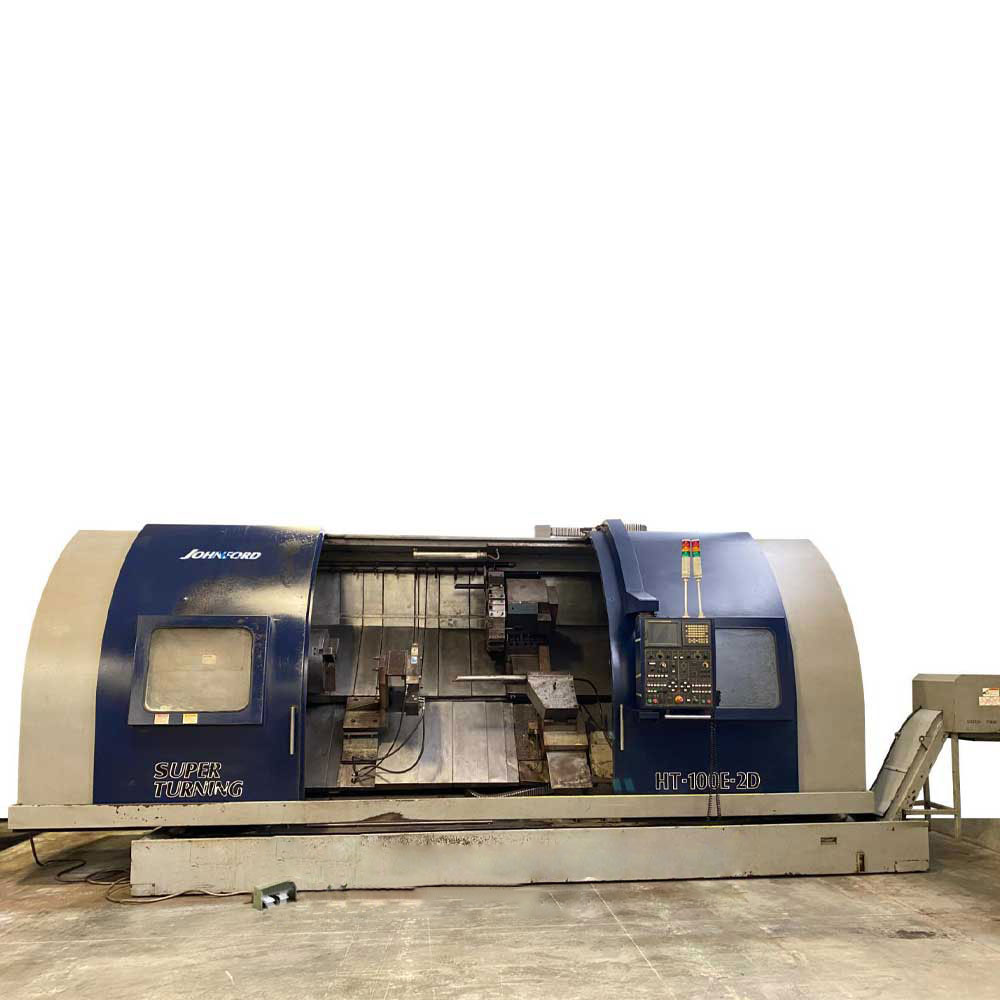

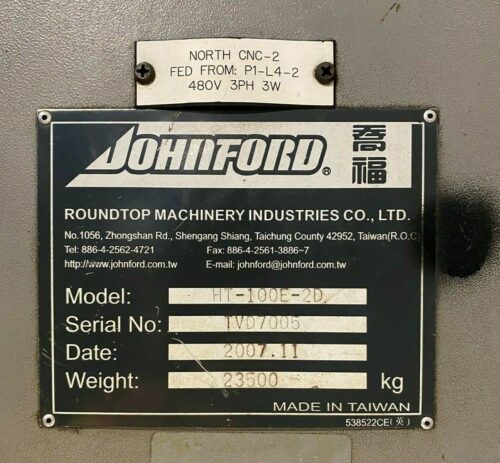

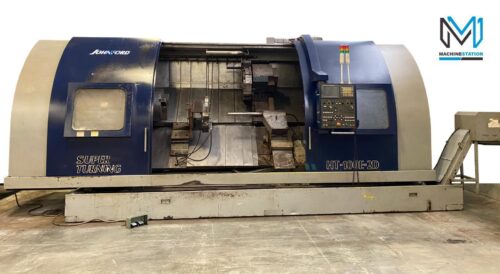

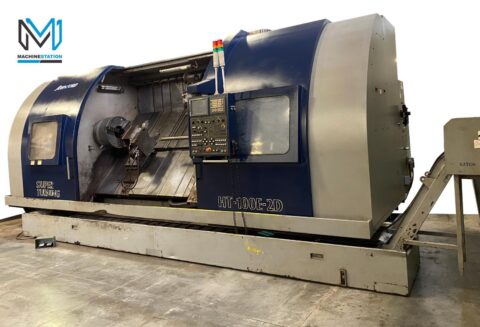

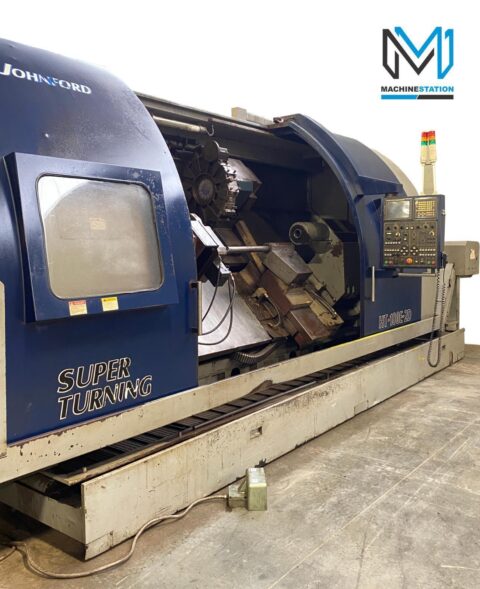

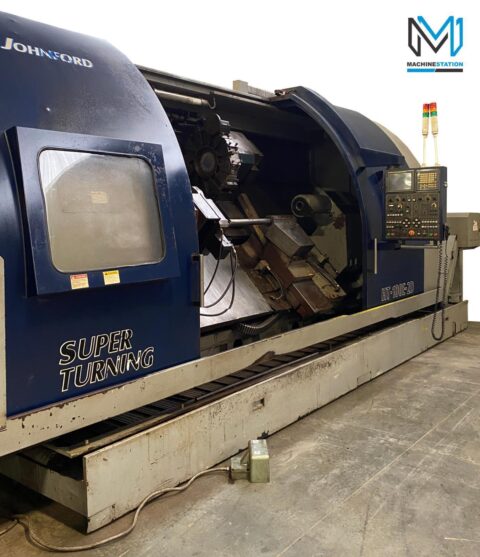

| Make: | JOHNFORD |
| Model: | HT-100E-2D |
| Year: | 2007 |
| Condition: | Used – Good |
| Equipped With: |
|---|

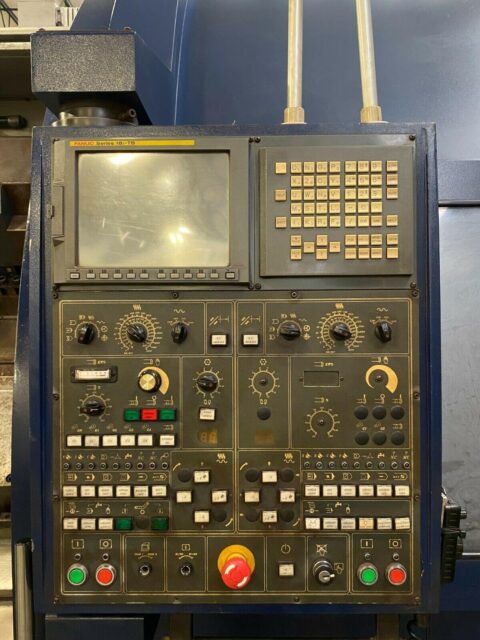

| Fanuc 18iT CNC Control |

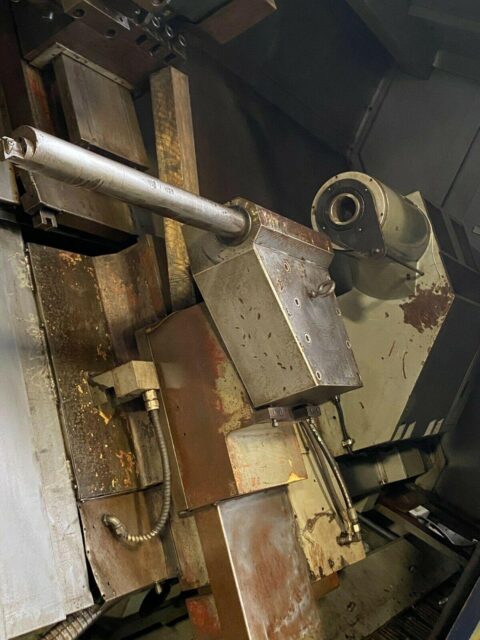

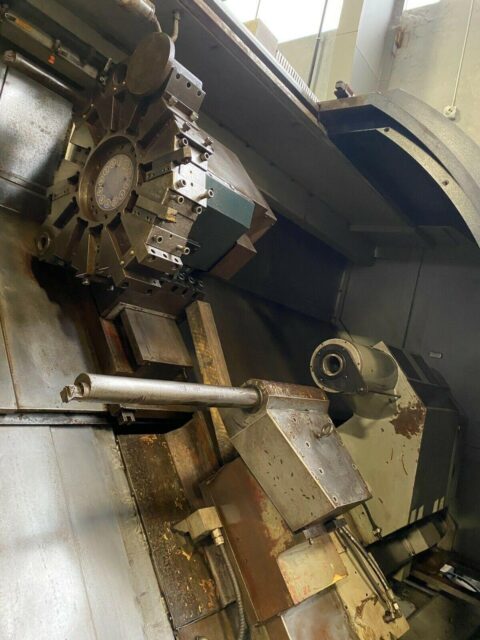

| Boring Bar Slide ( W Axis ) |

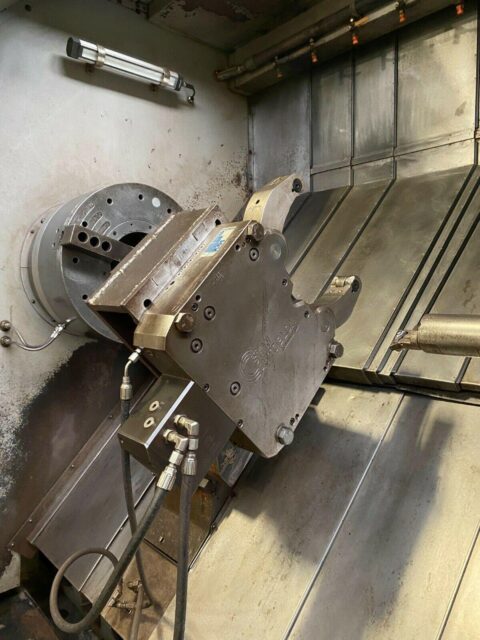

| SMW Hydraulic Steady Rest |
| A2-15 Spindle with 10″ Bore |

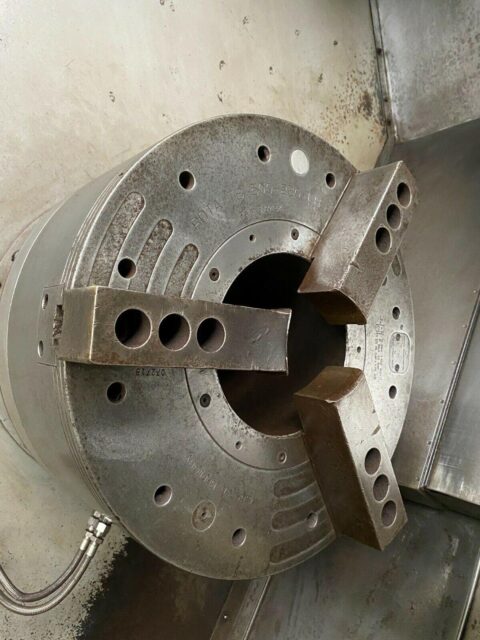

| Schunk Rota TB-500 24″ 3 Jaw Chuck with 10″ Bore |
| 44.7 kW Gearbox Spindle |
| PCMCIA Card Slot |
| Programmable Tailstock |
| Rigid Tapping |
| Coolant System |
| Foot Switch |
| Chip Conveyor |
| Capacity: |
|---|
| Max Turning Diameter: 36.6″ |
| Max Turning Length: 100.4″ |
| Max Bar Capacity: 9.3″ |
| Swing Over Bed: 27.2″ |
| Swing Over Cross slide: 23.6″ |
| Distance Between Centers: 98.46″ |
| Travels: |
|---|
| X Axis Travel : 12.6″ |
| Z Axis Travel: 98.4″ |
| W Axis Travel: 89.0″ ? |
| Rapid Traverse X Axis: 1600 cm/min |
| Rapid Traverse Z Axis: 1600 cm/min |
| Spindle: |
|---|
| Spindle Nose: A2-15 |
| Spindle Bore: 10.8″ |
| Spindle Speed: 10 – 750 RPM |
| Spindle Motor: 44.7 kW |
| Turret: |
|---|

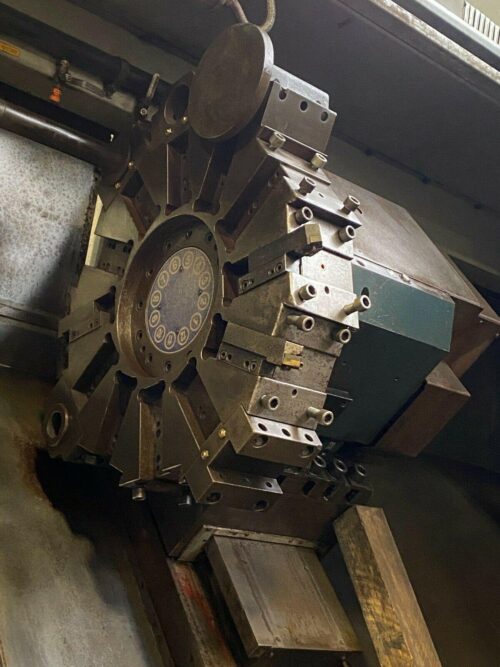

| Turret Capacity: 12 Stations |
| Turret Index Time: 0.4 Second |
| Tailstock: |
|---|
| Tailstock Body Travel: 86.7″ |
| Tailstock Taper: MT-4 |
| Tailstock Quill Dia.: 7.9″ |
| Tailstock Quill Travel: 7.9″ |
| General: |
|---|
| Power Source: AC 220v / 3-Phase / 60 Hz |
| Machine Dimensions: 275″ x 114″ x 115″ High |
| Machine Weight: 22679.6 kg Approx. |
