Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Capacity: |
| Max Working Diameter: 2.36″ |
| Max Working Length: 6.3″ |
| Max Bar Capacity: 1.57″ |
| Travels: |
| X Axis Travel: 3.94″ |
| Z Axis Travel: 6.3″ |
| Max Cutting Feed Rate: 393 IPM |
| Spindle: |
| Spindle Nose: A2-6 |
| Spindle Bore: 1.77″ |
| Spindle Speed: 100 – 450 RPM |
| Features: |

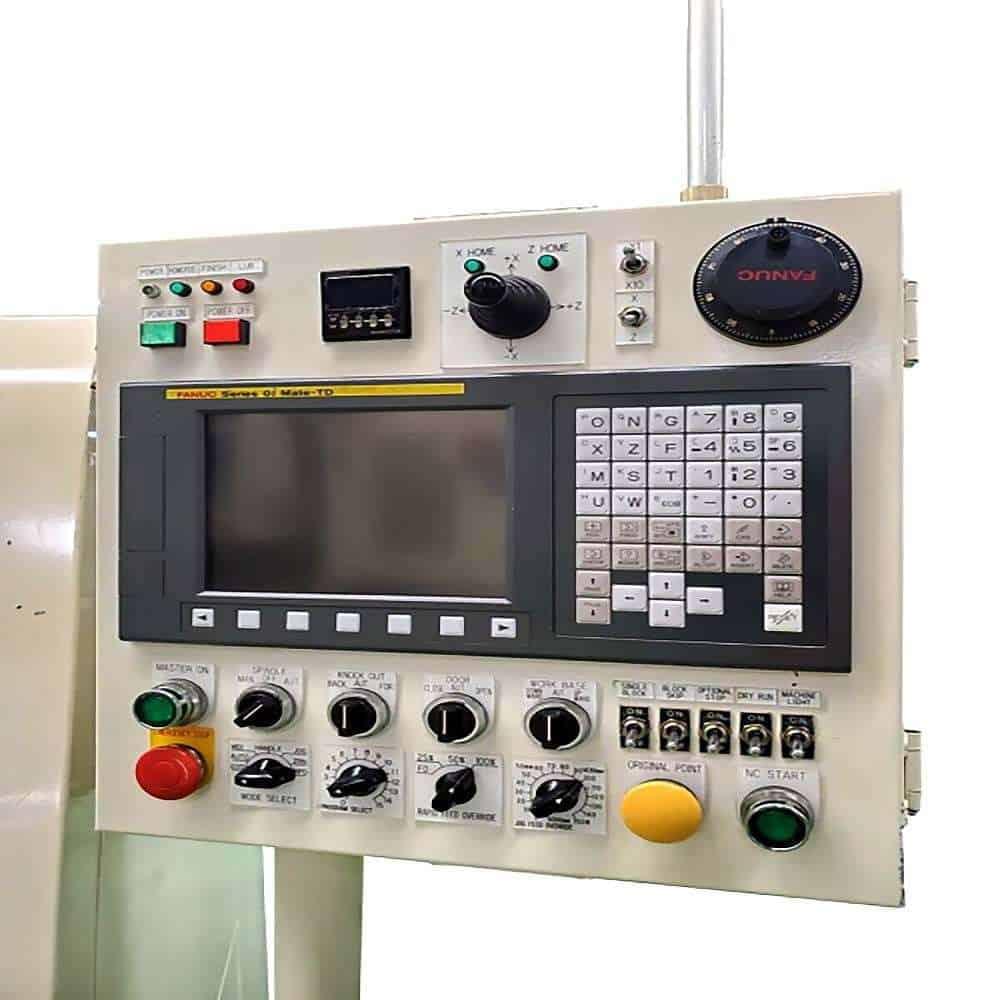

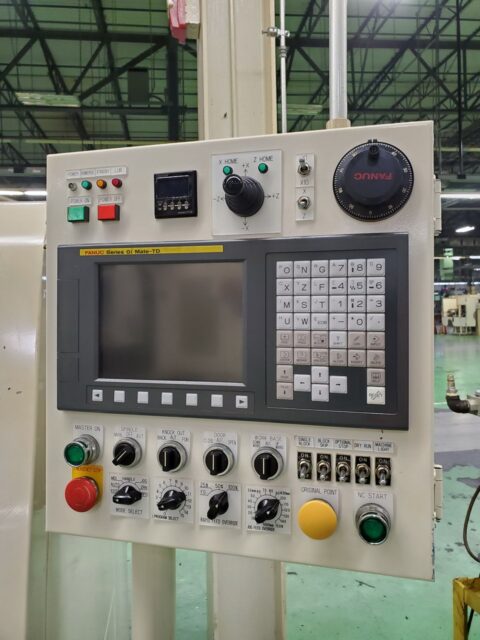

| Fanuc Oi-Mate TD series CNC Control |
| Collet Chuck |
| A2-6 Spindle Nose |
| Quick Machining |
| Fine Finish |
| Accurate Machining |
| Simple Operation |
| Speedy Setup Change |
| Squire Cutting |
| Hexagonal Cutting |
| 2 Face Middle Cutting |
| Clutch Cutting |
| Multi-Grooving Cutting |
| USB Drive |
| PCMCIA Card Slot |
| Foot Switch |
| Coolant Tank |

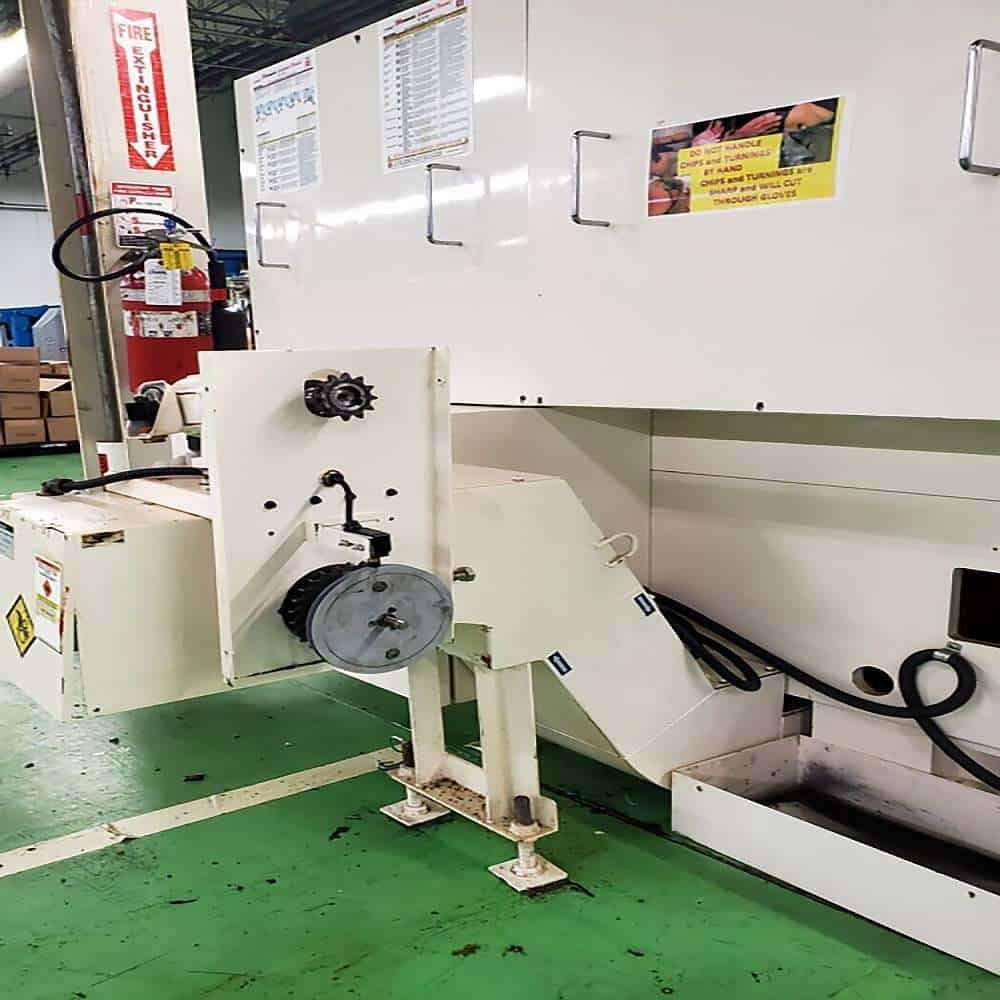

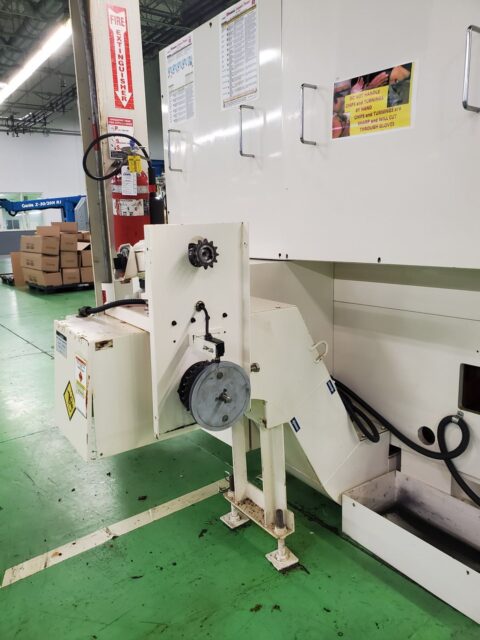

| Chip Conveyor |
| Motors: |

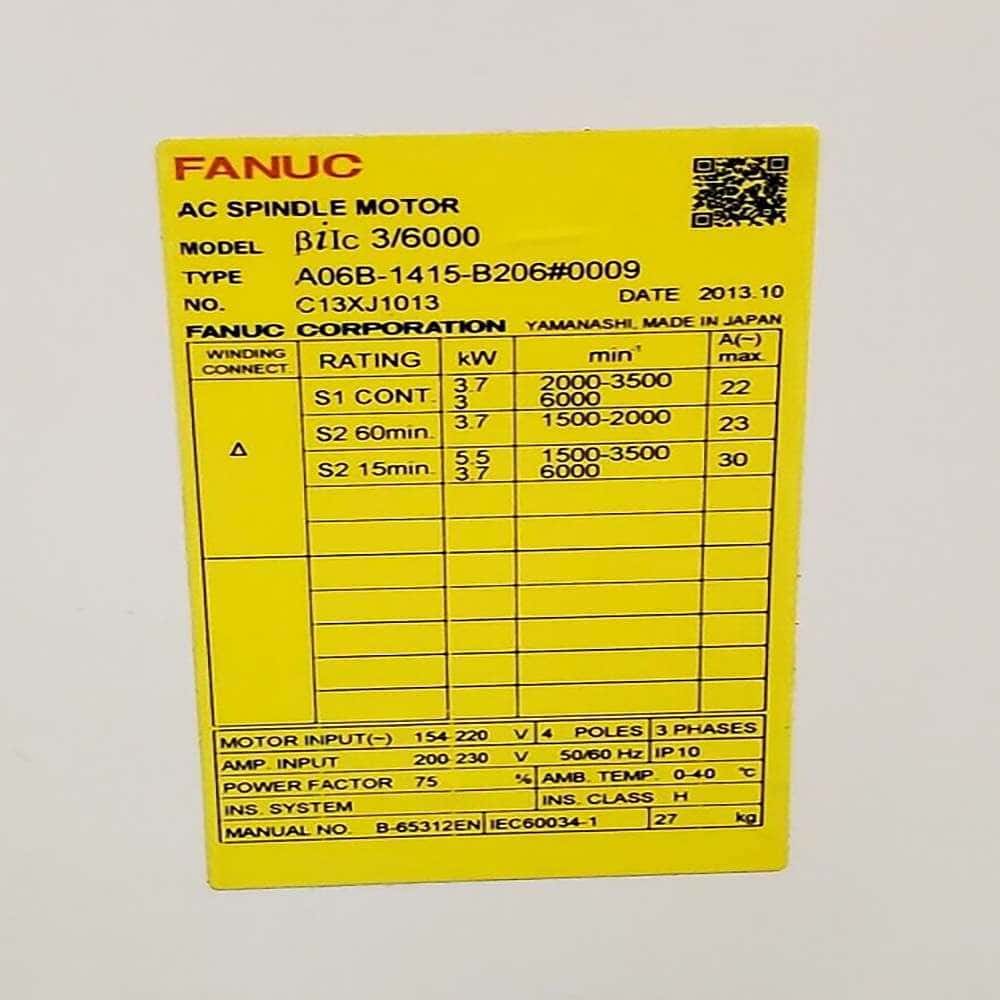

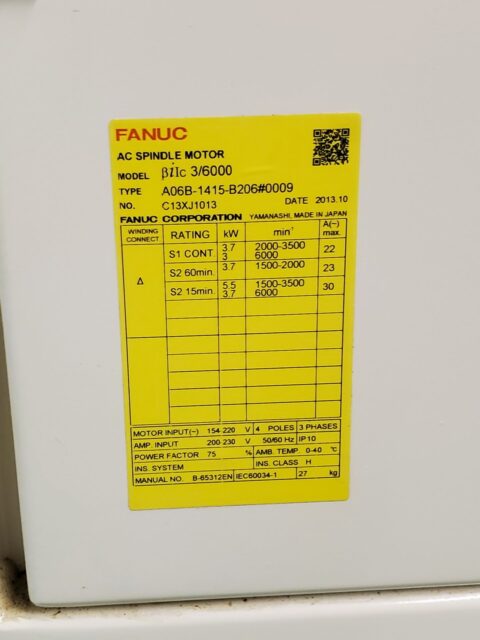

| Spindle Motor: 7.5 HP |
| X Axis Motor: 1.6 HP |
| Z Axis Motor: 1.6 HP |

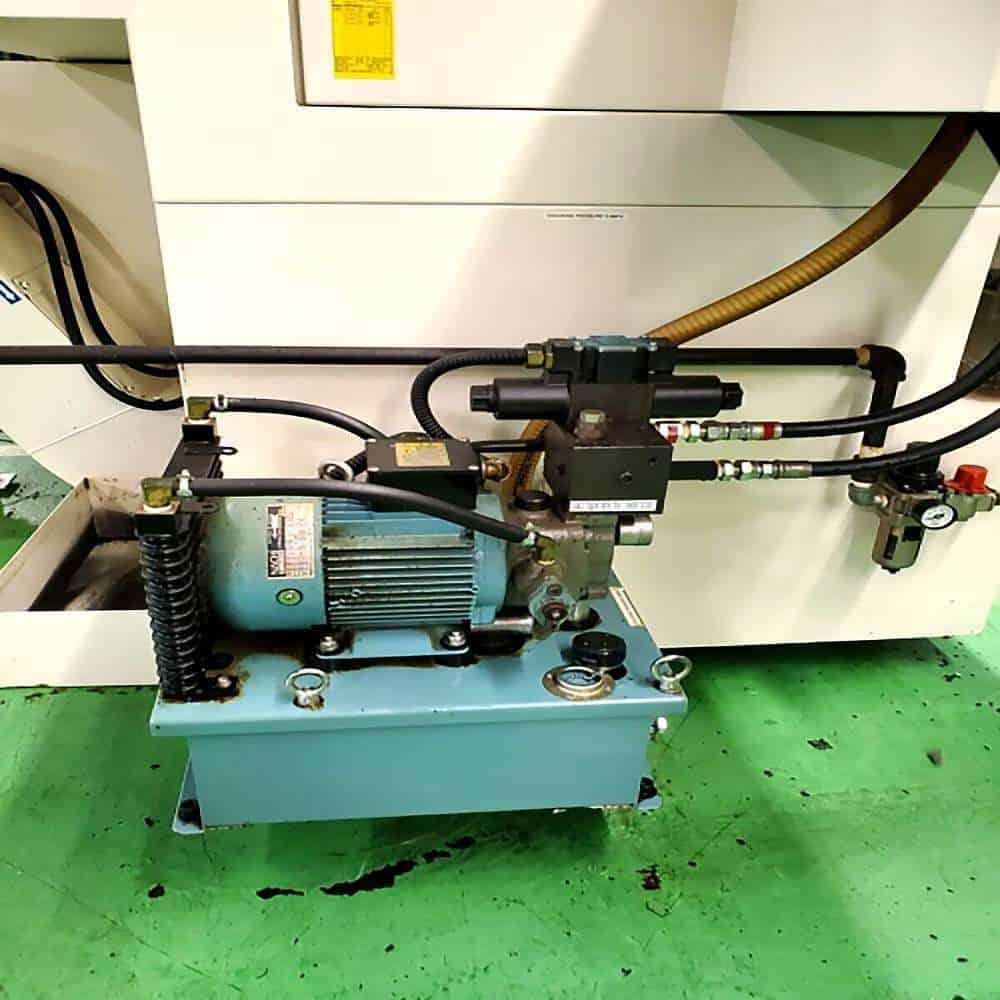

| Hydraulic Motor: 1 HP |
| General: |
| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power: 23 kva, 220v / 3-Phase |
| Overall Dimensions: 64″ x 61″ x 77″ High |
| Weight: 7000 lbs Approx. |
