Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

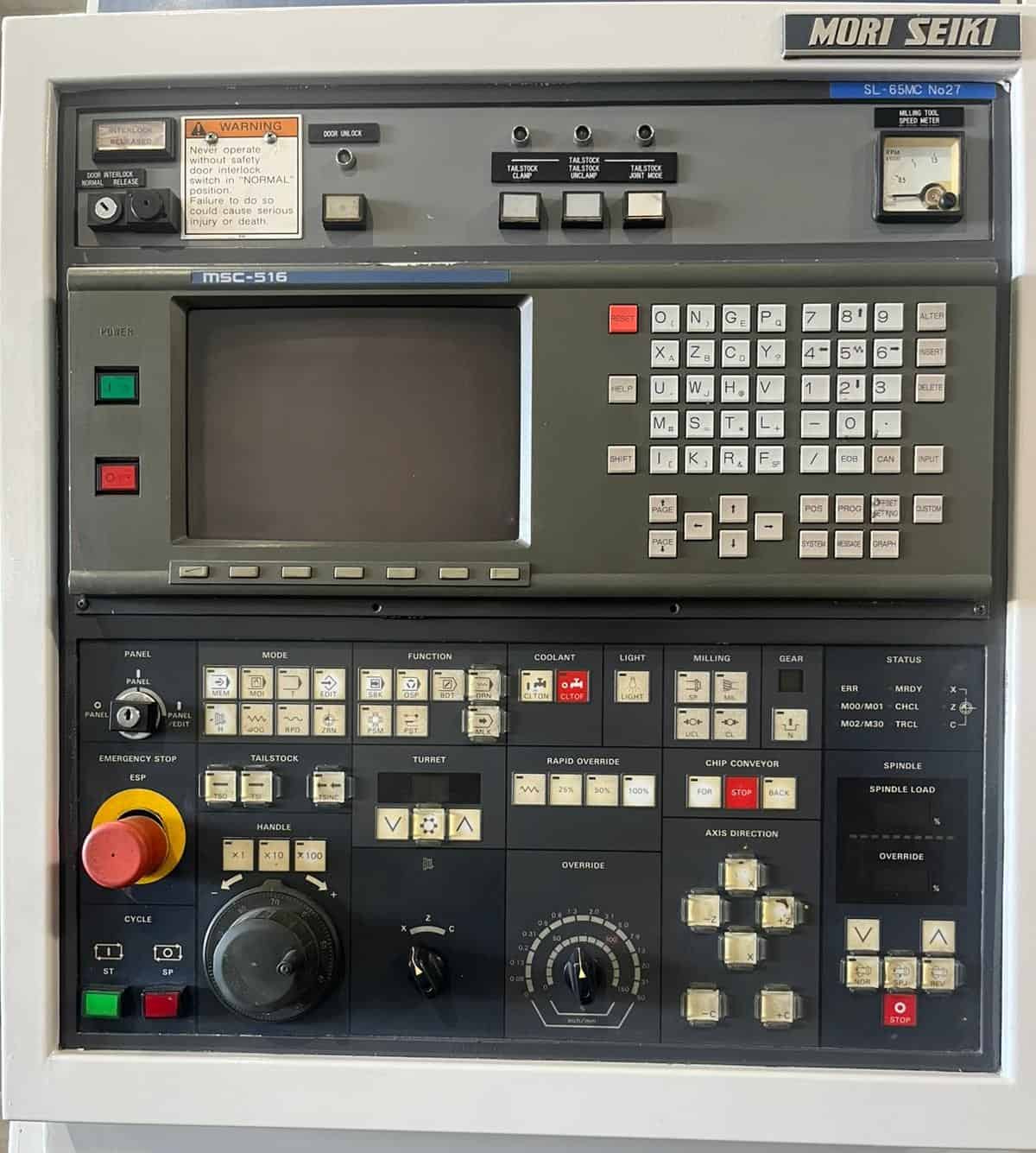

| Mori Seiki MSC-516 (Fanuc) CNC Control |

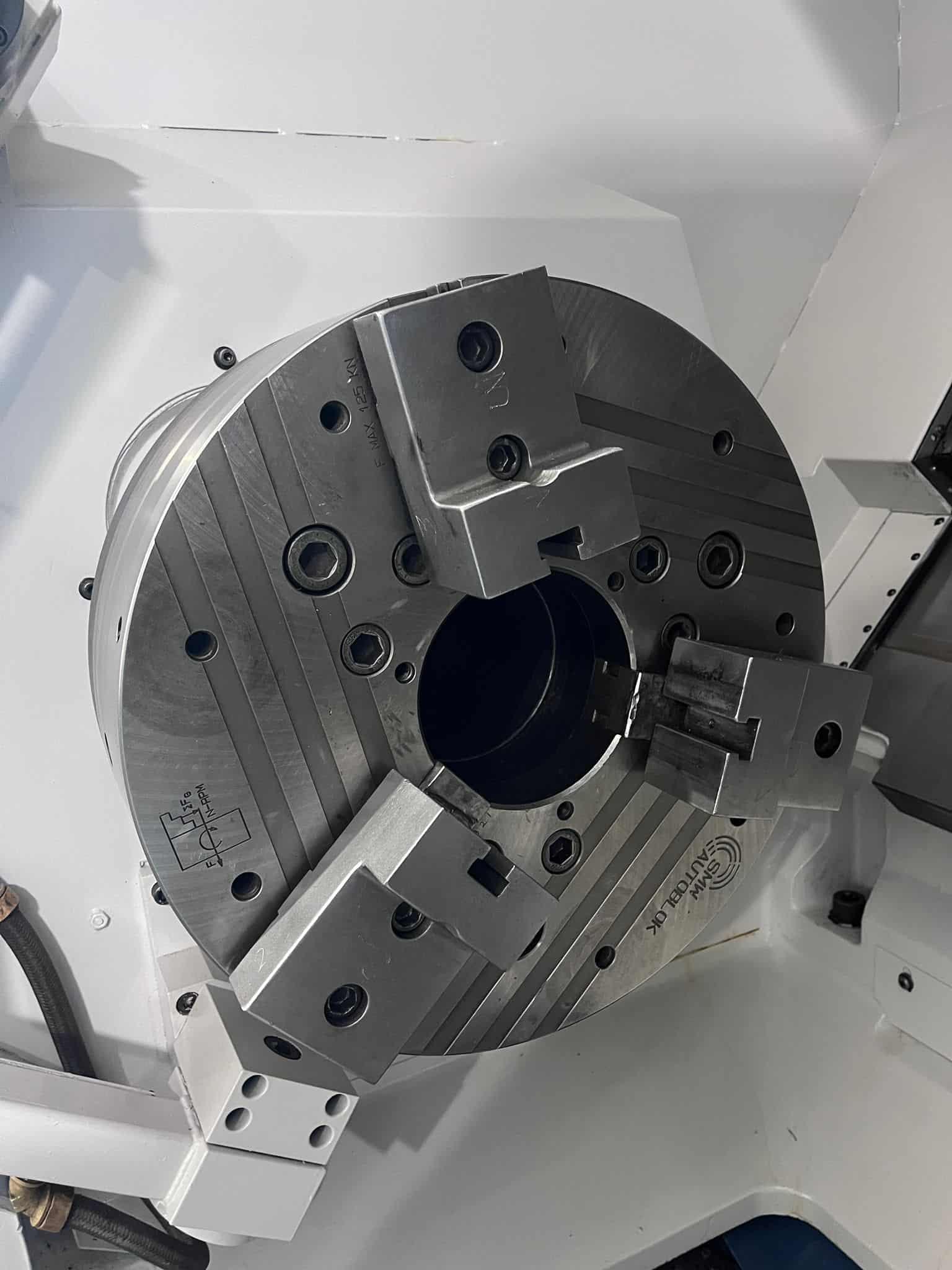

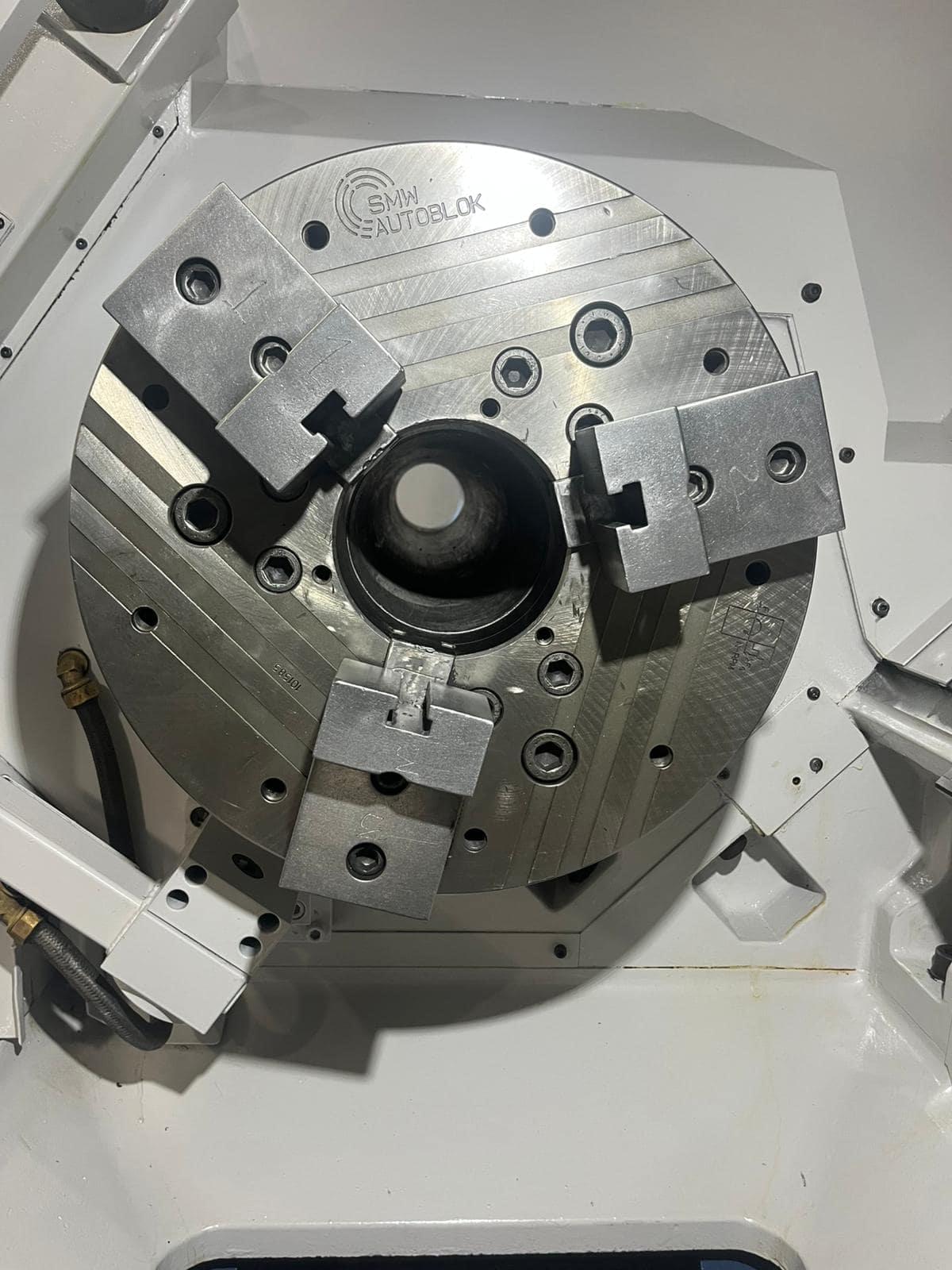

| 18″ 3-Jaw SMW Autoblock Chuck |

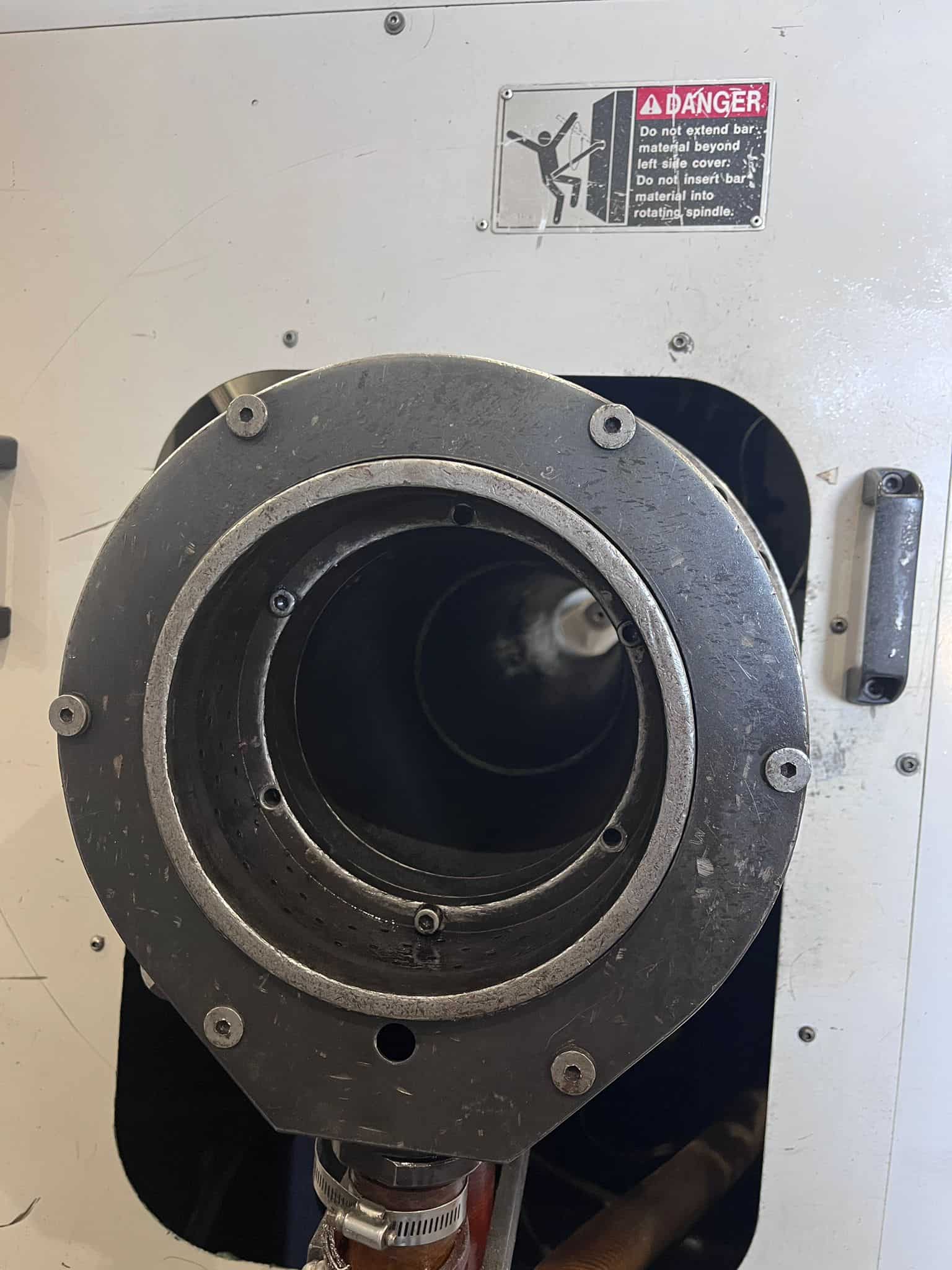

| 6.5″ Big Bore A2-11 Spindle |
| 50 HP 2 Speed Gear Head Spindle |
| Servo Controlled C Axis on Spindle |

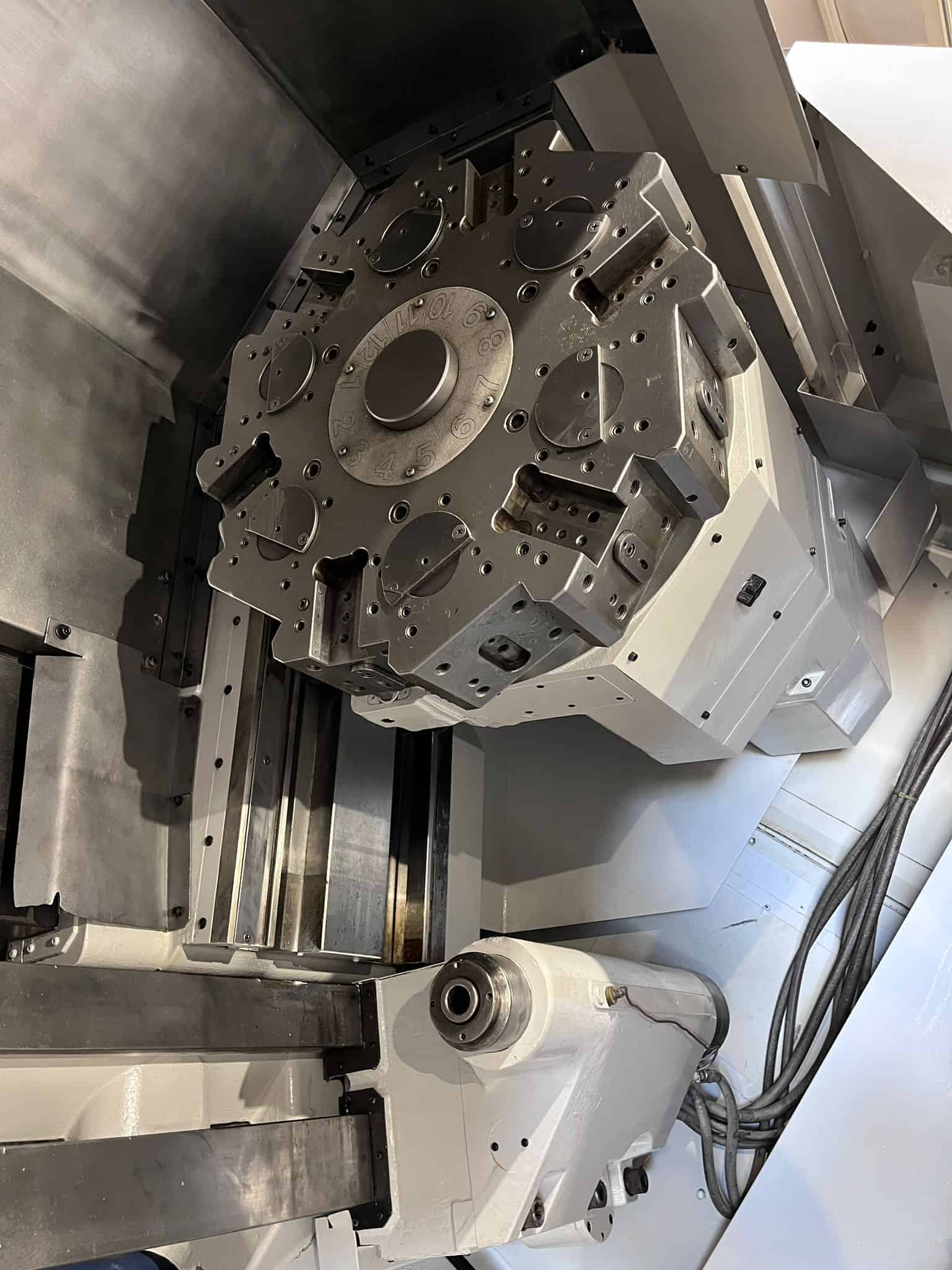

| 12 Station Live Tool Turret |

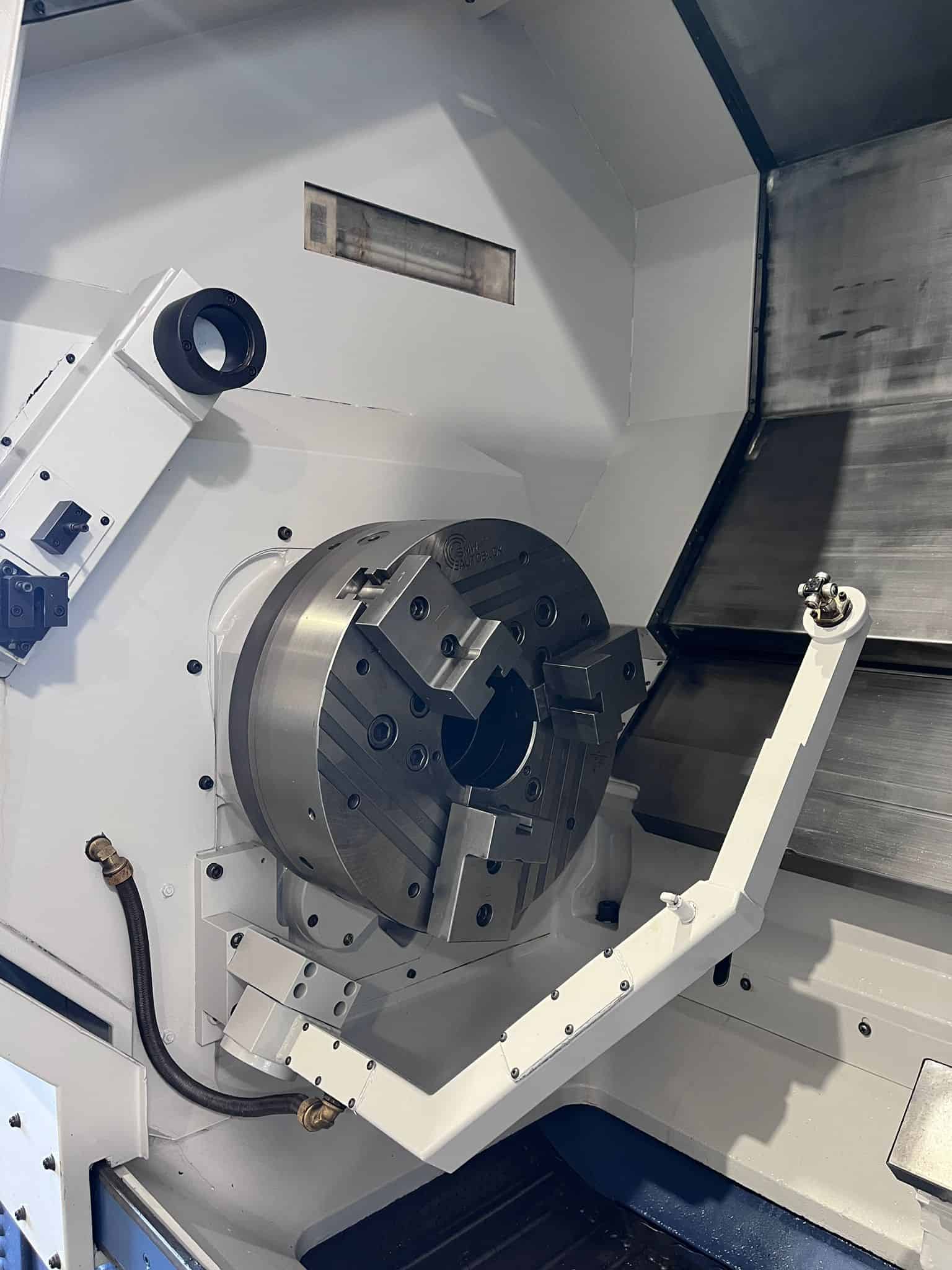

| Tool Presetter |
| Hydraulic Tailstock |
| Rigid Tapping |
| Coolant System |
| Chip Conveyor |
| Automatic Lubrication System |
| Foot Switch |

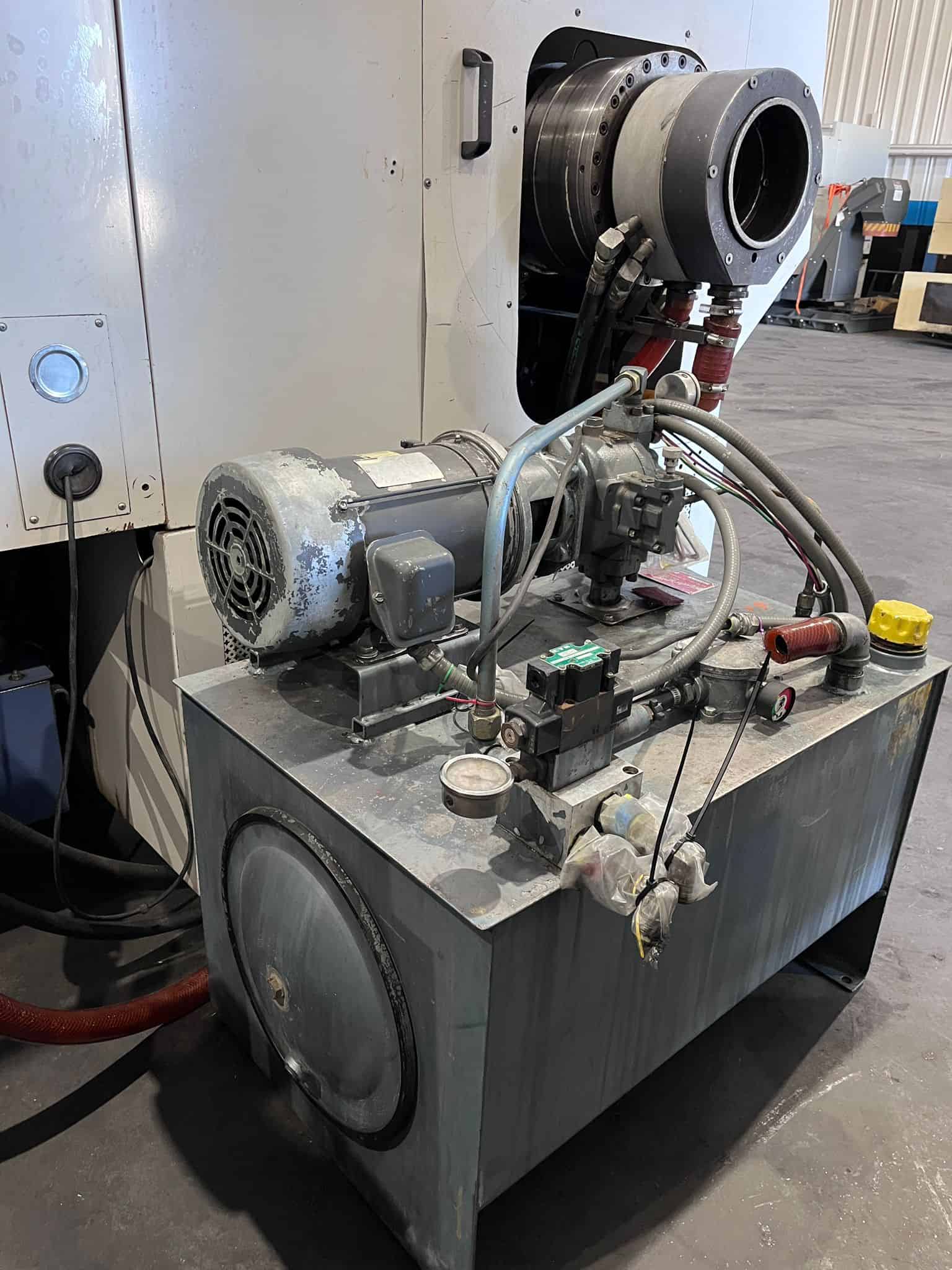

| Hydraulic Power Pack |
| Capacity: |
| Max Turning Diameter: 25.6″ |
| Max Turning Length: 33.9″ |
| Swing Over Bed: 35.0″ |
| Swing Over Carriage: 22.0″ |
| Max Bar Capacity: 6″ |
| Distance Between Centers: 35.4″ |
| Travels: |
| X Axis Travel: 13.8″ |
| Z Axis Travel: 33.9″ |
| C Axis: 360° (0.001°) |
| Feedrate: |
| Rapid Traverse X Axis: 196 IPM |
| Rapid Traverse Z Axis: 315 IPM |
| Spindle: |
| Spindle Nose: A2-11 |
| Spindle Bore: 6.5″ |
| Spindle Speed: 4-1010 RPM |
| Spindle Motor: 50 HP |
| Turret: |
| Turret Capacity: 12 Stations Live Tool |
| Turret Index Time: 1 Second |
| Tool Holders Type: BMT |
| Tailstock: |
| Tailstock Taper: MT-4 |
| Tailstock Quill Dia.: 4.3″ |
| Tailstock Quill Travel: 3.9″ |
| General: |

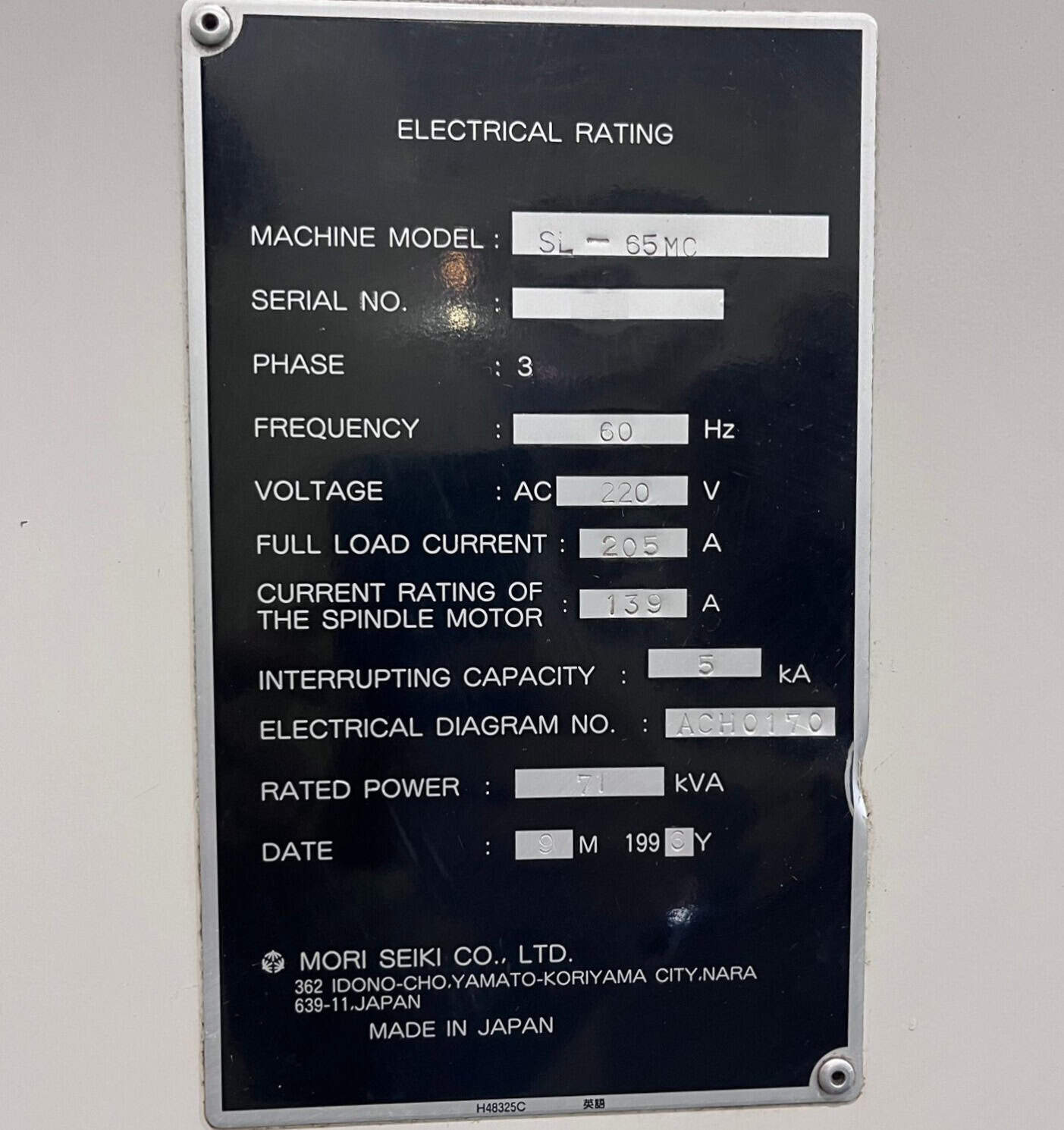

| Power: 220v / 3-Phase / 71 kva |
| Overall Dimensions: 160″ x 80″ x 98″ High Approx. |
| Weight: 20,000 lbs Approx. |
