Specifications and hours are approximate and for reference only. The machine comes as shown in the images, and accessories are included only if listed on the invoice. Please verify all details before purchase: call +91-97170 69696 or email sales@machinestation.in. All sales are final.
| Equipped With: |

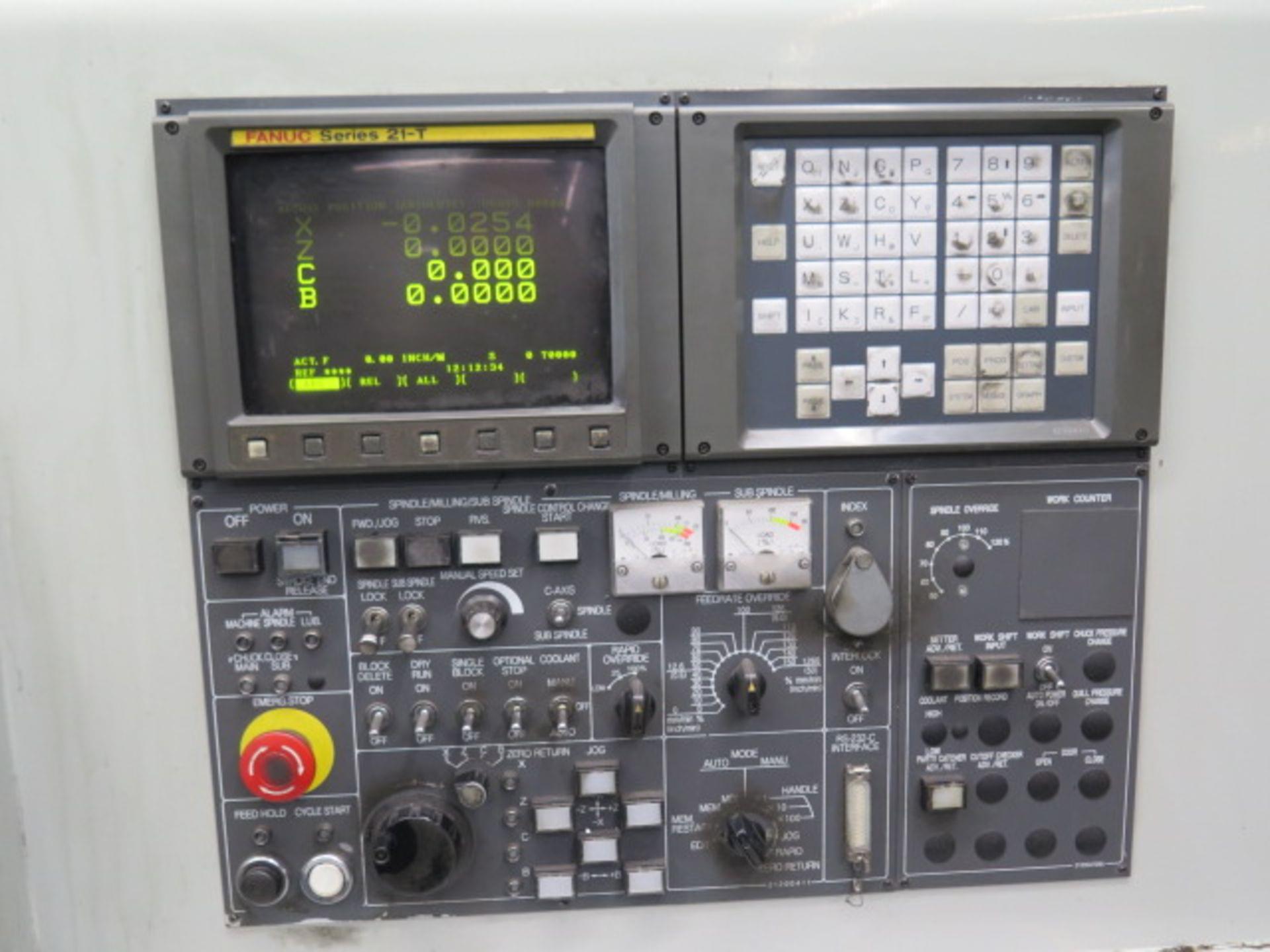

| Fanuc 21-T Series CNC Control |

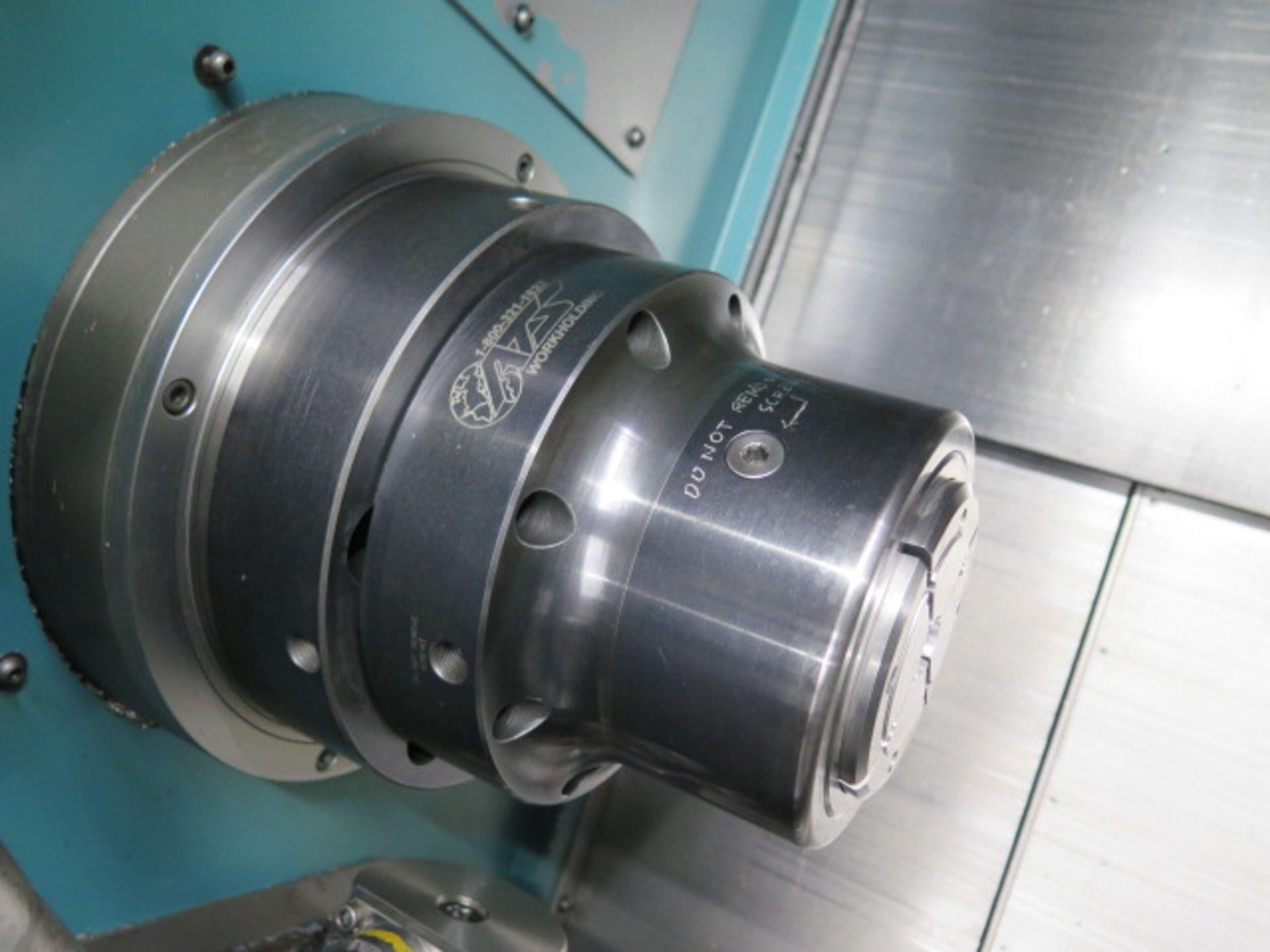

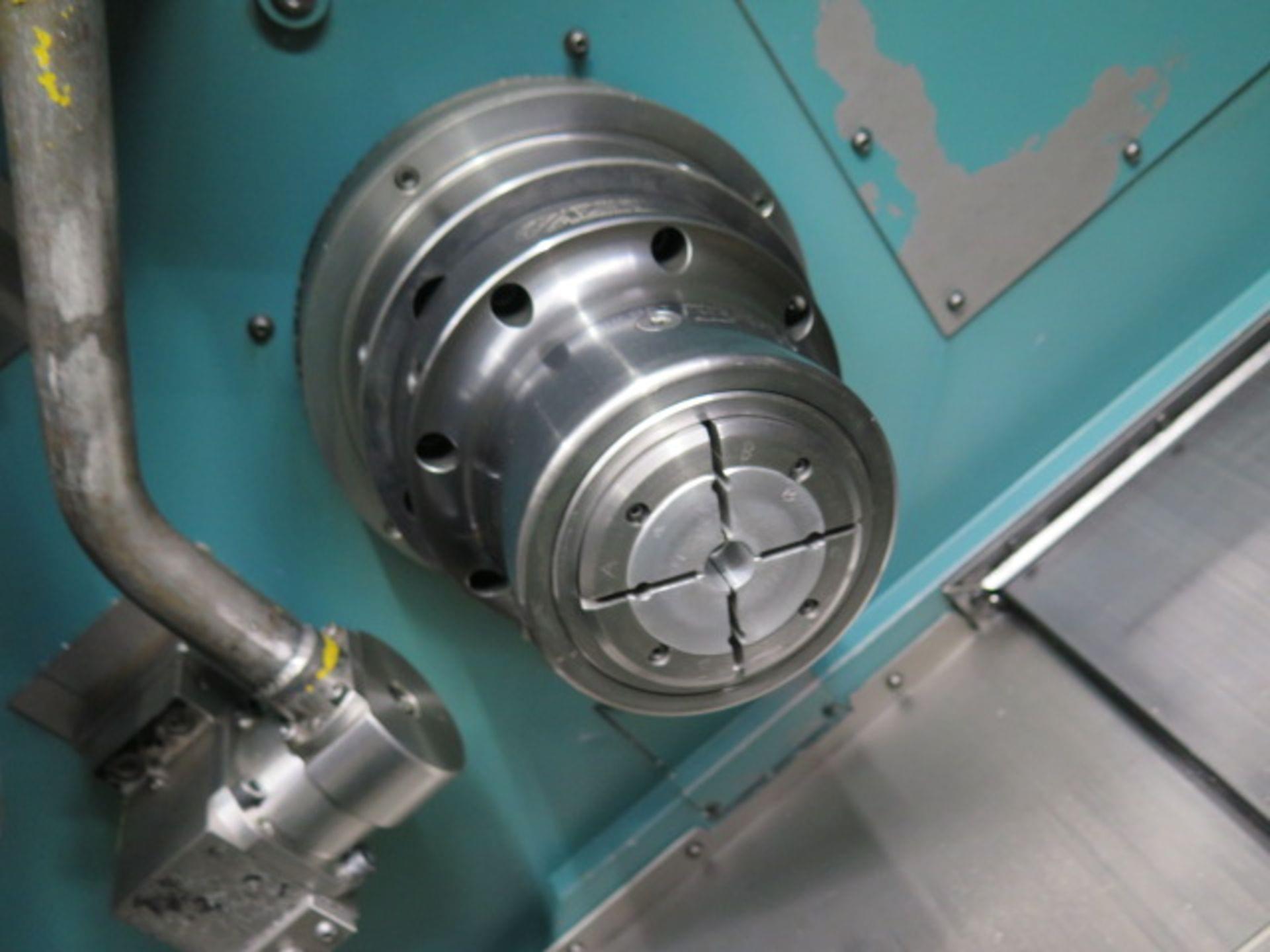

| ATS S26 Collet Chuck On Main Spindle (10″ Chuck Capable) |

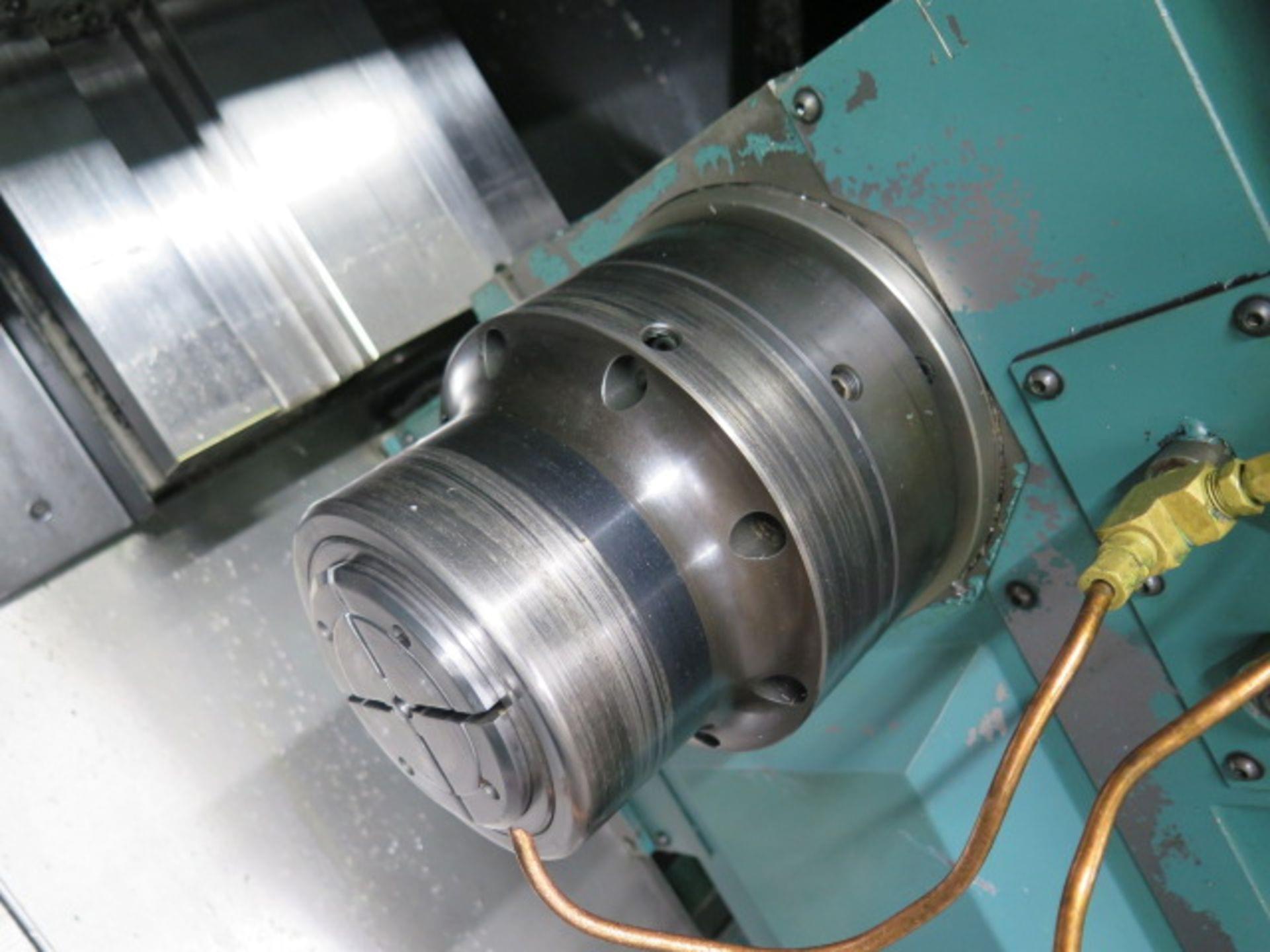

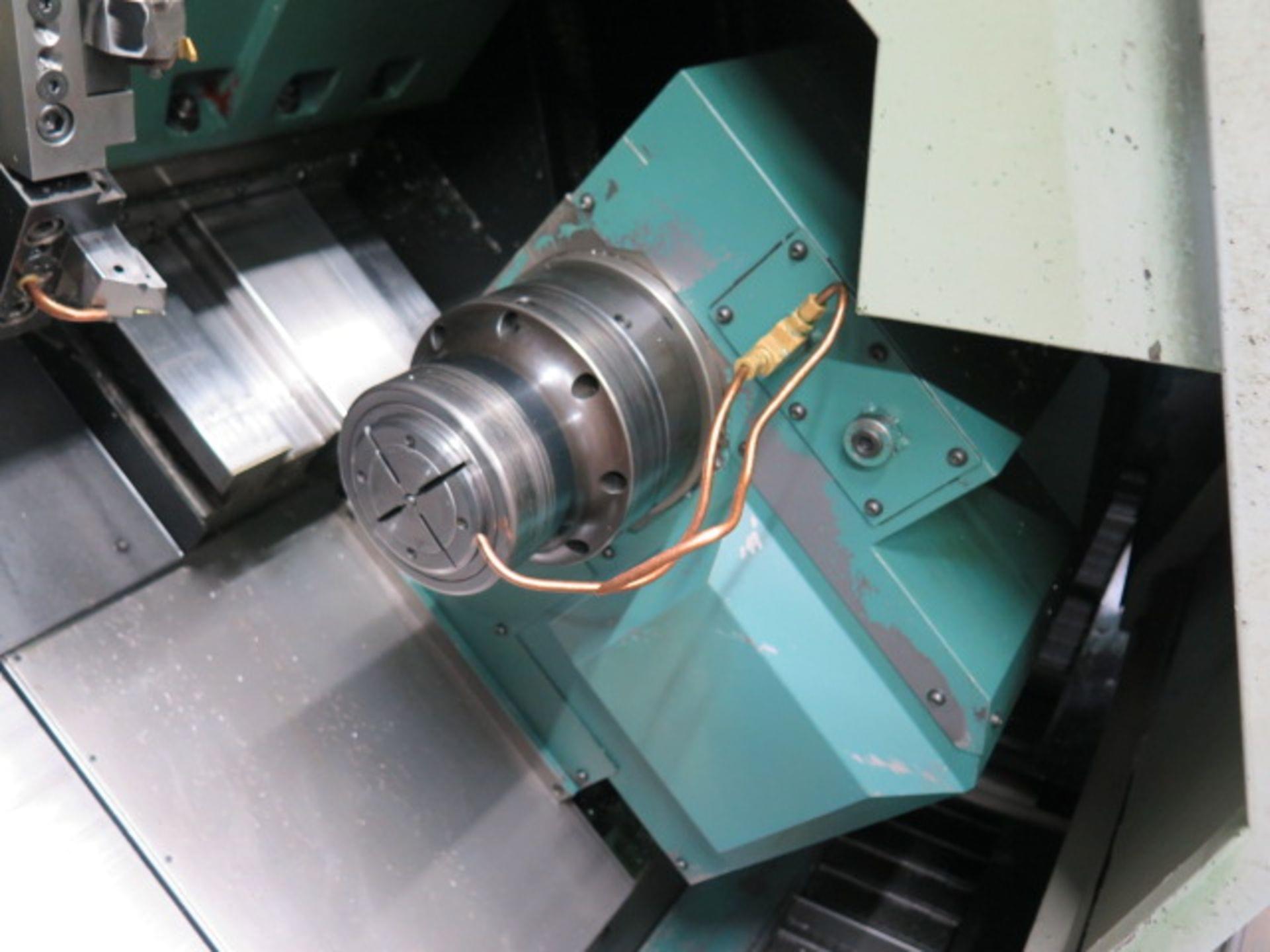

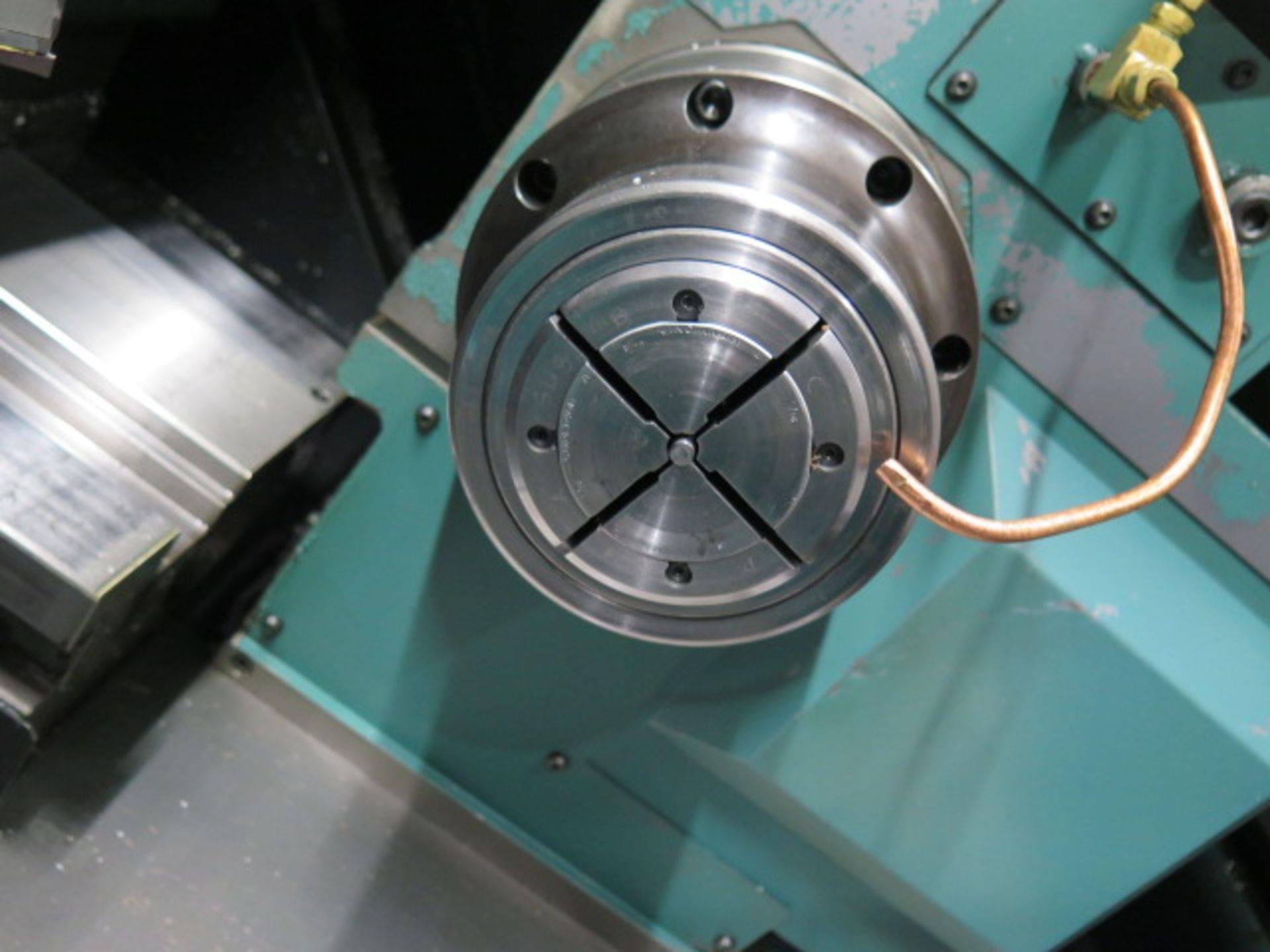

| ATS S26 Collet Chuck On Sub Spindle (8″ Chuck Capable) |

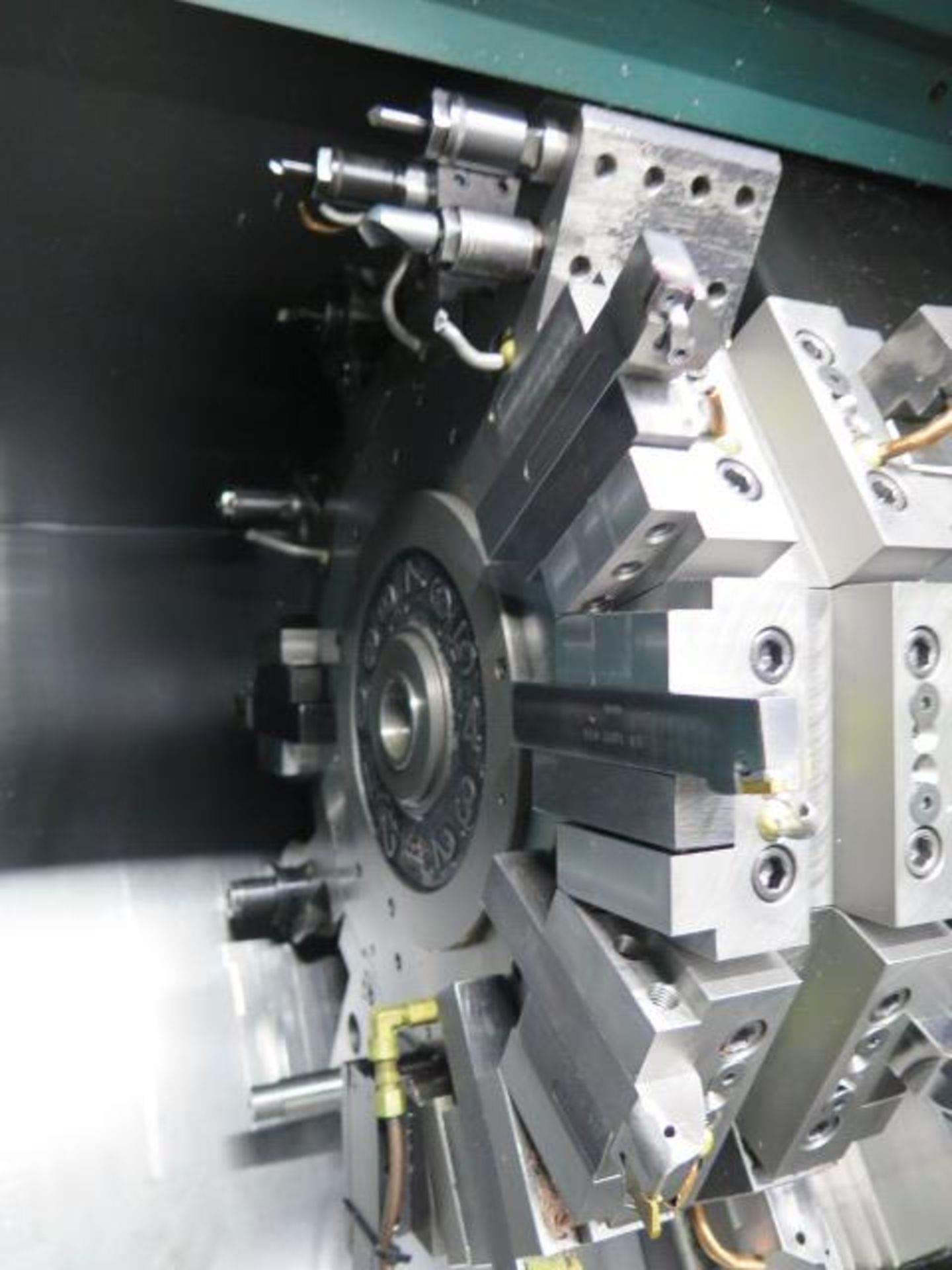

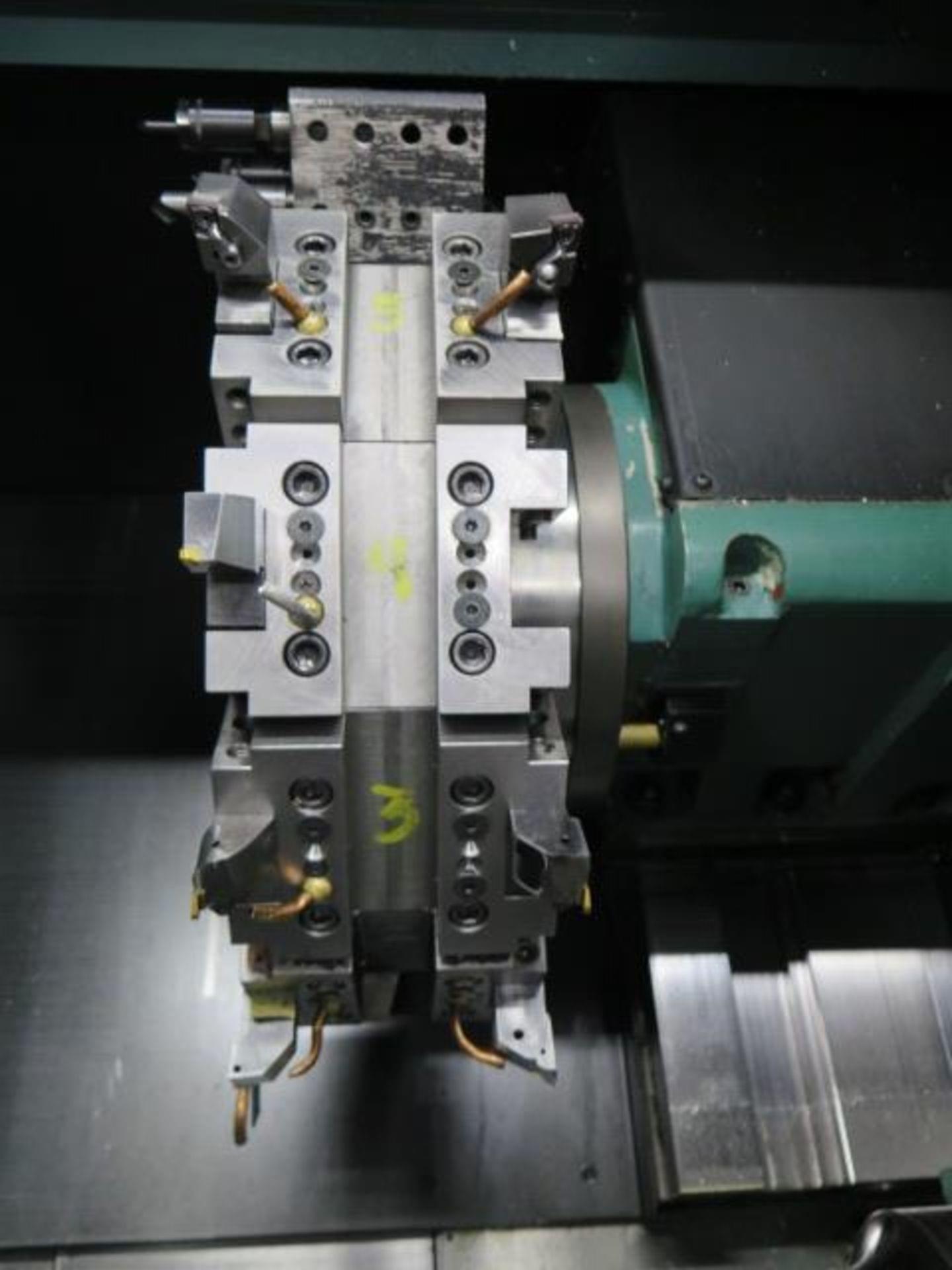

| 12-Station Double Sided Live Tool Turret |
| C Axis Live Tool |
| Sub Spindle |

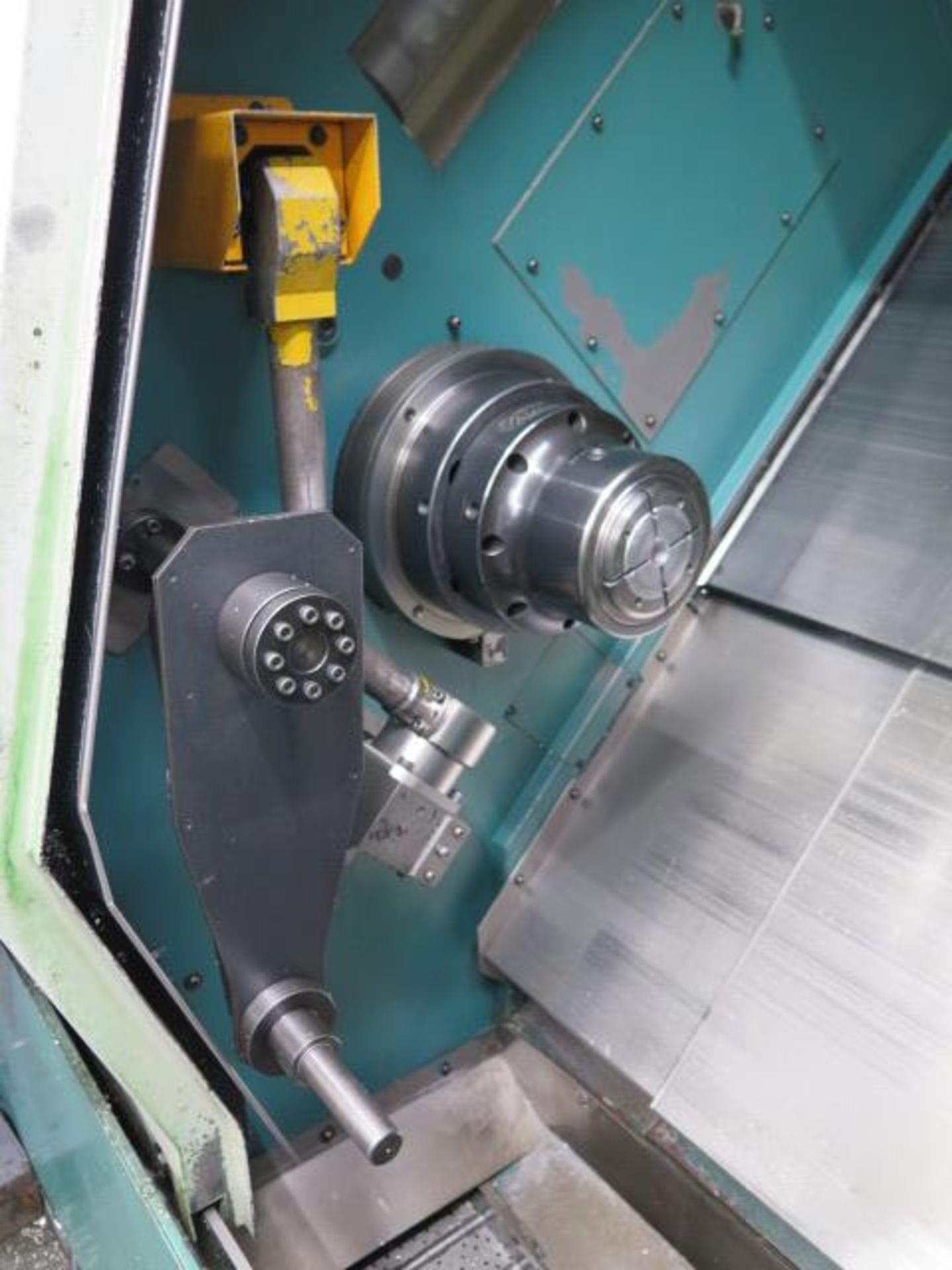

| Tool Presetter |
| Bar Feeder Interface |
| Coolant Tank |

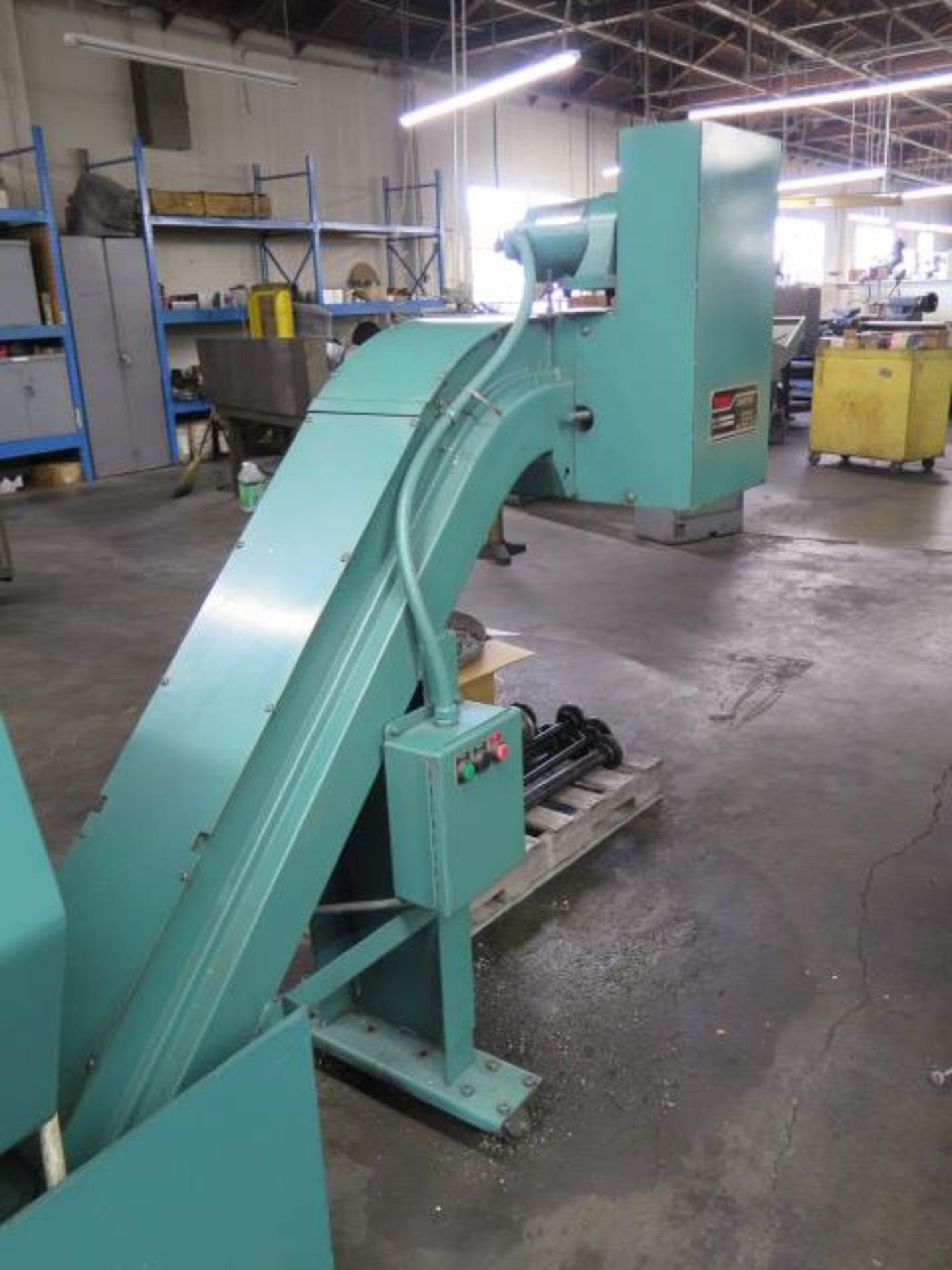

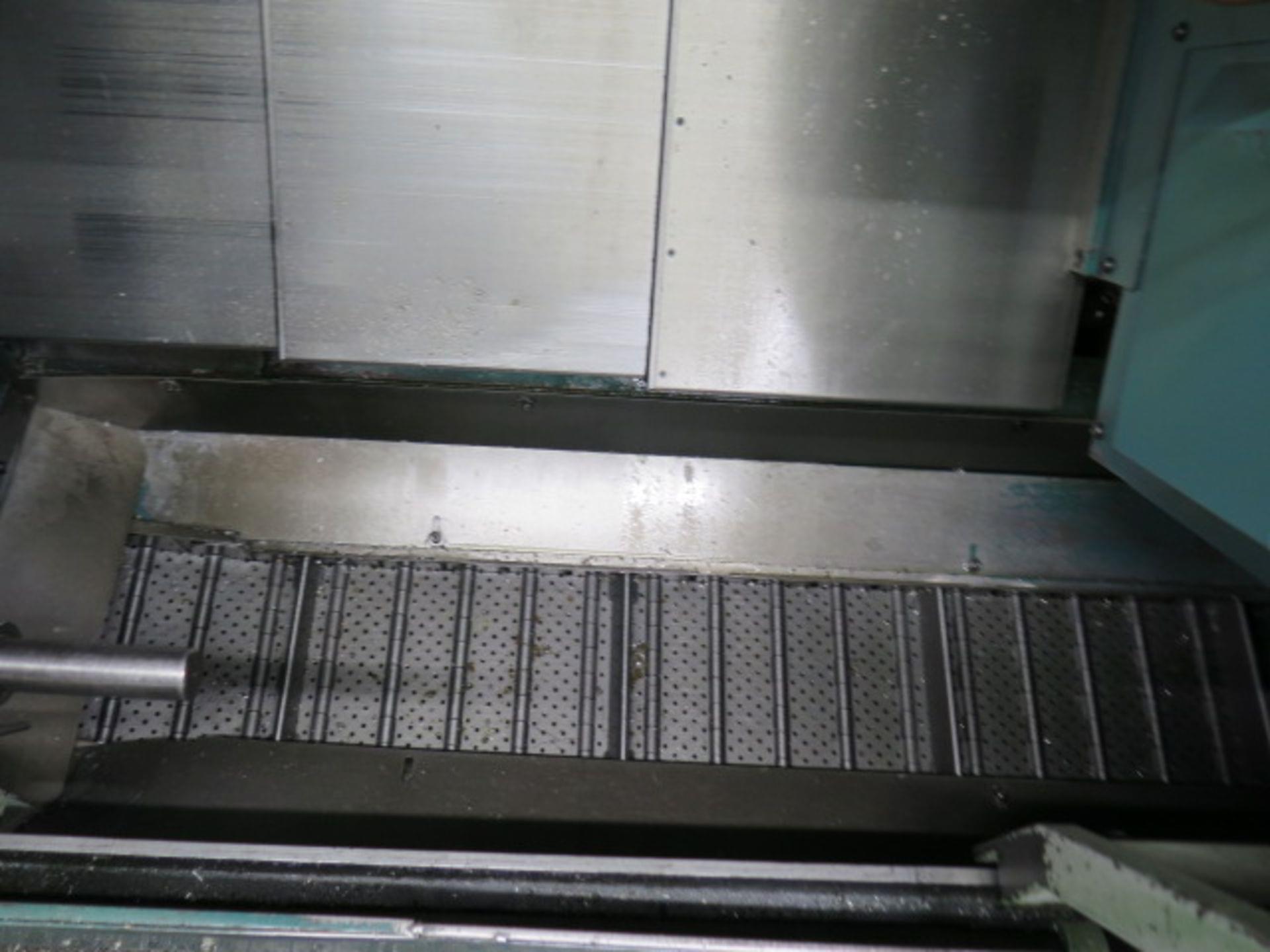

| Chip Conveyor |

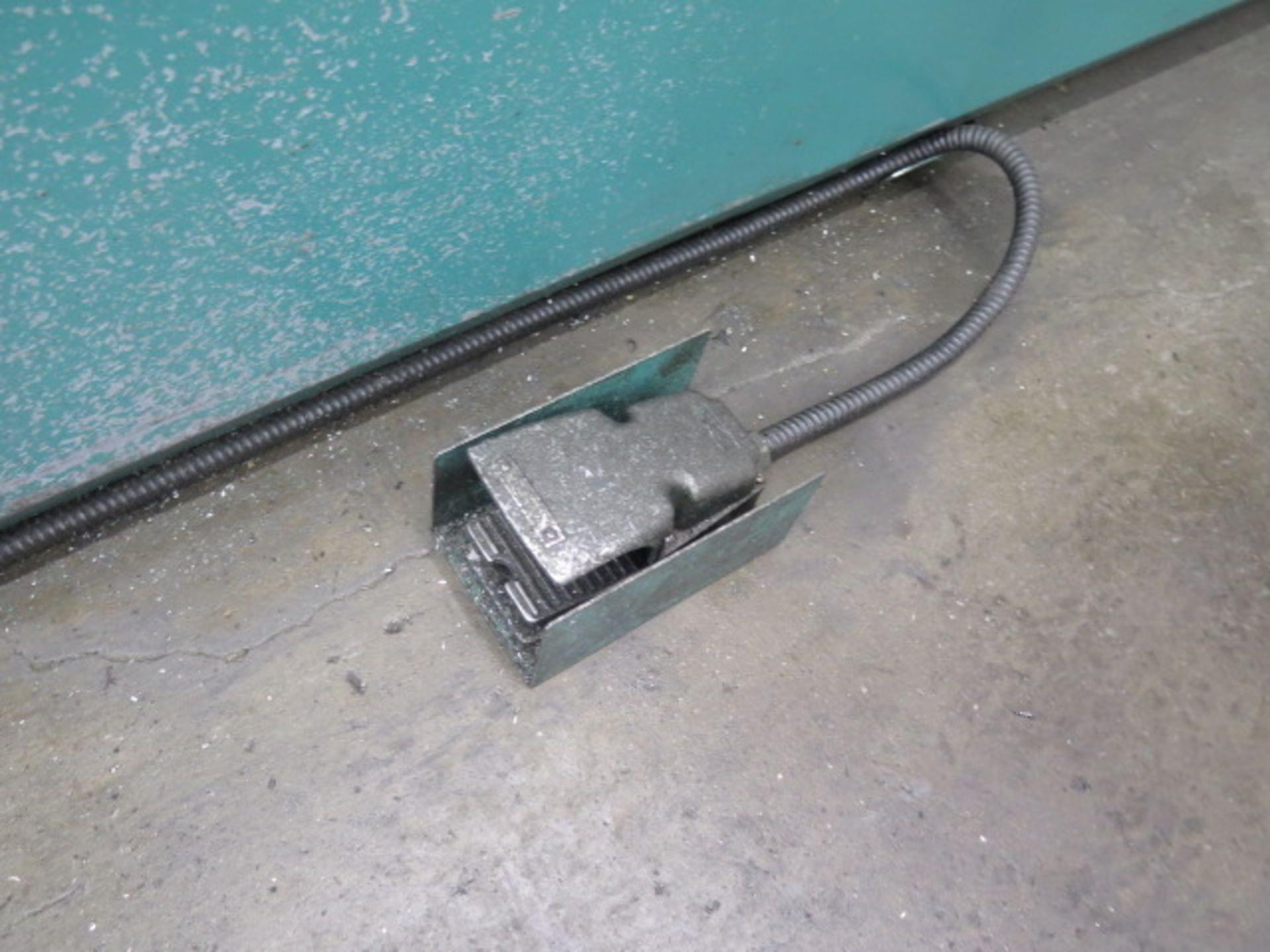

| Foot Pedal |
| Capacity: |
| Max Turning Diameter: 13.77″ |
| Max Turning Length: 23.62″ |
| Max Bar Capacity: 2.79″ |
| Distance Between Spindles: 31.88″ |
| Travels: |
| X Axis Travel : 8.87″ |
| Z Axis Travel: 25.00″ |
| B Axis Travel (Sub Spindle): 19.68″ |
| C Axis: 360 Degree |
| X Axis Rapid Traverse Rate: 787.40″ Per Minute |
| Z Axis Rapid Traverse Rate: 1181.10″ Per Minute |
| B Axis Rapid Traverse Rate: 708.66″ Per Minute |
| Main Spindle: |
| Spindle Nose: A2-8 |
| Spindle Bore: 3.34″ |
| Spindle Speed: 3,500 RPM |
| Spindle Motor: 29.5 HP |
| Sub Spindle: |
| Spindle Nose: A2-5 |
| Spindle Bore: 2.44″ |
| Spindle Speed: 3,500 RPM |
| Spindle Motor: 14.75 HP |

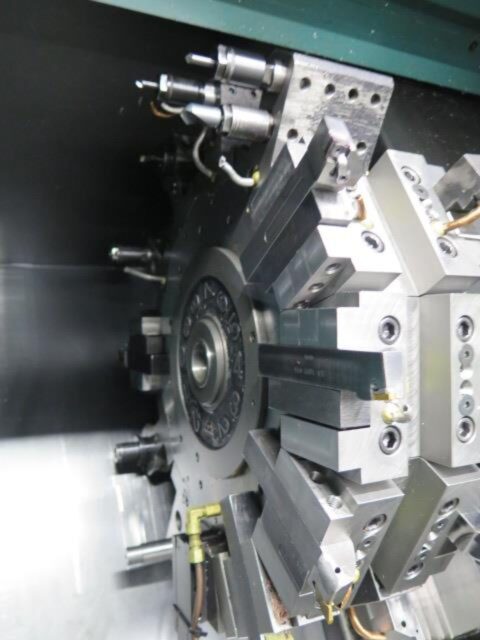

| Turret: |
| Turret Capacity: 12 Stations Double Sided |
| Turret Type: Dodecagonal Turret |
| Live Tool Speed: 3,600 RPM |
| Live Tool Motor: 7.37 HP |
| General: |
| Power Requirement: 220v / 60 Hz / 3-Phase / 43 kVA |
| Machine Dimensions: 126.06″ x 68.31″ x 76.77″ Approx. |
| Machine Weight: 10,141 Lbs Approx. |
