*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

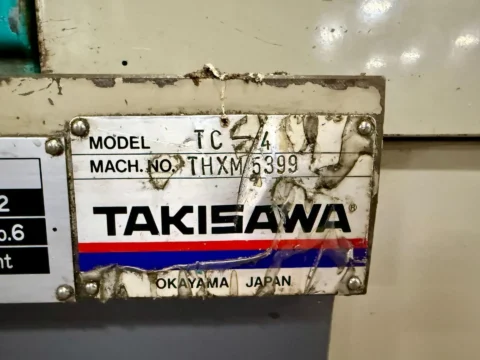

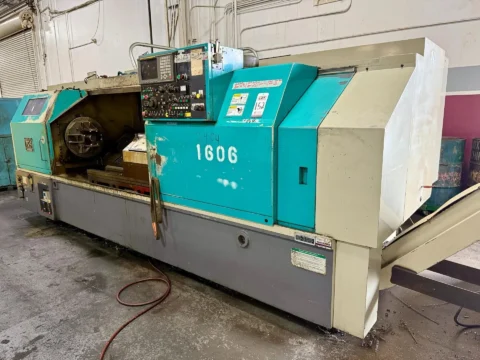

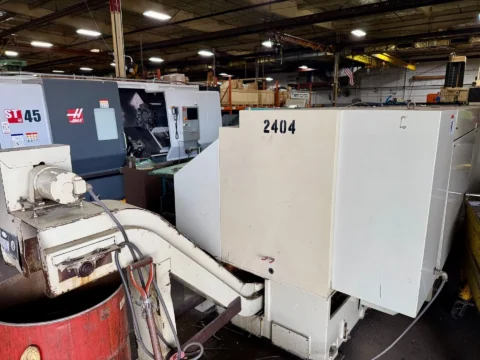

| Make: | Takisawa |

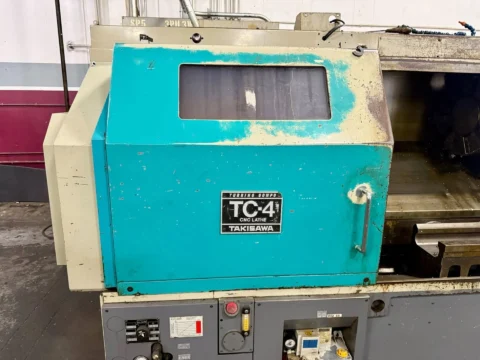

| Model: | TC-4 |
| Condition: | Used – Good |
| Equipped With: |
|---|

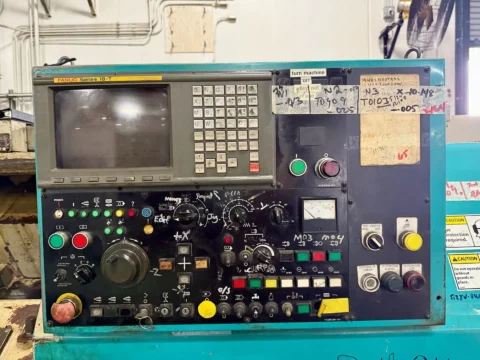

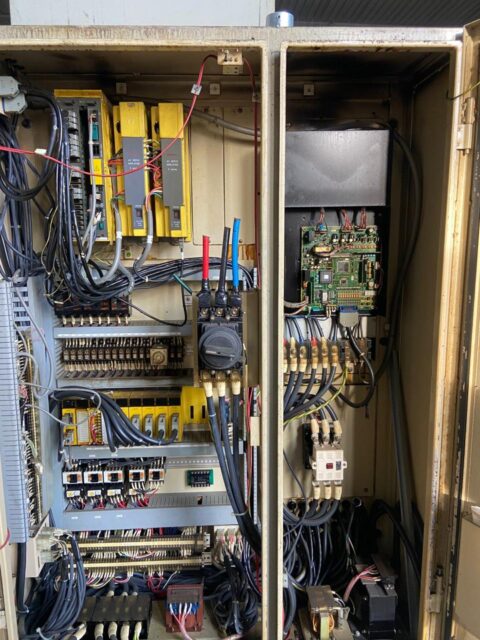

| Fanuc 18-T Series CNC Control |
| Heavy Duty Box Guideways Construction |

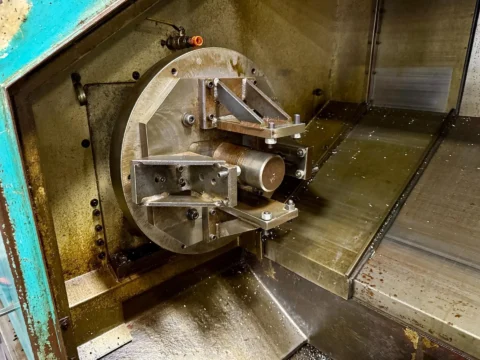

| 400 mm Fixture Plate Mounted on Spindle (300 mm – 375 mm Chuck Capable) |

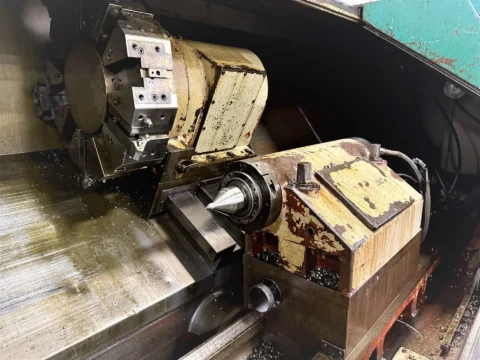

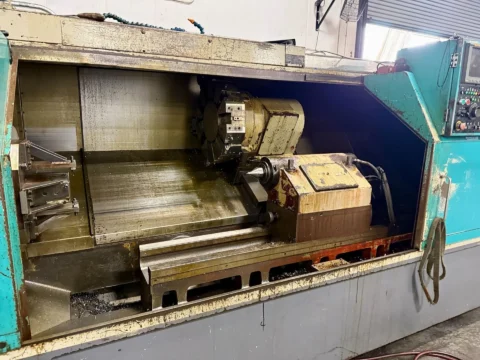

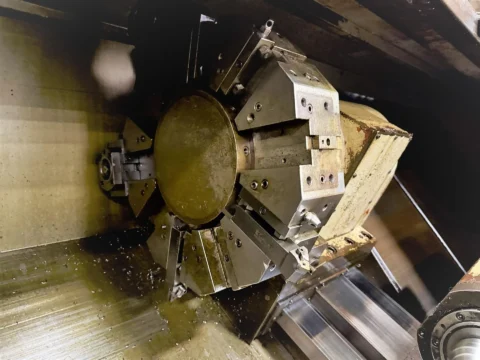

| 10 Station Automatic Turret |
| A2-11 Gear Head Spindle |
| 2500 RPM Spindle |
| 104 mm Spindle Bore |
| Tailstock |
| Rigid Tapping |
| Automatic Lubrication System |
| Coolant System |
| Chip Conveyor |
| Capacity: |
|---|
| Max Turning Diameter : 450 mm |
| Max Swing Over Bed : 600 mm |
| Max Turning Length: 2000 mm |
| Max Bar Capacity : 89 mm |
| Distance Between Centers : 2000 mm |
| Travels: |
|---|
| X Axis Travel : 250 mm |
| Z Axis Travel : 2020 mm |
| X Axis Rapid Traverse Rate : 12000 mm/min |
| Z Axis Rapid Traverse Rate : 16000 mm/min |
| Spindle: |
|---|
| Spindle Nose: A2-11 |
| Spindle Bore: 104 mm |
| Spindle Speed: 20 – 2500 RPM |
| Spindle Motor: 26 kW |
| Turret: |
|---|
| Capacity: 10 Station |
| Tool Holders Type: Bolt Mounted |
| Tailstock: |
|---|
| Tailstock Taper: MT-5 |
| General: |
|---|
| Power: 220v / 3-phase / 60 Hz |
| Machine Diemensions: 4,940 mm x 2331 mm x 2,190 mm High |
| Machine Weight: 9,000 kg |
